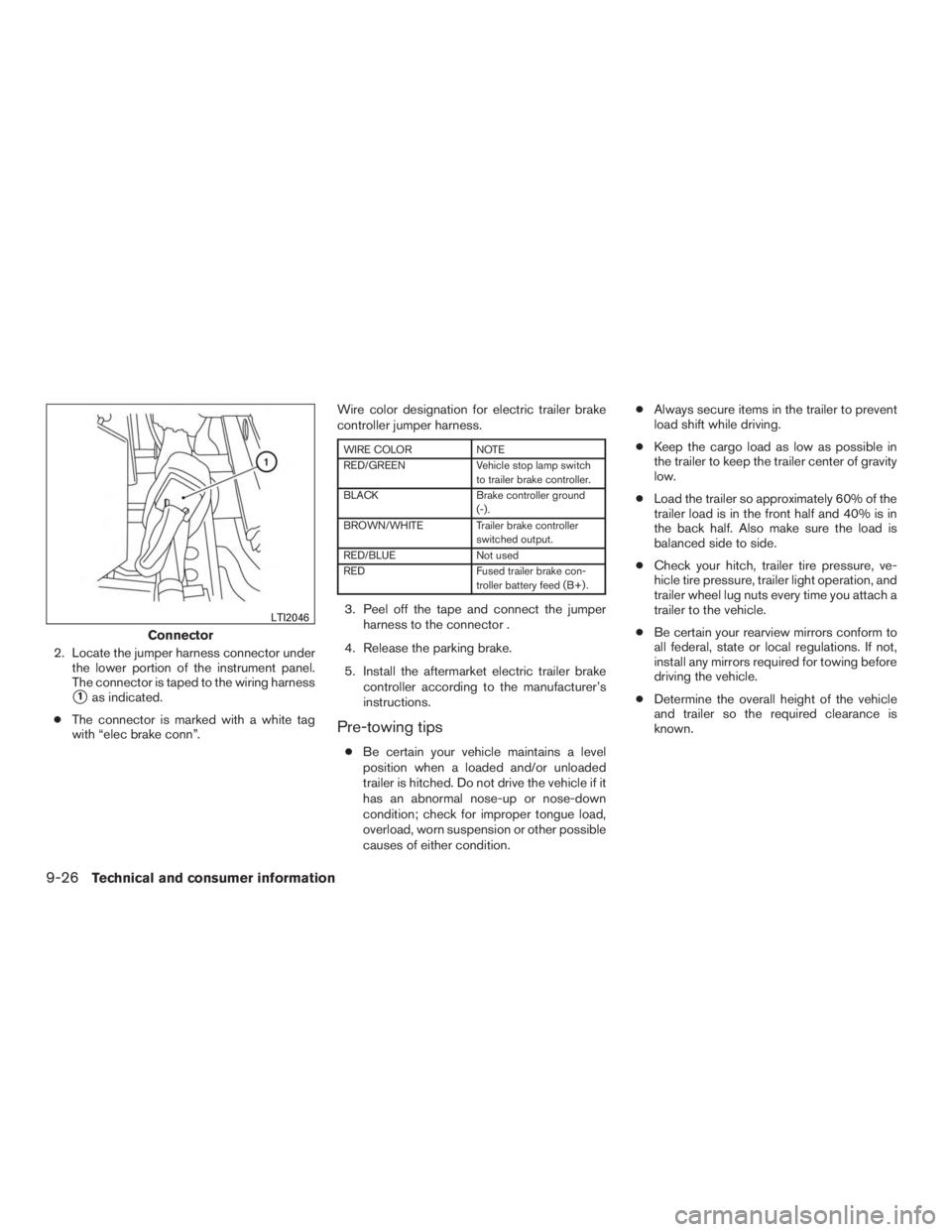

2. Locate the jumper harness connector underthe lower portion of the instrument panel.
The connector is taped to the wiring harness
1as indicated.
● The connector is marked with a white tag
with “elec brake conn”. Wire color designation for electric trailer brake
controller jumper harness.
WIRE COLOR
NOTE
RED/GREEN Vehicle stop lamp switch
to trailer brake controller.
BLACK Brake controller ground
(-) .
BROWN/WHITE Trailer brake controller switched output.
RED/BLUE Not used
RED Fused trailer brake con-
troller battery feed (B+) .
3. Peel off the tape and connect the jumper
harness to the connector .
4. Release the parking brake.
5. Install the aftermarket electric trailer brake controller according to the manufacturer’s
instructions.
Pre-towing tips
●Be certain your vehicle maintains a level
position when a loaded and/or unloaded
trailer is hitched. Do not drive the vehicle if it
has an abnormal nose-up or nose-down
condition; check for improper tongue load,
overload, worn suspension or other possible
causes of either condition. ●
Always secure items in the trailer to prevent
load shift while driving.
● Keep the cargo load as low as possible in
the trailer to keep the trailer center of gravity
low.
● Load the trailer so approximately 60% of the
trailer load is in the front half and 40% is in
the back half. Also make sure the load is
balanced side to side.
● Check your hitch, trailer tire pressure, ve-
hicle tire pressure, trailer light operation, and
trailer wheel lug nuts every time you attach a
trailer to the vehicle.
● Be certain your rearview mirrors conform to
all federal, state or local regulations. If not,
install any mirrors required for towing before
driving the vehicle.
● Determine the overall height of the vehicle
and trailer so the required clearance is
known.
Connector
LTI2046
9-26Technical and consumer information

Trailer towing tips
In order to gain skill and an understanding of the
vehicle’s behavior, you should practice turning,
stopping and backing up in an area which is free
from traffic. Steering stability and braking perfor-
mance will be somewhat different than under
normal driving conditions.● Always secure items in the trailer to prevent
load shift while driving.
● Lock the trailer hitch coupler with a pin or
lock to prevent the coupler from inadver-
tently becoming unlatched.
● Avoid abrupt starts, acceleration or stops.
● Avoid sharp turns or lane changes.
● Always drive your vehicle at a moderate
speed.
● When backing up, hold the bottom of the
steering wheel with one hand. Move your
hand in the direction in which you want the
trailer to go. Make small corrections and
back up slowly. If possible, have someone
guide you when you are backing up.
Always block the wheels on both vehicle and
trailer when parking. Parking on a slope is not
recommended; however, if you must do so:
CAUTION
If you move the shift selector to the P
(Park) position before blocking the
wheels and applying the parking brake,
transmission damage could occur.
1. Apply and hold the brake pedal.
2. Have someone place blocks on the downhill side of the vehicle and trailer wheels.
3. After the wheel blocks are in place, slowly release the brake pedal until the blocks ab-
sorb the vehicle load.
4. Apply the parking brake.
5. Shift the transmission into P (Park) .
6. Turn off the engine.
To drive away: 1. Start the vehicle.
2. Apply and hold the brake pedal.
3. Shift the transmission into gear.
4. Release the parking brake.
5. Drive slowly until the vehicle and trailer are clear from the blocks.
6. Apply and hold the brake pedal.
7. Have someone retrieve and store the blocks. ●
While going downhill, the weight of the
trailer pushing on the tow vehicle may de-
crease overall stability. Therefore, to main-
tain adequate control, reduce your speed
and shift to a lower gear. Avoid long or
repeated use of the brakes when descend-
ing a hill, as this reduces their effectiveness
and could cause overheating. Shifting to a
lower gear instead provides “engine brak-
ing” and reduces the need to brake as fre-
quently.
● If the engine coolant temperature rises to a
high temperature, refer to “If your vehicle
overheats” in the “In case of emergency”
section of this owner’s manual.
● Trailer towing requires more fuel than normal
circumstances.
● Avoid towing a trailer for your vehicle’s first
500 miles (805 km) .
● For the first 500 miles (805 km) that you do
tow, do not drive over 50 MPH (80 km/h).
● Have your vehicle serviced more often than
at intervals specified in the recommended
Maintenance Schedule in the “INFINITI Ser-
vice and Maintenance Guide”.
Technical and consumer information9-27

●When making a turn, your trailer wheels will
be closer to the inside of the turn than your
vehicle wheels. To compensate for this,
make a larger than normal turning radius
during the turn.
● Crosswinds and rough roads will adversely
affect vehicle/trailer handling, possibly caus-
ing vehicle sway. When being passed by
larger vehicles, be prepared for possible
changes in crosswinds that could affect ve-
hicle handling.
Do the following if the trailer begins to sway: 1. Take your foot off the accelerator pedal to allow the vehicle to coast and steer as
straight ahead as the road conditions allow.
This combination will help stabilize the ve-
hicle
– Do not correct trailer sway by steering or applying the brakes.
2. When the trailer sway stops, gently apply the brakes and pull to the side of the road in a
safe area.
3. Try to rearrange the trailer load so it is bal- anced as described in this section. ●
Be careful when passing other vehicles.
Passing while towing a trailer requires con-
siderably more distance than normal pass-
ing. Remember, the length of the trailer must
also pass the other vehicle before you can
safely change lanes.
● Downshift the transmission to a lower gear
for engine braking when driving down steep
or long hills. This will help slow the vehicle
without applying the brakes.
● Avoid holding the brake pedal down too long
or too frequently. This could cause the
brakes to overheat, resulting in reduced
braking efficiency.
● Increase your following distance to allow for
greater stopping distances while towing a
trailer. Anticipate stops and brake gradually.
● INFINITI recommends that the cruise control
not be used while towing a trailer.
● Some states or provinces have specific
regulations and speed limits for vehicles that
are towing trailers. Obey the local speed
limits. ●
Check your hitch, trailer wiring harness con-
nections, and trailer wheel lug nuts after
50 miles (80 km) of travel and at every break.
● When launching a boat, don’t allow the wa-
ter level to go over the exhaust tail pipe or
rear bumper.
● Make sure you disconnect the trailer lights
before backing the trailer into the water or
the trailer lights may burn out.
When towing a trailer, final drive gear oil
should be replaced and transmission
oil/fluid should be changed more fre-
quently. For additional information, refer to
the “Maintenance and do-it-yourself” sec-
tion in this manual.
FLAT TOWING
Towing your vehicle with all four wheels on the
ground is sometimes called flat towing. This
method is sometimes used when towing a vehicle
behind a recreational vehicle, such as a motor
home.
9-28Technical and consumer information

CAUTION
●Failure to follow these guidelines can
result in severe transmission damage.
● Whenever flat towing your vehicle, al-
ways tow forward, never backward.
● DO NOT tow any continuously variable
transmission vehicle with all four
wheels on the ground (flat towing) . Do-
ing so WILL DAMAGE internal transmis-
sion parts due to lack of transmission
lubrication.
● For emergency towing procedures refer
to “Towing recommended by INFINITI”
in the “In case of emergency” section of
this manual.
Continuously Variable Transmission
(CVT)
To tow a vehicle equipped with a CVT, an appro-
priate vehicle dolly MUSTbe placed under the
towed vehicle’s drive wheels. Alwaysfollow the
dolly manufacturer’s recommendations when us-
ing their product. DOT (Department of Transportation) Quality
Grades: All passenger car tires must conform to
federal safety requirements in addition to these
grades.
Quality grades can be found where applicable on
the tire sidewall between tread shoulder and
maximum section width. For example:
Treadwear 200 Traction AA Temperature A
Treadwear
The treadwear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified gov-
ernment test course. For example, a tire graded
150 would wear one and one-half (1 1/2) times
as well on the government course as a tire graded
100. The relative performance of tires depends
upon the actual conditions of their use, however,
and may depart significantly from the norm due to
variations in driving habits, service practices and
differences in road characteristics and climate.
Traction AA, A, B and C
The traction grades, from highest to lowest, are
AA, A, B, and C. Those grades represent the
tire’s ability to stop on wet pavement as mea-
sured under controlled conditions on specified
government test surfaces of asphalt and con-
crete. A tire marked C may have poor traction
performance.
WARNING
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics.
Temperature A, B and C
The temperature grades are A (the highest) , B,
and C, representing the tire’s resistance to the
generation of heat, and its ability to dissipate heat
when tested under controlled conditions on a
specified indoor laboratory test wheel. Sustained
high temperature can cause the material of the
tire to degenerate and reduce tire life, and exces-
sive temperature can lead to sudden tire failure.
The grade C corresponds to a level of perfor-
mance which all passenger car tires must meet
under the Federal Motor Safety Standard No.
109. Grades B and A represent higher levels of
performance on the laboratory test wheel than
the minimum required by law.
UNIFORM TIRE QUALITY GRADING
Technical and consumer information9-29

Seat beltChildsafety..................1-23
Infantsandsmallchildren..........1-24
Injured Person ................1-18
Largerchildren................1-24
Precautionsonseatbeltusage.......1-15
Pregnant women ...............1-18
Pre-tensioner seat belt system .......1-65
Seat belt extenders .............1-22
Seat belt maintenance ............1-23
Seat belts ...................1-15
Three-point type with retractor .......1-19
Seat belt extenders ...............1-22
Seatbeltwarninglight..........1-18,2-13
Seats 2nd row bench seat adjustment ....1-5,1-7
Adjustment ...................1-2
Armrests....................1-8
Automatic drive positioner ..........3-33
Frontseats...................1-2
Heatedseats..........2-41,2-42,2-43
Security indicator light ..............2-15
Security system (INFINITI vehicle immobilizer system) ,
enginestart..............2-30,5-15
Security systems Vehicle security system ...........2-29
Self-adjusting brakes ..............8-21
Service manual order form ...........9-33
Servicing air conditioner .............4-49
Spark plug replacement .............8-18
Spark plugs ...................8-18
Specifications ...................9-8
Speedometer ...................2-5
SRS warning label ................1-66
Stability control .................5-99 Starting
Before starting the engine ..........5-16
Jump starting .................6-11
Precautions when starting and driving ....5-4
Push starting .................6-14
Starting the engine .............5-16
Starting the engine ...............5-16
Steering Heated steering wheel ...........2-45
Power steering fluid .............8-14
Power steering system ...........5-97
Steering wheel audio control switch ......4-92
Stoplight.....................8-27
Storage......................2-50
Storagebin....................2-55
Sunglassescase.................2-51
Sunglassesholder................2-51
Sunroof(seeMoonroof).............2-59
Sun visors ....................3-30
Supplemental air bag warning labels ......1-66
Supplemental air bag warning light . . .1-66, 2-13
Supplemental front impact air bag system . . .1-55
Supplemental restraint system Information and warning labels .......1-66
Precautions on supplemental restraint
system ....................1-48
Supplemental restraint system
(Supplemental air bag system) .........1-48
Switch Autolightswitch...............2-37
Automatic power window switch ......2-58
Foglightswitch ...............2-40
Hazard warning flasher switch ........6-2
Headlightaimingcontrol ..........2-38
Headlight and turn signal switch ......2-35
Headlight control switch ..........2-36 Instrument brightness control
........2-39
Power door lock switch ............3-6
Power inverter switch ............2-45
Rearwindowdefrosterswitch .......2-35
Rear window wiper and washer
switches ...................2-34
Steering wheel switch for audio
control/Bluetooth® Hands-Free Phone
System ....................
4-

92
Tow mode switch ..............2-47
Turnsignalswitch..............2-39
Vehicle dynamic control (VDC) off switch .2-46
Windshield wiper and washer switch . . .2-32
T
Tachometer ....................2-6
Temperature gauge Engine coolant temperature gauge .....2-6
Theft (INFINITI vehicle immobilizer system) ,
engine start ..............2-30,5-15
Three-way catalyst ................5-4
Tire Flat tire .....................6-3
Spare tire ................6-5,8-41
Tire and Loading Information label .....9-12
Tire chains ..................8-38
Tire placard ..................9-12
Tire pressure .................8-31
Tire rotation..................8-38
Types of tires .................8-37
Uniform tire quality grading .........9-29
Wheels and tires ...............8-31
Wheel/tire size .................9-9
10-6

Tire pressureLow tire pressure warning light .......2-10
Tire Pressure Monitoring System (TPMS) ....5-5
Top tether strap child restraint .........1-29
Towing Flattowing..................9-28
Towing load/specification ..........9-22
Towtrucktowing...............6-15
Trailer towing .................9-18
Towing a trailer ..................9-18
Tow mode switch ................2-47
Transceiver HomeLink® Universal
Transceiver .......2-64,2-65,2-66,2-67
Transmission Continuously Variable Transmission (CVT)
fluid......................8-13
Driving with Continuously Variable
Transmission (CVT) .............5-17
Travel (See registering your vehicle in another
country) ......................9-10
Trip odometer ...................2-5
Turn signal switch ................2-39
U
Uniform tire quality grading ...........9-29
USB interface ...............4-77,4-79
Audio file operation ..........4-78,4-79
Video file operation .............4-81
V
Vanity mirror ...................3-30 Vehicle dimensions and weights
.........9-9
Vehicle does not start ..............6-10
Vehicle dynamic control (VDC) off switch . . .2-46
Vehicle dynamic control (VDC) system .....5-99
Vehicle Dynamic Control (VDC) system ....5-99
Vehicle identification ...............9-10
Vehicle identification number (VIN) .......9-10
Vehicle identification number (VIN)
(Chassis number) ................9-10
Vehicle identification number (VIN) plate ....9-10
Vehicle immobilizer system ...........5-15
Vehicle loading information ...........9-14
Vehicle recovery ..............6-17,6-18
Vehicle security system .............2-29
(INFINITI vehicle immobilizer system) ,
engine start ..............2-30,5-15
Ventilators ....................4-41
Visors.......................3-30
Voice Prompt Interrupt ........4-111, 4-123
Voice recognition system ...........4-134
W
Warning Airbagwarninglight.........1-66,2-13
Anti-lock brake warning light .........2-9
Battery charge warning light .........2-9
Blind Spot Intervention (BSI) warning
light......................5-32
Brake warning light ..............2-9
Distance Control Assist (DCA) .......5-74
Engine oil pressure warning light ......2-10
Hazard warning flasher switch ........6-2
Lane Departure Prevention .........5-25
Lane Departure Warning light ........5-25Loose fuel cap warning
...........2-29
Low fuel warning light .....2-10,2-12,2-27
Low tire pressure warning light .......2-10
Low windshield-washer fluid warning
light ..................2-12,2-28
Passenger air bag and status light .....1-57
Seat belt warning light ........1-18,2-13
Supplemental air bag warning
light ..................1-66,2-13
V ehicle security

system...........2-29
Warning/indicator lights and audible
reminders ...................2-8
Warning labels (for SRS) ..........1-66
Warning/indicator lights and audible
reminders .....................2-8 Audiblereminders...............2-8
Indicatorlights.................2-8
Warning lights .................2-8
Warning lights ...................2-8
Washer switch Rear window wiper and washer
switches...................2-34
Windshield wiper and washer switch . . .2-32
Weights (See dimensions and weights) .....9-9
Wheels and tires .................8-31
Wheel/tire size ...................9-9
When traveling or registering your vehicle in
another country .................9-10
Windows Locking passengers’ windows .......2-57
Power rear windows .............2-58
Power windows ...............2-57
Rear power windows ............2-58
Windshield-washerfluid.............8-15
Windshieldwiperandwasherswitch .....2-32
Windshieldwiperblades............8-20
10-7
