Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the window oc-
curs.
WARNING
There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., inside
the vehicle before closing the window.
If the vehicle’s battery is disconnected, replaced,
or jump started, the power window auto-reverse
function may not operate properly. If this occurs,
please contact an INFINITI retailer to re-initialize
the power window auto-reverse system.
If the control unit detects something caught in a
window equipped with automatic operation as it
is closing, the window will be immediately low-
ered.
POWER MOONROOF
The moonroof will only operate when the ignition
switch is placed in the ON position. The power
moonroof is operational for a period of time, even
if the ignition switch is placed in the ACC or OFF
position. If the driver’s door or the front passen-
ger’s door is opened during this period of time,
the power to the moonroof is canceled.
Sliding the moonroof
To fully open or close the moonroof, push the
switch to the open
2or close1position and
release it; it need not be held. The roof will automatically open or close all the way. To stop
the roof, push the switch once more while it is
opening or closing.
Tilting the moonroof
To tilt up, first close the moonroof, then push the
switch to the tilt up position
1and release it; it
need not be held. To tilt down the moonroof, push
the switch to the tilt down position
2.
Resetting the moonroof switch
If the moonroof does not operate properly, per-
form the following procedure to initialize the
moonroof operation system.
1. Turn ignition switch ON.
2. Press and hold the moonroof tilt switch for- ward until the moonroof stops.
3. Release the moonroof switch.
4. Press and hold the tilt up switch within 6 seconds.
5. The roof glass will Tilt-Down, Slide-Close, Slide-Open, Slide-Close, Tilt-Up, Tilt-
Down.
6. Release the switch; initialization is complete if the moonroof operates normally.
SIC4355
MOONROOF (if so equipped)
Instruments and controls2-59

6 In case of emergency
Hazard warning flasher switch......................6-2
Roadside assistance program .......................6-2
Emergency engine shut off .........................6-3
Flat tire ...........................................6-3
Tire Pressure Monitoring System (TPMS) ..........6-3
Changing a flat tire .............................6-4
Hybrid system stops operating while driving .........6-10
If the vehicle does not start ........................6-10Confirm battery is discharged
...................6-10
Emergency Start .............................. 6-11
Jump starting .................................... 6-11
Push starting ..................................... 6-14
If your vehicle overheats ........................... 6-14
Towing your vehicle ............................... 6-15
Towing recommended by INFINITI ...............6-15
Vehicle recovery (freeing a stuck vehicle) .........6-17

Adjust tire pressure to the COLD pressure.
COLD pressure: After vehicle has been
parked for 3 hours or more or driven less
than 1 mile (1.6 km) .
COLD tire pressures are shown on the tire
and loading information label affixed to the
driver side center pillar.5. Securely store the flat tire, tools and jacking equipment in the vehicle.
6. Close the liftgate.
WARNING
● Always make sure that the spare tire
and jacking equipment are properly se-
cured after use. Such items can become
dangerous projectiles in an accident or
sudden stop.
● The spare tire is designed for emer-
gency use. For additional information,
refer to “Wheels and tires” in the “Main-
tenance and do-it-yourself” section of
this manual.
WARNING
●If the hybrid system stops operating
while driving, the power assist for the
brakes and steering will not work. Brak-
ing and steering will be harder.
● If the hybrid system stops operating
while driving, do not open any door until
the vehicle comes to a complete stop.
Opening a door will lock the steering
wheel. This may cause the driver to lose
control of the vehicle and could result in
serious vehicle damage or personal
injury.
The hybrid system may stop operating while driv-
ing if the high-voltage battery becomes dis-
charged, the 12-volt battery becomes dis-
charged or the fuel tank is empty. If the hybrid
system stops operating while driving, perform the
following: 1. Reduce your speed gradually. Pull to the side of the road to a safe area.
2. Turn on the hazard warning flashers.
3. Set the push-button ignition switch at ACC or OFF, and try to start the hybrid system.
4. If the hybrid system will not start, refer to the “If the vehicle does not start” section of this
manual. Before attempting to jump start the vehicle, make
sure the fuel tank is not empty and the correct
starting procedure is followed. For additional in-
formation, refer to “Starting the INFINITI Direct
Response® Hybrid System” in the “Starting and
driving” section of your Owner’s Manual. Do not
drive the vehicle on battery power only if the fuel
tank is empty. The Li-ion battery will become
discharged and the hybrid system will turn off.
CONFIRM BATTERY IS
DISCHARGED
Confirm the battery is discharged by pushing the
ignition switch to the ON position. Confirm the
instrument cluster or head lights come on at the
normal brightness levels or that other accesso-
ries such as the audio system come on. Push the
ignition switch to turn the hybrid system on.
If any of the following conditions occurs, the
12-volt battery might discharged:
● The instrument cluster and/or headlights are
not normal brightness.
● Audio accessories cannot be turned on.
● The hybrid system does not become READY
to drive mode.
● The ignition switch cannot be placed in the
ON position.
HYBRID SYSTEM STOPS OPERATING
WHILE DRIVING IF THE VEHICLE DOES NOT START
6-10In case of emergency

Check the following if you notice above condi-
tions:1. Check that the 12-volt battery terminals are tight and clean. For additional information,
refer to “12-volt Battery” in the “Mainte-
nance and do-it-yourself” section. If the 12-
volt battery terminals are loose, contact your
INFINITI retailer.
2. If the 12-volt battery terminals are tight and clean, try to jump start the vehicle. For addi-
tional information, refer to “Jump starting” in
this section.
EMERGENCY START
When the hybrid system cannot be started, the
following procedure can be used if the hybrid
system and push-button ignition switch function
normally:
1. Put the transmission in P (Park) position.
2. Push the ignition switch to the ACC posi- tion.
3. Depress the brake pedal. 4. Push and hold the ignition switch for about
15 seconds. Even if the hybrid system starts
using this procedure, the system may be
malfunctioning. Do not continue to use this
emergency procedure to start the system.
Have the vehicle checked by your INFINITI
retailer.
If the hybrid system still does not start, contact
your INFINITI retailer. Jump starting provides power to the 12–volt sys-
tem to allow the electrical systems to operate.
The electrical systems must be operating to allow
the Li-ion battery to be charged. Jump starting
does not charge the Li-ion battery.
To start the hybrid system with a booster battery,
the instructions and precautions below must be
followed.
WARNING
●
The engine may start at any time with-
out warning when the ignition is on and
the hybrid system is in the READY
mode. When jump starting keep your
hands, clothing, hair and tools away
from fans, belts and any other parts that
can move to avoid personal injury.
● If done incorrectly, jump starting can
lead to a 12–volt battery explosion, re-
sulting in severe injury or death. It could
also damage your vehicle.
● Explosive hydrogen gas is always pres-
ent in the vicinity of the battery. Keep all
sparks and flames away from the
battery.
JUMP STARTING
In case of emergency6-11

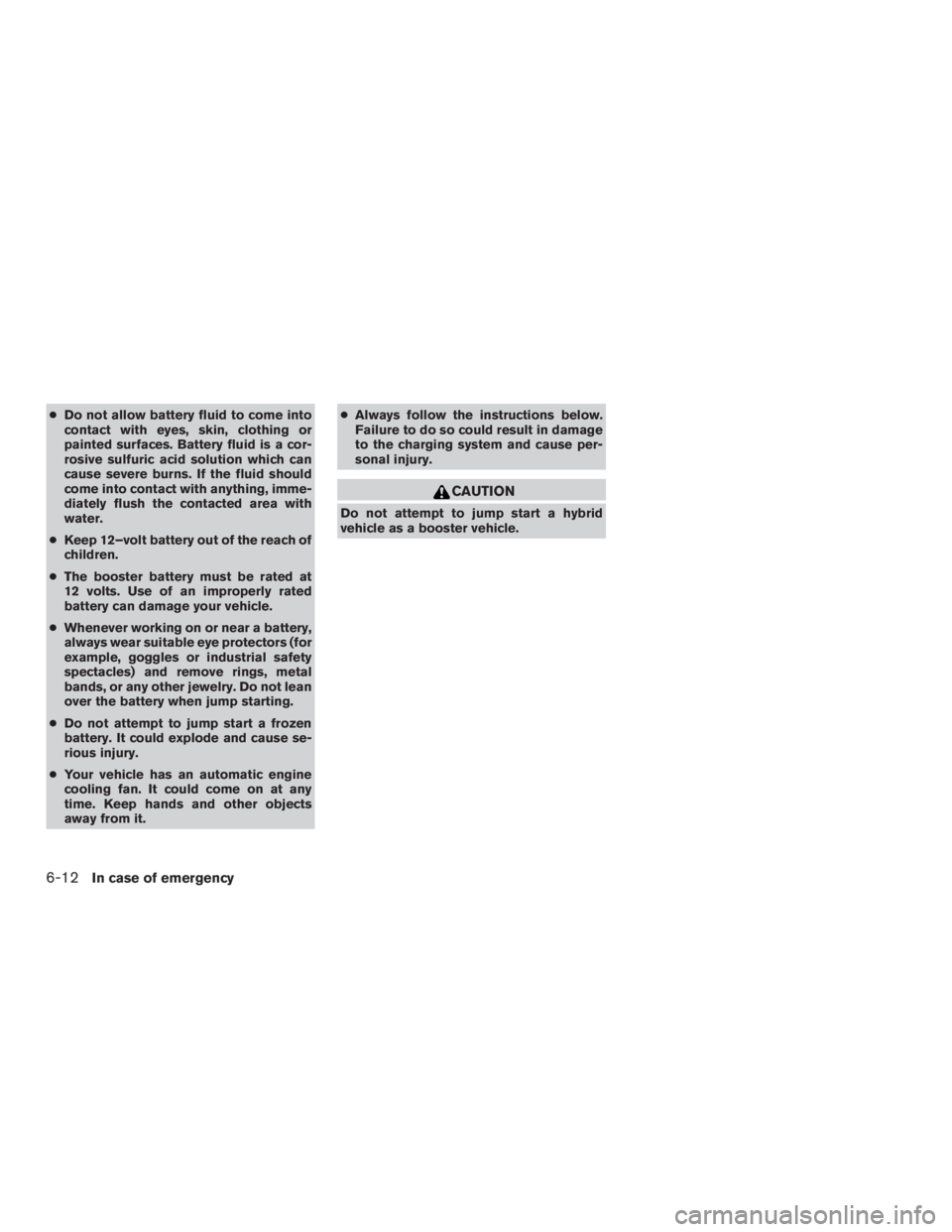

●Do not allow battery fluid to come into
contact with eyes, skin, clothing or
painted surfaces. Battery fluid is a cor-
rosive sulfuric acid solution which can
cause severe burns. If the fluid should
come into contact with anything, imme-
diately flush the contacted area with
water.
● Keep 12–volt battery out of the reach of
children.
● The booster battery must be rated at
12 volts. Use of an improperly rated
battery can damage your vehicle.
● Whenever working on or near a battery,
always wear suitable eye protectors (for
example, goggles or industrial safety
spectacles) and remove rings, metal
bands, or any other jewelry. Do not lean
over the battery when jump starting.
● Do not attempt to jump start a frozen
battery. It could explode and cause se-
rious injury.
● Your vehicle has an automatic engine
cooling fan. It could come on at any
time. Keep hands and other objects
away from it. ●
Always follow the instructions below.
Failure to do so could result in damage
to the charging system and cause per-
sonal injury.
CAUTION
Do not attempt to jump start a hybrid
vehicle as a booster vehicle.
6-12In case of emergency

1. Locate the fusible link box behind the engineair cleaner.
2. Push the tab in and lift up
Ato remove the
lid and expose the remote positive battery
terminal
B.
3. If the booster battery is in another vehicle position the two vehicles to bring their bat-
teries near each other.
Do not allow the two vehicles to touch.
4. Apply the parking brake. Move the shift lever to P (Park) . Switch off all unnecessary elec-
trical systems (lights, heater, air conditioner,
etc.) . 5. Ensure the vent caps are level and tight.
6. Connect jumper cables in the sequence il-
lustrated (
B,C,D,E).
CAUTION
●Always connect positive () to positive
() and negative () to body ground (for
example, strut mounting bolt, engine
lift bracket, etc.) — not to the battery.
● Make sure the jumper cables do not
touch moving parts in the engine com-
partment and that the cable clamps do
not contact any other metal. ●
Do not keep the starter motor engaged
for more than 10 seconds. If the engine
does not start right away, place the ig-
nition switch in the OFF position and
wait 10 seconds.
7. Start the engine of the booster vehicle and let it run for a few minutes.
8. Hold down the brake pedal and press the START button. The vehicle instruments and
gauges will light up, and the green READY
light will come ON.
CAUTION
If the green READY light does not come
on, press the START button to turn the
hybrid system OFF. Carefully disconnect
the negative cable then the positive cable.
Have vehicle taken to your Infiniti retailer
for repair.
9. After the green READY light in the meter display comes ON, carefully disconnect the
negative cable and then the positive cable.LCE2170
In case of emergency6-13

8 Maintenance and do-it-yourself
Maintenance requirements..........................8-2
General maintenance ..............................8-2
Explanation of general maintenance items .........8-2
Maintenance precautions ...........................8-5
Engine compartment check locations ................8-6
Engine cooling system .............................8-7
Checking engine coolant level ...................8-8
Changing engine coolant ........................8-8
Inverter cooling system .............................8-9
Checking inverter coolant level ..................8-10
Changing inverter coolant ......................8-10
Engine oil ........................................ 8-10
Checking engine oil level .......................8-10
Changing engine oil ........................... 8-12
Changing engine oil filter .......................8-13
Continuously Variable Transmission (CVT) fluid ......8-13
Power steering fluid ............................... 8-14
Brake fluid ....................................... 8-14
Windshield-washer fluid ........................... 8-15
Windshield-washer fluid reservoir ...............8-15
12-Volt Battery ................................... 8-16
Jump starting ................................. 8-17
Drive belt ........................................ 8-17Spark plugs
...................................... 8-18
Replacing spark plugs ......................... 8-18
Air cleaner ....................................... 8-19
In-cabin microfilter ............................. 8-19
Windshield wiper blades .......................... 8-20
Cleaning ..................................... 8-20
Replacing .................................... 8-20
Brakes .......................................... 8-21
Fuses ........................................... 8-22
Engine compartment ........................... 8-22
Passenger compartment .......................8-23
Battery replacement .............................. 8-24
INFINITI Intelligent Key ......................... 8-25
Lights ........................................... 8-26
Headlights .................................... 8-26
Fog lights ..................................... 8-26
Exterior and

interior lights ....................... 8-27
Wheels and tires ................................. 8-31
Tire pressure .................................. 8-31
Tire labeling ................................... 8-34
Types of tires .................................. 8-37
Tire chains .................................... 8-38
Changing wheels and tires .....................8-38

2. Check the fluid level in each cell. If it isnecessary to add fluid, add only distilled
water to bring the level up to the bottom of
the filler opening. Do not overfill.Reinstall
the vent caps. Vehicles operated in high temperatures or under
severe conditions require frequent checks of the
battery fluid level.
JUMP STARTING
If jump starting is necessary, refer to “Jump start-
ing” in the “In case of emergency” section of this
manual. If the engine does not start by jump
starting, the battery may have to be replaced.
Contact an INFINITI retailer.
1. Super charger pulley
2. Idler pulley
3. Water pump pulley
4 Air conditioner compressor pulley
5. Drive belt automatic tensioner pulley
6. Crankshaft pulley
WARNING
Be sure the ignition key is in the OFF or
LOCK position before servicing drive belt.
The engine could rotate unexpectedly.
LDI0302
LDI2493
DRIVE BELT
Maintenance and do-it-yourself8-17

Intelligent cruise control (ICC) systemBrake assist .................5-54
Intelligent Key system Key operating range ..............3-9
Key operation ................3-10
Mechanicalkey ................3-3
Remote keyless entry operation.......3-13
Troubleshooting guide ............3-17
Warning signals ...............3-17
Interiorlight....................2-62
Inverter Checking inverter coolant level .......8-10
Inverter cooling system ............8-9
iPod®Player ...............4-82,4-85
ISOFIX child restraints .............1-27
J
Jump starting ...................6-11
K
Key.........................3-2
Key fob battery replacement ..........8-24
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-13
Keys, For Intelligent Key system .........3-7
L
Labels Air conditioner specification label .....9-12C.M.V.S.S. certification label
........9-11
Emission control information label .....9-11
Engine serial number ............9-11
F.M.V.S.S. certification label .........9-11
Tire and Loading Information label .....9-12
Vehicle identification number (VIN) .....9-10
Vehicle identification number (VIN) plate . .9-10
Warning labels (for SRS) ..........1-66
Lane Departure Prevention (LDP) system . . .5-25
Lane Departure Warning (LDW) system ....5-25
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-27
License plate Installing the license plate ..........9-13
Liftgate ......................3-22
Liftgaterelease.................3-25
Light Air bag warning light .........1-66,2-13
Brake light (See stop light) .........8-27
Bulb check/instrument panel .........2-9
Bulbreplacement..............8-27
Charge warning light .............2-9
Foglights...................8-26
Foglightswitch ...............2-40
Headlight and turn signal switch ......2-35
Headlight control switch ..........2-36
Headlights..................8-26
Interiorlight..................2-62
Lightbulbs..................8-26
Low tire pressure warning light .......2-10
Low windshield-washer fluid warning
light ..................2-12,2-28
Passenger air bag and status light .....1-57
Security indicator light ............2-15
Warning/indicator lights and audible
reminders ...................2-8 Lights
Maplights ..................2-63
Lock Child safety rear door lock ..........3-7
Door locks ...................3-4
Gloveboxlock................2-53
Lift gate release ...............3-25
Power door locks ...............3-6
Loose fuel cap warning .............2-29
Low fuel warning light .......2-10,2-12,2-27
Low tire pressure warning light .........2-10
Low windshield-washer fluid warning
light ....................2-12,2-28
Luggage hook.................. 2

-55
Luggage rack (see roof rack) ..........2-56
Luggage (See vehicle loading information) . .9-14
Luggage storage
(see vehicle loading information) ........2-55
M
Maintenance General maintenance .............8-2
Insidethevehicle...............8-3
Maintenance precautions ...........8-5
Outside the vehicle ..............8-2
Seat belt maintenance ............1-23
Under the hood and vehicle .........8-4
Maintenance requirements ............8-2
Malfunction indicator light ............2-14
Maplights ....................2-63
Mappocket....................2-50
Memory Seat ...................3-33
Meters and gauges ................2-4
Instrument brightness control ........2-39
10-4

Seat beltChildsafety..................1-23
Infantsandsmallchildren..........1-24
Injured Person ................1-18
Largerchildren................1-24
Precautionsonseatbeltusage.......1-15
Pregnant women ...............1-18
Pre-tensioner seat belt system .......1-65
Seat belt extenders .............1-22
Seat belt maintenance ............1-23
Seat belts ...................1-15
Three-point type with retractor .......1-19
Seat belt extenders ...............1-22
Seatbeltwarninglight..........1-18,2-13
Seats 2nd row bench seat adjustment ....1-5,1-7
Adjustment ...................1-2
Armrests....................1-8
Automatic drive positioner ..........3-33
Frontseats...................1-2
Heatedseats..........2-41,2-42,2-43
Security indicator light ..............2-15
Security system (INFINITI vehicle immobilizer system) ,
enginestart..............2-30,5-15
Security systems Vehicle security system ...........2-29
Self-adjusting brakes ..............8-21
Service manual order form ...........9-33
Servicing air conditioner .............4-49
Spark plug replacement .............8-18
Spark plugs ...................8-18
Specifications ...................9-8
Speedometer ...................2-5
SRS warning label ................1-66
Stability control .................5-99 Starting
Before starting the engine ..........5-16
Jump starting .................6-11
Precautions when starting and driving ....5-4
Push starting .................6-14
Starting the engine .............5-16
Starting the engine ...............5-16
Steering Heated steering wheel ...........2-45
Power steering fluid .............8-14
Power steering system ...........5-97
Steering wheel audio control switch ......4-92
Stoplight.....................8-27
Storage......................2-50
Storagebin....................2-55
Sunglassescase.................2-51
Sunglassesholder................2-51
Sunroof(seeMoonroof).............2-59
Sun visors ....................3-30
Supplemental air bag warning labels ......1-66
Supplemental air bag warning light . . .1-66, 2-13
Supplemental front impact air bag system . . .1-55
Supplemental restraint system Information and warning labels .......1-66
Precautions on supplemental restraint
system ....................1-48
Supplemental restraint system
(Supplemental air bag system) .........1-48
Switch Autolightswitch...............2-37
Automatic power window switch ......2-58
Foglightswitch ...............2-40
Hazard warning flasher switch ........6-2
Headlightaimingcontrol ..........2-38
Headlight and turn signal switch ......2-35
Headlight control switch ..........2-36 Instrument brightness control
........2-39
Power door lock switch ............3-6
Power inverter switch ............2-45
Rearwindowdefrosterswitch .......2-35
Rear window wiper and washer
switches ...................2-34
Steering wheel switch for audio
control/Bluetooth® Hands-Free Phone
System ....................
4-

92
Tow mode switch ..............2-47
Turnsignalswitch..............2-39
Vehicle dynamic control (VDC) off switch .2-46
Windshield wiper and washer switch . . .2-32
T
Tachometer ....................2-6
Temperature gauge Engine coolant temperature gauge .....2-6
Theft (INFINITI vehicle immobilizer system) ,
engine start ..............2-30,5-15
Three-way catalyst ................5-4
Tire Flat tire .....................6-3
Spare tire ................6-5,8-41
Tire and Loading Information label .....9-12
Tire chains ..................8-38
Tire placard ..................9-12
Tire pressure .................8-31
Tire rotation..................8-38
Types of tires .................8-37
Uniform tire quality grading .........9-29
Wheels and tires ...............8-31
Wheel/tire size .................9-9
10-6
