WARNING
●Your brake system may not be working
properly if the warning light is on. Driv-
ing could be dangerous. If you judge it
to be safe, drive carefully to the nearest
service station for repairs. Otherwise,
have your vehicle towed because driv-
ing it could be dangerous.
● Pressing the brake pedal with the en-
gine stopped and/or a low brake fluid
level may increase your stopping dis-
tance and braking will require greater
pedal effort as well as pedal travel.
● If the brake fluid level is below the
MINIMUM or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked at an
INFINITI retailer.
Anti-lock Braking System (ABS) warning
indicator
When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the Anti-lock Braking System
(ABS) warning light illuminate, it may indicate the
ABS is not functioning properly. Have the brake
system checked, and if necessary, repaired by an
INFINITI retailer promptly. Avoid high-speed driv-
ing and abrupt braking. For additional informa- tion, refer to “Anti-lock Braking System (ABS)
warning light” in this section.Direct Response Hybrid™
warning light
When the ignition switch is in the “ON” position,
the hybrid system warning light illuminates. After
starting the hybrid system, the hybrid system
warning light turns off. If the hybrid system warn-
ing light illuminates while driving, it may indicate
that there is a malfunction in the electric motor
and/or other hybrid system components. Stop
your vehicle immediately and contact an INFINITI
retailer.
Engine oil pressure warninglight
This light warns of low engine oil pressure. If the
light flickers or comes on during normal driving,
pull off the road in a safe area, stop the engine
immediately and call an INFINITI retailer or
other authorized repair shop.
The engine oil pressure warning light is not
designed to indicate a low oil level. Use the
dipstick to check the oil level. For additional in-
formation, refer to “Engine oil” in the “Mainte-
nance and do-it-yourself” section of this manual.
CAUTION
Running the engine with the engine oil
pressure warning light on could cause se-
rious damage to the engine almost imme-
diately. Such damage is not covered by
warranty. Turn off the engine as soon as it
is safe to do so.
Low fuel warning light
This light comes on when the fuel level in the fuel
tank is getting low. Refuel as soon as it is conve-
nient, preferably before the fuel gauge reaches E
(Empty) . There will be a small reserve of fuel
in the tank when the fuel gauge needle
reaches E (Empty) .
Low tire pressure warning light
Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the tire
pressure of all tires except the spare.
The low tire pressure warning light warns of low
tire pressure or indicates that the TPMS is not
functioning properly.
After the ignition switch is placed in the ON
position, this light illuminates for about 1 second
and turns off.
2-10Instruments and controls

Trip Computer
The trip computer can be enabled/disabled to
display in the vehicle information display when
the ignition switch is placed in the ON position.
From the “Main Menu Selection” select “Trip
Computer” to display in the vehicle information
display when the ignition is placed in the ON
position.
Tire Pressures
The tire pressures can be enabled/disabled to
display in the vehicle information display when
the ignition switch is placed in the ON position.
From the “Main Menu Selection” select “Tire
Pressures” to display in the vehicle information
display when the ignition is placed in the ON
position.
Fuel Economy
The fuel economy can be enabled/disabled to
display in the vehicle information display when
the ignition switch is placed in the ON position.
From the “Main Menu Selection” select “Fuel
Economy” to display in the vehicle information
display when the ignition is placed in the ON
position.Body Color
The color of the vehicle that displays in the ve-
hicle information display when the ignition switch
is placed in the ON position can be changed.
Maintenance
The maintenance mode allows you to set alerts
for the reminding of maintenance intervals for the
following:● Scheduled service
● Tires
● Other
1. Press the
button.
2. Use the
button until “Settings” is se-
lected, and press ENTER.
3. Select “Maintenance” using the
but-
tons and press ENTER.
Service
This indicator appears when the customer set
distance is reached for checking or replacing
maintenance items other than the engine oil, oil
filter and tires. Other maintenance items can in-
clude such things as air filter or tire rotation. You
can set or reset the distance for checking or
replacing the items. You can set or reset the distance for service type items. For scheduled
maintenance items and intervals, refer to your
“INFINITI Service and Maintenance Guide.”
Tire
This indicator appears when the customer set
distance is reached for replacing tires. You can
set or reset the distance for replacing tires.
WARNING
The tire replacement indicator is not a
substitute for regular tire checks, includ-
ing tire pressure checks. For additional
information, refer to “Changing Wheels
and Tires” in “Maintenance & Do- It-
Yourself” section. Many factors including
tire inflation, alignment, driving habits
and road conditions affect tire wear and
when tires should be replaced. Setting the
tire replacement indicator for a certain
driving distance does not mean your tires
will last that long. Use the tire replace-
ment indicator as a guide only and always
perform regular tire checks. Failure to per-
form regular tire checks, including tire
pressure checks could result in tire failure.
Serious vehicle damage could occur and
may lead to a collision, which could result
in serious personal injury or death.
2-22Instruments and controls

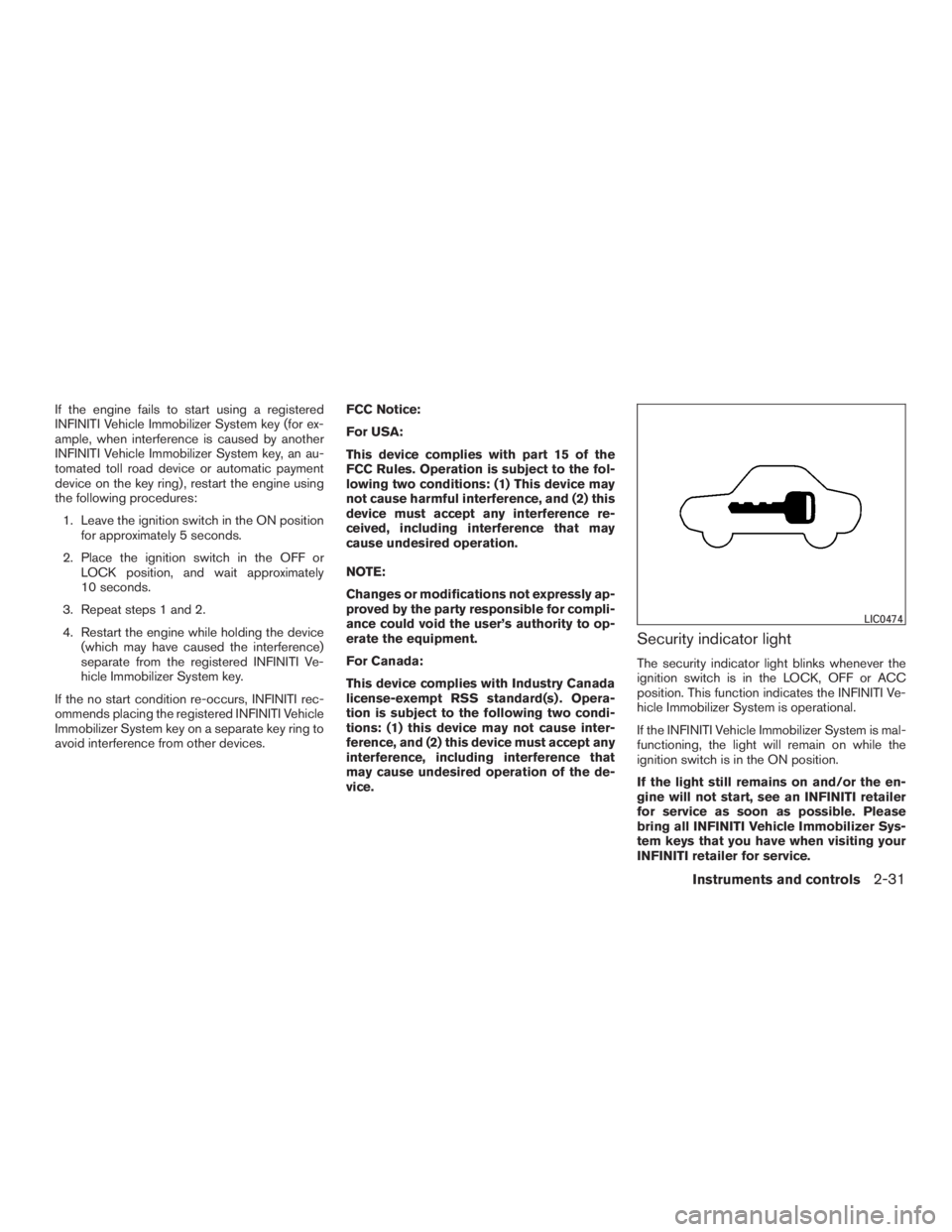

If the engine fails to start using a registered
INFINITI Vehicle Immobilizer System key (for ex-
ample, when interference is caused by another
INFINITI Vehicle Immobilizer System key, an au-
tomated toll road device or automatic payment
device on the key ring) , restart the engine using
the following procedures:1. Leave the ignition switch in the ON position for approximately 5 seconds.
2. Place the ignition switch in the OFF or LOCK position, and wait approximately
10 seconds.
3. Repeat steps 1 and 2.
4. Restart the engine while holding the device (which may have caused the interference)
separate from the registered INFINITI Ve-
hicle Immobilizer System key.
If the no start condition re-occurs, INFINITI rec-
ommends placing the registered INFINITI Vehicle
Immobilizer System key on a separate key ring to
avoid interference from other devices. FCC Notice:
For USA:
This device complies with part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this
device must accept any interference re-
ceived, including interference that may
cause undesired operation.
NOTE:
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment.
For Canada:
This device complies with Industry Canada
license-exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause inter-
ference, and (2) this device must accept any
interference, including interference that
may cause undesired operation of the de-
vice.
Security indicator light
The security indicator light blinks whenever the
ignition switch is in the LOCK, OFF or ACC
position. This function indicates the INFINITI Ve-
hicle Immobilizer System is operational.
If the INFINITI Vehicle Immobilizer System is mal-
functioning, the light will remain on while the
ignition switch is in the ON position.
If the light still remains on and/or the en-
gine will not start, see an INFINITI retailer
for service as soon as possible. Please
bring all INFINITI Vehicle Immobilizer Sys-
tem keys that you have when visiting your
INFINITI retailer for service.
LIC0474
Instruments and controls2-31

The last station played will also come on when
the VOL/ON·OFF control knob is pressed ON.
*When the XM button is pressed, the satellite
radio reception will not be available unless an
optional satellite receiver and antenna are in-
stalled and a SiriusXM Satellite Radio service
subscription is active. Satellite radio is not avail-
able in Alaska, Hawaii and Guam.
If a compact disc is playing when the XM button
is pressed, the compact disc will automatically be
turned off and the last radio station played will
come on.
TUNE/FOLDER (Tuning) knob
To manually tune the radio, turn the
TUNE/FOLDER knob to the right or left.
SEEK•CAT/TRACK tuningbutton
For AM or FM:
Press the SEEK•CAT/TRACK button
orto tune from high to low or low to high
frequencies and stop at the next broadcasting
station.
For XM:
Press the SEEK•CAT/TRACK button
orto go to the first channel of the previous
or next category. During satellite radio reception, the following no-
tices will be displayed under certain conditions.
● NO SIGNAL (No signal is received while the
SAT tuner is connected)
● OFF AIR (Broadcasting signed off)
● CHECK ANTENNA (Antenna connection
error)
● LOADING (When the initial setting is per-
formed)
● UPDATING (When the satellite radio sub-
scription is not active)
SCAN tuning
Press the SCAN button to stop at each broad-
casting station for 5 seconds. Pressing the
SCAN button again during this 5 second period
will stop scan tuning and the radio will remain
tuned to that station. If the SCAN button is not
pressed within 5 seconds, scan tuning moves to
the next station.
1 to 6 Station memory operations
Six stations can be set for the AM band. Twelve
stations can be set for the FM band (6 for FM1, 6
for FM2) . Eighteen channels can be set for the
satellite radio (6 for XM1, 6 for XM2, 6 for XM3) . 1. Choose the radio band AM, FM1 or FM2
using the FM·AM select button, or choose
the satellite band XM1, XM2 or XM3 using
the XM button.
2. Tune to the desired station using manual, SEEK or SCAN tuning. Press and hold any
of the desired station memory buttons (1 –
6) until the preset number is updated on the
display and the sound is briefly muted.
3. The channel indicator will then come on and the sound will resume. Programming is now
complete.
4. Other buttons can be set in the same man- ner.
If the battery cable is disconnected, or if the fuse
opens, the radio memory will be canceled. In that
case, reset the desired stations.
List (AM and FM)
Select the “List” key using the INFINITI controller
or touch-screen to see a list of the presets in the
AM, FM1 or FM2 preset banks.
4-68Monitor, climate, audio, phone and voice recognition systems

Wheel nut tightening torque:83 ft-lb (113 N·m)
The wheel nuts must be kept tight-
ened to specifications at all times. It
is recommended that wheel nuts be
tightened to specification at each
tire rotation interval.
WARNING
● After rotating the tires, check and
adjust the tire pressure.
● Retighten the wheel nuts when
the vehicle has been driven for
600 miles (1,000 km) (also in
cases of a flat tire, etc.) .
● Do not include the spare tire in
the tire rotation.
● For additional information re-
garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire Safety Information”
(Canada) in the Warranty Infor-
mation Booklet.
Tire wear and damage
1. Wear indicator
2. Location mark
WARNING
● Tires should be periodically in-
spected for wear, cracking, bulg-
ing or objects caught in the tread.
If excessive wear, cracks, bulging
or deep cuts are found, the tire(s)
should be replaced. ●
The original tires have built-in
tread wear indicators. When the
wear indicators are visible, the
tire(s) should be replaced.
● Tires degrade with age and use.
Have tires, including the spare,
over 6 years old checked by a
qualified technician because
some tire damage may not be ob-
vious. Replace the tires as neces-
sary to prevent tire failure and
possible personal injury.
● Improper service of the spare tire
may result in serious personal in-
jury. If it is necessary to repair the
spare tire, contact an INFINITI
retailer.
● For additional information re-
garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire Safety Information”
(Canada) in the Warranty Infor-
mation Booklet.
WDI0259
Maintenance and do-it-yourself8-39

10 Index
2nd row bench seat adjustment......1-5,1-7
A
Aiming control, headlights ...........2-38
Air bag (See supplemental restraint
system) .....................1-48
Air bag system Front (See supplemental front impact
air bag system) ...............1-55
Airbagwarninglabels.............1-66
Airbagwarninglight...........1-66,2-13
Air bag warning light, supplemental . .1-66, 2-13
Air cleaner housing filter ............8-19
Air conditioner Air conditioner service ...........4-49
Air conditioner specification label .....9-12
Air conditioner system refrigerant and
oil recommendations .............9-7
Heater and air conditioner controls ....4-43
Servicing air conditioner ..........4-49
Alarm system
(See vehicle security system) .........2-29
Anchor point locations .............1-30
Antenna .....................4-94
Anti-lock brake warning light ..........2-9
Anti-lock Braking System (ABS) ........5-98
Armrests .....................1-8
Around View™ Monitor .............4-26
Audible reminders ...............2-16
Audio system ..................4-49 Audio System
AMradioreception.............4-50
Audio system Bluetooth®audio..............4-88
Compact disc (CD) player .........4-70
Audio System Digital Versatile Disc (DVD) Player
Operation ..................4-73
Audio system FM/AM/SAT radio with compact disc (CD)
player ....................4-65
Audio System FMradioreception.............4-50
iPod® Player .............4-82,4-85
iPod® player operation .......4-82,4-85
Audio system Radio ....................4-49
Steering wheel audio control switch . . .4-92
USB interface ............4-77,4-79
Audio System USB (Universal Serial Bus) Connection
Port..................4-77,4-79
Autolight switch .................2-37
Automatic Automatic drive positioner .........3-33
Automatic power window switch .....2-58
Automatic anti-glare inside mirror .......3-31
Automatic door locks ..............3-6
Automatic drive positioner ...........3-33 B
Backup Collision Intervention (BCI)
system......................5-44
Backup Collision Warning (BCW) system . .5-44
Battery .................5- 105, 8-16
Charge warning light .............2-9
Battery replacement Keyfob ...................8-24
Before starting the engine ...........5-16
Belt (See drive belt) ..............8-17
Blind Spot Intervention (BSI) system .....5-32
Block heater Engine ...................5-107
Bluetooth® audio ................4-88
Bluetooth® hands-free phone system . . .4-107, 4-121
Boosterseats..................1-45
Brake Anti-lock Braking System (ABS) ......5-98
Brake assist (for Intelligent cruise control
system) ...................5-99
Brake fluid ..................8-14
Brakelight(Seestoplight).........8-27
Brake system ................5-97
Brakewarninglight..............2-9
B ra

kewearindicators........2-16,8-21
Parking brake operation ..........5-21
Self-adjusting brakes ............8-21
Brake fluid ....................8-14
Brakes ......................8-21
Brake system ..................5-97

Seat beltChildsafety..................1-23
Infantsandsmallchildren..........1-24
Injured Person ................1-18
Largerchildren................1-24
Precautionsonseatbeltusage.......1-15
Pregnant women ...............1-18
Pre-tensioner seat belt system .......1-65
Seat belt extenders .............1-22
Seat belt maintenance ............1-23
Seat belts ...................1-15
Three-point type with retractor .......1-19
Seat belt extenders ...............1-22
Seatbeltwarninglight..........1-18,2-13
Seats 2nd row bench seat adjustment ....1-5,1-7
Adjustment ...................1-2
Armrests....................1-8
Automatic drive positioner ..........3-33
Frontseats...................1-2
Heatedseats..........2-41,2-42,2-43
Security indicator light ..............2-15
Security system (INFINITI vehicle immobilizer system) ,
enginestart..............2-30,5-15
Security systems Vehicle security system ...........2-29
Self-adjusting brakes ..............8-21
Service manual order form ...........9-33
Servicing air conditioner .............4-49
Spark plug replacement .............8-18
Spark plugs ...................8-18
Specifications ...................9-8
Speedometer ...................2-5
SRS warning label ................1-66
Stability control .................5-99 Starting
Before starting the engine ..........5-16
Jump starting .................6-11
Precautions when starting and driving ....5-4
Push starting .................6-14
Starting the engine .............5-16
Starting the engine ...............5-16
Steering Heated steering wheel ...........2-45
Power steering fluid .............8-14
Power steering system ...........5-97
Steering wheel audio control switch ......4-92
Stoplight.....................8-27
Storage......................2-50
Storagebin....................2-55
Sunglassescase.................2-51
Sunglassesholder................2-51
Sunroof(seeMoonroof).............2-59
Sun visors ....................3-30
Supplemental air bag warning labels ......1-66
Supplemental air bag warning light . . .1-66, 2-13
Supplemental front impact air bag system . . .1-55
Supplemental restraint system Information and warning labels .......1-66
Precautions on supplemental restraint
system ....................1-48
Supplemental restraint system
(Supplemental air bag system) .........1-48
Switch Autolightswitch...............2-37
Automatic power window switch ......2-58
Foglightswitch ...............2-40
Hazard warning flasher switch ........6-2
Headlightaimingcontrol ..........2-38
Headlight and turn signal switch ......2-35
Headlight control switch ..........2-36 Instrument brightness control
........2-39
Power door lock switch ............3-6
Power inverter switch ............2-45
Rearwindowdefrosterswitch .......2-35
Rear window wiper and washer
switches ...................2-34
Steering wheel switch for audio
control/Bluetooth® Hands-Free Phone
System ....................
4-

92
Tow mode switch ..............2-47
Turnsignalswitch..............2-39
Vehicle dynamic control (VDC) off switch .2-46
Windshield wiper and washer switch . . .2-32
T
Tachometer ....................2-6
Temperature gauge Engine coolant temperature gauge .....2-6
Theft (INFINITI vehicle immobilizer system) ,
engine start ..............2-30,5-15
Three-way catalyst ................5-4
Tire Flat tire .....................6-3
Spare tire ................6-5,8-41
Tire and Loading Information label .....9-12
Tire chains ..................8-38
Tire placard ..................9-12
Tire pressure .................8-31
Tire rotation..................8-38
Types of tires .................8-37
Uniform tire quality grading .........9-29
Wheels and tires ...............8-31
Wheel/tire size .................9-9
10-6
