INFINITI QX60-HYBRID 2016 Owner's Manual

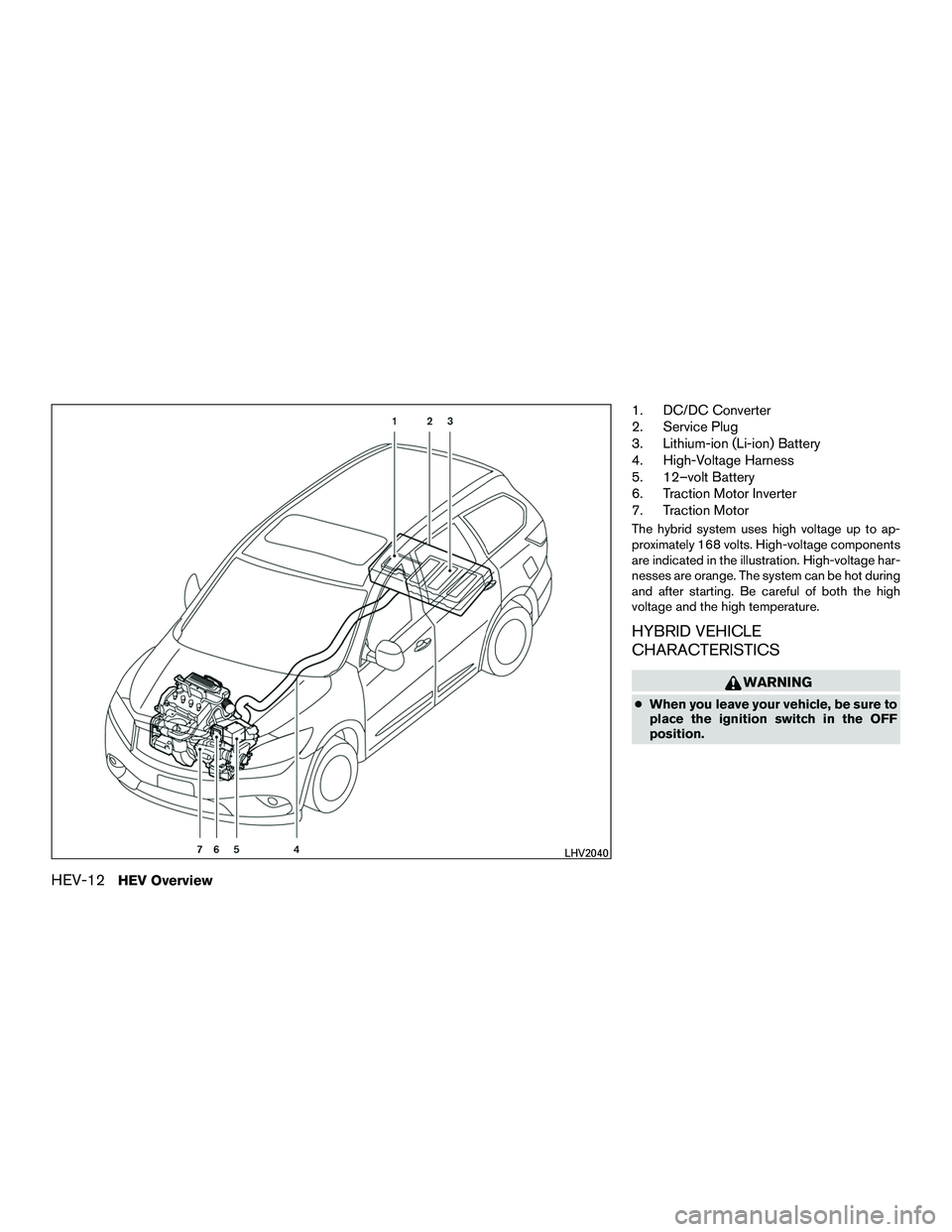

1. DC/DC Converter
2. Service Plug
3. Lithium-ion (Li-ion) Battery
4. High-Voltage Harness
5. 12–volt Battery
6. Traction Motor Inverter
7. Traction Motor
The hybrid system uses high voltage up to ap-
proximately 168 volts. High-voltage components
are indicated in the illustration. High-voltage har-
nesses are orange. The system can be hot during
and after starting. Be careful of both the high
voltage and the high temperature.
HYBRID VEHICLE
CHARACTERISTICS
WARNING
●When you leave your vehicle, be sure to
place the ignition switch in the OFF
position.
LHV2040
HEV-12HEV Overview

●Be sure to put the transmission in the P
(Park) position because the vehicle can
move when the READY to drive indica-
tor light is on even if the gasoline en-
gine is not running. When the READY to
drive indicator light is on, do not leave
your vehicle in a shift position other
than the P (Park) position. The vehicle
will creep and start abruptly if the accel-
erator pedal is depressed by mistake.
This may cause serious injury or death.
CAUTION
●If the vehicle is parked for a long period
of time, the battery discharges gradu-
ally. To avoid this occurrence, drive the
vehicle for approximately 30 minutes at
least once every two to three months.
Otherwise, the Lithium ion (Li-ion) bat-
tery may be damaged. If the Li-ion bat-
tery is completely discharged and the
hybrid system cannot be activated, it is
recommended that you visit an INFINITI
retailer.
High-voltage parts and harnesses on the hybrid
vehicles emit approximately the same amount of
electromagnetic waves as the conventional gasoline-powered vehicles or home electronic
appliances despite their electromagnetic shield-
ings.
Charging the Li-ion battery while driving is impor-
tant. The vehicle cannot run if the Li-ion battery is
discharged. In the N (Neutral) position, the Li-ion
battery does not recharge. Leaving the transmis-
sion in the N (Neutral) position for an extended
period of time may discharge the Li-ion battery.
The Li-ion battery recharges when the shift lever
is in any position other than N (Neutral) .
An air vent is located on the rear side trim panels
Ato cool the high-voltage battery. If the vent is
covered, the battery will overheat resulting in
reduced output performance of the hybrid sys-
tem. For additional information, refer to “Lithium-
ion (Li-ion) battery air vent” in the “Appearance
and care” section of this manual.
You may hear the noise of the cooling fan from the
air vent.
CAUTION
Do not place objects over or into the air
vent. The Li-ion battery or DC/DC con-
verter may overheat and be damaged.
LPD2173
HEV OverviewHEV-13

CAUTION
Do not load large amounts of water in
open containers (aquariums or buckets)
into the vehicle. If the water spills onto the
Li-ion battery, it may cause a short circuit
and damage the battery, Li-ion battery, or
DC/DC converter.
Noise and vibration
After the hybrid system is activated, the following
noises and vibrations that are unique to the hy-
brid system may occur. This does not indicate a
malfunction.● Electric motor noise from the engine com-
partment
● Noise from the rear of the vehicle when the
hybrid system activates or deactivates
● Noise and vibration when the gasoline en-
gine starts running or stops
● Operating noise or electric motor noise
when releasing the accelerator pedal or de-
pressing the brake pedal
● Engine noise due to rapid acceleration
● Fan noise from the air inlet located on the
rear parcel shelf ●
Noise from the climate control system
● Noise from the vehicle in order to alert pe-
destrians to the presence of an approaching
vehicle. For additional information, refer to
“Approaching Vehicle Sound for Pedestri-
ans (VSP) system” in this section.
HEV-14HEV Overview

0 Illustrated table of contents
Air bags, seat belts and child restraints..............0-2
Exterior front ......................................0-3
Exterior rear .......................................0-4
Passenger compartment ...........................0-5 Instrument panel
...................................0-6
Engine compartment check locations . . ..............0-8
Warning and indicator lights ........................0-9

1. Folding 3rd row bench (P. 1-2)
2. Folding 2nd row bench (P. 1-2)
3. Roof-mounted curtain side-impact androllover supplemental air bag (P. 1-48)
4. Head restraints/headrests (P.1-10)
5. Front seat belt with pretensioner(s) and
shoulder height adjuster (P. 1-15, 1-48)
6. Supplemental air bags (P.1-48)
7. Occupant classification sensor (weight
sensor) (P.1-48)
8. Front seats (P. 1-2)
9. Front seat-mounted side-impact supple-
mental air bag (P. 1-48)
10. LATCH (Lower Anchors and Tethers for
CHildren) (P. 1-26)
11. 2nd row seat top tether strap anchor
(located on bottom of seatback)
(P. 1-26)
12. 3rd row bench seat top tether strap an-
chor (located on bottom of seatback)
(P. 1-26)
Refer to the page number indicated in pa-
rentheses for operating details.
LII2420
AIR BAGS, SEAT BELTS AND CHILD
RESTRAINTS
0-2Illustrated table of contents

1. Engine hood (P. 3-21)
2. Wiper and washer switch (P. 2-35)Wiper blades (P. 8-21)
3. Windshield (P. 8-21)
4. Power windows (P. 2-59)
5. Door locks (P. 3-4) INFINITI Intelligent Key (P. 3-7)
Remote engine start (if so equipped)
(P. 3-19)
Keys (P. 3-2)
6. Mirrors (P. 3-32) Side camera (P. 4-31)
7. Tire pressure (P. 8-29) Flat tire (P. 6-3)
Tire chains (P. 8-29)
8. Replacing bulbs (P. 8-27) Headlight and turn signal switch
(P. 2-38)
9. Fog light switch (P. 2-38)
10. Front and rear sonar system
(if so equipped) (P. 5-141)
11. Front camera (P. 4-31)
Refer to the page number indicated in pa-
rentheses for operating details.
LII2417
EXTERIOR FRONT
Illustrated table of contents0-3

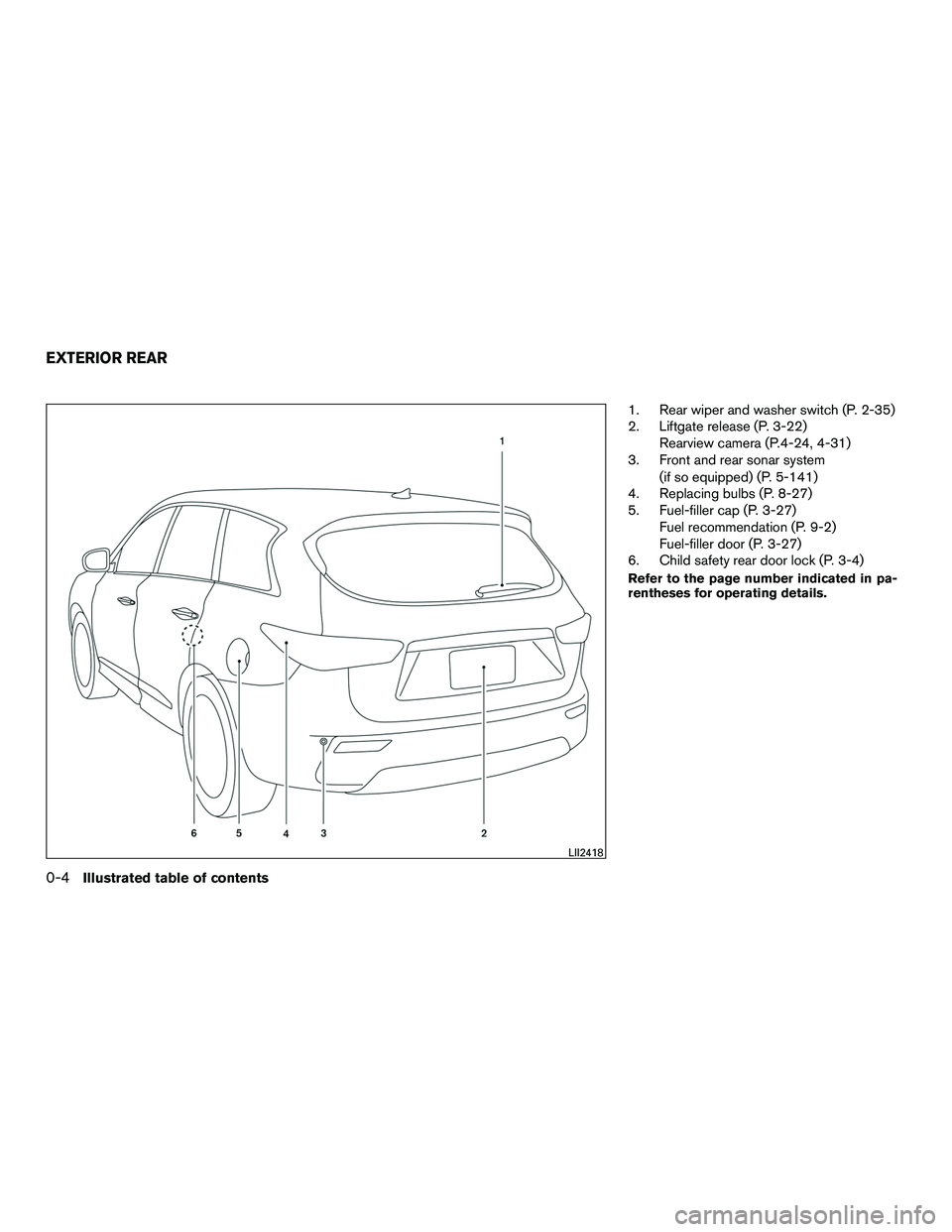

1. Rear wiper and washer switch (P. 2-35)
2. Liftgate release (P. 3-22)Rearview camera (P.4-24, 4-31)
3. Front and rear sonar system
(if so equipped) (P. 5-141)
4. Replacing bulbs (P. 8-27)
5. Fuel-filler cap (P. 3-27) Fuel recommendation (P. 9-2)
Fuel-filler door (P. 3-27)
6. Child safety rear door lock (P. 3-4)
Refer to the page number indicated in pa-
rentheses for operating details.
LII2418
EXTERIOR REAR
0-4Illustrated table of contents

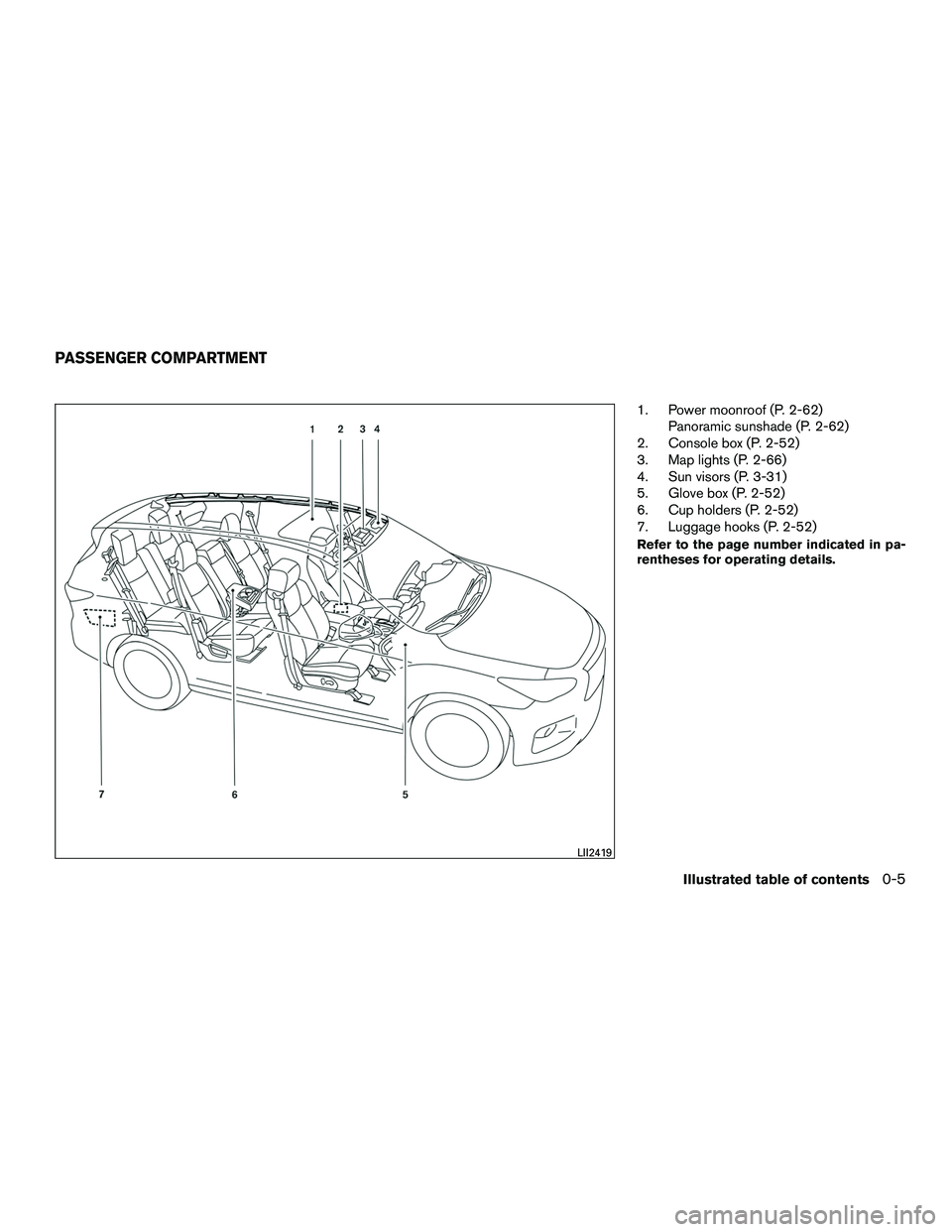

1. Power moonroof (P. 2-62)Panoramic sunshade (P. 2-62)
2. Console box (P. 2-52)
3. Map lights (P. 2-66)
4. Sun visors (P. 3-31)
5. Glove box (P. 2-52)
6. Cup holders (P. 2-52)
7. Luggage hooks (P. 2-52)
Refer to the page number indicated in pa-
rentheses for operating details.
LII2419
PASSENGER COMPARTMENT
Illustrated table of contents0-5

1. Vent (P. 4-48)
2. Headlight/fog light/turn signal switch(P. 2-38)
3. Instrument brightness control (P. 2-38)
4. Meters and gauges (P. 2-4) Warning and indicator lights (P. 2-7)
Vehicle information display (P. 2-16)
5. Driver supplemental air bag (P.1-48) Horn (P. 2-43)
6. Back-up Collision Intervention (BCI)
system switch (if so equipped) (P.5-56)
7. Twin trip odometer reset switch (P. 2-4)
8. Wiper and washer switch (P. 2-35) Rear wiper and washer switch
(P. 2-35)
9. Rear window and outside mirror de-
froster switch (P. 2-38)
10. Center display (P. 4-4) Navigation system* (if so equipped)
(P. 4-12)
11. Automatic heater and air conditioning
controls (P. 4-49)
12. Front passenger supplemental air bag
(P. 1-55)
13. Glove box (P. 2-52)
14. Center multi-function control buttons
(P. 4-5, 4-13)
LII2436
INSTRUMENT PANEL
0-6Illustrated table of contents

15. Power outlet (P.2-49)
16. Shift lever (P.5-17)
17. Audio system controls (P. 4-57)Front passenger air bag status light
(P. 2-13)
18. Hazard warning flasher switch (P. 6-2)
19. Push-button ignition switch (P. 5-13)
20. Cruise control main/set switches
(if so equipped) (P. 5-73)
Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-75)
21. Dynamic Driver Assistance switch
(if so equipped) (P. 5-95)
22. Tilt steering wheel control (P. 3-29)
23. Bluetooth® Hands-Free Phone System
(P. 4-112, 4-126)
24. Steering wheel switch for audio control
(P. 4-98)
25. Hood release (P. 3-21) Vehicle Dynamic Control (VDC) OFF
switch (P. 2-47)
Heated steering wheel switch (P. 2-47)
Headlight aiming control (P. 2-38)
Warning System switch (if so
equipped) (P. 2-48)
Power inverter switch (if so equipped)
(P. 2-48) Liftgate release switch (P.3-22)
Power liftgate main switch (P. 3-22)
26. Control panel and vehicle information
display switches (P. 2-16)
*: Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
Refer to the page number indicated in pa-
rentheses for operating details.
Illustrated table of contents0-7
