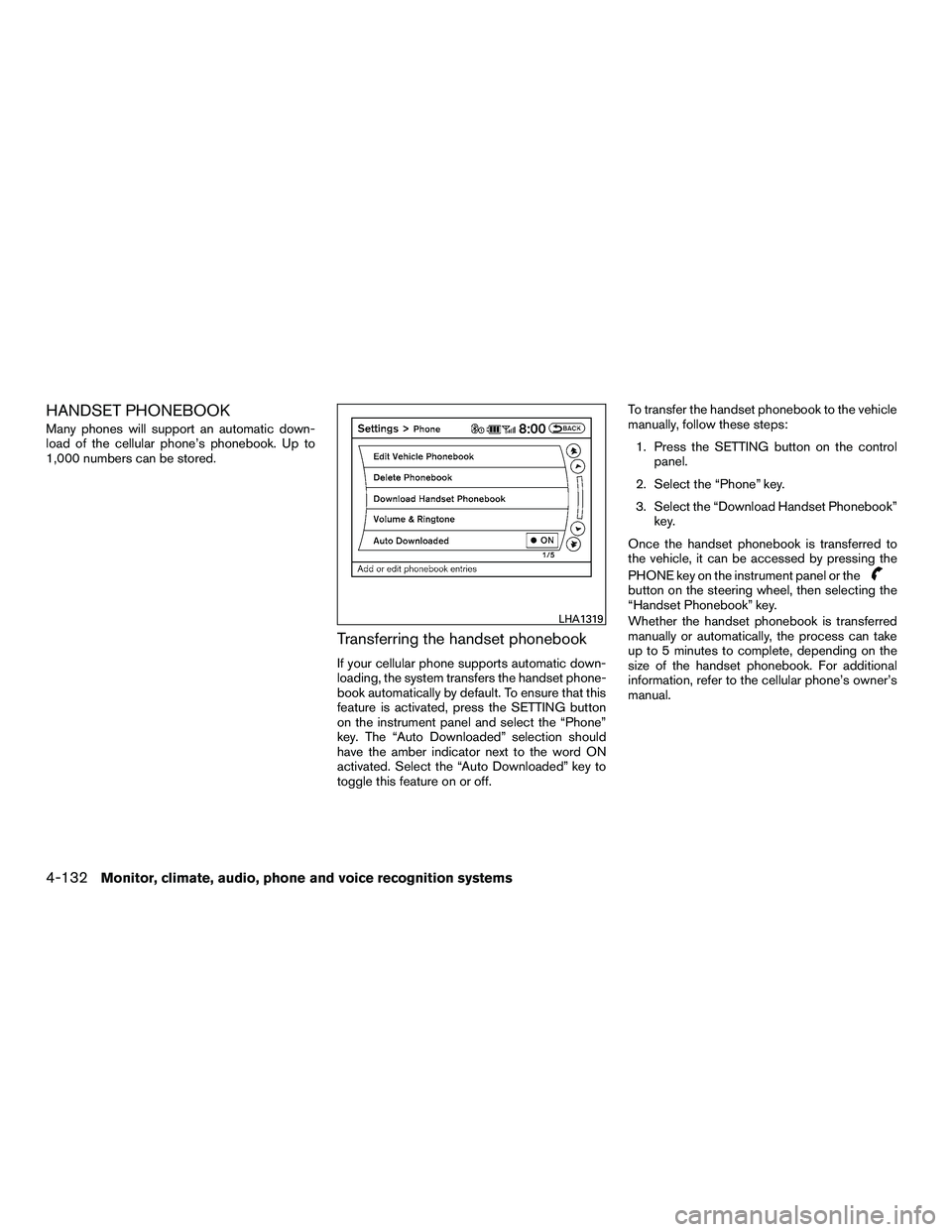

HANDSET PHONEBOOK
Many phones will support an automatic down-
load of the cellular phone’s phonebook. Up to
1,000 numbers can be stored.
Transferring the handset phonebook
If your cellular phone supports automatic down-
loading, the system transfers the handset phone-
book automatically by default. To ensure that this
feature is activated, press the SETTING button
on the instrument panel and select the “Phone”
key. The “Auto Downloaded” selection should
have the amber indicator next to the word ON
activated. Select the “Auto Downloaded” key to
toggle this feature on or off.To transfer the handset phonebook to the vehicle
manually, follow these steps:
1. Press the SETTING button on the control panel.
2. Select the “Phone” key.
3. Select the “Download Handset Phonebook” key.
Once the handset phonebook is transferred to
the vehicle, it can be accessed by pressing the
PHONE key on the instrument panel or the
button on the steering wheel, then selecting the
“Handset Phonebook” key.
Whether the handset phonebook is transferred
manually or automatically, the process can take
up to 5 minutes to complete, depending on the
size of the handset phonebook. For additional
information, refer to the cellular phone’s owner’s
manual.
LHA1319
4-132Monitor, climate, audio, phone and voice recognition systems

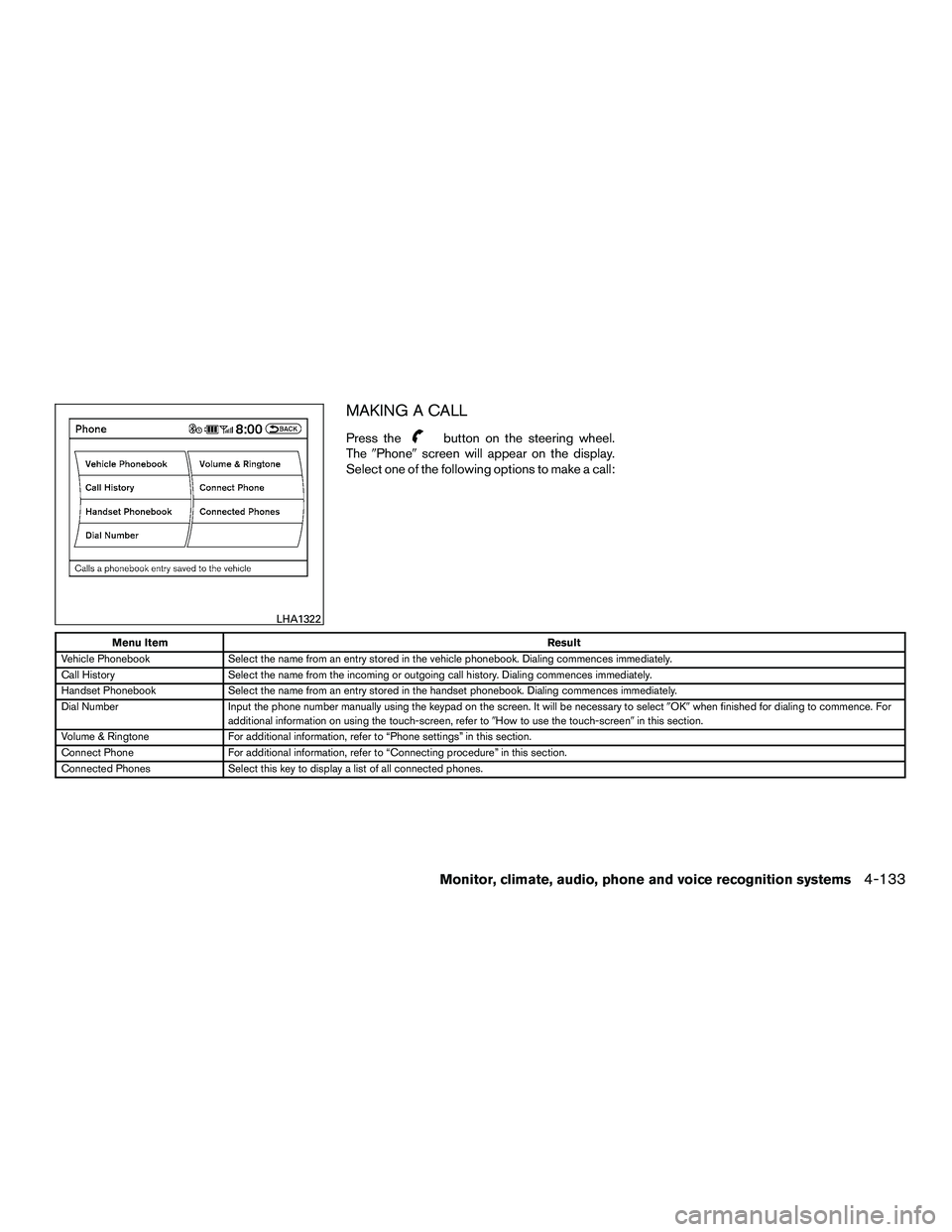

MAKING A CALL
Press thebutton on the steering wheel.
The Phone screen will appear on the display.
Select one of the following options to make a call:
Menu Item Result
Vehicle Phonebook Select the name from an entry stored in the vehicle phonebook. Dialing commences immediately.
Call History Select the name from the incoming or outgoing call history. Dialing commences immediately.
Handset Phonebook Select the name from an entry stored in the handset phonebook. Dialing commences immediately.
Dial Number Input the phone number manually using the keypad on the screen. It will be necessary to select OKwhen finished for dialing to commence. For
additional information on using the touch-screen, refer to How to use the touch-screenin this section.
Volume & Ringtone For additional information, refer to “Phone settings” in this section.
Connect Phone For additional information, refer to “Connecting procedure” in this section.
Connected Phones Select this key to display a list of all connected phones.
LHA1322
Monitor, climate, audio, phone and voice recognition systems4-133

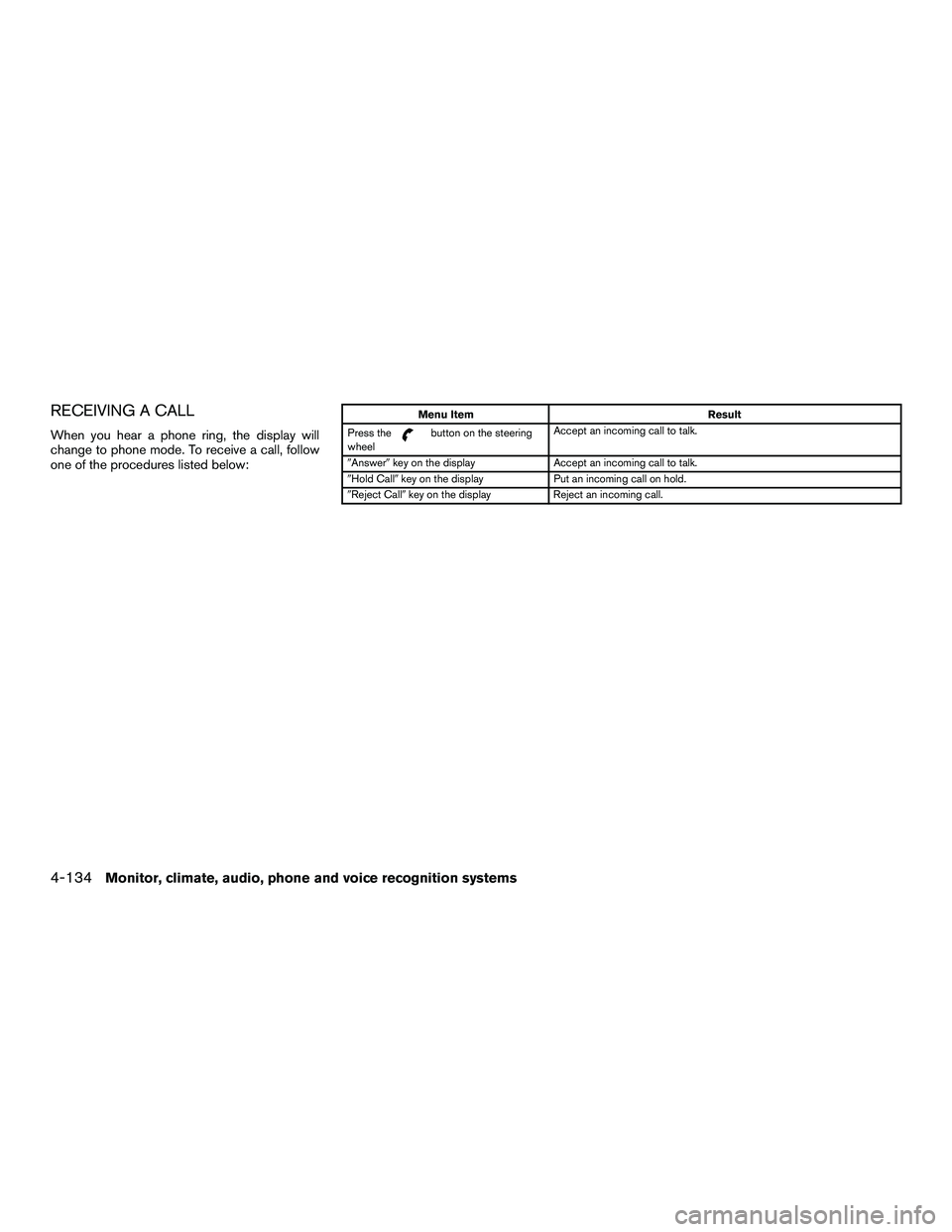

RECEIVING A CALL
When you hear a phone ring, the display will
change to phone mode. To receive a call, follow
one of the procedures listed below:
Menu ItemResult
Press the
button on the steering
wheel Accept an incoming call to talk.
Answer key on the display Accept an incoming call to talk.
Hold Call key on the display Put an incoming call on hold.
Reject Call key on the display Reject an incoming call.
4-134Monitor, climate, audio, phone and voice recognition systems

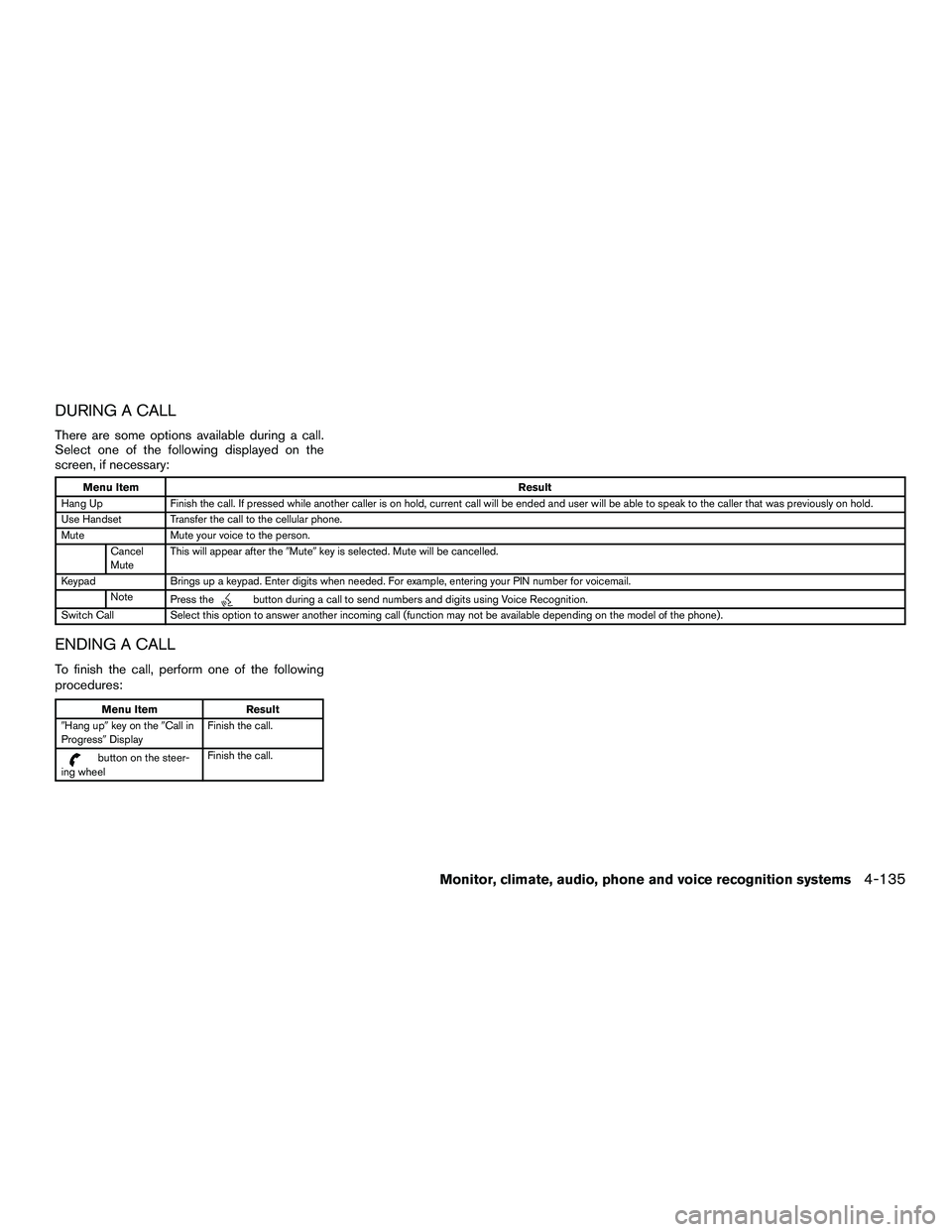

DURING A CALL
There are some options available during a call.
Select one of the following displayed on the
screen, if necessary:
Menu ItemResult
Hang Up Finish the call. If pressed while another caller is on hold, current call will be ended and user will be able to speak to the caller that was previously on hold.
Use Handset Transfer the call to the cellular phone.
Mute Mute your voice to the person.
Cancel
Mute This will appear after the
Mutekey is selected. Mute will be cancelled.
Keypad Brings up a keypad. Enter digits when needed. For example, entering your PIN number for voicemail.
Note Press the
button during a call to send numbers and digits using Voice Recognition.
Switch Call Select this option to answer another incoming call (function may not be available depending on the model of the phone) .
ENDING A CALL
To finish the call, perform one of the following
procedures:
Menu Item Result
Hang up key on the Call in
Progress Display Finish the call.
button on the steer-
ing wheel Finish the call.
Monitor, climate, audio, phone and voice recognition systems4-135

PHONE SETTINGS
To set up the Bluetooth® Hands-Free Phone
System to your preferred settings, press the SET-
TING button on the control panel and touch the
Phonekey on the display.
Menu Item Result
Edit Vehicle Phonebook For additional information, refer toVehicle phonebookin this section for adding, editing, and deleting contacts in the vehicle phonebook.
Delete Phonebook Delete a phonebook stored on the system.
Download Handset Phonebook For additional information, refer toHandset phonebookin this section for adding, editing, and deleting contacts in the handset
phonebook.
Volume and Ringtone Adjust the volume level of the ringtone, incoming call sound and outgoing call sound.
Automatic Hold When this option is turned on, an incoming call will be placed on hold automatically after several rings.
Vehicle Ringtone When this option is turned on, a specific ringtone that is different than the cellular phone’s will sound when receiving a call.
Auto Downloaded For additional information about automatically downloading the handset phonebook, refer to “Handset phonebook” in this section.
BLUETOOTH® SETTINGS
To set up the Bluetooth® Hands-Free Phone
System to your preferred settings, press the SET-
TING button on the control panel and touch the
Bluetoothkey on the display.
Menu Item Result
Bluetooth Turn the Bluetooth® system on or off.
Connect Bluetooth For additional information about connecting a phone, refer to Connecting procedurein this section.
Connected Devices Display a list of the Bluetooth® devices connected to the system.
Edit Bluetooth Info Check information about the device name, device address, and device PIN.
Replaced Connected Phone Replace the phone currently connected to the system. This option allows you to keep an voicetags that were recorded using the previous
phone.
4-136Monitor, climate, audio, phone and voice recognition systems

CALL VOLUME
Adjusting the incoming or outgoing call volume
may improve clarity if reception between callers is
unclear. To access the volume settings, press the
SETTING button, then select ”Volume and
Beeps”. You can also adjust the volume of an
incoming voice during a call by pushing the vol-
ume control switch on the steering wheel or by
turning the volume control knob on the control
panel:
Menu ItemResult
Ringtone Adjusting this setting allows ringer volume to be set at a desired level.
Incoming Call Adjusting this setting allowsyouto hear a difference in volume (You can also adjust the volume of an incoming voice during a call by
pushing the volume control switch on the steering wheel or by turning the volume control knob.
Outgoing Call Adjusting this setting allowsthe person you are talking with to hear a difference in volume.
Monitor, climate, audio, phone and voice recognition systems4-137

INFINITI Voice Recognition allows hands-free
operation of the systems equipped on this ve-
hicle, such as phone and vehicle information.
There are two voice recognition modes of opera-
tion available. They are:● Standard Mode
● Alternate Command Mode
In Standard Mode (the factory default setting) ,
commands that are available are always shown
on the display and announced by the system. You
can complete your desired operation by simply
following the prompts given by the system. Not all
INFINITI Voice Recognition options are available
while in Standard Mode.
For advanced operation, you can change to an
Alternate Command Mode that enables the op-
eration of the display and audio system through
INFINITI Voice Recognition. When this mode is
active, an expanded list of commands can be
spoken after pushing the TALK
switch on
the steering wheel, and the voice command
menu prompts are turned off.
In Alternate Command Mode the recognition suc-
cess rate may be affected because the number of
available commands and the ways of speaking
each command are increased. For additional infor-
mation, refer to “INFINITI Voice Recognition Alter-
nate Command Mode” in this section.
To improve the recognition success rate when
Alternate Command Mode is active, try using the
Speaker Adaptation Function available in that
mode. For additional information, refer to
“Speaker Adaptation Function” in this section.
Otherwise, it is recommended that Alternate
Command Mode be turned off and Standard
Mode be used for the best recognition perfor-
mance.
While using the INFINITI Voice Recognition sys-
tem for certain Phone and Navigation features,
you can switch to using manual controls (touch-
screen, INFINITI controller, steering wheel con-
trols) and the information you have already en-
tered by voice control will be retained. To switch
to manual controls, select the “Manual Controls”
key on the display when it appears. The system
will respond by speaking “Changing to manual
operation. Please use manual controls to con-
tinue.”
For the voice commands for the navigation sys-
tem, refer to the Navigation System Owner’s
Manual of your vehicle.
For vehicles in the U.S., the factory default setting
is the Standard Mode. For additional information,
refer to “INFINITI Voice Recognition Standard
Mode” in this section. For vehicles in Canada, the
factory default setting is the Alternate Command Mode. For additional information, refer to
“INFINITI Voice Recognition Alternate Command
Mode” in this section.
INFINITI VOICE RECOGNITION
STANDARD MODE
The Standard Mode enables control of naviga-
tion, phone and vehicle information. With this
setting active, commands that are available are
always shown on the display and announced by
the system.
Displaying user guide
If you use the INFINITI Voice Recognition system
for the first time or you do not know how to
operate it, you can display the User Guide for
confirmation.
You can confirm how to use voice commands by
accessing a simplified User Guide, which con-
tains basic instructions and tutorials for several
voice commands.
1. Press the INFO button on the control panel.
2. Touch the “Others” key.
3. Touch the “Voice Recognition” key.
4. Touch the “User Guide” key.
5. Touch an item.
INFINITI VOICE RECOGNITION
SYSTEM (if so equipped)
4-138Monitor, climate, audio, phone and voice recognition systems

NOTE:
You can skip steps 1 to 3 by pressing
the
button and saying “Help” fol-
lowed by “User Guide”.
Menu Item Result
Getting Started The following message will appear:With voice recognition, you can use voice commands to control navigation, audio, phone, and other
functions. To start the voice recognition system, push the TALK switch on the steering wheel, then say a command after the tone.
Let’s Practice Initiates a practice session that demonstrates how to improve voice recognition by the system. The system will prompt you to say a phone
number. After you say the number, the system will provide feedback to improve voice recognition. When you are ready, push the TALK
switch.
Try again Allows user to repeat the session if improvement is needed.
Done Completes practice session and returns user to the User Guide screen.
Using the Address Book Initiates tutorial for using the Address Book.
Finding a Street Address Initiates tutorial for finding a street address.
Placing Calls Initiates tutorial for making a phone call by voice command operation.
Help on Speaking Displays useful tips of speaking for correct command recognition by the system: Say commands when there are minimal background
sounds; Say voice commands clearly; Avoid talking slow or with long pauses; Say commands after the tone.
Monitor, climate, audio, phone and voice recognition systems4-139

Voice recognition settings
The available settings of the INFINITI Voice Rec-
ognition system are described.1. Press the SETTING button on the control panel
2. Touch the ”Others” key
3. Touch the “Voice Recognition” key
You can confirm the page by scrolling the screen
using the INFINITI controller.
Menu Item Result
Command List When Alternate Command Mode is activated, this key will allow user to access the list of Phone, Navigation, Information, Audio, and Help
commands.
User Guide Allows user access to user guide settings. For additional information, refer to “Displaying User Guide” in this section.
Speaker Adaptation When Alternate Command Mode is activated, this key will allow user to initiate a system function for better voice recognition performance. For
additional information, refer to “Speaker Adaptation Function” in this section.
Alternate Command Mode Allows user to activate Alternate Command Mode. A screen will appear prompting user to review the expanded command list and advises that
some command will be replaced and voice menu prompts turned off. User will have to confirm by pressing “OK” to proceed with activation.
Minimize Voice Feedback When Alternate Command Mode is activated, this key will allow user to reduce system voice feedback during voice recognition session.
4-140Monitor, climate, audio, phone and voice recognition systems

USING THE SYSTEM
Initialization
When the ignition switch is placed in the ON
position, INFINITI Voice Recognition is initialized,
which takes a few seconds. When completed,
the system is ready to accept voice commands. If
the
switch is pressed before the initializa-
tion completes, voice commands will not be ac-
cepted. Please wait until the INFINITI Voice Rec-
ognition initialization is completed.
BEFORE STARTING
To get the best recognition performance from
Voice Recognition, observe the following:
● The interior of the vehicle should be as quiet
as possible. Close the windows to eliminate
the surrounding noises (traffic noise and vi-
bration sounds, etc.) , which may prevent the
system from correctly recognizing the voice
commands.
● Wait until the tone sounds before speaking a
command.
● Speak in a natural conversational voice with-
out pausing between words.
● If the air conditioner is set to “Auto”, the fan
speed is automatically lowered so that your
commands can be recognized more easily.
GIVING VOICE COMMANDS
1. Press theswitch located on the steer-
ing wheel. 2. A list of commands appears on the screen,
and the system announces, “Would you like
to access Phone, Navigation, Information,
Audio or Help?”
3. After the tone sounds and the icon on the screen changes from
to, speak
a command.
4. Continue to follow the voice menu prompts and speak after the tone sounds until your
desired operation is completed.
LHA2479LHA2993
Monitor, climate, audio, phone and voice recognition systems4-141
