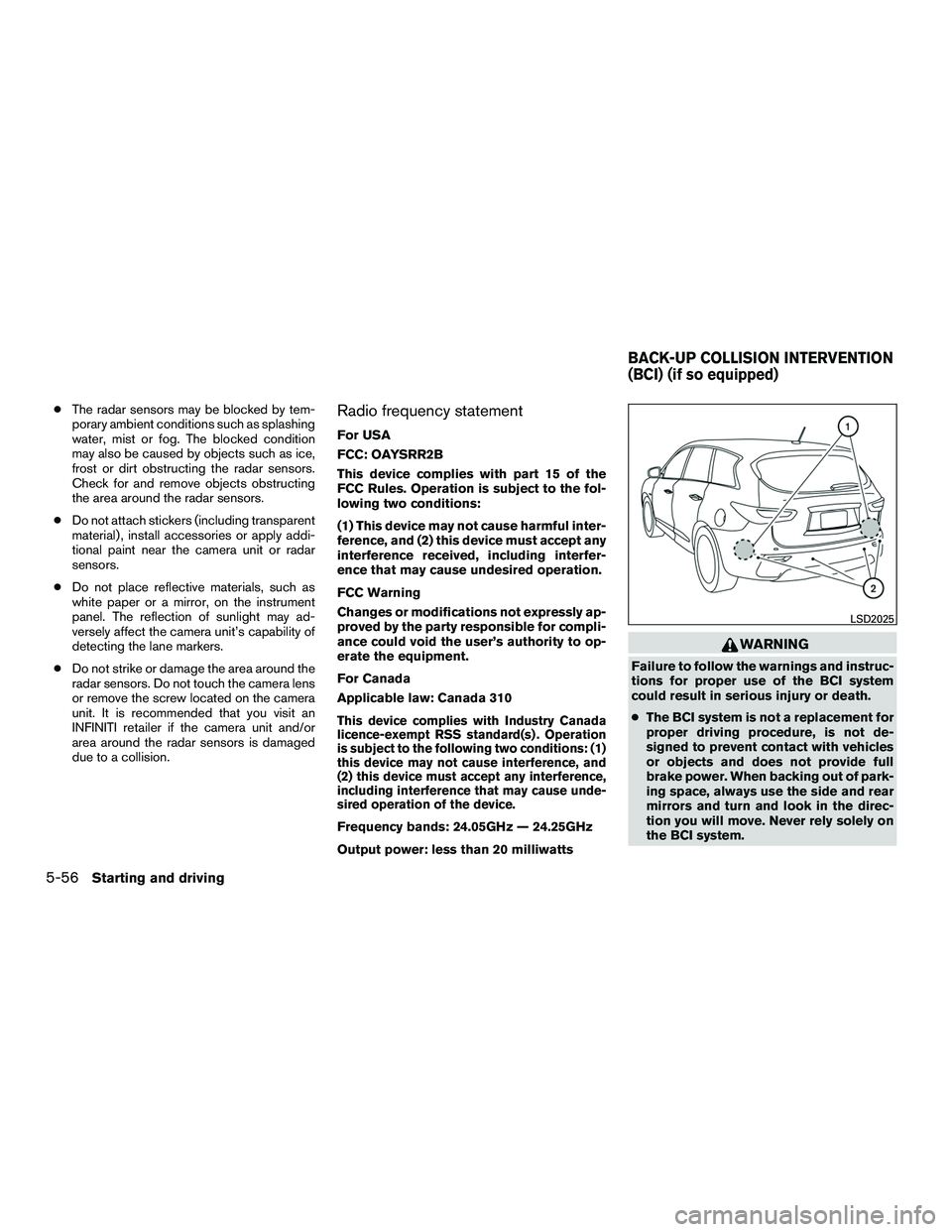

●The radar sensors may be blocked by tem-
porary ambient conditions such as splashing
water, mist or fog. The blocked condition
may also be caused by objects such as ice,
frost or dirt obstructing the radar sensors.
Check for and remove objects obstructing
the area around the radar sensors.
● Do not attach stickers (including transparent
material) , install accessories or apply addi-
tional paint near the camera unit or radar
sensors.
● Do not place reflective materials, such as
white paper or a mirror, on the instrument
panel. The reflection of sunlight may ad-
versely affect the camera unit’s capability of
detecting the lane markers.
● Do not strike or damage the area around the
radar sensors. Do not touch the camera lens
or remove the screw located on the camera
unit. It is recommended that you visit an
INFINITI retailer if the camera unit and/or
area around the radar sensors is damaged
due to a collision.Radio frequency statement
For USA
FCC: OAYSRR2B
This device complies with part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions:
(1) This device may not cause harmful inter-
ference, and (2) this device must accept any
interference received, including interfer-
ence that may cause undesired operation.
FCC Warning
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment.
For Canada
Applicable law: Canada 310
This device complies with Industry Canada
licence-exempt RSS standard(s) . Operation
is subject to the following two conditions: (1)
this device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause unde-
sired operation of the device.
Frequency bands: 24.05GHz — 24.25GHz
Output power: less than 20 milliwatts
WARNING
Failure to follow the warnings and instruc-
tions for proper use of the BCI system
could result in serious injury or death.
●The BCI system is not a replacement for
proper driving procedure, is not de-
signed to prevent contact with vehicles
or objects and does not provide full
brake power. When backing out of park-
ing space, always use the side and rear
mirrors and turn and look in the direc-
tion you will move. Never rely solely on
the BCI system.
LSD2025
BACK-UP COLLISION INTERVENTION
(BCI) (if so equipped)
5-56Starting and driving

●There is a limitation to the detection
capability of the radar or the sonar. Us-
ing the BCI systems under some road,
ground, lane marker, traffic or weather
conditions could lead to improper sys-
tem operation. Always rely on your own
operation to avoid accidents.
The BCI systems can help alert the driver of an
approaching vehicle or objects behind the ve-
hicle when the driver is backing out of a parking
space.
When the shift position is R (Reverse) and the
vehicle speed is less than approximately 5 mph
(8 km/h), the BCI system operates. The BCI system uses radar sensors
1installed
on both sides near the rear bumper to detect an
approaching vehicle and sonar sensors to detect
objects in the rear.
The radar sensors
1detect an approaching
vehicle from up to approximately 49 ft (15 m)
away. The sonar sensors
2detect stationary
objects behind the vehicle up to approximately
4.9 ft (1.5 m)
3. If the radar detects a vehicle approaching from
the side or the sonar detects close stationary
objects behind the vehicle, the system gives vi-
sual and audible warnings. If the driver does not
apply the brakes, the system automatically ap-
plies the brake for a moment when the vehicle is
moving backwards. After the automatic brake
application, the driver must depress the brake
pedal to maintain brake pressure. If the driver’s
foot is on the accelerator pedal, the system
pushes the accelerator upward before applying
the brake. If you continue to press the accelera-
tor, the system will not engage the brake.
LSD2026LSD2042
Starting and driving5-57

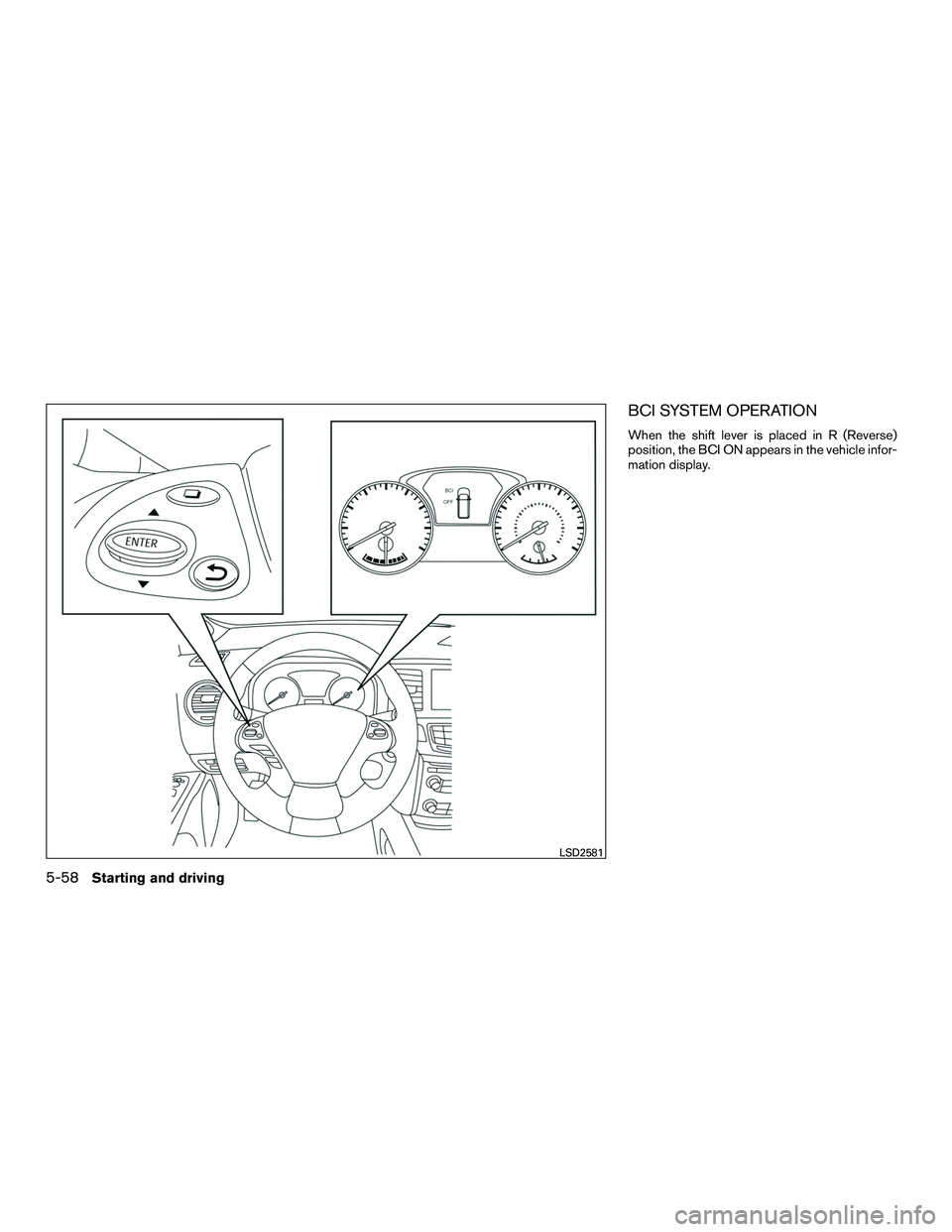

BCI SYSTEM OPERATION
When the shift lever is placed in R (Reverse)
position, the BCI ON appears in the vehicle infor-
mation display.
LSD2581
5-58Starting and driving

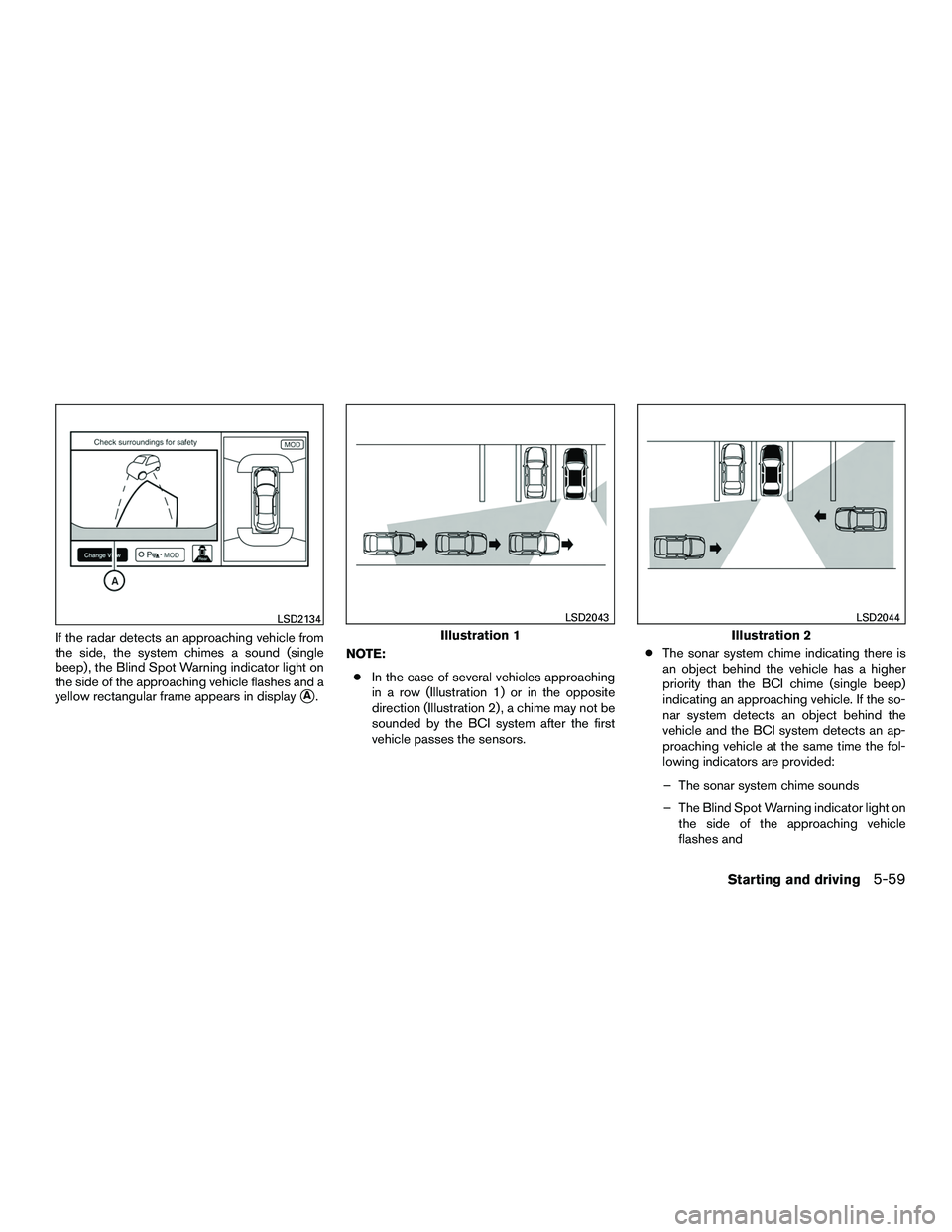

If the radar detects an approaching vehicle from
the side, the system chimes a sound (single
beep) , the Blind Spot Warning indicator light on
the side of the approaching vehicle flashes and a
yellow rectangular frame appears in display
A.NOTE:
● In the case of several vehicles approaching
in a row (Illustration 1) or in the opposite
direction (Illustration 2) , a chime may not be
sounded by the BCI system after the first
vehicle passes the sensors. ●
The sonar system chime indicating there is
an object behind the vehicle has a higher
priority than the BCI chime (single beep)
indicating an approaching vehicle. If the so-
nar system detects an object behind the
vehicle and the BCI system detects an ap-
proaching vehicle at the same time the fol-
lowing indicators are provided:
– The sonar system chime sounds
– The Blind Spot Warning indicator light on the side of the approaching vehicle
flashes and
LSD2134
Illustration 1
LSD2043
Illustration 2
LSD2044
Starting and driving5-59

– A yellow rectangular frame appears indisplay

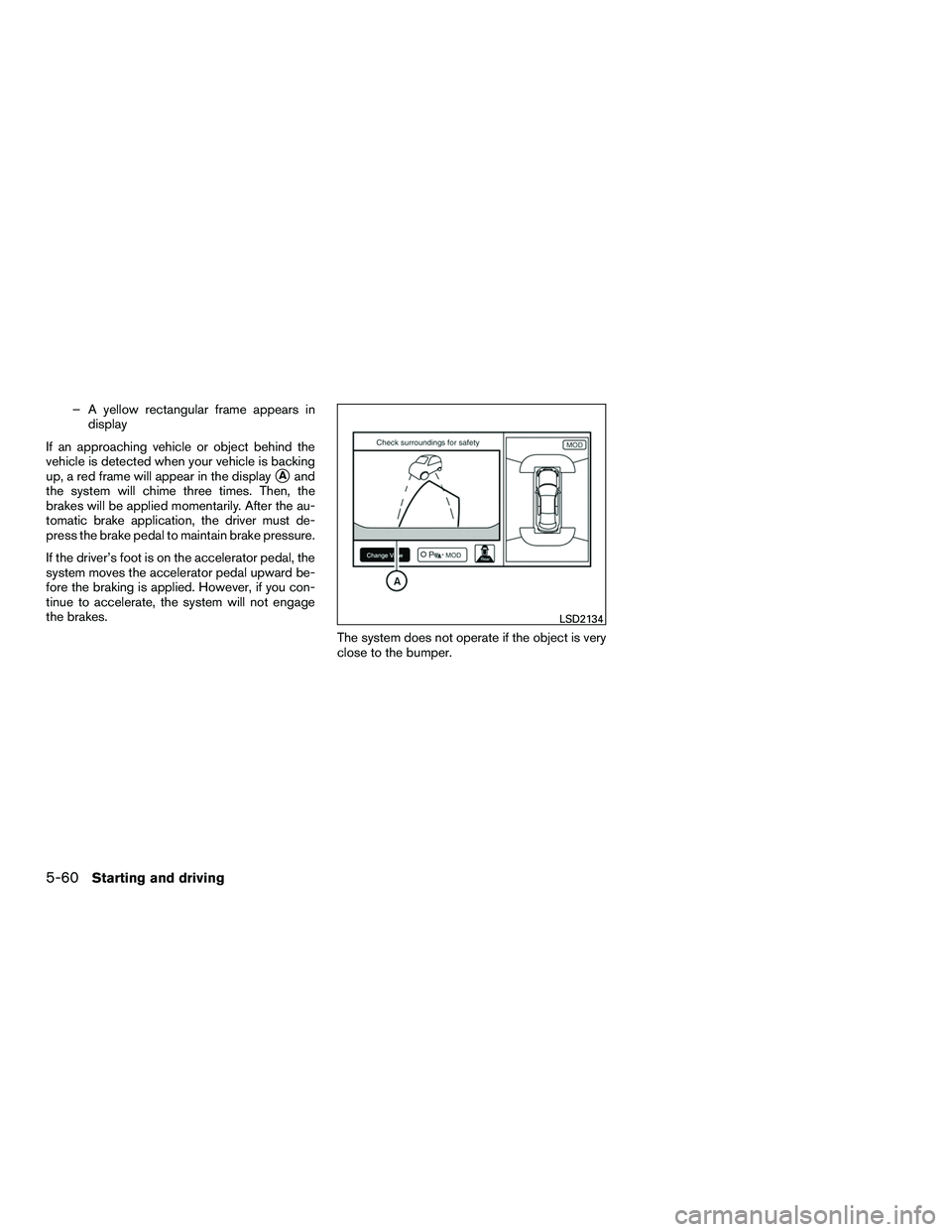

If an approaching vehicle or object behind the
vehicle is detected when your vehicle is backing
up, a red frame will appear in the display
Aand
the system will chime three times. Then, the
brakes will be applied momentarily. After the au-
tomatic brake application, the driver must de-
press the brake pedal to maintain brake pressure.
If the driver’s foot is on the accelerator pedal, the
system moves the accelerator pedal upward be-
fore the braking is applied. However, if you con-
tinue to accelerate, the system will not engage
the brakes.
The system does not operate if the object is very
close to the bumper.
LSD2134
5-60Starting and driving

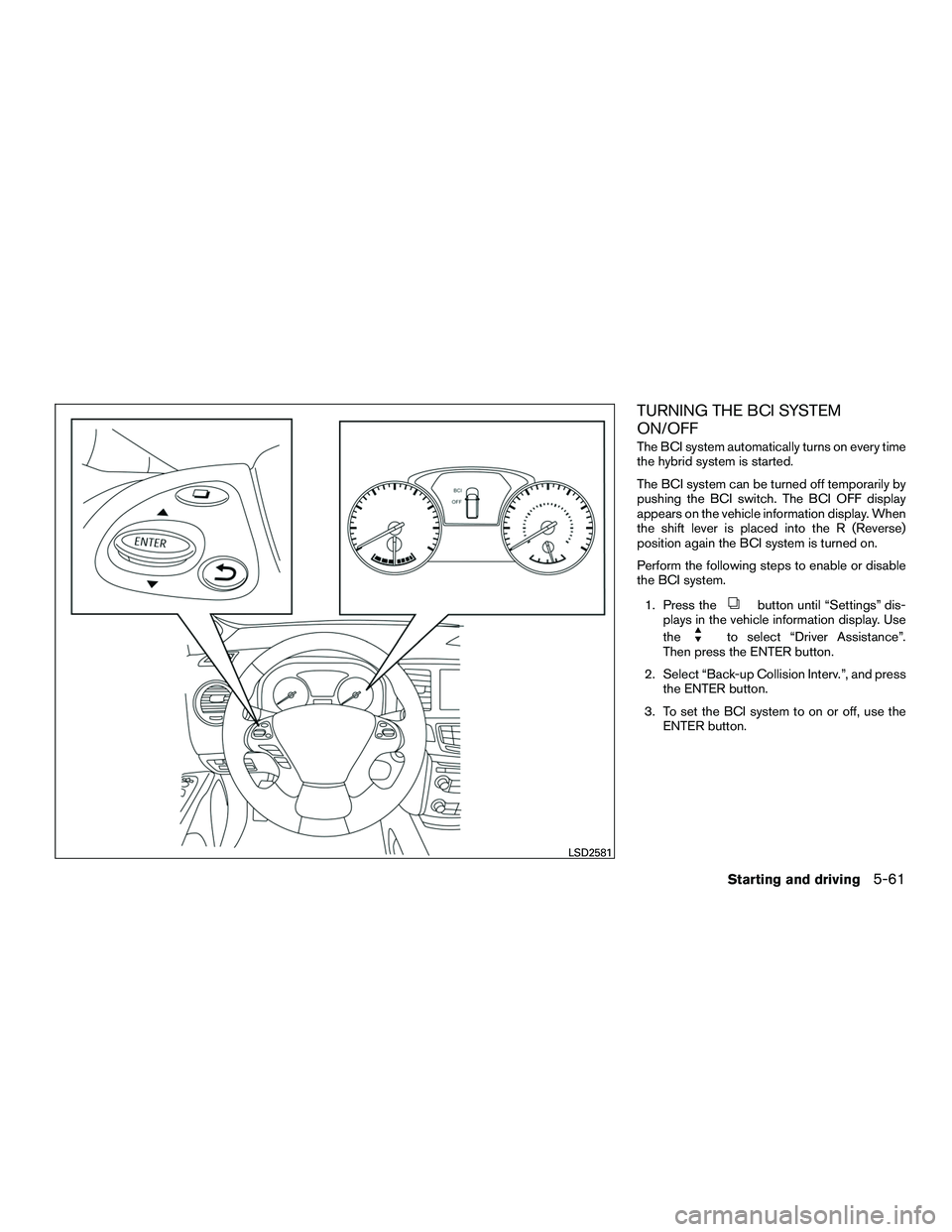

TURNING THE BCI SYSTEM
ON/OFF
The BCI system automatically turns on every time
the hybrid system is started.
The BCI system can be turned off temporarily by
pushing the BCI switch. The BCI OFF display
appears on the vehicle information display. When
the shift lever is placed into the R (Reverse)
position again the BCI system is turned on.
Perform the following steps to enable or disable
the BCI system.1. Press the
button until “Settings” dis-
plays in the vehicle information display. Use
the
to select “Driver Assistance”.
Then press the ENTER button.
2. Select “Back-up Collision Interv.”, and press the ENTER button.
3. To set the BCI system to on or off, use the ENTER button.
LSD2581
Starting and driving5-61

BCI SYSTEM LIMITATIONSWARNING
Failure to follow the warnings and instruc-
tions for proper use of the BCI system
could result in serious injury or death.●
Always check surroundings and turn to
check what is behind you before back-
ing up. The radar sensors detect ap-
proaching (moving) vehicles. The radar
sensors cannot detect every object such
as:
– Pedestrians, bicycles, motorcycles, animals or child operated toy
vehicles
– A vehicle that is passing at speeds greater than approximately 15 mph
(24 km/h)
● The radar sensors may not detect ap-
proaching vehicles in certain situations:
– Illustration a: When a vehicle parked next to you obstructs the beam of the
radar sensor.
– Illustration b: When the vehicle is parked in an angled parking space.
– Illustration c: When the vehicle is parked on inclined ground.
– Illustration d: When an approaching vehicle turns into your vehicle’s park-
ing lot aisle.
LSD2173
5-62Starting and driving

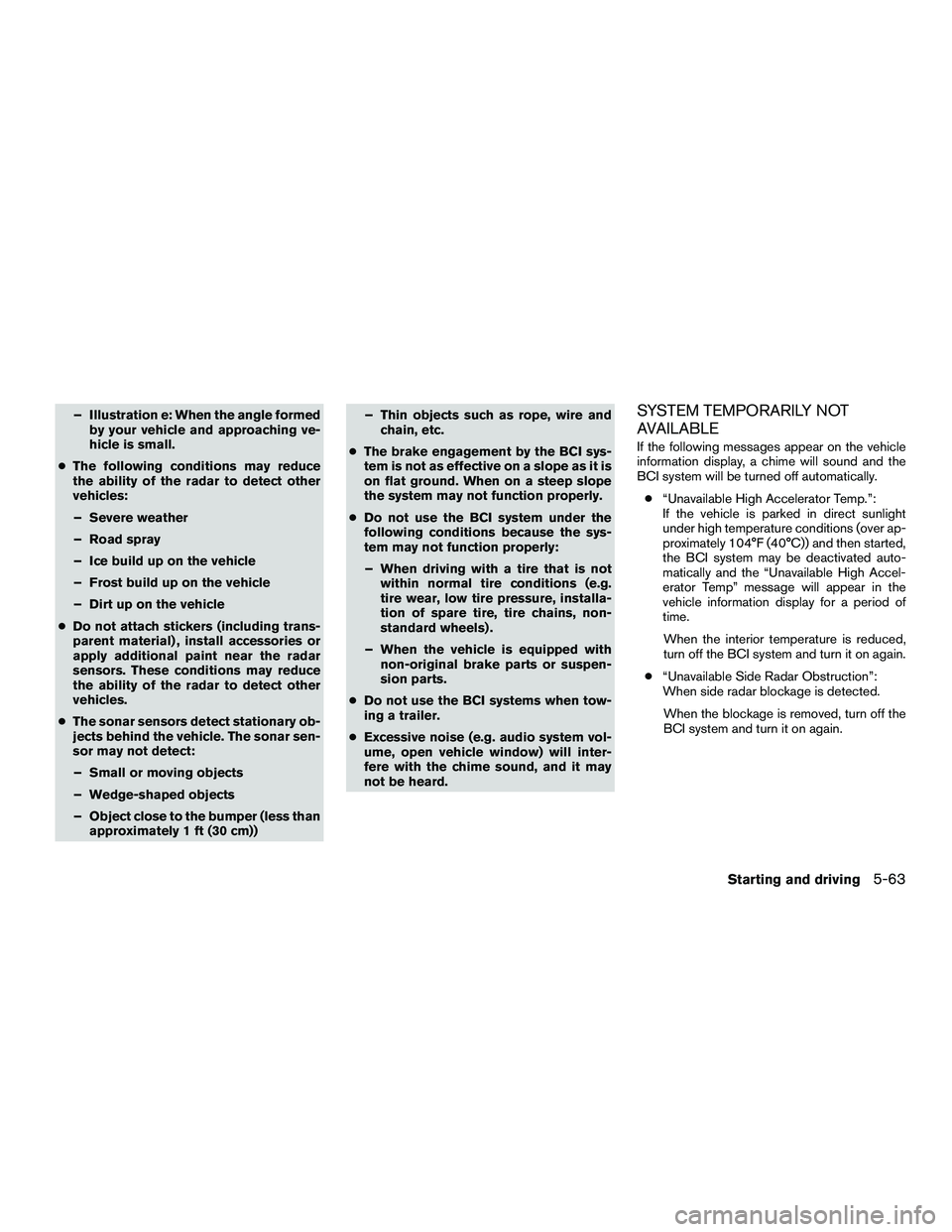

– Illustration e: When the angle formedby your vehicle and approaching ve-
hicle is small.
● The following conditions may reduce
the ability of the radar to detect other
vehicles:
– Severe weather
– Road spray
– Ice build up on the vehicle
– Frost build up on the vehicle
– Dirt up on the vehicle
● Do not attach stickers (including trans-
parent material) , install accessories or
apply additional paint near the radar
sensors. These conditions may reduce
the ability of the radar to detect other
vehicles.
● The sonar sensors detect stationary ob-
jects behind the vehicle. The sonar sen-
sor may not detect:
– Small or moving objects
– Wedge-shaped objects
– Object close to the bumper (less than approximately 1 ft (30 cm)) – Thin objects such as rope, wire and
chain, etc.
● The brake engagement by the BCI sys-
tem is not as effective on a slope as it is
on flat ground. When on a steep slope
the system may not function properly.
● Do not use the BCI system under the
following conditions because the sys-
tem may not function properly:
– When driving with a tire that is not within normal tire conditions (e.g.
tire wear, low tire pressure, installa-
tion of spare tire, tire chains, non-
standard wheels) .
– When the vehicle is equipped with non-original brake parts or suspen-
sion parts.
● Do not use the BCI systems when tow-
ing a trailer.
● Excessive noise (e.g. audio system vol-
ume, open vehicle window) will inter-
fere with the chime sound, and it may
not be heard.SYSTEM TEMPORARILY NOT
AVAILABLE
If the following messages appear on the vehicle
information display, a chime will sound and the
BCI system will be turned off automatically.
● “Unavailable High Accelerator Temp.”:
If the vehicle is parked in direct sunlight
under high temperature conditions (over ap-
proximately 104°F (40°C)) and then started,
the BCI system may be deactivated auto-
matically and the “Unavailable High Accel-
erator Temp” message will appear in the
vehicle information display for a period of
time.
When the interior temperature is reduced,
turn off the BCI system and turn it on again.
● “Unavailable Side Radar Obstruction”:
When side radar blockage is detected.
When the blockage is removed, turn off the
BCI system and turn it on again.
Starting and driving5-63

SYSTEM MALFUNCTION
If the BCI system malfunctions, it will turn off
automatically, a chime will sound and the BCI
system warning light (orange) will illuminate.
Action to take:
Stop the vehicle in a safe location, turn the hybrid
system off and restart the hybrid system. If the
warning light (orange) continues to illuminate,
have the system checked. It is recommended that
you visit an INFINITI retailer for this service.
SYSTEM MAINTENANCE
The radar sensors1and the sonar sensors2
for the BCI system are located near the rear
bumper. Always keep the area near the radar
sensors clean.
The radar sensors may be blocked by temporary
ambient conditions such as splashing water, mist
or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing the
radar sensors.Check for and remove objects obstructing the
area around the radar sensors.
Do not attach stickers (including transparent ma-
terial) , install accessories or apply additional
paint near the radar sensors.
Do not strike or damage the area around the
radar sensors. It is recommended that you visit an
INFINITI retailer if the area around the radar sen-
sors is damaged due to a collision.
LSD2025
5-64Starting and driving

WARNING
Failure to follow the warnings and instruc-
tions for proper use of the RCTA system
could result in serious injury or death.
●The RCTA system is not a replacement
for proper driving procedures and is not
designed to prevent contact with ve-
hicles or objects. When backing out of a
parking space, always use the side and
rear mirrors and turn and look in the
direction your vehicle will move. Never
rely solely on the RCTA system.

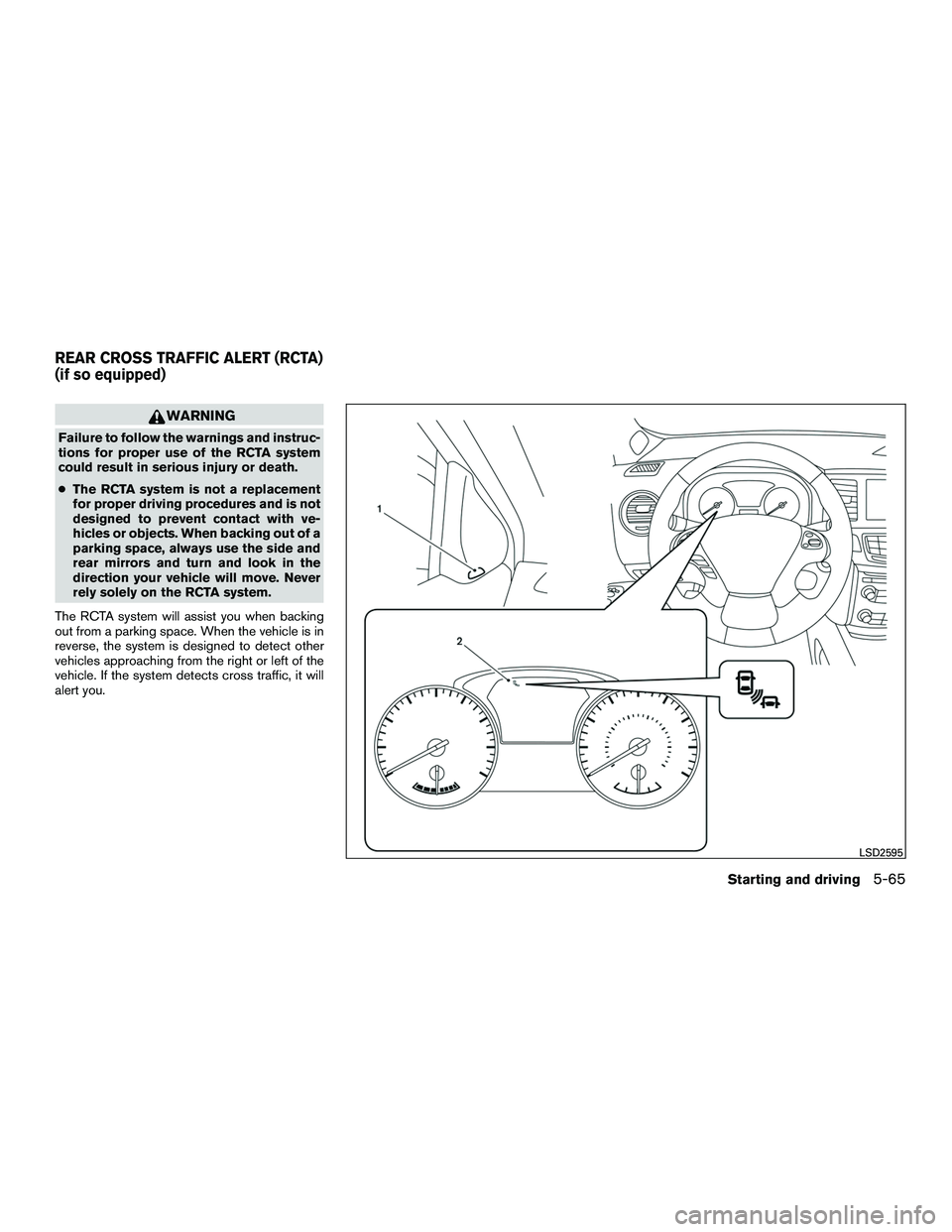

The RCTA system will assist you when backing
out from a parking space. When the vehicle is in
reverse, the system is designed to detect other
vehicles approaching from the right or left of the
vehicle. If the system detects cross traffic, it will
alert you.
LSD2595
REAR CROSS TRAFFIC ALERT (RCTA)
(if so equipped)
Starting and driving5-65
