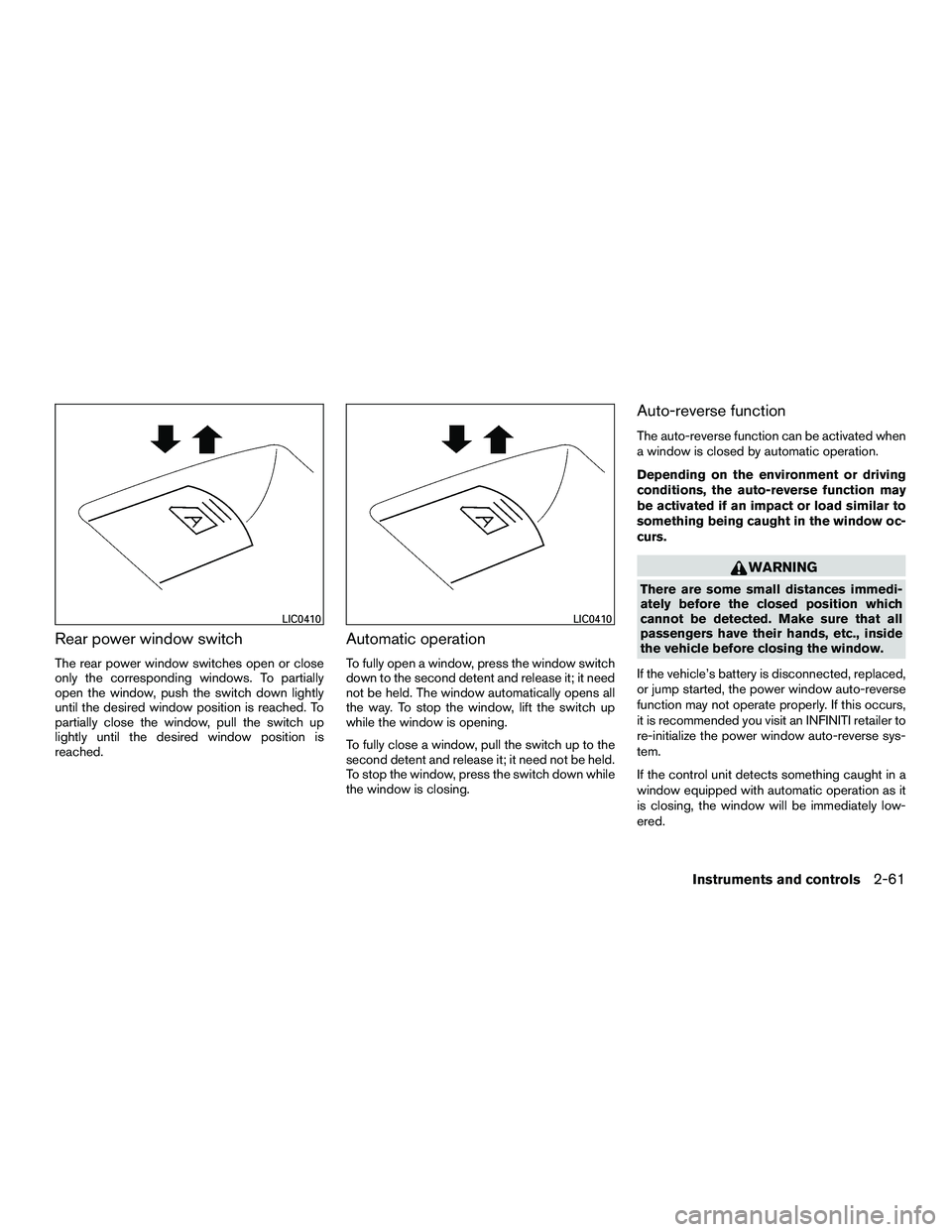

Rear power window switch
The rear power window switches open or close
only the corresponding windows. To partially
open the window, push the switch down lightly
until the desired window position is reached. To
partially close the window, pull the switch up
lightly until the desired window position is
reached.
Automatic operation
To fully open a window, press the window switch
down to the second detent and release it; it need
not be held. The window automatically opens all
the way. To stop the window, lift the switch up
while the window is opening.
To fully close a window, pull the switch up to the
second detent and release it; it need not be held.
To stop the window, press the switch down while
the window is closing.
Auto-reverse function
The auto-reverse function can be activated when
a window is closed by automatic operation.
Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the window oc-
curs.
WARNING
There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., inside
the vehicle before closing the window.
If the vehicle’s battery is disconnected, replaced,
or jump started, the power window auto-reverse
function may not operate properly. If this occurs,
it is recommended you visit an INFINITI retailer to
re-initialize the power window auto-reverse sys-
tem.
If the control unit detects something caught in a
window equipped with automatic operation as it
is closing, the window will be immediately low-
ered.
LIC0410LIC0410
Instruments and controls2-61

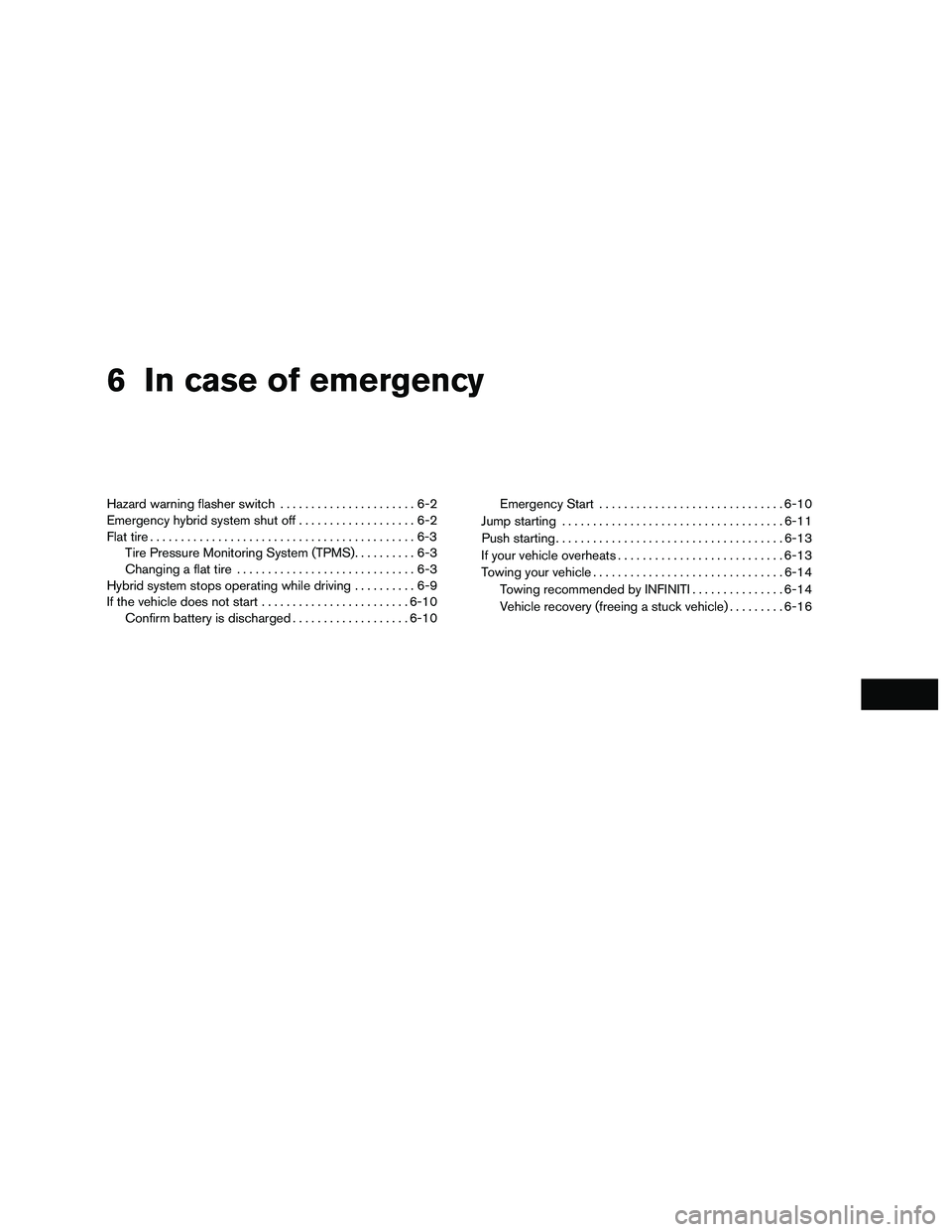

6 In case of emergency
Hazard warning flasher switch......................6-2
Emergency hybrid system shut off ...................6-2
Flat tire ...........................................6-3
Tire Pressure Monitoring System (TPMS) ..........6-3
Changing a flat tire .............................6-3
Hybrid system stops operating while driving ..........6-9
If the vehicle does not start ........................6-10
Confirm battery is discharged . . .................6-10Emergency Start
.............................. 6-10
Jump starting .................................... 6-11
Push starting ..................................... 6-13
If your vehicle overheats ........................... 6-13
Towing your vehicle ............................... 6-14
Towing recommended by INFINITI ...............6-14
Vehicle recovery (freeing a stuck vehicle) .........6-16

Before attempting to jump start the vehicle, make
sure the fuel tank is not empty and the correct
starting procedure is followed. For additional in-
formation, refer to “Starting the INFINITI Direct
Response Hybrid System” in the “Starting and
driving” section of this manual. Do not drive the
vehicle on battery power only if the fuel tank is
empty. The Li-ion battery will become discharged
and the hybrid system will turn off.

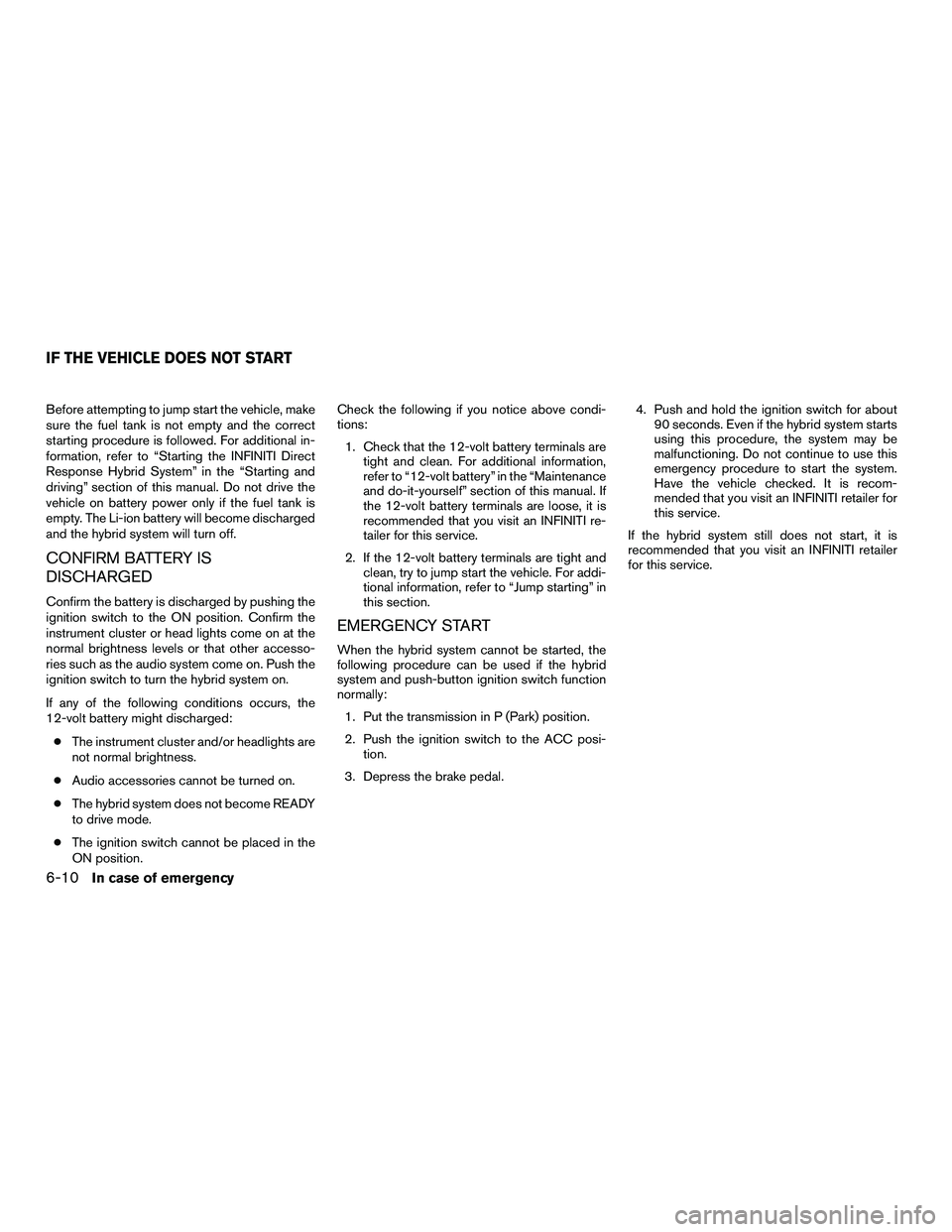

CONFIRM BATTERY IS
DISCHARGED
Confirm the battery is discharged by pushing the
ignition switch to the ON position. Confirm the
instrument cluster or head lights come on at the
normal brightness levels or that other accesso-
ries such as the audio system come on. Push the
ignition switch to turn the hybrid system on.
If any of the following conditions occurs, the
12-volt battery might discharged:● The instrument cluster and/or headlights are
not normal brightness.
● Audio accessories cannot be turned on.
● The hybrid system does not become READY
to drive mode.
● The ignition switch cannot be placed in the
ON position. Check the following if you notice above condi-
tions:
1. Check that the 12-volt battery terminals are tight and clean. For additional information,
refer to “12-volt battery” in the “Maintenance
and do-it-yourself” section of this manual. If
the 12-volt battery terminals are loose, it is
recommended that you visit an INFINITI re-
tailer for this service.
2. If the 12-volt battery terminals are tight and clean, try to jump start the vehicle. For addi-
tional information, refer to “Jump starting” in
this section.
EMERGENCY START
When the hybrid system cannot be started, the
following procedure can be used if the hybrid
system and push-button ignition switch function
normally:
1. Put the transmission in P (Park) position.
2. Push the ignition switch to the ACC posi- tion.
3. Depress the brake pedal. 4. Push and hold the ignition switch for about
90 seconds. Even if the hybrid system starts
using this procedure, the system may be
malfunctioning. Do not continue to use this
emergency procedure to start the system.
Have the vehicle checked. It is recom-
mended that you visit an INFINITI retailer for
this service.
If the hybrid system still does not start, it is
recommended that you visit an INFINITI retailer
for this service.
IF THE VEHICLE DOES NOT START
6-10In case of emergency

Jump starting provides power to the 12–volt sys-
tem to allow the electrical systems to operate.
The electrical systems must be operating to allow
the Li-ion battery to be charged. Jump starting
does not charge the Li-ion battery.
To start the hybrid system with a booster battery,
the instructions and precautions below must be
followed.
WARNING
●The engine may start at any time with-
out warning when the ignition is on and
the hybrid system is in the READY
mode. When jump starting keep your
hands, clothing, hair and tools away
from fans, belts and any other parts that
can move to avoid personal injury.
● If done incorrectly, jump starting can
lead to a 12–volt battery explosion, re-
sulting in severe injury or death. It could
also damage your vehicle.
● Explosive hydrogen gas is always pres-
ent in the vicinity of the battery. Keep all
sparks and flames away from the
battery. ●
Do not allow battery fluid to come into
contact with eyes, skin, clothing or
painted surfaces. Battery fluid is a cor-
rosive sulfuric acid solution which can
cause severe burns. If the fluid should
come into contact with anything, imme-
diately flush the contacted area with
water.
● Keep 12–volt battery out of the reach of
children.
● The booster battery must be rated at
12 volts. Use of an improperly rated
battery can damage your vehicle.
● Whenever working on or near a battery,
always wear suitable eye protectors (for
example, goggles or industrial safety
spectacles) and remove rings, metal
bands, or any other jewelry. Do not lean
over the battery when jump starting.
● Do not attempt to jump start a frozen
battery. It could explode and cause se-
rious injury.
● Your vehicle has an automatic engine
cooling fan. It could come on at any
time. Keep hands and other objects
away from it. ●
Always follow the instructions below.
Failure to do so could result in damage
to the charging system and cause per-
sonal injury.
CAUTION
Do not attempt to jump start a hybrid
vehicle as a booster vehicle.
JUMP STARTING
In case of emergency6-11

1. Locate the fusible link box behind the engineair cleaner.
2. Push the tab in and lift up
Ato remove the
lid and expose the remote positive battery
terminal
B.
3. If the booster battery is in another vehicle position the two vehicles to bring their bat-
teries near each other.
Do not allow the two vehicles to touch.
4. Apply the parking brake. Move the shift lever to P (Park) . Switch off all unnecessary elec-
trical systems (lights, heater, air conditioner,
etc.) . 5. Ensure the vent caps are level and tight.
6. Connect jumper cables in the sequence il-
lustrated (
B,C,D,E).
CAUTION
●Always connect positive () to positive
() and negative () to body ground (for
example, strut mounting bolt, engine
lift bracket, etc.) — not to the battery.
● Make sure the jumper cables do not
touch moving parts in the engine com-
partment and that the cable clamps do
not contact any other metal. ●
Do not keep the starter motor engaged
for more than 10 seconds. If the engine
does not start right away, place the ig-
nition switch in the OFF position and
wait 10 seconds.
7. Start the engine of the booster vehicle and let it run for a few minutes.
8. Hold down the brake pedal and press the START button. The vehicle instruments and
gauges will light up, and the green READY
light will come on.
CAUTION
If the green READY light does not come
on, press the START button to turn the
hybrid system OFF. Carefully disconnect
the negative cable then the positive cable.
Have vehicle taken to dealership for
repair.
9. After the green READY light in the meter display comes on, carefully disconnect the
negative cable and then the positive cable.LCE2170
6-12In case of emergency

8 Maintenance and do-it-yourself
Maintenance requirements..........................8-2
General maintenance ..............................8-2
Explanation of general maintenance items .........8-2
Maintenance precautions ...........................8-5
Engine compartment check locations ................8-7
Engine cooling system .............................8-8
Checking engine coolant level ...................8-9
Changing engine coolant ........................8-9
Inverter cooling system ............................ 8-10
Checking inverter coolant level ..................8-10
Changing inverter coolant ......................8-11
Engine oil ........................................ 8-11
Checking engine oil level .......................8-11
Changing engine oil ........................... 8-12
Changing engine oil filter .......................8-13
Continuously Variable Transmission (CVT) fluid ......8-14
Power steering fluid ............................... 8-15
Brake fluid ....................................... 8-15
Windshield-washer fluid ........................... 8-16
Windshield-washer fluid reservoir ...............8-16
12-Volt Battery ................................... 8-17
Jump starting ................................. 8-18
Drive belt ........................................ 8-19Spark plugs
...................................... 8-19
Replacing spark plugs ......................... 8-19
Air cleaner ....................................... 8-20
In-cabin microfilter ............................. 8-20
Windshield wiper blades .......................... 8-21
Cleaning ..................................... 8-21
Replacing .................................... 8-21
Brakes .......................................... 8-22
Fuses ........................................... 8-23
Engine compartment ........................... 8-23
Passenger compartment .......................8-24
Battery replacement .............................. 8-25
INFINITI Intelligent Key ......................... 8-25
Lights ........................................... 8-27
Headlights .................................... 8-27
Fog lights ..................................... 8-27
Exterior

and interior lights ....................... 8-27
Wheels and tires ................................. 8-29
Tire pressure .................................. 8-29
Tire labeling ................................... 8-32
Types of tires .................................. 8-35
Tire chains .................................... 8-36
Changing wheels and tires .....................8-37

1. Remove the vent caps with a screwdriver asshown. Use a cloth to protect the battery
case.
2. Check the fluid level in each cell. If it isnecessary to add fluid, add only distilled
water to bring the level up to the bottom of
the filler opening. Do not overfill.Reinstall
the vent caps. Vehicles operated in high temperatures or under
severe conditions require frequent checks of the
battery fluid level.
JUMP STARTING
If jump starting is necessary, refer to “Jump start-
ing” in the “In case of emergency” section of this
manual. If the engine does not start by jump
starting, the battery may have to be replaced. It is
recommended that you visit an INFINITI retailer
for this service.
WDI0224
LDI0302
8-18Maintenance and do-it-yourself

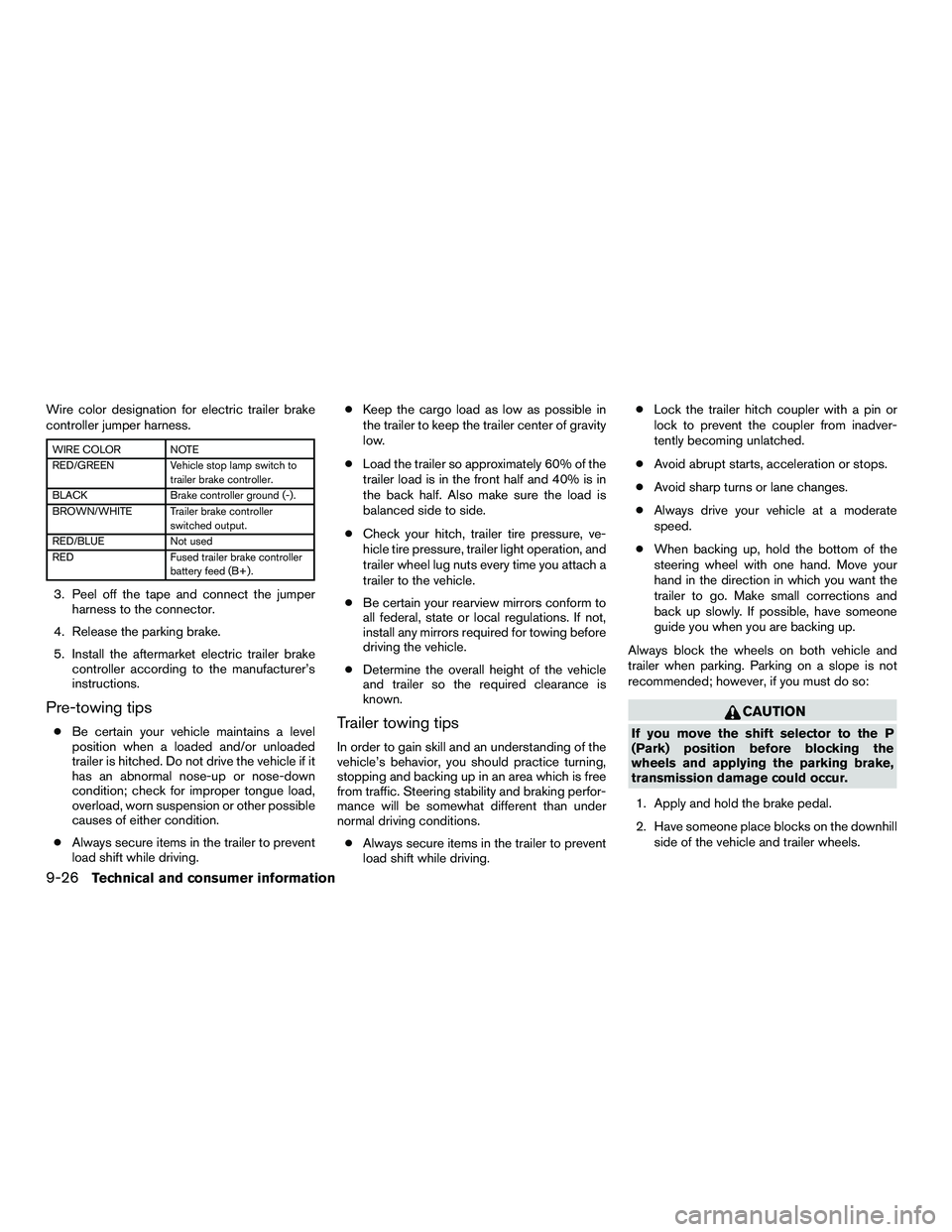

Wire color designation for electric trailer brake
controller jumper harness.
WIRE COLOR NOTE
RED/GREENVehicle stop lamp switch to
trailer brake controller.
BLACK Brake controller ground (-) .
BROWN/WHITE Trailer brake controller switched output.
RED/BLUE Not used
RED Fused trailer brake controller
battery feed (B+) .
3. Peel off the tape and connect the jumper
harness to the connector.
4. Release the parking brake.
5. Install the aftermarket electric trailer brake controller according to the manufacturer’s
instructions.
Pre-towing tips
●Be certain your vehicle maintains a level
position when a loaded and/or unloaded
trailer is hitched. Do not drive the vehicle if it
has an abnormal nose-up or nose-down
condition; check for improper tongue load,
overload, worn suspension or other possible
causes of either condition.
● Always secure items in the trailer to prevent
load shift while driving. ●
Keep the cargo load as low as possible in
the trailer to keep the trailer center of gravity
low.
● Load the trailer so approximately 60% of the
trailer load is in the front half and 40% is in
the back half. Also make sure the load is
balanced side to side.
● Check your hitch, trailer tire pressure, ve-
hicle tire pressure, trailer light operation, and
trailer wheel lug nuts every time you attach a
trailer to the vehicle.
● Be certain your rearview mirrors conform to
all federal, state or local regulations. If not,
install any mirrors required for towing before
driving the vehicle.
● Determine the overall height of the vehicle
and trailer so the required clearance is
known.Trailer towing tips
In order to gain skill and an understanding of the
vehicle’s behavior, you should practice turning,
stopping and backing up in an area which is free
from traffic. Steering stability and braking perfor-
mance will be somewhat different than under
normal driving conditions.
● Always secure items in the trailer to prevent
load shift while driving. ●
Lock the trailer hitch coupler with a pin or
lock to prevent the coupler from inadver-
tently becoming unlatched.
● Avoid abrupt starts, acceleration or stops.
● Avoid sharp turns or lane changes.
● Always drive your vehicle at a moderate
speed.
● When backing up, hold the bottom of the
steering wheel with one hand. Move your
hand in the direction in which you want the
trailer to go. Make small corrections and
back up slowly. If possible, have someone
guide you when you are backing up.
Always block the wheels on both vehicle and
trailer when parking. Parking on a slope is not
recommended; however, if you must do so:
CAUTION
If you move the shift selector to the P
(Park) position before blocking the
wheels and applying the parking brake,
transmission damage could occur.
1. Apply and hold the brake pedal.
2. Have someone place blocks on the downhill side of the vehicle and trailer wheels.
9-26Technical and consumer information

Information display................2-16
Inside automatic anti-glare mirror ........3-32
Instrument brightness control ..........2-42
Instrument panel ...............0-6, 2-2
Instrument panel dimmer switch ........2-42
Intelligent cruise control (ICC) system Brake assist .................5-75
Intelligent Key system Key operating range ..............3-8
Key operation ................3-10
Mechanical key ................3-3
Remote keyless entry operation .......3-13
Troubleshooting guide ............3-17
Warning signals ...............3-17
Interior light ....................2-66
Inverter Checking inverter coolant level .......8-10
Inverter cooling system ...........8-10
iPod® Player ...............4-88, 4-90
ISOFIX child restraints .............1-28
J
Jump starting ...............6-11, 8-18
K
Key.........................3-2
Key fob battery replacement ..........8-25
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-13 L
Labels Air conditioner specification label .....9-12
C.M.V.S.S. certification label ........9-11
Emission control information label .....9-11
Engine serial number ............9-11
F.M.V.S.S. certification label .........9-11
Tire and Loading Information label .....9-12
Vehicle identification number (VIN) .....9-10
Vehicle identification number (VIN) plate . .9-10
Warning labels (for SRS) ..........1-65
Lane Departure Prevention (LDP)
system ...............5-25, 5-30, 5-33
Lane Departure Warning (LDW)
system ...............5-25, 5-30, 5-33
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-28
License plate
Installing

the license plate ..........9-13
Liftgate ......................3-22
Liftgate release ..................3-26
Light Air bag warning light .........1-66, 2-12
Brake light (See stop light) .........8-27
Bulb check/instrument panel .........2-7
Bulb replacement ..............8-27
Charge warning light .............2-8
Exterior and Interior lights ..........8-27
Fog lights ...................8-27
Fog light switch ...............2-43
Headlight and turn signal switch ......2-38
Headlight control switch ..........2-39
Headlights ..................8-27
Interior light ..................2-66 Light bulbs
..................8-27
Low tire pressure warning light .......2-10
Low windshield-washer fluid warning
light ......................2-29
Passenger air bag and status light .....1-57
Personal lights ................2-67
Security indicator light ............2-14
Warning/indicator lights and audible
reminders .................2-7, 2-8
Lights .......................8-27
Map lights ..................2-67
Lock Child safety rear door lock ..........3-6
Glove box lock ................2-54
Liftgate release ................3-26
Power door locks ............3-5, 3-6
Loose fuel cap warning .............2-30
Low fuel warning light ........2-9, 2-11, 2-28
Low tire pressure warning light .........2-10
Low windshield-washer fluid warning light . . .2-29
Luggage hook ..................2-58
Luggage rack

(see roof rack) ..........2-58
Luggage (See vehicle loading information) . .9-14
M
Maintenance General maintenance .............8-2
Inside the vehicle ...............8-3
Maintenance precautions ...........8-5
Outside the vehicle ..............8-2
Seat belt maintenance ............1-23
Under the hood and vehicle .........8-4
Maintenance requirements ............8-2
Malfunction indicator light ............2-13
10-4

Seat adjustmentFront power seat adjustment .........1-3
Second row bench seats ........1-5, 1-7
Seatback pockets ................2-52
Seat belt Child safety ..................1-24
Infants and small children ..........1-24
Injured Person ................1-18
Larger children ................1-25
Precautions on seat belt usage .......1-15
Pregnant women ...............1-18
Seat belt extenders .............1-23
Seat belt maintenance ............1-23
Seat belts ................1-15, 7-6
Three-point type with retractor .......1-19
Seat belt extenders ...............1-23
Seat belt warning light ..........1-18, 2-12
Seats 2nd row bench seat adjustment . . . .1-5, 1-7
Adjustment ...................1-2
Armrests ....................1-8
Automatic drive positioner ..........3-34
Front seats ...................1-2
Heated seats .............2-44, 2-46
Seats/floor mats ..................7-5
Security indicator light ..............2-14
Security system (INFINITI vehicle immobilizer system) ,
engine start ...........2-34, 3-4, 5-16
Security systems Vehicle security system ...........2-32
Self-adjusting brakes ..............8-22
Service manual order form ...........9-33
Servicing air conditioner .............4-57
Spark plug replacement .............8-19
Spark plugs ...................8-19 Specifications
...................9-8
Speedometer ...................2-5
SRS warning label ................1-65
Stability control................

.5-137
Starting Before starting the engine ..........5-16
Jump starting .............6-11, 8-18
Precautions when starting and driving . . . .5-4
Push starting .................6-13
Starting the engine .............5-16
Starting the engine ...............5-16
Steering Heated steering wheel ...........2-47
Power steering fluid .............8-15
Power steering system ...........5-135
Steering wheel ..................3-29
Steering wheel audio control switch ......4-98
Stop light .....................8-27
Storage ......................2-52
Storage bin ....................2-57
Storage tray ...................2-53
Sunglasses case .................2-55
Sunglasses holder ................2-55
Sunroof .......................7-5
Sunroof (see Moonroof) .............2-62
Sun visors ....................3-31
Supplemental air bag warning labels ......1-65
Supplemental air bag warning light . . .1-66, 2-12
Supplemental front impact air bag system . . .1-55
Supplemental restraint system Information and warning labels .......1-65
Precautions on supplemental restraint
system ....................1-48
Supplemental restraint system
(Supplemental air bag system) .........1-48Switch
Autolight switch ...............2-39
Automatic power window switch ......2-61
Fog light switch ...............2-43
Hazard warning flasher switch ........6-2
Headlight aiming control ..........2-41
Headlight and turn signal switch ......2-38
Headlight control switch ..........2-39
Instrument brightness control ........2-42
P ower

door lock switch .........3-5, 3-6
Power inverter switch ............2-48
Rear window defroster switch .......2-38
Rear window wiper and washer
switches ...................2-37
Steering wheel switch for audio
control/Bluetooth® Hands-Free Phone
System ....................4-98
Turn signal switch ..............2-42
Vehicle dynamic control (VDC) off
switch .....................2-47
T
Tachometer ....................2-5
Theft (INFINITI vehicle immobilizer system) ,
engine start ...........2-34, 3-4, 5-16
Three-way catalyst ................5-4
Tire Flat tire .....................6-3
Spare tire ................6-4, 8-39
Tire and Loading Information label .....9-12
Tire chains ..................8-36
Tire pressure .................8-29
Tire rotation ..................8-37
10-6
