checking oil INFINITI QX80 2014 Owners Manual

2 Instruments and controls
Cockpit ................................................................ 2-3
Instrument panel ................................................. 2-5
Meters and gauges .............................................. 2-6Speedometer and odometer ............................ 2-7
Tachometer...................................................... 2-8
Engine coolant temperature gauge .................. 2-8
Fuel gauge ...................................................... 2-9
Engine oil pressure gauge ............................... 2-9
Voltmeter ...................................................... 2-10
Meter/ring illumination and needle sweep .... 2-10
Warning/indicator lights and
audible reminders ............................................. 2-11 Checking bulbs.............................................. 2-12
Warning lights ............................................... 2-12
Indicator lights .............................................. 2-18
Audible reminders ......................................... 2-21
Dot matrix liquid crystal display ........................ 2-22 Operational indicators ................................... 2-24
Maintenance indicators ................................. 2-27
Trip computer ................................................ 2-28
Security systems ............................................... 2-31 Vehicle Security System ................................ 2-31
INFINITI Vehicle Immobilizer System .............. 2-32 Windshield wiper and washer switch................. 2-34
Washer operation ........................................ 2-35
Rain-sensing auto wiper system................... 2-35
Rear window wiper and washer switch .............. 2-36
Rear window and outside mirror
defroster switch ................................................ 2-37 Rear window and outside mirror defroster ... 2-37
Headlight and turn signal switch ....................... 2-38 Xenon headlights......................................... 2-38
Headlight switch .......................................... 2-38
Headlight washer (if so equipped) ............... 2-42
Instrument brightness control ...................... 2-43
Turn signal switch........................................ 2-43
Fog light switch ........................................... 2-44
Heated steering wheel ...................................... 2-44
Horn ................................................................. 2-45
Heated seats (if so equipped) ........................... 2-45 Front............................................................ 2-46
Rear............................................................. 2-46
Climate controlled seats (if so equipped) .......... 2-47
Warning systems switch (if so equipped) .......... 2-48
SNOW mode switch........................................... 2-49
Tow mode switch .............................................. 2-49>

2-12Instruments and controls
CHECKING BULBS
With all doors closed, apply the parking
brake and push the ignition switch to the
ON position without starting the engine.
The following lights will come on (if so
equipped):
,or,,,,,,
The following lights come on briefly and
then go off (if so equipped):
,or,,,,,,,,,
If any light does not come on, it may
indicate a burned-out bulb or an open
circuit in the electrical system. Have the
system checked by an INFINITI retailer.
Some indicators and warnings are also
displayed on the dot matrix liquid crystal
display between the speedometer and
tachometer. (See“Dot matrix liquid crystal
display” later in this section.)
WARNING LIGHTS
orAnti-lock Braking
System (ABS) warning light
When the ignition switch is in the ON
position, the Anti-lock Braking System
(ABS) warning light illuminates and then
turns off. This indicates the ABS is opera-
tional.
If the ABS warning light illuminates while
the engine is running, or while driving, it
may indicate the ABS is not functioning
properly. Have the system checked by an
INFINITI retailer.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system
then operates normally, but without anti-
lock assistance. (See “Brake system”in the
“5. Starting and driving” section.)
Automatic transmission check
warning light
When the ignition switch is pushed to the
ON position, the light comes on for 2
seconds. If the light comes on at any other
time, it may indicate the transmission is
not functioning properly. Have your INFINITI
retailer check and repair the transmission.
Automatic Transmission (AT)
oil temperature warning light
This light illuminates when the Automatic
Transmission (AT) oil temperature is too
high. If the light illuminates while driving,
reduce the vehicle speed as soon as safely
possible until the light turns off.
CAUTION
Continued vehicle operation when the AT oil
temperature warning light is on may da-
mage the AT.
Automatic Transmission (AT)
park warning light (4WD models)
This light indicates that the Automatic
Transmission (AT) parking function is not
engaged. If the transfer control is not
secured in any driving position while the
AT shift lever is in the “P”(Park) position,
the transmission will disengage and the
wheels will not lock.
If the AT park warning light illuminates
with the shift lever in the P (Park) position,
shift the Four-Wheel Drive (4WD) shift
switch to the AUTO, 4H or 4L position

5-16Starting and driving
ENGINE PROTECTION MODE
The engine has an engine protection mode
to reduce the chance of damage if the
coolant temperature becomes too high (for
example, when climbing steep grades in
high temperature with heavy loads, such
as when towing a trailer).
When the engine temperature reaches a
certain level:
.The engine coolant temperature gauge
will move toward the H position.
. Engine power may be reduced.
. The air conditioning cooling function
may be automatically turned OFF for a
short time (the blower will continue to
operate).
Engine power and, under some conditions,
vehicle speed will decrease. Vehicle speed
can be controlled with the accelerator
pedal, but the vehicle may not accelerate
at the desired speed. The transmission will
downshift or upshift as it reaches pre-
scribed shift points. You can also shift
manually.
As driving conditions change and engine
coolant temperature is reduced, vehicle
speed can be increased using the accel-
erator pedal, and air conditioning cooling function will automatically be turned back
ON.
If:
1. The engine coolant temperature is not
reduced.
2. The air conditioning cooling function does not turn back ON.
3. The engine oil pressure warning light
illuminates or engine coolant
temperature gauge does not return to
the normal range from the H position,
this may indicate a malfunction. Move
the vehicle off the road to a safe area
and allow the engine to cool. If after
checking the oil and coolant, the
remains on or engine coolant tempera-
ture does not return to the normal
range, do not continue to drive and
contact an INFINITI retailer.
The Malfunction Indicator Light (MIL)
may also come ON. You do not need to
have your vehicle towed, unless it remains
on, but have it inspected soon by an
INFINITI retailer. See “Warning/indicator
lights and audible reminders” in the“2.
Instruments and controls” section.
WARNING
Overheating can result in reduced engine
power and vehicle speed. The reduced speed
may be lower than other traffic, which could
increase the chance of a collision. Be
especially careful when driving. If the
vehicle cannot maintain a safe driving
speed, pull to the side of the road in a safe
area. Allow the engine to cool and return to
normal operation. See“If your vehicle over-
heats” in the“6. In case of emergency”
section.
CAUTION
Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Such damage is not covered
by warranty. Turn off the engine as soon as
it is safe to do so.
DRIVING THE VEHICLE

8 Maintenance and do-it-yourself
Maintenance requirement .................................... 8-2Scheduled maintenance .................................. 8-2
General maintenance....................................... 8-2
Where to go for service ................................... 8-2
General maintenance ........................................... 8-2 Explanation of maintenance items ................... 8-2
Maintenance precautions ..................................... 8-5
Engine compartment check locations ................... 8-7 VK56VD engine model ..................................... 8-7
Engine cooling system ......................................... 8-8
Checking engine coolant level ......................... 8-9
Changing engine coolant ................................. 8-9
Engine oil .......................................................... 8-10
Checking engine oil level............................... 8-10
Changing engine oil and filter ....................... 8-10
Automatic transmission fluid ............................. 8-12
Power steering fluid........................................... 8-13
Brake fluid......................................................... 8-13 Brake fluid .................................................... 8-14
Window washer fluid ......................................... 8-15
Battery .............................................................. 8-16 Jump starting ................................................ 8-17
Variable voltage control system ......................... 8-17
Drive belts ......................................................... 8-18 Spark plugs ...................................................... 8-18
Replacing spark plugs ................................. 8-19
Air cleaner ........................................................ 8-19
Windshield wiper blades ................................... 8-20 Cleaning ...................................................... 8-20
Replacing..................................................... 8-21
Rear window wiper blades ................................ 8-22
Brakes .............................................................. 8-22 Self-adjusting brakes ................................... 8-22
Brake pad wear warning .............................. 8-22
Brake booster .............................................. 8-22
Fuses ................................................................ 8-23 Engine compartment .................................... 8-23
Passenger compartment............................... 8-24
Intelligent Key battery replacement ................... 8-25
Lights................................................................ 8-28
Headlights ................................................... 8-29
Exterior and interior lights ........................... 8-29
Wheels and tires ............................................... 8-31 Tire pressure ............................................... 8-31
Tire labeling ................................................ 8-35
Types of tires............................................... 8-37
Tire chains ................................................... 8-38
Changing wheels and tires........................... 8-38

8-10Maintenance and do-it-yourself
SDI2531
CHECKING ENGINE OIL LEVEL
1. Park the vehicle on a level surface andapply the parking brake.
2. Run the engine until it reaches operat- ing temperature.
3. Turn off the engine. Wait more than 15
minutes for the oil to drain back into
the oil pan.
4. Remove the dipstick and wipe it clean. Reinsert it all the way.
5. Remove the dipstick again and check the oil level. It should be within the
range
*1. If the oil level is below*2,
remove the oil filler cap and pour recommended oil through the opening.
Do not overfill
*3.
6. Recheck oil level with the dipstick.
It is normal to add some oil between oil
maintenance intervals or during the break-
in period, depending on the severity of
operating conditions.
CAUTION
Oil level should be checked regularly.
Operating the engine with an insufficient
amount of oil can damage the engine, and
such damage is not covered by warranty.
CHANGING ENGINE OIL AND FILTER
Vehicle set-up
1. Park the vehicle on a level surface and apply the parking brake.
2. Run the engine until it reaches operat- ing temperature.
3. Turn the engine off and wait more than 15 minutes.
4. Raise and support the vehicle using a suitable floor jack and safety jack
stands.
.Place the safety jack stands underthe vehicle jack-up points.
.A suitable adapter should be at-tached to the jack stand saddle.
5. Remove the engine undercover.
.Remove the bolts that hold the
undercover in place.
CAUTION
Make sure the correct lifting and support
points are used to avoid vehicle damage.
ENGINE OIL

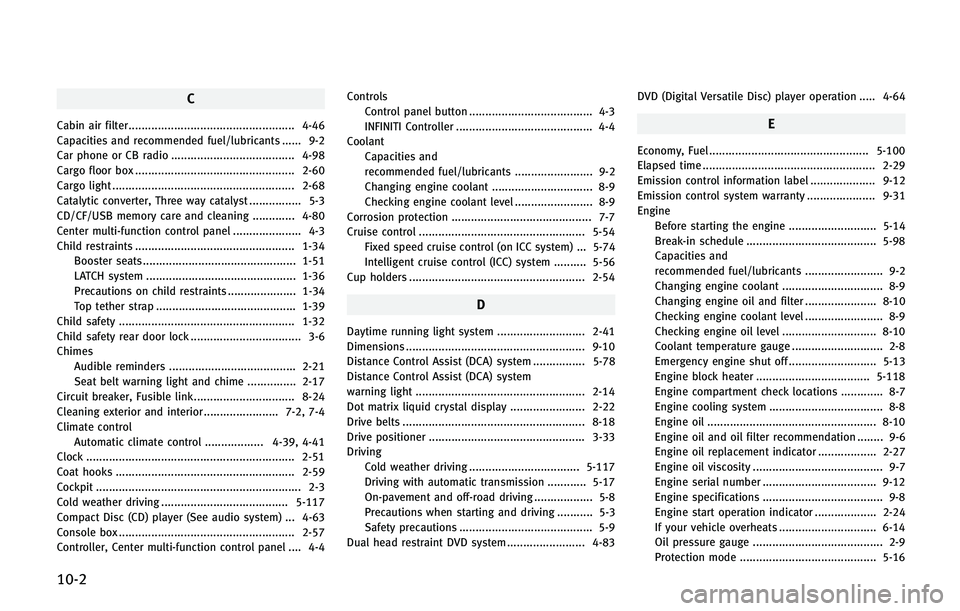

10-2
C
Cabin air filter ................................................... 4-46
Capacities and recommended fuel/lubricants ...... 9-2
Car phone or CB radio ...................................... 4-98
Cargo floor box ................................................. 2-60
Cargo light ........................................................ 2-68
Catalytic converter, Three way catalyst ................ 5-3
CD/CF/USB memory care and cleaning ............. 4-80
Center multi-function control panel ..................... 4-3
Child restraints ................................................. 1-34Booster seats ............................................... 1-51
LATCH system .............................................. 1-36
Precautions on child restraints ..................... 1-34
Top tether strap ........................................... 1-39
Child safety ...................................................... 1-32
Child safety rear door lock .................................. 3-6
Chimes Audible reminders ....................................... 2-21
Seat belt warning light and chime ............... 2-17
Circuit breaker, Fusible link............................... 8-24
Cleaning exterior and interior ....................... 7-2, 7-4
Climate control Automatic climate control .................. 4-39, 4-41
Clock ................................................................ 2-51
Coat hooks ....................................................... 2-59
Cockpit ............................................................... 2-3
Cold weather driving ....................................... 5-117
Compact Disc (CD) player (See audio system) ... 4-63
Console box ...................................................... 2-57
Controller, Center multi-function control panel .... 4-4 Controls
Control panel button ...................................... 4-3
INFINITI Controller .......................................... 4-4
Coolant
Capacities and
recommended fuel/lubricants ........................ 9-2
Changing engine coolant ............................... 8-9
Checking engine coolant level ........................ 8-9
Corrosion protection ........................................... 7-7
Cruise control ................................................... 5-54
Fixed speed cruise control (on ICC system) ... 5-74
Intelligent cruise control (ICC) system .......... 5-56
Cup holders ...................................................... 2-54
D
Daytime running light system ........................... 2-41
Dimensions ....................................................... 9-10
Distance Control Assist (DCA) system ................ 5-78
Distance Control Assist (DCA) system
warning light .................................................... 2-14
Dot matrix liquid crystal display ....................... 2-22
Drive belts ........................................................ 8-18
Drive positioner ................................................ 3-33
Driving Cold weather driving .................................. 5-117
Driving with automatic transmission ............ 5-17
On-pavement and off-road driving .................. 5-8
Precautions when starting and driving ........... 5-3
Safety precautions ......................................... 5-9
Dual head restraint DVD system ........................ 4-83 DVD (Digital Versatile Disc) player operation ..... 4-64
E
Economy, Fuel ................................................. 5-100
Elapsed time ..................................................... 2-29
Emission control information label .................... 9-12
Emission control system warranty ..................... 9-31
Engine
Before starting the engine ........................... 5-14
Break-in schedule ........................................ 5-98
Capacities and
recommended fuel/lubricants ........................ 9-2
Changing engine coolant ............................... 8-9
Changing engine oil and filter ...................... 8-10
Checking engine coolant level ........................ 8-9
Checking engine oil level ............................. 8-10
Coolant temperature gauge ............................ 2-8
Emergency engine shut off ........................... 5-13
Engine block heater ................................... 5-118
Engine compartment check locations ............. 8-7
Engine cooling system ................................... 8-8
Engine oil .................................................... 8-10
Engine oil and oil filter recommendation ........ 9-6
Engine oil replacement indicator .................. 2-27
Engine oil viscosity ........................................ 9-7
Engine serial number ................................... 9-12
Engine specifications ..................................... 9-8
Engine start operation indicator ................... 2-24
If your vehicle overheats .............................. 6-14
Oil pressure gauge ........................................ 2-9
Protection mode .......................................... 5-16

Low tire pressure warning light ......................... 2-15
Low tire pressure warning system
(See tire pressure monitoring system (TPMS)) ..... 5-4
Luggage hooks ................................................. 2-59
M
MaintenanceBattery ......................................................... 8-16
General maintenance ..................................... 8-2
Inside the vehicle .......................................... 8-3
Maintenance indicators ................................ 2-27
Maintenance precautions ............................... 8-5
Maintenance requirements ............................. 8-2
Outside the vehicle ........................................ 8-2
Seat belt maintenance ................................. 1-31
Malfunction indicator light (MIL) ....................... 2-20
Map lights ........................................................ 2-66
Master warning light ......................................... 2-17
Mechanical key (Intelligent Key system) .............. 3-3
Memory storage, Automatic drive positioner ..... 3-34
Meter Trip computer .............................................. 2-28
Meters and gauges ............................................. 2-6 Instrument brightness control ...................... 2-43
Mirror Inside mirror ................................................ 3-30
Outside mirrors ............................................ 3-30
Vanity mirror ................................................ 3-32
Moonroof .......................................................... 2-63
Moving Object Detection (MOD) ........................ 4-32
N
New vehicle break-in ......................................... 5-98
O
Odometer............................................................ 2-7
Off-road recovery ................................................ 5-8
Oil
Capacities and
recommended fuel/lubricants ........................ 9-2
Changing engine oil and filter ...................... 8-10
Checking engine oil level ............................. 8-10
Engine oil .................................................... 8-10
Engine oil pressure gauge .............................. 2-9
Engine oil viscosity ........................................ 9-7
Oil filter replacement indicator ..................... 2-27
Operation, operational indicators ...................... 2-24
Outside air temperature .................................... 2-29
Outside mirrors ................................................. 3-30
Overheat, If your vehicle overheats ................... 6-14
Owner’s Manual/Service Manual
order information .............................................. 9-34
P
Panic alarm ...................................................... 3-17
Parking Brake break-in ........................................... 5-110
Parking brake operation ............................... 5-21
Parking on hills ......................................... 5-108 Phone
Bluetooth
®Hands-Free Phone System ......... 4-98
Car phone or CB radio ................................. 4-98
Pocket .............................................................. 2-58
Power
Front seat adjustment .................................... 1-4
Power door lock ............................................. 3-4
Power outlet ................................................ 2-52
Power steering fluid ..................................... 8-13
Power steering system ............................... 5-110
Power windows ............................................ 2-61
Precautions Audio operation ........................................... 4-47
Braking precautions ................................... 5-110
Child restraints ............................................ 1-34
Cruise control .............................................. 5-54
Driving safety ................................................. 5-9
Lane departure warning (LDW) system ......... 5-22
Maintenance .................................................. 8-5
On-pavement and off-road driving .................. 5-8
Precautions on BCI system ........................... 5-51
Precautions on Blind Spot
Intervention system ..................................... 5-38
Seat belt usage ........................................... 1-21
Supplemental restraint system ..................... 1-55
When starting and driving .............................. 5-3
Preview function ............................................. 5-111
Preview Function warning light .......................... 2-17
Push starting .................................................... 6-13
Push-button ignition switch .............................. 5-11
10-5
