INFINITI QX80 2018 Owners Manual

1-70Safety — seats, seat belts and supplemental restraint system
recommended you visit an INFINITI
retailer for this service. However, the
air bag module and pretensioner
system cannot be repaired.
. The front air bag, side air bag, curtain
air bag and the pretensioner should
be inspected if there is any damage to
the front end or side portion of the
vehicle. It is recommended you visit
an INFINITI retailer for this service.
. If you need to dispose of a supple-
mental air bag or pretensioner or
scrap the vehicle, it is recommended
you visit an INFINITI retailer. Correct
supplemental air bag and preten-
sioner system disposal procedures
are set forth in the appropriate
INFINITI Service Manual. Incorrect
disposal procedures could cause per-
sonal injury.
. If there is an impact to your vehicle
from any direction, your Occupant
Classification Sensor (OCS) should be
checked to verify it is still functioning
correctly. It is recommended that you
visit an INFINITI retailer for this
service. The OCS should be checked
even if no air bags deploy as a result
of the impact. Failure to verify proper
OCS function may result in an im-
proper air bag deployment resulting in injury or death.

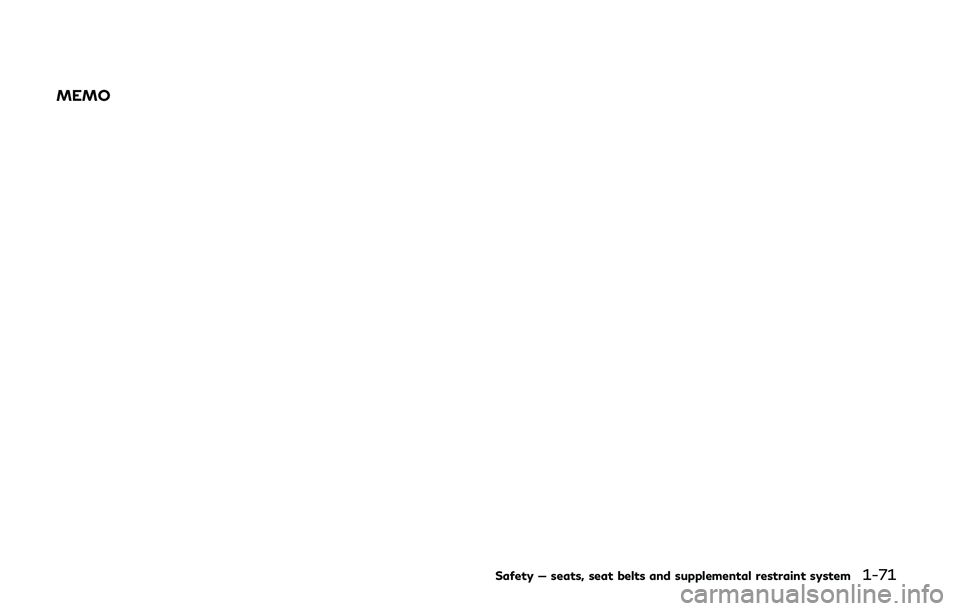

MEMO
Safety — seats, seat belts and supplemental restraint system1-71

1-72Safety — seats, seat belts and supplemental restraint system
MEMO

2 Instruments and controls
Cockpit ........................................................................\
......... 2-3
Instrument panel ............................................................... 2-5
Meters and gauges .......................................................... 2-6Speedometer and odometer ..................................... 2-7
Tachometer ................................................................... 2-8
Engine coolant temperature gauge ....................... 2-8
Fuel gauge ..................................................................... 2-9
Engine oil pressure gauge ......................................... 2-9
Voltmeter ..................................................................... 2-10
Meter/ring illumination and needle sweep ........ 2-10
Warning lights, indicator lights and
audible reminders ............................................................ 2-11 Checking lights ........................................................... 2-12
Warning lights ............................................................ 2-12
Indicator lights ........................................................... 2-18
Audible reminders ..................................................... 2-21
Vehicle information display .......................................... 2-21 Operational indicators ............................................. 2-24
Maintenance indicators ........................................... 2-27
Trip computer ............................................................. 2-28
Security systems ............................................................. 2-31 Vehicle Security System .......................................... 2-31
INFINITI Vehicle Immobilizer System .................. 2-32 Wiper and washer switch ............................................ 2-33
Washer operation ................................................... 2-34
Rain-sensing auto wiper system ........................ 2-35
Rear window wiper and washer operation ..... 2-36
Rear window and outside mirror
defroster switch ............................................................. 2-36
Rear window and outside mirror defroster ..... 2-36
Headlight and turn signal switch ............................... 2-37 Headlight switch ..................................................... 2-37
Headlight washer (if so equipped) ..................... 2-42
Instrument brightness control ............................. 2-43
Turn signal switch .................................................. 2-44
Fog light switch ...................................................... 2-44
Heated steering wheel ................................................. 2-45
Horn ........................................................................\
........... 2-45
Heated seats (if so equipped) ..................................... 2-46 Front ........................................................................\
... 2-46
Rear ........................................................................\
..... 2-47
Climate controlled seats (if so equipped) ............... 2-48
Warning systems switch (if so equipped) ............... 2-49
SNOW mode switch ..................................................... 2-49
TOW mode switch ........................................................ 2-50
Vehicle Dynamic Control (VDC) OFF switch ........ 2-50

Clock ........................................................................\
........... 2-51Adjusting the time ..................................................... 2-51
Power outlet .................................................................... 2-51 USB (Universal Serial Bus)
charging connector ................................................... 2-53
Storage ........................................................................\
...... 2-54 Cup holders ................................................................. 2-54
Sunglasses holder ...................................................... 2-56
Glove box ..................................................................... 2-56
Console box ................................................................ 2-57
Tray ........................................................................\
....... 2-58
Coat hooks .................................................................. 2-59
Luggage hooks .......................................................... 2-59
Cargo floor box ......................................................... 2-60
Roof rack .................................................................... 2-60
Windows ........................................................................\
... 2-61 Power windows ......................................................... 2-61
Moonroof ........................................................................\
.. 2-64
Power moonroof ....................................................... 2-64
Welcome light .................................................................. 2-65 Battery saver system .............................................. 2-66
Interior lights .................................................................... 2-66 Map lights ................................................................... 2-66
Rear personal lights .................................................. 2-66
Interior light control switch .................................... 2-67
Vanity mirror lights ........................................................ 2-68 Cargo light ....................................................................... 2-68
HomeLink®Universal Transceiver (Type A) (if
so equipped) .................................................................... 2-68
Programming HomeLink
®..................................... 2-69
Programming HomeLink®for Canadian
customers and gate openers ............................... 2-70
Operating the HomeLink
®
Universal Transceiver ............................................. 2-71
Programming troubleshooting ............................ 2-71
Clearing the programmed information ............. 2-71
Reprogramming a single
HomeLink
®button .................................................. 2-71
If your vehicle is stolen .......................................... 2-72
HomeLink
®Universal Transceiver (Type B) (if
so equipped) .................................................................... 2-72
Programming HomeLink
®..................................... 2-73
Programming HomeLink®for Canadian
customers and gate openers ............................... 2-75
Operating the HomeLink
®
Universal Transceiver ............................................. 2-75
Programming troubleshooting ............................ 2-75
Clearing the programmed information ............. 2-75
Reprogramming a single
HomeLink
®button .................................................. 2-76
Using the garage door
two-way communication ...................................... 2-76
If your vehicle is stolen .......................................... 2-77

JVC1128X
1. Power liftgate switch (if so equipped)
2. Heated steering wheel switch
3. Instrument brightness control switch
4. TRIP/RESET switch for twin trip od-ometer
5. Headlight, fog light and turn signal switch
— Headlight
— Turn signal
— Fog light
6. Steering-wheel-mounted controls (left side) — Audio control steering switch
— Hands-Free Phone System switch
7. Trip computer switch
8. Wiper and washer switch
9. Steering-wheel-mounted controls (right side)
— Cruise control system (if so
equipped)
— Intelligent Cruise Control (ICC) sys-
tem (if so equipped)
10. Dynamic driver assistance switch (if so equipped)
— Lane Departure Prevention (LDP)
system (if so equipped)
— Distance Control Assist (DCA) sys-
tem (if so equipped)
— Blind Spot Intervention
®(BSI) sys-
tem (if so equipped)
11. Shift lever
12. Four-Wheel Drive (4WD) shift switch (if so equipped)/SNOW mode switch/
TOW mode switch/Vehicle Dynamic
Control (VDC) OFF switch
13. Headlight aiming control (if so equipped)
14. Power liftgate main switch
15. Warning systems switch (if so equipped)
— Lane Departure Warning (LDW) (if
Instruments and controls2-3
COCKPIT

2-4Instruments and controls
so equipped)
— Blind Spot Warning (BSW) (if so
equipped)
16. Electric tilting/telescopic steering wheel switch

JVC1129X
1. Side ventilator
2. Meters and gauges
3. Hazard warning flasher switch
4. Center ventilator
5. Center multi-function control panel
6. Center display— Around View®Monitor
— Navigation system
7. Clock
8. Defroster switch
9. Front passenger supplemental air bag
10. Fuse box 11. Parking brake
12. Hood release handle
13. Steering wheel
— Horn
— Driver supplemental air bag
— Power steering system
14. Push-button ignition switch
15. Climate controlled seat switch (if so equipped)/Heated seat switch (if so
equipped)
16. Remote tip-up 2nd row seat switch (if so equipped)
17. Front passenger air bag status light
18. Power outlet
19. USB connection port
20. Cup holder/Tray
21. Automatic climate control system
22. Audio system
23. Glove box
Instruments and controls2-5
INSTRUMENT PANEL

2-6Instruments and controls
SIC4450
1. Tachometer*
2. Warning/Indicator lights
3. Speedometer*
4. Engine coolant temperature gauge*
5. Voltmeter*
6. Vehicle information display/Od-ometer/twin trip odometer
7. Engine oil pressure gauge*
8. Fuel gauge*
*: The needle indicators may move slightly
after the ignition switch is pushed to the
OFF position. This is not a malfunction.
CAUTION
. For cleaning, use a soft cloth, dam-
pened with water. Never use a rough
cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or cause discoloration to the
lens.
. Do not spray any liquid such as water
on the meter lens. Spraying liquid
may cause the system to malfunction.
METERS AND GAUGES

SIC4369
Speedometer
SPEEDOMETER AND OD-
OMETER
Speedometer
The speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per
hour (km/h).
JVI0543X
Odometer/twin trip odometer
Odometer/twin trip odometer
The odometerand twin trip odometerare displayed on the vehicle information
display when the ignition switch is in the
ON position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance
of individual trips.Changing the display:
Pushing the TRIP RESET switch
at the
bottom left of the combination meter panel
changes the display as follows:
TRIP A ?TRIP B ?TRIP A
Resetting the trip odometer:
Pushing the TRIP RESET switch
for more
than 1 second resets the trip odometer to
zero.
Average fuel economy and distance to
empty information is also available. (See
“Vehicle information display” (P.2-21).)
Instruments and controls2-7
