Page 191 of 2100

ISUZU AXIOM 2002  Service Repair Manual 2A±40
POWER±ASSISTED STEERING SYSTEM
Lock Cylinder
Lock Cylinder and Associated Parts
431RX005
Legend
(1) Inflator Module
(2) Steering Wheel
(3) Steering Column Cover
(4) Combination Switch and SRS

Page 192 of 2100

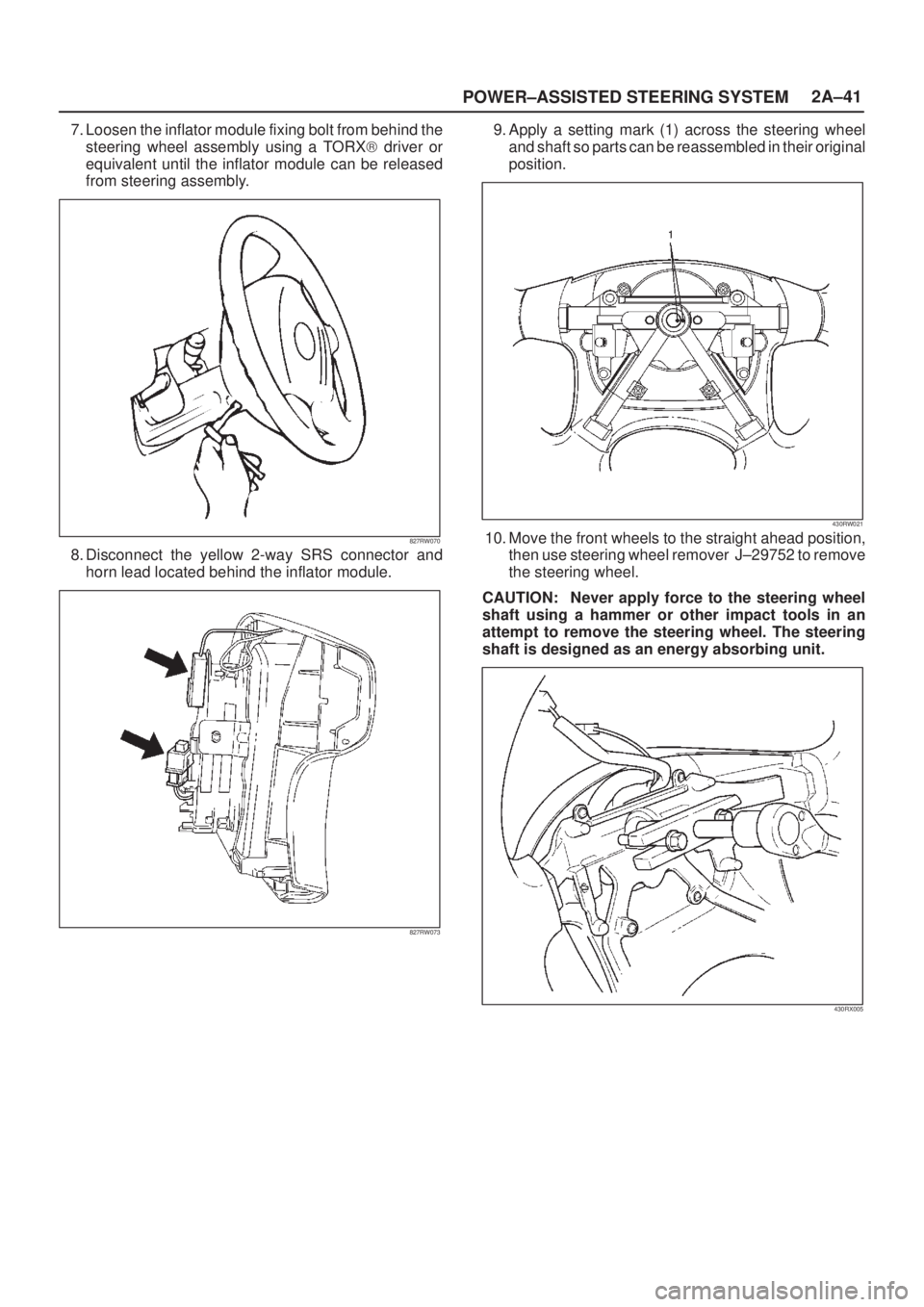

ISUZU AXIOM 2002  Service Repair Manual POWER±ASSISTED STEERING SYSTEM2A±41
7. Loosen the inflator module fixing bolt from behind the
steering wheel assembly using a TORX) driver or
equivalent until the inflator module can be released
fro

Page 193 of 2100

ISUZU AXIOM 2002  Service Repair Manual 2A±42
POWER±ASSISTED STEERING SYSTEM
WARNING: T H E I N F L AT O R M O D U L E S H O U L D
ALWAYS BE CARRIED WITH THE TRIM COVER
AWAY FROM YOUR BODY AND SHOULD ALWAYS
BE LAID ON A FLAT SURFACE WITH

Page 194 of 2100

ISUZU AXIOM 2002  Service Repair Manual POWER±ASSISTED STEERING SYSTEM2A±43
7. When installing the steering column cover, be sure to
wire (through each harness) as illustrated so that the
harnesses starter switch, combination switch and
S

Page 195 of 2100

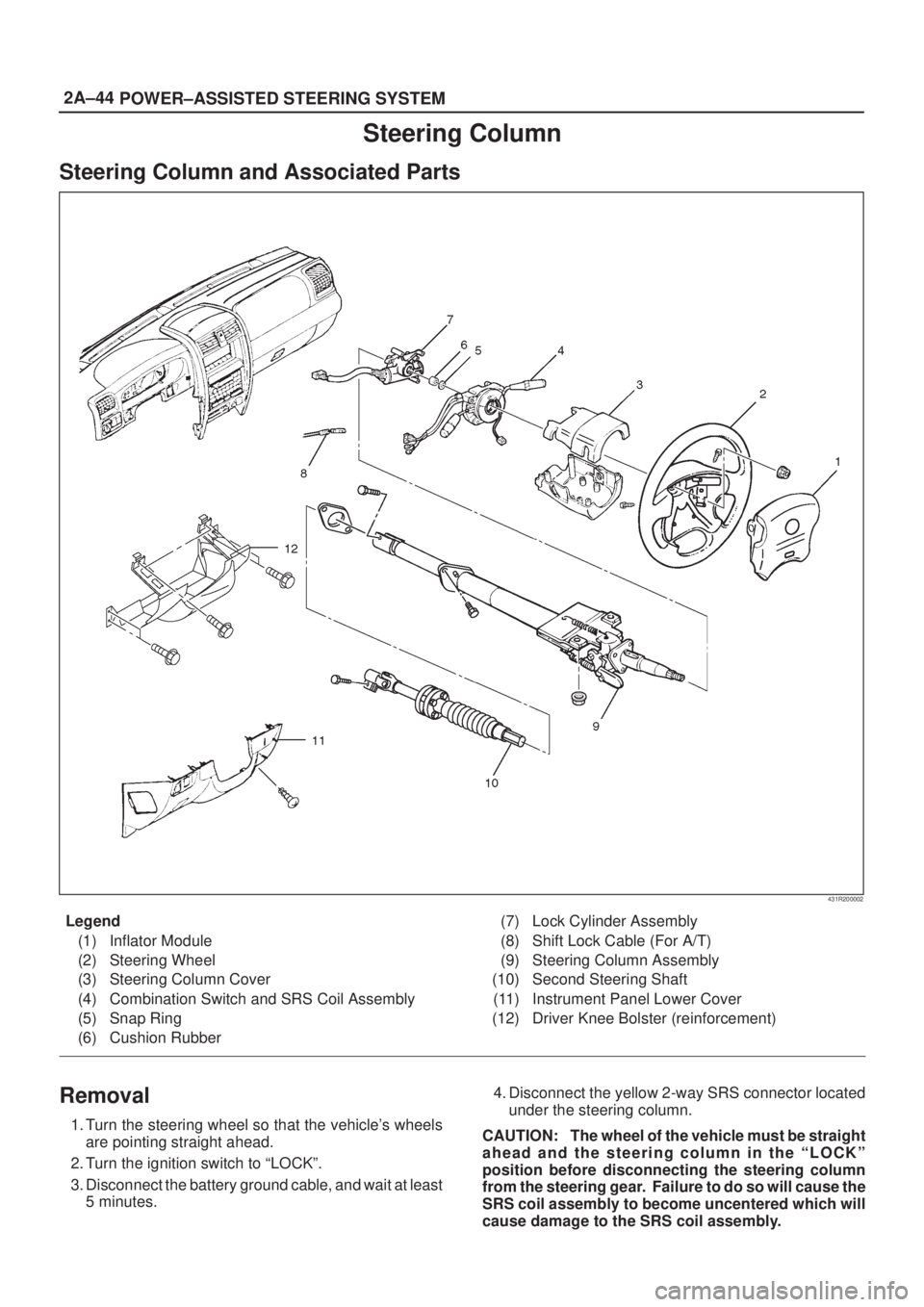

ISUZU AXIOM 2002  Service Repair Manual 2A±44
POWER±ASSISTED STEERING SYSTEM
Steering Column
Steering Column and Associated Parts
431R200002
Legend
(1) Inflator Module
(2) Steering Wheel
(3) Steering Column Cover
(4) Combination Switch an

Page 196 of 2100

ISUZU AXIOM 2002  Service Repair Manual POWER±ASSISTED STEERING SYSTEM2A±45
5. Remove the engine hood opening lever, then remove
instrument panel lower cover.
6. Remove driver knee bolster (reinforcement).
7. Loosen the inflator module fi

Page 197 of 2100

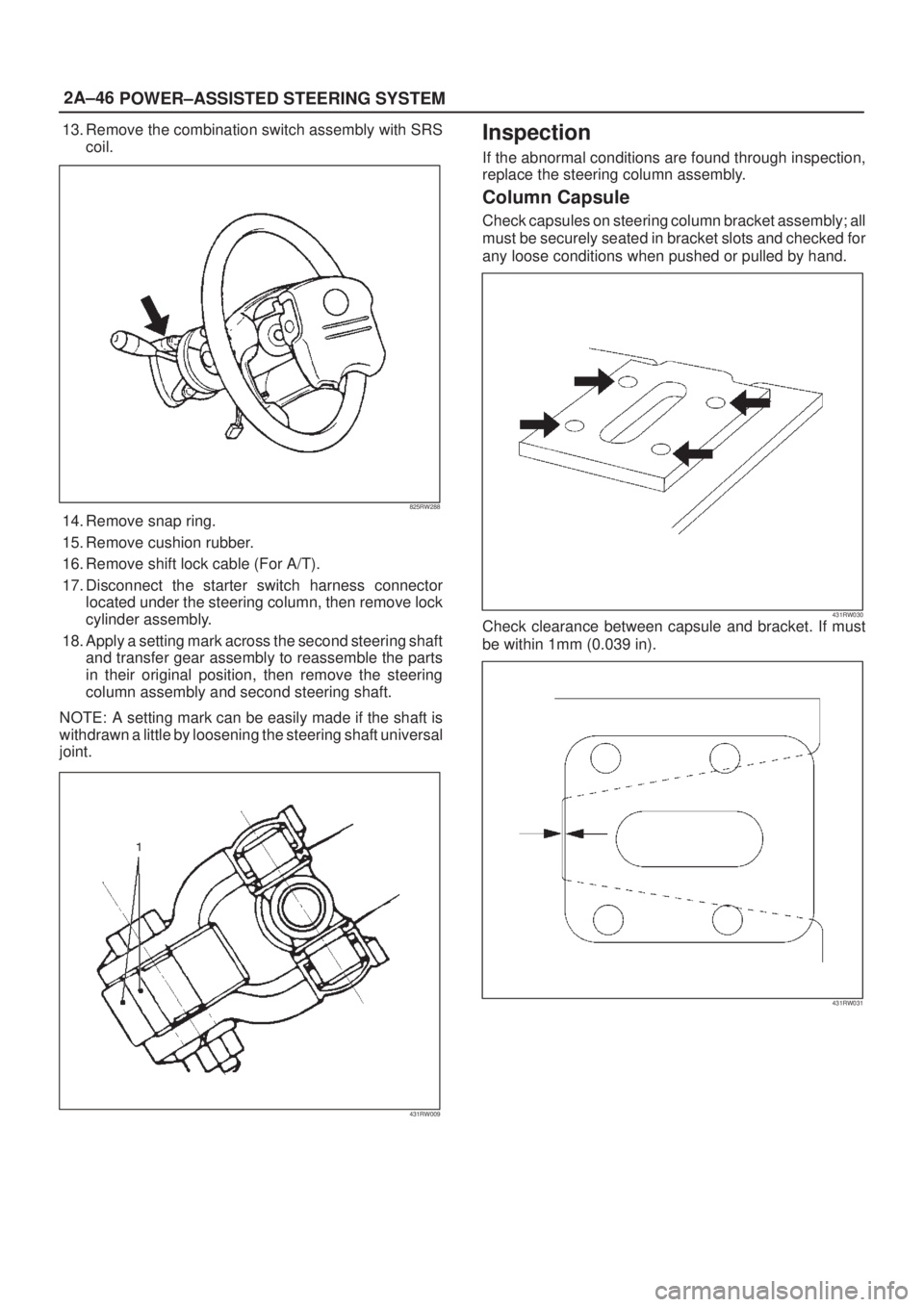

ISUZU AXIOM 2002  Service Repair Manual 2A±46
POWER±ASSISTED STEERING SYSTEM
13. Remove the combination switch assembly with SRS
coil.
825RW288
14. Remove snap ring.
15. Remove cushion rubber.
16. Remove shift lock cable (For A/T).
17. Di

Page 198 of 2100

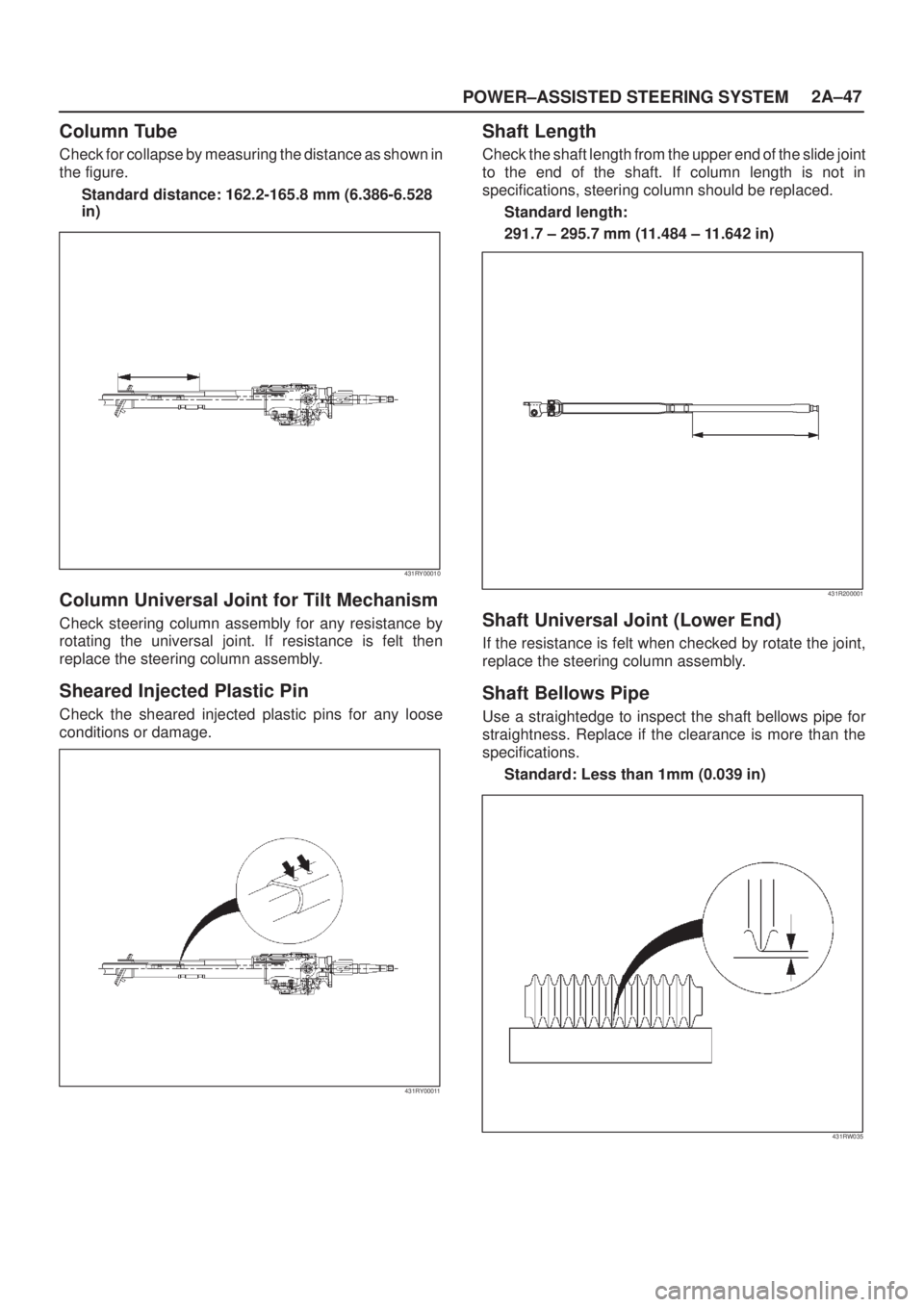

ISUZU AXIOM 2002  Service Repair Manual POWER±ASSISTED STEERING SYSTEM2A±47
Column Tube
Check for collapse by measuring the distance as shown in
the figure.
Standard distance: 162.2-165.8 mm (6.386-6.528
in)
431RY00010
Column Universal Jo

Page 199 of 2100

ISUZU AXIOM 2002  Service Repair Manual 2A±48
POWER±ASSISTED STEERING SYSTEM
Tilt Mechanism
Tilt mechanism should moves smoothly.
While locked the tilt mechanism, be sure the steering
column latch securely by pushing the steering wheel
up

Page 200 of 2100

ISUZU AXIOM 2002  Service Repair Manual POWER±ASSISTED STEERING SYSTEM2A±49
13. Install steering wheel and align the setting marks
made when removing.
CAUTION: Never apply force to the steering wheel
shaft using a hammer or other impact t
