6A±81
ENGINE MECHANICAL (6VE1 3.5L)

With J±24086±C Piston pin service set and a press,
press fit the piston pin.
NOTE: Heat the connecting rod small end to a suitable
temperature to ensure smooth installation.
015RS037
Legend
(1) Press Ram
(2) Piston
(3) Connecting Rod
(4) Piston Pin
4. Install piston ring with the piston ring expander.
The compression ring must be set with the T mark (1)
facing up.
Marked T : No.1 Compression ring
Marked T2 : No.2 Compression ring
015RS027

Install piston rings in the following sequence.
1. Oil ring
1. Expander ring
2. Upper side rail
3. Lower side rail
2. 2nd compression ring
3. 1st compression ring

The compression rings must be set with the T or T2
mark facing up.
Marked T : No.1 Compression ring
Marked T2 : No.2 Compression ring

After installation, apply engine oil to the entire
circumference of the piston rings. Check to see that
all the rings rotate smoothly.
015RS038
5. Install piston and connecting rod assembly.

Insert the bearings into the connecting rods and
caps. Apply new engine oil to the bearing faces and
nuts.

Tighten the connecting rod cap nuts
Torque : 54 N´m (40 lb ft)
NOTE: Do not apply engine oil to the bearing back faces.
6. Oil gallery, refer to ªCrankshaft and main bearingº in
this manual.
7. Oil strainer and O-ring.
8. Oil pipe and O-ring.
9. Install crankcase with oil pan, refer to ªOil pan and
Crankcaseº in this manual.
10. Install cylinder head gasket.
11. Install Cylinder head assembly.

Refer to ªCylinder headº in this manual.

6A±82
ENGINE MECHANICAL (6VE1 3.5L)
Cylinder Block
Cylinder Block and Associated Parts
012RW010
Legend
(1) Cylinder Head Assembly
(2) Cylinder Head Gasket
(3) Crankcase with Oil Pan
(4) Oil Pipe and O-ring
(5) Oil Strainer and O-ring
(6) Oil Pump Assembly
(7) Cylinder Block Side Bolts(8) Oil Gallery
(9) Piston and Connecting Rod Assembly
(10) Flywheel
(11) Rear Oil Seal Retainer Assembly
(12) Main Bearing Cap
(13) Crankshaft
(14) Cylinder Block
Disassembly
1. Remove cylinder head assembly.
2. Remove cylinder head gasket.
3. Remove crankcase with oil pan.
4. Remove oil pipe and O-ring.5. Remove oil strainer and O-ring.
6. Remove oil pump assembly.
7. Remove crankcase side bolts.
8. Remove oil gallery.
9. Remove piston and connecting rod assembly.
10. Remove flywheel.

6A±83
ENGINE MECHANICAL (6VE1 3.5L)
11. Remove rear oil seal retainer assembly.
12. Remove main bearing cap.
13. Remove crankshaft.
14. Remove cylinder block.
Inspection and Repair
1. Remove the cylinder head gasket and any other
material adhering to the upper surface of the cylinder
block. Be very careful not to allow any material to
accidentally drop into the cylinder block. Be very
careful not to scratch the cylinder block.
2. Carefully remove the oil pump, rear oil seal retainer,
and crankcase assembly installation surface seal.
3. Wipe the cylinder block clean.
4. Visually inspect the cylinder block. If necessary, use a
flaw detector to perform a dye penetrate and
hydraulic (or air pressure) test. If cracking or other
damage is discovered, the cylinder block must either
be repaired or replaced.
Flatness
1. Using a straight±edge and feeler gauge, check that
the upper surface of the cylinder block is not warped.
CAUTION: Be very careful not to allow any material
to accidentally drop into the upper surface of the
cylinder block. Be very careful not to scratch the
upper surface of the cylinder block.
2. The cylinder block must be reground or replaced if the
warpage exceeds the limit.
Warpage
Limit : 0.15 mm (0.0059 in)
Maximum repairable limit: 0.15 mm (0.0059 in)
012RS004
Cylinder Bore
Use a cylinder gauge to measure the cylinder bore
diameter in both the axial and thrust directions. Each
measurement should be made at six points.
CAUTION: Be very careful not to allow any material
to accidentally drop into the upper surface of the
cylinder block. Be very careful not to scratch the
upper surface of the cylinder block.
Cylinder Bore Inside Diameter
Limit : 93.530 mm (3.6823 in)
If the measurement exceed the specified limit, the
cylinder block must be replaced.
Diameter
Grade A : 93.400 mm±93.410 mm
(3.6772 in±3.6776 in)
Grade B : 93.411 mm±93.420 mm
(3.6776 in±3.6779 in)
Grade C : 93.421 mm±93.430 mm
(3.6780 in±3.6783 in)
012RS005
NOTE: For information on piston diameter, please refer
to the section ºInspection of the Piston and Connecting
Rod Assemblyº in this manual.

The ºGradeº mark (1) is stamped at the position
illustrated.

6A±84
ENGINE MECHANICAL (6VE1 3.5L)
012RS006
Reassembly
1. Install cylinder block.
2. Install crankshaft.

Install the main bearings to the cylinder block and
the main bearing caps.

Be sure that they are positioned correctly.

Apply new engine oil to the upper and lower main
bearing faces.
NOTE: Do not apply engine oil to the bearing back faces.
015RS012
Legend
(1) Number 1 and 4 main bearing upper and lower.
(2) Number 2 and 3 main bearing upper.
(3) Number 2 and 3 main bearing lower.

Carefully mount the crankshaft.

Apply engine oil to the thrust washer.

Assemble the thrust washer to the No. 3 bearing
journal. The oil grooves must face the crankshaft.
015RS013
3. Install rear oil seal retainer.

Remove oil on cylinder block and retainer fitting
surface.

Apply sealant (TB1207B or equivalent) to retainer
fitting surface as shown in illustration.

The oil seal retainer must be installed within 5
minutes after sealant application to prevent
premature hardening of sealant.
015RW002
Legend
(1) Around Bolt Holes
(2) Around Dowel Pin

6A±85
ENGINE MECHANICAL (6VE1 3.5L)

Apply engine oil to oil seal lip and align a dowel pin
hole in the cylinder block with that in the retainer.

Tighten retainer fixing bolts to the specified torque.
Torque: 25 N´m (18 lb ft)
015RW001
4. Install flywheel
1. Thoroughly clean and remove the oil from the
threads of crankshaft.
2. Remove the oil from the crankshaft and flywheel
mounting faces.
3. Mount the flywheel on the crankshaft and then
install the washer.
4. Holding the crankshaft stationary, tighten the
flywheel bolts in the order shown.
Torque: 54 N´m (40 lb ft)
NOTE: Do not reuse the bolts and do not apply oil or
thread lock to the bolts.
015RS018
5. Install piston and connecting rod assembly.

Apply engine oil to the cylinder bores, the
connecting rod bearings and the crankshaft pins.
NOTE: Do not apply engine oil to the bearing back faces.

Check to see that the piston ring end gaps are
correctly positioned.
015RS019
Legend
(1) No.1 Compression Ring
(2) No.2 Compression Ring
(3) Oil Ring Side Rail Upper
(4) Oil Ring Side Rail Lower
(5) Piston Front Mark

Insert the piston/connecting rod assemblies into
each cylinder with the piston ring compressor.

The front marks (1) must be facing the front of the
engine.
015RS020

6A±86
ENGINE MECHANICAL (6VE1 3.5L)
6. Install oil gallery and tighten the bolts in 2 steps in the
order shown.
1st step : 29 N´m (22 lb ft)
2nd step : 55
~ 65

012RS007
7. Install cylinder block side bolts (1) and tighten
crankcase bolts in sequence shown in the illustration.
Torque : 39 N´m (29 lb ft)
012RW005
8. Install oil pump assembly. Refer to ªOil Pumpº in this
manual.
9. Install oil strainer and O-ring.
10. Install oil pipe and O-ring.
11. Install crankcase with oil pan.
1. Completely remove all residual sealant, lubricant
and moisture from the sealing surfaces. The
surfaces must be perfectly dry.
2. Apply a correct width bead of sealant (TB± 1207C
or its equivalent) to the contact surfaces of the
crankcase. There must be no gaps in the bead.
3. The oil pan must be installed within 5 minutes
after sealant application to prevent premature
hardening of sealant.
4. Tighten the bolts and nuts to the specified torque.
Torque : 10 N´m (87 lb in)
013RW010
Legend
(1) Portion Between Both Holes
(2) Bolt Hole Portions
12. Install cylinder head gasket.
13. Install cylinder head assembly. Refer to ªCylinder
Headº in this manual.

6A±87
ENGINE MECHANICAL (6VE1 3.5L)

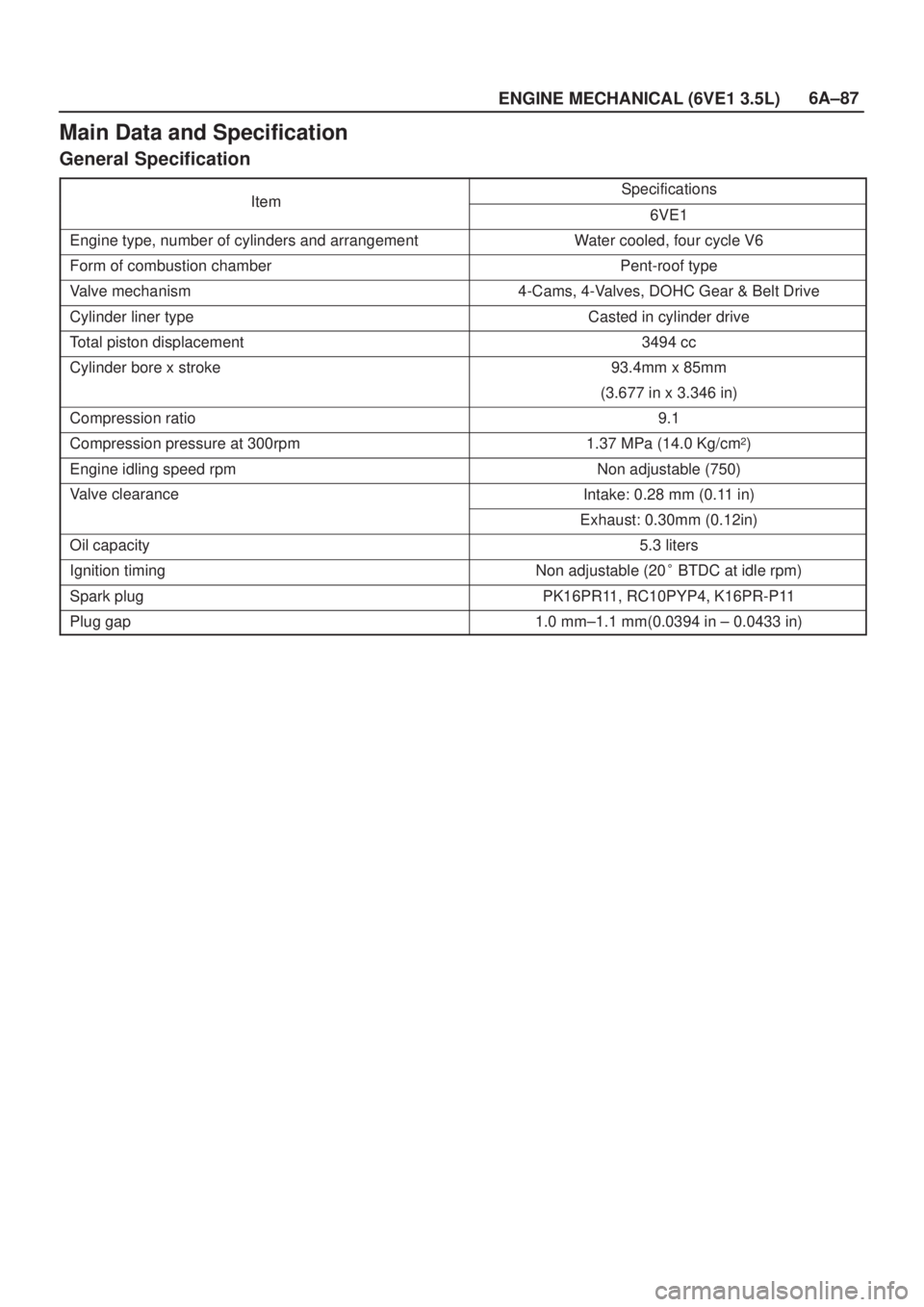

Main Data and Specification
General Specification
ItemSpecificationsItem6VE1
Engine type, number of cylinders and arrangementWater cooled, four cycle V6
Form of combustion chamberPent-roof type
Valve mechanism4-Cams, 4-Valves, DOHC Gear & Belt Drive
Cylinder liner typeCasted in cylinder drive
Total piston displacement3494 cc
Cylinder bore x stroke93.4mm x 85mm
(3.677 in x 3.346 in)
Compression ratio9.1
Compression pressure at 300rpm1.37 MPa (14.0 Kg/cm2)
Engine idling speed rpmNon adjustable (750)
Valve clearanceIntake: 0.28 mm (0.11 in)
Exhaust: 0.30mm (0.12in)
Oil capacity5.3 liters
Ignition timingNon adjustable (20
BTDC at idle rpm)
Spark plugPK16PR11, RC10PYP4, K16PR-P11
Plug gap1.0 mm±1.1 mm(0.0394 in ± 0.0433 in)

6A±88
ENGINE MECHANICAL (6VE1 3.5L)
Torque Specifications
Ignition coil, Spark plug, Crankshaft position sensor and Under cover
E06R100001

6A±89
ENGINE MECHANICAL (6VE1 3.5L)
Cylinder head cover, Cylinder head, Camshaft bearing cap, Common chamber, EGR valve and EGR pipe, Ion
sensing module
E06R100002

6A±90
ENGINE MECHANICAL (6VE1 3.5L)
Crankshaft main bearing, Flywheel, Crankcase, Oil pan, Timing belt tensioner, Timing pulley, Timing belt
cover, Oil pump, Oil gallery, Oil strainer and water pump
E06R100004
