7A2-12 DIAGNOSIS (JR405E)
F0: Diagnostic Trouble Code
F0: Read DTC Infor As Stored By ECU
F1: Clear DTC Information
F1: Data Display
F2: Snapshot
F3: Miscellaneous Test
F0: Lamp
F0: Power Lamp Test
F1: 3rd Start Lamp Test
F2: AT Oil Temperature Lamp Test
F3: Transmission Check Light Test
F1: Solenoids
F0: Low & Reverse Brake Solenoid
F1: 2-4 Brake Solenoid
F2: High Clutch Solenoid
F3: Low Clutch Solenoid
F4: Line Pressure Solenoid
F5: Lock Up Duty Solenoid
F4: Programming
F0: Program VIN
F1: Lock ECU
F0: Diagnostic Trouble Code
The purpose of the "Diagnostic Trouble Codes" mode is to
display stored trouble code in the TCM.
When "Clear DTC Information" is selected, a "Clear DTC
Information", warning screen appears. This screen informs you
that by cleaning DTC's "all stored DTC information in the TCM
will be erased".
After clearing codes, confirm system operation by test driving
the vehicle.
F1: Data Display
The purpose of the "Data Display" mode is to continuously
monitor data parameters.
The current actual values of all important sensors and signals
in the system are display through F1mode.
See the "Typical Scan Data" section.
F2: Snapshot
"Snapshot" allows you to focus on making the condition occur,
rather than trying to view all of the data in anticipation of the
fault. The snapshot will collect parameter information around a
trigger point that you select.
F3: Miscellaneous Test:
The purpose of "Miscellaneous Test" mode is to check for
correct operation of electronic system actuators.
F4: Programming (Factory Use Only):
The purpose of "Programming" is to program VIN in the ECM
and lock the programmed data.
Page 4006 of 4264
7A2-14 DIAGNOSIS (JR405E)
MISCELLANEOUS TEST
The state of each circuit can be tested by using miscellaneous test menus. Especially when DTC cannot be
detected, a faulty circuit can be diagnosed by testing each circuit by means of these menus.
Even DTC has been detected, the circuit tests using these menus could help discriminate between a mechanical
trouble and an electrical trouble.
Connect Tech 2 and select "Powertrain", "JR 405E" & "Miscellaneous Test".
F0: Lamps
The circuit is normal if the warning light in the meter panel comes on and goes out in accordance with Tech 2
instruction.
Lamps
F0: Power Lamp Test
F1: 3rd Start Lamp Test
F2: AT Oil Tempeature Lamp Test
F3: Transmission Check Light Test
F0: Power Lamp Test
Power Lamp Test
Power Lamp Off
Press "Active" key.
Then, "POWER DRIVE" indicator lamp is turned on in the meter panel.
Press "Inactive" key.
Then, "POWER DRIVE" indicator lamp is turned off in the
meter panel.
Press "Quit" Key to cancel the test.
F1: 3rd Start Lamp Test
F2: AT Oil Temperature Lamp Test
F3: Transmisstion Check Light Test
Test procedure is same as "F0: Power Lamp Test".
The circuit is normal if the warning light in the meter panel
comes on and goes out in accordance with Tech 2 instruction.
F1: Solenoids
The circuit is normal if clicking sound is generated in accordance with Tech 2 instruction.
Solenoids
F0: Low & Reverse Brake Solenoid
F1: 2-4 Brake Solenoid
F2: High Clutch Solenoid
F3: Low Clutch Solenoid
F4: Line Pressure Solenoid
F5: Lock Up Duty Solenoid
Page 4007 of 4264
DIAGNOSIS (JR405E) 7A2-15
F0: Low & Reverse Brake Solenoid
Low & Reverse Brake Solenoid
Low & Reverse Brake Duty 0%
Press "Active" key.
Then, duty datio is indicated 100 % and "clicking sound" is
generated from the transmission control valve.
Press "Inactive" key.
Then, duty datio is indicated 0 % and "clicking sound" is
generated from the transmission control valve.
Press "Quit" Key to cancel the test.
F0: Low & Reverse Brake Solenoid
F1: 2-4 Brake Solenoid
F2: High Clutch Brake Solenoid
F3: Low Clutch Solenoid
F4: Line Pressure Solenoid
F5: Lock Up Duty Solenoid
Test procedure is same as "F0: Low & Revese Brake
Solenoid"
The circuit is normal if clicking sound is generated in
accordance with Tech 2 instruction.
Page 4014 of 4264
7A2-22 DIAGNOSIS (JR405E)
6. If you select “continue”, you have to select “Model Year”, “Vehicle Type”.
7. After that, push button and turn Ignition switch tuned on, off, on following Tech-2 display. Tech-2 will read
information from controller after this procedure.
8. During obtaining information, Tech-2 is receiving information from the control unit ECM and TCM at the same
time. With VIN not being programmed into the new control unit at the time of shipment, "obtaining
information" is not complete (because the vehicle model, engine model and model year are specified from
VIN). For the procedure get additional information on vehicles, instruction will be provided in dialog form,
when TIS2000 is in operation.
9. Following instructions by Tech-2, push the "Exit" switch of Tech-2, turn off the ignition of the vehicle and turn
off the power of Tech-2, thereby removing from the vehicle.
3. Data Exchange
1. Connect Tech-2 to P/C, turn on the power and click the "Next" button of P/C.
2. Check VIN of the vehicle and choose "Next".
3. Select “Transmission” in the “System Type” selection.
4. When a lack of data is asked from among the following menu, enter accordingly.
Select following Menu
Model Year
Model
Engine type
Destination code (vehicles for general export)*1
* 1: How to read the destination code:
Destination code can be read from service ID Plate affixed on vehicle, while on service ID Plate the destination
code is described at the right-hand edge of Body Type line. In the figure, the destination code can be read as "RR3"
for Australia.
Page 4069 of 4264
DIAGNOSIS (JR405E) 7A2-77
Step Action Yes No
6 Is the quantity of ATF correct?
Go to Step 7
Correct the quantity of
ATF.
Go to Step 9
7 Connect the Tech 2 and test the solenoids of respective
solenoids for low & reverse brake, 2-4 brake, high clutch and
low clutch. Is operation sound heard from each solenoid?
Go to Step 8
Replace the solenoid
that does not generate
the operation sound.
Go to Step 9
8 Check the line pressure during the idling and at the engine stall
speed. Is the line pressure correct?
Go to Step 10
Either control valve, oil
pump or power train
parts (clutch, brake)
will be faulty. Replace
or overhaul the
transmission unit.
Go to step 10
9 Run the vehicle, and is the gear shifted from 1st to 4th
correctly?
Go to Step 10
Either control valve, oil
pump or power train
parts (clutch, brake)
will be faulty. Replace
or overhaul the
transmission unit.
Go to step 10
10 Clear the DTC from the memory and perform the work after
repair. Is the same DTC code outputted again in the
subsequent DTC check?
Replace the TCM Go to Step 11
11 Are the other DTCs outputted?
Go to Other DTC
Section Action is completed
Page 4081 of 4264
DIAGNOSIS (JR405E) 7A2-89
Symptom Condition Description
Faulty during the
running Low maximum speed or poor acceleration Starting acceleration is poor. F1
Acceleration is slow though the accelerator
pedal is stepped on during the running.
Engine races up during acceleration (slip)
The engine speeds up but vehicle speed
does not increase when the accelerator
pedal is stepped on at the starting.
F2
Only the engine speeds up but vehicle
speed does not increase when the
accelerator pedal is stepped on for
acceleration during the running.
Noise or vibration during the running in R, D,
3, 2, or L range
Noise or vibration is generated in the vicinity
of AT during the running. F3
Engine brake does not in apply L range
The engine brake does not apply, allowing
the vehicle to run freely when the
accelerator pedal is released at low speed in
L range.
F4
Engine stalls before vehicle stops from
running
The engine stalls simultaneously with the
vehicle stop when the brake pedal is
stepped on to stop the vehicle during the
running.
F5
Faulty in the
stopping
Vehicle moves in P range, or parking gear is
not disengaged other than P range
Vehicle moves though it stops at a slope
and P range is selected. G1
The engine stalls and vehicle does not move
though other than P range is selected and
the accelerator pedal is stepped on.
Creep force is large
Vehicle accelerates in D, 3, 2, L, and R
ranges though the accelerator pedal is not
stepped on.
G2
Creep force is small Vehicle does not move though a run range
is selected on a flat road during the idling. G3
Large noise during idling with the vehicle in
stop state
The transmission is noisy during the idling
speed in all ranges. G4
Faulty lock-up Judder occurs at the lock-up The vehicle body judders at lock-up. H1
Large lock-up shock Large shock is felt at lock-up. H2
Lock-up point is high or low Lock-up point is excessive high or low. H3
No lock-up No lock-up Lockup is not performed in spite of the lock-
up area. I1
Page 4083 of 4264
DIAGNOSIS (JR405E) 7A2-91
SYMPTOM DIAGNOSIS
Symptom Condition Description

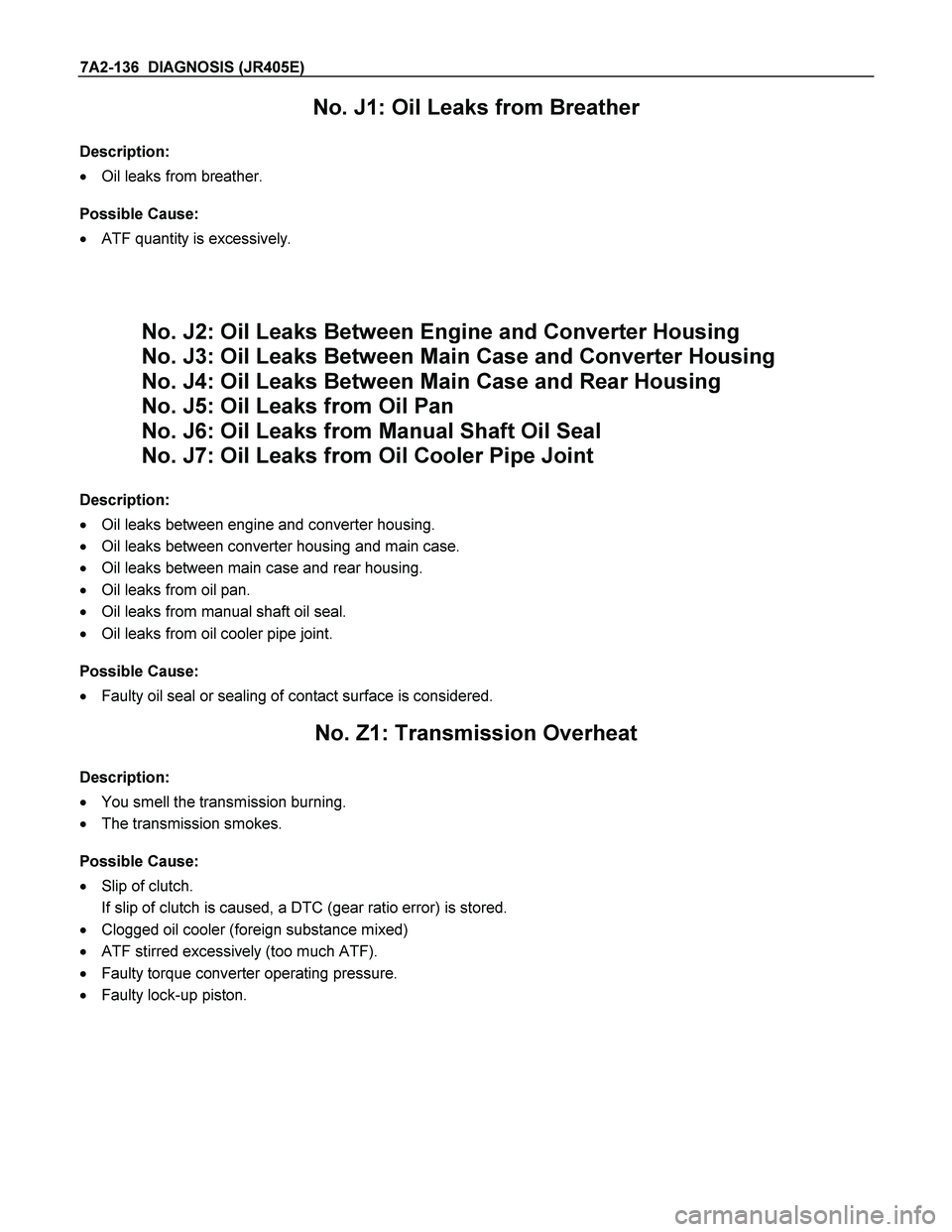

Oil Leak Breather Oil leaks from breather. J1
Between engine and converter housing Oil leaks between engine and converter
housing. J2
Between converter housing and main caseOil leaks between converter housing and
main case. J3
Between main case and rear housing Oil leaks between main case and rear
housing. J4
Oil pan Oil leaks from oil pan. J5
Manual shaft oil seal Oil leaks from manual shaft oil seal. J6
Oil cooler pipe Oil leaks from oil cooler pipe joint. J7
Other Transmission overheat You smell the transmission burning. Z1
The transmission smokes.
Mode lamp does not light up when the
power mode or 3rd start mode is turned on
The mode lamp on the instrument panel
does not light up though the power mode or
3rd start mode is turned on with the ignition
switch in ON position.
Z2
Mode lamp lights up when the power mode
or 3rd start mode is turned off
The mode lamp on the instrument panel
lights up though the power mode or 3rd start
mode is turned off with the ignition switch in
ON position.
Z3
Oil temperature warning lamp lights up Sometimes, the oil temperature warning
lamp lights up. Z4
Select lever feeling is faulty Select lever feeling is faulty. Z5
Poor fuel consumption Poor fuel consumption. Z6
Pattern select switch is faulty Shift pattern does not change though the
pattern select switch is turned on. Z7
Oil is splashed during the running Oil is splashed during the running. Z8
Abnormal smell Abnormal smell. Z9
Oil quantity is low or high Oil quantity is low or high. Z10
Abnormal oil pressure Oil pressure is low or high. Z11
Reverse buzzer does not ring Reverse buzzer does not ring in R range. Z12
Page 4125 of 4264
DIAGNOSIS (JR405E) 7A2-133
No. G4: Large Noise During Idling with the Vehicle in Stop State
Description:
The transmission is noisy during the idling speed in all ranges.
Diagnosis Hints:
Causes such as solenoid operating sound or faulty oil pump are considered.
Distinguishing to some extent is possible by stopping the solenoid operation temporarily, checking the correlation
for the former case and, changing the line pressure and confirming the correlation with noise.
As a matter of course, noise may be generated around the engine, for instance, other than the AT and should be
checked carefully.
Note:
When the noise is generated only at the time of gear shift, it may be the sound of flowing ATF or gear
noise. If the sound varies depending on the gear speed to be shifted, it may be the gear noise generated
from the planetary gear and its related components. If the sound varies depending on the vehicle
speed, it may be the gear noise of the output system, and if varying depending on the engine speed, it
may be the gear noise of the input system or faulty torque converter.
In either case, sound may be "noise" depending on the origin and resonance object. When the object
generating the sound (resonance object) and the sound source (vibration source) are different,
investigation of the cause may be difficult.
No. H1: Judder Occurs at the Lock-up
Diagnosis Hints:
The vehicle body judders at lock-up.
Diagnosis Hints:
Slip due to burning of the lockup piston or insufficient fastening due to dropped working pressure are considered.
Trouble diagnosis flow is basically the same as "No. I1: No lock-up".
Note:
When the lock-up piston has burnt, foreign material mixed in the oil cooler is considered. In such a
case, inspect the oil cooler circuit for clogging of the oil cooler.
No. H2: Large Lock-up Shock
No. H3: Lock-up Point is High or Low
Description:
Large shock is felt at lock-up.
Lock-up point is excessive high or low.
Diagnosis Hints:
Out of properties of input sensor or faulty lock-up piston pressure system are considered.
Trouble diagnosis flow is basically the same as "No. I1: No lock-up".
Page 4128 of 4264
7A2-136 DIAGNOSIS (JR405E)
No. J1: Oil Leaks from Breather
Description:
Oil leaks from breather.
Possible Cause:
ATF quantity is excessively.
No. J2: Oil Leaks Between Engine and Converter Housing
No. J3: Oil Leaks Between Main Case and Converter Housing
No. J4: Oil Leaks Between Main Case and Rear Housing
No. J5: Oil Leaks from Oil Pan
No. J6: Oil Leaks from Manual Shaft Oil Seal
No. J7: Oil Leaks from Oil Cooler Pipe Joint
Description:
Oil leaks between engine and converter housing.
Oil leaks between converter housing and main case.
Oil leaks between main case and rear housing.
Oil leaks from oil pan.
Oil leaks from manual shaft oil seal.
Oil leaks from oil cooler pipe joint.
Possible Cause:
Faulty oil seal or sealing of contact surface is considered.
No. Z1: Transmission Overheat
Description:
You smell the transmission burning.
The transmission smokes.
Possible Cause:
Slip of clutch.
If slip of clutch is caused, a DTC (gear ratio error) is stored.
Clogged oil cooler (foreign substance mixed)
ATF stirred excessively (too much ATF).
Faulty torque converter operating pressure.
Faulty lock-up piston.
Page 4129 of 4264
DIAGNOSIS (JR405E) 7A2-137
No. Z2: Mode Lamp (Power Drive or 3rd Start) Does Not Light Up
When The Power Mode or 3rd Start Mode is Turned On
Description:
The mode lamp on the instrument panel does not light up though the power mode or 3rd start mode is turned on
with the ignition switch in ON position.
Possible Cause:
Faulty mode select switch is considered.
Bulb burn out.
No. Z3: Mode Lamp (Power Drive or 3rd Start) Lights Up When
The Power Mode or 3rd Start Mode is Turned Off
Description:
The mode lamp on the instrument panel lights up though the power mode or 3rd start mode is turned off with the
ignition switch in ON position.
Possible Cause:
Faulty mode select switch is considered.
No. Z4: Oil Temperature Warning Lamp Lights up
Description:
Sometimes, the oil temperature warning lamp lights up.
Possible Cause:
When the vehicle is stuck in the mud or continues to accelerate under overload, and ATF temperature exceeds
145 C, the oil temperature warning lamp lights up.
If the oil temperature warning lamp lights up under usual service condition, following causes are considered.
ATF level has increased for some fault.
Refer to "No. Z1: Transmission overheat".
Lights up due to error of the ATF oil thermo sensor.
No. Z5: Select Lever Feeling is Faulty.
Description:
Select lever feeling is faulty.
Possible Cause:
Disordered select cable.
Disordered select lever.
Faulty Manual plate.
