ENGINE MECHANICAL (C24SE) 6A-23
Toothed Belt Tension, Adjust
(Engines with toothed belt tension
roller)
Removal
Refer to 6A-21. Toothed Belt and Timing check and removal
steps.


Adjust
1. Loosen the fastening bolt of the toothed belt tension
roller.
2. Turn the toothed belt tension roller at adjustment
eccentric (1) in the direction of arrow (counterclockwise),
until pointer (2) comes to the right stop.
3. If necessary tighten the fastening bolt of toothed belt
tension roller.


4. Rotate the crankshaft twice (720
) in the engine
rotational direction until marks (2) and (1) align again.


5. Turn the eccentric in the direction of arrow (clockwise)
until pointer (1) and notch (2) are positioned to suit age of
toothed belt.
6. Rotate the crankshaft twice (720
) in the engine
rotational direction again and correct adjustment if
necessary.

Installation
Refer to 6A-21. Toothed Belt and Timing check and installation
steps.

6A-28 ENGINE MECHANICAL (C24SE)


2. Install cable to temperature sensor.
3. Install upper bolts of rear toothed belt rear cover.
4. Install camshaft timing gear then check timing according
to the corresponding operation.
5. Install camshaft housing cover.
6. Install toothed belt and front cover.
7. Fill up and bleed cooling system according to the
corresponding operation.


Tighten (Torque)
Thermostat housing to cylinder head - 15 N
m/1.5 kgf
m.




Seal Ring - Front Camshaft Housing, Replace
Removal
Mark running direction of toothed belt.
Remove toothed belt-see operation “Toothed Belt, Replace”.

Camshaft housing cover, camshaft pulley-counterhold on hex
of camshaft.


Removal
Screw self-tapping screw into seal ring.

Edge out seal ring.

Installation
Lightly coat sealing lip of seal ring with protective grease.

Install seal ring with 5-8840-0451-0 into camshaft housing-use
screw and washer of camshaft pulley.

ENGINE MECHANICAL (C24SE) 6A-33
HYDRAULIC VALVE LIFTER

1. Hydraulic Valve Lifter
1. Oil reservoir
2. Piston with ball head (moving)
3. Pressure cylinder (fixed)
4. Check ball
5. Pressure chamber
6. Oil feed

6A-36 ENGINE MECHANICAL (C24SE)



















Clean
All sealing surfaces, drill holes in cylinder head bolts.

Check cylinder block and cylinder head for plane surface
according to the corresponding operations.

Installation
1. Install cylinder head sealing with marking "OBEN/TOP"
facing upwards and to right side of engine.
2. Install cylinder head on cylinder block.
3. Install hydraulic valve lash adjuster, pressure parts and
rocker arm - molybdenum disulphate paste.
4. Install camshaft housing-Sealing Compound TB-1207C
or equivalent.

Important!
Use new cylinder head bolts.
Screw in bolts until they rest on cover.



Torque - Angle Method
Cylinder head to cylinder block - 25 N

m (2.5 kgf

m)
Further turn angle 90
+90
+ 90
.
Tighten cylinder head bolts from inside outwards. In four
stages in a spiral pattern.









5. Install rear toothed belt cover onto camshaft housing.
6. Install toothed belt and apply tension according to the
corresponding operation.

Tighten (Torque)
Camshaft timing gear to camshaft - 45 N

m (4.6 kgf

m)




7. Install camshaft housing cover and front toothed belt
cover.
8. Install cable connections, all hoses and lines onto
cylinder head.
9. Adjust accelerator cable for free of play.
10. Install V-belt according to the corresponding operation.
11. Install air intake hose.
12. Install front exhaust pipe.
13. Install ground cable onto battery.
14. Fill up cooling system and bleed according to the
corresponding operation.

ENGINE MECHANICAL (C24SE) 6A-39







Camshaft Housing, Check for Plane Surface
Clean
Sealing surfaces.

Inspection
Check length and width of sealing surface for deformation and
diagnosis for warpage and use straight edge feeler gauge.

Measure
Height of camshaft housing (sealing surface to sealing
surface).
Dimension I: (74.0 mm)



Cylinder Head, Removal and Installation
Important
Only remove cylinder head with engine cold (room
temperature).




Removal
1. Remove the alternator, power steering and V-belts.



Removal
2. Loosen the fastening bolts from alternator.
3. Loosen the lower alternator fastening bolt by swinging
the alternator to the rear.



Removal
4. Remove the front toothed belt cover.
5. Remove the toothed belt from camshaft pulley.
See operation "Timing Check and Adjust".

6A-40 ENGINE MECHANICAL (C24SE)




Removal
6. Remove the camshaft housing cover and camshaft
pulley by counter-holding at the hex head of camshaft.




Removal
7. Remove the fastening bolts from camshaft housing.



Removal
8. Remove the exhaust pipe from exhaust manifold.
9. Loosen the cylinder head bolts spirally from the outside
inwards (first 1/4, then 1/2 revolution).



Removal
1. Remove the camshaft housing from cylinder head.
2. Remove the cam followers, thrust pieces and hydraulic
valve lifters.
Note the allocation.
3. Remove the cylinder head.




Clean
Sealing surfaces, bores and threads of cylinder head bolts.

Inspection
Check cylinder head and cylinder block for plane surfface-see
operations “Cylinder Head, Check for Plane Surface” and
“Cylinder Block, Check for Plane Surface.”

ENGINE MECHANICAL (C24SE) 6A-45



Valve Seating, Mill
Place cylinder head on block of wood.
Inlet and exhaust, Guide Drift and Valve Seat Cutter 5-8840-
2593-0.
Valve seat-45, side face, upper correction-30, side face
(arrows on cutter).
Valve seat width:

Inlet-1.0 to 1.5 mm/0.04 to 0.06 in.
Exhaust-1.7 to 2.2 mm/0.072 to 0.088 in.




Inspection
Valve stem projection-use 5-8840-2596-0.

Important!
If dimension “A” is exceeded, use new valves.
Check valve stem projection again. If dimension “A” is
exceeded, replace cylinder head.








Cylinder Head, Overhaul
Cylinder head disassembled.

Valve, Grind
Important!
Ensure that there are no crater-like burns on the valve cone.

Regrinding possible once or twice.
Grinding of valve stem end is not permitted.

Angle at valve head-44




Inspection
Check valve stem projection as shown 5-8840-2596-0.



Valve, Grind in
Lubricate valve stem, use fine-graining grinding paste.

Lift up valve from seat rythmically using valve grinding tool (1)
for distribution of grinding paste.

6A-46 ENGINE MECHANICAL (C24SE)





Inspection
Check contact pattern (I
) on valve seat and in cylinder head.

Clean
Valves, valve guides, cylinder head.

Flywheel

Removal
1. Remove transmission and clutch.
2. Remove flywheel while locking with 5-88400-446-0.







Torque - Angle Method
Flywheel to crankshaft - 65 Nm/6.5 kgf

m.+30
to 45


Important!
Use new bolts.
Do not apply grease to the thread.

Installation
1. Install clutch and transmission.



Component Parts
Flywheel and Ring gear. (Manual Transmission)

6A-50 ENGINE MECHANICAL (C24SE)

Clean
Sealing surfaces.



013RW004









Installation
1. Apply a bead of Sealing Compound, TB120TC or eguivalent to joint of oil pump.
2. Apply the recommended light gasket to the oil pan fitting surface as shown in the illustration.
3. Install the bearing bridge.
4. Install baffle plate, or reuse baffle plate.

Caution
Baffle plates can be retrofitted without difficulty - replace baffle
plate.

5. Install oil intake pipe to oil pump and oil intake pipe bracket to cylinder block.
6. Install oil pan and new gasket to cylinder block and insert bolts with Locking Compound 15 10 177 (90 167 347).
Maximum assembly time including torque check is 10
min.
7. Return the power steering unit (and front axle [4
4 model
only]).
8. Install the crossmember.

Tighten (Torque)
Oil intake pipe to oil pump -8N

m (0.8 kgf

m)
Oil intake pipe bracket to cylinder block - 6 N

m (0.6 kgf

m)
Oil pan to cylinder block - 8 N

m (0.8 kgf

m)
Bearing bridge to cylinder block – 8 N

m (0.8 kgf

m)

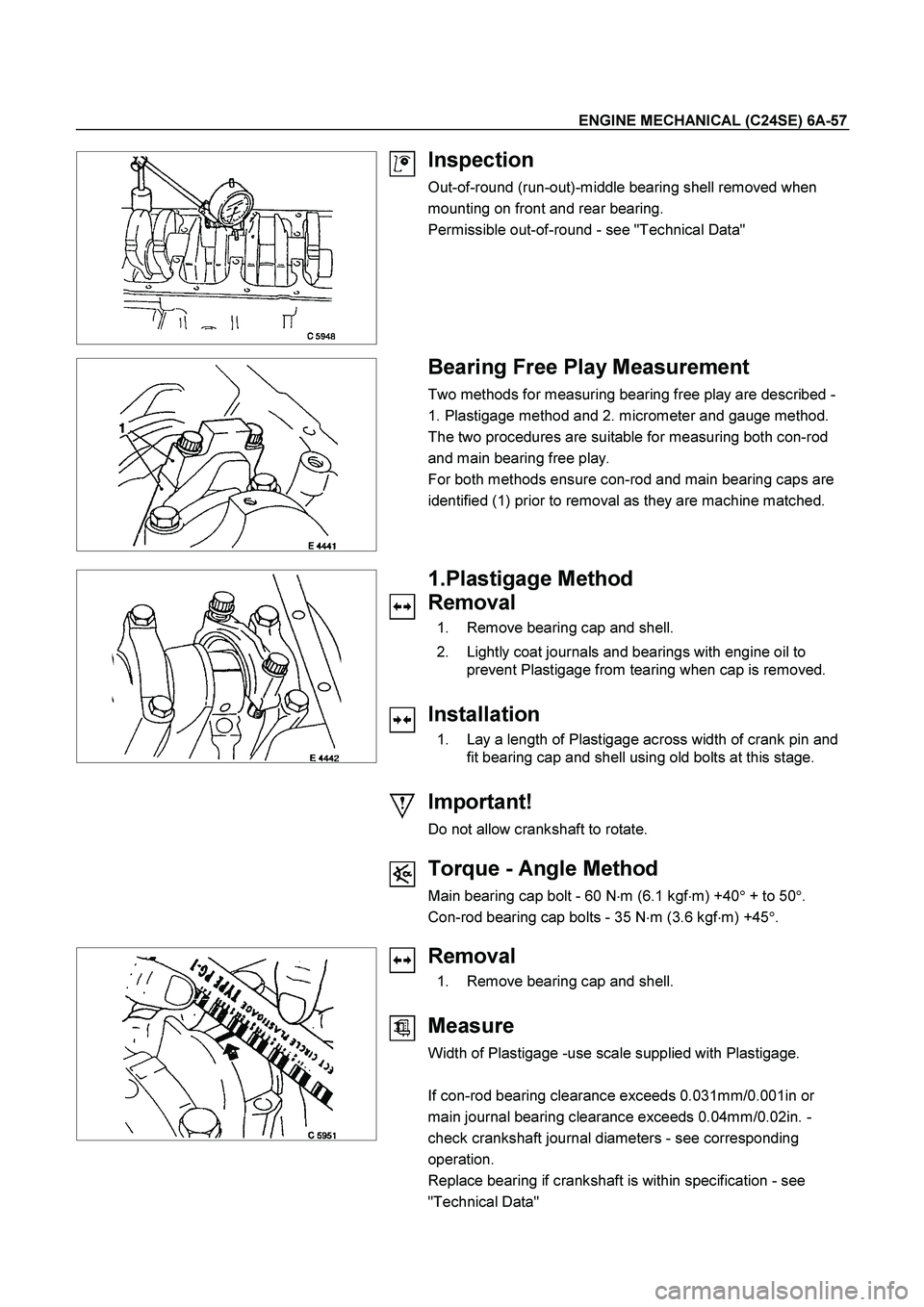

ENGINE MECHANICAL (C24SE) 6A-57


Inspection
Out-of-round (run-out)-middle bearing shell removed when
mounting on front and rear bearing.
Permissible out-of-round - see "Technical Data"



Bearing Free Play Measurement
Two methods for measuring bearing free play are described -
1. Plastigage method and 2. micrometer and gauge method.
The two procedures are suitable for measuring both con-rod
and main bearing free play.
For both methods ensure con-rod and main bearing caps are
identified (1) prior to removal as they are machine matched.











1.Plastigage Method
Removal
1. Remove bearing cap and shell.
2. Lightly coat journals and bearings with engine oil to
prevent Plastigage from tearing when cap is removed.

Installation
1. Lay a length of Plastigage across width of crank pin and
fit bearing cap and shell using old bolts at this stage.

Important!
Do not allow crankshaft to rotate.

Torque - Angle Method
Main bearing cap bolt - 60 N

m (6.1 kgf

m) +40
+ to 50
.
Con-rod bearing cap bolts - 35 N

m (3.6 kgf

m) +45
.




Removal
1. Remove bearing cap and shell.

Measure
Width of Plastigage -use scale supplied with Plastigage.

If con-rod bearing clearance exceeds 0.031mm/0.001in or
main journal bearing clearance exceeds 0.04mm/0.02in. -
check crankshaft journal diameters - see corresponding
operation.
Replace bearing if crankshaft is within specification - see
"Technical Data"
