ACCESSORIES 9-1
SECTION 9
ACCESSORIES
TABLE OF CONTENTS
PAGE
Parts Location ................................................................................................................... 9-2
Circuit Diagram ................................................................................................................. 9-6
Connector List .................................................................................................................. 9-10
Radio .................................................................................................................................. 9-12
Front Speaker .................................................................................................................... 9-13
Tweeter .............................................................................................................................. 9-14
Rear Speaker (Extend Cab)............................................................................................... 9-15
Rear Speaker (Crew Cab) .................................................................................................. 9-16
Clock ................................................................................................................................... 9-17
Antenna ............................................................................................................................. 9-18
Page 8 of 4264
9-6 ACCESSORIES
CIRCUIT DIAGRAM
RHD
RTW48AXF011101
Page 74 of 4264
9A1-4 RESTRAINT CONTROL SYSTEM
cautions in the service manual and on warning labels
attached to SRS components.
Basic Electrical Circuits
You should understand the basic theory of electricity
including series and parallel circuits, and understand
the voltage drops across series resistors. You should
know the meaning of voltage (volts), current (amps),
and resistance (ohms). You should understand what
happens in a circuit with an open or a shorted wire. You
should be able to read and understand a wiring
diagram.
“Flash Code” Diagnostics
Flash code diagnostics can be used to read active
codes and to determine if history codes are present but
cannot be used to clear codes or read history codes.
Flash code diagnostics is enabled by grounding by
terminal 4 shorting to terminal 13 of the DLC connector
with the ignition switch “ON”. Grounding terminal 4 of
the DLC connector pulls the “Diagnostics Request”
input (Terminal 1) of the SRS control unit low and
signals the SRS control unit to enter the flash code
diagnostic display mode.
060R300052
Page 317 of 4264
BRAKE CONTROL SYSTEM 5A-1
SECTION 5A
BRAKE CONTROL SYSTEM
CONTENTS
Service Precaution ............................................................................................................. 5A-4
General Description ........................................................................................................... 5A-5
EHCU, Brake Pipe Diagram .......................................................................................... 5A-6
Hydraulic Unit (H/U)....................................................................................................... 5A-7
Normal Braking ......................................................................................................... 5A-8
Pressure Isolation (Pressure Maintain) .................................................................. 5A-9
Pressure Reduction .................................................................................................. 5A-10
Brake Release ........................................................................................................... 5A-11
Circuit Diagram.............................................................................................................. 5A-12
Connector List ............................................................................................................... 5A-13
Part Location ................................................................................................................. 5A-15
EHCU Pin-outs ............................................................................................................... 5A-17
System Components ..................................................................................................... 5A-19
Electronic Hydraulic Control Unit (EHCU) .............................................................. 5A-19
ABS Warning Lamp .................................................................................................. 5A-19
Wheel Speed Sensor (WSS)..................................................................................... 5A-19
G-Sensor ................................................................................................................... 5A-19
Normal and Anti-lock Braking ................................................................................. 5A-19
Electronic Brake-force Distribution (EBD) System ................................................ 5A-20
Brake Pedal Travel.................................................................................................... 5A-20
Acronyms and Abbreviations ....................................................................................... 5A-20
General Diagnosis ............................................................................................................. 5A-20
General Information ...................................................................................................... 5A-20
ABS Service Precautions.............................................................................................. 5A-20
Computer System Service Precautions....................................................................... 5A-21
General Service Precautions........................................................................................ 5A-21
Note on Intermittents .................................................................................................... 5A-21
Test Driving ABS Complaint Vehicles ......................................................................... 5A-21
"ABS and Brake" Warning Lamp ................................................................................. 5A-22
Normal Operation .......................................................................................................... 5A-22
Page 328 of 4264
5A-12 BRAKE CONTROL SYSTEM
Circuit Diagram
RTW45AXF000101
Page 659 of 4264
ELECTRICAL-BODY AND CHASSIS 8A-1
SECTION 8A
ELECTRICAL-BODY AND CHASSIS
TABLE OF CONTENTS
PAGE
General Information ........................................................................................................ 8A- 4
Notes for Working on Electrical Items .......................................................................... 8A- 5
Symbols and Abbreviations ........................................................................................... 8A- 11
Symbols ...................................................................................................................... 8A- 11
Abbreviations ............................................................................................................. 8A- 12
Parts for Electrical Circuit .............................................................................................. 8A- 13
Wiring .......................................................................................................................... 8A- 13
Fuse ............................................................................................................................. 8A- 15
Fusible Link ................................................................................................................ 8A- 15
Relay ............................................................................................................................ 8A- 16
Diode ........................................................................................................................... 8A- 17
Connector ................................................................................................................... 8A- 18
Battery ......................................................................................................................... 8A- 19
Reading the Circuit Diagram .......................................................................................... 8A- 22
Parts Location ............................................................................................................ 8A- 22
Circuit Diagram ........................................................................................................... 8A- 23
Connector List ............................................................................................................. 8A- 23
Main Data and Specifications ........................................................................................ 8A- 24
Bulb Specifications .................................................................................................... 8A- 24
Relay and Fuse ................................................................................................................ 8A- 26
Relay and Fuse Box Location ................................................................................... 8A- 26
Relay Location ............................................................................................................ 8A- 28
Page 662 of 4264
8A-4 ELECTRICAL-BODY AND CHASSIS
GENERAL INFORMATION
The body and chassis electrical system operates on a twelve volt power supply with negative ground polarity.
The main harness consists of the engine harness, the instrument harness, the body harness, and the chassis
harness.
The harnesses use a split corrugated tube to protect the wires from the elements.
Wire size is determined by current flow, circuit length, and voltage drop.
All wires have color-coded insulation.
Wire color-codes are shown in the circuit diagrams.
This makes it easier to trace circuits and to make the proper connections.
Each circuit consists of the following:
1. Power source - The battery and the alternator
2. Wires - To carry electrical current through the circuit
3. Fuses - To protect the circuit against current overload
4. Relays - To protect voltage drop between the battery and the circuit parts and to protect the switch points against
burning
5. Switches - To open and close the circuit
6. Load - Any device, such as a light or motor, which converts the electrical current into useful work
7. Ground - To allow the current to flow back to the power source
Page 671 of 4264
ELECTRICAL-BODY AND CHASSIS 8A-13
PARTS FOR ELECTRICAL CIRCUIT
WIRING
Wire Color
All wires have color-coded insulation.
Wires belonging to system's main harness will have a single
color.
Wires belonging to a system's sub-circuits will have a colored
stripe.
Striped wires use the following code to show wire size and
colors.
Example: 0.5 G
/ R
Red (Stripe color)
Green (Base color)
Wire size (0.5mm
2)
Abbreviations are used to indicate wire color within a circuit
diagram.
Refer to the following table.
Wire Color-Coding
Color-Coding Meaning Color-Coding Meaning
B Black BR Brown
W White LG Light green
R Red GR Grey
G Green P Pink
Y Yellow LB Light blue
L Blue V Violet
O Orange
Page 674 of 4264
8A-16 ELECTRICAL-BODY AND CHASSIS
RELAY
Battery and load location may require that a switch be placed
some distance from either component.
This means a longer wire and a higher voltage drop
1. The
installation of a relay between the battery and the load reduces
the voltage drop
2.
Because the switch controls the relay, amperage through the
switch can be reduced.
Relay Specifications and Configurations
Name/
Color Rated
voltage/ Coil
resistance Internal circuit Name/
color Rated
Voltage/Coil
resistance Internal circuit
1T
(MICRO
ISO)
/Black 12V
Approx. 92
Minimum
operating
voltage: 7V at
20C (77F)
1M (MINI
ISO)
/Black 12V Approx.
94 Minimum
operating
voltage: 7V at
20C (77F)
1M
(MICRO
ISO)
/Black 12V
Approx. 132-3
Minimum
operating
voltage: 7V at
20C (77F)
1M
(power)/
Black 12V Approx.
94 Minimum
operating
voltage: 7V at
20C (77F)
* Relay contact shown in the wiring diagram indicates condition before actuation.
Page 676 of 4264
8A-18 ELECTRICAL-BODY AND CHASSIS

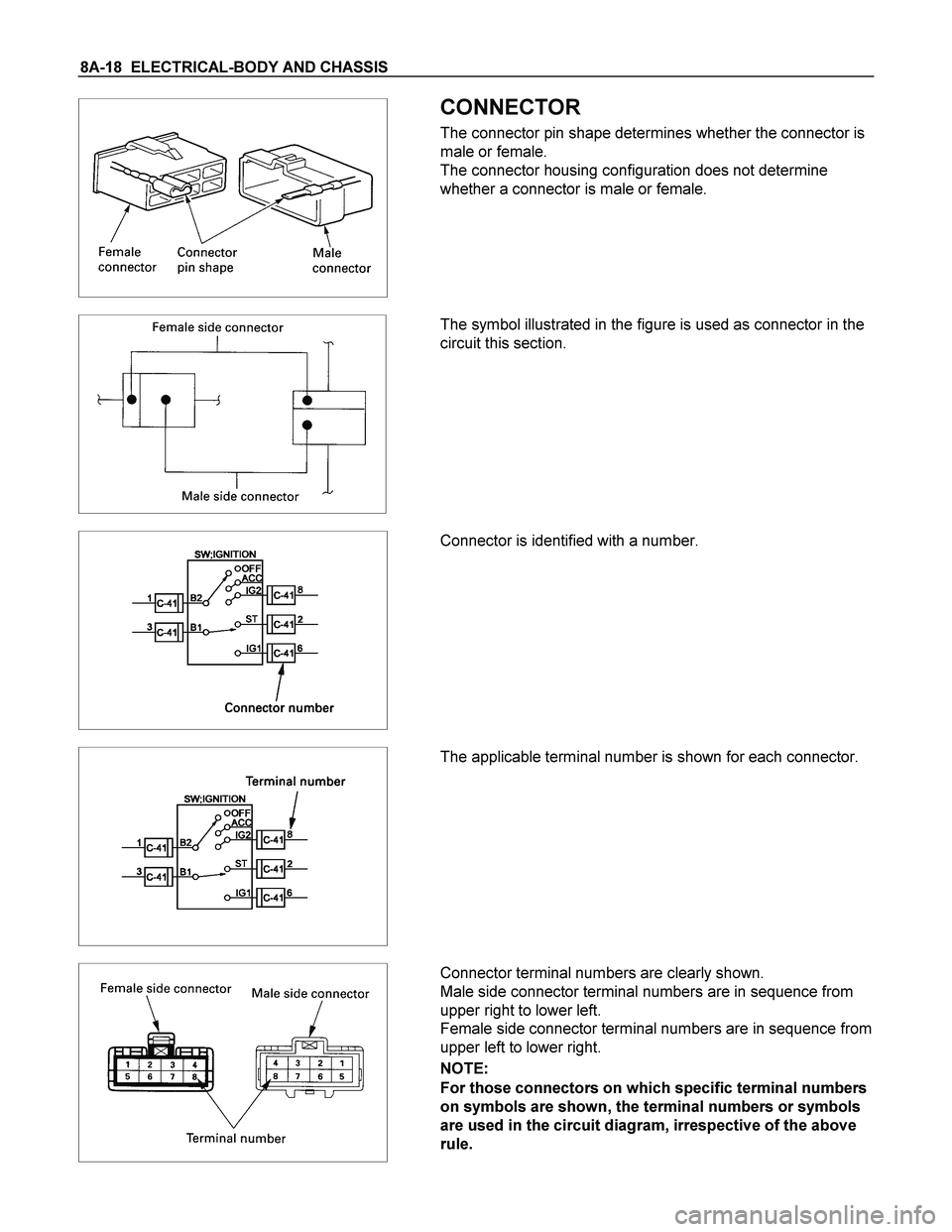

CONNECTOR
The connector pin shape determines whether the connector is
male or female.
The connector housing configuration does not determine
whether a connector is male or female.
The symbol illustrated in the figure is used as connector in the
circuit this section.
Connector is identified with a number.
The applicable terminal number is shown for each connector.
Connector terminal numbers are clearly shown.
Male side connector terminal numbers are in sequence from
upper right to lower left.
Female side connector terminal numbers are in sequence from
upper left to lower right.
NOTE:
For those connectors on which specific terminal numbers
on symbols are shown, the terminal numbers or symbols
are used in the circuit diagram, irrespective of the above
rule.
