Page 21 of 3573

ISUZU TROOPER 1998  Service Owners Manual GENERAL INFORMATION 0AÐ7
TRANSMISSION SERIAL NUMBER
Manual: Stamped on the left side of the transmission
intermediate plate.
Automatic: Stamped on the identification plate, located on
the left side o

Page 22 of 3573

ISUZU TROOPER 1998  Service Owners Manual 0AÐ8 GENERAL INFORMATION

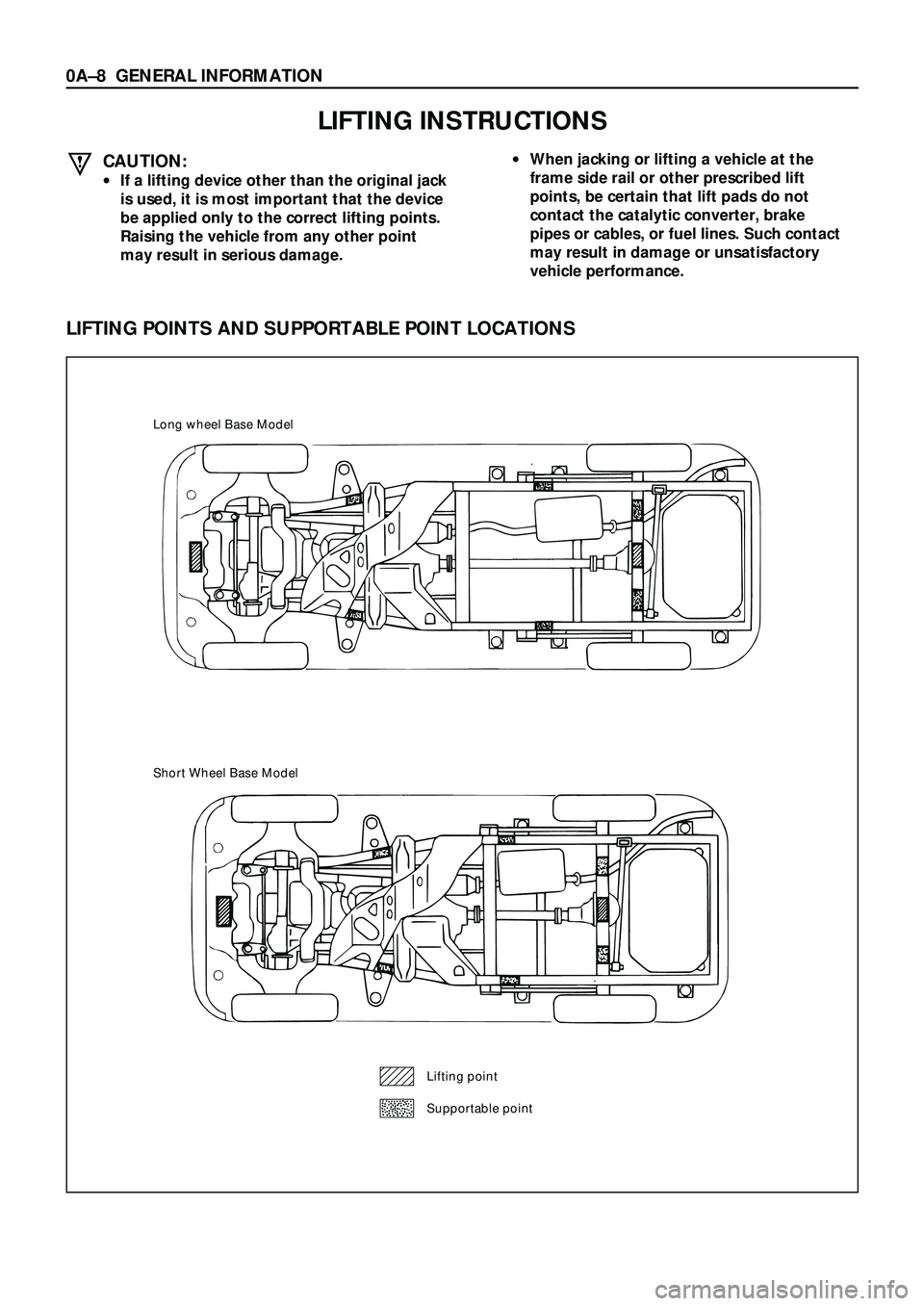

LIFTING INSTRUCTIONS
CAUTION:
·If a lifting device other than the original jack
is used, it is most important that the device
be applied only to the correct lifting points.

Page 23 of 3573

ISUZU TROOPER 1998  Service Owners Manual GENERAL INFORMATION 0AÐ9

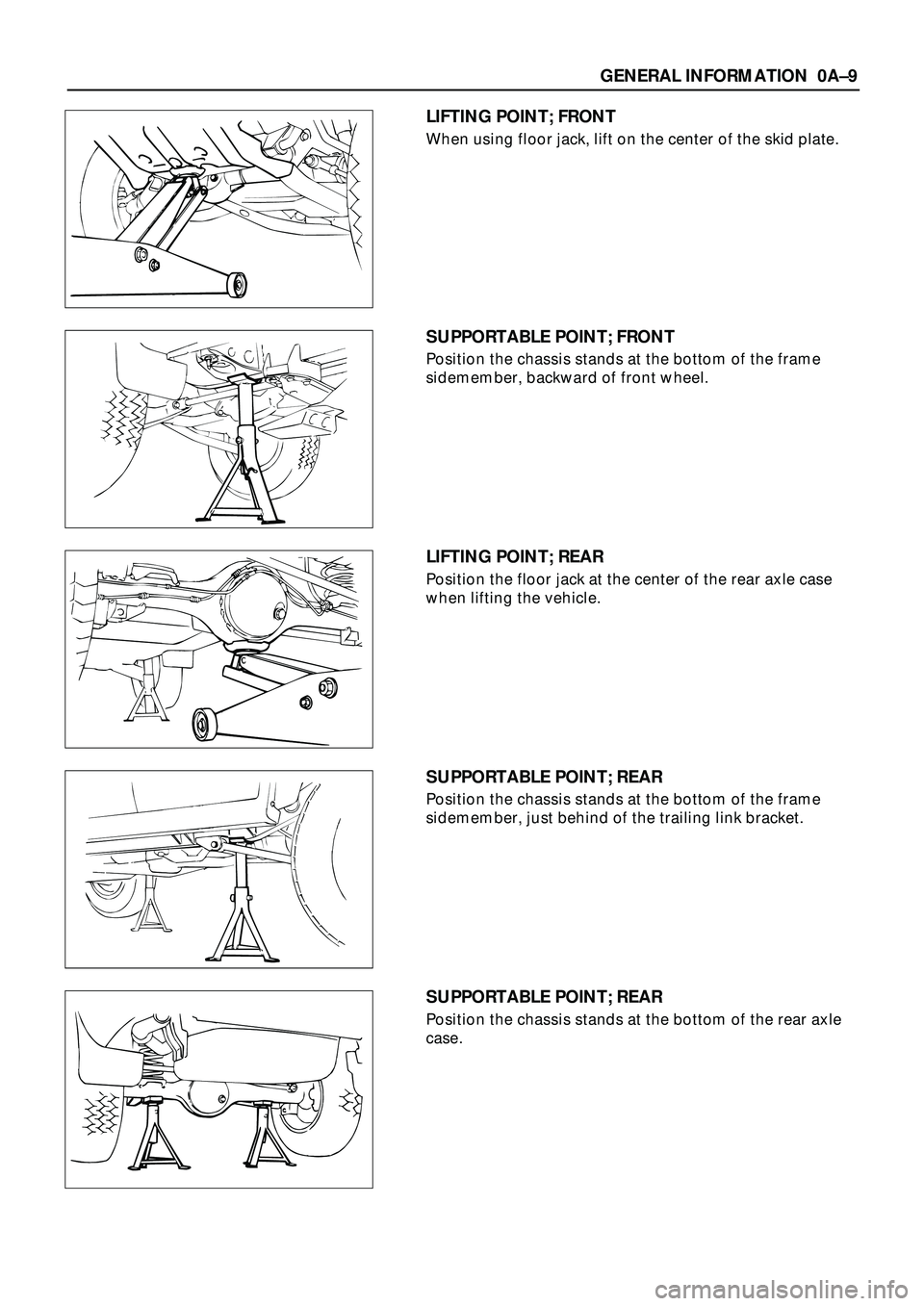

LIFTING POINT; FRONT
When using floor jack, lift on the center of the skid plate.
SUPPORTABLE POINT; FRONT
Position the chassis stands at the bottom of the frame
sidemember,

Page 24 of 3573

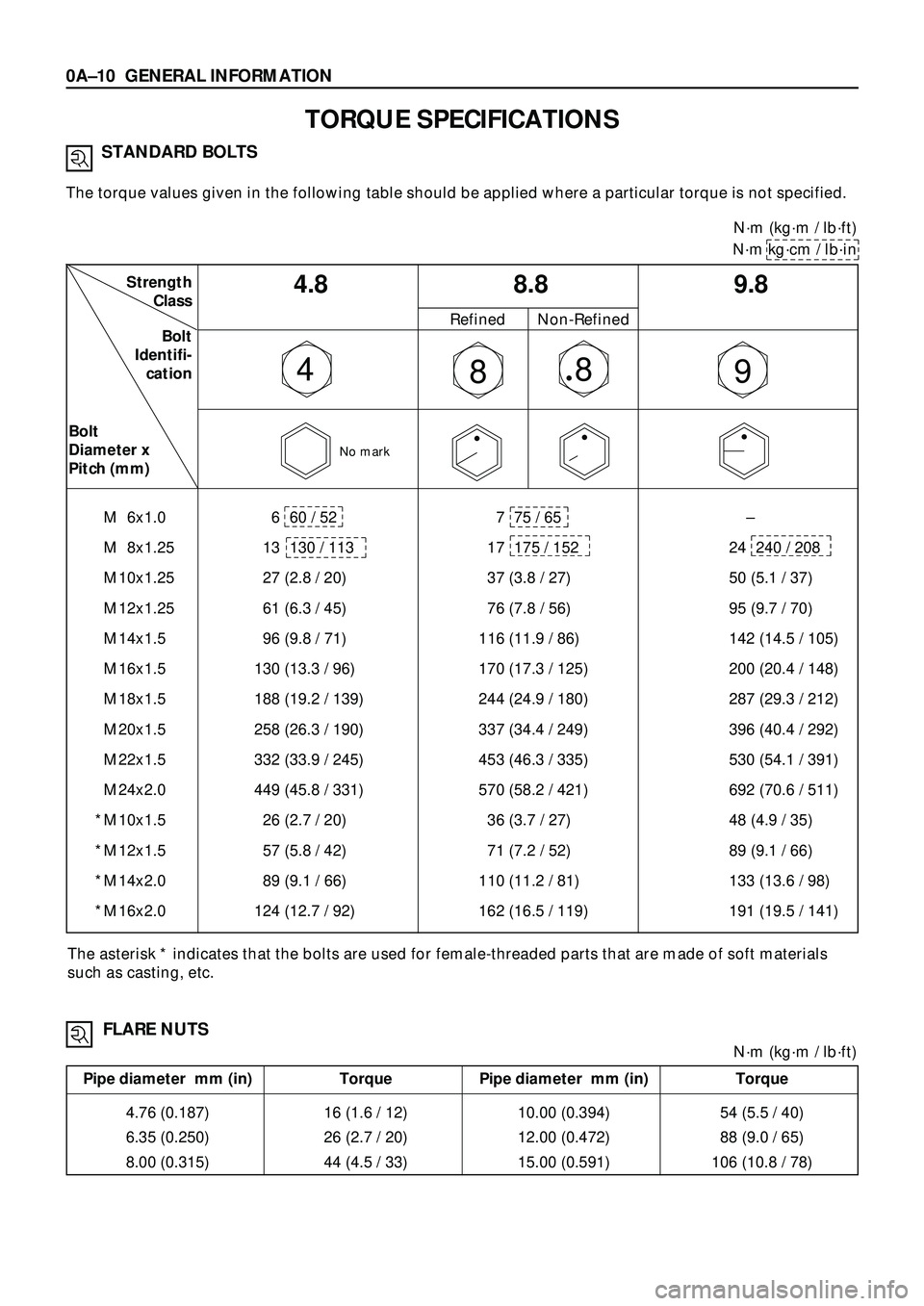

ISUZU TROOPER 1998  Service Owners Manual TORQUE SPECIFICATIONS
STANDARD BOLTS
The torque values given in the following table should be applied where a particular torque is not specified.
0AÐ10 GENERAL INFORMATION
Nám (kgám / lbáft)
Nám

Page 25 of 3573

ISUZU TROOPER 1998  Service Owners Manual GENERAL INFORMATION 0AÐ11
RECOMMENDED LIQUID GASKET
* RTV: Room Temperature Vulcanizer
NOTE:
1. It is very important that the liquid gaskets listed above or their exact equivalent be used on the vehi

Page 26 of 3573

ISUZU TROOPER 1998  Service Owners Manual ABBREVIATIONS CHARTS
LIST OF AUTOMOTIVE ABBREVIATIONS WHICH MAY BE USED IN THIS MANUAL
A Ð Ampere(s)
ABS Ð Antilock Brake System
A/C Ð Air Conditioning
ACCEL Ð Accelerator
ACC Ð Accessary
Adj Ð

Page 27 of 3573

ISUZU TROOPER 1998  Service Owners Manual SAE Ð Society of Automotive Engineers
Sec Ð Secondary
SFI Ð Sequential-port Fuel Injection
SI Ð System International
SIR Ð Supplemental Inflatable Restraint System
SOHC Ð Single Overhead Camshaf

Page 28 of 3573

ISUZU TROOPER 1998  Service Owners Manual MAINTENANCE AND LUBRICATION 0BÐ1
SECTION 0B
MAINTENANCE AND LUBRICATION
CONTENTS
PAGE
Maintenance Schedule...................................................0BÐ 2
Recommended Fluids, Lubricants and

Page 29 of 3573

ISUZU TROOPER 1998  Service Owners Manual 0BÐ2 MAINTENANCE AND LUBRICATION
MAINTENANCE SCHEDULE
GASOLINE ENGINE MODELI: Inspect  and correct or replace as necessary A: Adjust
R: Replace or change T: Tighten to specified torque L: Lubricate
S

Page 30 of 3573

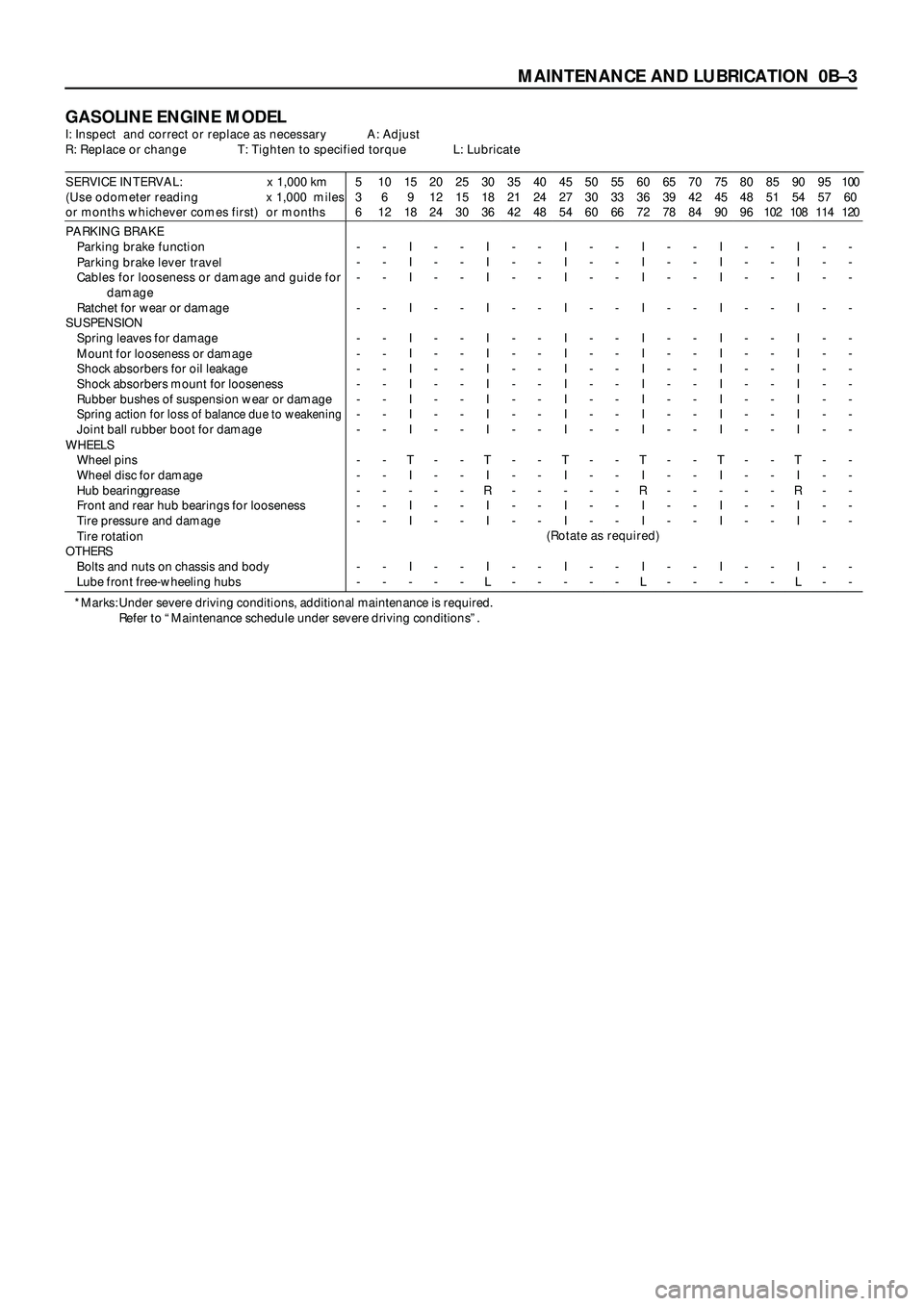

ISUZU TROOPER 1998  Service Owners Manual MAINTENANCE AND LUBRICATION 0BÐ3
GASOLINE ENGINE MODELI: Inspect  and correct or replace as necessary A: Adjust
R: Replace or change T: Tighten to specified torque L: Lubricate
SERVICE INTERVAL: x 1,
