JAGUAR XJ 1994 2.G ZF Automatic Transmission Manual ZF Automatic Transmissions Service Manual
2

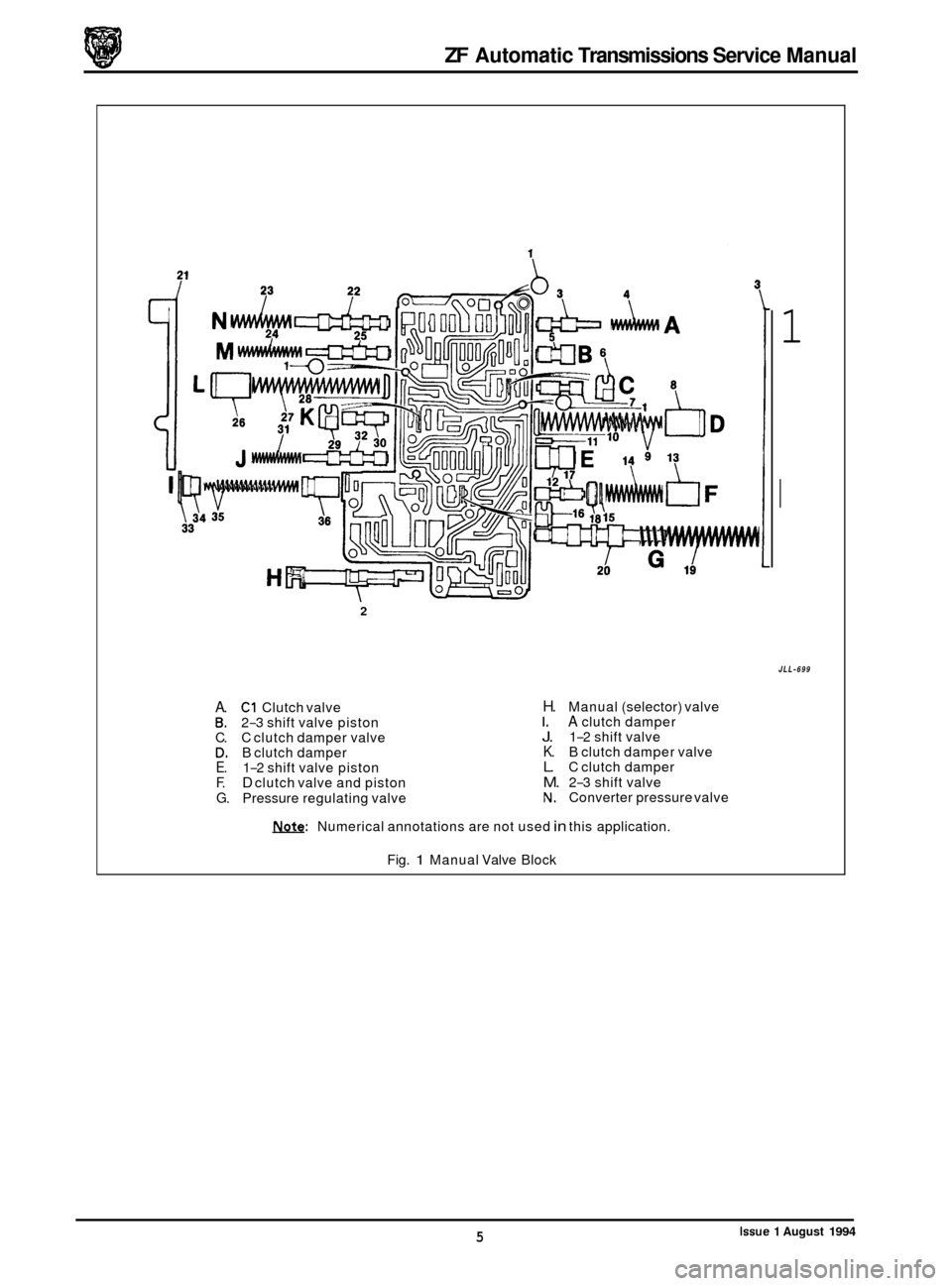

A. C1 Clutch valve B. 2-3 shift valve piston
C. C clutch damper valve
D. B clutch damper E. 1-2 shift valve piston F. D clutch valve and piston G.

ZF Automatic Transmissions Service Manual
2
A. C1 Clutch valve B. 2-3 shift valve piston
C. C clutch damper valve
D. B clutch damper E. 1-2 shift valve piston F. D clutch valve and piston G. Pressure regulating valve
H. Manual (selector) valve I. A clutch damper J. 1-2 shift valve K. B clutch damper valve L. C clutch damper
M. 2-3 shift valve N. Converter pressure valve
M: Numerical annotations are not used in this application.
Fig.
1 Manual Valve Block
1
I
JLL-699
Issue 1 August 1994 5

Page 12 of 74

JAGUAR XJ 1994 2.G ZF Automatic Transmission Manual ZF Automatic Transmissions Service Manual
1
JL4-70
A. One way valve (lubrication) B. 2nd gear inhibit valve C. F clutch damper D. F clutch inhibit valve (reverse)
E. 3-4 shift valve piston
F

ZF Automatic Transmissions Service Manual
1
JL4-70
A. One way valve (lubrication) B. 2nd gear inhibit valve C. F clutch damper D. F clutch inhibit valve (reverse)
E. 3-4 shift valve piston
F. 3-4 shift valve G. 1st gear inhibitvalve H. F clutch valve I. E clutch damper
J. C1 clutch damper
Note: Numerical annotations are not used in this application.
Fig.
1 Rear Valve Block
6 Issue 1 August 1994

Page 13 of 74

JAGUAR XJ 1994 2.G ZF Automatic Transmission Manual ZF Automatic Transmissions Service Manual
I1
B
12

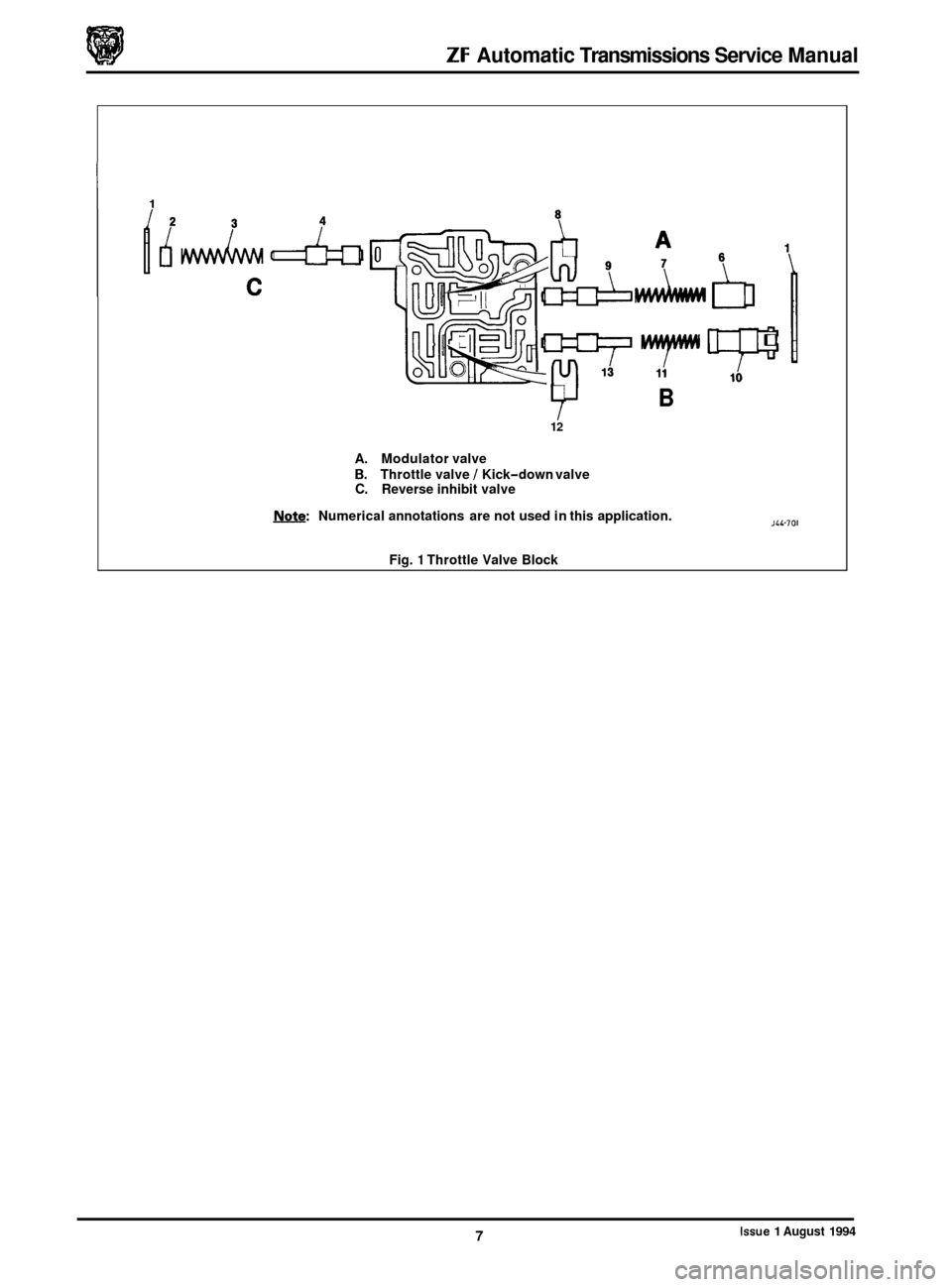

A. Modulator valve
B. Throttle valve / Kick-down valve C. Reverse inhibit valve
Note: Numerical annotations are not used in this applicatio

ZF Automatic Transmissions Service Manual
I1
B
12
A. Modulator valve
B. Throttle valve / Kick-down valve C. Reverse inhibit valve
Note: Numerical annotations are not used in this application. JU-701
Fig. 1 Throttle Valve Block
Issue 1 August 1994 7

Page 14 of 74

JAGUAR XJ 1994 2.G ZF Automatic Transmission Manual ZF Automatic Transmissions Service Manual

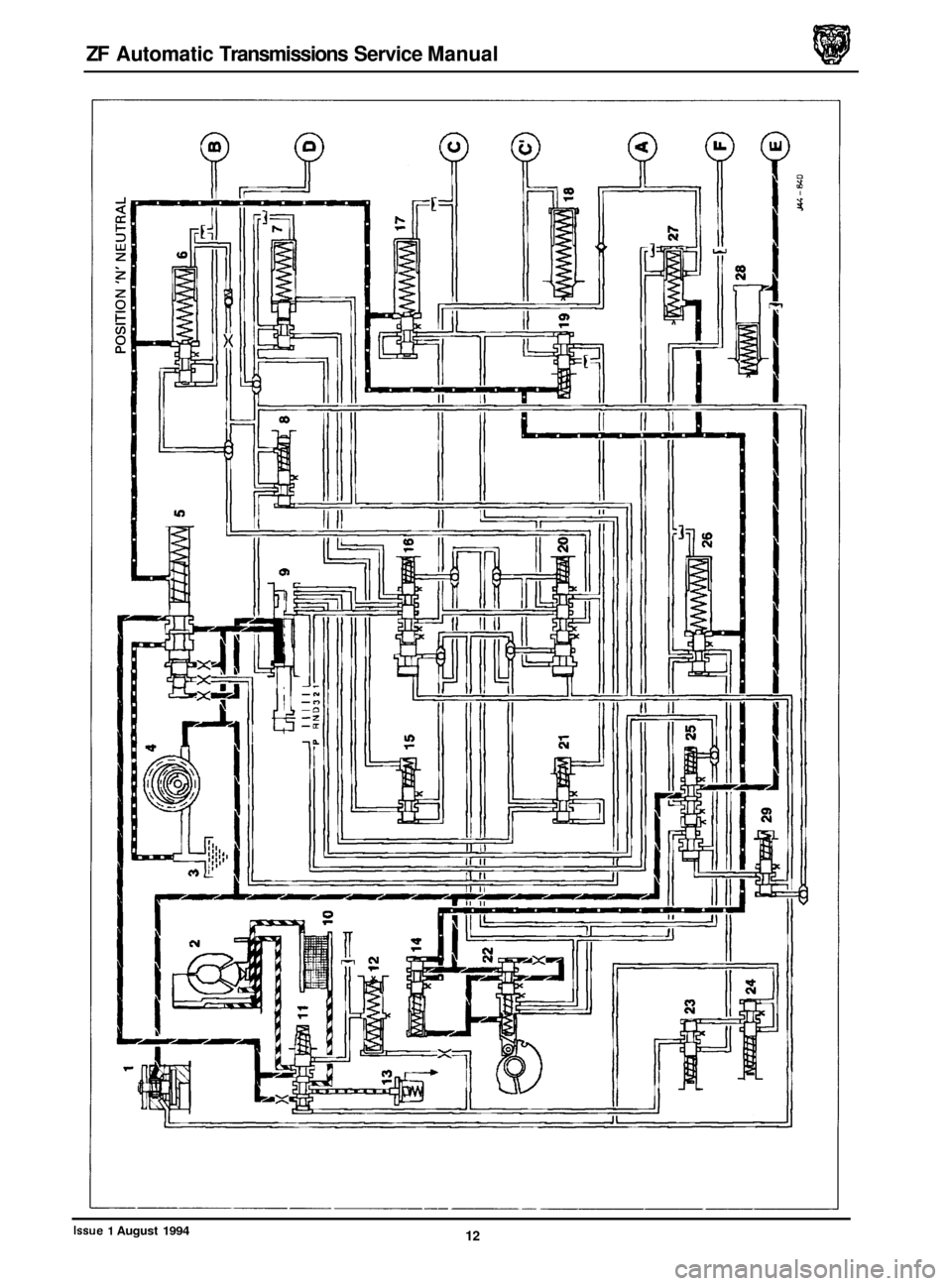

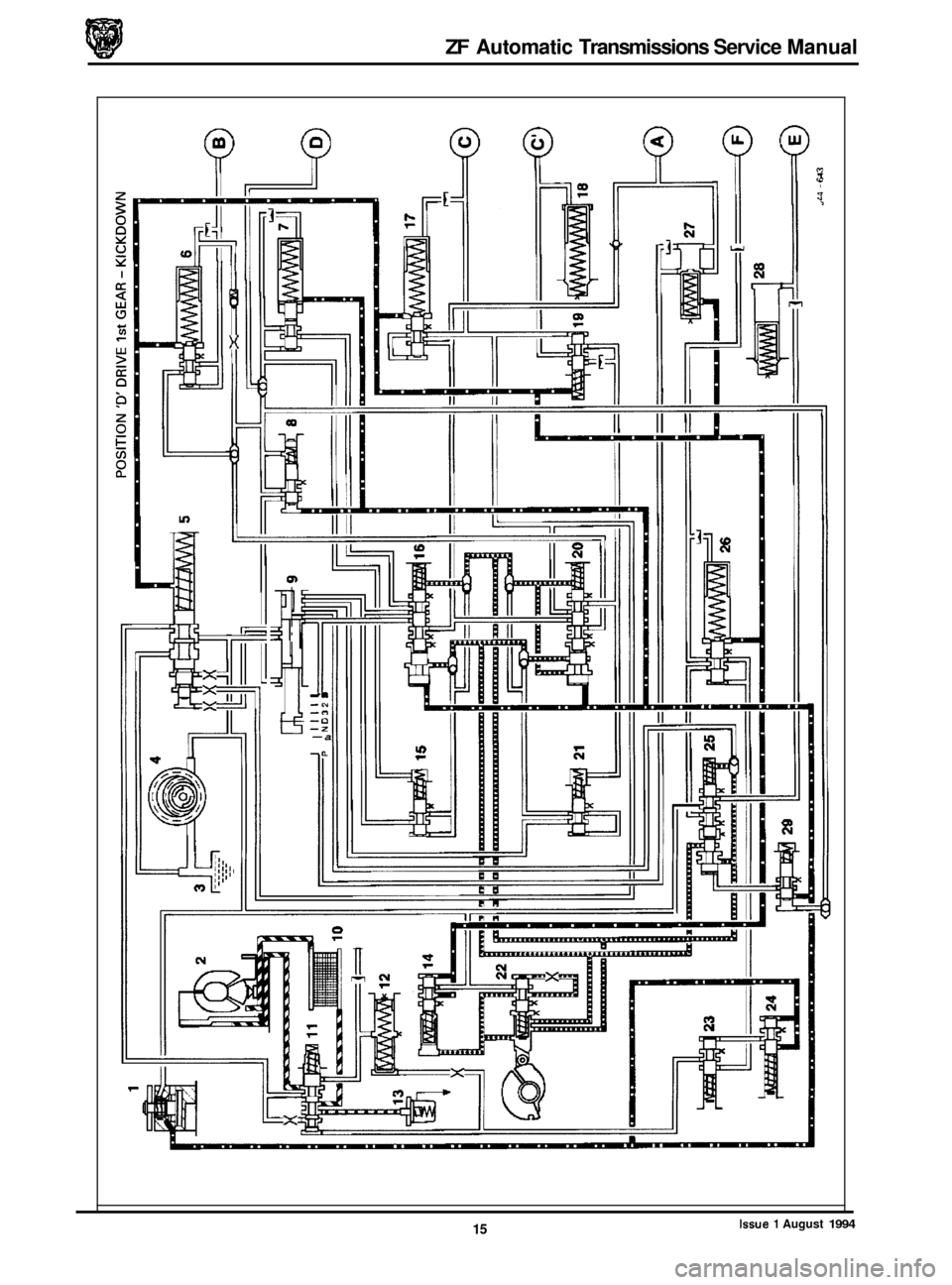

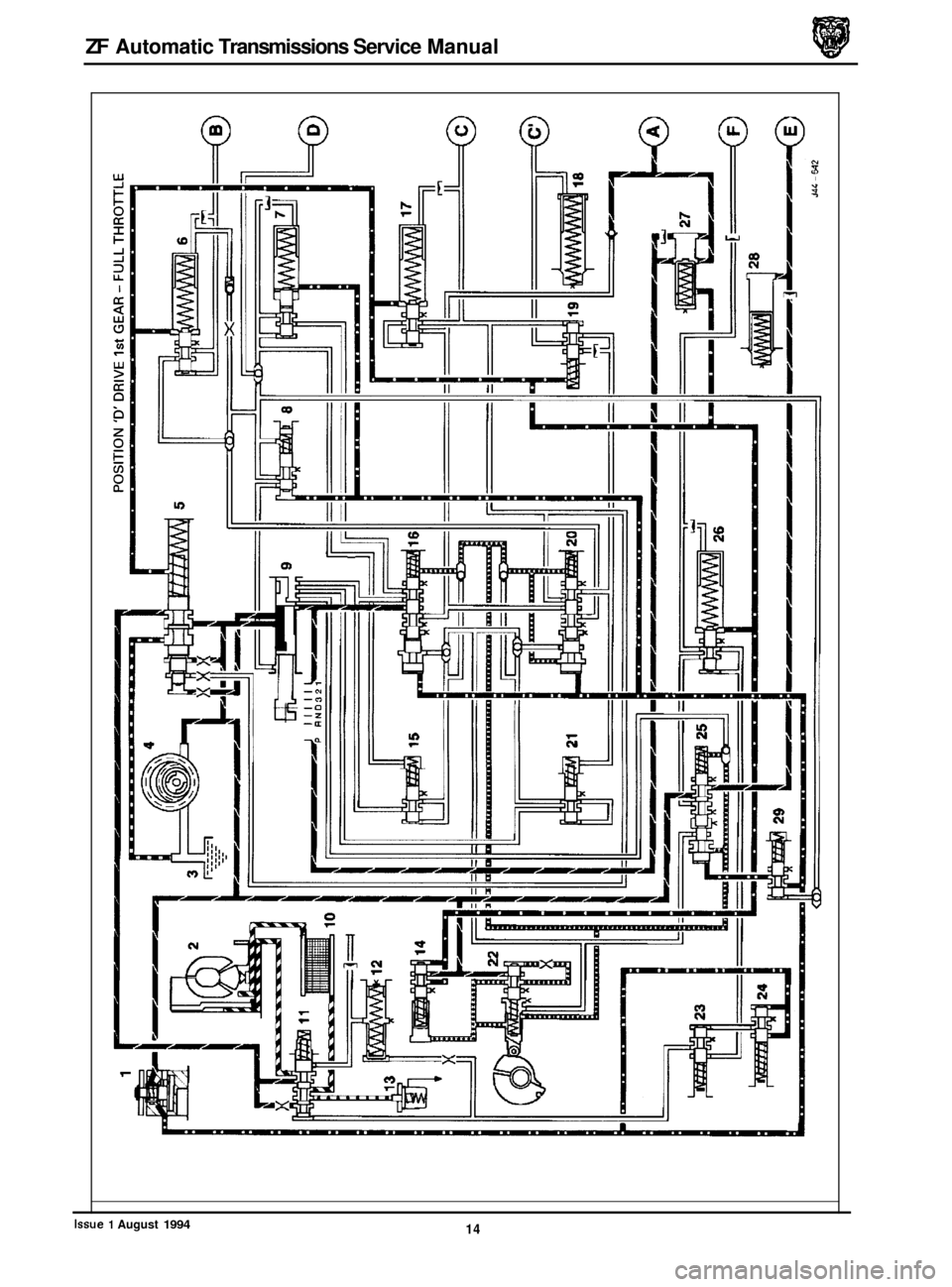

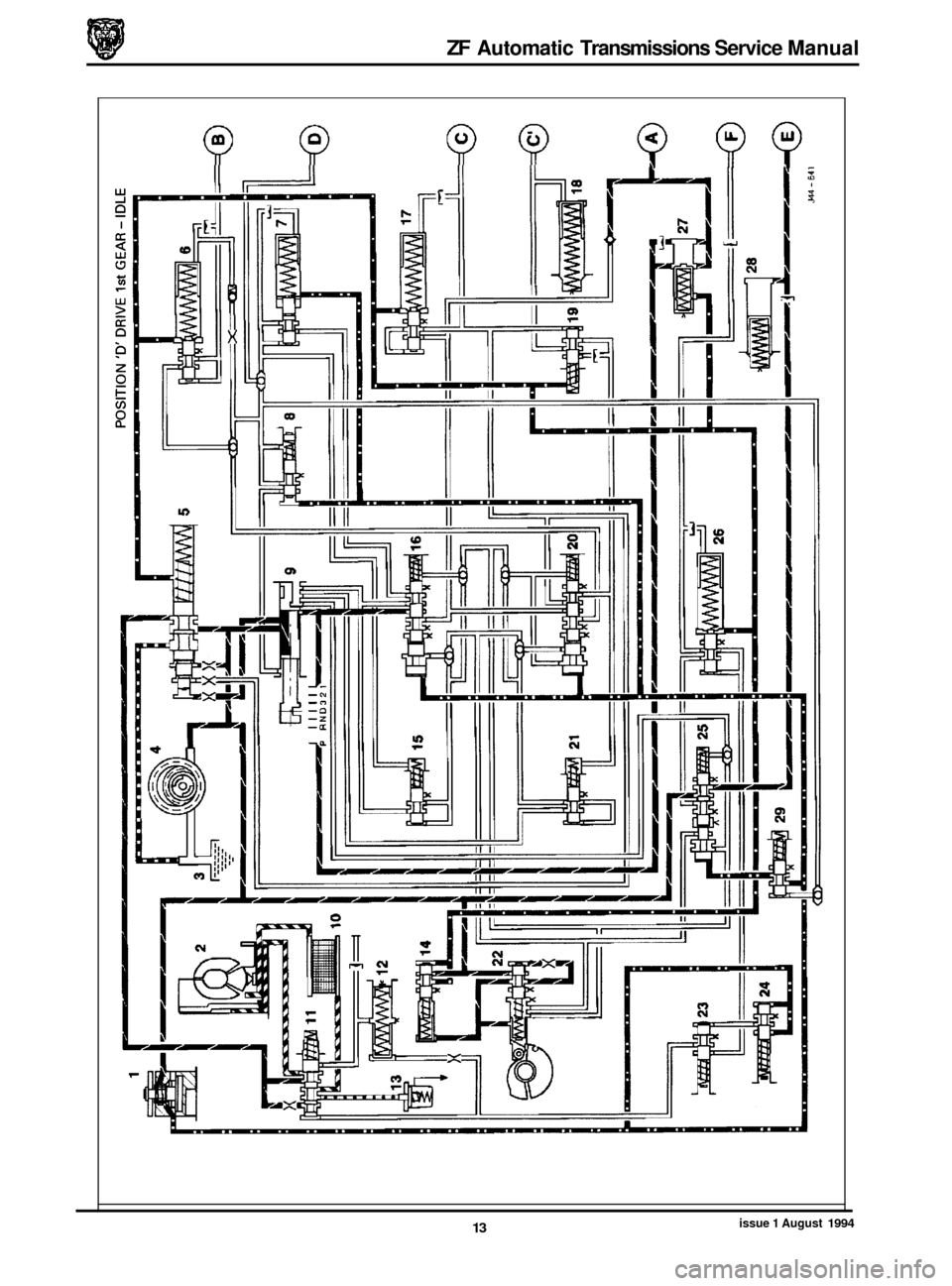

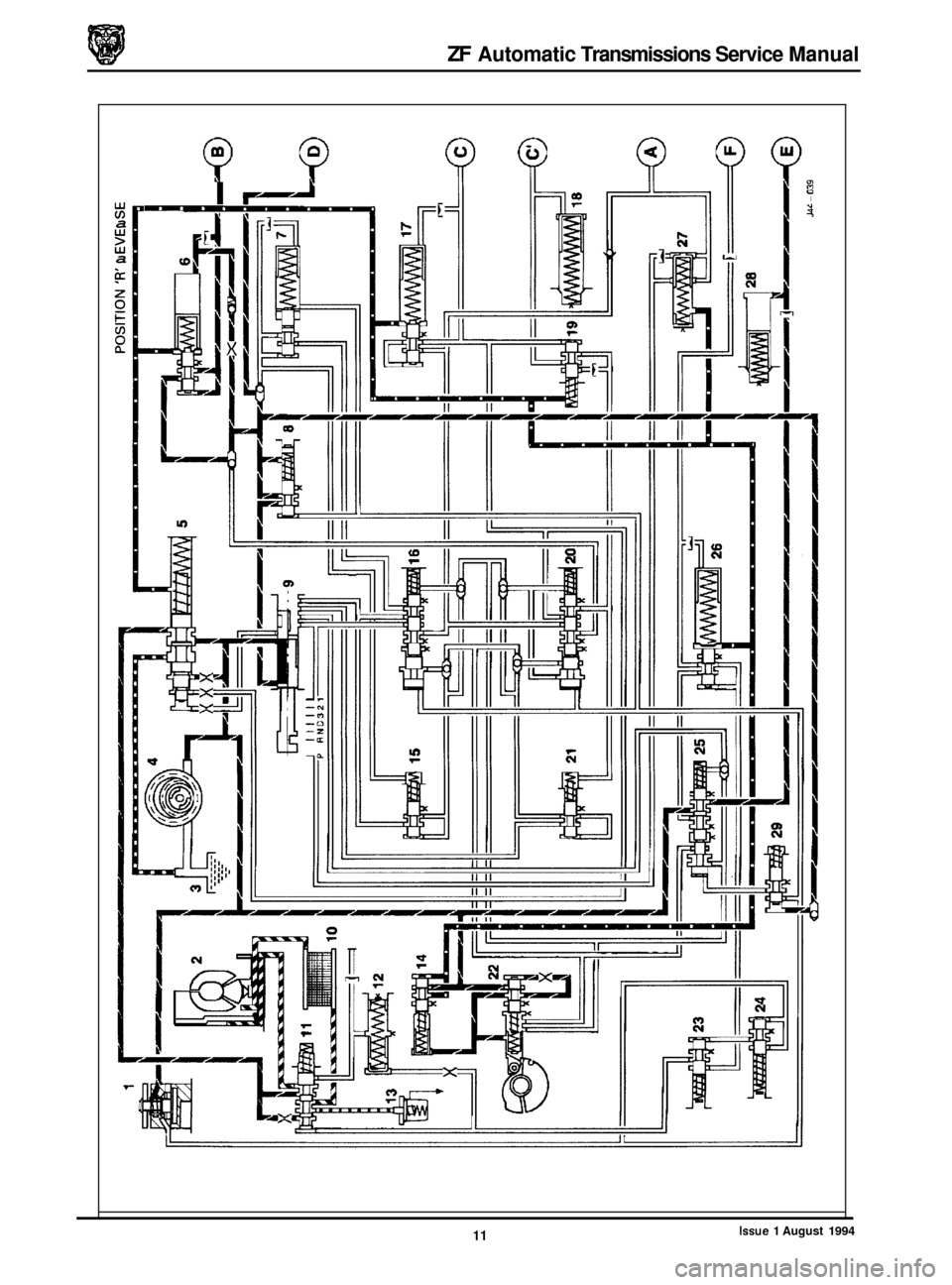

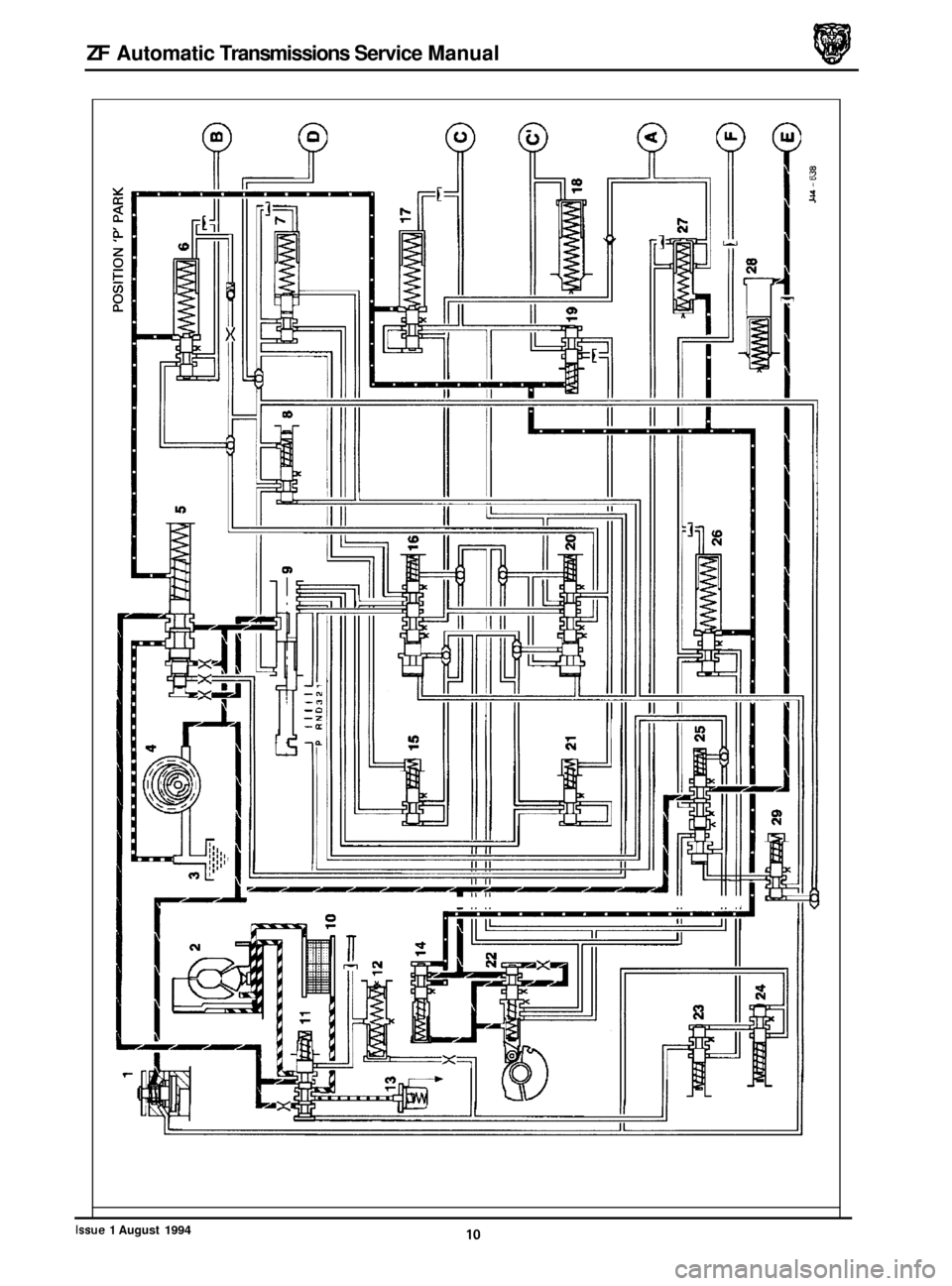

1.2 HYDRAULIC CIRCUIT DIAGRAMS
Key To Hydraulic Circuit Diagrams (commencing on page IO)
1. Governor 16. 1 - 2
Shift Valve
2. Torque Converter 17.

ZF Automatic Transmissions Service Manual
1.2 HYDRAULIC CIRCUIT DIAGRAMS
Key To Hydraulic Circuit Diagrams (commencing on page IO)
1. Governor 16. 1 - 2
Shift Valve
2. Torque Converter 17.
Clutch
'C' Valve
3. Sump
18. Clutch 'C" Damper
4. Pump 19.
Clutch
'C" Valve
5. Pressure Regulating Valve 20.
2
- 3 Shift Valve
6. Clutch
'B' Valve And Damper 21.
2nd Gear Inhibit
7. Clutch 'D' Valve And Damper 22.
Throttle Valve
8. Reverse Gear Inhibit 23. Converter Clutch Lock-up Control Valve
9. Manual Valve 24.
Converter Clutch Hysteresis Valve
IO. Oil Cooler 25. 3 - 4 Shift
Valve
11. Converter And Reversing Valve 26.
Clutch 'F' Valve And Damper
12. Converter Clutch Damper 27.
Clutch
'A' Damper
13. One
-way Valve
14. Modulator Valve
15. 1st Gear Inhibit
A Clutch'A'
B Clutch'B'
C Clutch'C'
C1 Clutch 'C"
D Clutch'D'
E Clutch'E'
F Clutch'F'
Exhaust
Throttle
Orifice Branch
Main Pressure
Converter Pressure
Throttle Pressure
28. Clutch 'E' Damper
29. Clutch 'F' Inhibit Valve (Reverse)
Vlll HII Governor Pressure
IX - Locking Pressure
X -1- Modulation Pressure
XI - Pump Pressure
XI1 Lubrication Pressure
issue 1 August 1994 9
