JEEP CHEROKEE 1988 Service Repair Manual

Fig. 30: Test 4B - Code 700, Solenoid No. 1 Wire (Cavity "F")

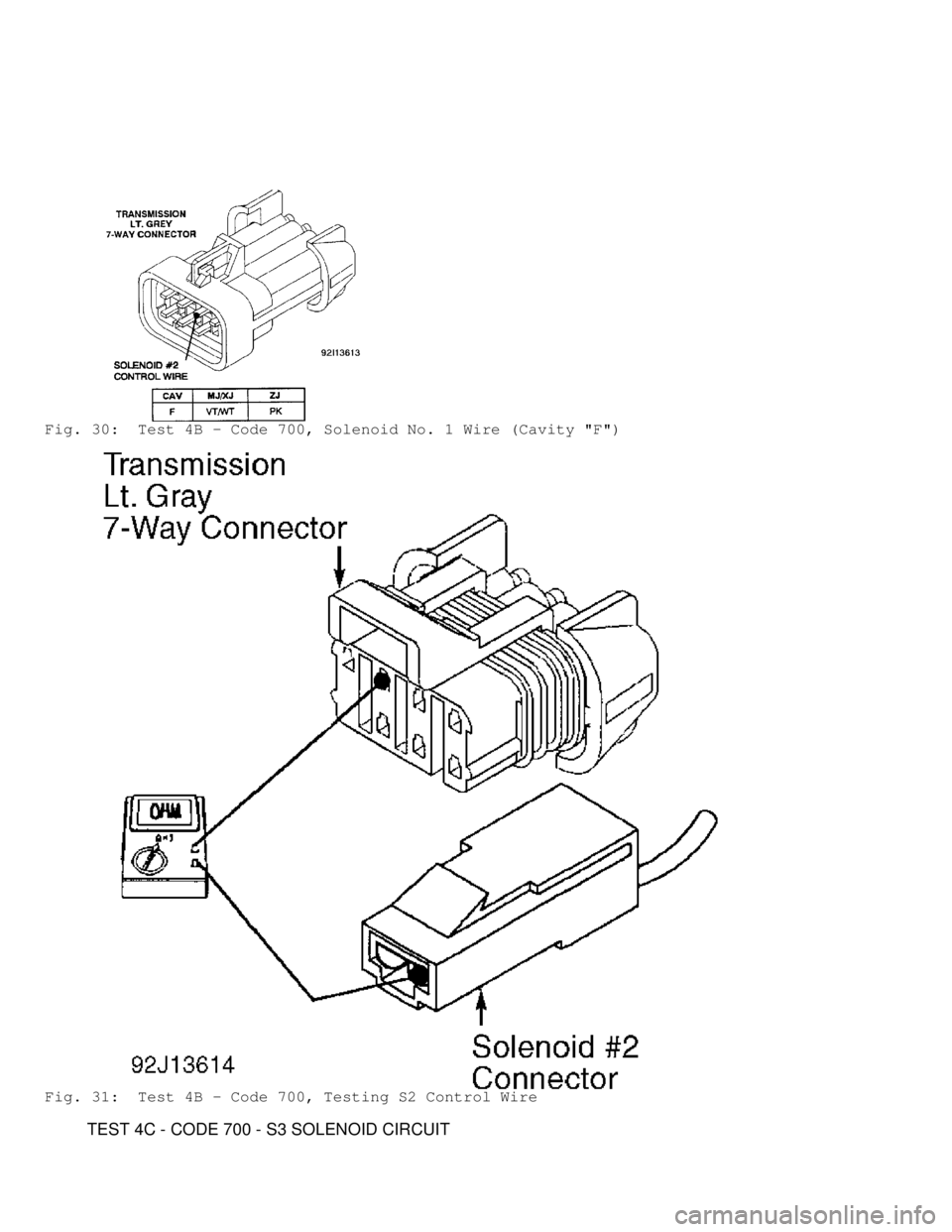

Fig. 31: Test 4B - Code 700, Testing S2 Control Wire
TEST 4C - CODE 700 - S3 SOLENOID CIRCUIT

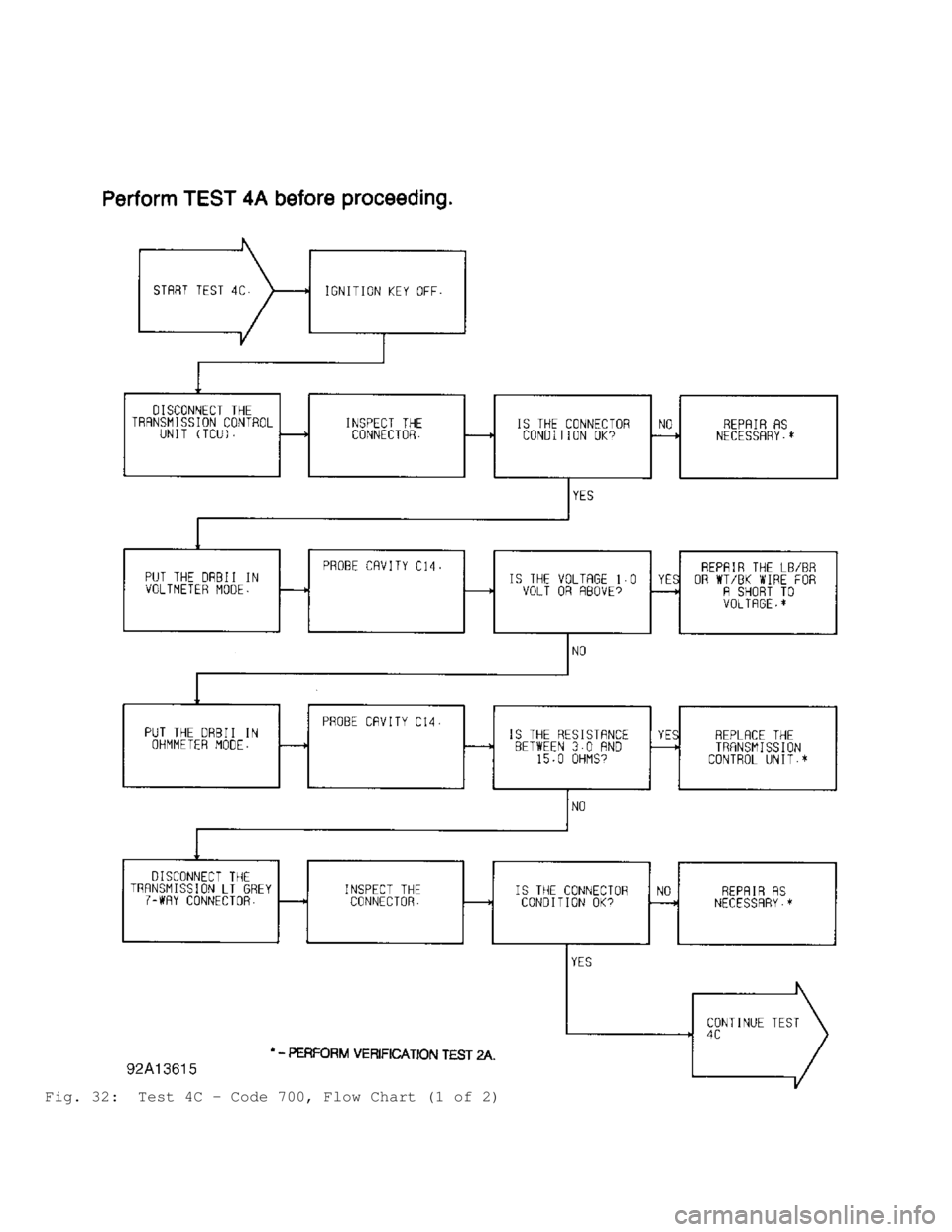

Fig. 32: Test 4C - Code 700, Flow Chart (1 of 2)

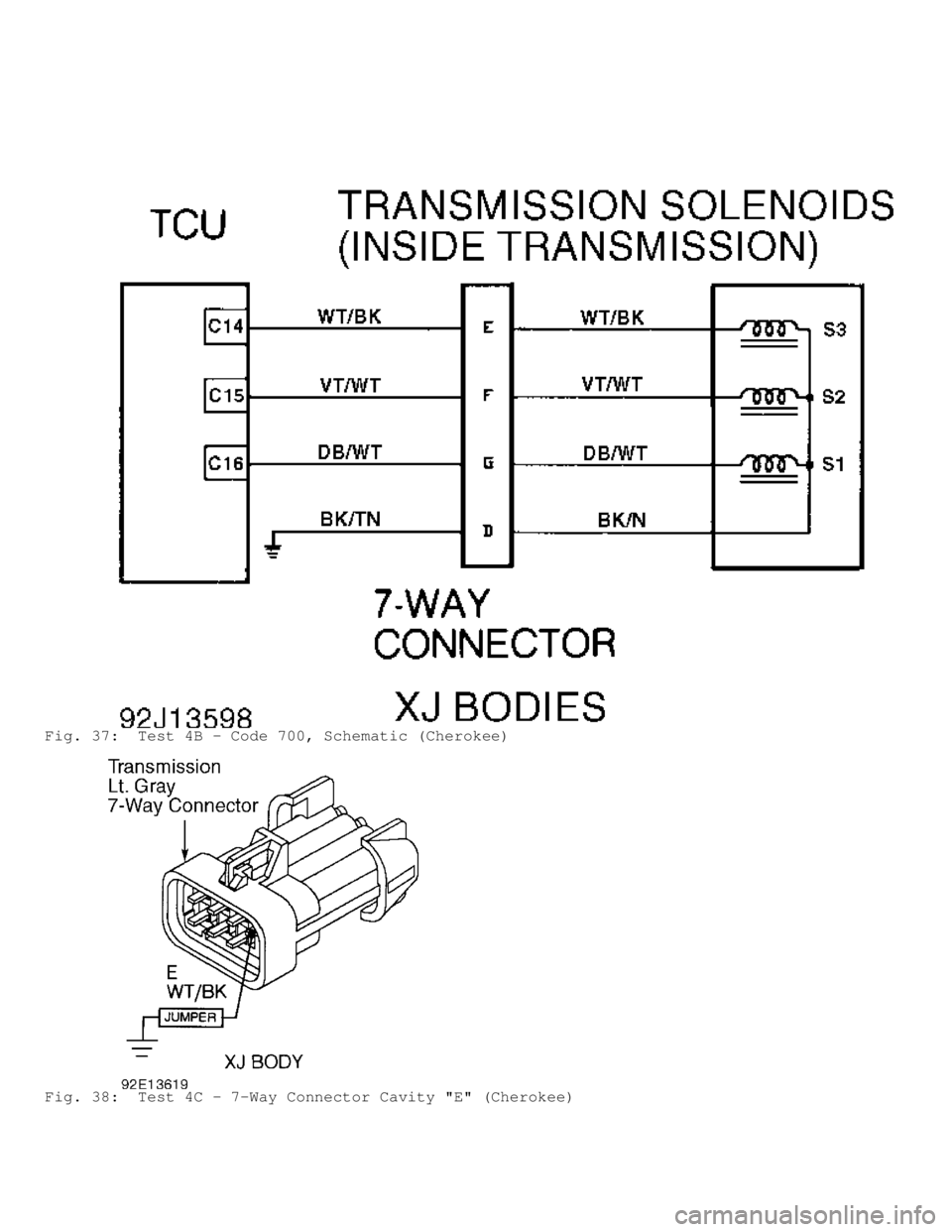

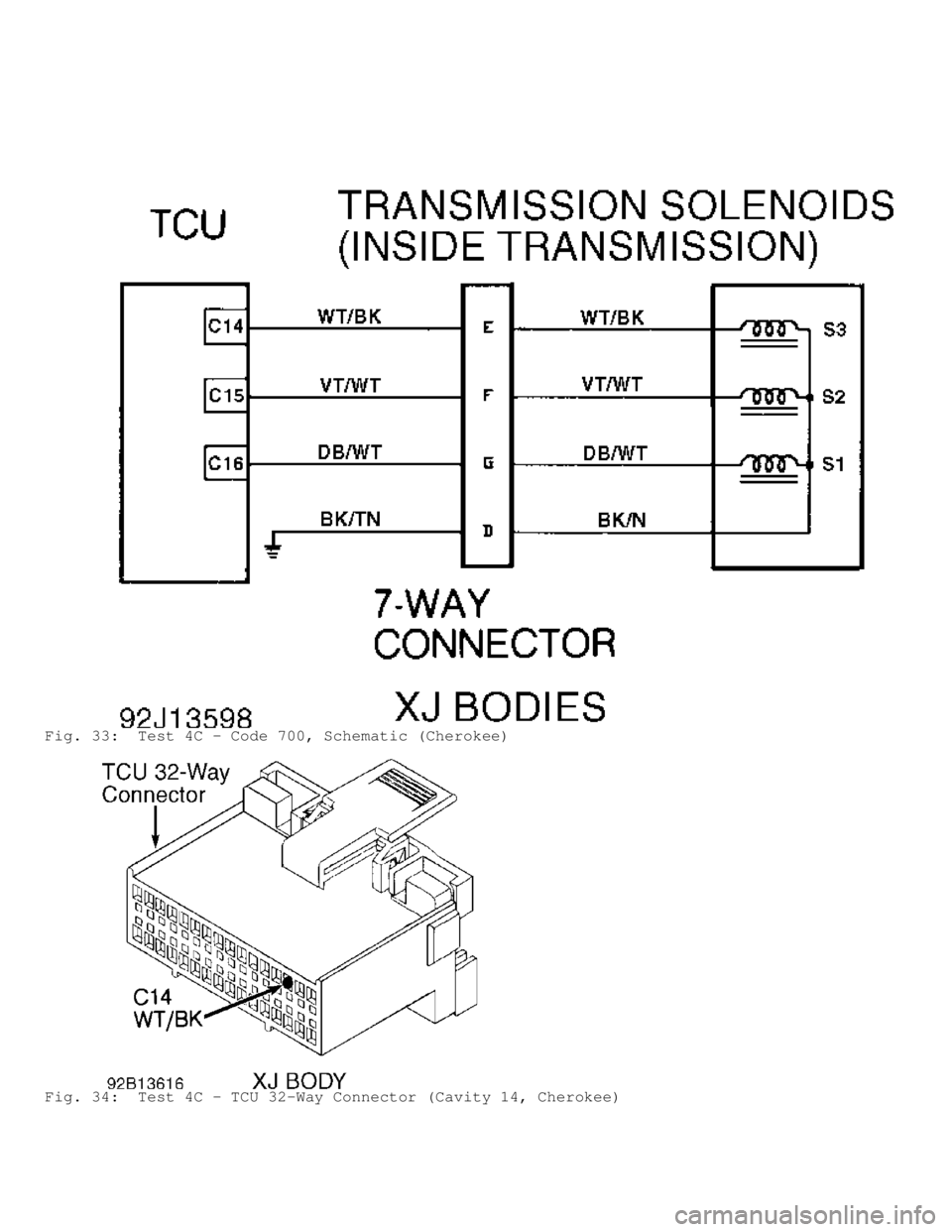

Fig. 33: Test 4C - Code 700, Schematic (Cherokee)
Fig. 34: Test 4C - TCU 32-Way Connector (Cavity 14, Cherokee)

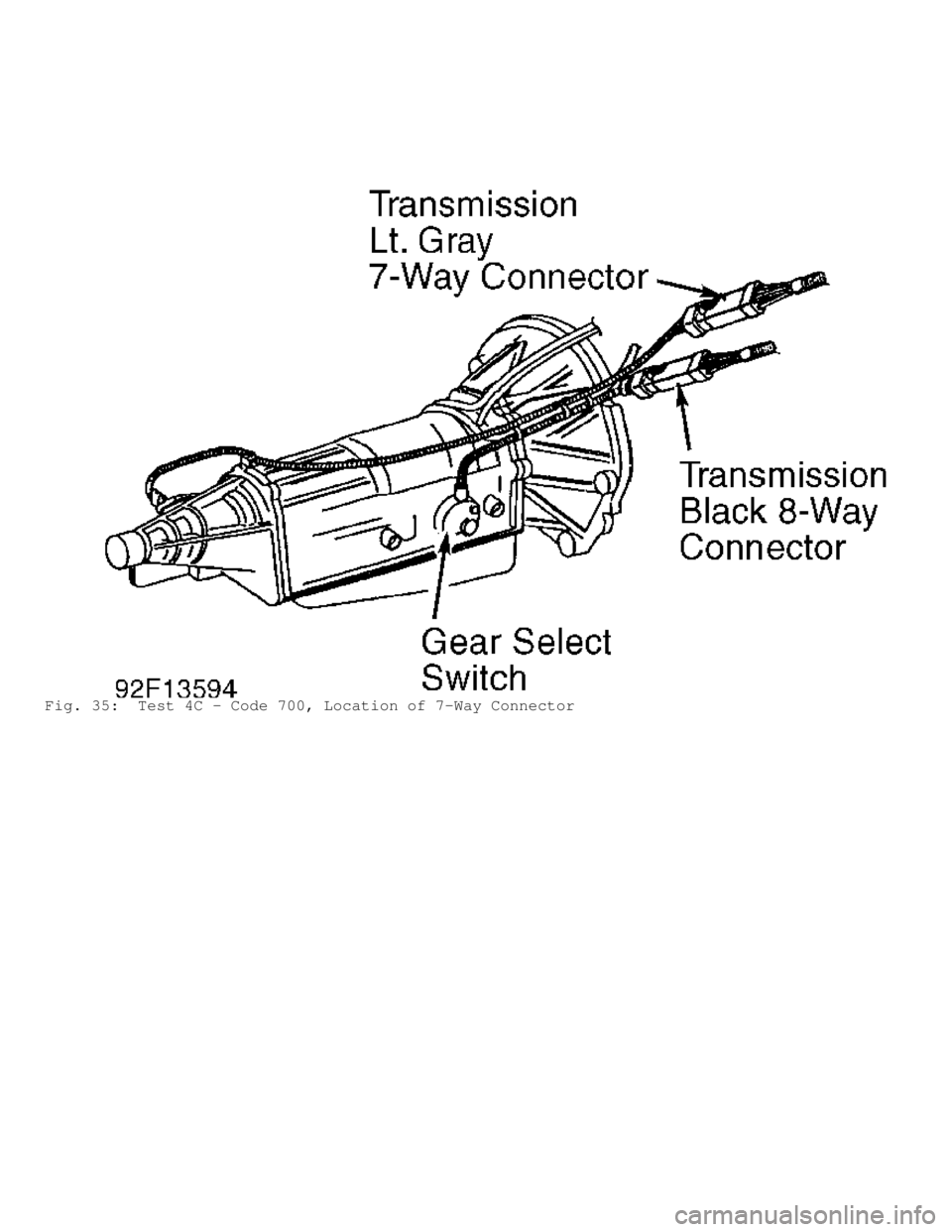

Fig. 35: Test 4C - Code 700, Location of 7-Way Connector

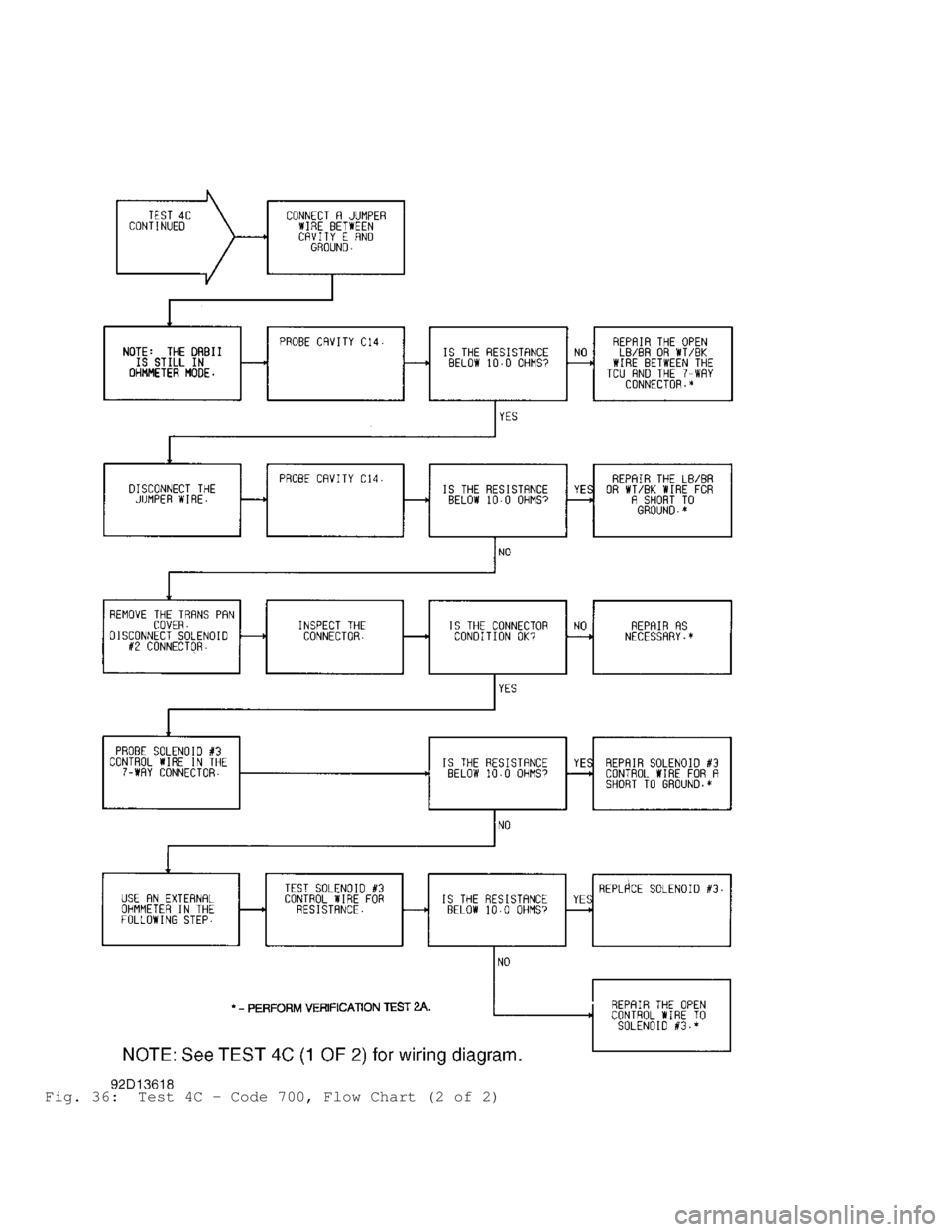

Fig. 36: Test 4C - Code 700, Flow Chart (2 of 2)

Fig. 37: Test 4B - Code 700, Schematic (Cherokee)

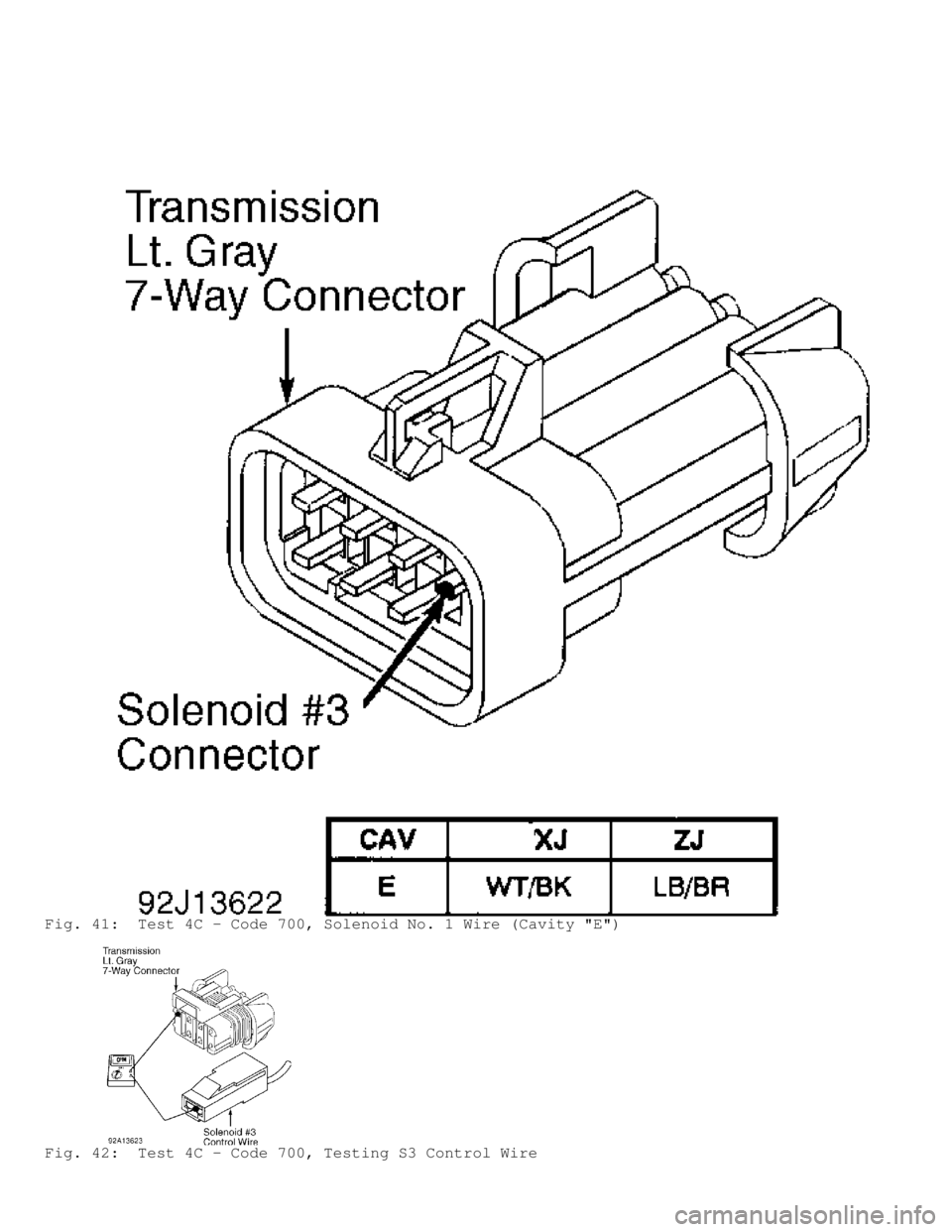

Fig. 38: Test 4C - 7-Way Connector Cavity "E" (Cherokee)

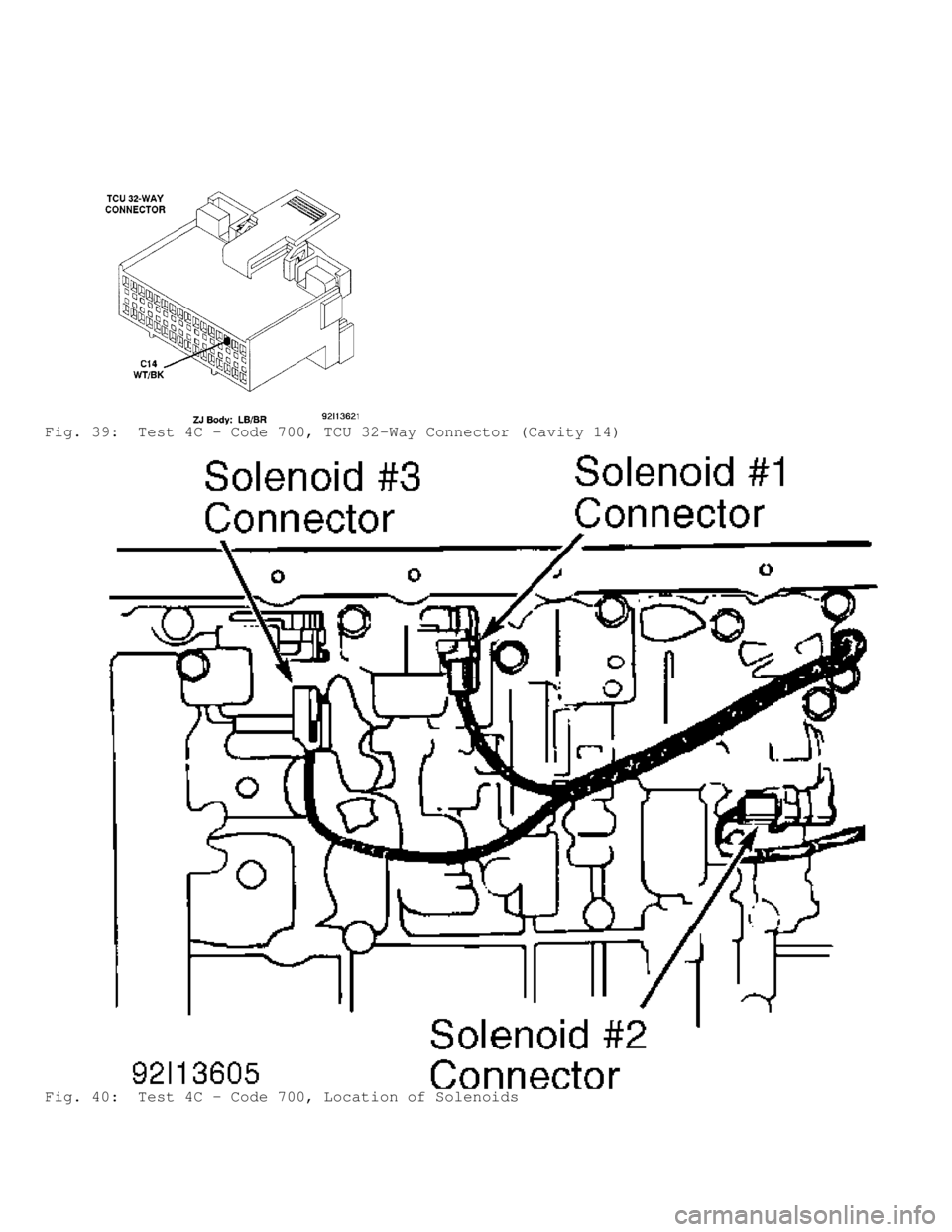

Fig. 39: Test 4C - Code 700, TCU 32-Way Connector (Cavity 14)
Fig. 40: Test 4C - Code 700, Location of Solenoids

Fig. 41: Test 4C - Code 700, Solenoid No. 1 Wire (Cavity "E")
Fig. 42: Test 4C - Code 700, Testing S3 Control Wire

TEST 5A - CODE 702 - SPEED SENSOR CIRCUIT
NOTE: Perform TEST 1A - VERIFICATION OF THE COMPLAINT
before proceeding.

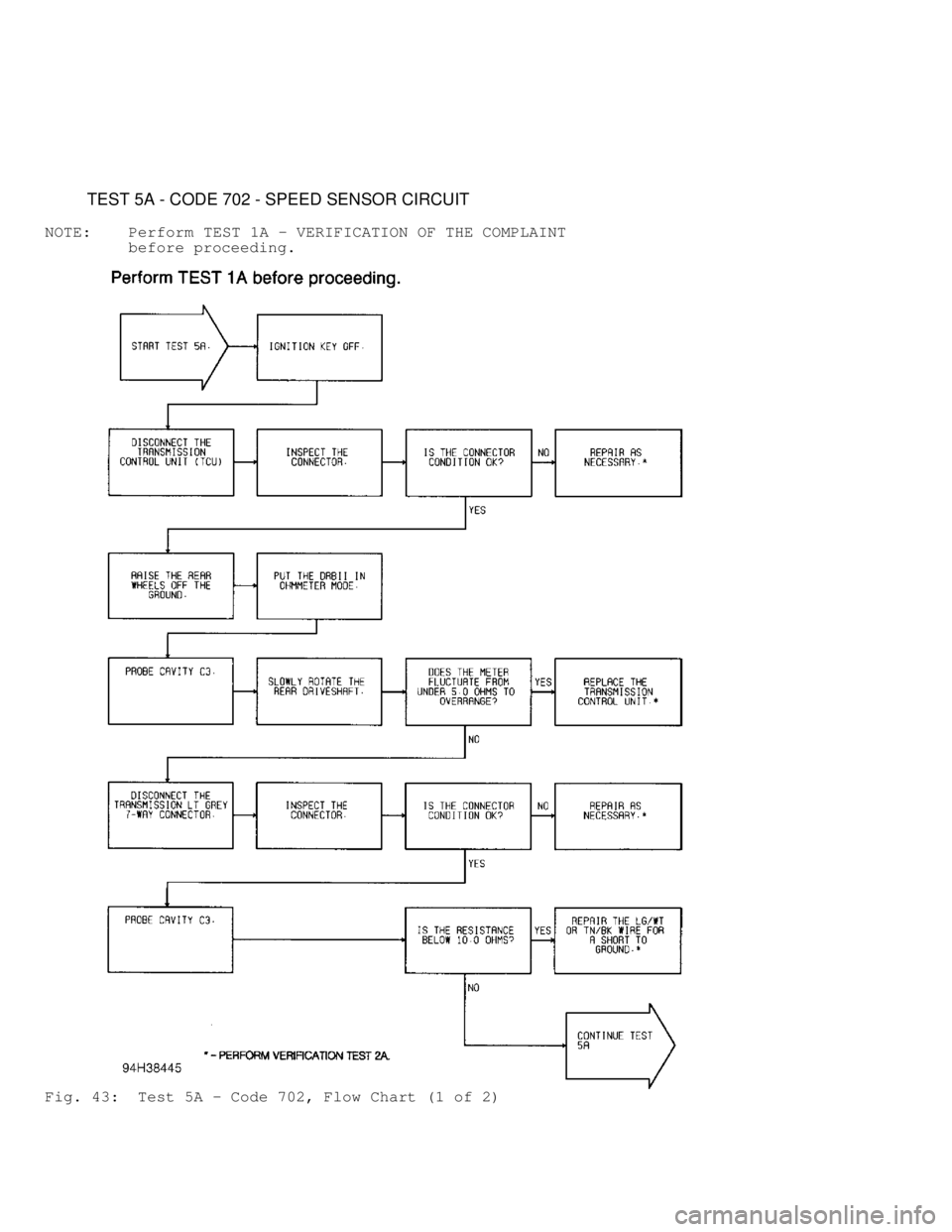

Fig. 43: Test 5A - Code 702, Flow Chart (1 of 2)

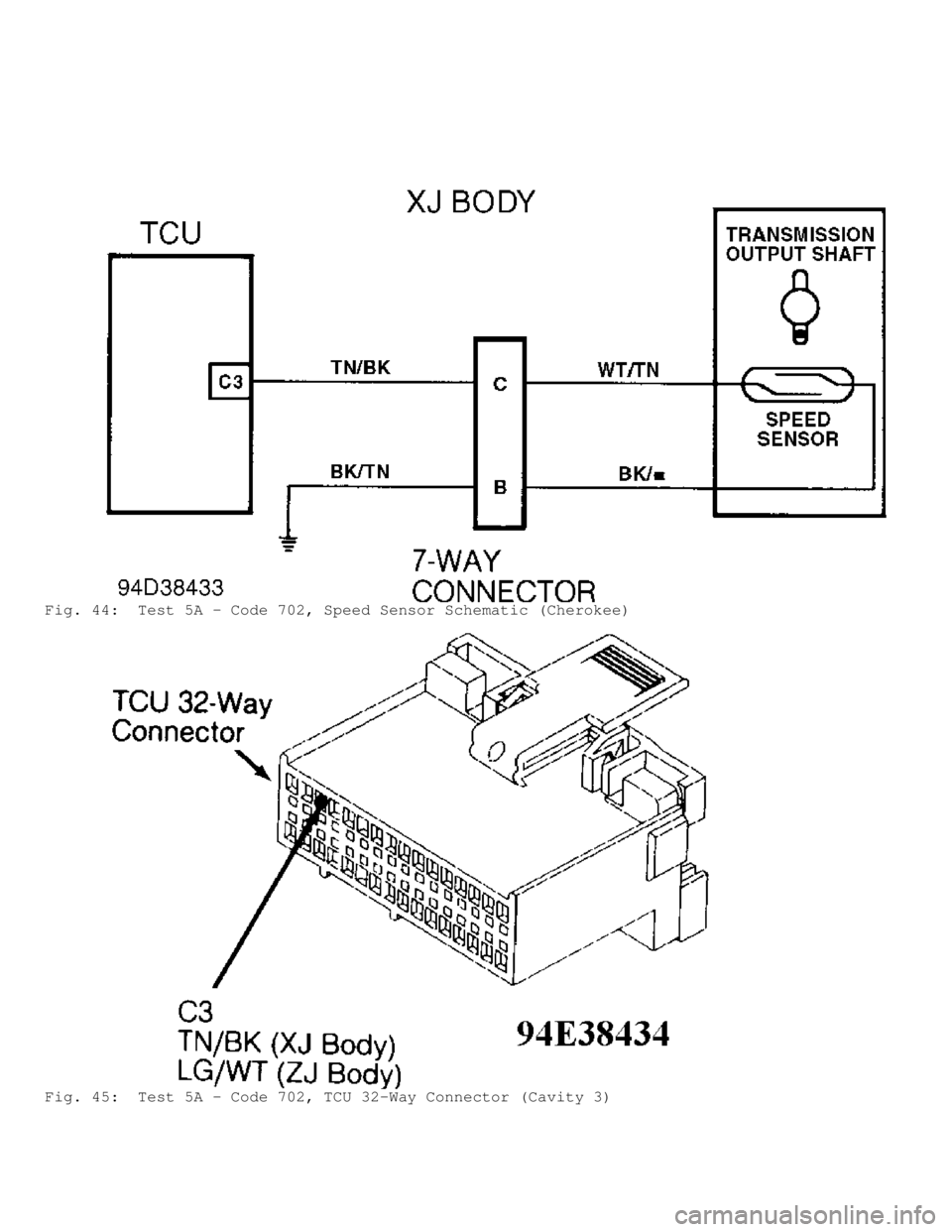

Fig. 44: Test 5A - Code 702, Speed Sensor Schematic (Cherokee)
Fig. 45: Test 5A - Code 702, TCU 32-Way Connector (Cavity 3)
