IGNITION SWITCHÐYJ MODELS
GENERAL INFORMATION
This section will cover the electrical portion
of the ignition switch. To service the mechani-
cal ignition key switch, refer to Group 19,
Steering.
Refer to Group 8W, Wiring for ignition switch wir-
ing circuits.
The ignition switch is mounted under the instru-
ment panel on the lower section of the steering col-
umn. The headlamp dimmer switch is mounted
beside the ignition switch (Fig. 11). Both of these
switches (ignition and dimmer) share the same
mounting screws.
The switch is connected to the ignition key lock as-
sembly by a remote actuator rod. This remote actua-
tor rod fits into an access hole on the bottom of the
ignition switch (Fig. 12).
REMOVAL
(1) Disconnect the negative battery cable at the
battery.
(2) Remove the windshield wiper intermittent con-
trol module and its bracket (if equipped).
(3) Place the ignition key lock in ACCESSORY po-
sition.
(4) Remove the two headlamp dimmer switch at-
taching nuts. Lift the switch from steering column
while disengaging actuator rod.
Before removing dimmer switch, tape the two
remote control actuator rods (ignition switchand dimmer) to the steering column. This will
prevent accidental disengagement from the up-
per part of the steering column.
(5) Remove the ignition switch-to-steering column
attaching screws.
(6) Disengage the ignition switch from the remote
actuator rod by lifting straight up. Remove switch
from steering column.
(7) Remove wiring from switch as follows:
Two electrical connectors are used to connect all
wiring to the ignition switch. One of the connectors is
installed (interlocked) over the top of the other con-
nector. Remove wiring from switch by disconnecting
the (black) harness connector first and then the other
connector. Remove the switch from the vehicle.
SWITCH TESTING
To test the ignition switch circuity and continuity,
proceed as follows. Place the slide bar (on the igni-
tion switch) (Fig. 12) into the detent position to be
tested. An ohmmeter or continuity light may be used
to check switch continuity. Refer to the Ignition
Switch Continuity Tests chart for continuity tests.
Refer to (Fig. 13) for the lettered/numbered terminal
positions.All wiring must be disconnected from
the ignition switch before performing any con-
tinuity testing.
There are five positions on the ignition switch. The
switch positions (in order) are: ACCESSORY, OFF-
LOCK, OFF, ON AND START (Figs. 14 or 15). Each
position has a detent stop (except START), which isFig. 11 Ignition Switch/Headlamp Dimmer SwitchÐ
Typical
Fig. 12 Ignition Switch/Remote Actuator RodÐ
Typical
JIGNITION SYSTEMS 8D - 29
Page 496 of 2198

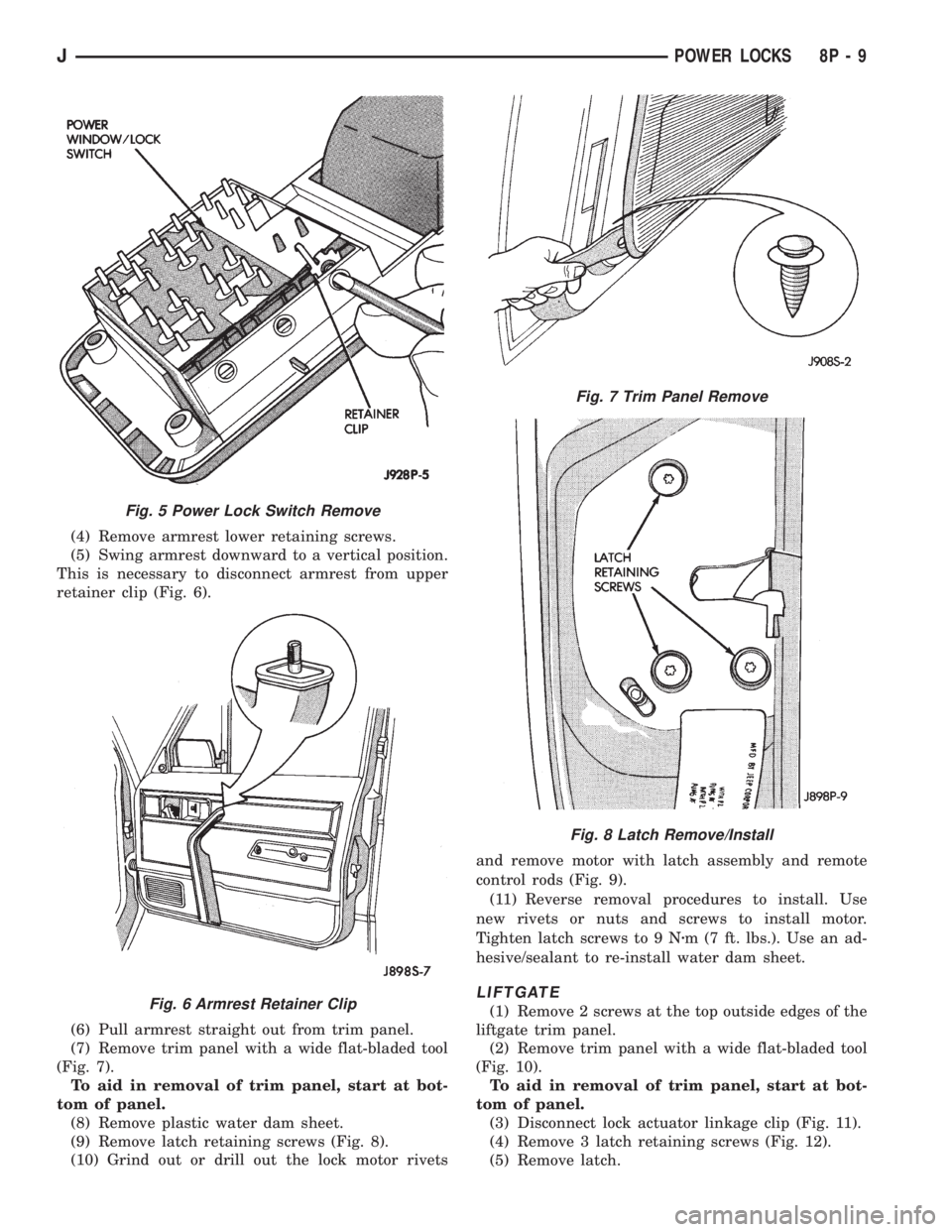

(4) Remove armrest lower retaining screws.
(5) Swing armrest downward to a vertical position.
This is necessary to disconnect armrest from upper
retainer clip (Fig. 6).
(6) Pull armrest straight out from trim panel.
(7) Remove trim panel with a wide flat-bladed tool
(Fig. 7).
To aid in removal of trim panel, start at bot-
tom of panel.
(8) Remove plastic water dam sheet.
(9) Remove latch retaining screws (Fig. 8).
(10) Grind out or drill out the lock motor rivetsand remove motor with latch assembly and remote
control rods (Fig. 9).
(11) Reverse removal procedures to install. Use
new rivets or nuts and screws to install motor.
Tighten latch screws to 9 Nzm (7 ft. lbs.). Use an ad-
hesive/sealant to re-install water dam sheet.
LIFTGATE
(1) Remove 2 screws at the top outside edges of the
liftgate trim panel.
(2) Remove trim panel with a wide flat-bladed tool
(Fig. 10).
To aid in removal of trim panel, start at bot-
tom of panel.
(3) Disconnect lock actuator linkage clip (Fig. 11).
(4) Remove 3 latch retaining screws (Fig. 12).
(5) Remove latch.
Fig. 5 Power Lock Switch Remove
Fig. 6 Armrest Retainer Clip
Fig. 7 Trim Panel Remove
Fig. 8 Latch Remove/Install
JPOWER LOCKS 8P - 9
Page 544 of 2198

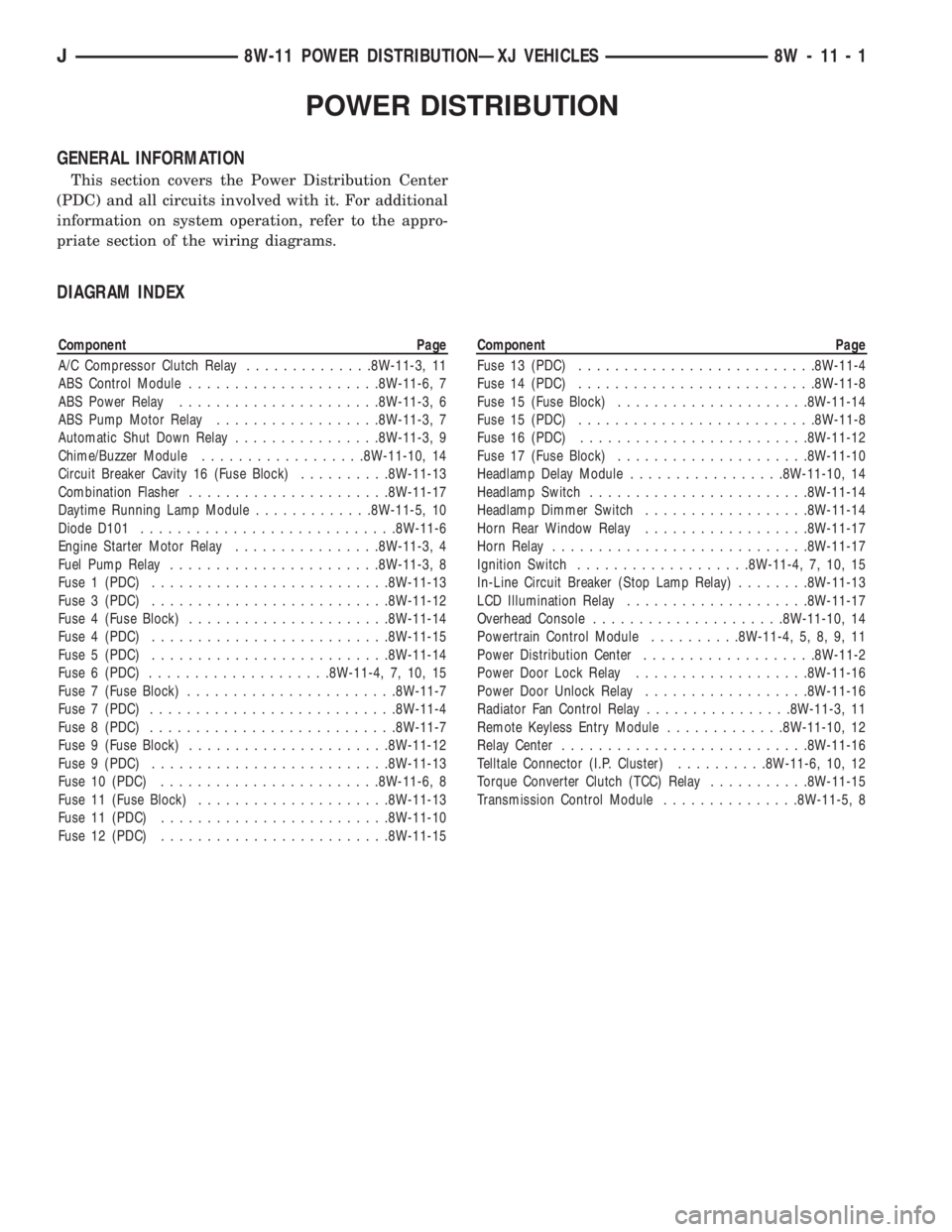

POWER DISTRIBUTION
GENERAL INFORMATION
This section covers the Power Distribution Center
(PDC) and all circuits involved with it. For additional
information on system operation, refer to the appro-
priate section of the wiring diagrams.
DIAGRAM INDEX
Component Page
A/C Compressor Clutch Relay..............8W-11-3, 11
ABS Control Module.....................8W-11-6, 7
ABS Power Relay......................8W-11-3, 6
ABS Pump Motor Relay..................8W-11-3, 7
Automatic Shut Down Relay................8W-11-3, 9
Chime/Buzzer Module..................8W-11-10, 14
Circuit Breaker Cavity 16 (Fuse Block)..........8W-11-13
Combination Flasher......................8W-11-17
Daytime Running Lamp Module.............8W-11-5, 10
Diode D101............................8W-11-6
Engine Starter Motor Relay................8W-11-3, 4
Fuel Pump Relay.......................8W-11-3, 8
Fuse 1 (PDC)..........................8W-11-13
Fuse 3 (PDC)..........................8W-11-12
Fuse 4 (Fuse Block)......................8W-11-14
Fuse 4 (PDC)..........................8W-11-15
Fuse 5 (PDC)..........................8W-11-14
Fuse 6 (PDC)....................8W-11-4, 7, 10, 15
Fuse 7 (Fuse Block).......................8W-11-7
Fuse 7 (PDC)...........................8W-11-4
Fuse 8 (PDC)...........................8W-11-7
Fuse 9 (Fuse Block)......................8W-11-12
Fuse 9 (PDC)..........................8W-11-13
Fuse 10 (PDC)........................8W-11-6, 8
Fuse 11 (Fuse Block).....................8W-11-13
Fuse 11 (PDC).........................8W-11-10
Fuse 12 (PDC).........................8W-11-15Component Page
Fuse 13 (PDC)..........................8W-11-4
Fuse 14 (PDC)..........................8W-11-8
Fuse 15 (Fuse Block).....................8W-11-14
Fuse 15 (PDC)..........................8W-11-8
Fuse 16 (PDC).........................8W-11-12
Fuse 17 (Fuse Block).....................8W-11-10
Headlamp Delay Module.................8W-11-10, 14
Headlamp Switch........................8W-11-14
Headlamp Dimmer Switch..................8W-11-14
Horn Rear Window Relay..................8W-11-17
Horn Relay............................8W-11-17
Ignition Switch...................8W-11-4, 7, 10, 15
In-Line Circuit Breaker (Stop Lamp Relay)........8W-11-13
LCD Illumination Relay....................8W-11-17
Overhead Console.....................8W-11-10, 14
Powertrain Control Module..........8W-11-4, 5, 8, 9, 11
Power Distribution Center...................8W-11-2
Power Door Lock Relay...................8W-11-16
Power Door Unlock Relay..................8W-11-16
Radiator Fan Control Relay................8W-11-3, 11
Remote Keyless Entry Module.............8W-11-10, 12
Relay Center...........................8W-11-16
Telltale Connector (I.P. Cluster)..........8W-11-6, 10, 12
Torque Converter Clutch (TCC) Relay...........8W-11-15
Transmission Control Module...............8W-11-5, 8
J8W-11 POWER DISTRIBUTIONÐXJ VEHICLES 8W - 11 - 1
Page 633 of 2198
READING LAMPS
Circuit M1 from the IOD fuse (fuse F9) in the fuse
block supplies power to the reading lamps. Circuit
M1 is HOT at all times. When the operator depresses
the reading lamp, the reading lamp switch closes and
supplies ground on circuit Z1.
VISOR VANITY MIRROR LAMPS
Circuit M1 from the IOD fuse (fuse F9) in the fuse
block supplies power to the vanity lamps. Circuit M1
is HOT at all times. When the vanity lamps switch
closes, voltage flows to vanity mirror lamps. The van-
ity mirror is case grounded.
UNDERHOOD LAMP
Circuit A6 from fuse 16 in the Power Distribution
Center (PDC) supplies battery voltage for the under-
hood lamp. A mercury switch, in series after the
lamp, connects the lamp to ground on circuit Z1.
When the hood is raised, mercury inside the switch
moves to a position where it connects circuit M1 to
ground circuit Z1, illuminating the lamp.
CHIME/BUZZER MODULE
The buzzer or optional chime module sounds an au-
dible warning tone. The tone sounds for seat belt
warning and when the ignition key is in the ignition
switch while the drivers door is open. The tone also
sounds when the ignition key is in the ON position
while the drivers side seat belt is not buckled. Lastly,
the tone sounds when the headlamps are ON when
the ignition is OFF. Refer to Group 8U for system op-
eration.
When the ignition switch is in the RUN or START
position, circuit F87 from fuse 17 in the fuse block
supplies power to the chime/buzzer module. Circuit
A21 from the ignition switch supplies power to fuse
17.
Circuit L7 from fuse 15 in the fuse block also sup-
plies power to the chime/buzzer module. Circuit A3
from fuse 5 in the Power Distribution Center (PDC)
powers fuse 15.
When the parking lamps or headlamps are ON, the
headlamp switch connects circuit G26 with the driv-
ers side door jamb switch. Circuit G26 also connects
to the key-in switch. Circuit M11 connects the key-in
switch to the chime/buzzer module and the headlamp
switch.
If the headlamps are ON, and the drivers door
opens, ground for the chime/buzzer is on circuit C26
from the headlamp switch through the door jamb
switch to circuit Z1.
If the headlamps are OFF with the key in the ig-
nition while the drivers side door is open, ground forthe chime/buzzer is supplied through the key-in
switch. The ground path is over circuit M11, through
the closed key-in switch to circuit C26. From circuit
C26, the ground path continues through the drivers
door jamb switch to circuit Z1.
Circuit G11 from the buzzer powers the seat belt
warning lamp in the instrument cluster. Circuit Z1
at the instrument cluster provides ground for the
lamp.
Circuit G10 from the buzzer connects to the seat
belt switch. When the seat belt switch closes a path
to ground is completed on circuit Z1 and the tone
sounds momentarily.
Circuit Z1 also grounds the chime\buzzer module.
HELPFUL INFORMATION
Circuit F87 also powers the instrument cluster and
the headlamp delay module.
DIAGRAM INDEX
Component Page
Cargo Lamp............................8W-44-6
Chime/Buzzer Module......................8W-44-3
Courtesy Lamps.........................8W-44-5
Dome Lamp............................8W-44-7
Door Jamb Switches.....................8W-44-10
Fuse 3 (PDC).........................8W-44-4, 6
Fuse 5 (PDC).........................8W-44-3, 8
Fuse 6 (PDC)...........................8W-44-3
Fuse 9 (Fuse Block).....................8W-44-4, 6
Fuse 15 (Fuse Block)....................8W-44-3, 8
Fuse 16 (PDC)........................8W-44-4, 6
Fuse 17 (Fuse Block)......................8W-44-3
Fuse 19 (Fuse Block)......................8W-44-8
Glove Box Lamp and Switch.................8W-44-5
Headlamp Switch...................8W-44-3, 4, 5, 8
Headlamp Delay Module....................8W-44-4
Headlamp Delay Relay.....................8W-44-3
Ignition Switch..........................8W-44-3
Instrument Cluster........................8W-44-3
Instrument Panel Illumination Lamps..........8W-44-8, 9
Intermittent Wiper Control Module.............8W-44-4
Key-In Switch...........................8W-44-4
Liftgate Switch..........................8W-44-6
Reading Lamps..........................8W-44-7
Remote Keyless Entry Module................8W-44-7
Seat Belt Switch.........................8W-44-3
Telltale Connector (Instrument Cluster)...........8W-44-3
Time Delay Relay........................8W-44-4
Underhood Lamp.........................8W-44-4
Vanity Lamps...........................8W-44-7
8W - 44 - 2 8W-44 INTERIOR LIGHTINGÐXJ VEHICLESJ
Page 694 of 2198

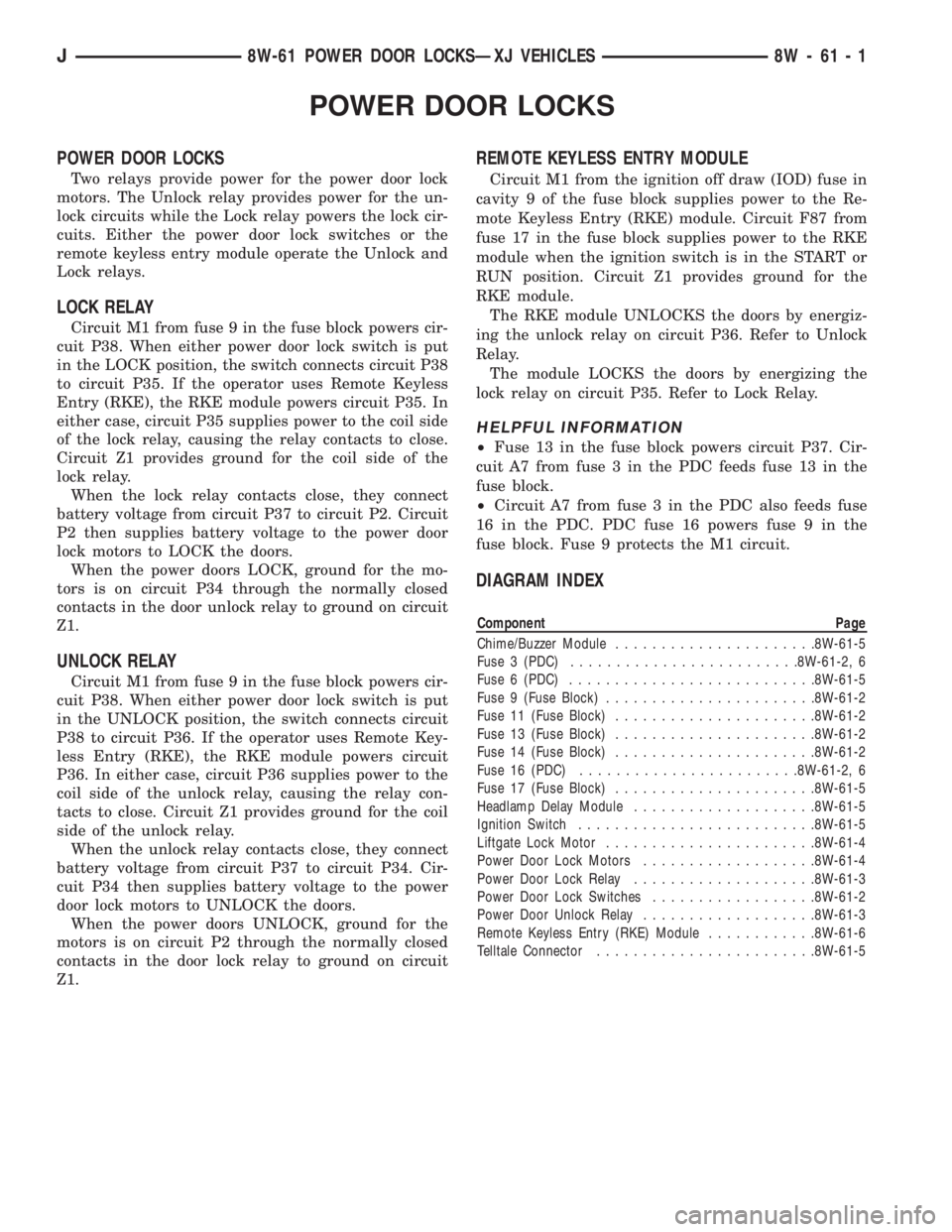

POWER DOOR LOCKS
POWER DOOR LOCKS
Two relays provide power for the power door lock
motors. The Unlock relay provides power for the un-
lock circuits while the Lock relay powers the lock cir-
cuits. Either the power door lock switches or the
remote keyless entry module operate the Unlock and
Lock relays.
LOCK RELAY
Circuit M1 from fuse 9 in the fuse block powers cir-
cuit P38. When either power door lock switch is put
in the LOCK position, the switch connects circuit P38
to circuit P35. If the operator uses Remote Keyless
Entry (RKE), the RKE module powers circuit P35. In
either case, circuit P35 supplies power to the coil side
of the lock relay, causing the relay contacts to close.
Circuit Z1 provides ground for the coil side of the
lock relay.
When the lock relay contacts close, they connect
battery voltage from circuit P37 to circuit P2. Circuit
P2 then supplies battery voltage to the power door
lock motors to LOCK the doors.
When the power doors LOCK, ground for the mo-
tors is on circuit P34 through the normally closed
contacts in the door unlock relay to ground on circuit
Z1.
UNLOCK RELAY
Circuit M1 from fuse 9 in the fuse block powers cir-
cuit P38. When either power door lock switch is put
in the UNLOCK position, the switch connects circuit
P38 to circuit P36. If the operator uses Remote Key-
less Entry (RKE), the RKE module powers circuit
P36. In either case, circuit P36 supplies power to the
coil side of the unlock relay, causing the relay con-
tacts to close. Circuit Z1 provides ground for the coil
side of the unlock relay.
When the unlock relay contacts close, they connect
battery voltage from circuit P37 to circuit P34. Cir-
cuit P34 then supplies battery voltage to the power
door lock motors to UNLOCK the doors.
When the power doors UNLOCK, ground for the
motors is on circuit P2 through the normally closed
contacts in the door lock relay to ground on circuit
Z1.
REMOTE KEYLESS ENTRY MODULE
Circuit M1 from the ignition off draw (IOD) fuse in
cavity 9 of the fuse block supplies power to the Re-
mote Keyless Entry (RKE) module. Circuit F87 from
fuse 17 in the fuse block supplies power to the RKE
module when the ignition switch is in the START or
RUN position. Circuit Z1 provides ground for the
RKE module.
The RKE module UNLOCKS the doors by energiz-
ing the unlock relay on circuit P36. Refer to Unlock
Relay.
The module LOCKS the doors by energizing the
lock relay on circuit P35. Refer to Lock Relay.
HELPFUL INFORMATION
²Fuse 13 in the fuse block powers circuit P37. Cir-
cuit A7 from fuse 3 in the PDC feeds fuse 13 in the
fuse block.
²Circuit A7 from fuse 3 in the PDC also feeds fuse
16 in the PDC. PDC fuse 16 powers fuse 9 in the
fuse block. Fuse 9 protects the M1 circuit.
DIAGRAM INDEX
Component Page
Chime/Buzzer Module......................8W-61-5
Fuse 3 (PDC).........................8W-61-2, 6
Fuse 6 (PDC)...........................8W-61-5
Fuse 9 (Fuse Block).......................8W-61-2
Fuse 11 (Fuse Block)......................8W-61-2
Fuse 13 (Fuse Block)......................8W-61-2
Fuse 14 (Fuse Block)......................8W-61-2
Fuse 16 (PDC)........................8W-61-2, 6
Fuse 17 (Fuse Block)......................8W-61-5
Headlamp Delay Module....................8W-61-5
Ignition Switch..........................8W-61-5
Liftgate Lock Motor.......................8W-61-4
Power Door Lock Motors...................8W-61-4
Power Door Lock Relay....................8W-61-3
Power Door Lock Switches..................8W-61-2
Power Door Unlock Relay...................8W-61-3
Remote Keyless Entry (RKE) Module............8W-61-6
Telltale Connector........................8W-61-5
J8W-61 POWER DOOR LOCKSÐXJ VEHICLES 8W - 61 - 1
Page 1969 of 2198
DIAGRAM INDEX; AIR CONDITIONING/
HEATER (XJ-RHD)..................8W-42-2
DIAGRAM INDEX; AIR CONDITIONING/
HEATER (YJ)...............8W-42-1,8W-42-2
DIAGRAM INDEX; ANTI-LOCK BRAKES
(XJ).............................8W-32-3
DIAGRAM INDEX; ANTI-LOCK BRAKES
(XJ-RHD).........................8W-32-3
DIAGRAM INDEX; ANTI-LOCK BRAKES
(YJ).............................8W-32-2
DIAGRAM INDEX; CHARGING SYSTEM
(XJ).............................8W-20-1
DIAGRAM INDEX; CHARGING SYSTEM
(XJ-RHD).........................8W-20-1
DIAGRAM INDEX; CHARGING SYSTEM
(YJ).............................8W-20-1
DIAGRAM INDEX; FRONT LIGHTING (XJ) . 8W-50-2
DIAGRAM INDEX; FRONT LIGHTING
(XJ-RHD).........................8W-50-3
DIAGRAM INDEX; FRONT LIGHTING (YJ) . 8W-50-2
DIAGRAM INDEX; FUEL/IGNITION (YJ) . . 8W-30-5
DIAGRAM INDEX; FUSE/FUSE BLOCK
(XJ).............................8W-10-1
DIAGRAM INDEX; FUSE/FUSE BLOCK
(XJ-RHD).........................8W-10-1
DIAGRAM INDEX; FUSE/FUSE BLOCK
(YJ).............................8W-10-1
DIAGRAM INDEX; GROUND
DISTRIBUTION (XJ)................8W-15-1
DIAGRAM INDEX; GROUND
DISTRIBUTION (XJ-RHD)............8W-15-1
DIAGRAM INDEX; GROUND
DISTRIBUTION (YJ)..................8W-15-1
DIAGRAM INDEX; HEATED REAR
WINDOW (XJ).....................8W-48-1
DIAGRAM INDEX; HEATED REAR
WINDOW (XJ-RHD).................8W-48-1
DIAGRAM INDEX; HEATED REAR
WINDOW (YJ).....................8W-48-1
DIAGRAM INDEX; HORN/CIGAR LIGHTER . . . 8E-1
DIAGRAM INDEX; HORN/CIGAR LIGHTER
(YJ).............................8W-41-1
DIAGRAM INDEX; INSTRUMENT
CLUSTER (XJ).............8W-40-1,8W-40-3
DIAGRAM INDEX; INSTRUMENT
CLUSTER (XJ-RHD)................8W-40-3
DIAGRAM INDEX; INSTRUMENT
CLUSTER (YJ).....................8W-40-2
DIAGRAM INDEX; INTERIOR LIGHTING
(XJ).............................8W-44-2
DIAGRAM INDEX; INTERIOR LIGHTING
(XJ-RHD).........................8W-44-2
DIAGRAM INDEX; INTERIOR LIGHTING
(YJ).............................8W-44-2
DIAGRAM INDEX; OVERHEAD CONSOLE
(XJ).............................8W-49-1
DIAGRAM INDEX; OVERHEAD CONSOLE
(XJ-RHD).........................8W-49-1
DIAGRAM INDEX; POWER DISTRIBUTION
(XJ).............................8W-11-1
DIAGRAM INDEX; POWER DISTRIBUTION
(XJ-RHD).........................8W-11-1
DIAGRAM INDEX; POWER DISTRIBUTION
(YJ).............................8W-11-1
DIAGRAM INDEX; POWER DOOR LOCKS
(XJ)
.............................8W-61-1
DIAGRAM INDEX; POWER DOOR LOCKS
(XJ-RHD)
.........................8W-61-1
DIAGRAM INDEX; POWER MIRRORS
(XJ)
.............................8W-62-1
DIAGRAM INDEX; POWER MIRRORS
(XJ-RHD)
.........................8W-62-1
DIAGRAM INDEX; POWER SEAT (XJ)
. . . 8W-63-1
DIAGRAM INDEX; POWER SEAT
(XJ-RHD)
.........................8W-63-1
DIAGRAM INDEX; POWER WINDOWS
(XJ)
.............................8W-60-2
DIAGRAM INDEX; POWER WINDOWS
(XJ-RHD)
.........................8W-60-2
DIAGRAM INDEX; REAR LIGHTING (XJ)
. 8W-51-1
DIAGRAM INDEX; REAR LIGHTING
(XJ-RHD)
.........................8W-51-1
DIAGRAM INDEX; REAR LIGHTING (YJ)
. 8W-51-1
DIAGRAM INDEX; STARTING SYSTEM
(XJ)
.............................8W-21-1
DIAGRAM INDEX; STARTING SYSTEM
(XJ-RHD)
.........................8W-21-1DIAGRAM INDEX; STARTING SYSTEM
(YJ).............................8W-21-1
DIAGRAM INDEX; TRAILER TOW (XJ) . . 8W-54-1
DIAGRAM INDEX; TRAILER TOW
(XJ-RHD).........................8W-54-1
DIAGRAM INDEX; TRANSMISSION
CONTROLS (XJ)...................8W-31-1
DIAGRAM INDEX; TRANSMISSION
CONTROLS (XJ-RHD)...............8W-31-1
DIAGRAM INDEX; TRANSMISSION
CONTROLS (YJ)...................8W-31-1
DIAGRAM INDEX; TURN SIGNALS (XJ) . 8W-52-1
DIAGRAM INDEX; TURN SIGNALS
(XJ-RHD).........................8W-52-1
DIAGRAM INDEX; TURN SIGNALS (YJ) . 8W-52-1
DIAGRAM INDEX; VEHICLE SPEED
CONTROL (XJ)....................8W-33-1
DIAGRAM INDEX; VEHICLE SPEED
CONTROL (XJ-RHD)................8W-33-1
DIAGRAM INDEX; WIPERS (XJ).......8W-53-2
DIAGRAM INDEX; WIPERS (XJ-RHD) . . . 8W-53-2
DIAGRAM INDEX; WIPERS (YJ).......8W-53-2
DIAGRAM INDEX; FUEL/IGNITION
(XJ-RHD).........................8W-30-5
DIAGRAM INDEXÐ2.5L ENGINE;
FUEL/IGNITION (XJ)................8W-30-6
DIAGRAM INDEXÐ4.0L ENGINE;
FUEL/IGNITION (XJ)................8W-30-6
DIFFERENTIAL AND PINION
MEASUREMENT.......................2-40
DIFFERENTIAL ASSEMBLY; FRONT
SUSPENSION AND AXLE.................2-38
DIFFERENTIAL ASSEMBLY; REAR
SUSPENSION AND AXLES...............3-21
DIFFERENTIAL DISASSEMBLY; FRONT
SUSPENSION AND AXLE................2-35
DIFFERENTIAL DISASSEMBLY; REAR
SUSPENSION AND AXLES...............3-18
DIFFERENTIAL INSTALLATION............2-44
DIFFERENTIAL, LIMITED SLIP............3-10
DIFFERENTIAL MEASUREMENT AND
INSTALLATION........................3-25
DIFFERENTIAL OVERHAUL..............3-46
DIFFERENTIAL REMOVAL; FRONT
SUSPENSION AND AXLE................2-34
DIFFERENTIAL REMOVAL; REAR
SUSPENSION AND AXLES...............3-18
DIFFERENTIAL SERVICE................3-34
DIFFERENTIAL SHIM PACK
MEASUREMENT AND ADJUSTMENT.......2-43
DIFFERENTIAL, TRAC-LOK..............3-45
DIMENSION DATA, VEHICLE.....Intro.-5,Intro.-6
DIMENSIONS, AW-4 VALVE BODY CHECK
BALL.............................21-341
DIMENSIONS, DESIGNATIONS,
LABELS/PLATES, CODES..............Intro.-1
DIMENSIONS, FRAME.............13-13,13-1
DIMMER SWITCH REMOVE/INSTALL,
HEADLAMP OR PANEL................8E-42
DIMMER SWITCH REPLACEMENTÐYJ,
HEADLAMP.........................8L-26
DIMMING MODULE; FRONT LIGHTING
(XJ-RHD).........................8W-50-1
DIODE REPLACEMENT; WIRING
DIAGRAMSÐGENERAL INFORMATION
(XJ)...............................8W-8
DIRECT CLUTCH OVERHAUL...........21-228
DISASSEMBLY AND INSPECTION, VALVE
BODY.............................21-147
DISASSEMBLY AND OVERHAUL,
TRANSFER CASE..............21-289,21-310
DISASSEMBLY AND OVERHAUL,
TRANSMISSION.................21-37,21-5
DISASSEMBLY, CALIPER................5-48
DISASSEMBLY, DIFFERENTIAL; FRONT
SUSPENSION AND AXLE................2-35
DISASSEMBLY, DIFFERENTIAL; REAR
SUSPENSION AND AXLES...............3-18
DISASSEMBLY, TRANSMISSION . . 21-119,21-201
DISASSEMBLYÐCOLUMN OR CONSOLE
SHIFT..............................19-60
DISC AND PLATE THICKNESS, AW-4
CLUTCH...........................21-338
DISC BRAKE ROTOR REFINISHING
........5-53
DISC BRAKE ROTOR RUNOUT
...........5-52
DISC BRAKE ROTOR THICKNESS
.........5-52
DISC BRAKES
........................5-45
DISC BRAKESHOE INSTALLATION
.........5-47DISC BRAKESHOE REMOVAL............5-46
DISC INSTALLATION, CLUTCH COVER.....6-10
DISC REMOVAL, CLUTCH COVER.........6-10
DISC RUNOUT, CLUTCH COVER...........6-3
DISCHARGE (ESD) SENSITIVE DEVICES,
ELECTROSTATIC; WIRING
DIAGRAMSÐGENERAL INFORMATION
(XJ)...............................8W-2
DISCONNECT AXLEÐYJ VEHICLES,
VACUUM............................2-27
DISCONNECT AXLE/SHIFT MOTOR
DIAGNOSIS..........................2-29
DISCONNECT AXLE/SHIFT MOTOR
DIAGNOSIS (CONT'D)..................2-30
DISPLAY, ABS WARNING LIGHT...........5-3
DISPLAY SYMBOLS, INTERNATIONAL
VEHICLE CONTROL..................Intro.-5
DISPLAY SYMBOLS, VEHICLE CONTROL . Intro.-10
DISPOSALÐXJ, LIFTGATE SUPPORT
ROD CYLINDER......................23-63
DISTRIBUTOR.......................8D-19
DISTRIBUTOR CAP....................8D-7
DISTRIBUTOR CAP AND ROTOR,
IGNITION CABLES.....................0-20
DISTRIBUTOR ROTOR.................8D-8
DISTRIBUTORS.......................8D-4
DOME LAMP, CARGO LAMP; INTERIOR
LIGHTING (XJ-RHD)................8W-44-1
DOME LAMP, CARGO LAMP, COURTESY
LAMPS; INTERIOR LIGHTING (XJ).....8W-44-1
DOME LAMP REPLACEMENTÐXJ.........8L-17
DOME LAMPÐXJ....................23-93
DOME LAMPS, COURTESY LAMPS;
INTERIOR LIGHTING (YJ)............8W-44-1
DOME/CARGO LAMP BULB
REPLACEMENTÐYJ VEHICLES,
HARDTOP..........................8L-31
DOME/COURTESY LAMP SERVICE
INFORMATIONÐXJ...................8L-16
DOME/COURTESY LAMP SERVICE
INFORMATIONÐYJ...................8L-31
DOME/COURTESY LAMP TROUBLE
DIAGNOSISÐXJ.....................8L-16
DOME/COURTESY LAMP TROUBLE
DIAGNOSISÐYJ.....................8L-31
DOOR ALIGNMENT ADJUSTMENTÐ
MAJOR............................23-41
DOOR ALIGNMENT ADJUSTMENTÐ
MINOR.............................23-37
DOOR ASSIST HANDLEÐYJ, FULL-
METAL............................23-136
DOOR BUMPERSÐXJ, FUEL FILLER.....23-27
DOOR CONTROL CABLES, VENT.........24-32
DOOR EDGE GUARD/EDGE PROTECTOR
STRIPÐXJ.........................23-54
DOOR EXTERNAL HANDLEÐXJ.........23-48
DOOR FRAME GLASS CHANNEL
REPLACEMENTÐYJ.................23-142
DOOR HINGE/HINGE PIN
REPLACEMENTÐXJ..................23-52
DOOR HINGESÐYJ, FULL-METAL.......23-140
DOOR INSIDE LATCH RELEASE AND
LOCK RODSÐXJ.....................23-50
DOOR JAMB SWITCH, DRIVER'S.....8U-1,8U-2
DOOR KEY LOCK CYLINDERÐXJ........23-47
DOOR KEY LOCK CYLINDERÐYJ,
FULL-METAL.......................23-139
DOOR LATCH ADJUSTMENTÐXJ........23-48
DOOR LATCH EXTERNAL RELEASE
HANDLEÐYJ, FULL-METAL............23-140
DOOR LATCH INSIDE RELEASE AND
LOCK HANDLEÐYJ, FULL-METAL.......23-137
DOOR LATCH STRIKERÐYJ, HALF-
METAL............................23-135
DOOR LATCHÐXJ....................23-49
DOOR LATCHÐYJ, FULL-METAL........23-140
DOOR LOCKS, POWER; POWER DOOR
LOCKS (XJ).......................8W-61-1
DOOR LOCKS, POWER; POWER DOOR
LOCKS (XJ-RHD)
..................8W-61-1
DOOR MIRROR (EXTERNAL)ÐYJ, HALF
METAL
............................23-121
DOOR MOTOR SWITCH REPLACEMENT,
BLOWER MOTOR/AIR
.................24-32
DOOR OPENER STORAGE, REMOTE
GARAGE
............................8C-1
DOOR OPENING WEATHERSTRIP
SEALSÐXJ, DOOR WINDOW GLASS
.....23-55
8 INDEXJ
Description Group-Page Description Group-Page Description Group-Page
Page 1972 of 2198
FUEL INJECTION (MFI)ÐCOMPONENT
DESCRIPTION/SYSTEM OPERATION,
MULTI-PORT........................14-19
FUEL INJECTION (MFI)ÐCOMPONENT
REMOVAL/INSTALLATION, MULTI-PORT . . . 14-58
FUEL INJECTION (MFI)ÐGENERAL
DIAGNOSIS, MULTI-PORT..............14-35
FUEL INJECTOR......................14-60
FUEL INJECTOR TEST.................14-51
FUEL INJECTORS; FUEL/IGNITION (XJ) . 8W-30-1
FUEL INJECTORS; FUEL/IGNITION (YJ) . 8W-30-2
FUEL INJECTORS; FUEL/IGNITION
(XJ-RHD).........................8W-30-1
FUEL INJECTORSÐPCM OUTPUT........14-27
FUEL PRESSURE LEAK DOWN TEST......14-8
FUEL PRESSURE REGULATOR.....14-33,14-61
FUEL PRESSURE RELEASE PROCEDURE . . . 14-6
FUEL PUMP CAPACITY TEST............14-7
FUEL PUMP ELECTRICAL CONTROL.......14-5
FUEL PUMP MODULE; FUEL SYSTEM....14-61,
14-3
FUEL PUMP MODULE; FUEL/IGNITION
(XJ).............................8W-30-2
FUEL PUMP MODULE; FUEL/IGNITION
(YJ).............................8W-30-2
FUEL PUMP MODULE; FUEL/IGNITION
(XJ-RHD).........................8W-30-2
FUEL PUMP RELAY; FUEL SYSTEM......14-61
FUEL PUMP RELAY; FUEL/IGNITION
(XJ).............................8W-30-2
FUEL PUMP RELAY; FUEL/IGNITION
(YJ).............................8W-30-2
FUEL PUMP RELAY; FUEL/IGNITION
(XJ-RHD).........................8W-30-2
FUEL PUMP RELAY TESTING...........14-47
FUEL PUMP RELAYÐPCM OUTPUT......14-27
FUEL RAIL..........................14-33
FUEL RAIL ASSEMBLY................14-62
FUEL REQUIREMENTS...................0-1
FUEL SYSTEM.......................14-67
FUEL SYSTEM PRESSURE RELEASE
PROCEDURE........................14-62
FUEL SYSTEM PRESSURE TEST.....14-51,14-6
FUEL TANK.........................14-13
FUEL TANK CAPACITIES..........14-13,14-67
FUEL TANK FILLER TUBE CAP;
EMISSION CONTROL SYSTEMS......25-4,25-7
FUEL TANK FILLER TUBE CAP; FUEL
SYSTEM............................14-13
FUEL TANK FILLER TUBE, NO-LEAD......14-13
FUEL TANK PRESSURE RELIEF/
ROLLOVER VALVE...............14-16,14-62
FUEL TANK SKID PLATE...........13-15,13-3
FUEL TANK SUPPORT STRAP............13-4
FUEL TANKS...................14-13,14-62
FUEL TUBES/LINES/HOSES AND CLAMPS . 14-62,
14-9
FUEL USAGE STATEMENT...............14-1
FUEL USAGE STATEMENTÐGAS
ENGINES............................0-19
FUEL WARNING LAMP, LOW;
INSTRUMENT CLUSTER (XJ).........8W-40-1
FULL FLOOR CONSOLEÐXJ............23-95
FULL-METAL DOOR ASSIST HANDLEÐ
YJ ...............................23-136
FULL-METAL DOOR HINGESÐYJ.......23-140
FULL-METAL DOOR KEY LOCK
CYLINDERÐYJ.....................23-139
FULL-METAL DOOR LATCH EXTERNAL
RELEASE HANDLEÐYJ...............23-140
FULL-METAL DOOR LATCH INSIDE
RELEASE AND LOCK HANDLEÐYJ......23-137
FULL-METAL DOOR LATCHÐYJ........23-140
FULL-METAL DOOR SERVICEÐYJ......23-142
FULL-METAL DOOR TRIM PANELÐYJ . . . 23-137
FULL-METAL DOOR VENT WINDOW
GLASSÐYJ........................23-137
FULL-METAL DOOR WATERDAMÐYJ....23-137
FULL-METAL DOOR WEATHERSTRIP
SEALSÐYJ
........................23-141
FULL-METAL DOOR WINDOW GLASS
REGULATOR HANDLEÐYJ
............23-136
FULL-METAL DOOR WINDOW GLASS
REGULATORÐYJ
...................23-138
FULL-METAL DOOR WINDOW
GLASSÐYJ
........................23-139
FUNCTION TROUBLE DIAGNOSISÐXJ,
HEADLAMP DELAY
...................8L-14FUSE, IGNITION-OFF DRAW.............8F-1
FUSE, IN-LINE........................8F-1
GAP, SPEED SENSOR AIR...............5-37
GARAGE DOOR OPENER STORAGE,
REMOTE............................8C-1
GAS RECIRCULATION (EGR) SYSTEM,
EXHAUST............................25-1
GASKET FAILURE DIAGNOSIS, ENGINE
CYLINDER HEAD.......................9-5
GASKETS, FORM-IN-PLACE...............9-1
GAUGE CLUSTER, 9 X 3.5 ..............8E-23
GAUGE CLUSTER (LHD), HIGH-LINE.......8E-9
GAUGE CLUSTER, LOW-LINE............8E-8
GAUGE, ENGINE COOLANT
TEMPERATURE; INSTRUMENT
CLUSTER (XJ).....................8W-40-1
GAUGE, FUEL; INSTRUMENT CLUSTER
(XJ).............................8W-40-1
GAUGE, FUEL; INSTRUMENT CLUSTER
(XJ-RHD).........................8W-40-1
GAUGE HOUSINGSÐYJ, INSTRUMENT
CLUSTER..........................23-151
GAUGE, OIL PRESSURE; INSTRUMENT
CLUSTER (XJ).....................8W-40-2
GAUGE PACKAGE CLUSTER.......8E-31,8E-43
GAUGE SENDING UNIT, FUEL...........14-16
GAUGE SET, MANIFOLD................24-7
GAUGES..............8E-24,8E-27,8E-2,8E-5
GAUGES, PRESSURE...................22-2
GAUGES REMOVE/INSTALL.........8E-17,8E-39
GAUGESÐYJ, INSTRUMENT PANEL......8E-24
GEAR ADJUSTMENTS IN VEHICLE.......19-39
GEAR ADJUSTMENTS ON BENCH........19-44
GEAR ADJUSTMENTS, STEERING........19-24
GEAR AND BEARING NOISE; FRONT
SUSPENSION AND AXLE................2-18
GEAR AND BEARING NOISE; REAR
SUSPENSION AND AXLES................3-9
GEAR AND CLUTCH OVERHAUL,
OVERDRIVE PLANETARY..............21-218
GEAR AND NO. 1 ONE-WAY CLUTCH
OVERHAUL, SUN....................21-238
GEAR ASSEMBLY....................19-43
GEAR ASSEMBLY/INSTALLATION, PINION . . 2-42
GEAR CLEANING AND INSPECTION......19-42
GEAR DEPTH INFORMATION, PINION;
FRONT SUSPENSION AND AXLE..........2-39
GEAR DEPTH INFORMATION, PINION;
REAR SUSPENSION AND AXLES..........3-21
GEAR DEPTH VARIANCE, PINION; FRONT
SUSPENSION AND AXLE................2-40
GEAR DEPTH VARIANCE, PINION; REAR
SUSPENSION AND AXLES...........3-22,3-39
GEAR DISASSEMBLY..................19-39
GEAR DISASSEMBLY INFORMATION......19-26
GEAR LEAKAGE DIAGNOSIS............19-10
GEAR, MANUAL STEERING;
LUBRICATION AND MAINTENANCE........0-30
GEAR, MANUAL STEERING; STEERING . . . 19-37,
19-78
GEAR OVERDRIVE COMPONENTS,
FOURTH...........................21-167
GEAR OVERHAUL, FRONT PLANETARY . . . 21-237
GEAR OVERHAUL, GOVERNOR AND
PARK .............................21-127
GEAR, POWER STEERING..............19-78
GEAR RATIOS........................21-2
GEAR RATIOS, TRANSMISSION.........21-34
GEAR, RECIRCULATING BALL POWER
STEERING..........................19-21
GEAR REPLACEMENT, STEERING . . . 19-23,19-45
GEAR SERVICE, GOVERNOR AND PARK . . 21-105
GEAR SPECIFICATIONS, MANUAL
STEERING..........................19-46
GEAR SPECIFICATIONS, POWER
STEERING..........................19-36
GEAR, SPEED SENSOR ROTORÐ
SPEEDOMETER DRIVE...............21-193
GEAR TRAIN OVERHAUL, PLANETARY . . . 21-141
GEARS, RECIRCULATING-BALL POWER
STEERING
..........................19-74
GEARSHIFT CABLE/LINKAGE
ADJUSTMENT
.......................21-71
GEARTRAIN OPERATION AND
APPLICATION CHARTS
...............21-169
GENERAL BODY SERVICE INFORMATION
. . . 23-1
GENERAL DIAGNOSIS INFORMATION;
CLUTCH
..............................6-3GENERAL DIAGNOSIS INFORMATION;
TRANSMISSION AND TRANSFER CASE . . 21-176
GENERAL INFORMATION; AIR
CONDITIONING/HEATER (XJ).........8W-42-1
GENERAL INFORMATION; AIR
CONDITIONING/HEATER (XJ-RHD).....8W-42-1
GENERAL INFORMATION; AIR
CONDITIONING/HEATER (YJ) . . 8W-42-1,8W-42-2
GENERAL INFORMATION; ANTI-LOCK
BRAKES (XJ)......................8W-32-1
GENERAL INFORMATION; ANTI-LOCK
BRAKES (XJ-RHD).................8W-32-1
GENERAL INFORMATION; ANTI-LOCK
BRAKES (YJ)......................8W-32-1
GENERAL INFORMATION; AUDIO
SYSTEMS............................8F-1
GENERAL INFORMATION; BATTERY/
STARTER/GENERATOR SERVICE . 8B-1,8B-4,8B-6
GENERAL INFORMATION; BATTERY/
STARTING/CHARGING SYSTEMS
DIAGNOSTICS . . . 8A-10,8A-11,8A-17,8A-22,8A-1,
8A-2
GENERAL INFORMATION; BRAKES . . . 5-22,5-45,
5-1,5-3,5-4
GENERAL INFORMATION; CHIME/BUZZER
WARNING SYSTEMS...................8U-1
GENERAL INFORMATION; CLUTCH.........6-1
GENERAL INFORMATION; CONNECTOR
LOCATIONS (XJ)...................8W-90-1
GENERAL INFORMATION; CONNECTOR
LOCATIONS (XJ-RHD)...............8W-90-1
GENERAL INFORMATION; CONNECTOR
LOCATIONS (YJ)...................8W-90-1
GENERAL INFORMATION; CONNECTOR
PIN OUTS (XJ)....................8W-80-1
GENERAL INFORMATION; CONNECTOR
PIN OUTS (XJ-RHD)................8W-80-1
GENERAL INFORMATION; CONNECTOR
PIN OUTS (YJ)....................8W-80-1
GENERAL INFORMATION; COOLING
SYSTEM.................7-38,7-44,7-45,7-1
GENERAL INFORMATION; EMISSION
CONTROL SYSTEMS...................25-1
GENERAL INFORMATION; ENGINES . . . 9-13,9-55,
9-5
GENERAL INFORMATION; EXHAUST
SYSTEM AND INTAKE MANIFOLD.........11-1
GENERAL INFORMATION; FRAME AND
BUMPERS......................13-10,13-1
GENERAL INFORMATION; FRONT
SUSPENSION AND AXLE..........2-18,2-1,2-5
GENERAL INFORMATION; FUEL SYSTEM . . 14-13,
14-17,14-19,14-35,14-67,14-1
GENERAL INFORMATION; FUSE/FUSE
BLOCK (XJ).......................8W-10-1
GENERAL INFORMATION; FUSE/FUSE
BLOCK (XJ-RHD)..................8W-10-1
GENERAL INFORMATION; GROUND
DISTRIBUTION (XJ)................8W-15-1
GENERAL INFORMATION; GROUND
DISTRIBUTION (XJ-RHD)............8W-15-1
GENERAL INFORMATION; GROUND
DISTRIBUTION (YJ)................8W-15-1
GENERAL INFORMATION; HEATING AND
AIR CONDITIONING....................24-1
GENERAL INFORMATION; HORNS........8G-1
GENERAL INFORMATION; IGNITION
SYSTEMS.......8D-17,8D-29,8D-32,8D-1,8D-6
GENERAL INFORMATION; INSTRUMENT
PANEL AND GAUGESÐXJ..........8E-24,8E-1
GENERAL INFORMATION; INTERIOR
LIGHTING (XJ)....................8W-44-1
GENERAL INFORMATION; INTERIOR
LIGHTING (XJ-RHD)................8W-44-1
GENERAL INFORMATION; INTERIOR
LIGHTING (YJ)....................8W-44-1
GENERAL INFORMATION; LAMPS . . 8L-18,8L-19,
8L-32,8L-1
GENERAL INFORMATION; LUBRICATION
AND MAINTENANCE
....................0-1
GENERAL INFORMATION; OVERHEAD
CONSOLE
...........................8C-1
GENERAL INFORMATION; POWER
DISTRIBUTION (XJ)
................8W-11-1
GENERAL INFORMATION; POWER
DISTRIBUTION (XJ-RHD)
............8W-11-1
GENERAL INFORMATION; POWER
DISTRIBUTION (YJ)
................8W-11-1
JINDEX 11
Description Group-Page Description Group-Page Description Group-Page
Page 1976 of 2198
INSTALLATION, DRUM BRAKESHOE.......5-55
INSTALLATION, FRONT WHEEL SENSOR . . . 5-38
INSTALLATION METHODS AND PARTS
USAGE...............................6-4
INSTALLATION (NON-ABS), MASTER
CYLINDER...........................5-16
INSTALLATION, ROTOR.................5-51
INSTALLATION, TRANSFER CASE . 21-288,21-309
INSTALLATION, TRANSMISSION.....21-36,21-5
INSTALLATION, TRANSMISSION AND
CONVERTER.......................21-117
INSTALLATION, TRANSMISSION AND
TORQUE CONVERTER................21-199
INSTALLATION, TRANSMISSION VALVE
BODY.............................21-187
INSTALLATION, VALVE BODY..........21-104
INSTALLATION, WHEEL.................22-6
INSTALLATION, WHEEL CYLINDER........5-58
INSTALLATION (WITH ABS), MASTER
CYLINDER AND COMBINATION VALVE.....5-20
INSTALLATION (XJ), HCU...............5-43
INSTALLATION (XJ MODELS), ECU........5-40
INSTALLATION (XJ), SHIFT LEVER......21-286,
21-309
INSTALLATION (XJ WITH ABS), POWER
BRAKE BOOSTER.....................5-27
INSTALLATION (XJ WITH FULL
CONSOLE), PARKING BRAKE LEVER.......5-64
INSTALLATION (XJ WITH MINI
CONSOLE), PARKING BRAKE LEVER.......5-63
INSTALLATION (XJ WITHOUT ABS),
POWER BRAKE BOOSTER...............5-30
INSTALLATION (XJ WITHOUT CONSOLE),
PARKING BRAKE LEVER................5-65
INSTALLATION (YJ), HCU...............5-44
INSTALLATION (YJ), PARKING BRAKE
PEDAL..............................5-66
INSTALLATION (YJ), POWER BRAKE
BOOSTER............................5-30
INSTALLATION (YJ), SHIFT LEVER......21-286
INSTRUMENT CLUSTER; INSTRUMENT
CLUSTER (XJ).....................8W-40-1
INSTRUMENT CLUSTER; INSTRUMENT
CLUSTER (XJ-RHD)................8W-40-1
INSTRUMENT CLUSTER; INSTRUMENT
CLUSTER (YJ).....................8W-40-1
INSTRUMENT CLUSTER AND GAUGE
HOUSINGSÐYJ.....................23-151
INSTRUMENT CLUSTER BEZELÐXJ......23-80
INSTRUMENT CLUSTER BEZELÐYJ.....23-151
INSTRUMENT CLUSTERS..........8E-24,8E-1
INSTRUMENT PANEL.............8E-24,8E-1
INSTRUMENT PANEL AND GAUGESÐYJ . . 8E-24
INSTRUMENT PANEL COMPONENTSÐYJ . 23-152
INSTRUMENT PANEL ILLUMINATION
LAMPS; INTERIOR LIGHTING (XJ).....8W-44-1
INSTRUMENT PANEL ILLUMINATION
LAMPS; INTERIOR LIGHTING (XJ-RHD) . 8W-44-1
INSTRUMENT PANEL REMOVE/INSTALL . . . 8E-20
INSTRUMENT PANELÐYJ.............23-151
INSULATOR PANELÐXJ, DASH PANEL....23-12
INSULATOR PANELÐYJ, HOOD........23-107
INTAKE AIR TEMPERATURE SENSOR;
FUEL/IGNITION (XJ)................8W-30-4
INTAKE AIR TEMPERATURE SENSOR;
FUEL/IGNITION (YJ)................8W-30-4
INTAKE AIR TEMPERATURE SENSOR;
FUEL/IGNITION (XJ-RHD)............8W-30-4
INTAKE DUCT, FRESH AIR..............24-34
INTAKE MANIFOLD...................14-63
INTAKE MANIFOLD AIR TEMPERATURE
SENSOR; FUEL SYSTEM...............14-60
INTAKE MANIFOLD AIR TEMPERATURE
SENSOR; IGNITION SYSTEMS......8D-23,8D-5
INTAKE MANIFOLD AIR TEMPERATURE
SENSOR TEST; FUEL SYSTEM..........14-46
INTAKE MANIFOLD AIR TEMPERATURE
SENSOR TEST; IGNITION SYSTEMS......8D-11
INTAKE MANIFOLD AIR TEMPERATURE
SENSORÐPCM INPUT................14-22
INTAKE MANIFOLD LEAKAGE DIAGNOSIS . . . 9-5
INTAKE MANIFOLDÐ2.5L ENGINE........11-7
INTAKE MANIFOLDÐ4.0L ENGINE
........11-8
INTERCHANGEABILITY, TRANSMISSION
CHANGES AND PARTS
................21-67
INTERFERENCE, RADIO FREQUENCY
......8F-5
INTERIOR COMPONENTS
........23-151,23-80
INTERIOR LAMPS
...............8L-16,8L-31INTERIOR LAMPSÐXJ................8L-18
INTERIOR LAMPSÐYJ................8L-32
INTERIOR REARVIEW MIRROR
SUPPORT BRACKET REPLACEMENTÐ
XJ ................................23-68
INTERIOR REARVIEW MIRRORÐXJ......23-66
INTERIOR TRIM PANELS AND SCUFF
PLATESÐXJ........................23-84
INTERLOCK CABLE ADJUSTMENT, PARK . 21-195
INTERLOCK CABLE ADJUSTMENT (XJ),
PARK .............................21-101
INTERLOCK MECHANISM, AUTOMATIC
TRANSMISSION SHIFTER/IGNITION......19-55
INTERMEDIATE (COUPLER) SHAFT.......19-45
INTERMEDIATEÐCOUPLING SHAFT......19-23
INTERMITTENT AND POOR
CONNECTIONS; WIRING DIAGRAMSÐ
GENERAL INFORMATION (XJ)...........8W-4
INTERMITTENT WIPE MODULE..........8K-4
INTERMITTENT WIPE SWITCH TESTING . . 8K-15
INTERMITTENT WIPERS; WIPERS
(XJ-RHD).........................8W-53-1
INTERNATIONAL SYMBOLS...............0-1
INTERNATIONAL VEHICLE CONTROL
AND DISPLAY SYMBOLS.............Intro.-5
INTRODUCTION; BODY COMPONENTSÐ
XJ VEHICLES.......................23-158
INTRODUCTION; LUBRICATION AND
MAINTENANCE.....................0-1,0-4
IN-VEHICLE SERVICE, 30RH/32RH.......21-99
IN-VEHICLE SERVICE, AW-4.............21-182
I/P ASH RECEIVER TRAY LAMPÐXJ.....23-80
JACK STORAGEÐXJ..................23-97
JAMB SWITCH, DRIVER'S DOOR.....8U-1,8U-2
JEEP BODY CODE LETTERS..............5-2
JOINT ANGLE MEASUREMENT,
UNIVERSAL..........................16-4
JOINT REPLACEMENT, UNIVERSAL.......16-10
JOINTS, UNIVERSAL...................16-2
JUMP STARTING PROCEDURE............0-9
JUMP STARTING, TOWING AND
HOISTING............................0-9
KEY CYLINDER SERVICE, IGNITION
SWITCH............................8D-26
KEY LOCK CYLINDERÐXJ, DOOR.......23-47
KEY LOCK CYLINDERÐYJ, FULL-METAL
DOOR............................23-139
KEY-IN SWITCH, IGNITION..........8U-1,8U-2
KEYLESS ENTRY MODULE..........8P-1,8P-7
KEYLESS ENTRY MODULE, REMOTE . . . 8W-61-1
KEYLESS ENTRY MODULE REMOVE/
INSTALL...........................8P-10
KEYLESS ENTRY RECEIVER.............8C-1
KEYLESS ENTRY RECEIVERÐXJ........23-93
KEYLESS ENTRY TRANSMITTER . 8P-1,8P-7,8P-8
KEYS ARE NOT AVAILABLE, TOWING
WHEN..............................0-13
KNOCK, LOW SPEED; FRONT
SUSPENSION AND AXLE................2-19
KNOCK, LOW SPEED; REAR
SUSPENSION AND AXLES...............3-10
KNUCKLE AND BALL STUDS, STEERING . . . 2-32
LABEL, VEHICLE EMISSION CONTROL
INFORMATION (VECI)..................25-1
LABEL, VEHICLE SAFETY CERTIFICATION . Intro.-4
LABELS AND PLATESÐXJ, VEHICLE....Intro.-2
LABELS AND PLATESÐYJ, VEHICLE....Intro.-3
LABELS/DECALS/PLATESÐXJ............23-1
LABELS/DECALS/PLATESÐYJ..........23-102
LABELS/PLATES, CODES AND
DIMENSIONS, DESIGNATIONS.........Intro.-1
LAG TEST, TIME....................21-178
LAMP, ABS WARNING; ANTI-LOCK
BRAKES (XJ)......................8W-32-2
LAMP, ABS WARNING; ANTI-LOCK
BRAKES (XJ-RHD).................8W-32-2
LAMP, ABS WARNING; ANTI-LOCK
BRAKES (YJ)......................8W-32-2
LAMP, ABS WARNING; INSTRUMENT
CLUSTER (XJ)
.....................8W-40-2
LAMP, ABS WARNING; INSTRUMENT
CLUSTER (XJ-RHD)
................8W-40-2
LAMP, ABS WARNING; INSTRUMENT
CLUSTER (YJ)
.....................8W-40-2
LAMP, ACCESSORY LAMP AND HEATER
CONTROL PANEL
..................8W-44-1
LAMP ADJUSTMENT USING ALIGNMENT
SCREENÐXJ, HEADLAMP/FOG
...........8L-7LAMP ADJUSTMENT USING ALIGNMENT
SCREENÐYJ, HEADLAMP/FOG..........8L-23
LAMP AND DOME LAMP, CARGO......8W-44-1
LAMP AND HEATER CONTROL PANEL
LAMP, ACCESSORY.................8W-44-1
LAMP, BRAKE WARNING; INSTRUMENT
CLUSTER (XJ).....................8W-40-2
LAMP, BRAKE WARNING; INSTRUMENT
CLUSTER (XJ-RHD)................8W-40-2
LAMP, BRAKE WARNING; INSTRUMENT
CLUSTER (YJ).....................8W-40-2
LAMP BULB REMOVE/INSTALL,
READING/COURTESY..................8C-8
LAMP BULB REPLACEMENTÐXJ,
BACK-UP/REAR TURN SIGNAL/TAIL......8L-12
LAMP BULB REPLACEMENTÐXJ, FRONT
PARK/TURN SIGNAL...................8L-9
LAMP BULB REPLACEMENTÐXJ, SIDE
MARKER...........................8L-10
LAMP BULB REPLACEMENTÐXJ,
UNDERHOOD........................8L-13
LAMP BULB REPLACEMENTÐYJ,
BACK-UP/REAR TURN SIGNAL/TAIL......8L-28
LAMP BULB REPLACEMENTÐYJ, FRONT
PARK/TURN SIGNAL..................8L-25
LAMP BULB REPLACEMENTÐYJ, SIDE
MARKER...........................8L-25
LAMP BULB REPLACEMENTÐYJ,
UNDERHOOD........................8L-29
LAMP BULB REPLACEMENTÐYJ
VEHICLES, HARDTOP DOME/CARGO.....8L-31
LAMP, CARGO LAMP AND DOME;
INTERIOR LIGHTING (XJ-RHD)........8W-44-1
LAMP, CARGO LAMP, COURTESY LAMPS
AND DOME; INTERIOR LIGHTING (XJ) . . 8W-44-1
LAMP, CHARGING SYSTEM INDICATOR;
INSTRUMENT CLUSTER (XJ).........8W-40-3
LAMP (CHMSL)ÐXJ, CENTER HIGH
MOUNTED STOP.....................8L-12
LAMP (CHMSL)ÐYJ, CENTER HIGH
MOUNTED STOP.....................8L-28
LAMP, COURTESY LAMPS AND DOME
LAMP, CARGO; INTERIOR LIGHTING
(XJ).............................8W-44-1
LAMP DIAGNOSIS, FOG...........8L-21,8L-3
LAMP (DRL) MODULE, DAYTIME
RUNNING; FRONT LIGHTING (XJ).....8W-50-2
LAMP (DRL) MODULEÐCANADIAN
VEHICLES ONLY, DAYTIME RUNNING;
FRONT LIGHTING (YJ)..............8W-50-2
LAMP, ENGINE COOLANT TEMPERATURE
WARNING; INSTRUMENT CLUSTER
(XJ).............................8W-40-1
LAMP, ENGINE COOLANT TEMPERATURE
WARNING; INSTRUMENT CLUSTER
(XJ-RHD).........................8W-40-1
LAMP, GLOVE BOX; INTERIOR LIGHTING
(XJ).............................8W-44-1
LAMP, GLOVE BOX; INTERIOR LIGHTING
(XJ-RHD).........................8W-44-1
LAMP, HIGH-BEAM INDICATOR;
INSTRUMENT CLUSTER (XJ).........8W-40-2
LAMP, HIGH-BEAM INDICATOR;
INSTRUMENT CLUSTER (XJ-RHD).....8W-40-2
LAMP HOUSINGÐXJ, LIFTGATE LICENSE
PLATE .............................23-65
LAMP, IGNITION SWITCH; INTERIOR
LIGHTING (XJ)....................8W-44-1
LAMP, IGNITION SWITCH; INTERIOR
LIGHTING (XJ-RHD)................8W-44-1
LAMP, LOW FUEL WARNING;
INSTRUMENT CLUSTER (XJ).........8W-40-1
LAMP, LOW WASHER FLUID WARNING;
INSTRUMENT CLUSTER (XJ).........8W-40-2
LAMP, LOW WASHER FLUID WARNING;
INSTRUMENT CLUSTER (XJ-RHD).....8W-40-2
LAMP, MANUAL TRANSMISSION
UP-SHIFT; INSTRUMENT CLUSTER (XJ) . 8W-40-2
LAMP (MIL), MALFUNCTION INDICATOR;
FUEL/IGNITION (XJ)
................8W-30-5
LAMP (MIL), MALFUNCTION INDICATOR;
FUEL/IGNITION (YJ)
................8W-30-5
LAMP (MIL), MALFUNCTION INDICATOR;
INSTRUMENT CLUSTER (XJ)
.........8W-40-2
LAMP (MIL), MALFUNCTION INDICATOR;
INSTRUMENT CLUSTER (XJ-RHD)
.....8W-40-1
LAMP (MIL), MALFUNCTION INDICATOR;
FUEL/IGNITION (XJ-RHD)
............8W-30-4
JINDEX 15
Description Group-Page Description Group-Page Description Group-Page
Page 1979 of 2198
MASTER CYLINDER, CLUTCH............0-22
MASTER CYLINDER INSTALLATION
(NON-ABS)..........................5-16
MASTER CYLINDER OVERHAUL
(4-CYLINDER MODELS)................5-16
MASTER CYLINDER REMOVAL
(NON-ABS)..........................5-15
MASTER CYLINDERÐCOMBINATION
VALVE ..............................5-15
MASTER CYLINDER/POWER BOOSTER
TEST................................5-8
MASTER CYLINDER/POWER BRAKE
BOOSTER............................5-34
MATCH MOUNTING....................22-7
MATERIAL, BRAKELINING................5-1
MATSÐXJ, CARPETS AND FLOOR.......23-99
MEASUREMENT AND ADJUSTMENT,
DIFFERENTIAL SHIM PACK..............2-43
MEASUREMENT AND ASSEMBLY, PINION . . 3-22
MEASUREMENT AND INSTALLATION,
DIFFERENTIAL........................3-25
MEASUREMENT AND TORQUE
SPECIFICATIONS...................Intro.-11
MEASUREMENT, DIFFERENTIAL AND
PINION.............................2-40
MEASUREMENT, UNIVERSAL JOINT
ANGLE..............................16-4
MEASUREMENTS AND ADJUSTMENTS,
ALIGNMENT...........................2-8
MEASURING WITH PLASTIGAGE..........9-3
MECHANISM, ARMING/DISARMING;
RESTRAINT SYSTEMS..................8M-2
MECHANISM, ARMING/DISARMING;
STEERING..........................19-48
MECHANISM, AUTOMATIC
TRANSMISSION SHIFTER/IGNITION
INTERLOCK.........................19-55
MECHANISM, SHIFT.................21-307
MEMORY, RADIO; RADIO (XJ)........8W-47-1
MEMORY, RADIO; RADIO (XJ-RHD)....8W-47-1
MEMORY, RADIO; RADIO (YJ)........8W-47-1
METAL DOOR MIRROR (EXTERNAL)Ð
YJ, HALF..........................23-121
METHODS AND PARTS USAGE,
INSTALLATION.........................6-4
METRIC AND ENGLISH/SAE
CONVERSION.....................Intro.-11
METRIC CONVERSION..............Intro.-16
METRIC, THREAD NOTATIONÐSAE....Intro.-13
(MFI)ÐCOMPONENT DESCRIPTION/
SYSTEM OPERATION, MULTI-PORT
FUEL INJECTION.....................14-19
(MFI)ÐCOMPONENT REMOVAL/
INSTALLATION, MULTI-PORT FUEL
INJECTION..........................14-58
(MFI)ÐGENERAL DIAGNOSIS,
MULTI-PORT FUEL INJECTION..........14-35
MINI-CONSOLE WITH FLOOR SHIFTÐXJ . . 23-94
MINI-FLOOR CONSOLEÐXJ............23-94
MIRROR (EXTERNAL)ÐYJ, HALF METAL
DOOR............................23-121
MIRROR LAMPS, VISOR VANITY;
INTERIOR LIGHTING (XJ)............8W-44-2
MIRROR LAMPS, VISOR VANITY;
INTERIOR LIGHTING (XJ-RHD)........8W-44-1
MIRROR, POWER.....................8T-1
MIRROR REMOVE/INSTALL, POWER
......8T-4
MIRROR RETAINING BRACKETÐYJ,
REARVIEW
.........................23-144
MIRROR SUPPORT BRACKET
REPLACEMENTÐXJ, INTERIOR
REARVIEW
..........................23-68
MIRROR SWITCH CONTINUITY (LEFT
POSITION), POWER
....................8T-3
MIRROR SWITCH CONTINUITY (RIGHT
POSITION), POWER
....................8T-3
MIRROR SWITCH, POWER
..........8T-1,8T-2
MIRROR SWITCH REMOVE/INSTALL,
POWER
.............................8T-4
MIRROR SYSTEM, POWER
..............8T-1
MIRROR TROUBLE DIAGNOSISÐXJ,
LIGHTED VANITY
.....................8L-16
MIRRORÐXJ, INTERIOR REARVIEW
.....23-66
MIRRORÐXJ, LIGHTED VANITY
.........8L-16
MIRRORÐYJ, REARVIEW
.............23-144
MIRRORS, POWER; POWER MIRRORS
(XJ)
.............................8W-62-1MIRRORS, POWER; POWER MIRRORS
(XJ-RHD).........................8W-62-1
MIRRORSÐXJ, EXTERNAL.............23-27
MISALIGNMENT, CLUTCH................6-3
MISALIGNMENT, CLUTCH HOUSING........6-4
MISS, INJECTOR DIAGNOSISÐVEHICLE
RUNS ROUGH AND/OR HAS A..........14-52
MODE, ABS OPERATION IN ANTILOCK
BRAKING............................5-36
MODE, ABS OPERATION IN NORMAL
BRAKING............................5-35
MODEL 30 AXLE......................2-49
MODEL 30 AXLE AND TUBE AXLE (2WD) . . 2-22
MODEL 30 FRONT AXLE................2-49
MODEL 35 AXLE..................3-13,3-51
MODELS, BELT TENSIONÐEXCEPT
RIGHT HAND DRIVE (RHD)..............7-45
MODELS, IGNITION SWITCHÐXJ........8D-26
MODELS, IGNITION SWITCHÐYJ........8D-29
MODELS WITH 4.0L 6-CYLINDER
ENGINE, AUXILIARY ELECTRIC
COOLING FANÐXJ....................7-35
MODELS WITH RIGHT HAND DRIVE,
AUTOMATIC BELT TENSIONERÐXJ.......7-42
MODELS WITH RIGHT HAND DRIVE,
BELT SERVICEÐXJ....................7-42
MODES OF OPERATION, OPEN
LOOP/CLOSED LOOP..................14-30
MODULE, AIRBAG....................8M-1
MODULE, BUZZER................8U-1,8U-2
MODULE, CHIME/BUZZER; INTERIOR
LIGHTING (XJ)....................8W-44-2
MODULE, CHIME/BUZZER; INTERIOR
LIGHTING (XJ-RHD)................8W-44-2
MODULE, DAYTIME RUNNING LAMP
(DRL); FRONT LIGHTING (XJ)........8W-50-2
MODULE, DIMMING; FRONT LIGHTING
(XJ-RHD).........................8W-50-1
MODULE, FUEL PUMP; FUEL SYSTEM....14-61,
14-3
MODULE, FUEL PUMP; FUEL/IGNITION
(XJ).............................8W-30-2
MODULE, FUEL PUMP; FUEL/IGNITION
(YJ).............................8W-30-2
MODULE, FUEL PUMP; FUEL/IGNITION
(XJ-RHD).........................8W-30-2
MODULE HANDLING, AIRBAG...........8M-2
MODULE, HEADLAMP DELAY; FRONT
LIGHTING (XJ)....................8W-50-2
MODULE, HEADLAMP DELAY; FRONT
LIGHTING (XJ-RHD)................8W-50-1
MODULE, INTERMITTENT WIPE..........8K-4
MODULE, KEYLESS ENTRY.........8P-1,8P-7
MODULE (PCM) 60-WAY CONNECTOR,
POWERTRAIN CONTROL...............14-40
MODULE (PCM), POWERTRAIN
CONTROL; EMISSION CONTROL
SYSTEMS...........................25-7
MODULE (PCM), POWERTRAIN
CONTROL; FUEL SYSTEM.........14-20,14-64
MODULE (PCM), POWERTRAIN
CONTROL; IGNITION SYSTEMS....8D-11,8D-23,
8D-5
MODULE, POWERTRAIN CONTROL . . . 8H-1,8H-7
MODULE, REMOTE KEYLESS ENTRY . . . 8W-61-1
MODULE REMOVE/INSTALL, AIRBAG.....8M-3
MODULE REMOVE/INSTALL, KEYLESS
ENTRY.............................8P-10
MODULE REMOVEÐINSTALL, AIRBAG....19-49
MODULE REPLACEMENTÐXJ, DRL......8L-15
MODULE REPLACEMENTÐXJ,
HEADLAMP DELAY...................8L-14
MODULE REPLACEMENTÐYJ, DRL......8L-30
MODULE SCHEMATIC - YJ, BUZZER......8U-4
MODULE (TCM) SERVICE,
TRANSMISSION CONTROL............21-183
MODULE, TRANSMISSION CONTROL;
TRANSMISSION CONTROLS (XJ-RHD) . . 8W-31-1
MODULEÐ4.0L ENGINE ONLY,
TRANSMISSION CONTROL;
TRANSMISSION CONTROLS (XJ)......8W-31-1
MODULEÐCANADIAN VEHICLES ONLY,
DAYTIME RUNNING LAMP (DRL)
......8W-50-2
MODULEÐXJ, SENTINEL HEADLAMP
DELAY
.............................8L-14
MOLDING/CLADDINGÐXJ, BODY SIDE
. . . 23-20
MOLDINGÐXJ, DRIP RAIL
.............23-25
MOLDINGÐXJ, WINDSHIELD REVEAL
....23-66MOLDINGÐXJ, WINDSHIELD SIDE......23-86
MOLDINGÐYJ, BODY SIDE STEP.......23-115
MOLDINGÐYJ, WINDSHIELD REVEAL . . . 23-144
MOLDINGSÐXJ, DOOR WINDOW
EXTERIOR..........................23-54
MOTOR, A/C BLOWER.................24-35
MOTOR, A/C-HEATER BLOWER; AIR
CONDITIONING/HEATER (YJ).........8W-42-2
MOTOR, BLOWER; AIR CONDITIONING/
HEATER (XJ)......................8W-42-1
MOTOR, BLOWER; AIR CONDITIONING/
HEATER (XJ-RHD)..................8W-42-1
MOTOR, BLOWER; HEATING AND AIR
CONDITIONING......................24-17
MOTOR DIAGNOSIS (CONT'D),
DISCONNECT AXLE/SHIFT...............2-30
MOTOR DIAGNOSIS, DISCONNECT
AXLE/SHIFT..........................2-29
MOTOR, FRESH AIR DOOR VACUUM.....24-34
MOTOR (HEATING), BLOWER...........24-33
MOTOR, IDLE AIR CONTROL (IAC); FUEL
SYSTEM............................14-62
MOTOR, IDLE AIR CONTROL (IAC);
FUEL/IGNITION (XJ)................8W-30-2
MOTOR, IDLE AIR CONTROL (IAC);
FUEL/IGNITION (YJ)................8W-30-2
MOTOR, IDLE AIR CONTROL (IAC);
FUEL/IGNITION (XJ-RHD)............8W-30-2
MOTOR, POWER LOCK.............8P-1,8P-7
MOTOR, POWER WINDOW..........8S-1,8S-2
MOTOR, RADIATOR FAN RELAY; AIR
CONDITIONING/HEATER (XJ).........8W-42-2
MOTOR, RADIATOR FAN RELAY; AIR
CONDITIONING/HEATER (XJ-RHD).....8W-42-2
MOTOR RELAY, ABS PUMP; ANTI-LOCK
BRAKES (XJ)......................8W-32-1
MOTOR RELAY, ABS PUMP; ANTI-LOCK
BRAKES (XJ-RHD).................8W-32-1
MOTOR RELAY, ABS PUMP; ANTI-LOCK
BRAKES (YJ)......................8W-32-1
MOTOR RELAY TEST, STARTER.........14-51
MOTOR REMOVE/INSTALL, LIFTGATE
WIPER.........................8K-20,8K-6
MOTOR REMOVE/INSTALL, POWER
LOCK...............................8P-8
MOTOR REMOVE/INSTALL, POWER
WINDOW............................8S-7
MOTOR REMOVE/INSTALL, WINDSHIELD
WIPER.........................8K-19,8K-6
MOTOR REPLACEMENT, A/C
RECIRCULATING DOOR VACUUM........24-27
MOTOR REPLACEMENT, HEATER/
DEFROSTER/INSTRUMENT PANEL
OUTLET VACUUM....................24-26
MOTOR RESISTORS REPLACEMENT,
BLOWER...........................24-31
MOTOR SPEED SENSOR, PUMP;
ANTI-LOCK BRAKES (XJ)............8W-32-2
MOTOR SPEED SENSOR, PUMP;
ANTI-LOCK BRAKES (XJ-RHD)........8W-32-2
MOTOR SPEED SENSOR, PUMP;
ANTI-LOCK BRAKES (YJ)............8W-32-1
MOTOR SWITCH, BLOWER.............24-16
MOTOR SWITCH REPLACEMENT,
BLOWER MOTOR/AIR DOOR............24-32
MOTOR TEST, IDLE AIR CONTROL.......14-49
MOTOR/AIR DOOR MOTOR SWITCH
REPLACEMENT, BLOWER
..............24-32
MOTOR/FAN REPLACEMENT, BLOWER
....24-24
MOTORÐPCM OUTPUT, IDLE AIR
CONTROL (IAC)
......................14-27
MOUNTED STOP LAMP (CHMSL)ÐXJ,
CENTER HIGH
.......................8L-12
MOUNTED STOP LAMP (CHMSL)ÐYJ,
CENTER HIGH
.......................8L-28
MOUNTING, MATCH
...................22-7
MOUNTÐREAR, ENGINE
...........9-16,9-57
MOUNTSÐFRONT, ENGINE
..........9-14,9-56
MUFFLER AND EXHAUST TAILPIPEÐXJ
VEHICLES
...........................11-5
MUFFLER AND EXHAUST TAILPIPEÐYJ
VEHICLES
...........................11-6
MULTI-FUNCTION SWITCH - XJ
..........8J-4
MULTI-FUNCTION SWITCH REMOVE/
INSTALL - XJ
.........................8J-5
MULTI-FUNCTION SWITCH SERVICE
PROCEDURESÐXJ
...................8L-11
18 INDEXJ
Description Group-Page Description Group-Page Description Group-Page
Page 1984 of 2198
RELAY TESTING, AUTOMATIC
SHUTDOWN (ASD)...................14-46
RELAY TESTING, FUEL PUMP...........14-47
RELAY, TORQUE CONVERTER CLUTCH....14-65
RELAY, TORQUE CONVERTER CLUTCH
(TCC) SOLENOID; FUEL/IGNITION (XJ) . . 8W-30-4
RELAY, TORQUE CONVERTER CLUTCH
(TCC) SOLENOID; TRANSMISSION
CONTROLS (YJ)...................8W-31-1
RELAY, TURN SIGNAL; TURN SIGNALS
(XJ-RHD).........................8W-52-1
RELAY, UNLOCK; POWER DOOR LOCKS
(XJ).............................8W-61-1
RELAY, UNLOCK; POWER DOOR LOCKS
(XJ-RHD).........................8W-61-1
RELAYÐ2.5L ENGINE ONLY, TORQUE
CONVERTER CLUTCH (TCC)
SOLENOID; TRANSMISSION
CONTROLS (XJ)...................8W-31-1
RELAYÐPCM OUTPUT, AIR
CONDITIONING (A/C) CLUTCH..........14-26
RELAYÐPCM OUTPUT, AUTO
SHUTDOWN (ASD)...................14-26
RELAYÐPCM OUTPUT, FUEL PUMP......14-27
RELAYÐPCM OUTPUT, RADIATOR FAN . . . 14-28
RELAYÐPCM OUTPUT, TORQUE
CONVERTER CLUTCH.................14-29
RELAYS, POWER LOCK/UNLOCK.........8P-1
RELAY/TIMER, DEFOGGER..............8N-1
RELAY/TIMER REMOVE/INSTALL,
DEFOGGER..........................8N-4
RELEASE AND LOCK HANDLEÐYJ,
FULL-METAL DOOR LATCH INSIDE.......23-137
RELEASE AND LOCK RODSÐXJ, DOOR
INSIDE LATCH.......................23-50
RELEASE BEARING REPLACEMENT.......6-11
RELEASE CABLE REPLACEMENTÐXJ,
LATCH .............................23-11
RELEASE HANDLEÐYJ, FULL-METAL
DOOR LATCH EXTERNAL..............23-140
RELEASE HANDLEÐYJ, TAILGATE LATCH . 23-122
RELEASE PROCEDURE, FUEL PRESSURE . . . 14-6
RELEASE PROCEDURE, FUEL SYSTEM
PRESSURE.........................14-62
RELIEF/ROLLOVER VALVE, FUEL TANK
PRESSURE....................14-16,14-62
RELIEF/ROLLOVER VALVE, PRESSURE . 25-6,25-7
REMINDER INDICATOR (SRI) LAMP,
SERVICE............................25-1
REMOTE GARAGE DOOR OPENER
STORAGE...........................8C-1
REMOTE KEYLESS ENTRY MODULE;
POWER DOOR LOCKS (XJ)...........8W-61-1
REMOVAL, ACCELERATION SWITCH.......5-39
REMOVAL AND INSTALLATION,
30RH/32RH TRANSMISSION...........21-115
REMOVAL AND INSTALLATION, AW-4
TRANSMISSION.....................21-198
REMOVAL, BRAKE PEDAL...............5-31
REMOVAL, BRAKELIGHT SWITCH.........5-32
REMOVAL, CALIPER...................5-48
REMOVAL, CLUTCH COVER AND DISC.....6-10
REMOVAL, CLUTCH HYDRAULIC
LINKAGE............................6-13
REMOVAL, CLUTCH PEDAL..............6-15
REMOVAL, DIFFERENTIAL; FRONT
SUSPENSION AND AXLE................2-34
REMOVAL, DIFFERENTIAL; REAR
SUSPENSION AND AXLES...............3-18
REMOVAL, DISC BRAKESHOE............5-46
REMOVAL, DRUM BRAKESHOE...........5-55
REMOVAL, FRONT WHEEL SENSOR.......5-38
REMOVAL (NON-ABS), MASTER
CYLINDER...........................5-15
REMOVAL, REAR WHEEL SENSOR........5-38
REMOVAL, ROTOR....................5-51
REMOVAL, TRANSFER CASE.....21-287,21-309
REMOVAL, TRANSMISSION........21-35,21-3
REMOVAL, TRANSMISSION AND
CONVERTER.......................21-115
REMOVAL, TRANSMISSION AND
TORQUE CONVERTER................21-198
REMOVAL, TRANSMISSION VALVE BODY
. 21-186
REMOVAL, VALVE BODY
..............21-104
REMOVAL, WHEEL CYLINDER
...........5-57
REMOVAL (WITH ABS), MASTER
CYLINDER AND COMBINATION VALVE
.....5-17
REMOVAL (XJ), HCU
...................5-41REMOVAL (XJ MODELS), ECU...........5-40
REMOVAL (XJ), SHIFT LEVER....21-286,21-309
REMOVAL (XJ WITH ABS), POWER
BRAKE BOOSTER.....................5-24
REMOVAL (XJ WITH FULL CONSOLE),
PARKING BRAKE LEVER................5-63
REMOVAL (XJ WITH MINI CONSOLE),
PARKING BRAKE LEVER................5-62
REMOVAL (XJ WITHOUT ABS), POWER
BRAKE BOOSTER.....................5-29
REMOVAL (XJ WITHOUT CONSOLE),
PARKING BRAKE LEVER................5-64
REMOVAL (YJ), HCU...................5-44
REMOVAL (YJ), PARKING BRAKE PEDAL . . . 5-66
REMOVAL (YJ), POWER BRAKE
BOOSTER............................5-30
REMOVAL (YJ), SHIFT LEVER..........21-286
REMOVAL/DISASSEMBLY, PINION;
FRONT SUSPENSION AND AXLE..........2-36
REMOVAL/DISASSEMBLY, PINION; REAR
SUSPENSION AND AXLES...............3-19
REMOVAL/INSTALLATION, COMPONENT;
EMISSION CONTROL SYSTEMS..........25-7
REMOVAL/INSTALLATION, COMPONENT;
IGNITION SYSTEMS..................8D-17
REMOVAL/INSTALLATION, MULTI-PORT
FUEL INJECTION (MFI)ÐCOMPONENT....14-58
REMOVAL/INSTALLATION (YJ MODELS),
ECU ................................5-41
REMOVAL/INSTALLATIONÐXJ, DOOR....23-35
REMOVE/INSTALL - XJ, ANTENNA........8F-8
REMOVE/INSTALL - XJ, MULTI-
FUNCTION SWITCH....................8J-5
REMOVE/INSTALL - XJ, RADIO...........8F-6
REMOVE/INSTALL - XJ, SOUND BAR......8F-8
REMOVE/INSTALL - XJ, SPEAKERS........8F-6
REMOVE/INSTALL - YJ, ANTENNA.......8F-10
REMOVE/INSTALL - YJ, RADIO...........8F-9
REMOVE/INSTALL - YJ, SOUND BAR.....8F-10
REMOVE/INSTALL - YJ, SPEAKERS........8F-9
REMOVE/INSTALL - YJ, TURN
SIGNAL/HAZARD WARNING SWITCH......8J-5
REMOVE/INSTALL, AIRBAG MODULE.....8M-3
REMOVE/INSTALL, BATTERY.............8B-1
REMOVE/INSTALL, CLUSTER ASSEMBLY . . 8E-17,
8E-35
REMOVE/INSTALL, DEFOGGER
RELAY/TIMER........................8N-4
REMOVE/INSTALL, DEFOGGER SWITCH....8N-4
REMOVE/INSTALL, GAUGES.......8E-17,8-E39
REMOVE/INSTALL, HEADLAMP OR
PANEL DIMMER SWITCH..............8E-42
REMOVE/INSTALL, HEADLAMP SWITCH . . . 8E-19
REMOVE/INSTALL, HORN...............8G-3
REMOVE/INSTALL, HORN SWITCH........8G-3
REMOVE/INSTALL, INSTRUMENT PANEL . . 8E-20
REMOVE/INSTALL, KEYLESS ENTRY
MODULE...........................8P-10
REMOVE/INSTALL, LIFTGATE WASHER
NOZZLE............................8K-24
REMOVE/INSTALL, LIFTGATE WIPER
ARM ..............................8K-17
REMOVE/INSTALL, LIFTGATE WIPER
MOTOR........................8K-20,8K-6
REMOVE/INSTALL, LIFTGATE WIPER/
WASHER SWITCH................8K-24,8K-8
REMOVE/INSTALL, OVERHEAD CONSOLE . . . 8C-6
REMOVE/INSTALL, POWER LOCK
MOTOR.............................8P-8
REMOVE/INSTALL, POWER LOCK
SWITCH.............................8P-8
REMOVE/INSTALL, POWER LOCK/
UNLOCK RELAY......................8P-12
REMOVE/INSTALL, POWER MIRROR......8T-4
REMOVE/INSTALL, POWER MIRROR
SWITCH.............................8T-4
REMOVE/INSTALL, POWER SEAT
ADJUSTER/MOTORS...................8R-3
REMOVE/INSTALL, POWER SEAT
SWITCH
............................8R-3
REMOVE/INSTALL, POWER WINDOW
MOTOR
.............................8S-7
REMOVE/INSTALL, POWER WINDOW
SWITCH
.............................8S-7
REMOVE/INSTALL, PRINTED CIRCUIT
....8E-19,
8E-40
REMOVE/INSTALL, READING/COURTESY
LAMP BULB
.........................8C-8REMOVE/INSTALL, SERVO CABLE.......8H-10
REMOVE/INSTALL, SPEED CONTROL
SERVO.............................8H-9
REMOVE/INSTALL, SPEED CONTROL
SWITCH............................8H-9
REMOVE/INSTALL, STARTER RELAY.......8B-6
REMOVE/INSTALL, SUNGLASSES
STORAGE BIN........................8C-7
REMOVE/INSTALL, VACUUM RESERVOIR . . 8H-10
REMOVE/INSTALL, WASHER PUMP......8K-24
REMOVE/INSTALL, WASHER PUMP/
RESERVOIR..........................8K-8
REMOVE/INSTALL, WINDSHIELD WIPER
ARM ..............................8K-17
REMOVE/INSTALL, WINDSHIELD WIPER
BLADE.............................8K-17
REMOVE/INSTALL, WINDSHIELD WIPER
LINKAGE AND PIVOTS................8K-17
REMOVE/INSTALL, WINDSHIELD WIPER
MOTOR........................8K-19,8K-6
REMOVE/INSTALL, WINDSHIELD
WIPER/WASHER SWITCH..........8K-20,8K-7
REMOVE/INSTALLÐ2.5L, STARTER.......8B-4
REMOVE/INSTALLÐ4.0L, STARTER.......8B-5
REMOVE/INSTALLÐLEFT-HAND DRIVE,
GENERATOR.........................8B-6
REMOVE/INSTALLÐRIGHT-HAND DRIVE,
GENERATOR.........................8B-7
REMOVEÐINSTALL, AIRBAG MODULE....19-49
REPAIR DAMAGED OR WORN THREADS....9-4
REPAIR PRODUCTSÐXJ, AFTERMARKET
PAINT AND TRIM...................23-159
REPAIR PRODUCTSÐYJ, AFTERMARKET
PAINT AND TRIM...................23-160
REPAIR, WIRING; WIRING DIAGRAMSÐ
GENERAL INFORMATION (XJ)...........8W-6
REPAIRING LEAKS....................22-3
REPAIRÐMOLEX CONNECTORS,
TERMINAL/CONNECTOR; WIRING
DIAGRAMSÐGENERAL INFORMATION
(XJ)...............................8W-6
REPAIRÐXJ, STATIONARY GLASS
WATER LEAK DETECTION..............23-76
REPAIRÐYJ, HARD TOP..............23-127
REPAIRÐYJ, STATIONARY GLASS
WATER LEAK DETECTION.............23-150
REPAIRS, FRAME....................13-13
REPAIRS, REAR WINDOW GLASS GRID;
REAR WINDOW DEFOGGER.............8N-3
REPLACEÐCYLINDER HEAD NOT
REMOVED, VALVE COMPONENT......9-23,9-65
REPLACEMENTÐXJ, BACK-UP/REAR
TURN SIGNAL/TAIL LAMP BULB
.........8L-12
REPLACEMENTÐXJ, DOME LAMP
.......8L-17
REPLACEMENTÐXJ, DOOR HINGE/
HINGE PIN
..........................23-52
REPLACEMENTÐXJ, DOOR RESTRAINT
. . . 23-41
REPLACEMENTÐXJ, DRL MODULE
......8L-15
REPLACEMENTÐXJ, FOG LAMP
..........8L-9
REPLACEMENTÐXJ, FOG LAMP SWITCH
. 8L-10
REPLACEMENTÐXJ, FRONT PARK/TURN
SIGNAL LAMP BULB
...................8L-9
REPLACEMENTÐXJ, HEADLAMP BULB
....8L-7
REPLACEMENTÐXJ, HEADLAMP DELAY
MODULE
...........................8L-14
REPLACEMENTÐXJ, HOOD HINGE
.......23-10
REPLACEMENTÐXJ, HOOD LATCH
.......23-11
REPLACEMENTÐXJ, HOOD LATCH
STRIKER
...........................23-11
REPLACEMENTÐXJ, INTERIOR
REARVIEW MIRROR SUPPORT
BRACKET
...........................23-68
REPLACEMENTÐXJ, LATCH RELEASE
CABLE
.............................23-11
REPLACEMENTÐXJ, LIFTGATE SUPPORT
ROD BALL STUD
.....................23-63
REPLACEMENTÐXJ, SAFETY LATCH
STRIKER
...........................23-11
REPLACEMENTÐXJ, SIDE MARKER
LAMP BULB
.........................8L-10
REPLACEMENTÐXJ, UNDERHOOD LAMP
. 8L-13
REPLACEMENTÐXJ, UNDERHOOD LAMP
BULB
..............................8L-13
REPLACEMENTÐXJ VEHICLES, DRIVE
AXLE ASSEMBLY; FRONT SUSPENSION
AND AXLE
...........................2-23
JINDEX 23
Description Group-Page Description Group-Page Description Group-Page
