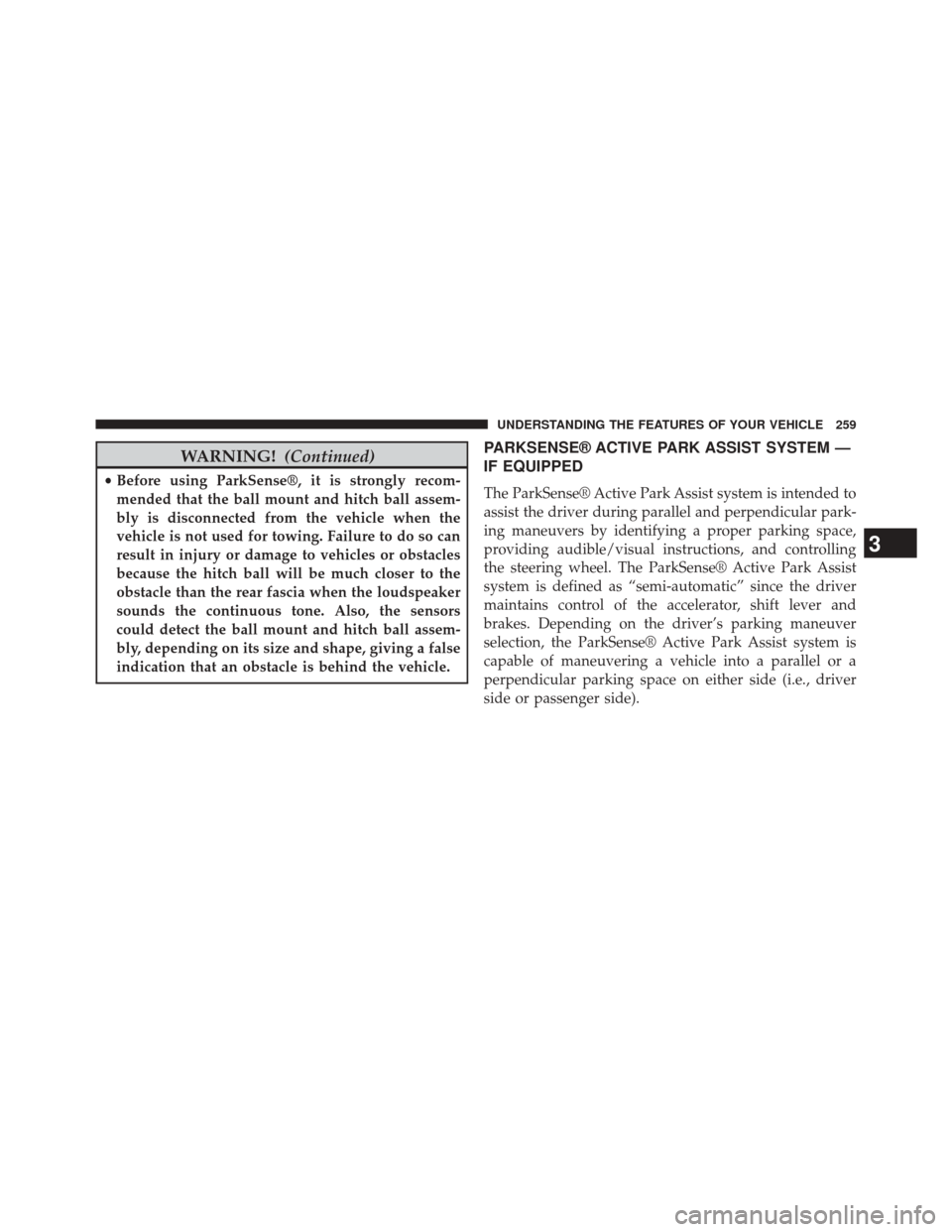

WARNING!(Continued)
•Before using ParkSense®, it is strongly recom-
mended that the ball mount and hitch ball assem-
bly is disconnected from the vehicle when the
vehicle is not used for towing. Failure to do so can
result in injury or damage to vehicles or obstacles
because the hitch ball will be much closer to the
obstacle than the rear fascia when the loudspeaker
sounds the continuous tone. Also, the sensors
could detect the ball mount and hitch ball assem-
bly, depending on its size and shape, giving a false
indication that an obstacle is behind the vehicle.
PARKSENSE® ACTIVE PARK ASSIST SYSTEM —
IF EQUIPPED
The ParkSense® Active Park Assist system is intended to
assist the driver during parallel and perpendicular park-
ing maneuvers by identifying a proper parking space,
providing audible/visual instructions, and controlling
the steering wheel. The ParkSense® Active Park Assist
system is defined as “semi-automatic” since the driver
maintains control of the accelerator, shift lever and
brakes. Depending on the driver’s parking maneuver
selection, the ParkSense® Active Park Assist system is
capable of maneuvering a vehicle into a parallel or a
perpendicular parking space on either side (i.e., driver
side or passenger side).
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 259

NOTE:
•The driver is always responsible for controlling the
vehicle, responsible for any surrounding objects, and
must intervene as required.
• The system is provided to assist the driver and not to
substitute the driver.
• During a semi-automatic maneuver, if the driver
touches the steering wheel after being instructed to
remove their hands from the steering wheel, the sys-
tem will cancel, and the driver will be required to
manually complete the parking maneuver.
• The system may not work in all conditions (e.g.
environmental conditions such as heavy rain, snow,
etc., or if searching for a parking space that has
surfaces that will absorb the ultrasonic sensor waves).Enabling And Disabling The ParkSense® Active
Park Assist System
The ParkSense® Active Park Assist system can be enabled
and disabled with the ParkSense® Active Park Assist
switch, located on the switch panel below the Uconnect®
display.
ParkSense® Active Park Assist Switch
260 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

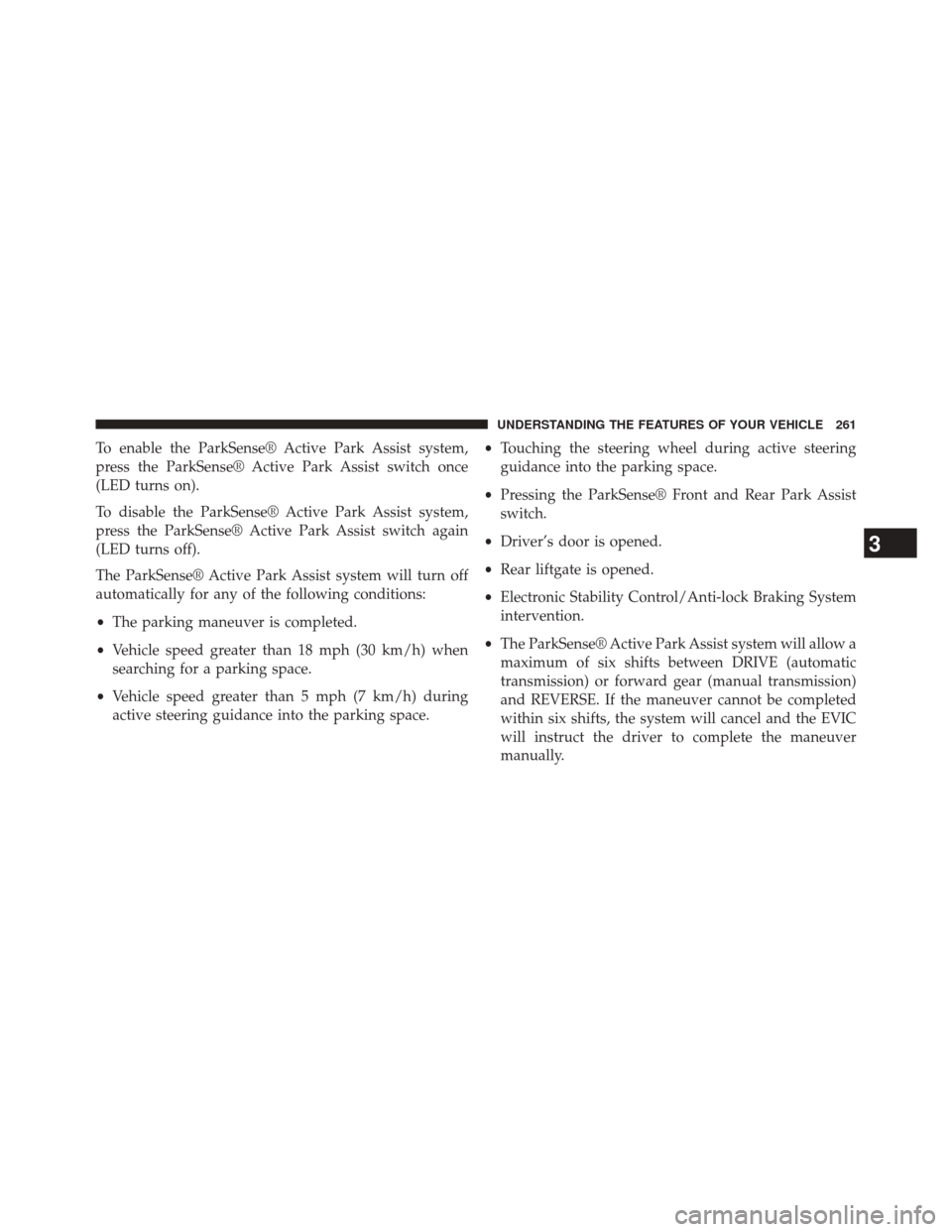

To enable the ParkSense® Active Park Assist system,
press the ParkSense® Active Park Assist switch once
(LED turns on).
To disable the ParkSense® Active Park Assist system,
press the ParkSense® Active Park Assist switch again
(LED turns off).
The ParkSense® Active Park Assist system will turn off
automatically for any of the following conditions:
•The parking maneuver is completed.
• Vehicle speed greater than 18 mph (30 km/h) when
searching for a parking space.
• Vehicle speed greater than 5 mph (7 km/h) during
active steering guidance into the parking space. •
Touching the steering wheel during active steering
guidance into the parking space.
• Pressing the ParkSense® Front and Rear Park Assist
switch.
• Driver’s door is opened.
• Rear liftgate is opened.
• Electronic Stability Control/Anti-lock Braking System
intervention.
• The ParkSense® Active Park Assist system will allow a
maximum of six shifts between DRIVE (automatic
transmission) or forward gear (manual transmission)
and REVERSE. If the maneuver cannot be completed
within six shifts, the system will cancel and the EVIC
will instruct the driver to complete the maneuver
manually.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 261

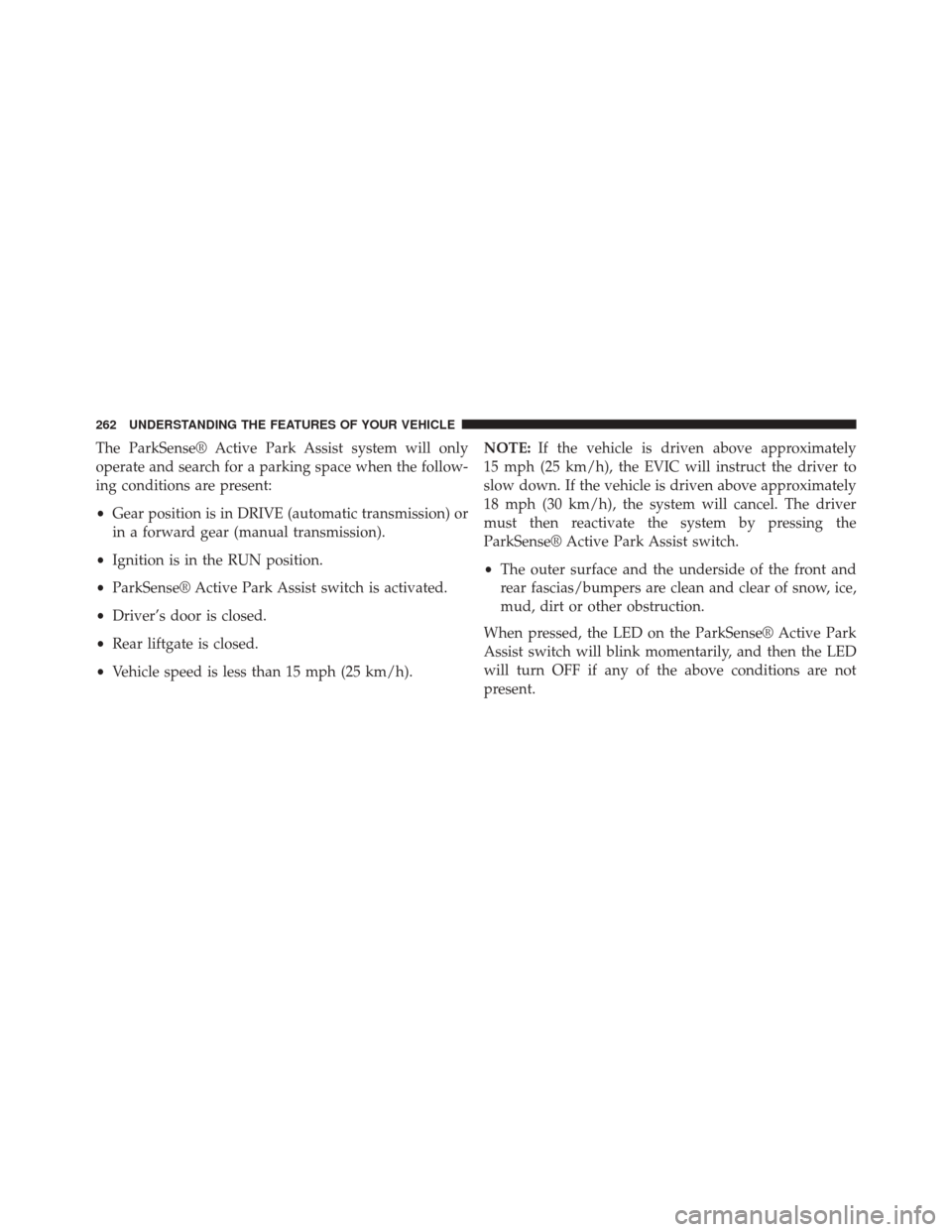

The ParkSense® Active Park Assist system will only
operate and search for a parking space when the follow-
ing conditions are present:
•Gear position is in DRIVE (automatic transmission) or
in a forward gear (manual transmission).
• Ignition is in the RUN position.
• ParkSense® Active Park Assist switch is activated.
• Driver’s door is closed.
• Rear liftgate is closed.
• Vehicle speed is less than 15 mph (25 km/h). NOTE:
If the vehicle is driven above approximately
15 mph (25 km/h), the EVIC will instruct the driver to
slow down. If the vehicle is driven above approximately
18 mph (30 km/h), the system will cancel. The driver
must then reactivate the system by pressing the
ParkSense® Active Park Assist switch.
• The outer surface and the underside of the front and
rear fascias/bumpers are clean and clear of snow, ice,
mud, dirt or other obstruction.
When pressed, the LED on the ParkSense® Active Park
Assist switch will blink momentarily, and then the LED
will turn OFF if any of the above conditions are not
present.
262 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

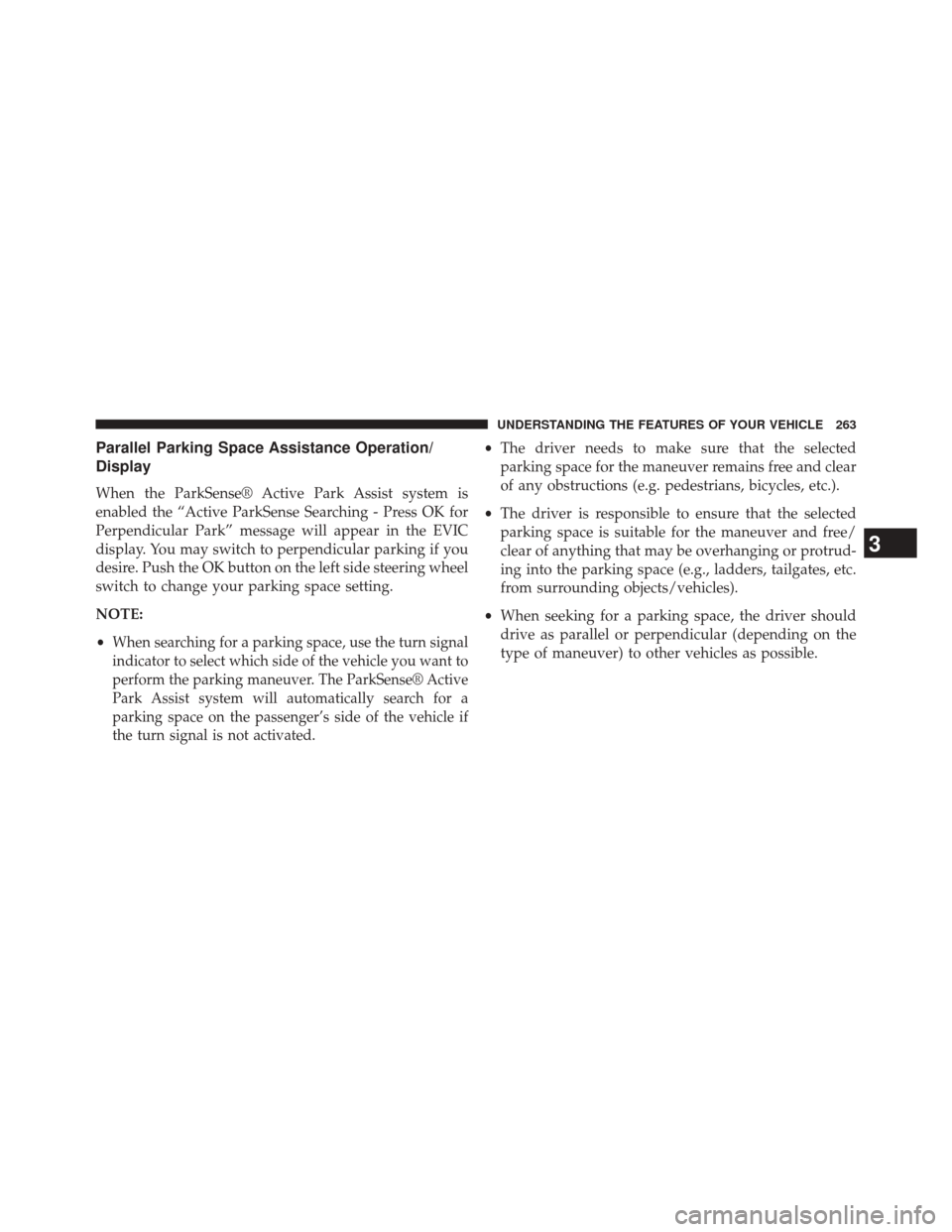

Parallel Parking Space Assistance Operation/
Display
When the ParkSense® Active Park Assist system is
enabled the “Active ParkSense Searching - Press OK for
Perpendicular Park” message will appear in the EVIC
display. You may switch to perpendicular parking if you
desire. Push the OK button on the left side steering wheel
switch to change your parking space setting.
NOTE:
•
When searching for a parking space, use the turn signal
indicator to select which side of the vehicle you want to
perform the parking maneuver. The ParkSense® Active
Park Assist system will automatically search for a
parking space on the passenger’s side of the vehicle if
the turn signal is not activated.
• The driver needs to make sure that the selected
parking space for the maneuver remains free and clear
of any obstructions (e.g. pedestrians, bicycles, etc.).
• The driver is responsible to ensure that the selected
parking space is suitable for the maneuver and free/
clear of anything that may be overhanging or protrud-
ing into the parking space (e.g., ladders, tailgates, etc.
from surrounding objects/vehicles).
• When seeking for a parking space, the driver should
drive as parallel or perpendicular (depending on the
type of maneuver) to other vehicles as possible.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 263

•The feature will only indicate the last detected parking
space (example: if passing multiple available parking
spaces, the system will only indicate the last detected
parking space for the maneuver). When an available parking space has been found, and the
vehicle is not in position, you will be instructed to move
forward to position the vehicle for a parallel parking
sequence.
Active ParkSense SearchingSpace Found — Keep Moving Forward
264 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

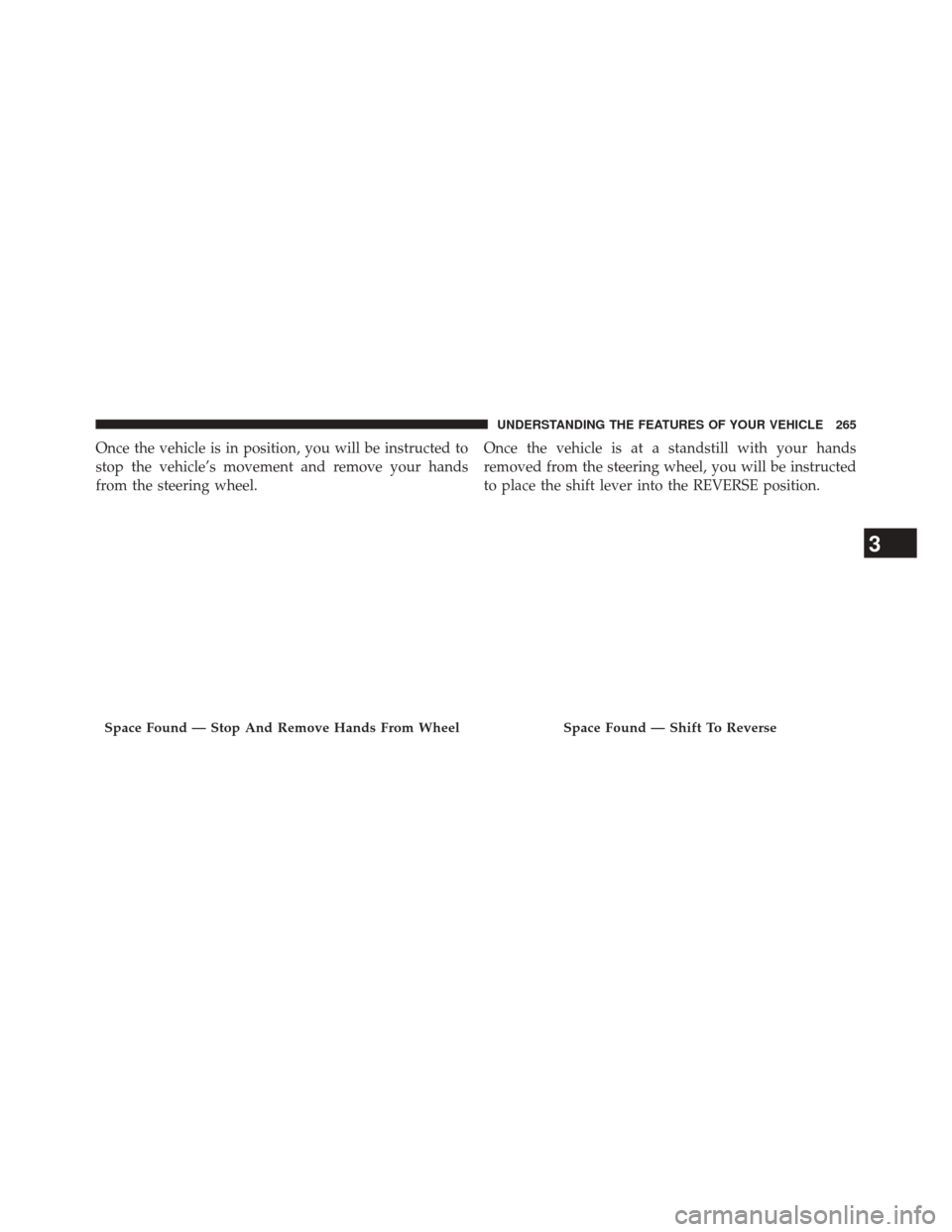

Once the vehicle is in position, you will be instructed to
stop the vehicle’s movement and remove your hands
from the steering wheel.Once the vehicle is at a standstill with your hands
removed from the steering wheel, you will be instructed
to place the shift lever into the REVERSE position.
Space Found — Stop And Remove Hands From WheelSpace Found — Shift To Reverse
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 265

When the driver places the shift lever into the REVERSE
position, the system may instruct the driver to wait for
steering to complete.The system will then instruct the driver to check their
surroundings and move backward.
Check Surroundings — Wait For Steering To Complete
Check Surroundings — Move Backward
266 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

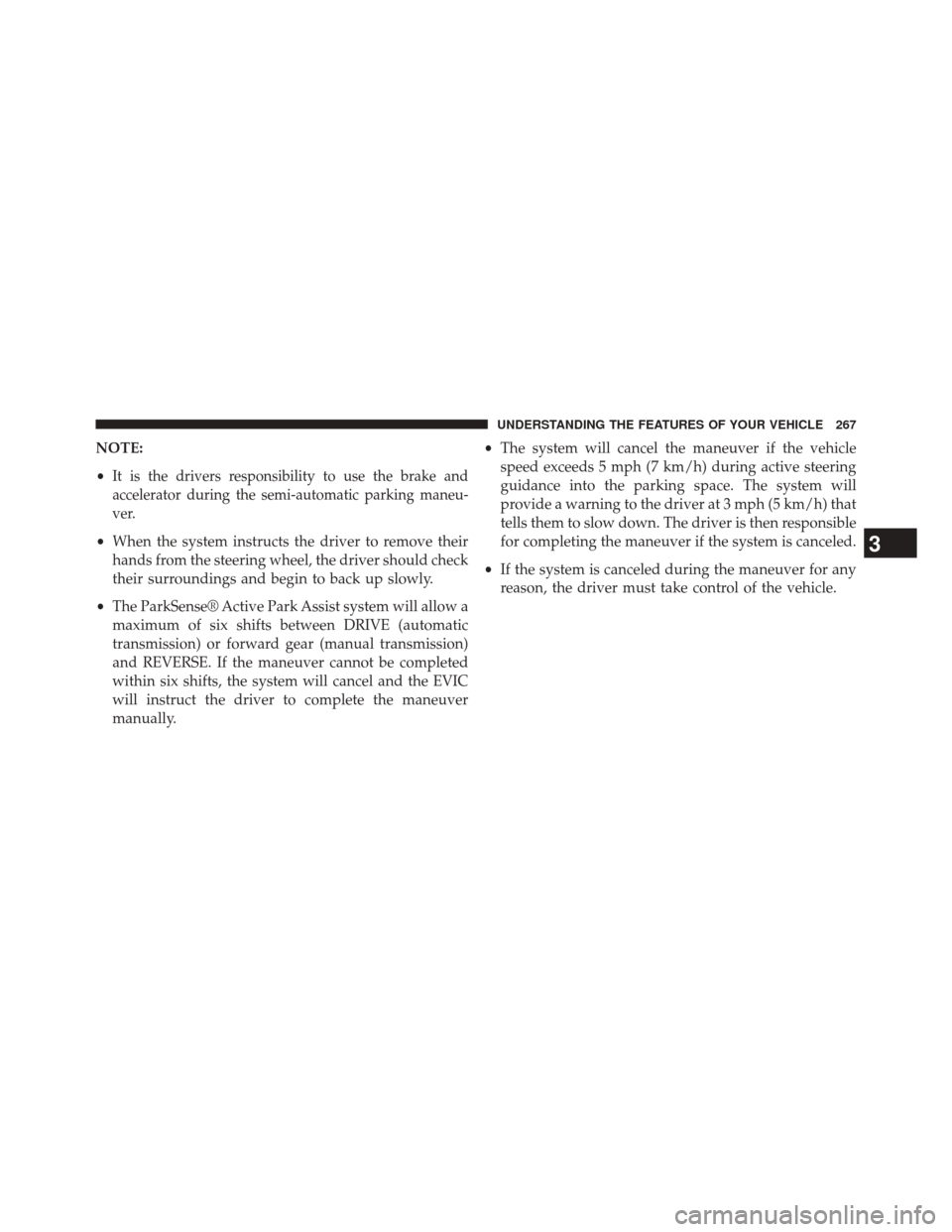

NOTE:
•
It is the drivers responsibility to use the brake and
accelerator during the semi-automatic parking maneu-
ver.
• When the system instructs the driver to remove their
hands from the steering wheel, the driver should check
their surroundings and begin to back up slowly.
• The ParkSense® Active Park Assist system will allow a
maximum of six shifts between DRIVE (automatic
transmission) or forward gear (manual transmission)
and REVERSE. If the maneuver cannot be completed
within six shifts, the system will cancel and the EVIC
will instruct the driver to complete the maneuver
manually. •
The system will cancel the maneuver if the vehicle
speed exceeds 5 mph (7 km/h) during active steering
guidance into the parking space. The system will
provide a warning to the driver at 3 mph (5 km/h) that
tells them to slow down. The driver is then responsible
for completing the maneuver if the system is canceled.
• If the system is canceled during the maneuver for any
reason, the driver must take control of the vehicle.3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 267

When the vehicle has reached the end of its backward
movement, the system will instruct the driver to check
their surroundings and stop the vehicle’s movement.
NOTE:
It is the drivers responsibility to use the brake
and stop the vehicle. The driver should check their sur- roundings and be prepared to stop the vehicle either when
instructed to, or when driver intervention is required.
Once the vehicle is in a standstill condition, the driver
will be instructed to place the shift lever into the DRIVE
position.
Check Surroundings — STOP
Check Surroundings — Shift To Drive
