Page 124 of 690
▫Front Heated Seats — If Equipped .........152
▫ Front Ventilated Seats — If Equipped .......154
▫ Head Restraints ..................... .154
▫ 60/40 Split Folding Rear Seat With Fold-Flat
Feature ........................... .157
DRIVER MEMORY SEAT — IF EQUIPPED . . . .159
▫ Programming The Memory Feature .........160
▫ Linking And Unlinking The Remote Keyless
Entry Transmitter To Memory .............162
▫ Memory Position Recall .................162
▫ Easy Entry/Exit Seat ...................163
TO OPEN AND CLOSE THE HOOD .........164
LIGHTS ............................ .166
▫ Headlight Switch .....................166 ▫
Automatic Headlights — If Equipped .......167
▫ Headlights On With Wipers (Available With
Automatic Headlights Only) .............167
▫ Headlight Time Delay ..................167
▫ Automatic High Beam Headlamp Control —
If Equipped ........................ .168
▫ Daytime Running Lights (DRL) ...........170
▫ Lights-On Reminder ...................170
▫ Fog Lights — If Equipped ...............170
▫ Multifunction Lever ...................171
▫ Turn Signals ........................ .172
▫ Lane Change Assist ...................172
▫ High/Low Beam Switch ................172
▫ Flash-To-Pass ....................... .173
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

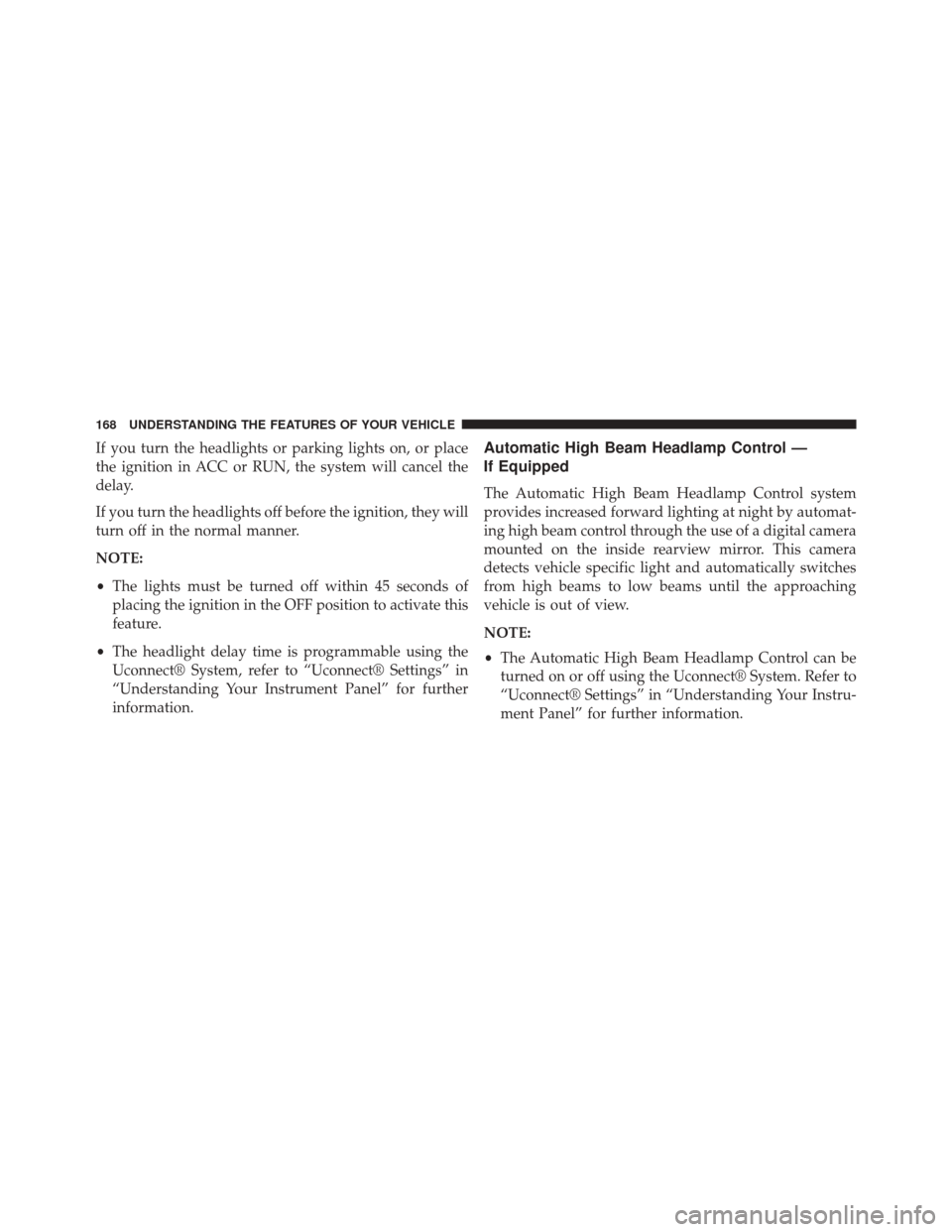

Page 170 of 690
If you turn the headlights or parking lights on, or place
the ignition in ACC or RUN, the system will cancel the
delay.
If you turn the headlights off before the ignition, they will
turn off in the normal manner.
NOTE:
•The lights must be turned off within 45 seconds of
placing the ignition in the OFF position to activate this
feature.
• The headlight delay time is programmable using the
Uconnect® System, refer to “Uconnect® Settings” in
“Understanding Your Instrument Panel” for further
information.Automatic High Beam Headlamp Control —
If Equipped
The Automatic High Beam Headlamp Control system
provides increased forward lighting at night by automat-
ing high beam control through the use of a digital camera
mounted on the inside rearview mirror. This camera
detects vehicle specific light and automatically switches
from high beams to low beams until the approaching
vehicle is out of view.
NOTE:
• The Automatic High Beam Headlamp Control can be
turned on or off using the Uconnect® System. Refer to
“Uconnect® Settings” in “Understanding Your Instru-
ment Panel” for further information.
168 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 171 of 690

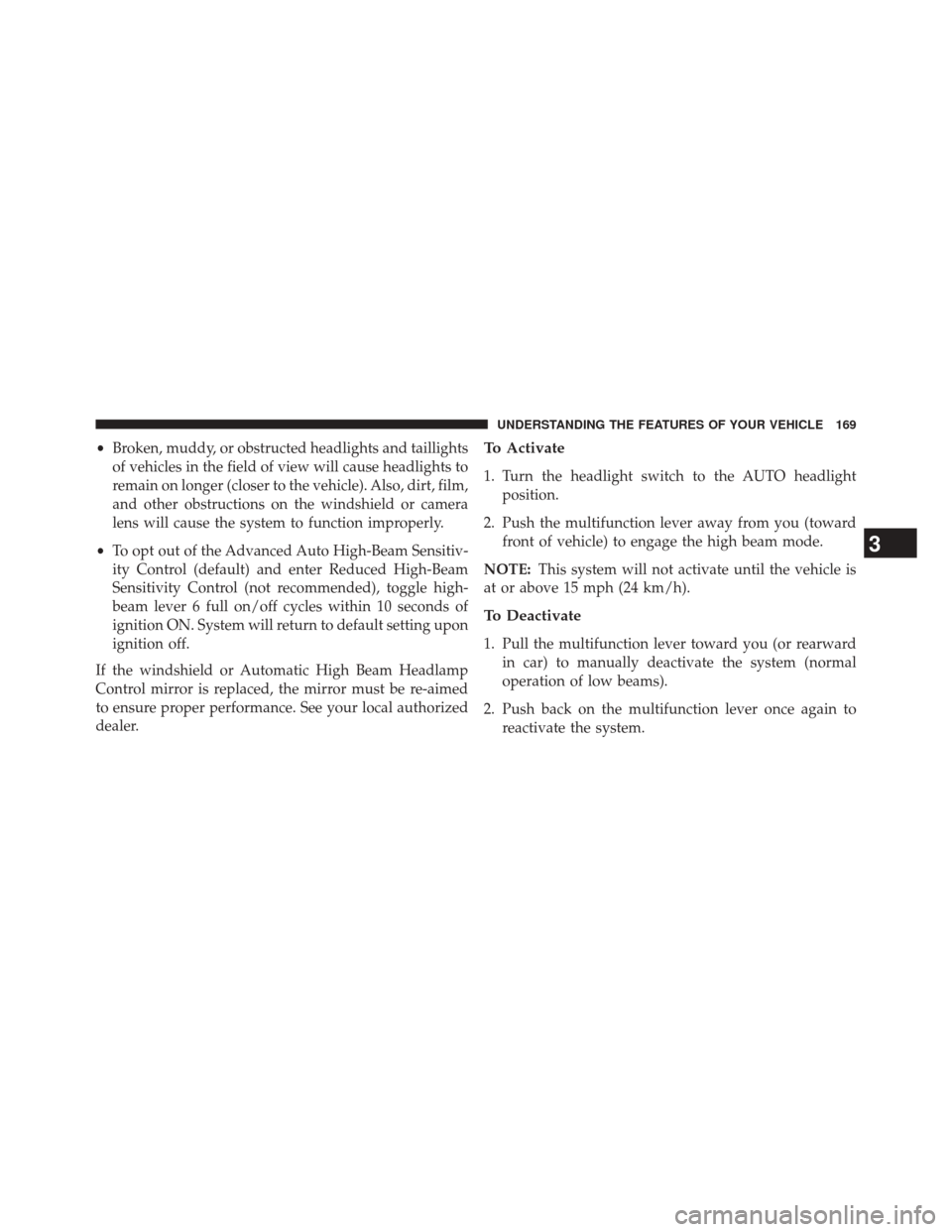

•Broken, muddy, or obstructed headlights and taillights
of vehicles in the field of view will cause headlights to
remain on longer (closer to the vehicle). Also, dirt, film,
and other obstructions on the windshield or camera
lens will cause the system to function improperly.
• To opt out of the Advanced Auto High-Beam Sensitiv-
ity Control (default) and enter Reduced High-Beam
Sensitivity Control (not recommended), toggle high-
beam lever 6 full on/off cycles within 10 seconds of
ignition ON. System will return to default setting upon
ignition off.
If the windshield or Automatic High Beam Headlamp
Control mirror is replaced, the mirror must be re-aimed
to ensure proper performance. See your local authorized
dealer.To Activate
1. Turn the headlight switch to the AUTO headlight position.
2. Push the multifunction lever away from you (toward front of vehicle) to engage the high beam mode.
NOTE: This system will not activate until the vehicle is
at or above 15 mph (24 km/h).
To Deactivate
1. Pull the multifunction lever toward you (or rearward in car) to manually deactivate the system (normal
operation of low beams).
2. Push back on the multifunction lever once again to reactivate the system.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 169
Page 425 of 690

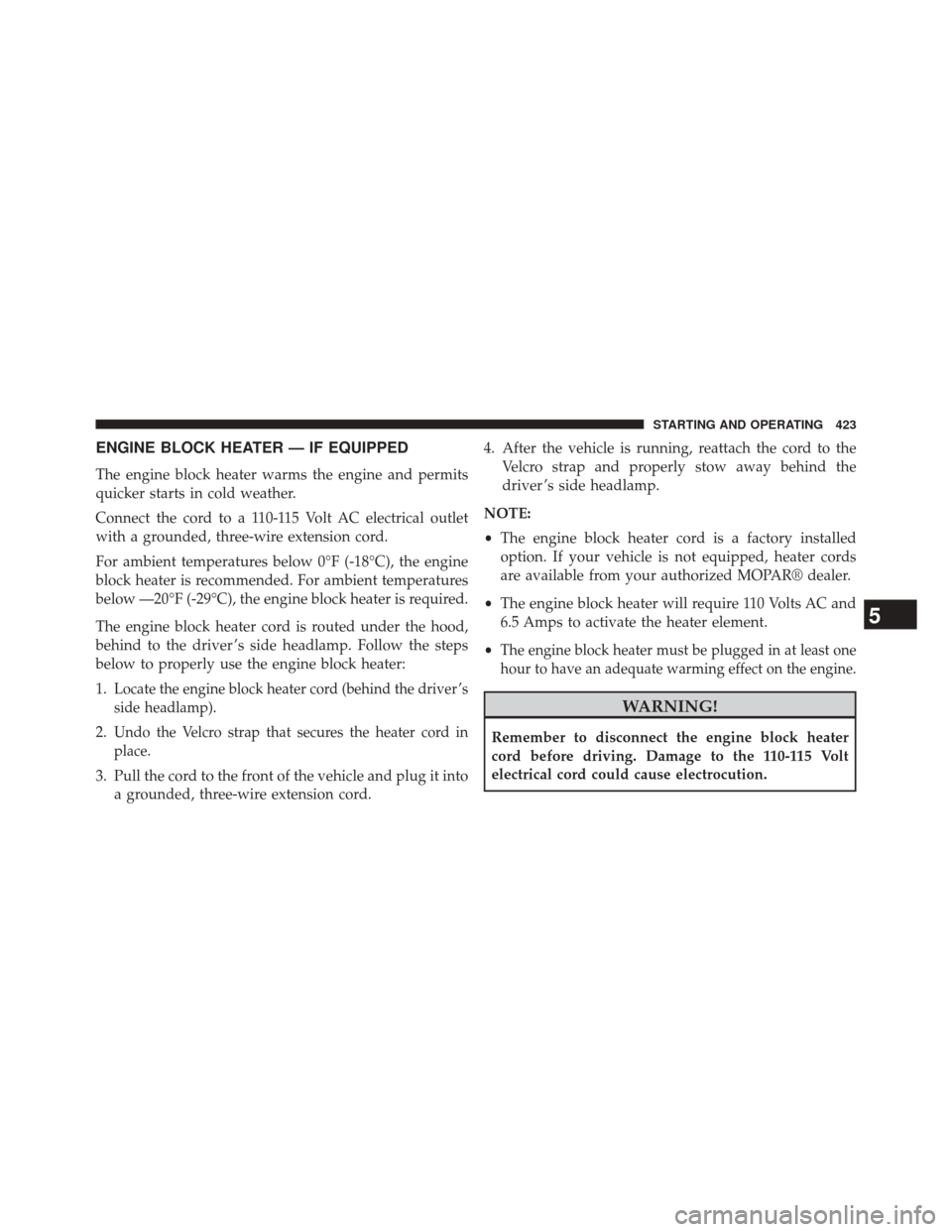

ENGINE BLOCK HEATER — IF EQUIPPED
The engine block heater warms the engine and permits
quicker starts in cold weather.
Connect the cord to a 110-115 Volt AC electrical outlet
with a grounded, three-wire extension cord.
For ambient temperatures below 0°F (-18°C), the engine
block heater is recommended. For ambient temperatures
below —20°F (-29°C), the engine block heater is required.
The engine block heater cord is routed under the hood,
behind to the driver ’s side headlamp. Follow the steps
below to properly use the engine block heater:
1.
Locate the engine block heater cord (behind the driver ’s
side headlamp).
2.Undo the Velcro strap that secures the heater cord in
place.
3. Pull the cord to the front of the vehicle and plug it intoa grounded, three-wire extension cord. 4. After the vehicle is running, reattach the cord to the
Velcro strap and properly stow away behind the
driver ’s side headlamp.
NOTE:
• The engine block heater cord is a factory installed
option. If your vehicle is not equipped, heater cords
are available from your authorized MOPAR® dealer.
• The engine block heater will require 110 Volts AC and
6.5 Amps to activate the heater element.
•
The engine block heater must be plugged in at least one
hour to have an adequate warming effect on the engine.
WARNING!
Remember to disconnect the engine block heater
cord before driving. Damage to the 110-115 Volt
electrical cord could cause electrocution.
5
STARTING AND OPERATING 423

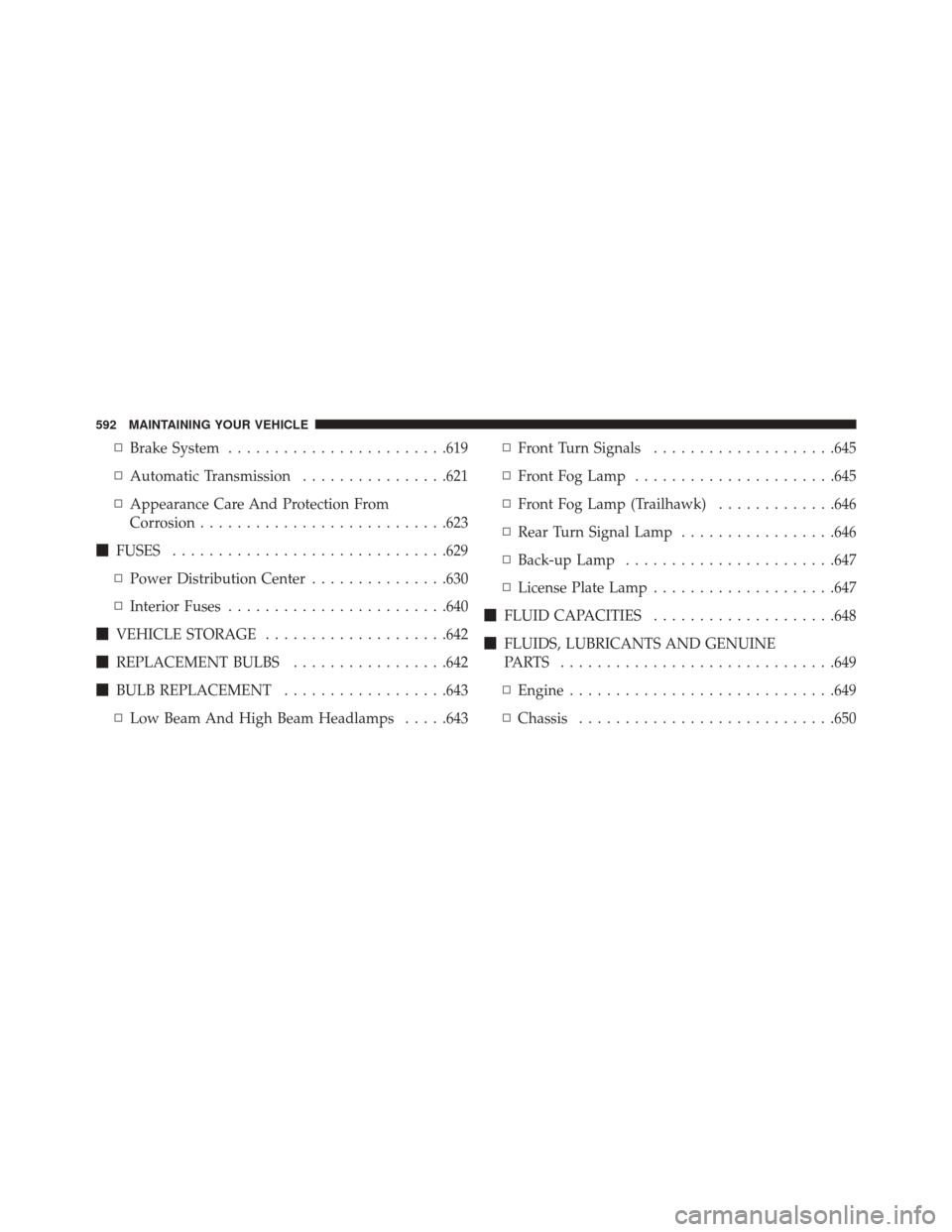

Page 594 of 690
▫Brake System ....................... .619
▫ Automatic Transmission ................621
▫ Appearance Care And Protection From
Corrosion .......................... .623
FUSES ............................. .629
▫ Power Distribution Center ...............630
▫ Interior Fuses ....................... .640
VEHICLE STORAGE ....................642
REPLACEMENT BULBS .................642
BULB REPLACEMENT ..................643
▫ Low Beam And High Beam Headlamps .....643▫
Front Turn Signals ....................645
▫ Front Fog Lamp ..................... .645
▫ Front Fog Lamp (Trailhawk) .............646
▫ Rear Turn Signal Lamp .................646
▫ Back-up Lamp ...................... .647
▫ License Plate Lamp ....................647
FLUID CAPACITIES ....................648
FLUIDS, LUBRICANTS AND GENUINE
PARTS ............................. .649
▫ Engine ............................ .649
▫ Chassis ........................... .650
592 MAINTAINING YOUR VEHICLE

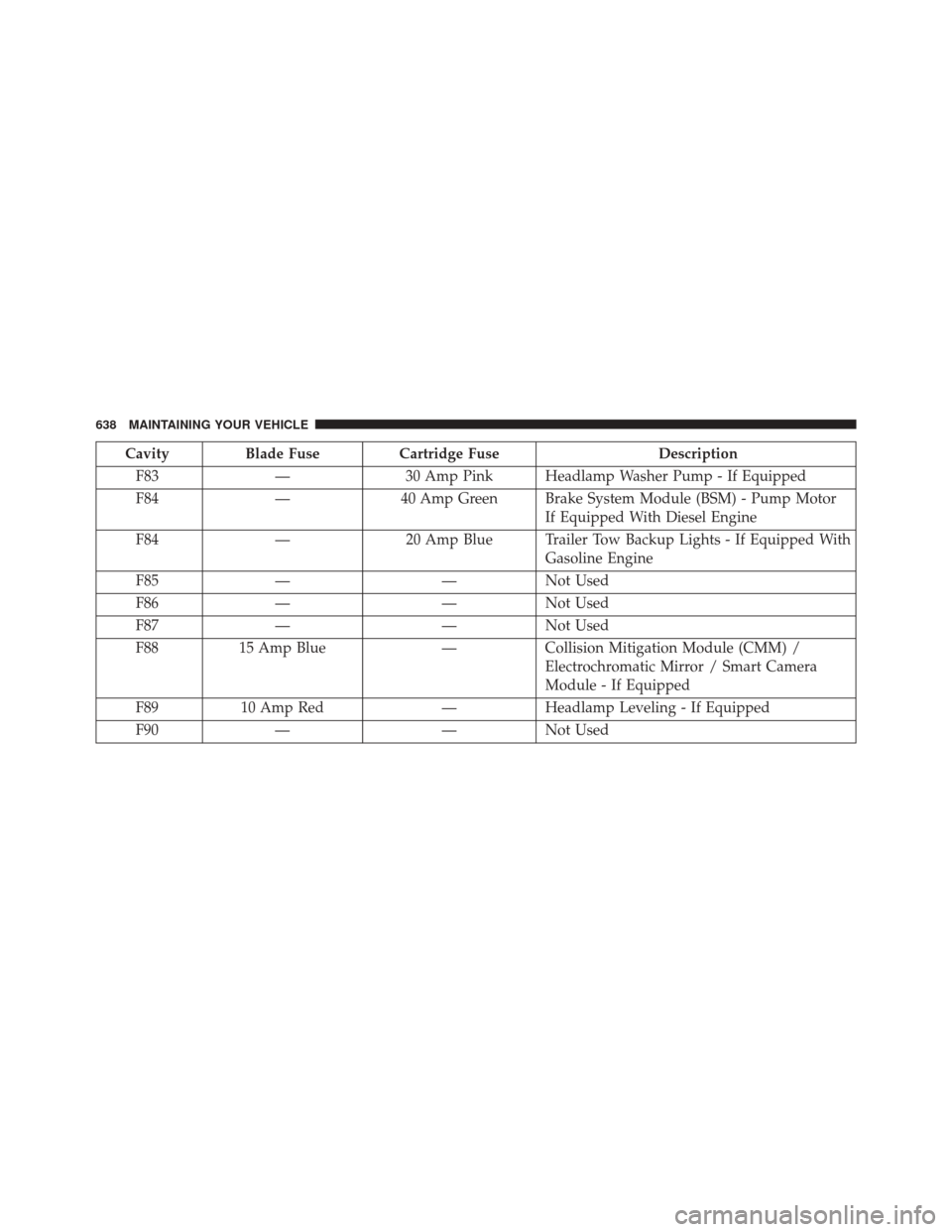

Page 640 of 690
CavityBlade Fuse Cartridge Fuse Description
F83 —30 Amp Pink Headlamp Washer Pump - If Equipped
F84 —40 Amp Green Brake System Module (BSM) - Pump Motor
If Equipped With Diesel Engine
F84 —20 Amp Blue Trailer Tow Backup Lights - If Equipped With
Gasoline Engine
F85 — —Not Used
F86 — —Not Used
F87 — —Not Used
F88 15 Amp Blue —Collision Mitigation Module (CMM) /
Electrochromatic Mirror / Smart Camera
Module - If Equipped
F89 10 Amp Red —Headlamp Leveling - If Equipped
F90 — —Not Used
638 MAINTAINING YOUR VEHICLE

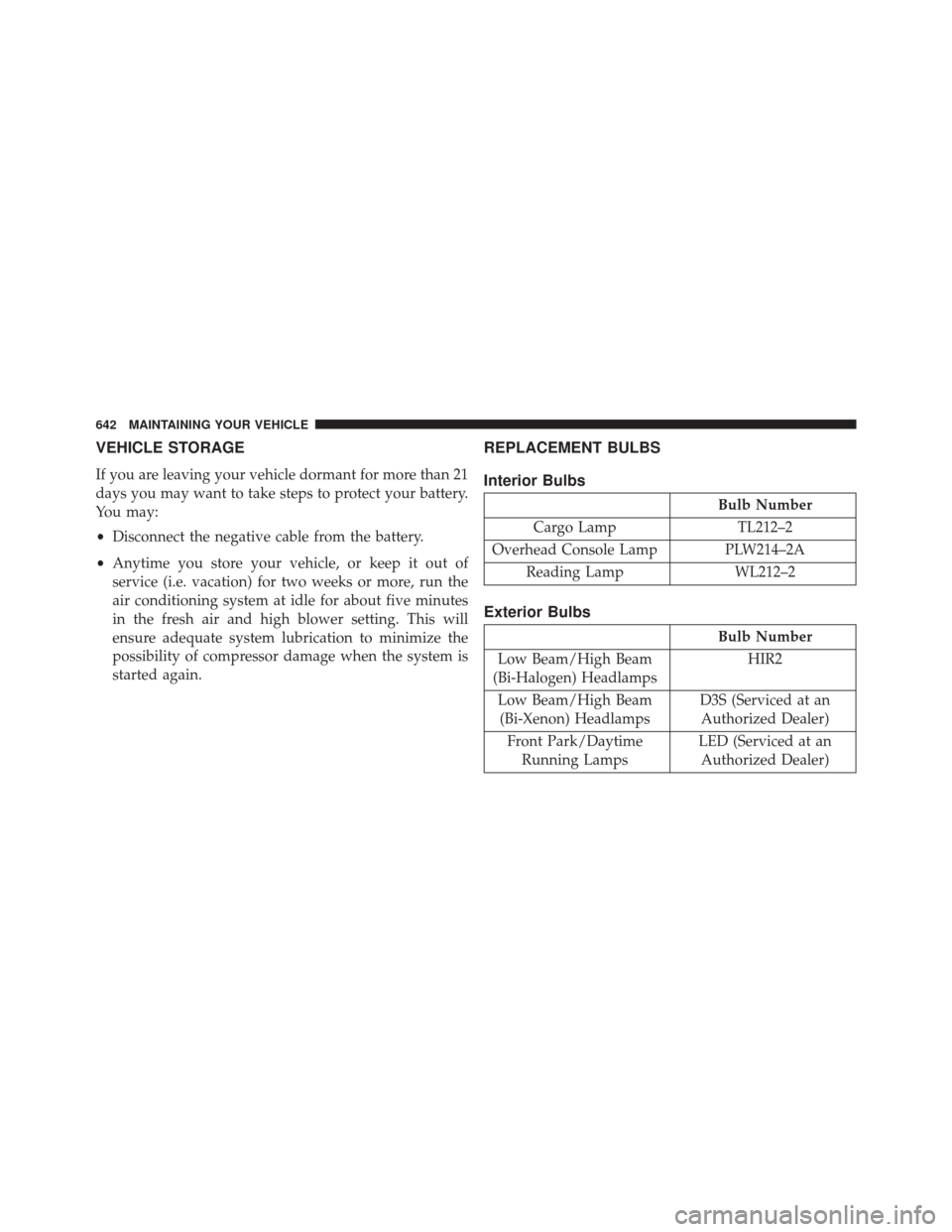

Page 644 of 690
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days you may want to take steps to protect your battery.
You may:
•Disconnect the negative cable from the battery.
• Anytime you store your vehicle, or keep it out of
service (i.e. vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Cargo Lamp TL212–2
Overhead Console Lamp PLW214–2A Reading Lamp WL212–2
Exterior Bulbs
Bulb Number
Low Beam/High Beam
(Bi-Halogen) Headlamps HIR2
Low Beam/High Beam (Bi-Xenon) Headlamps D3S (Serviced at an
Authorized Dealer)
Front Park/Daytime Running Lamps LED (Serviced at an
Authorized Dealer)
642 MAINTAINING YOUR VEHICLE

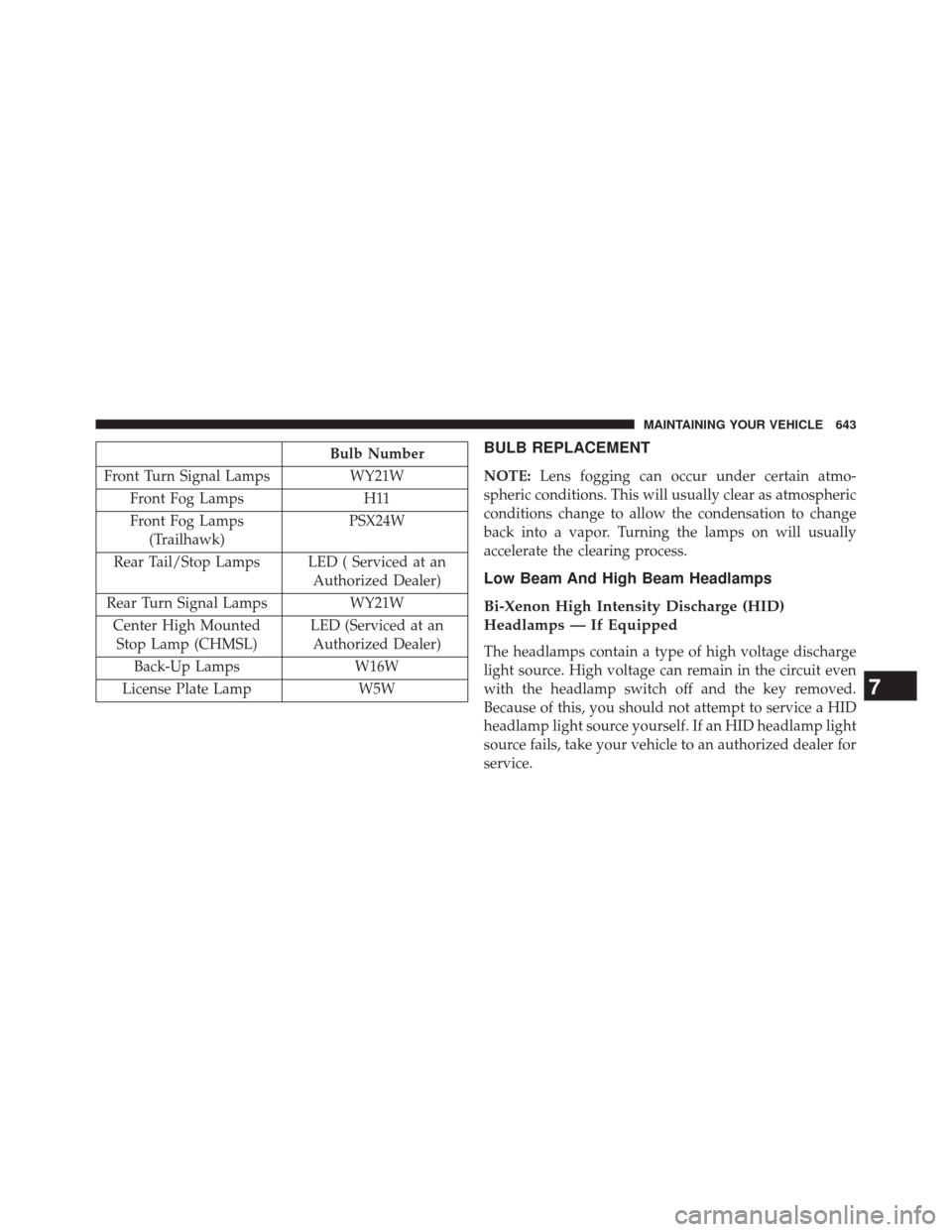

Page 645 of 690
Bulb Number
Front Turn Signal Lamps WY21W
Front Fog Lamps H11
Front Fog Lamps (Trailhawk) PSX24W
Rear Tail/Stop Lamps LED ( Serviced at an Authorized Dealer)
Rear Turn Signal Lamps WY21W
Center High Mounted Stop Lamp (CHMSL) LED (Serviced at an
Authorized Dealer)
Back-Up Lamps W16W
License Plate Lamp W5WBULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Low Beam And High Beam Headlamps
Bi-Xenon High Intensity Discharge (HID)
Headlamps — If Equipped
The headlamps contain a type of high voltage discharge
light source. High voltage can remain in the circuit even
with the headlamp switch off and the key removed.
Because of this, you should not attempt to service a HID
headlamp light source yourself. If an HID headlamp light
source fails, take your vehicle to an authorized dealer for
service.
7
MAINTAINING YOUR VEHICLE 643

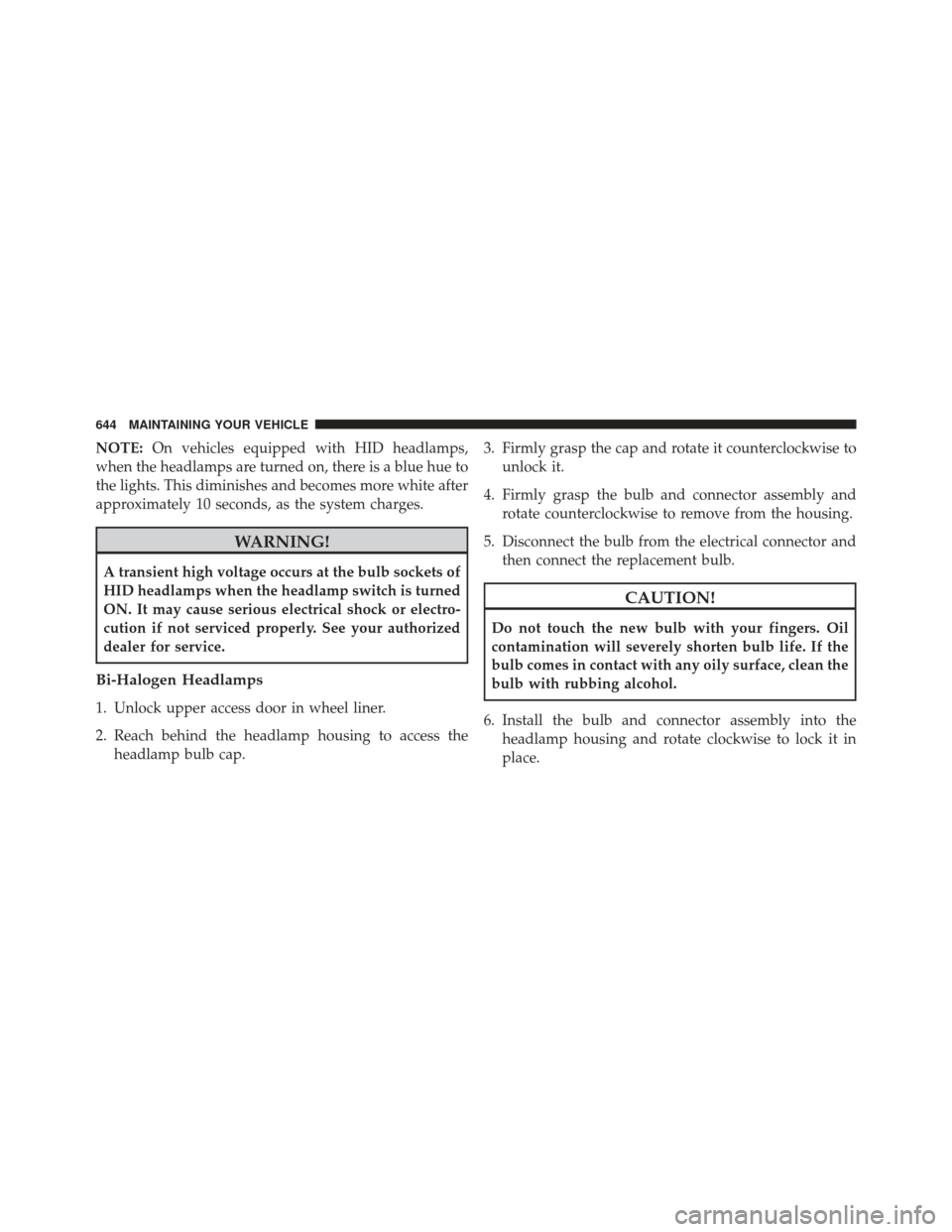

Page 646 of 690
NOTE:On vehicles equipped with HID headlamps,
when the headlamps are turned on, there is a blue hue to
the lights. This diminishes and becomes more white after
approximately 10 seconds, as the system charges.
WARNING!
A transient high voltage occurs at the bulb sockets of
HID headlamps when the headlamp switch is turned
ON. It may cause serious electrical shock or electro-
cution if not serviced properly. See your authorized
dealer for service.
Bi-Halogen Headlamps
1. Unlock upper access door in wheel liner.
2. Reach behind the headlamp housing to access the headlamp bulb cap. 3. Firmly grasp the cap and rotate it counterclockwise to
unlock it.
4. Firmly grasp the bulb and connector assembly and rotate counterclockwise to remove from the housing.
5. Disconnect the bulb from the electrical connector and then connect the replacement bulb.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
6. Install the bulb and connector assembly into the headlamp housing and rotate clockwise to lock it in
place.
644 MAINTAINING YOUR VEHICLE

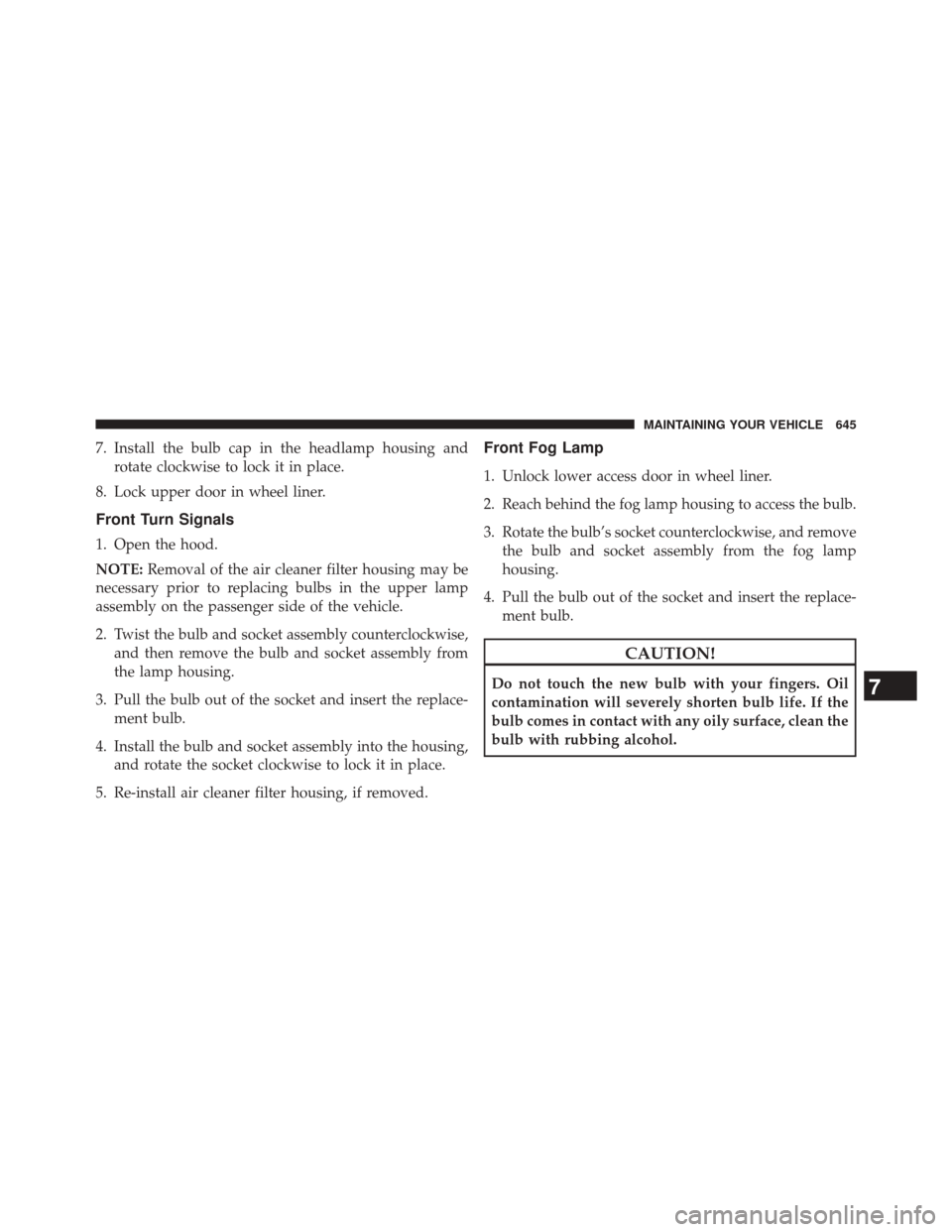

Page 647 of 690
7. Install the bulb cap in the headlamp housing androtate clockwise to lock it in place.
8. Lock upper door in wheel liner.
Front Turn Signals
1. Open the hood.
NOTE: Removal of the air cleaner filter housing may be
necessary prior to replacing bulbs in the upper lamp
assembly on the passenger side of the vehicle.
2. Twist the bulb and socket assembly counterclockwise, and then remove the bulb and socket assembly from
the lamp housing.
3. Pull the bulb out of the socket and insert the replace- ment bulb.
4. Install the bulb and socket assembly into the housing, and rotate the socket clockwise to lock it in place.
5. Re-install air cleaner filter housing, if removed.
Front Fog Lamp
1. Unlock lower access door in wheel liner.
2. Reach behind the fog lamp housing to access the bulb.
3. Rotate the bulb’s socket counterclockwise, and remove the bulb and socket assembly from the fog lamp
housing.
4. Pull the bulb out of the socket and insert the replace- ment bulb.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.7
MAINTAINING YOUR VEHICLE 645
