maintenance reset JEEP CHEROKEE 2014 KL / 5.G User Guide

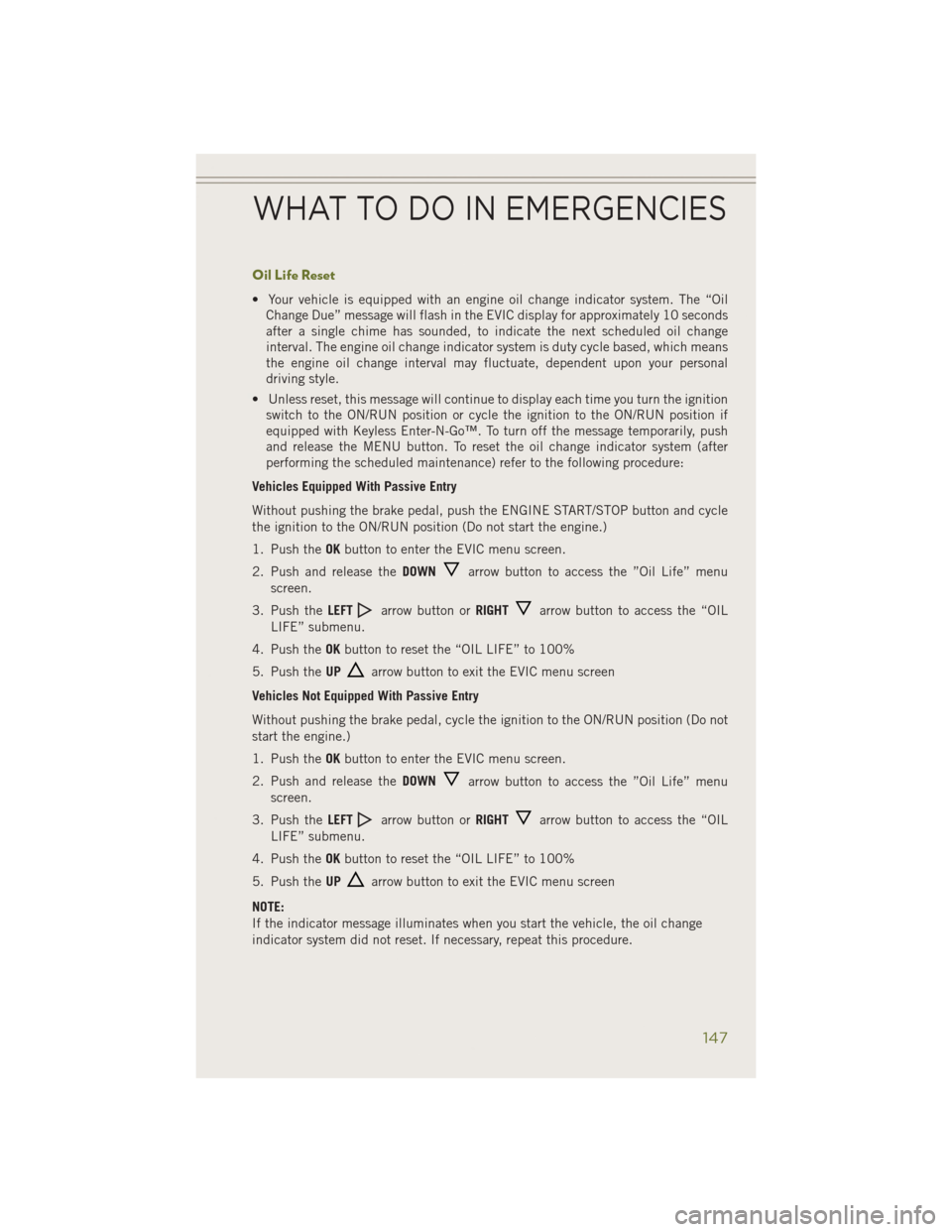

Oil Life Reset
• Your vehicle is equipped with an engine oil change indicator system. The “OilChange Due” message will flash in the EVIC display for approximately 10 seconds
after a single chime has sounded, to indicate the next scheduled oil change
interval. The engine oil change indicator system is duty cycle based, which means
the engine oil change interval may fluctuate, dependent upon your personal
driving style.
• Unless reset, this message will continue to display each time you turn the ignition switch to the ON/RUN position or cycle the ignition to the ON/RUN position if
equipped with Keyless Enter-N-Go™. To turn off the message temporarily, push
and release the MENU button. To reset the oil change indicator system (after
performing the scheduled maintenance) refer to the following procedure:
Vehicles Equipped With Passive Entry
Without pushing the brake pedal, push the ENGINE START/STOP button and cycle
the ignition to the ON/RUN position (Do not start the engine.)
1. Push the OKbutton to enter the EVIC menu screen.
2. Push and release the DOWN
arrow button to access the ”Oil Life” menu
screen.
3. Push the LEFT
arrow button or RIGHTarrow button to access the “OIL
LIFE” submenu.
4. Push the OKbutton to reset the “OIL LIFE” to 100%
5. Push the UP
arrow button to exit the EVIC menu screen
Vehicles Not Equipped With Passive Entry
Without pushing the brake pedal, cycle the ignition to the ON/RUN position (Do not
start the engine.)
1. Push the OKbutton to enter the EVIC menu screen.
2. Push and release the DOWN
arrow button to access the ”Oil Life” menu
screen.
3. Push the LEFT
arrow button or RIGHTarrow button to access the “OIL
LIFE” submenu.
4. Push the OKbutton to reset the “OIL LIFE” to 100%
5. Push the UP
arrow button to exit the EVIC menu screen
NOTE:
If the indicator message illuminates when you start the vehicle, the oil change
indicator system did not reset. If necessary, repeat this procedure.
WHAT TO DO IN EMERGENCIES
147

MAINTENANCE SCHEDULE
Your vehicle is equipped with an automatic oil change indicator system. The oil
change indicator system will remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change indicator message will
illuminate. This means that service is required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, extremely hot or cold ambient temperatures
will influence when the “Oil Change Required” message is displayed. Severe
Operating Conditions can cause the change oil message to illuminate as early as
3,500 miles (5,600 km) since last reset. Have your vehicle serviced as soon as
possible, within the next 500 miles (805 km).
Your authorized dealer will reset the oil change indicator message after completing
the scheduled oil change. If a scheduled oil change is performed by someone other
than your authorized dealer, the message can be reset by referring to the steps
described under “Instrument Cluster Warning Lights” in “What To Do In Emergen-
cies” in this guide or “Electronic Vehicle Information Center (EVIC)” or “Driver
Information Display (DID)” in “Understanding Your Instrument Panel” in your
Owners Manual on the DVD for further information.
NOTE:
Under no circumstances should oil change intervals exceed 10,000 miles
(16,000 km) or twelve months, whichever comes first.
Severe Duty All Models
Change Engine Oil at 4000 miles (6,500 km) if the vehicle is operated in a dusty and
off road environment. This type of vehicle use is considered Severe Duty.
MAINTAINING YOUR VEHICLE
175

Lower Anchors and Tether for CHildren(LATCH) ...............21
Maintenance Record .........178
MaintenanceSchedule........175
Malfunction Indicator Light (CheckEngine) ..........146
Mirrors Heated ..........41,43,45
MOPAR
®Accessories .........188
Navigation ............89,108
New Vehicle Break-In Period .....31
OilChangeIndicator.........147
Oil Change Indicator, Reset .....147
Oil, Engine Capacity ..............173
Outlet Power ...............126
Overheating, Engine .........151
Panic Alarm ...............12
ParkSense
®...............46
ParkSense®Active Park Assist ....47
ParkSense®System, Front
AndRear...............46
ParkSense
®System, Rear .......46
Placard, Tire and Loading Information .............184
Power Glass Sunroof ...........50
Inverter ..............125
Outlet (Auxiliary Electrical
Outlet) ..............126
Seats ................25
Programmable Electronic Features ..............122
Rain Sensitive Wiper System .....33
RearCamera ..............49
Rear Park Assist System ........46
Rear ParkSense System ......46,49
Rear Seat, Folding ...........27
Recreational Towing .........136
Shifting into Power Transfer Unit
Neutral (N) ............138 Shifting into Transfer Case
Neutral (N)
............138
Shifting out of Power Transfer Unit
Neutral (N) ............139
Shifting out of Transfer Case
Neutral (N) ............139
Remote Keyless Entry (RKE) Arm The Alarm ...........13
Disarm The Alarm .........13
Remote Starting System ........12
Replacement Bulbs ..........185
Reporting Safety Defects .......187
RollOverWarning ............5
Schedule,Maintenance .......175
Seat Belt Automatic Locking Retractor
(ALR) ................18
Child Restraints ........18,20
Energy Management Feature . . .18
Engage The Automatic
Locking Mode ...........23
Lap/Shoulder Belts .........18
Seat Belt Pretensioner ......18
Seat Belt Reminder ........18
Seats ...................25
Heated ...............28
Rear Folding ............27
Ventilated .............28
Security Alarm ............148
Arm The System ..........13
Disarm The System ........13
Security Alarm ...........13
Selec-Terrain .............134
Shifting Power Transfer Unit, Shifting into
Power Transfer Unit
Neutral (N) ......... 138, 139
Transfer Case, Shifting into Transfer
Case Neutral (N) .........138
Transfer Case, Shifting out of
Transfer Case Neutral (N) ....139
Shift Lever Override .........167
Signals, Turn ...........31,148
SIRIUS Travel Link ..........111
SpareTire...............158
SparkPlugs..............173
INDEX
193
