JEEP CHEROKEE 2015 KL / 5.G User Guide

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

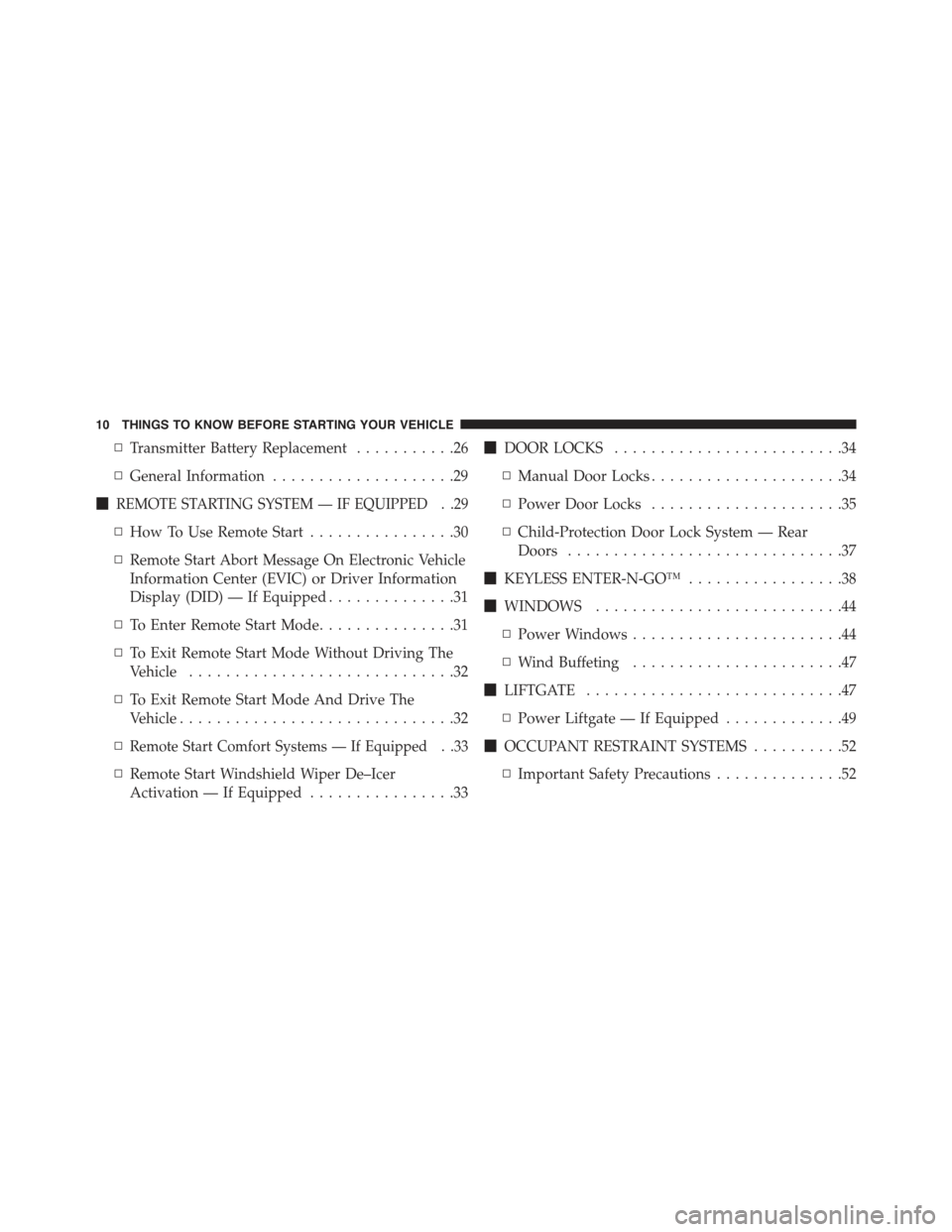

CONTENTS
!A WORD ABOUT YOUR KEYS.............12
▫Ignition Node Module (IGNM) — If Equipped. .12
▫Keyless Ignition Node (KIN)..............13
▫Key Fob — If Equipped..................14
▫Ignition Or Accessory On Message..........15
!SENTRY KEY®.........................16
▫Replacement Keys.....................18
▫Customer Key Programming..............18
▫General Information....................18
!VEHICLE SECURITY ALARM — IF EQUIPPED . . .19
▫Rearming Of The System.................19
▫To Arm The System....................19
▫To Disarm The System...................20
▫Security System Manual Override...........21
!ILLUMINATED ENTRY...................22
!REMOTE KEYLESS ENTRY (RKE)...........22
▫To Unlock The Doors And Liftgate..........24
▫To Lock The Doors And Liftgate............25
▫Using The Panic Alarm..................25
▫Programming Additional Transmitters.......26
2

▫Transmitter Battery Replacement...........26
▫General Information....................29
!REMOTE STARTING SYSTEM — IF EQUIPPED . .29
▫How To Use Remote Start................30
▫Remote Start Abort Message On Electronic Vehicle
Information Center (EVIC) or Driver Information
Display (DID) — If Equipped..............31
▫To Enter Remote Start Mode...............31
▫To Exit Remote Start Mode Without Driving The
Vehicle.............................32
▫To Exit Remote Start Mode And Drive The
Vehicle..............................32
▫Remote Start Comfort Systems — If Equipped . .33
▫Remote Start Windshield Wiper De–Icer
Activation — If Equipped................33
!DOOR LOCKS.........................34
▫Manual Door Locks.....................34
▫Power Door Locks.....................35
▫Child-Protection Door Lock System — Rear
Doors..............................37
!KEYLESS ENTER-N-GO™.................38
!WINDOWS...........................44
▫Power Windows.......................44
▫Wind Buffeting.......................47
!LIFTGATE............................47
▫Power Liftgate — If Equipped.............49
!OCCUPANT RESTRAINT SYSTEMS..........52
▫Important Safety Precautions..............52

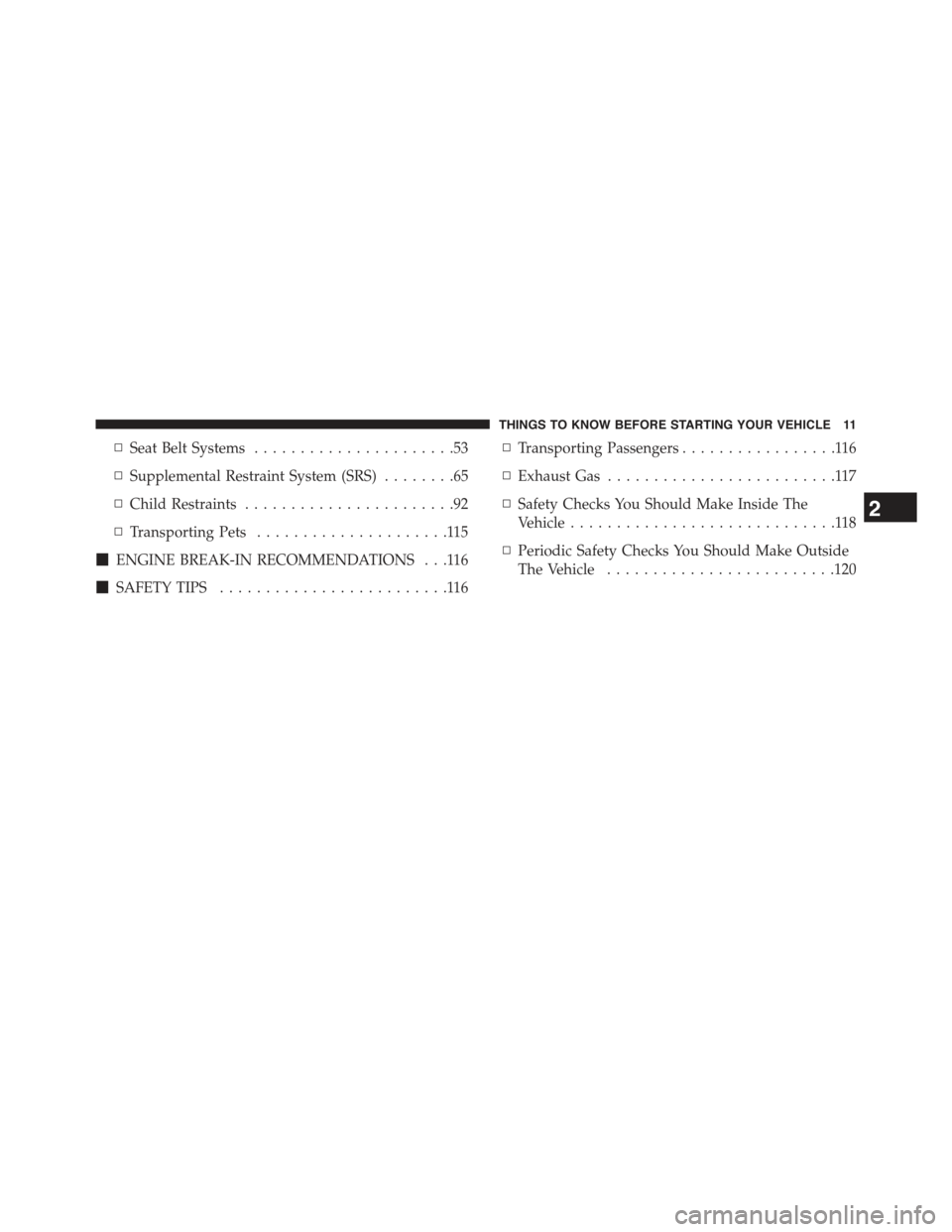

10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫Seat Belt Systems......................53
▫Supplemental Restraint System (SRS)........65
▫Child Restraints.......................92
▫Transporting Pets.....................115
!ENGINE BREAK-IN RECOMMENDATIONS . . .116
!SAFETY TIPS.........................116
▫Transporting Passengers.................116
▫Exhaust Gas.........................117
▫Safety Checks You Should Make Inside The
Vehicle.............................118
▫Periodic Safety Checks You Should Make Outside
The Vehicle.........................120
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

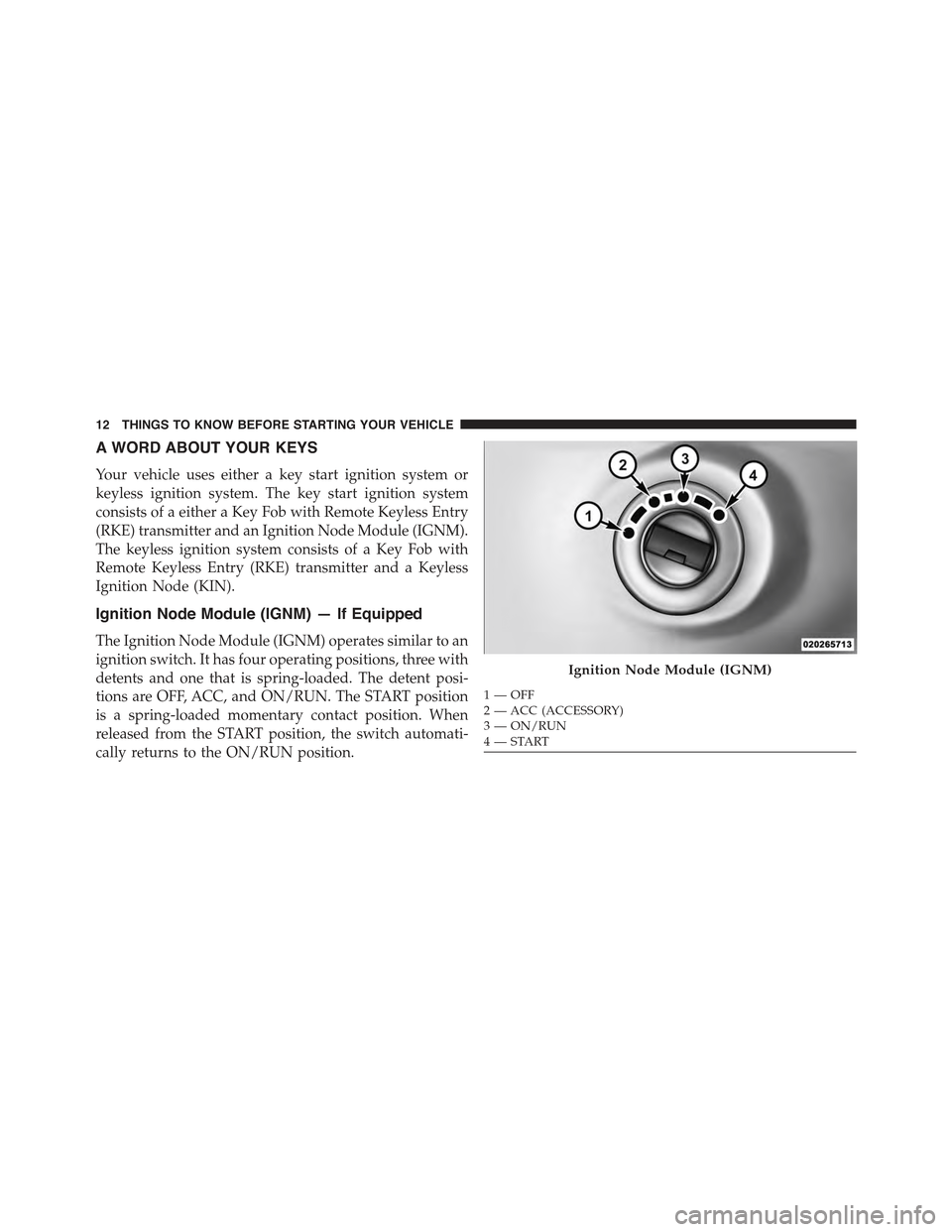

A WORD ABOUT YOUR KEYS
Your vehicle uses either a key start ignition system or
keyless ignition system. The key start ignition system
consists of a either a Key Fob with Remote Keyless Entry
(RKE) transmitter and an Ignition Node Module (IGNM).
The keyless ignition system consists of a Key Fob with
Remote Keyless Entry (RKE) transmitter and a Keyless
Ignition Node (KIN).
Ignition Node Module (IGNM) — If Equipped
The Ignition Node Module (IGNM) operates similar to an
ignition switch. It has four operating positions, three with
detents and one that is spring-loaded. The detent posi-
tions are OFF, ACC, and ON/RUN. The START position
is a spring-loaded momentary contact position. When
released from the START position, the switch automati-
cally returns to the ON/RUN position.
Ignition Node Module (IGNM)
1—OFF2—ACC(ACCESSORY)3—ON/RUN4—START
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Keyless Ignition Node (KIN)
This feature allows the driver to operate the ignition
switch with the push of a button, as long as the Remote
Keyless Entry (RKE) transmitter is in the passenger
compartment.
The Keyless Ignition Node (KIN System) has four oper-
ating positions, three of which are labeled and will
illuminate when in position. The three positions are OFF,
ACC, and ON/RUN. The fourth position is START,
during start RUN will illuminate.
NOTE:In case the ignition switch does not change with
the push of a button, the RKE transmitter (Key Fob) may
have a low or dead battery. In this situation a back up
method can be used to operate the ignition switch. Put
the nose side (side opposite of the emergency key) of the
Key Fob against the ENGINE START/STOP button and
push to operate the ignition switch.
Keyless Ignition Node (KIN System)
1—OFF2—ACC(ACCESSORY)3—ON/RUN
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

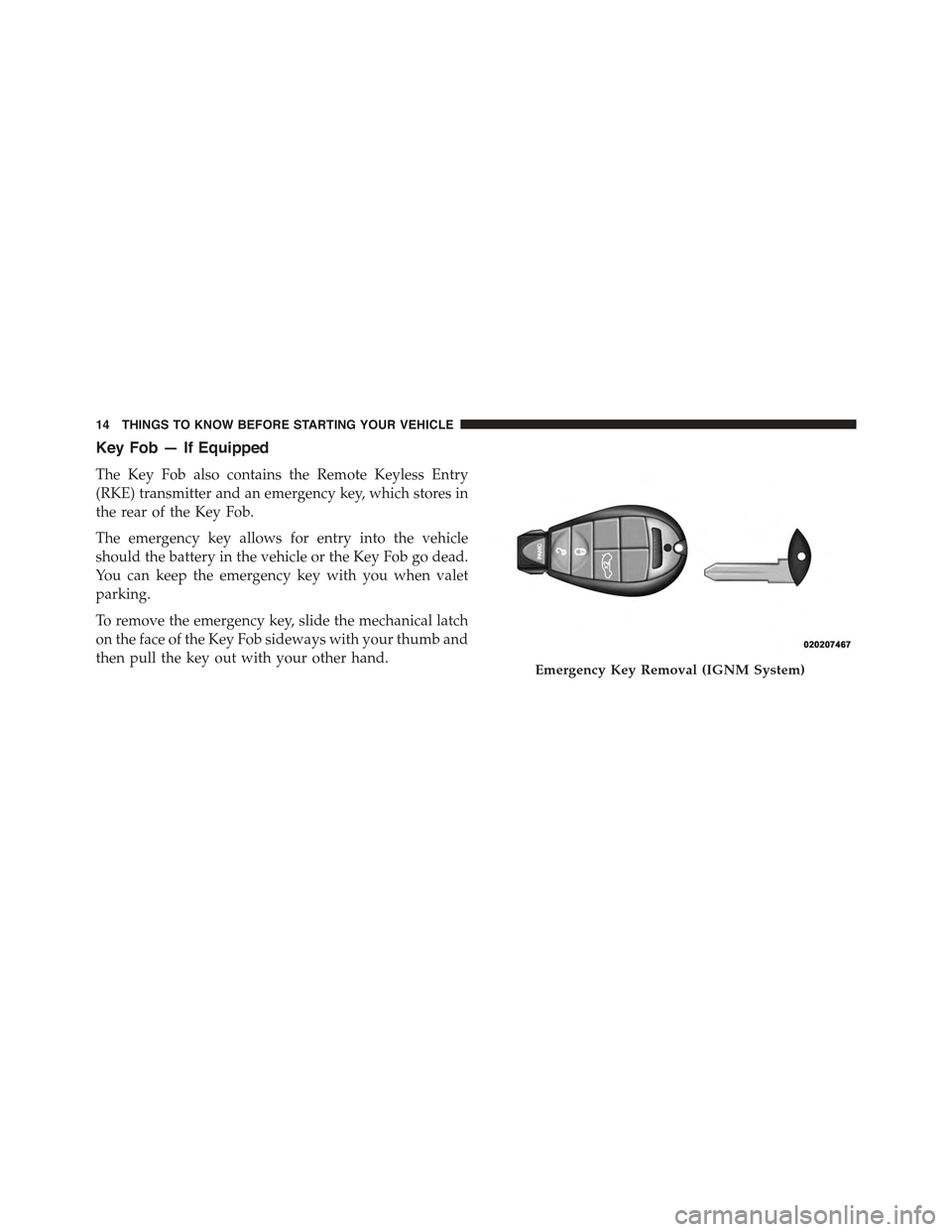

Key Fob — If Equipped
The Key Fob also contains the Remote Keyless Entry
(RKE) transmitter and an emergency key, which stores in
the rear of the Key Fob.
The emergency key allows for entry into the vehicle
should the battery in the vehicle or the Key Fob go dead.
You can keep the emergency key with you when valet
parking.
To remove the emergency key, slide the mechanical latch
on the face of the Key Fob sideways with your thumb and
then pull the key out with your other hand.Emergency Key Removal (IGNM System)
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

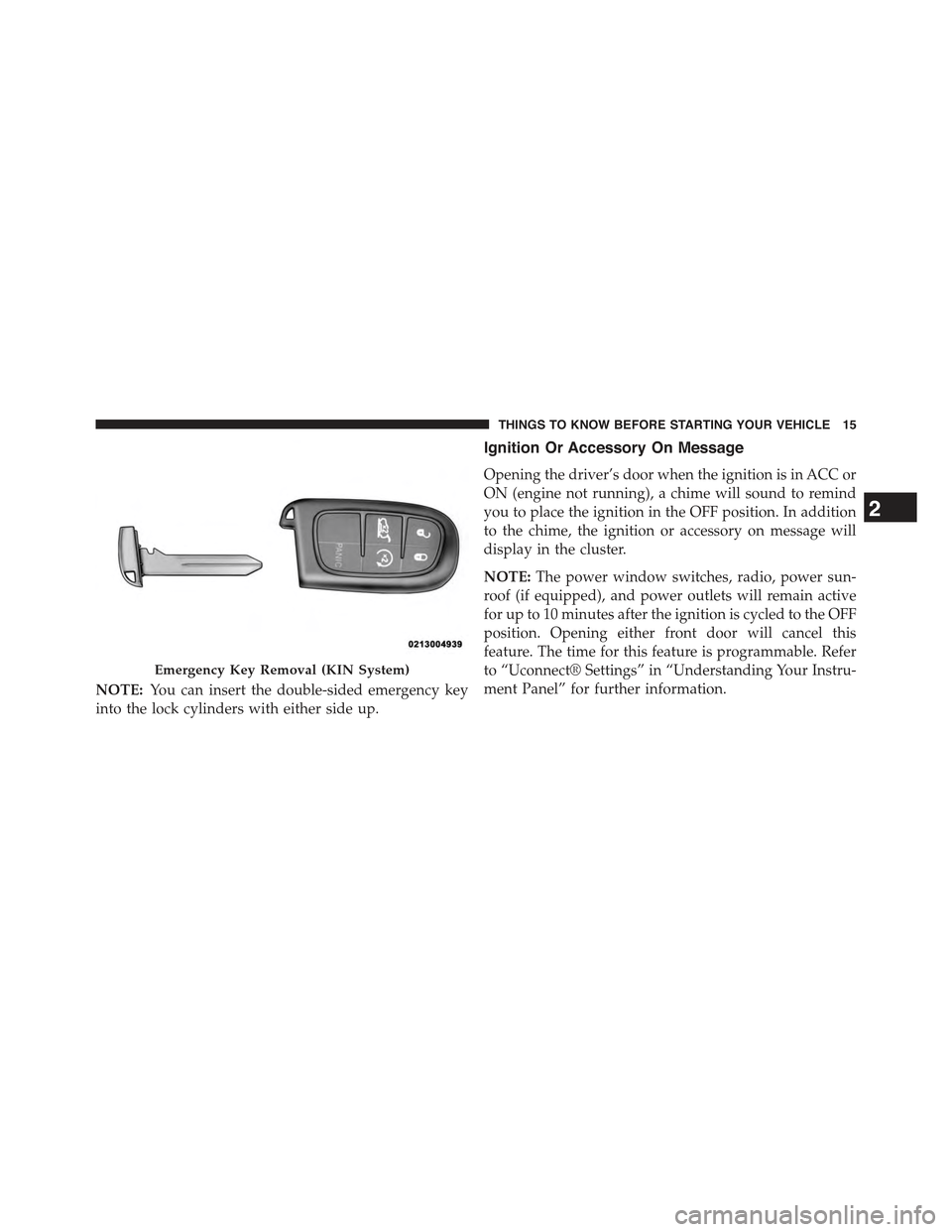

NOTE:You can insert the double-sided emergency key
into the lock cylinders with either side up.
Ignition Or Accessory On Message
Opening the driver’s door when the ignition is in ACC or
ON (engine not running), a chime will sound to remind
you to place the ignition in the OFF position. In addition
to the chime, the ignition or accessory on message will
display in the cluster.
NOTE:The power window switches, radio, power sun-
roof (if equipped), and power outlets will remain active
for up to 10 minutes after the ignition is cycled to the OFF
position. Opening either front door will cancel this
feature. The time for this feature is programmable. Refer
to “Uconnect® Settings” in “Understanding Your Instru-
ment Panel” for further information.
Emergency Key Removal (KIN System)
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

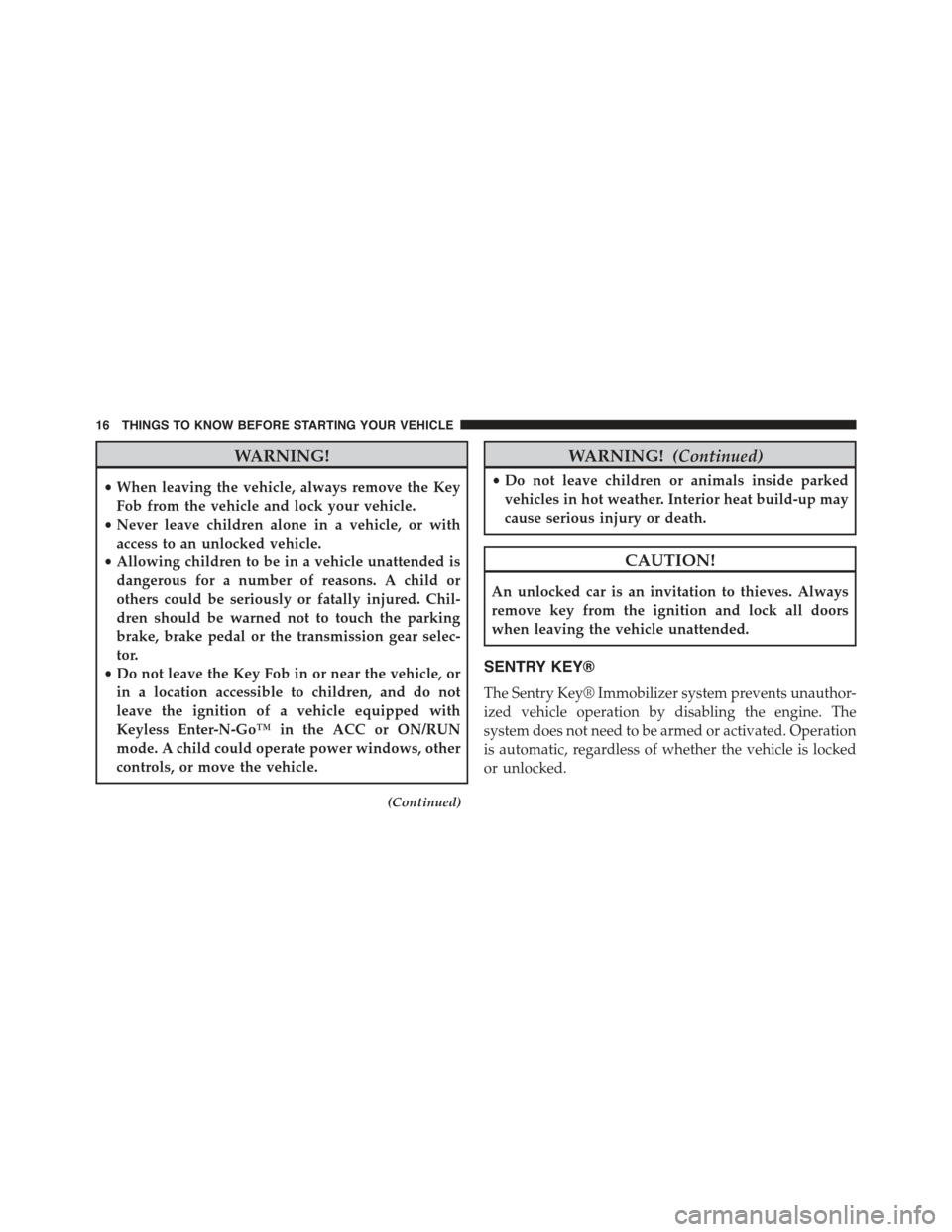

WARNING!
•When leaving the vehicle, always remove the Key
Fob from the vehicle and lock your vehicle.
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
•Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the transmission gear selec-
tor.
•Do not leave the Key Fob in or near the vehicle, or
in a location accessible to children, and do not
leave the ignition of a vehicle equipped with
Keyless Enter-N-Go™ in the ACC or ON/RUN
mode. A child could operate power windows, other
controls, or move the vehicle.
(Continued)
WARNING!(Continued)
•Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove key from the ignition and lock all doors
when leaving the vehicle unattended.
SENTRY KEY®
The Sentry Key® Immobilizer system prevents unauthor-
ized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

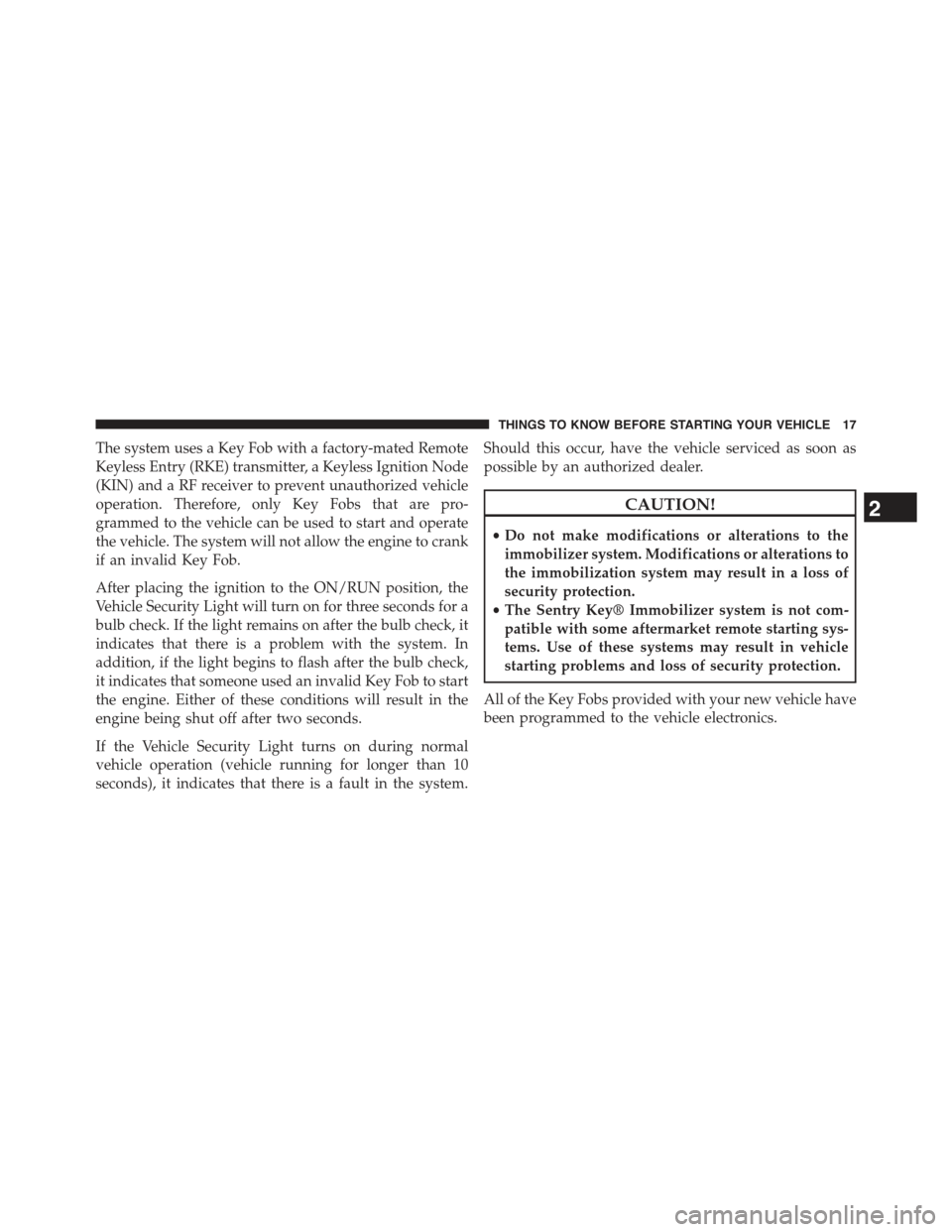

The system uses a Key Fob with a factory-mated Remote
Keyless Entry (RKE) transmitter, a Keyless Ignition Node
(KIN) and a RF receiver to prevent unauthorized vehicle
operation. Therefore, only Key Fobs that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will not allow the engine to crank
if an invalid Key Fob.
After placing the ignition to the ON/RUN position, the
Vehicle Security Light will turn on for three seconds for a
bulb check. If the light remains on after the bulb check, it
indicates that there is a problem with the system. In
addition, if the light begins to flash after the bulb check,
it indicates that someone used an invalid Key Fob to start
the engine. Either of these conditions will result in the
engine being shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10
seconds), it indicates that there is a fault in the system.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer.
CAUTION!
•Do not make modifications or alterations to the
immobilizer system. Modifications or alterations to
the immobilization system may result in a loss of
security protection.
•The Sentry Key® Immobilizer system is not com-
patible with some aftermarket remote starting sys-
tems. Use of these systems may result in vehicle
starting problems and loss of security protection.
All of the Key Fobs provided with your new vehicle have
been programmed to the vehicle electronics.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

Replacement Keys
NOTE:Only Key Fobs that are programmed to the
vehicle electronics can be used to start and operate the
vehicle. Once a Key Fob is programmed to a vehicle, it
cannot be programmed to any other vehicle.
CAUTION!
•Always remove the Key Fobs from the vehicle and
lock all doors when leaving the vehicle unat-
tended.
•For vehicles equipped with Keyless Enter-N-Go™,
always remember to place the ignition in the OFF
position.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of Key Fobs.
Duplication of Key Fobs may be performed at an autho-
rized dealer. This procedure consists of programming a
blank Key Fob to the vehicle electronics. A blank Key Fob
is one that has never been programmed.
NOTE:When having the Sentry Key® Immobilizer Sys-
tem serviced, bring all vehicle keys with you to an
authorized dealer.
Customer Key Programming
Programming Key Fobs or RKE transmitters may be
performed at an authorized dealer.
General Information
The Sentry Key® system complies with FCC rules part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
