JEEP CHEROKEE 2015 KL / 5.G Owners Manual
Manufacturer: JEEP, Model Year: 2015, Model line: CHEROKEE, Model: JEEP CHEROKEE 2015 KL / 5.GPages: 772, PDF Size: 18.21 MB
Page 731 of 772

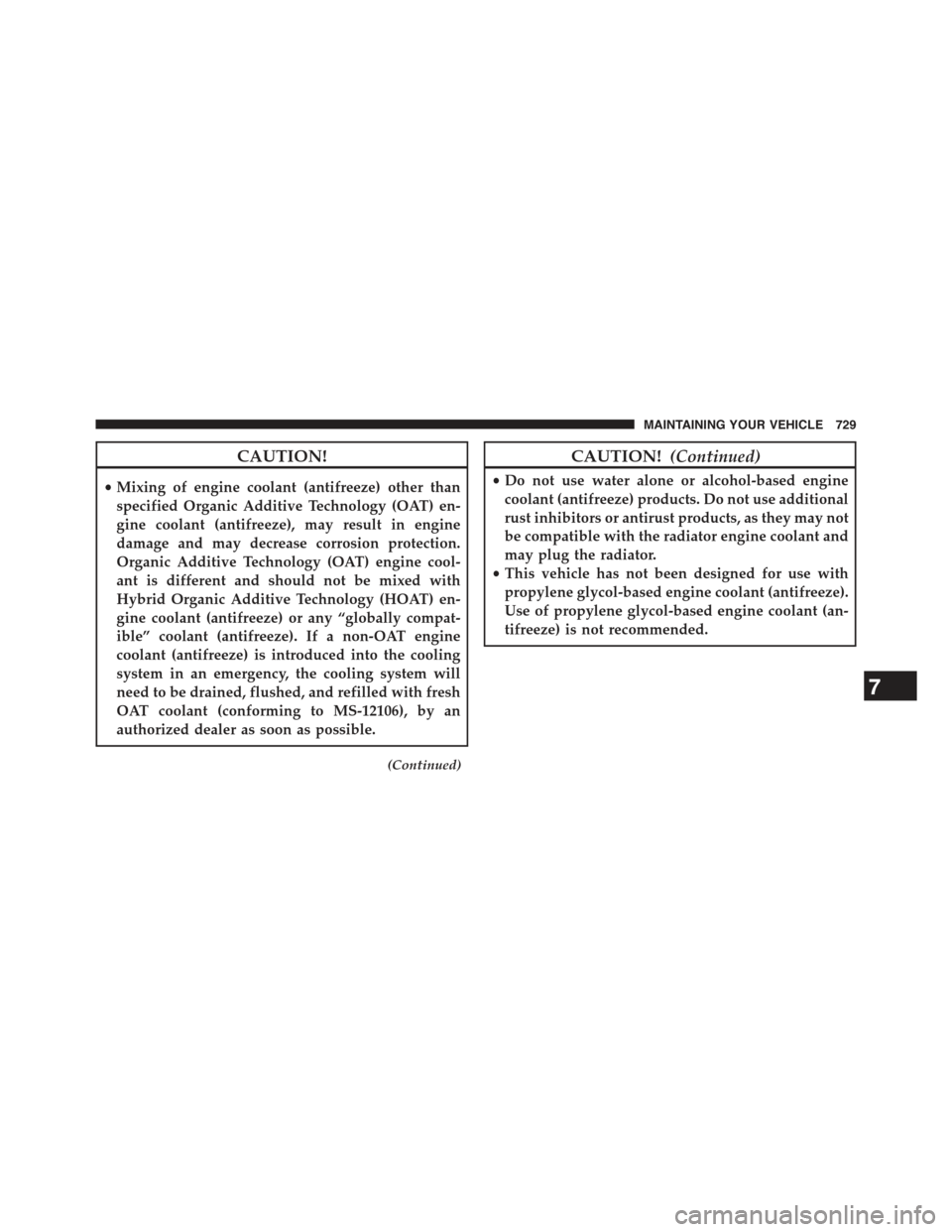

CAUTION!
•Mixing of engine coolant (antifreeze) other than
specified Organic Additive Technology (OAT) en-
gine coolant (antifreeze), may result in engine
damage and may decrease corrosion protection.
Organic Additive Technology (OAT) engine cool-
ant is different and should not be mixed with
Hybrid Organic Additive Technology (HOAT) en-
gine coolant (antifreeze) or any “globally compat-
ible” coolant (antifreeze). If a non-OAT engine
coolant (antifreeze) is introduced into the cooling
system in an emergency, the cooling system will
need to be drained, flushed, and refilled with fresh
OAT coolant (conforming to MS-12106), by an
authorized dealer as soon as possible.
(Continued)
CAUTION!(Continued)
•Do not use water alone or alcohol-based engine
coolant (antifreeze) products. Do not use additional
rust inhibitors or antirust products, as they may not
be compatible with the radiator engine coolant and
may plug the radiator.
•This vehicle has not been designed for use with
propylene glycol-based engine coolant (antifreeze).
Use of propylene glycol-based engine coolant (an-
tifreeze) is not recommended.
7
MAINTAINING YOUR VEHICLE 729
Page 732 of 772

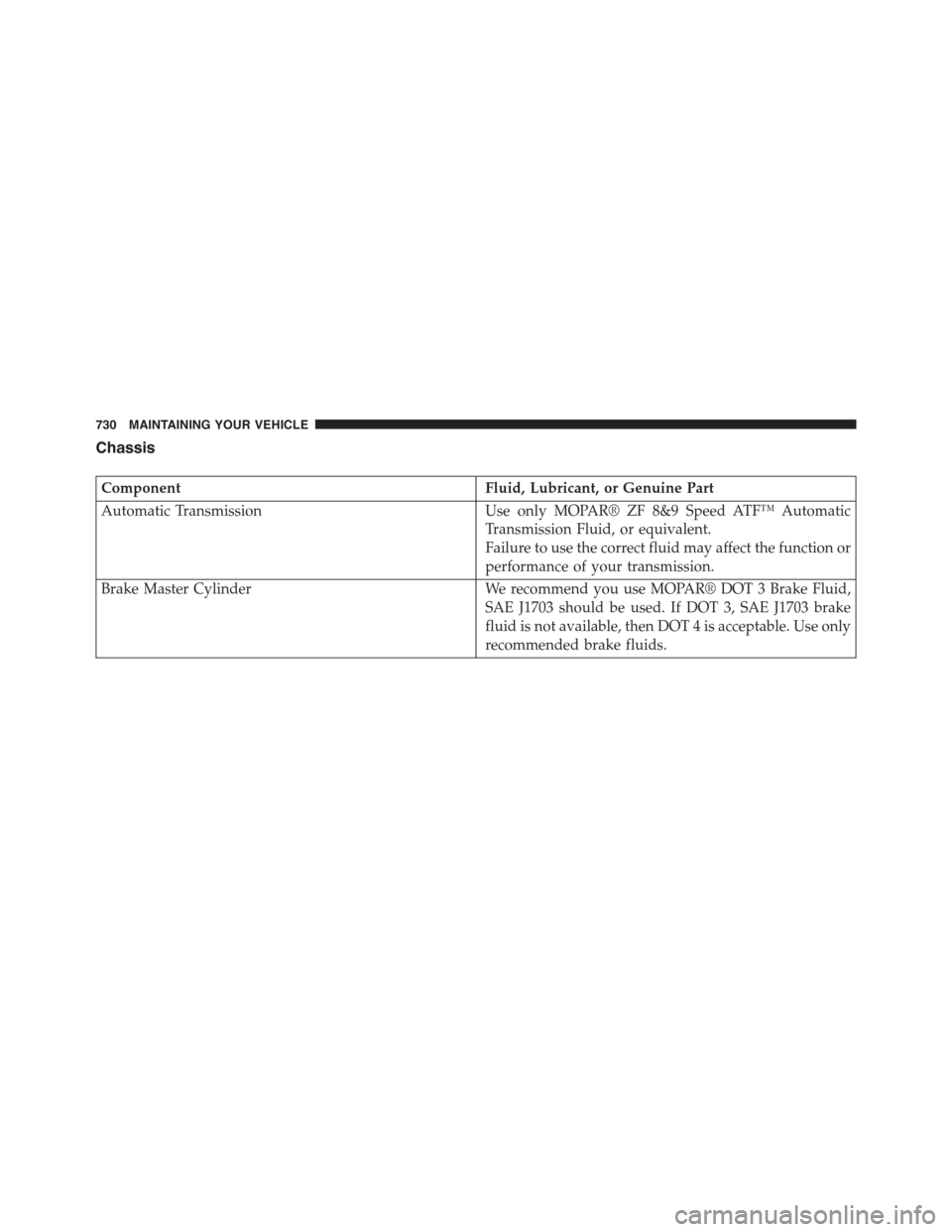

Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic TransmissionUse only MOPAR® ZF 8&9 Speed ATF™ Automatic
Transmission Fluid, or equivalent.
Failure to use the correct fluid may affect the function or
performance of your transmission.
Brake Master CylinderWe recommend you use MOPAR® DOT 3 Brake Fluid,
SAE J1703 should be used. If DOT 3, SAE J1703 brake
fluid is not available, then DOT 4 is acceptable. Use only
recommended brake fluids.
730 MAINTAINING YOUR VEHICLE
Page 733 of 772
MAINTENANCE SCHEDULES
CONTENTS
!MAINTENANCE SCHEDULE.............732▫Maintenance Chart.....................734
8
MAINTENANCE
SCHEDULES
Page 734 of 772

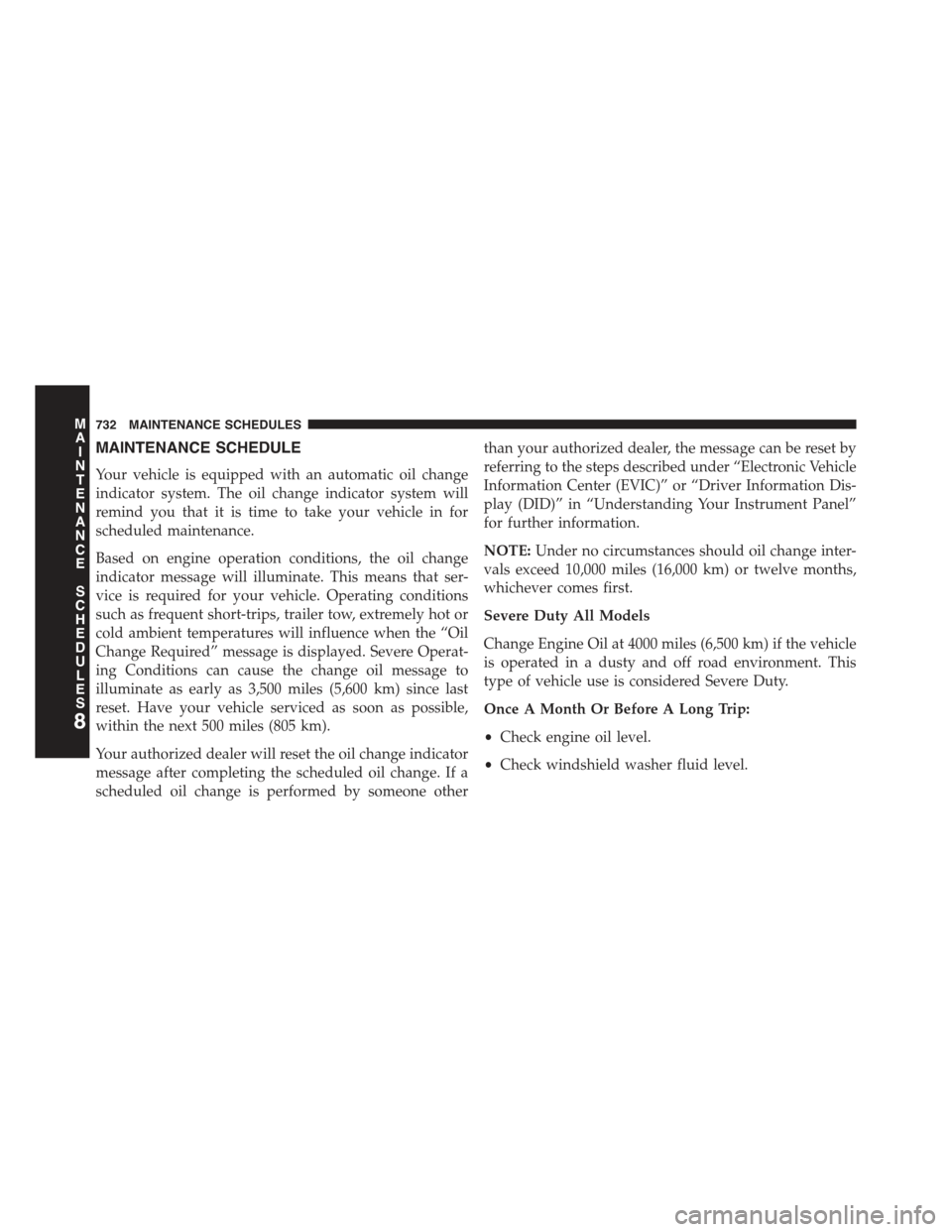

MAINTENANCE SCHEDULE
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, extremely hot or
cold ambient temperatures will influence when the “Oil
Change Required” message is displayed. Severe Operat-
ing Conditions can cause the change oil message to
illuminate as early as 3,500 miles (5,600 km) since last
reset. Have your vehicle serviced as soon as possible,
within the next 500 miles (805 km).
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other
than your authorized dealer, the message can be reset by
referring to the steps described under “Electronic Vehicle
Information Center (EVIC)” or “Driver Information Dis-
play (DID)” in “Understanding Your Instrument Panel”
for further information.
NOTE:Under no circumstances should oil change inter-
vals exceed 10,000 miles (16,000 km) or twelve months,
whichever comes first.
Severe Duty All Models
Change Engine Oil at 4000 miles (6,500 km) if the vehicle
is operated in a dusty and off road environment. This
type of vehicle use is considered Severe Duty.
Once A Month Or Before A Long Trip:
•Check engine oil level.
•Check windshield washer fluid level.
8
MAINTENANCE
SCHEDULES
732 MAINTENANCE SCHEDULES
Page 735 of 772

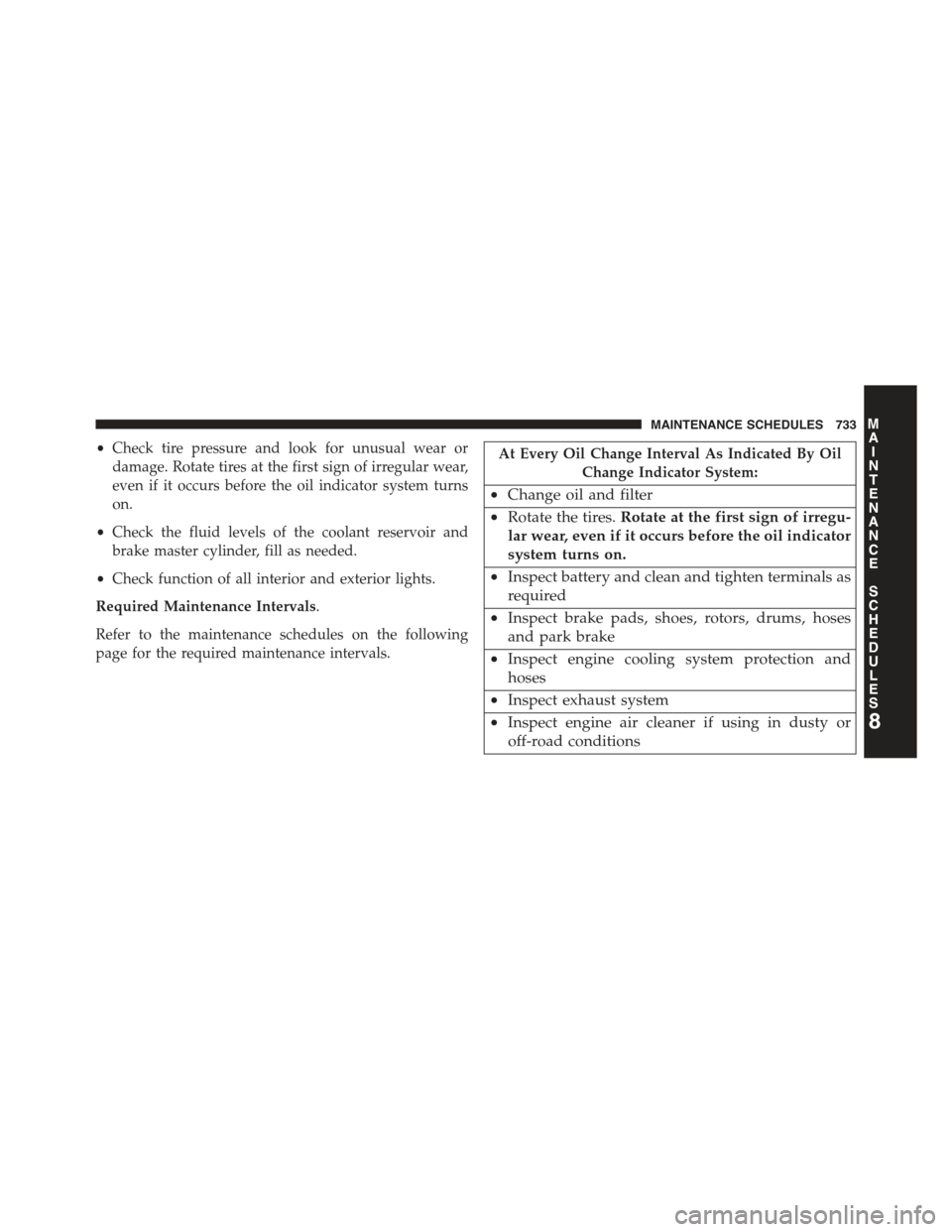

•Check tire pressure and look for unusual wear or
damage. Rotate tires at the first sign of irregular wear,
even if it occurs before the oil indicator system turns
on.
•Check the fluid levels of the coolant reservoir and
brake master cylinder, fill as needed.
•Check function of all interior and exterior lights.
Required Maintenance Intervals.
Refer to the maintenance schedules on the following
page for the required maintenance intervals.
At Every Oil Change Interval As Indicated By Oil
Change Indicator System:
•Change oil and filter
•Rotate the tires.Rotate at the first sign of irregu-
lar wear, even if it occurs before the oil indicator
system turns on.
•Inspect battery and clean and tighten terminals as
required
•Inspect brake pads, shoes, rotors, drums, hoses
and park brake
•Inspect engine cooling system protection and
hoses
•Inspect exhaust system
•Inspect engine air cleaner if using in dusty or
off-road conditions
8
MAINTENANCE
SCHEDULES
MAINTENANCE SCHEDULES 733
Page 736 of 772

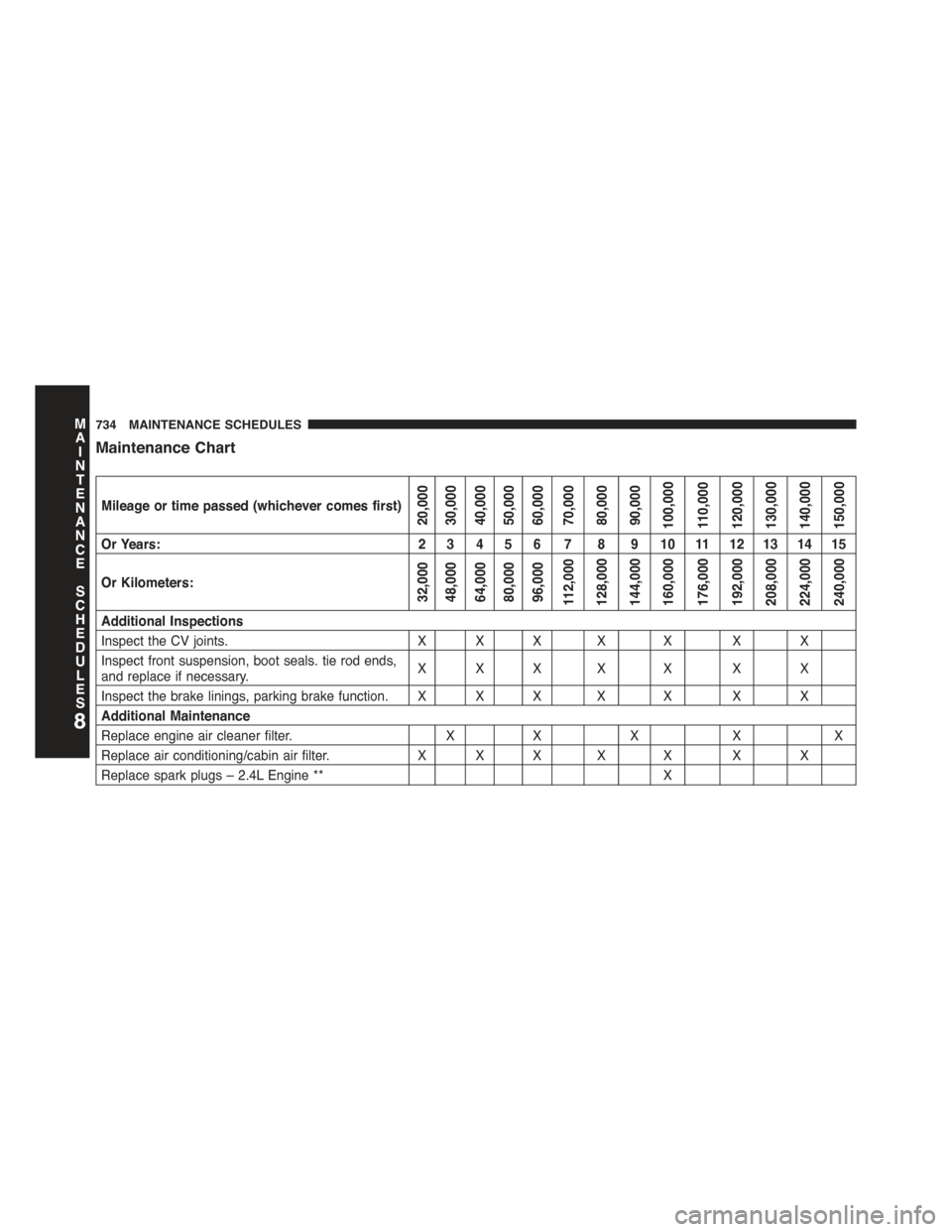

Maintenance Chart
Mileage or time passed (whichever comes first)20,00030,00040,00050,00060,00070,00080,00090,000100,000110,000120,000130,000140,000150,000
Or Years:2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:32,00048,00064,00080,00096,000112,000128,000144,000160,000176,000192,000208,000224,000240,000
Additional Inspections
Inspect the CV joints.XXX X X X X
Inspect front suspension, boot seals. tie rod ends,and replace if necessary.XXX X X X X
Inspect the brake linings, parking brake function. X X X X X X X
Additional Maintenance
Replace engine air cleaner filter.XXXXX
Replace air conditioning/cabin air filter.XXX X X X X
Replace spark plugs – 2.4L Engine **X
8
MAINTENANCE
SCHEDULES
734 MAINTENANCE SCHEDULES
Page 737 of 772

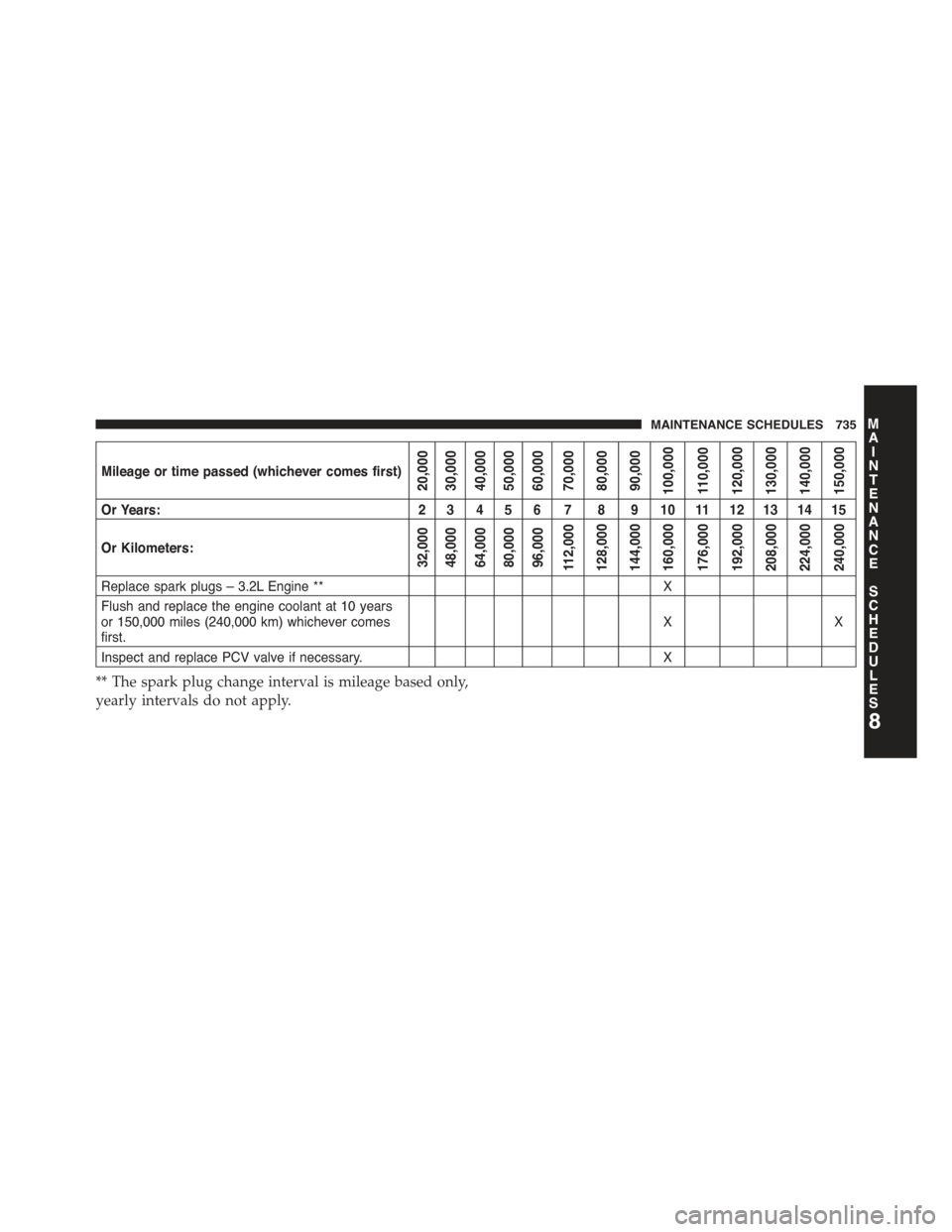

Mileage or time passed (whichever comes first)20,00030,00040,00050,00060,00070,00080,00090,000100,000110,000120,000130,000140,000150,000
Or Years:2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:32,00048,00064,00080,00096,000112,000128,000144,000160,000176,000192,000208,000224,000240,000
Replace spark plugs – 3.2L Engine **X
Flush and replace the engine coolant at 10 yearsor 150,000 miles (240,000 km) whichever comesfirst.XX
Inspect and replace PCV valve if necessary.X
** The spark plug change interval is mileage based only,
yearly intervals do not apply.
8
MAINTENANCE
SCHEDULES
MAINTENANCE SCHEDULES 735
Page 738 of 772

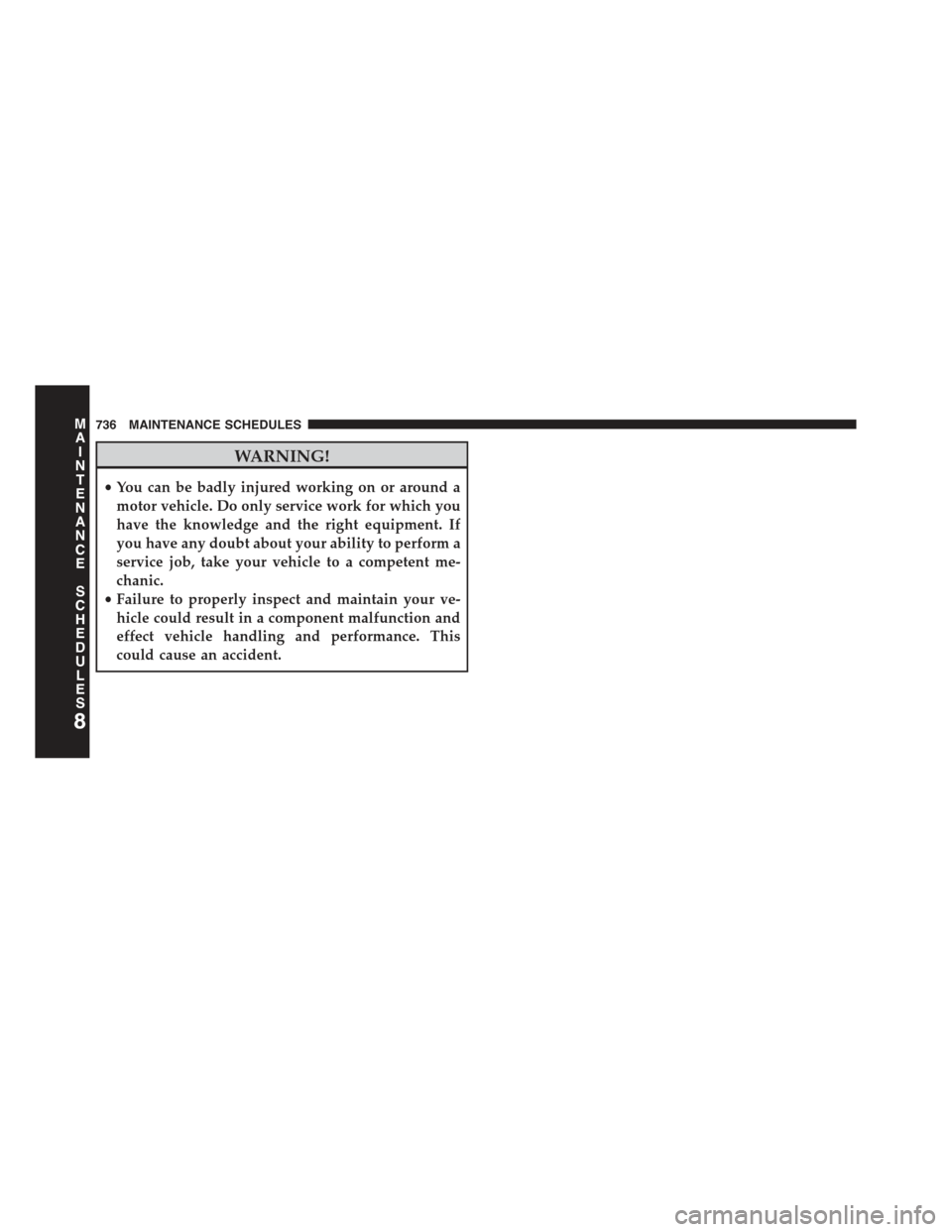

WARNING!
•You can be badly injured working on or around a
motor vehicle. Do only service work for which you
have the knowledge and the right equipment. If
you have any doubt about your ability to perform a
service job, take your vehicle to a competent me-
chanic.
•Failure to properly inspect and maintain your ve-
hicle could result in a component malfunction and
effect vehicle handling and performance. This
could cause an accident.
8
MAINTENANCE
SCHEDULES
736 MAINTENANCE SCHEDULES
Page 739 of 772

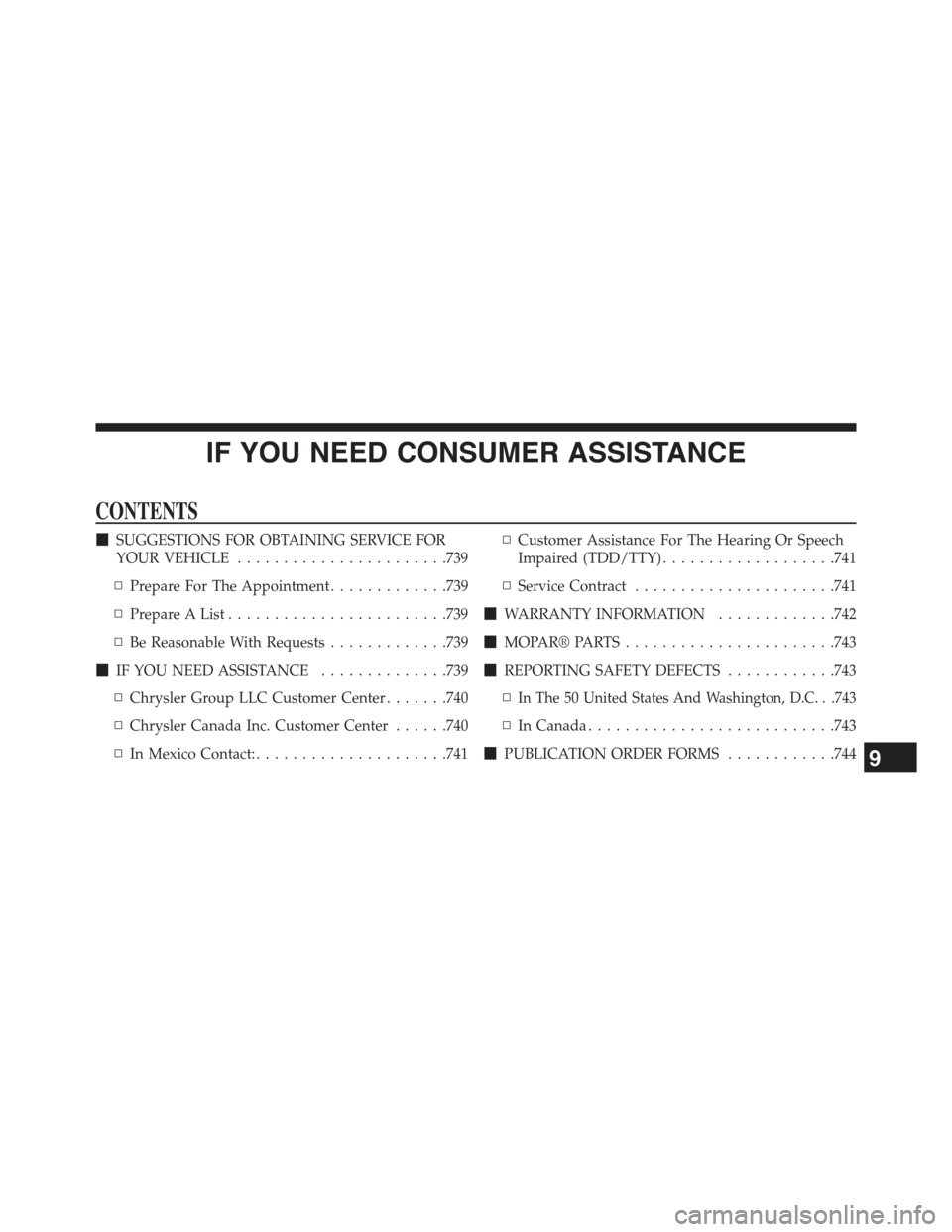

IF YOU NEED CONSUMER ASSISTANCE
CONTENTS
!SUGGESTIONS FOR OBTAINING SERVICE FOR
YOUR VEHICLE.......................739
▫Prepare For The Appointment.............739
▫Prepare A List........................739
▫Be Reasonable With Requests.............739
!IF YOU NEED ASSISTANCE..............739
▫Chrysler Group LLC Customer Center.......740
▫Chrysler Canada Inc. Customer Center......740
▫In Mexico Contact:.....................741
▫Customer Assistance For The Hearing Or Speech
Impaired (TDD/TTY)...................741
▫Service Contract......................741
!WARRANTY INFORMATION.............742
!MOPAR® PARTS . . . . . . . . . . . . . . . . . . . . . ..743
!REPORTING SAFETY DEFECTS............743
▫In The 50 United States And Washington, D.C. . .743
▫In Canada...........................743
!PUBLICATION ORDER FORMS............7449
Page 740 of 772

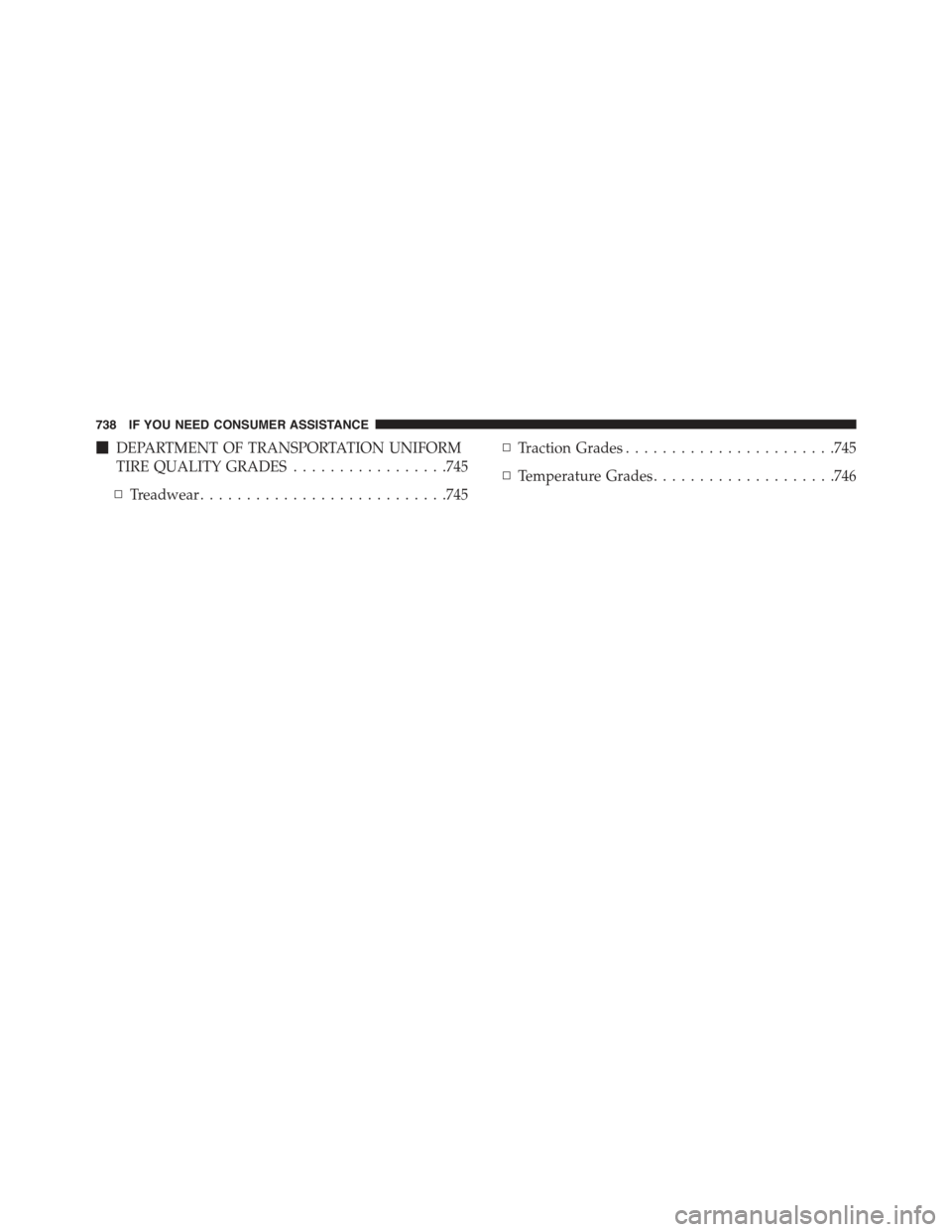

!DEPARTMENT OF TRANSPORTATION UNIFORM
TIRE QUALITY GRADES.................745
▫Treadwear...........................745
▫Traction Grades.......................745
▫Temperature Grades....................746
738 IF YOU NEED CONSUMER ASSISTANCE
