124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

If you turn the headlights or parking lights on, or place
the ignition in ACC or RUN, the system will cancel the
delay.
If you turn the headlights off before the ignition, they will
turn off in the normal manner.
NOTE:
•The lights must be turned off within 45 seconds of
placing the ignition in the OFF position to activate this
feature.
•The headlight delay time is programmable using the
Uconnect® System, refer to “Uconnect® Settings” in
“Understanding Your Instrument Panel” for further
information.
Automatic High Beam Headlamp Control — If
Equipped
The Automatic High Beam Headlamp Control system
provides increased forward lighting at night by automat-
ing high beam control through the use of a digital camera
mounted on the inside rearview mirror. This camera
detects vehicle specific light and automatically switches
from high beams to low beams until the approaching
vehicle is out of view.
NOTE:
•The Automatic High Beam Headlamp Control can be
turned on or off using the Uconnect® System. Refer to
“Uconnect® Settings” in “Understanding Your Instru-
ment Panel” for further information.
•Broken, muddy, or obstructed headlights and taillights
of vehicles in the field of view will cause headlights to
remain on longer (closer to the vehicle). Also, dirt, film,
170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

and other obstructions on the windshield or camera
lens will cause the system to function improperly.
•To opt out of the Advanced Auto High-Beam Sensitiv-
ity Control (default) and enter Reduced High-Beam
Sensitivity Control (not recommended), toggle high-
beam lever 6 full on/off cycles within 10 seconds of
ignition ON. System will return to default setting upon
ignition off.
If the windshield or Automatic High Beam Headlamp
Control mirror is replaced, the mirror must be re-aimed
to ensure proper performance. See your local authorized
dealer.
To Activate
1. Turn the headlight switch to the AUTO headlight
position.
2. Push the multifunction lever away from you (toward
front of vehicle) to engage the high beam mode.
NOTE:This system will not activate until the vehicle is
at or above 15 mph (24 km/h).
To Deactivate
1. Pull the multifunction lever toward you (or rearward
in car) to manually deactivate the system (normal
operation of low beams).
2. Push back on the multifunction lever once again to
reactivate the system.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 171

Daytime Running Lights (DRL) — If Equipped
The Daytime Running Lights will turn On when the
engine is started and remain On unless the headlamps
are turned ON, the parking brake is applied, or the
engine is shut Off.
NOTE:If allowed by law in the country in which the
vehicle was purchased the Daytime Running Lights can
be turned on and off using the Uconnect® System, refer
to “Uconnect® Settings” in “Understanding Your Instru-
ment Panel” for further information.
Lights-On Reminder
If the headlights or parking lights are on after the ignition
is in the OFF position, a chime will sound to alert the
driver when the driver’s door is opened.
Fog Lights — If Equipped
The front fog light switch is built into the headlight
switch.
To activate the front fog lights, turn on the parking
lights or the low beam headlights and press the
headlight switch. To turn off the front fog lights, either
press the headlight switch a second time or turn off the
headlight switch.
Fog Light Switch
172 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Information Center (EVIC)” or “Driver Information Dis-
play (DID)“ in “Understanding Your Instrument Panel”
for further information.
If the “SERVICE STOP/START SYSTEM” message ap-
pears in the EVIC, have the system checked by your
authorized dealer.

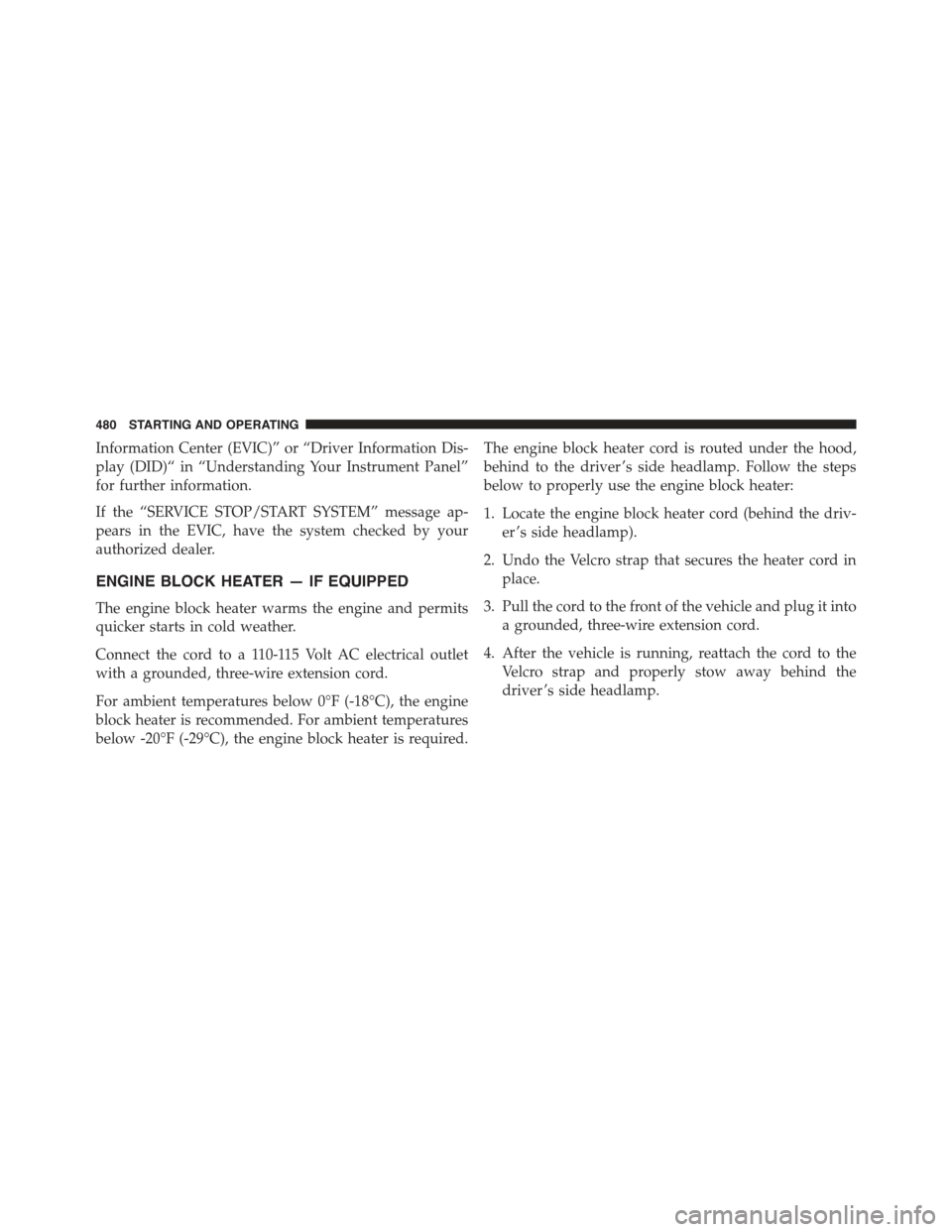

ENGINE BLOCK HEATER — IF EQUIPPED
The engine block heater warms the engine and permits
quicker starts in cold weather.
Connect the cord to a 110-115 Volt AC electrical outlet
with a grounded, three-wire extension cord.
For ambient temperatures below 0°F (-18°C), the engine
block heater is recommended. For ambient temperatures
below -20°F (-29°C), the engine block heater is required.
The engine block heater cord is routed under the hood,
behind to the driver ’s side headlamp. Follow the steps
below to properly use the engine block heater:
1. Locate the engine block heater cord (behind the driv-
er ’s side headlamp).
2. Undo the Velcro strap that secures the heater cord in
place.
3. Pull the cord to the front of the vehicle and plug it into
a grounded, three-wire extension cord.
4. After the vehicle is running, reattach the cord to the
Velcro strap and properly stow away behind the
driver ’s side headlamp.
480 STARTING AND OPERATING

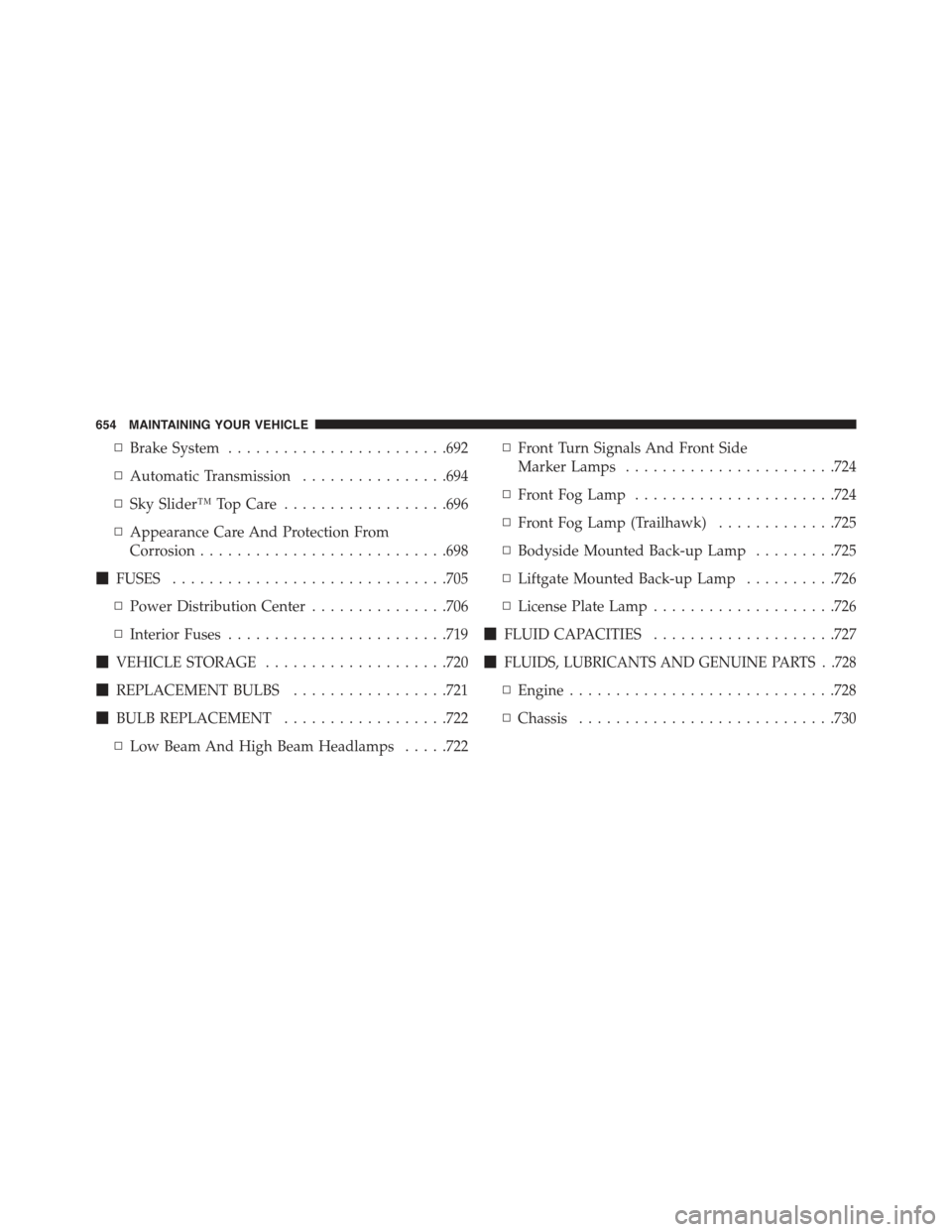

▫Brake System........................692
▫Automatic Transmission................694
▫Sky Slider™ Top Care..................696
▫Appearance Care And Protection From
Corrosion...........................698
!FUSES..............................705
▫Power Distribution Center...............706
▫Interior Fuses........................719
!VEHICLE STORAGE....................720
!REPLACEMENT BULBS.................721
!BULB REPLACEMENT..................722
▫Low Beam And High Beam Headlamps.....722
▫Front Turn Signals And Front Side
Marker Lamps.......................724
▫Front Fog Lamp......................724
▫Front Fog Lamp (Trailhawk).............725
▫Bodyside Mounted Back-up Lamp.........725
▫Liftgate Mounted Back-up Lamp..........726
▫License Plate Lamp....................726
!FLUID CAPACITIES....................727
!FLUIDS, LUBRICANTS AND GENUINE PARTS . .728
▫Engine.............................728
▫Chassis............................730
654 MAINTAINING YOUR VEHICLE

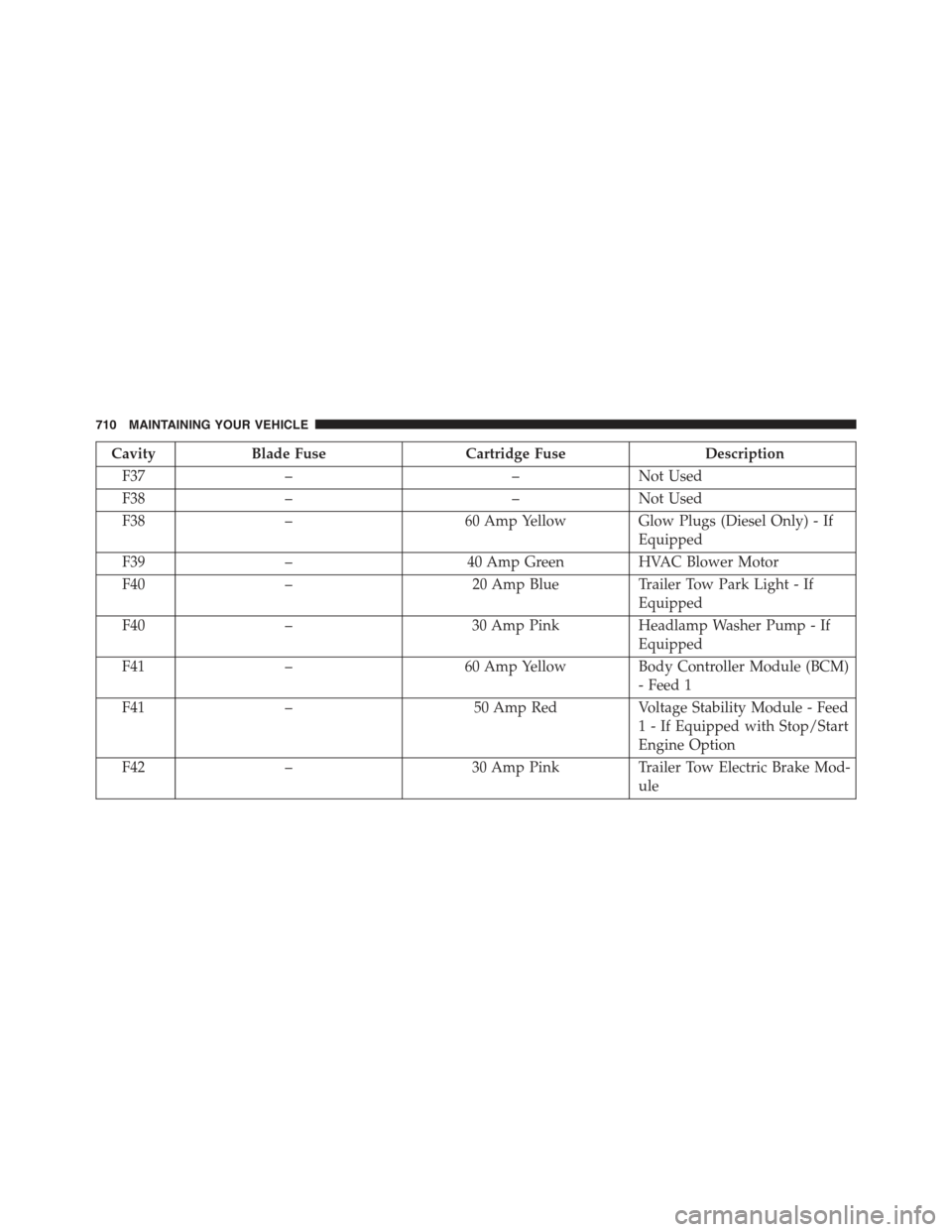

CavityBlade FuseCartridge FuseDescription
F37––Not Used
F38––Not Used
F38–60 Amp Yellow Glow Plugs (Diesel Only) - If
Equipped
F39–40 Amp GreenHVAC Blower Motor
F40–20 Amp BlueTrailer Tow Park Light - If
Equipped
F40–30 Amp PinkHeadlamp Washer Pump - If
Equipped
F41–60 Amp Yellow Body Controller Module (BCM)
- Feed 1
F41–50 Amp RedVoltage Stability Module - Feed
1 - If Equipped with Stop/Start
Engine Option
F42–30 Amp PinkTrailer Tow Electric Brake Mod-
ule
710 MAINTAINING YOUR VEHICLE

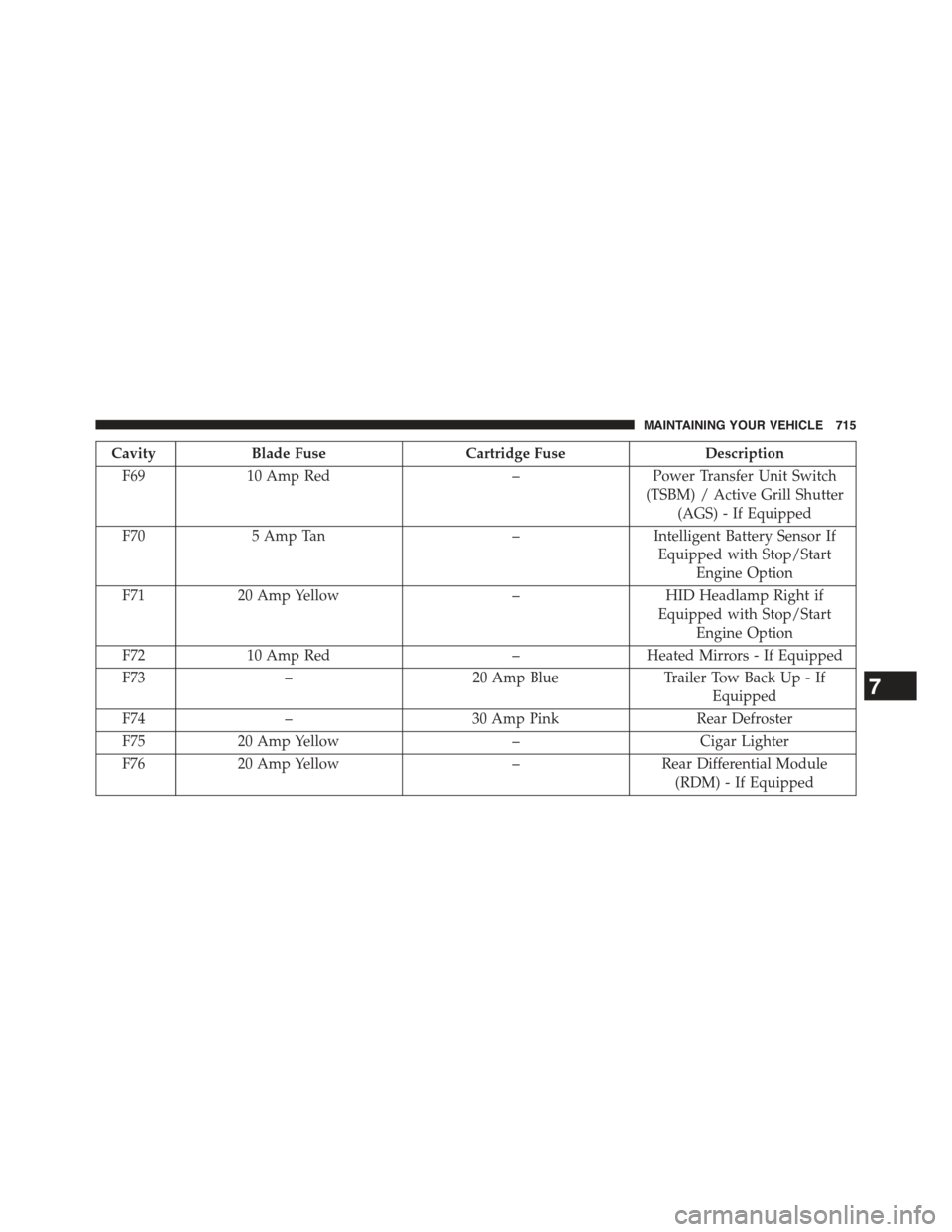

CavityBlade FuseCartridge FuseDescription
F6910 Amp Red–Power Transfer Unit Switch
(TSBM) / Active Grill Shutter
(AGS) - If Equipped
F705 Amp Tan–Intelligent Battery Sensor If
Equipped with Stop/Start
Engine Option
F7120 Amp Yellow–HID Headlamp Right if
Equipped with Stop/Start
Engine Option
F7210 Amp Red–Heated Mirrors - If Equipped
F73–20 Amp BlueTrailer Tow Back Up - If
Equipped
F74–30 Amp PinkRear Defroster
F7520 Amp Yellow–Cigar Lighter
F7620 Amp Yellow–Rear Differential Module
(RDM) - If Equipped
7
MAINTAINING YOUR VEHICLE 715

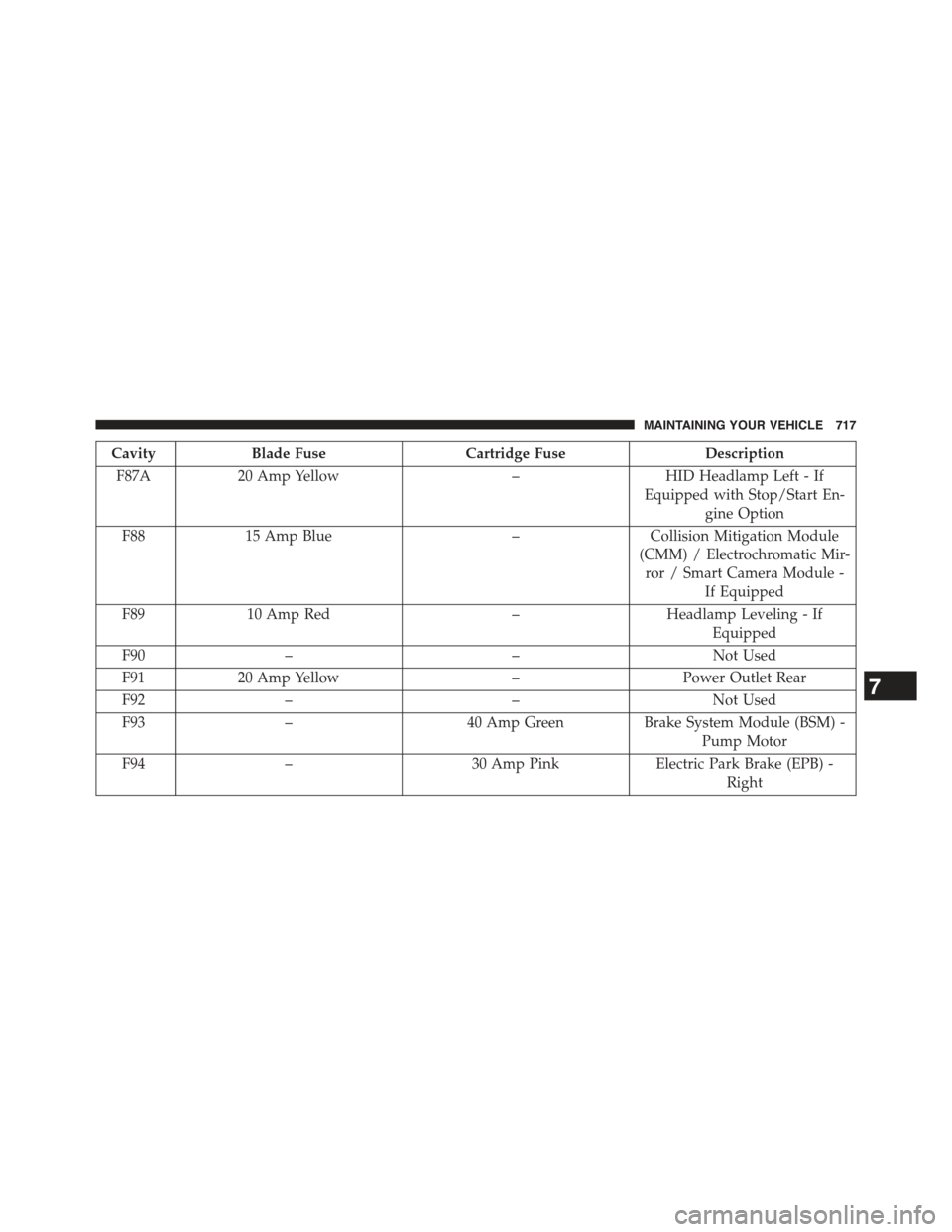

CavityBlade FuseCartridge FuseDescription
F87A20 Amp Yellow–HID Headlamp Left - If
Equipped with Stop/Start En-
gine Option
F8815 Amp Blue–Collision Mitigation Module
(CMM) / Electrochromatic Mir-
ror / Smart Camera Module -
If Equipped
F8910 Amp Red–Headlamp Leveling - If
Equipped
F90––Not Used
F9120 Amp Yellow–Power Outlet Rear
F92––Not Used
F93–40 Amp GreenBrake System Module (BSM) -
Pump Motor
F94–30 Amp PinkElectric Park Brake (EPB) -
Right
7
MAINTAINING YOUR VEHICLE 717

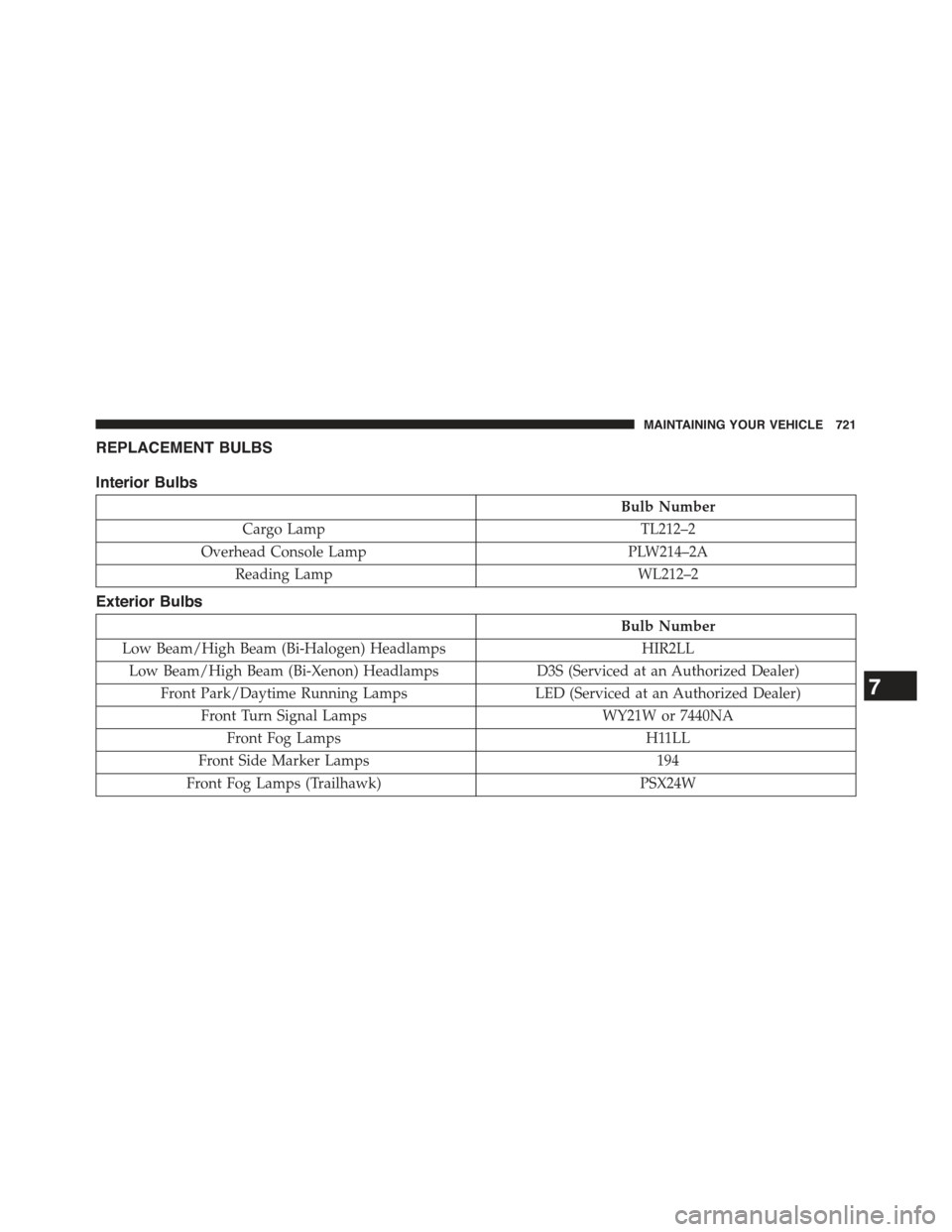

REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Cargo LampTL212–2
Overhead Console LampPLW214–2A
Reading LampWL212–2
Exterior Bulbs
Bulb Number
Low Beam/High Beam (Bi-Halogen) HeadlampsHIR2LL
Low Beam/High Beam (Bi-Xenon) HeadlampsD3S (Serviced at an Authorized Dealer)
Front Park/Daytime Running LampsLED (Serviced at an Authorized Dealer)
Front Turn Signal LampsWY21W or 7440NA
Front Fog LampsH11LL
Front Side Marker Lamps194
Front Fog Lamps (Trailhawk)PSX24W
7
MAINTAINING YOUR VEHICLE 721
