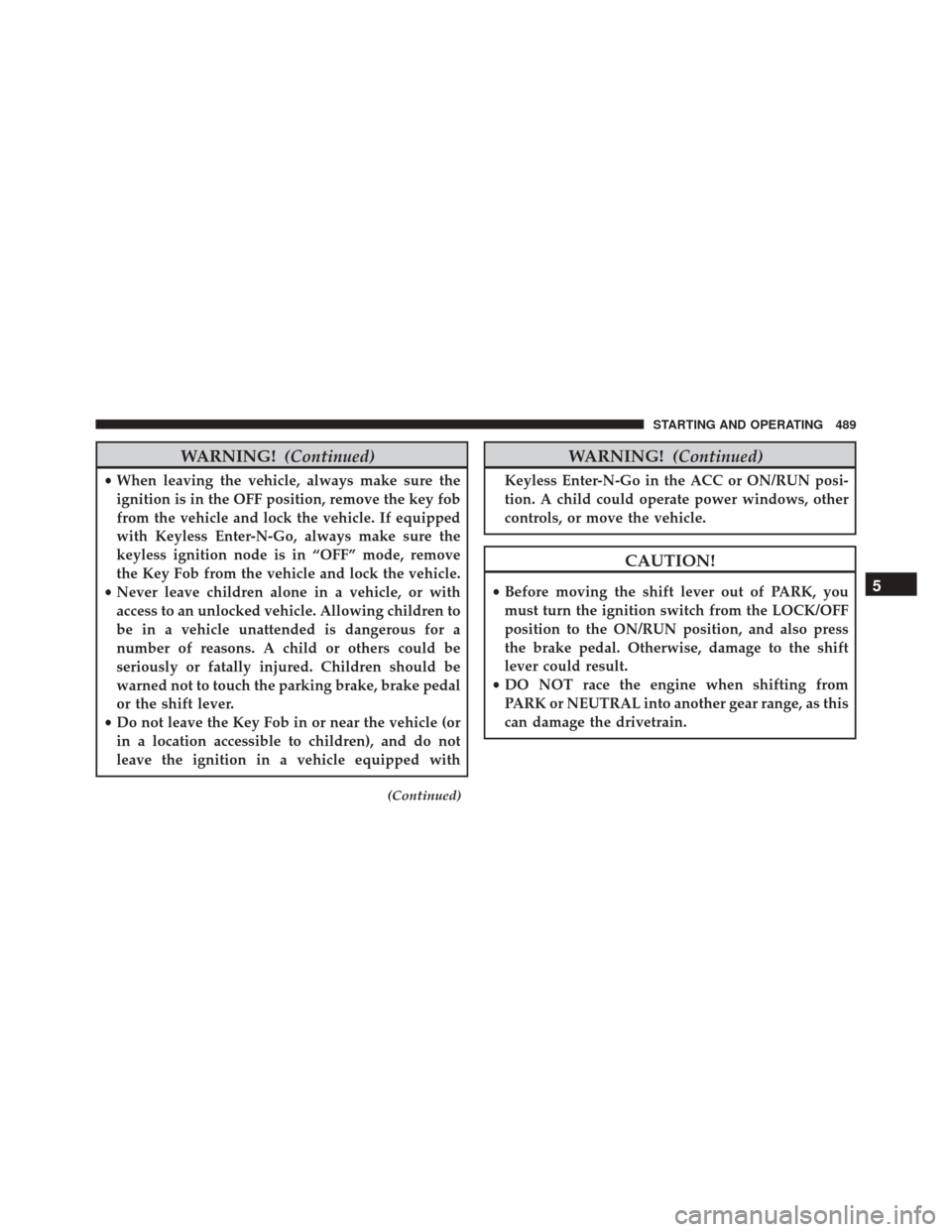

Page 491 of 770

JEEP CHEROKEE 2016 KL / 5.G Owners Manual WARNING!(Continued)
•When leaving the vehicle, always make sure the
ignition is in the OFF position, remove the key fob
from the vehicle and lock the vehicle. If equipped
with Keyless Enter-N-Go, al

Page 492 of 770

JEEP CHEROKEE 2016 KL / 5.G Owners Manual The following indicators should be used to ensure that
you have engaged the transmission into the PARK posi-
tion:
•When shifting into PARK, press the lock button on the
shift lever and firmly move

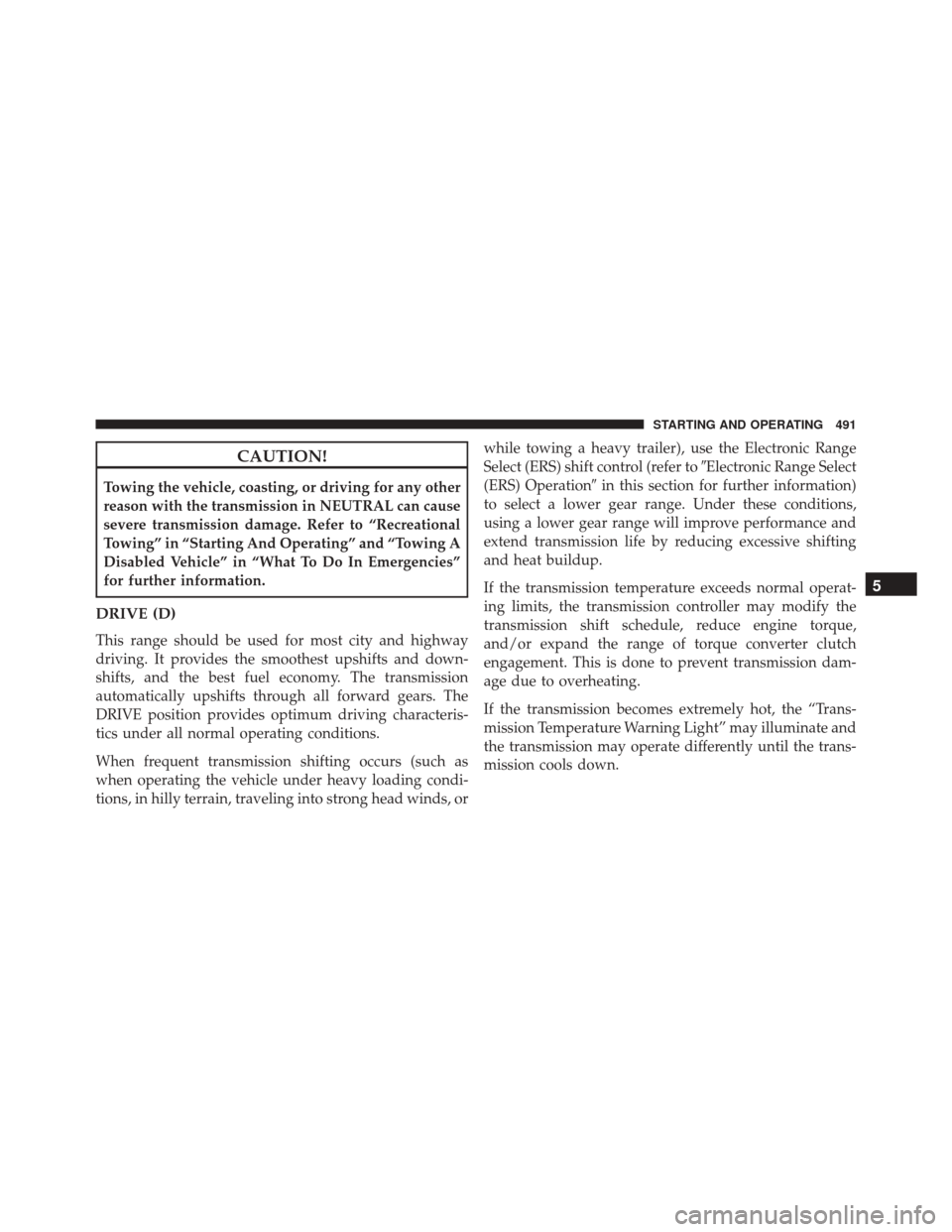

Page 493 of 770

JEEP CHEROKEE 2016 KL / 5.G Owners Manual CAUTION!
Towing the vehicle, coasting, or driving for any other
reason with the transmission in NEUTRAL can cause
severe transmission damage. Refer to “Recreational
Towing” in “Starting And Oper

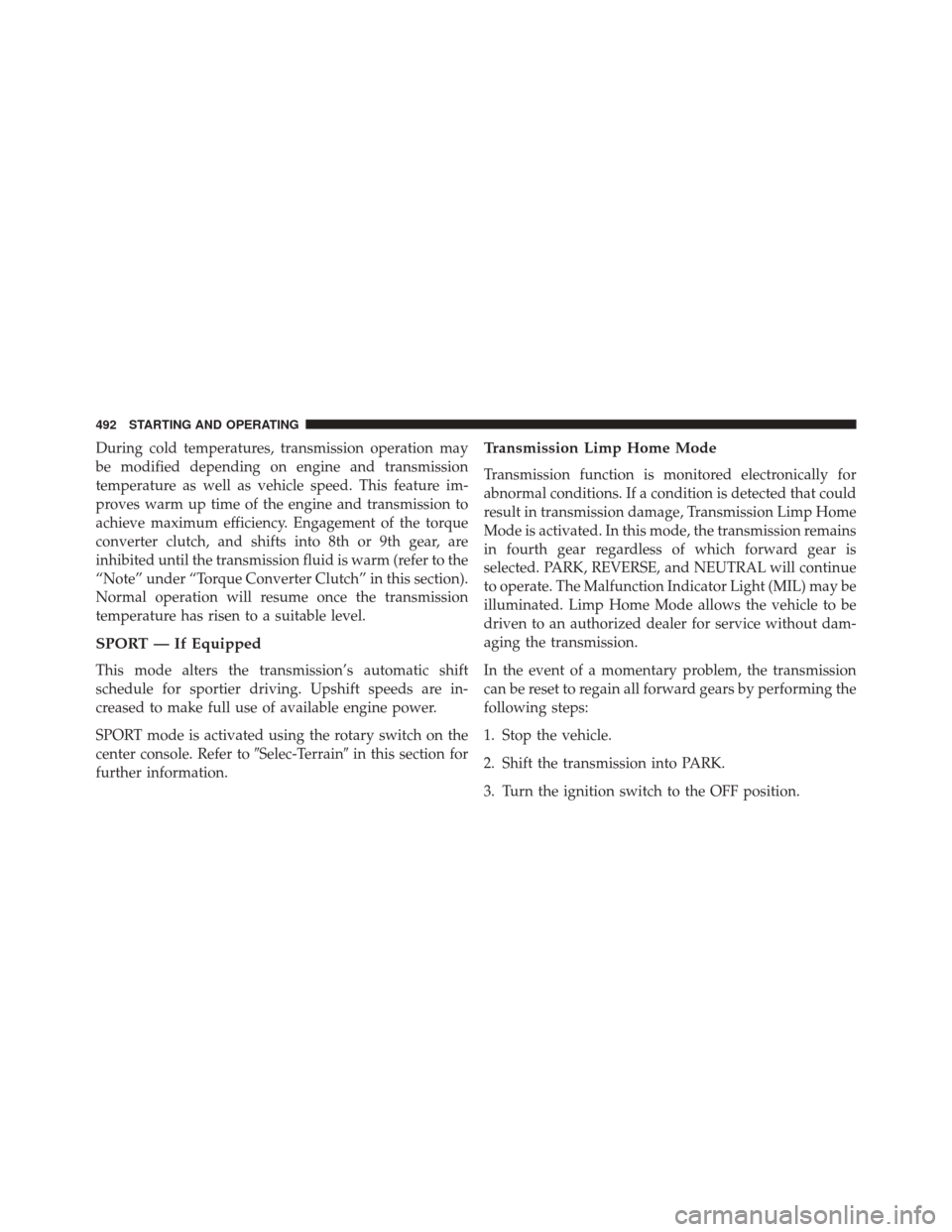

Page 494 of 770

JEEP CHEROKEE 2016 KL / 5.G Owners Manual During cold temperatures, transmission operation may
be modified depending on engine and transmission
temperature as well as vehicle speed. This feature im-
proves warm up time of the engine and trans

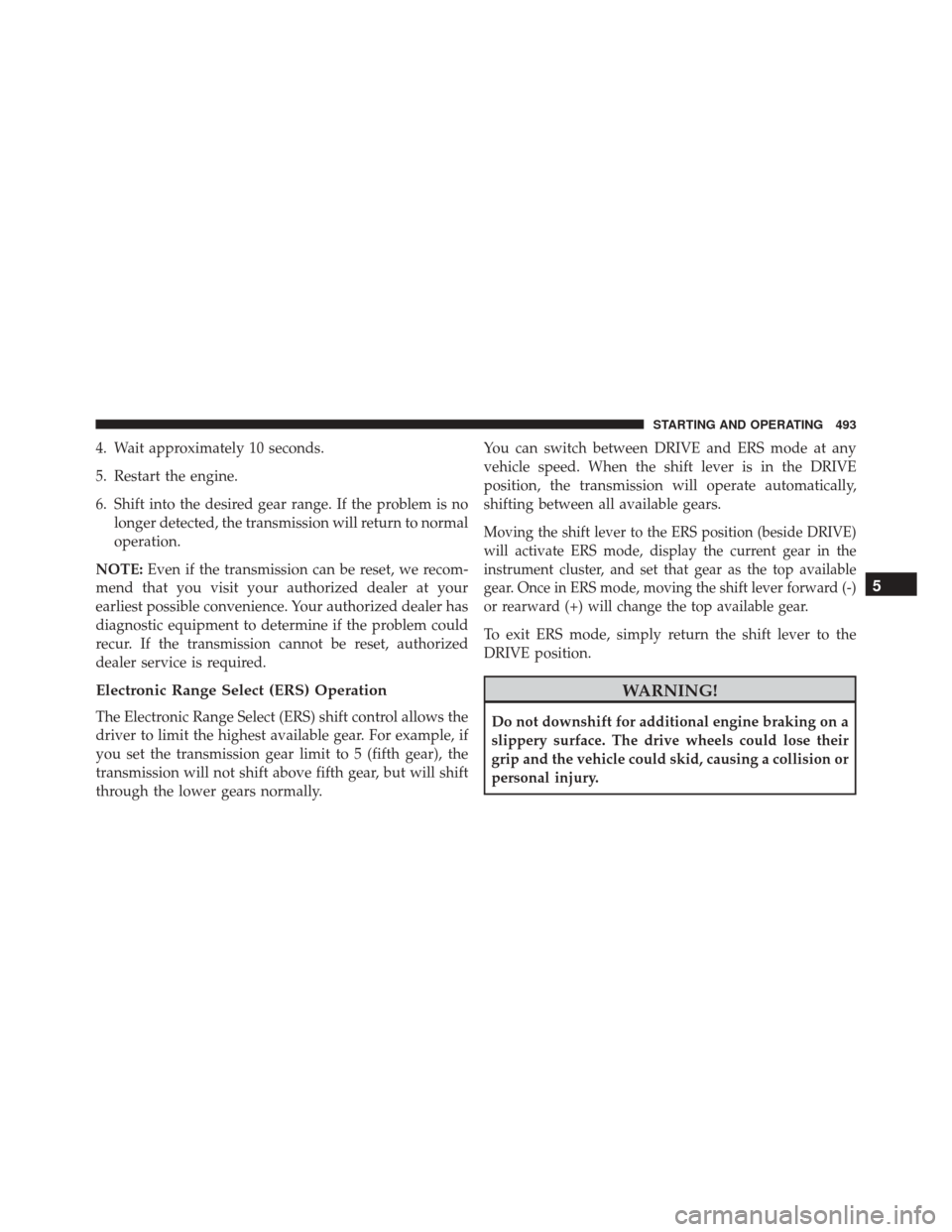

Page 495 of 770

JEEP CHEROKEE 2016 KL / 5.G Owners Manual 4. Wait approximately 10 seconds.
5. Restart the engine.
6. Shift into the desired gear range. If the problem is nolonger detected, the transmission will return to normal
operation.
NOTE: Even if the

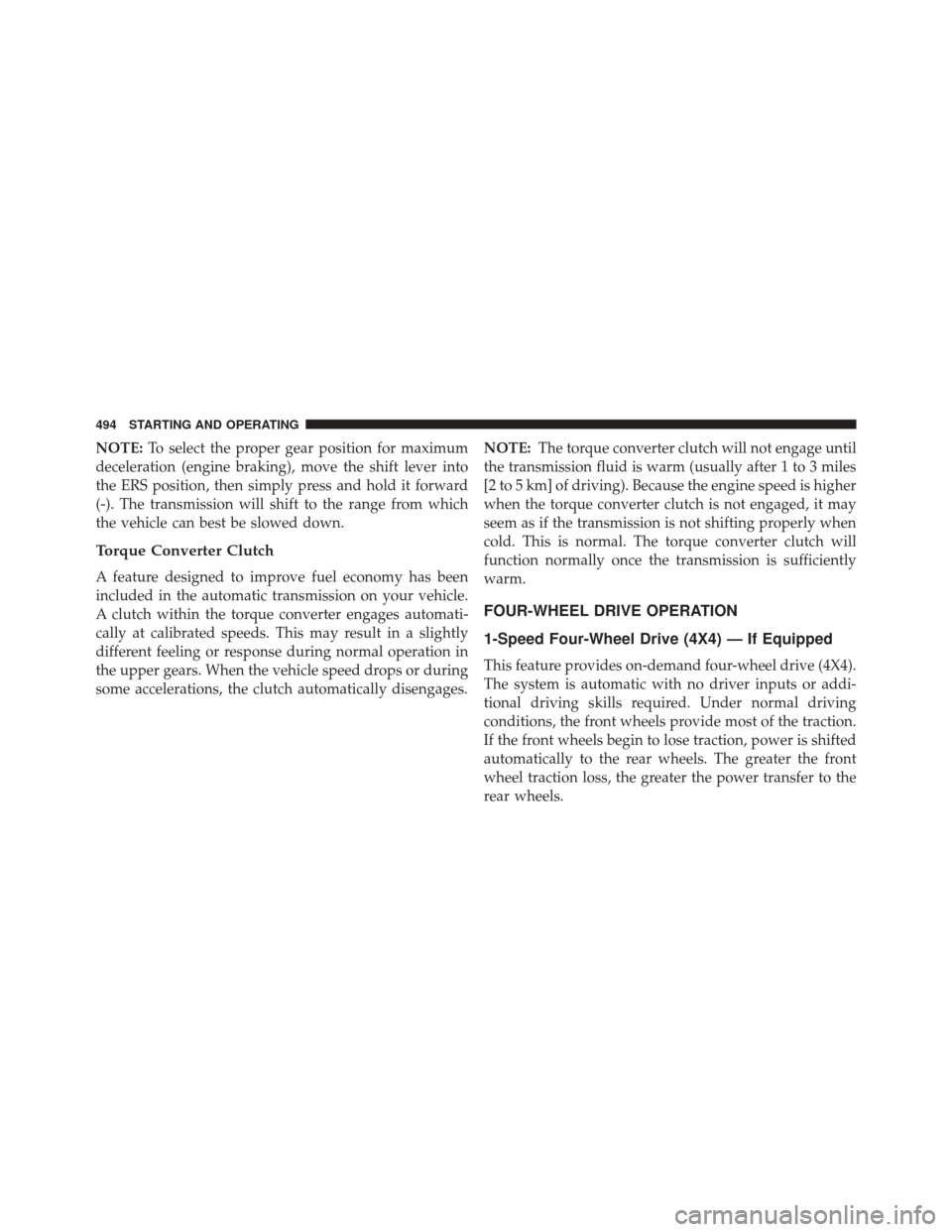

Page 496 of 770

JEEP CHEROKEE 2016 KL / 5.G Owners Manual NOTE:To select the proper gear position for maximum
deceleration (engine braking), move the shift lever into
the ERS position, then simply press and hold it forward
(-). The transmission will shift to

Page 497 of 770

JEEP CHEROKEE 2016 KL / 5.G Owners Manual Additionally, on dry pavement under heavy throttle
input (where one may have no wheel spin), torque will be
sent to the rear in a pre-emptive effort to improve vehicle
launch and performance character

Page 498 of 770

JEEP CHEROKEE 2016 KL / 5.G Owners Manual 2-Speed Four-Wheel Drive (4X4) — If Equipped
The Four-Wheel Drive is fully automatic in the normal
driving mode. The Selec-Terrain buttons provide three
selectable mode positions:
•4WD LOW
• REA

Page 499 of 770

JEEP CHEROKEE 2016 KL / 5.G Owners Manual When additional traction is required, the 4WD LOW
range position can be used to provide an additional gear
reduction which allows for increased torque to be deliv-
ered to both the front and rear whee

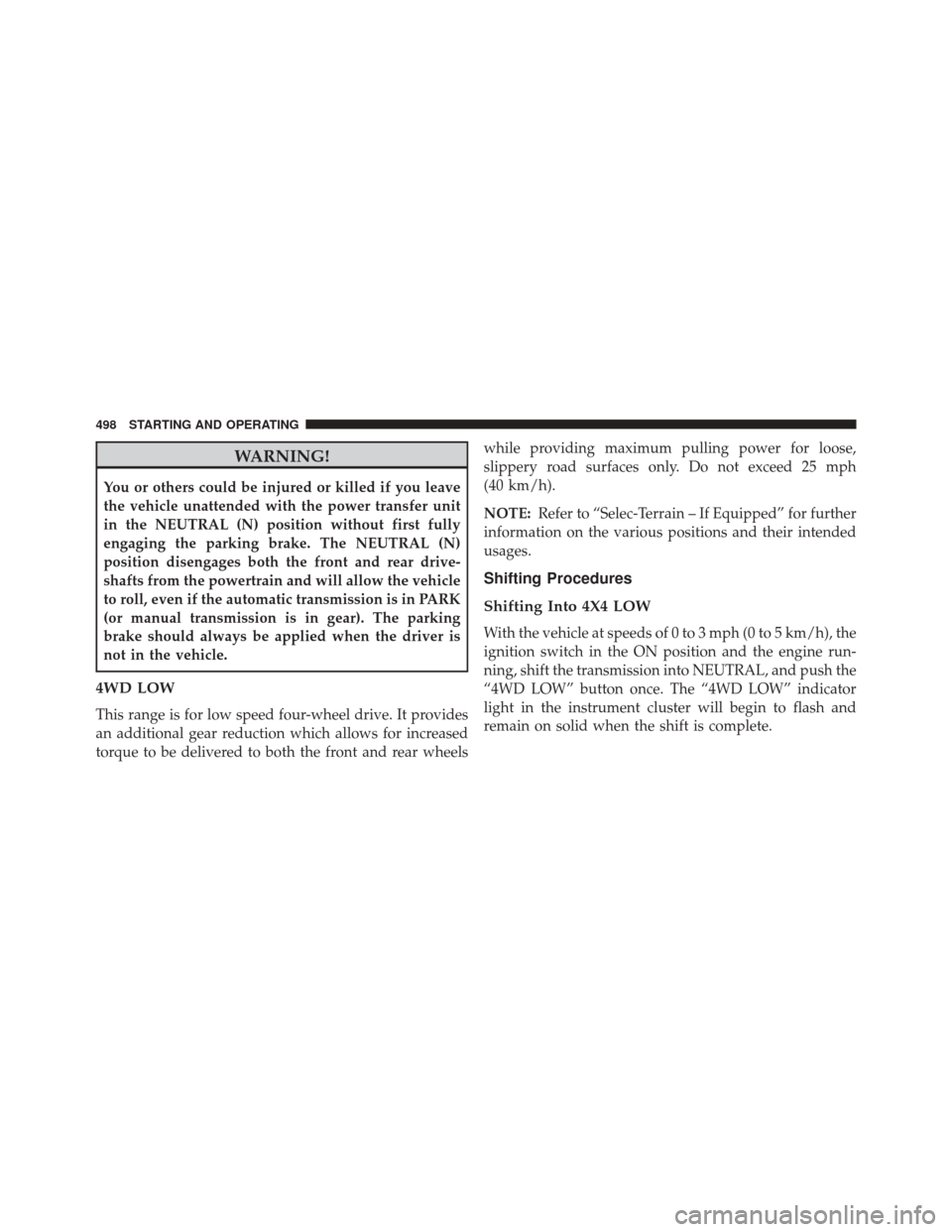

Page 500 of 770

JEEP CHEROKEE 2016 KL / 5.G Owners Manual WARNING!
You or others could be injured or killed if you leave
the vehicle unattended with the power transfer unit
in the NEUTRAL (N) position without first fully
engaging the parking brake. The NEUTR
