key fob battery JEEP CHEROKEE 2016 KL / 5.G Owners Manual

Keyless Push Button Ignition
This feature allows the driver to operate the ignition with
the push of a button as long as the Remote Keyless Entry
(RKE) transmitter is in the passenger compartment.
The Keyless Push Button Ignition has four operating
positions, three of which are labeled and will illuminate
when in position. The three positions are: OFF, ACC, and
ON/RUN. The fourth position is START. During start,
ON/RUN will illuminate.
NOTE:In case the ignition does not change with the
push of a button, the RKE transmitter (Key Fob) may
have a low or dead battery. In this situation, a back up
method can be used to operate the ignition switch. Put
the nose side (side opposite of the emergency key) of the
Key Fob against the engine START/STOP button and
push to operate the ignition.
Keyless Push Button Ignition
1 — OFF
2 — ACC (ACCESSORY)
3 — ON/RUN
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

Key Fob — If Equipped
The Key Fob also contains the Remote Keyless Entry
(RKE) transmitter and an emergency key, which stores in
the rear of the Key Fob.
The emergency key allows for entry into the vehicle
should the battery in the vehicle or the Key Fob go dead.
You can keep the emergency key with you when valet
parking.
To remove the emergency key, slide the mechanical latch
on the face of the Key Fob sideways with your thumb and
then pull the key out with your other hand.
Emergency Key Removal (IGNM System)
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:
•The interior lights will turn off if you place the ignition
in the ACC or ON/RUN position while the Panic
Alarm is activated. However, the exterior lights and
horn will remain on.
• You may need to be less than 35 ft (11 m) from the
vehicle when using the RKE transmitter to turn off the
Panic Alarm due to the radio frequency noises emitted
by the system.
Programming Additional Transmitters
Programming Key Fobs or RKE transmitters may be
performed at an authorized dealer.
Transmitter Battery Replacement
The recommended replacement battery is one CR2032
battery. NOTE:
•
Perchlorate Material — special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate
• Do not touch the battery terminals that are on the back
housing or the printed circuit board.
1. Remove the emergency key by sliding the mechanical latch on the back of the RKE transmitter sideways
with your thumb and then pull the key out with your
other hand.
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

•Vehicles with a discharged battery or total electrical
failure when the electric parking brake (EPB) is engaged,
will need a wheel dolly or jack to raise the rear wheels
off the ground when moving the vehicle onto a flatbed.
If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the ON/RUN
position, not the ACC position. Note that the Safehold
feature will engage the Electric Park Brake whenever the
driver’s door is opened (if the ignition is ON, transmis-
sion is not in PARK, and brake pedal is released). If you
are towing this vehicle with the ignition in the ON/RUN
position, you must manually disable the Electric Park
Brake each time the driver’s door is opened, by pressing
the brake pedal and then pushing the EPB switch down.
If the key fob is unavailable, or the vehicle’s battery is
discharged, refer to “Shift Lever Override” in this section
for instructions on shifting the transmission out of PARK
so that the vehicle can be moved.
CAUTION!
• Do not use sling type equipment when towing.
Vehicle damage may occur.
• When securing the vehicle to a flat bed truck, do
not attach to front or rear suspension components.
Damage to your vehicle may result from improper
towing.
• Ensure that the Electric Park Brake is released, and
remains released, while being towed.
Front-Wheel Drive (FWD) Models
The manufacturer recommends towing your vehicle with
all four wheels OFFthe ground using a flatbed.
If flatbed equipment is not available, this vehicle must
towed with the front wheels OFF the ground (using a
towing dolly, or wheel lift equipment with the front
wheels raised).

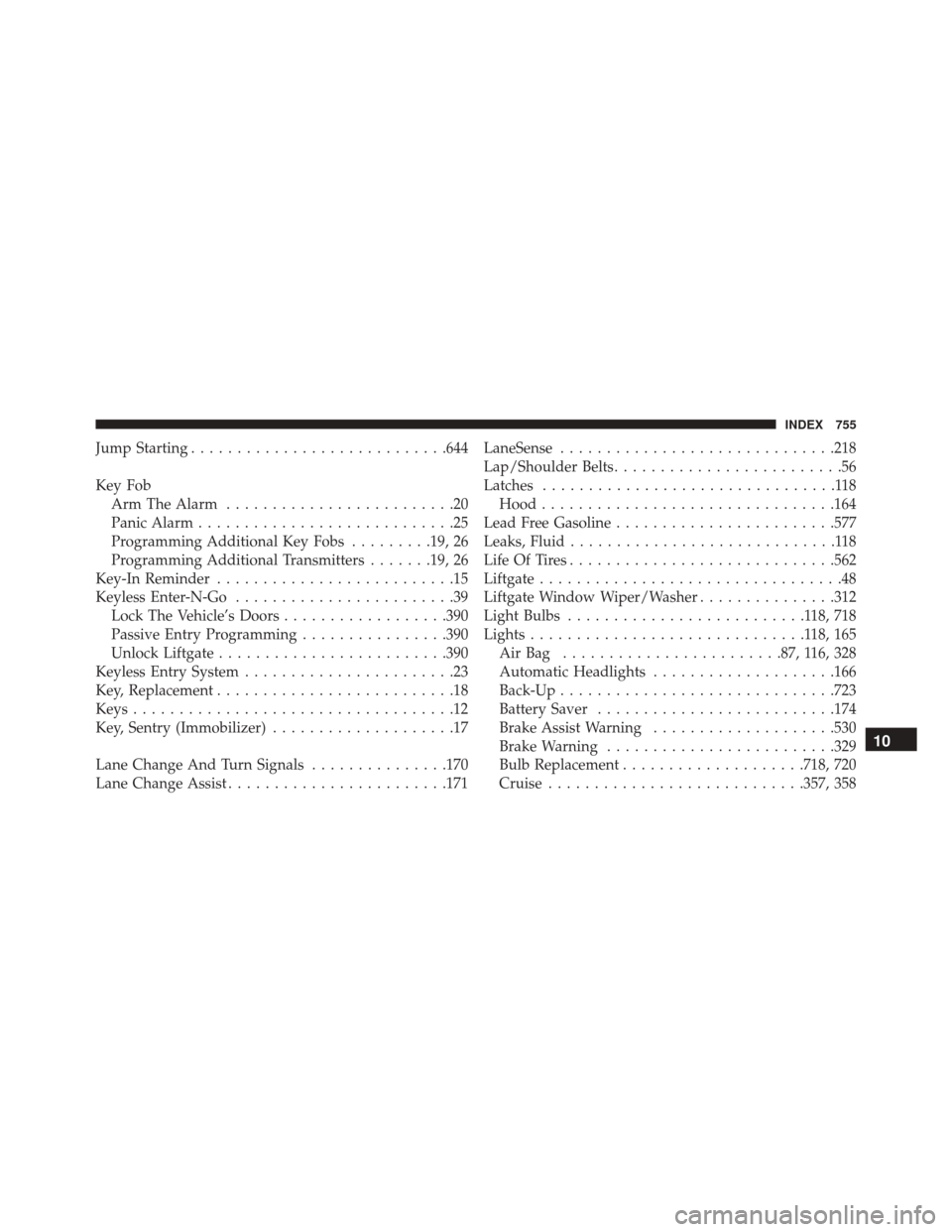

654 WHAT TO DO IN EMERGENCIES

Jump Starting........................... .644
Key Fob Arm The Alarm .........................20
Panic Alarm ............................25
Programming Additional Key Fobs .........19, 26
Programming Additional Transmitters .......19, 26
Key-In Reminder ..........................15
Keyless Enter-N-Go ........................39
Lock The Vehicle’s Doors ..................390
Passive Entry Programming ................390
Unlock Liftgate ........................ .390
Keyless Entry System .......................23
Key, Replacement ..........................18
Keys ...................................12
Key, Sentry (Immobilizer) ....................17
Lane Change And Turn Signals ...............170
Lane Change Assist ....................... .171LaneSense
............................. .218
Lap/Shoulder Belts .........................56
Latches ................................118
Hood ............................... .164
Lead Free Gasoline ....................... .577
Leaks, Fluid .............................118
Life Of Tires ............................ .562
Liftgate .................................48
Liftgate Window Wiper/Washer ...............312
Light Bulbs ..........................118,718
Lights ..............................118,165
AirBag ........................87, 116, 328
Automatic Headlights ....................166
Back-Up ............................. .723
Battery Saver ......................... .174
Brake Assist Warning ....................530
Brake Warning ........................ .329
Bulb Replacement ....................718, 720
Cruise ........................... .357, 358
10
INDEX 755
