Rotate the center portion of the lever upward to the
first detent for intermittent operation and to the
second detent for continuous rear wiper operation.
To use the washer, push the lever forward and
hold while spray is desired. If the lever is pushed
while in the intermittent setting, the wiper will
turn on and operate for several wipe cycles after
the end of the lever is released, and then resume the
intermittent interval previously selected.
If the lever is pushed while the wiper is in the off position,
the wiper will operate for several wipe cycles, then turn off.
NOTE: As a protective measure, the pump will stop if the
switch is held for more than 20 seconds. Once the lever is
released the pump will resume normal operation.
If the rear wiper is operating when the ignition is turned
OFF, the wiper will automatically return to the “park”
position.
Rear Window Defroster
The rear window defroster button is located on the
switch bank by the manual climate controls. Push
this button to turn on the rear window defroster and the
heated outside mirrors. An indicator in the button will illuminate when the rear window defroster is on. The rear
window defroster automatically turns off after approxi-
mately 10 minutes. For an additional five minutes of
operation, push the button a second time.
NOTE:
•
The Windshield Wiper De-Icer (if equipped) shall be
activated automatically when the Rear Defrost is turned
on and when the ambient temperature is below 33
degrees F (0.6° C).
• To prevent excessive battery drain, use the rear window
defroster only when the engine is operating.
CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
• Use care when washing the inside of the rear win-
dow. Do not use abrasive window cleaners on the
interior surface of the window. Use a soft cloth and a
mild washing solution, wiping parallel to the heat-
ing elements. Labels can be peeled off after soaking
with warm water.
(Continued)
3
GETTING TO KNOW YOUR VEHICLE 75

IconDescription
AUTO Button — If Equipped
Automatically controls the interior cabin temperature by adjusting airflow distribution and
amount. Performing this function will cause the system to switch between manual mode and
automatic modes. Refer to “Automatic Operation” for more information.
Front Defrost Button
Press and release to change the current airflow setting to Defrost mode. The indicator on the
touchscreen illuminates when this feature is on. Air comes from the windshield and side win-
dow demist outlets. When the defrost button is selected, the blower level will increase. Use De-
frost mode with maximum temperature settings for best windshield and side window defrosting
and defogging. Performing this function will cause the ATC to switch into manual mode. If the
front defrost mode is turned off the climate system will return the previous setting.
Rear Defrost Button
Push and release the Rear Defrost Control button to turn on the rear window defroster and the
heated outside mirrors (if equipped). An indicator will illuminate when the rear window de-
froster is on. The rear window defroster automatically turns off after 10 minutes.
Driver and Passenger Temperature UP and DOWN Buttons — If Equipped
Provides the passenger with independent temperature control. Push the up arrow button on the
faceplate, on the touchscreen, or press and slide the temperature bar towards the red arrow but-
ton on the touchscreen for warmer temperature settings. Push the down arrow button on the
faceplate, on the touchscreen, or press and slide the temperature bar towards the blue arrow
button on the touchscreen for cooler temperature settings. When the SYNC feature is active, the
passenger ’s temperature will move up with the driver ’s temperature, when it is increased.
3
GETTING TO KNOW YOUR VEHICLE 87

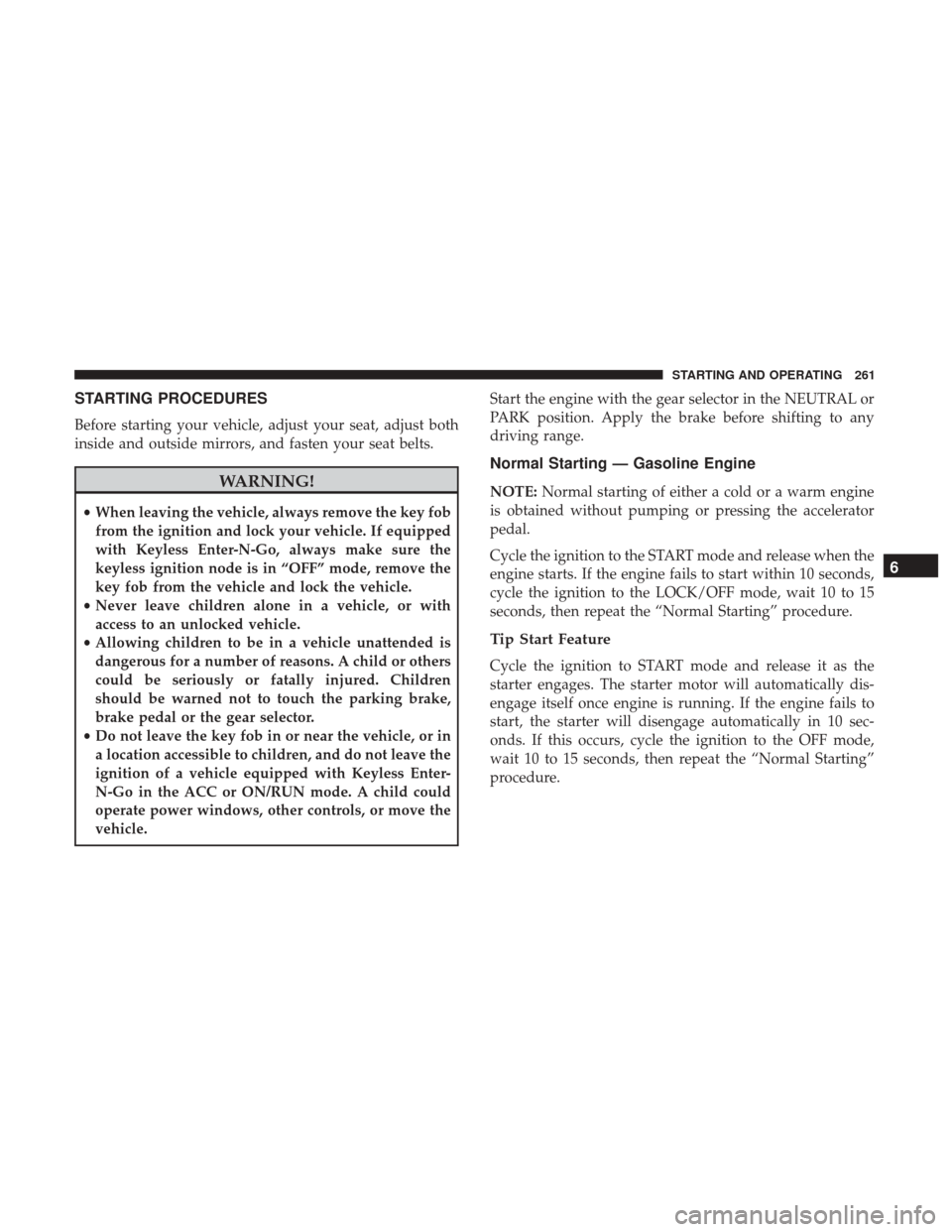

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust both
inside and outside mirrors, and fasten your seat belts.
WARNING!
•When leaving the vehicle, always remove the key fob
from the ignition and lock your vehicle. If equipped
with Keyless Enter-N-Go, always make sure the
keyless ignition node is in “OFF” mode, remove the
key fob from the vehicle and lock the vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or others
could be seriously or fatally injured. Children
should be warned not to touch the parking brake,
brake pedal or the gear selector.
• Do not leave the key fob in or near the vehicle, or in
a location accessible to children, and do not leave the
ignition of a vehicle equipped with Keyless Enter-
N-Go in the ACC or ON/RUN mode. A child could
operate power windows, other controls, or move the
vehicle. Start the engine with the gear selector in the NEUTRAL or
PARK position. Apply the brake before shifting to any
driving range.
Normal Starting — Gasoline Engine
NOTE:
Normal starting of either a cold or a warm engine
is obtained without pumping or pressing the accelerator
pedal.
Cycle the ignition to the START mode and release when the
engine starts. If the engine fails to start within 10 seconds,
cycle the ignition to the LOCK/OFF mode, wait 10 to 15
seconds, then repeat the “Normal Starting” procedure.
Tip Start Feature
Cycle the ignition to START mode and release it as the
starter engages. The starter motor will automatically dis-
engage itself once engine is running. If the engine fails to
start, the starter will disengage automatically in 10 sec-
onds. If this occurs, cycle the ignition to the OFF mode,
wait 10 to 15 seconds, then repeat the “Normal Starting”
procedure.
6
STARTING AND OPERATING 261

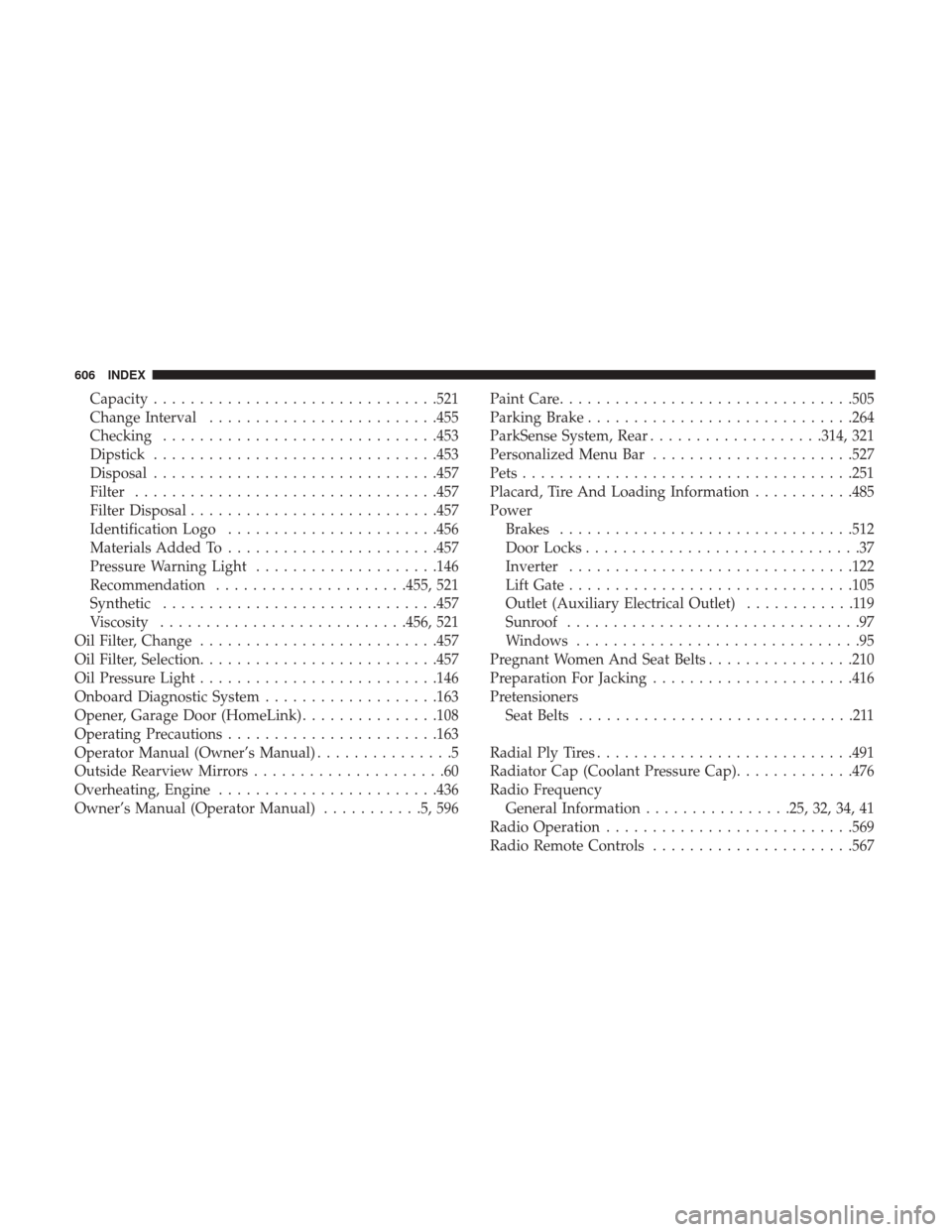

Capacity.............................. .521
Change Interval ........................ .455
Checking ............................. .453
Dipstick .............................. .453
Disposal .............................. .457
Filter ................................ .457
Filter Disposal .......................... .457
Identification Logo ...................... .456
Materials Added To ...................... .457
Pressure Warning Light ....................146
Recommendation .....................455, 521
Synthetic ............................. .457
Viscosity .......................... .456, 521
Oil Filter, Change ......................... .457
Oil Filter, Selection ......................... .457
Oil Pressure Light ......................... .146
Onboard Diagnostic System ...................163
Opener, Garage Door (HomeLink) ...............108
Operating Precautions ...................... .163
Operator Manual (Owner’s Manual) ...............5
Outside Rearview Mirrors .....................60
Overheating, Engine ....................... .436
Owner’s Manual (Operator Manual) ...........5,596Paint Care
............................... .505
Parking Brake ............................ .264
ParkSense System, Rear ...................314, 321
Personalized Menu Bar ..................... .527
Pets ................................... .251
Placard, Tire And Loading Information ...........485
Power Brakes ............................... .512
Door Locks ..............................37
Inverter .............................. .122
Lift Gate .............................. .105
Outlet (Auxiliary Electrical Outlet) ............119
Sunroof ................................97
Windows ...............................95
Pr

egnant Women And Seat Belts ................210
Preparation For Jacking ..................... .416
Pretensioners Seat Belts ..............................211
Radial Ply Tires ........................... .491
Radiator Cap (Coolant Pressure Cap) .............476
Radio Frequency General Information ................25, 32, 34, 41
Radio Operation .......................... .569
Radio Remote Controls ..................... .567
606 INDEX

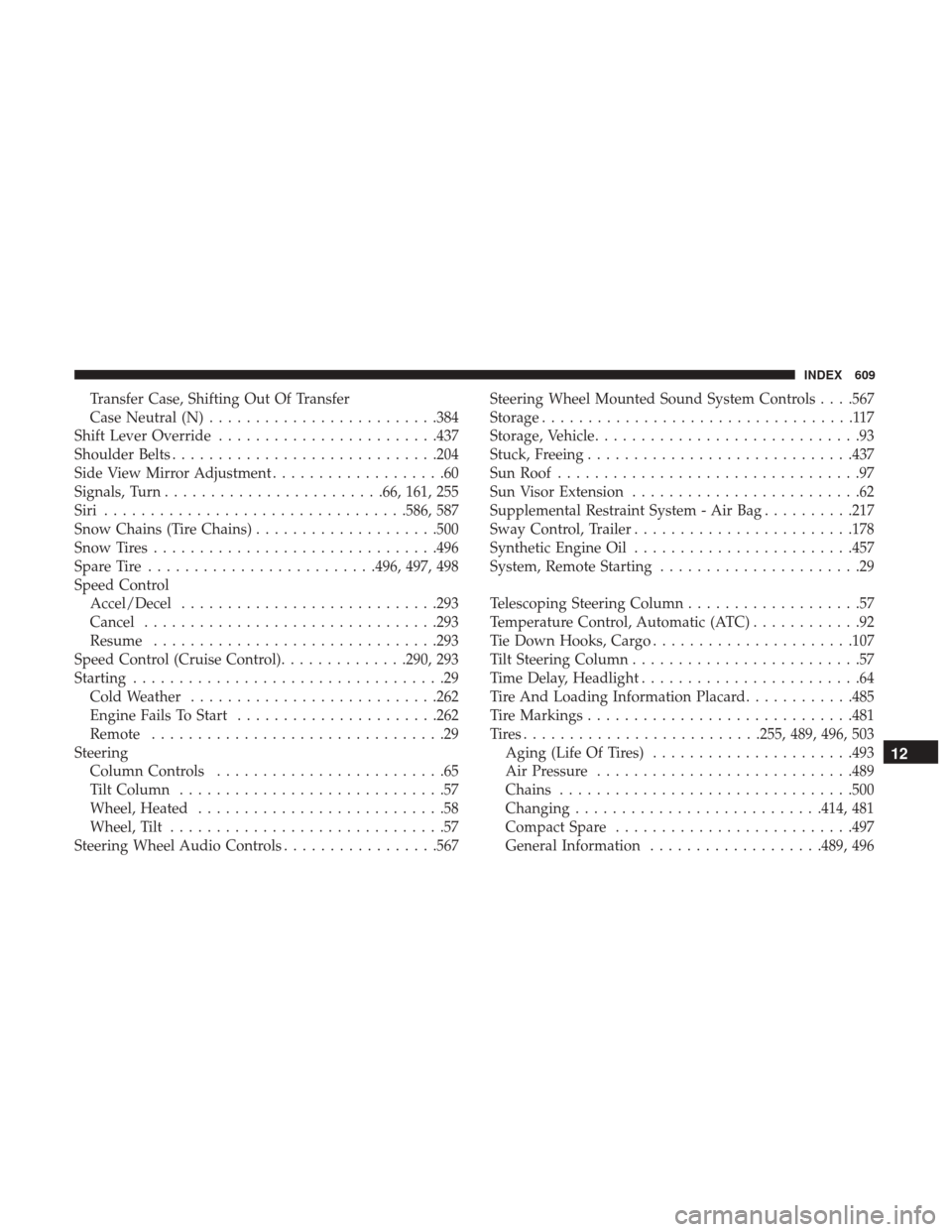

Transfer Case, Shifting Out Of Transfer
Case Neutral (N)........................ .384
Shift Lever Override ....................... .437
Shoulder Belts ............................ .204
Side View Mirror Adjustment ...................60
Signals, Turn ....................... .66, 161, 255
Siri ................................ .586, 587
Snow Chains (Tire Chains) ....................500
Snow Tires .............................. .496
Spare Tire ........................ .496, 497, 498
Speed Control Accel/Decel ........................... .293
Cancel ............................... .293
Resume .............................. .293
Speed Control (Cruise Control) ..............290, 293
Starting ..................................29
Cold Weather .......................... .262
Engine Fails To Start ..................... .262
Remote ................................29
Steering Column Controls .........................65
Tilt Column .............................57
Wheel, Heated ...........................58
Wheel, Tilt ..............................57
Steering Wheel Audio Controls .................567Steering Wheel Mounted Sound System Controls . . . .567
Storage
..................................117
Storage, Vehicle .............................93
Stuck, Freeing ............................ .437
Sun Roof .................................97
Sun Visor Extension .........................62
Supplemental Restraint System - Air Bag ..........217
Sway Control, Trailer ....................... .178
Synthetic Engine Oil ....................... .457
System, Remote Starting ......................29
Telescoping Steering Column ...................57
Temperature Control, Automatic (ATC) ............92
Tie Down Hooks, Cargo ..................... .107
Tilt Steering Column .........................57
Time Delay, Headlight ........................64
Tire And Loading Information Placard ............485
Tire Markings ............................ .481
T

ires......................... .255, 489, 496, 503
Aging (Life Of Tires) ..................... .493
Air Pressure ........................... .489
Chains ............................... .500
Changing .......................... .414, 481
Compact Spare ......................... .497
General Information ...................489, 496
12
INDEX 609
