remote control JEEP CHEROKEE 2017 KL / 5.G User Guide

WARNING!
•Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains Carbon Monox-
ide (CO) which is odorless and colorless. Carbon
Monoxide is poisonous and can cause serious injury
or death when inhaled.
• Keep key fobs away from children. Operation of the
Remote Start System, windows, door locks or other
controls could cause serious injury or death.
Remote Start Abort Message On The Instrument
Cluster Display — If Equipped
The following messages will display in the instrument
cluster display if the vehicle fails to remote start or exits
remote start prematurely:
• Remote Start Aborted — Door Open
• Remote Start Aborted — Hood Open
• Remote Start Aborted — Fuel Low
• Remote Start Aborted — Liftgate Open
• Remote Start Disabled — Start Vehicle To Reset •
Remote Start Aborted — Too Cold
• Remote Start Aborted — Time Expired
The message will stay active until the ignition is turned to
the ON/RUN position.
To Enter Remote Start Mode
Push and release the REMOTE START buttonon the
key fob twice within five seconds. The vehicle doors will
lock, the parking lights will flash, and the horn will
chirp twice (if programmed). Then, the engine will start,
and the vehicle will remain in the Remote Start mode for
a 15-minute cycle.
NOTE:
• If an engine fault is present or fuel level is low, the
vehicle will start and then shut down in 10 seconds.
• The park lamps will turn on and remain on during
Remote Start mode.
• For security, power window and power sunroof opera-
tion (if equipped) are disabled when the vehicle is in the
Remote Start mode.
30 GETTING TO KNOW YOUR VEHICLE

Front Heated Seats — If Equipped
The front heated seats control buttons are located within
the Uconnect system. You can gain access to the control
buttons through the climate screen or the controls screen.
•Press the heated seat button
once to turn the HI
setting ON.
• Press the heated seat buttona second time to turn
the LO setting ON.
• Press the heated seat buttona third time to turn the
heating elements OFF.
If the HI-level setting is selected, the system will automati-
cally switch to LO-level after approximately 60 minutes of
continuous operation. At that time, the display will change
from HI to LO, indicating the change. The LO-level setting
will turn OFF automatically after approximately 45 min-
utes.
NOTE: The engine must be running for the heated seats to
operate.
Vehicles Equipped With Remote Start
On models that are equipped with remote start, the heated
seats can be programmed to come on during a remote start. This feature can be programmed through the Uconnect
system. Refer to “Uconnect Settings” in “Multimedia” for
further information.
WARNING!
•
Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, exhaus-
tion or other physical condition must exercise care
when using the seat heater. It may cause burns even
at low temperatures, especially if used for long
periods of time.
• Do not place anything on the seat or seatback that
insulates against heat, such as a blanket or cushion.
This may cause the seat heater to overheat. Sitting in
a seat that has been overheated could cause serious
burns due to the increased surface temperature of the
seat.
Front Ventilated Seats — If Equipped
Located in the seat cushion and seat back are fans that
draw the air from the passenger compartment and move
air through fine perforations in the seat cover to help keep
the driver and front passenger cooler in higher ambient
temperatures. The fans operate at two speeds, HI and LO.
3
GETTING TO KNOW YOUR VEHICLE 53

The front ventilated seats control buttons are located
within the Uconnect system. You can gain access to the
control buttons through the climate screen or the controls
screen.
•Press the ventilated seat button
once to choose HI.
•Press the ventilated seat buttona second time to
choose LO.
• Press the ventilated seat buttona third time to turn
the ventilated seat OFF.
NOTE: The engine must be running for the ventilated seats
to operate.
Vehicles Equipped With Remote Start
On models that are equipped with remote start, the venti-
lated seats can be programmed to come on during a remote
start.
This feature can be programmed through the Uconnect
system. Refer to “Uconnect Settings” in “Multimedia” for
further information.
HEAD RESTRAINTS
Head restraints are designed to reduce the risk of injury by
restricting head movement in the event of a rear impact.
Head restraints should be adjusted so that the top of the
head restraint is located above the top of your ear.
WARNING!
• All occupants, including the driver, should not oper-
ate a vehicle or sit in a vehicle’s seat until the head
restraints are placed in their proper positions in
order to minimize the risk of neck injury in the event
of a crash.
• Head restraints should never be adjusted while the
vehicle is in motion. Driving a vehicle with the head
restraints improperly adjusted or removed could
cause serious injury or death in the event of a
collision.
NOTE: Do not reverse the head restraints (making the rear
of the head restraint face forward) in an attempt to gain
additional clearance to the back of your head.
54 GETTING TO KNOW YOUR VEHICLE

To unlock the steering column, push the control handle
downward (toward the floor). To tilt the steering column,
move the steering wheel upward or downward as desired.
To lengthen or shorten the steering column, pull the
steering wheel outward or push it inward as desired. To
lock the steering column in position, push the control
handle upward until fully engaged.
WARNING!
Do not adjust the steering column while driving.
Adjusting the steering column while driving or driv-
ing with the steering column unlocked, could cause the
driver to lose control of the vehicle. Failure to follow
this warning may result in serious injury or death.
Heated Steering Wheel — If Equipped
The steering wheel contains a heating element that helps
warm your hands in cold weather. The heated steering
wheel has only one temperature setting. Once the heated
steering wheel has been turned on, it will stay on for an
average of 80 minutes before automatically shutting off.
This time will vary based on environmental temperatures.
The heated steering wheel can shut off early or may not
turn on when the steering wheel is already warm.The heated steering wheel control button is located within
the Uconnect system. You can gain access to the control
button through the climate screen or the controls screen.
•
Press the heated steering wheel button
once to turn
the heating element ON.
• Press the heated steering wheel buttona second time
to turn the heating element OFF.
NOTE: The engine must be running for the heated steering
wheel to operate.
Vehicles Equipped With Remote Start
On models that are equipped with remote start, the heated
steering wheel can be programmed to come on during a
remote start through the Uconnect system. Refer to
“Uconnect Settings” in “Getting To Know Your Instrument
Panel” for further information.
WARNING!
• Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, exhaus-
tion, or other physical conditions must exercise care
(Continued)
58 GETTING TO KNOW YOUR VEHICLE

Economy Mode
If ECONOMY mode is desired, push the A/C button to turn
off the LED indicator and the A/C compressor. Rotate the
temperature control knob to the desired temperature. Also,
make sure to select only Panel, Bi-Level or Floor modes.
Stop/Start System — If Equipped
While in an Autostop, the Climate Controls system may
automatically adjust airflow to maintain cabin comfort.
Customer settings will be maintained upon return to an
engine running condition.
Windshield Wiper De-icer — If Equipped
The windshield wiper de-icer is a heating element located
at the base of the windshield.It operates automatically once the following conditions are
met:
•
Activation By Front Defrost
The wiper de-icer activates automatically during a cold
weather manual start with full defrost,and when the
ambient temperature is below 33° F (0.6° C).
• Activation By Rear Defrost
The wiper de-icer activates automatically when the Rear
Defrost is operating and the ambient temperature is below
33° F (0.6° C).
• Activation By Remote Start Operation
When the Remote Start is activated and the outside ambi-
ent temperature is less than 33° F (0.6° C) the windshield
wiper de-icer is activated. Upon exiting Remote Start, the
climate control functions will resume their previous opera-
tion except, if the de-icer is active, the de-icer timer and
operation will continue.
80 GETTING TO KNOW YOUR VEHICLE

STEERING WHEEL AUDIO CONTROLS —
IF EQUIPPED
The remote sound system controls are located on the rear
surface of the steering wheel. Reach behind the wheel to
access the switches.The right-hand control is a rocker-type switch with a
pushbutton in the center and controls the volume and
mode of the sound system. Pushing the top of the rocker
switch will increase the volume, and pushing the bottom of
the rocker switch will decrease the volume.
Pushing the center button will make the radio switch
between the various modes available (AM/FM/SXM/CD/
AUX, etc.).
The left-hand control is a rocker-type switch with a push-
button in the center. The function of the left-hand control is
different depending on which mode you are in.
The following describes the left-hand control operation in
each mode.
Radio Operation
Pushing the top of the switch will “Seek” up for the next
listenable station and pushing the bottom of the switch will
“Seek” down for the next listenable station.
The button located in the center of the left-hand control
will tune to the next preset station that you have pro-
grammed in the radio preset button.
Remote Sound System Controls
(Back View Of Steering Wheel)
10
MULTIMEDIA 567

Key FobArm The Alarm ..........................34
Disarm The Alarm ........................35
Programming Additional Key Fobs ..........25, 33
Key Fob Battery Service (Remote Keyless Entry) .....22
Key Fob Programming (Remote Keyless Entry) ......25
Key-In Reminder ............................28
Keyless Enter-N-Go ..........................38
Lock The Vehicle’s Doors ...................539
Passive Entry Programming .................539
Unlock Liftgate ......................... .539
Key, Replacement ........................ .25, 33
Keys ....................................20
Lane Change And Turn Signals .................66
Lane Change Assist ..........................66
LaneSense ............................... .355
Lap/Shoulder Belts ........................ .204
Latches ................................. .255
Hood ................................ .102
Leaks, Fluid ............................. .255
Life Of Tires ............................. .493
Liftgate ............................. .103, 104
Liftgate Window Wiper/Washer .................74
Light Bulbs .............................. .255Lights
.................................. .255
AirBag .........................143, 215, 253
Automatic Headlights ......................63
Battery Saver ............................67
Brake Assist Warning ..................... .176
Brake Warning ......................... .144
Cruise ............................... .162
Daytime Running .........................64
Dimmer Switch, Headlight ................65, 66
Engine Temperature Warning ................147
Exterior .............................. .255
Fog ...................................65
Hazard Warning Flasher ...................391
Headlights ..............................63
Headlights On Reminder ....................64
Headlights On With Wipers ..................64
Headlight Switch .........................63
High Beam ..............................66
High

Beam/Low Beam Select .................66
Hill Descent Control Indicator ...............179
Instrument Cluster ........................63
Intensity Control ..........................68
Interior ................................67
Lights On Reminder .......................64
Low Fuel ............................. .155
604 INDEX

Capacity.............................. .521
Change Interval ........................ .455
Checking ............................. .453
Dipstick .............................. .453
Disposal .............................. .457
Filter ................................ .457
Filter Disposal .......................... .457
Identification Logo ...................... .456
Materials Added To ...................... .457
Pressure Warning Light ....................146
Recommendation .....................455, 521
Synthetic ............................. .457
Viscosity .......................... .456, 521
Oil Filter, Change ......................... .457
Oil Filter, Selection ......................... .457
Oil Pressure Light ......................... .146
Onboard Diagnostic System ...................163
Opener, Garage Door (HomeLink) ...............108
Operating Precautions ...................... .163
Operator Manual (Owner’s Manual) ...............5
Outside Rearview Mirrors .....................60
Overheating, Engine ....................... .436
Owner’s Manual (Operator Manual) ...........5,596Paint Care
............................... .505
Parking Brake ............................ .264
ParkSense System, Rear ...................314, 321
Personalized Menu Bar ..................... .527
Pets ................................... .251
Placard, Tire And Loading Information ...........485
Power Brakes ............................... .512
Door Locks ..............................37
Inverter .............................. .122
Lift Gate .............................. .105
Outlet (Auxiliary Electrical Outlet) ............119
Sunroof ................................97
Windows ...............................95
Pr

egnant Women And Seat Belts ................210
Preparation For Jacking ..................... .416
Pretensioners Seat Belts ..............................211
Radial Ply Tires ........................... .491
Radiator Cap (Coolant Pressure Cap) .............476
Radio Frequency General Information ................25, 32, 34, 41
Radio Operation .......................... .569
Radio Remote Controls ..................... .567
606 INDEX

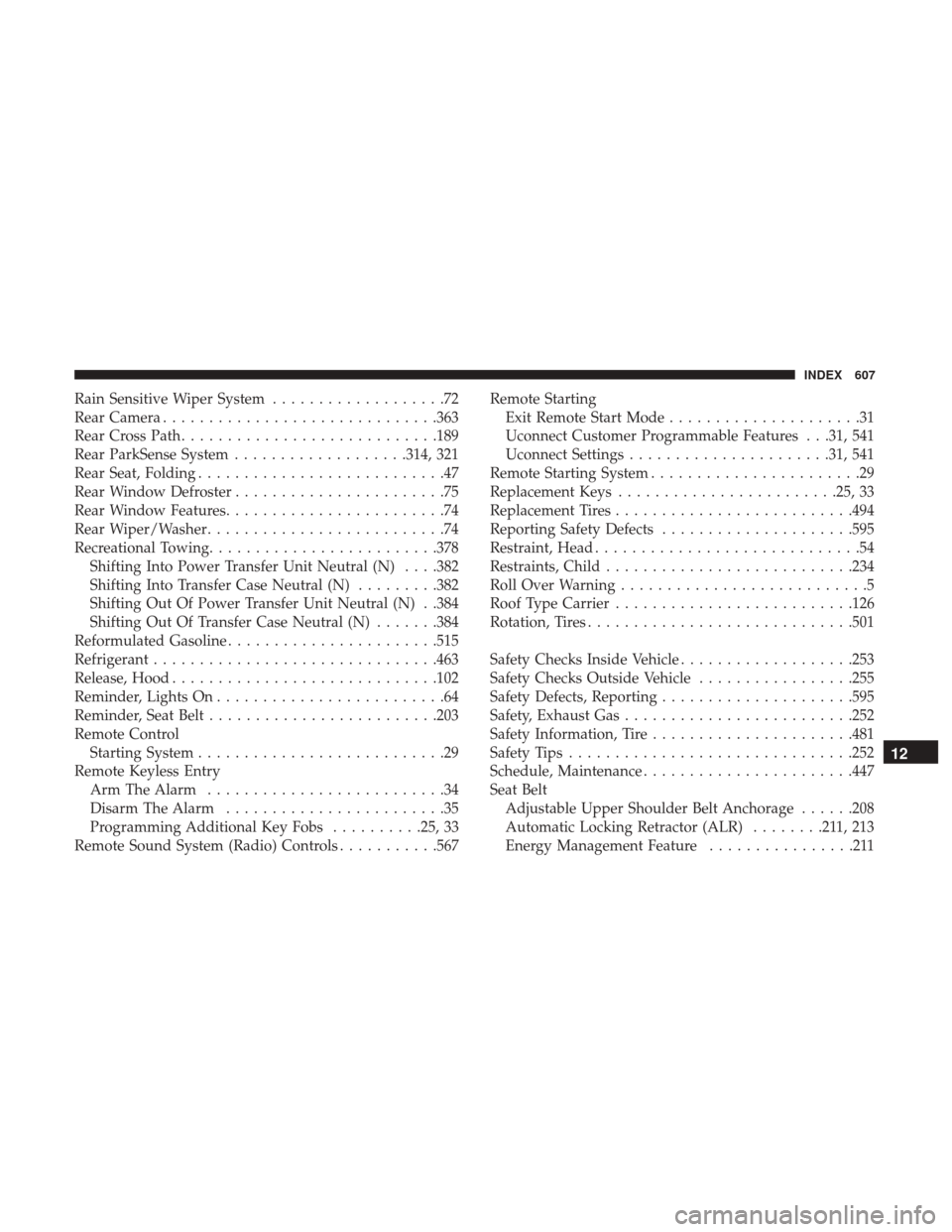

Rain Sensitive Wiper System...................72
Rear Camera ............................. .363
Rear Cross Path ........................... .189
Rear ParkSense System ...................314, 321
Rear Seat, Folding ...........................47
Rear Window Defroster .......................75
Rear Window Features ........................74
Rear Wiper/Washer ..........................74
Recreational Towing ........................ .378
Shifting Into Power Transfer Unit Neutral (N) . . . .382
Shifting Into Transfer Case Neutral (N) .........382
Shifting Out Of Power Transfer Unit Neutral (N) . .384
Shifting Out Of Transfer Case Neutral (N) .......384
Reformulated Gasoline ...................... .515
Refrigerant .............................. .463
Release, Hood ............................ .102
Reminder, Lights On .........................64
Reminder, Seat Belt ........................ .203
Remote Control Starting System ...........................29
Remote Keyless Entry Arm The Alarm ..........................34
Disarm The Alarm ........................35
Programming Additional Key Fobs ..........25, 33
Remote Sound System (Radio) Controls ...........567Remote Starting
Exit Remote Start Mode .....................31
Uconnect Customer Programmable Features . . .31, 541
Uconnect Settings ..................... .31, 541
Remote Starting System .......................29
Replacement Keys ....................... .25, 33
Replacement Tires ......................... .494
Reporting Safety Defects .....................595
Restraint, Head .............................54
Restraints, Child .......................... .234
Roll Over Warning ...........................5
Roof Type Carrier ......................... .126
Rotation, Tires ............................ .501
Safety Checks Inside Vehicle ...................253
Safety Checks Outside Vehicle .................255
Safety Defects, Reporting .....................595
Safety, Exhaust Gas ........................ .252
Safety Information, Tire ..................... .481
Safety

Tips .............................. .252
Schedule, Maintenance ...................... .447
Seat Belt Adjustable Upper Shoulder Belt Anchorage ......208
Automatic Locking Retractor (ALR) ........211,213
Energy Management Feature ................211
12
INDEX 607

Transfer Case, Shifting Out Of Transfer
Case Neutral (N)........................ .384
Shift Lever Override ....................... .437
Shoulder Belts ............................ .204
Side View Mirror Adjustment ...................60
Signals, Turn ....................... .66, 161, 255
Siri ................................ .586, 587
Snow Chains (Tire Chains) ....................500
Snow Tires .............................. .496
Spare Tire ........................ .496, 497, 498
Speed Control Accel/Decel ........................... .293
Cancel ............................... .293
Resume .............................. .293
Speed Control (Cruise Control) ..............290, 293
Starting ..................................29
Cold Weather .......................... .262
Engine Fails To Start ..................... .262
Remote ................................29
Steering Column Controls .........................65
Tilt Column .............................57
Wheel, Heated ...........................58
Wheel, Tilt ..............................57
Steering Wheel Audio Controls .................567Steering Wheel Mounted Sound System Controls . . . .567
Storage
..................................117
Storage, Vehicle .............................93
Stuck, Freeing ............................ .437
Sun Roof .................................97
Sun Visor Extension .........................62
Supplemental Restraint System - Air Bag ..........217
Sway Control, Trailer ....................... .178
Synthetic Engine Oil ....................... .457
System, Remote Starting ......................29
Telescoping Steering Column ...................57
Temperature Control, Automatic (ATC) ............92
Tie Down Hooks, Cargo ..................... .107
Tilt Steering Column .........................57
Time Delay, Headlight ........................64
Tire And Loading Information Placard ............485
Tire Markings ............................ .481
T

ires......................... .255, 489, 496, 503
Aging (Life Of Tires) ..................... .493
Air Pressure ........................... .489
Chains ............................... .500
Changing .......................... .414, 481
Compact Spare ......................... .497
General Information ...................489, 496
12
INDEX 609
