tires JEEP CHEROKEE 2020 Owner handbook (in English)

249

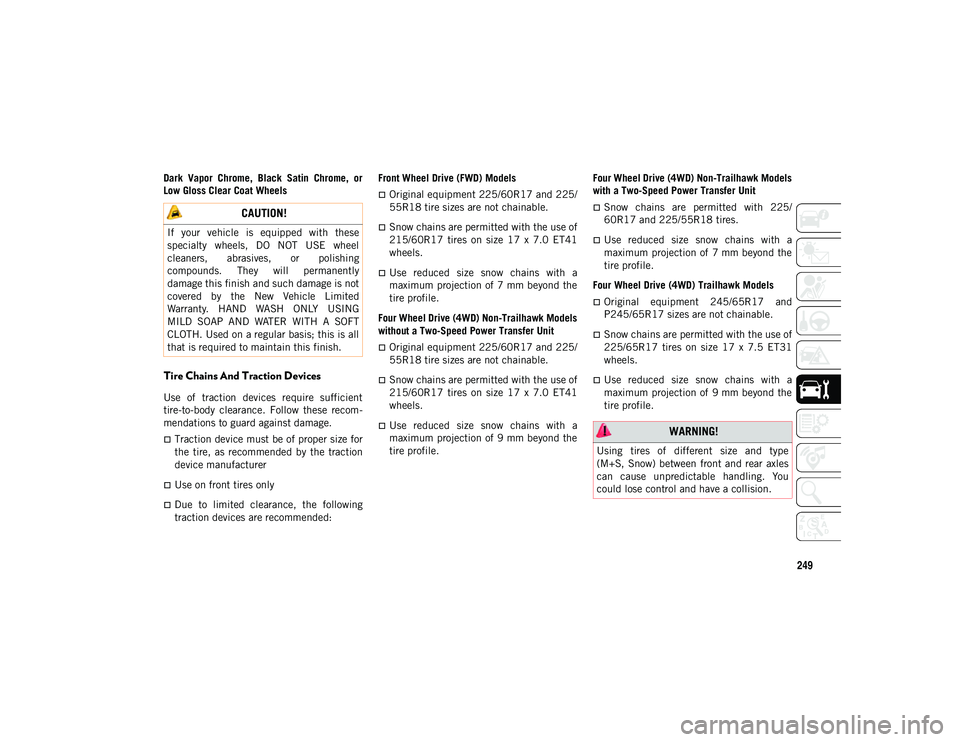

Dark Vapor Chrome, Black Satin Chrome, or
Low Gloss Clear Coat Wheels
Tire Chains And Traction Devices
Use of traction devices require sufficient
tire-to-body clearance. Follow these recom-
mendations to guard against damage.
Traction device must be of proper size for
the tire, as recommended by the traction
device manufacturer
Use on front tires only
Due to limited clearance, the following
traction devices are recommended: Front Wheel Drive (FWD) Models
Original equipment 225/60R17 and 225/
55R18 tire sizes are not chainable.
Snow chains are permitted with the use of
215/60R17 tires on size 17 x 7.0 ET41
wheels.
Use reduced size snow chains with a
maximum projection of 7 mm beyond the
tire profile.
Four Wheel Drive (4WD) Non-Trailhawk Models
without a Two-Speed Power Transfer Unit
Original equipment 225/60R17 and 225/
55R18 tire sizes are not chainable.
Snow chains are permitted with the use of
215/60R17 tires on size 17 x 7.0 ET41
wheels.
Use reduced size snow chains with a
maximum projection of 9 mm beyond the
tire profile. Four Wheel Drive (4WD) Non-Trailhawk Models
with a Two-Speed Power Transfer Unit
Snow chains are permitted with 225/
60R17 and 225/55R18 tires.
Use reduced size snow chains with a
maximum projection of 7 mm beyond the
tire profile.
Four Wheel Drive (4WD) Trailhawk Models
Original equipment 245/65R17 and
P245/65R17 sizes are not chainable.
Snow chains are permitted with the use of
225/65R17 tires on size 17 x 7.5 ET31
wheels.
Use reduced size snow chains with a
maximum projection of 9 mm beyond the
tire profile.
CAUTION!
If your vehicle is equipped with these
specialty wheels, DO NOT USE wheel
cleaners, abrasives, or polishing
compounds. They will permanently
damage this finish and such damage is not
covered by the New Vehicle Limited
Warranty. HAND WASH ONLY USING
MILD SOAP AND WATER WITH A SOFT
CLOTH. Used on a regular basis; this is all
that is required to maintain this finish.
WARNING!
Using tires of different size and type
(M+S, Snow) between front and rear axles
can cause unpredictable handling. You
could lose control and have a collision.
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 249

SERVICING AND MAINTENAN
CE
250
(Continued)

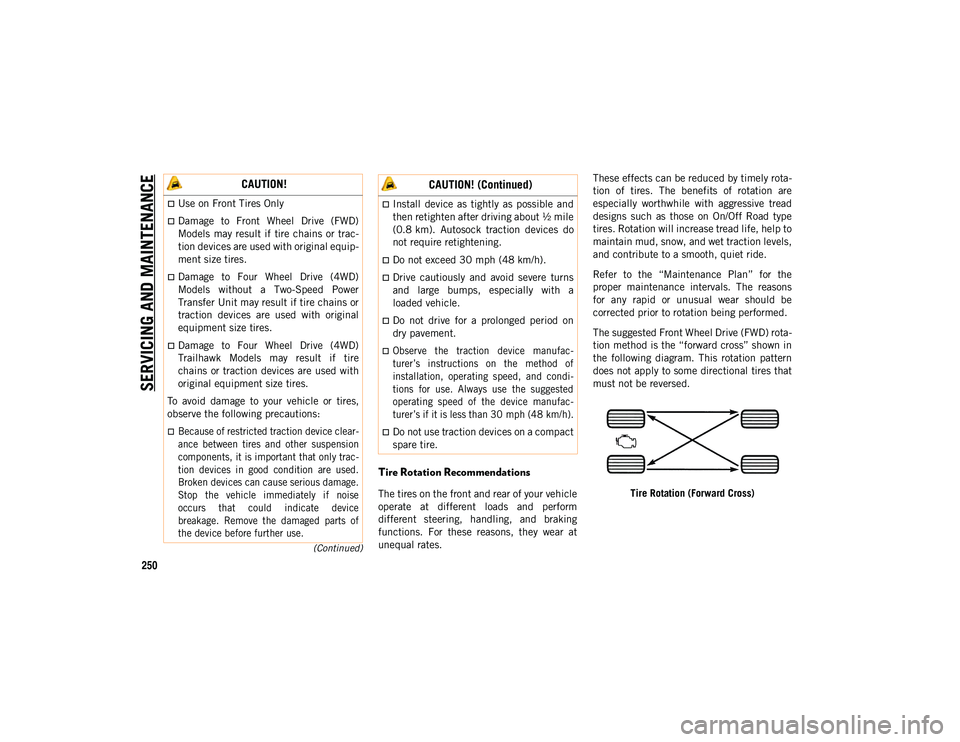

Tire Rotation Recommendations
The tires on the front and rear of your vehicle
operate at different loads and perform
different steering, handling, and braking
functions. For these reasons, they wear at
unequal rates.These effects can be reduced by timely rota
-
tion of tires. The benefits of rotation are
especially worthwhile with aggressive tread
designs such as those on On/Off Road type
tires. Rotation will increase tread life, help to
maintain mud, snow, and wet traction levels,
and contribute to a smooth, quiet ride.
Refer to the “Maintenance Plan” for the
proper maintenance intervals. The reasons
for any rapid or unusual wear should be
corrected prior to rotation being performed.
The suggested Front Wheel Drive (FWD) rota -
tion method is the “forward cross” shown in
the following diagram. This rotation pattern
does not apply to some directional tires that
must not be reversed.
Tire Rotation (Forward Cross)
CAUTION!
Use on Front Tires Only
Damage to Front Wheel Drive (FWD)
Models may result if tire chains or trac-
tion devices are used with original equip -
ment size tires.
Damage to Four Wheel Drive (4WD)
Models without a Two-Speed Power
Transfer Unit may result if tire chains or
traction devices are used with original
equipment size tires.
Damage to Four Wheel Drive (4WD)
Trailhawk Models may result if tire
chains or traction devices are used with
original equipment size tires.
To avoid damage to your vehicle or tires,
observe the following precautions:

Because of restricted traction device clear -
ance between tires and other suspension
components, it is important that only trac -
tion devices in good condition are used.
Broken devices can cause serious damage.
Stop the vehicle immediately if noise
occurs that could indicate device
breakage. Remove the damaged parts of
the device before further use.

Install device as tightly as possible and
then retighten after driving about ½ mile
(0.8 km). Autosock traction devices do
not require retightening.
Do not exceed 30 mph (48 km/h).
Drive cautiously and avoid severe turns
and large bumps, especially with a
loaded vehicle.
Do not drive for a prolonged period on
dry pavement.

Observe the traction device manufac -
turer’s instructions on the method of
installation, operating speed, and condi -
tions for use. Always use the suggested
operating speed of the device manufac -
turer’s if it is less than 30 mph (48 km/h).

Do not use traction devices on a compact
spare tire.
CAUTION! (Continued)
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 250

251

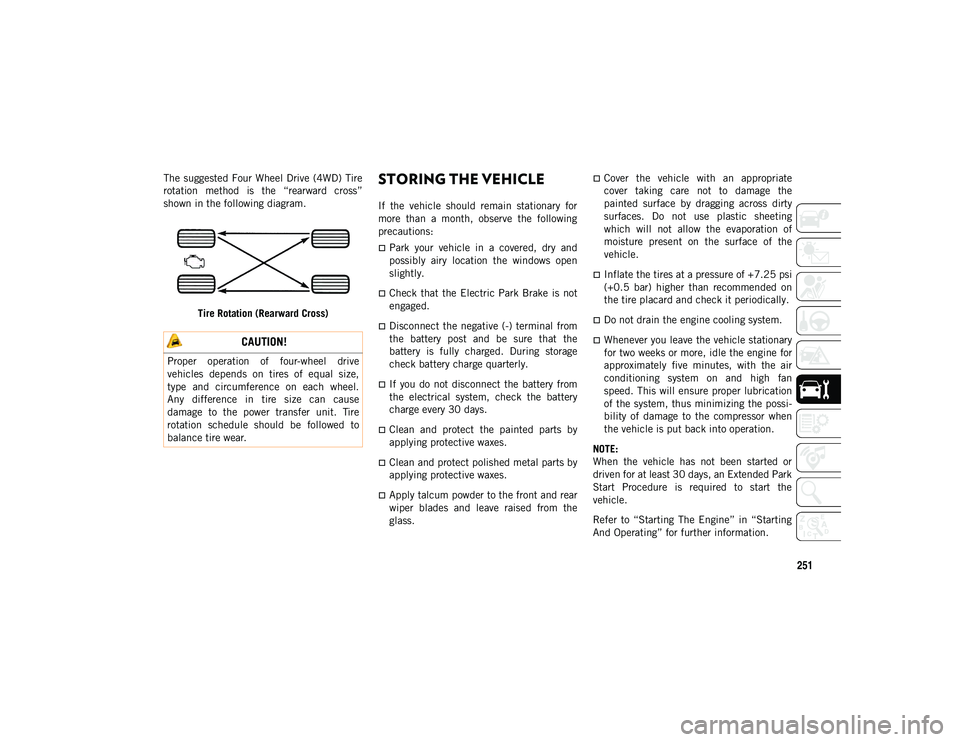

The suggested Four Wheel Drive (4WD) Tire
rotation method is the “rearward cross”
shown in the following diagram.Tire Rotation (Rearward Cross)STORING THE VEHICLE
If the vehicle should remain stationary for
more than a month, observe the following
precautions:
Park your vehicle in a covered, dry and
possibly airy location the windows open
slightly.
Check that the Electric Park Brake is not
engaged.
Disconnect the negative (-) terminal from
the battery post and be sure that the
battery is fully charged. During storage
check battery charge quarterly.
If you do not disconnect the battery from
the electrical system, check the battery
charge every 30 days.
Clean and protect the painted parts by
applying protective waxes.
Clean and protect polished metal parts by
applying protective waxes.
Apply talcum powder to the front and rear
wiper blades and leave raised from the
glass.
Cover the vehicle with an appropriate
cover taking care not to damage the
painted surface by dragging across dirty
surfaces. Do not use plastic sheeting
which will not allow the evaporation of
moisture present on the surface of the
vehicle.
Inflate the tires at a pressure of +7.25 psi
(+0.5 bar) higher than recommended on
the tire placard and check it periodically.
Do not drain the engine cooling system.
Whenever you leave the vehicle stationary
for two weeks or more, idle the engine for
approximately five minutes, with the air
conditioning system on and high fan
speed. This will ensure proper lubrication
of the system, thus minimizing the possi -
bility of damage to the compressor when
the vehicle is put back into operation.
NOTE:
When the vehicle has not been started or
driven for at least 30 days, an Extended Park
Start Procedure is required to start the
vehicle.
Refer to “Starting The Engine” in “Starting
And Operating” for further information. CAUTION!
Proper operation of four-wheel drive
vehicles depends on tires of equal size,
type and circumference on each wheel.
Any difference in tire size can cause
damage to the power transfer unit. Tire
rotation schedule should be followed to
balance tire wear.
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 251

TECHNICAL SPECIFICATIONS
256

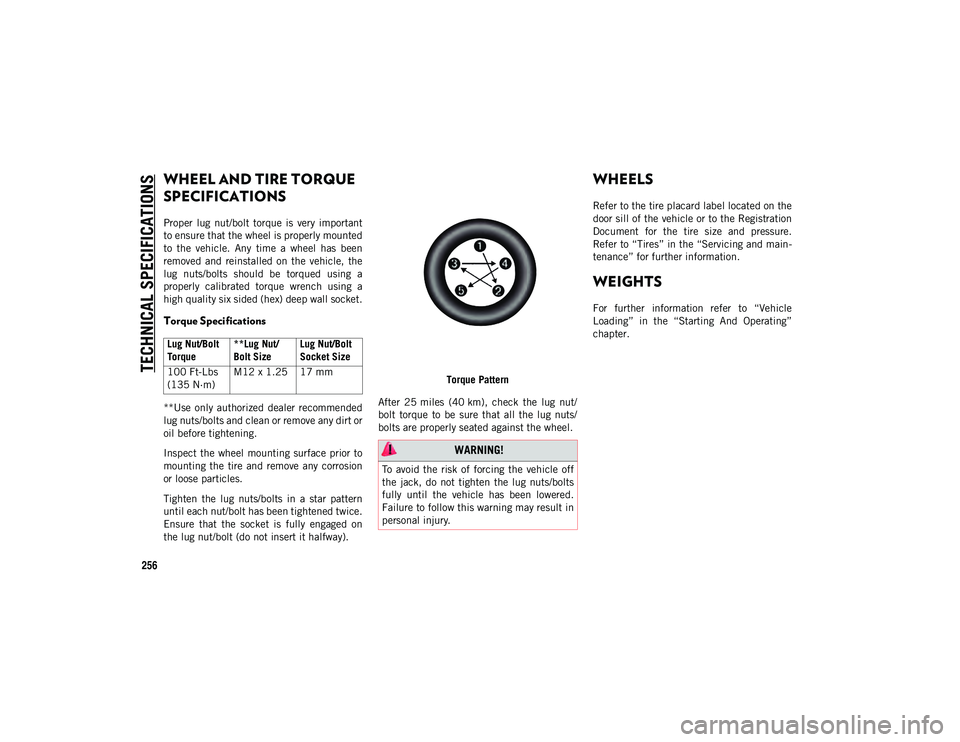

WHEEL AND TIRE TORQUE
SPECIFICATIONS
Proper lug nut/bolt torque is very important
to ensure that the wheel is properly mounted
to the vehicle. Any time a wheel has been
removed and reinstalled on the vehicle, the
lug nuts/bolts should be torqued using a
properly calibrated torque wrench using a
high quality six sided (hex) deep wall socket.
Torque Specifications
**Use only authorized dealer recommended
lug nuts/bolts and clean or remove any dirt or
oil before tightening.
Inspect the wheel mounting surface prior to
mounting the tire and remove any corrosion
or loose particles.
Tighten the lug nuts/bolts in a star pattern
until each nut/bolt has been tightened twice.
Ensure that the socket is fully engaged on
the lug nut/bolt (do not insert it halfway).Torque Pattern
After 25 miles (40 km), check the lug nut/
bolt torque to be sure that all the lug nuts/
bolts are properly seated against the wheel.
WHEELS
Refer to the tire placard label located on the
door sill of the vehicle or to the Registration
Document for the tire size and pressure.
Refer to “Tires” in the “Servicing and main -
tenance” for further information.
WEIGHTS
For further information refer to “Vehicle
Loading” in the “Starting And Operating”
chapter.
Lug Nut/Bolt
Torque **Lug Nut/
Bolt SizeLug Nut/Bolt
Socket Size
100 Ft-Lbs
(135 N·m) M12 x 1.25 17 mm
WARNING!
To avoid the risk of forcing the vehicle off
the jack, do not tighten the lug nuts/bolts
fully until the vehicle has been lowered.
Failure to follow this warning may result in
personal injury.
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 256

322

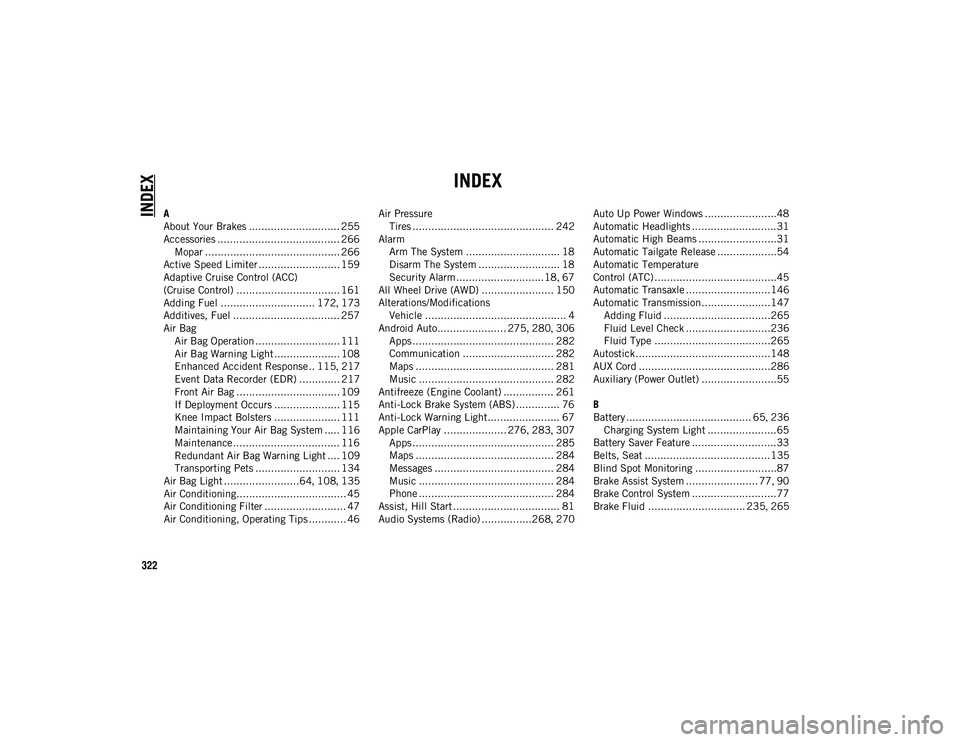

INDEX
INDEX
A
About Your Brakes ............................. 255
Accessories ....................................... 266Mopar ........................................... 266
Active Speed Limiter .......................... 159
Adaptive Cruise Control (ACC)
(Cruise Control) ................................. 161
Adding Fuel .............................. 172 , 173
Additives, Fuel .................................. 257
Air Bag Air Bag Operation ........................... 111Air Bag Warning Light ..................... 108
Enhanced Accident Response .. 115 , 217
Event Data Recorder (EDR) ............. 217
Front Air Bag ................................. 109
If Deployment Occurs ..................... 115
Knee Impact Bolsters ..................... 111
Maintaining Your Air Bag System ..... 116
Maintenance .................................. 116
Redundant Air Bag Warning Light .... 109
Transporting Pets ........................... 134
Air Bag Light ........................64 , 108 , 135
Air Conditioning................................... 45
Air Conditioning Filter .......................... 47
Air Conditioning, Operating Tips ............ 46 Air Pressure
Tires ............................................. 242
Alarm Arm The System .............................. 18
Disarm The System .......................... 18
Security Alarm ............................18 , 67
All Wheel Drive (AWD) ....................... 150
Alterations/Modifications Vehicle ............................................. 4
Android Auto...................... 275 , 280 , 306
Apps ............................................. 282
Communication ............................. 282
Maps ............................................ 281
Music ........................................... 282
Antifreeze (Engine Coolant) ................ 261
Anti-Lock Brake System (ABS) .............. 76
Anti-Lock Warning Light ....................... 67
Apple CarPlay .................... 276 , 283 , 307
Apps ............................................. 285
Maps ............................................ 284
Messages ...................................... 284
Music ........................................... 284
Phone ........................................... 284
Assist, Hill Start .................................. 81
Audio Systems (Radio) ................268 , 270 Auto Up Power Windows .......................48
Automatic Headlights ...........................31
Automatic High Beams .........................31
Automatic Tailgate Release ...................54
Automatic Temperature
Control (ATC) .......................................45
Automatic Transaxle ...........................146
Automatic Transmission......................147
Adding Fluid ..................................265
Fluid Level Check ...........................236
Fluid Type .....................................265
Autostick...........................................148
AUX Cord ..........................................286
Auxiliary (Power Outlet) ........................55
B
Battery ........................................ 65 , 236
Charging System Light ......................65
Battery Saver Feature ...........................33
Belts, Seat ........................................135
Blind Spot Monitoring ..........................87
Brake Assist System ....................... 77 , 90
Brake Control System ...........................77
Brake Fluid ............................... 235 , 265
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 322

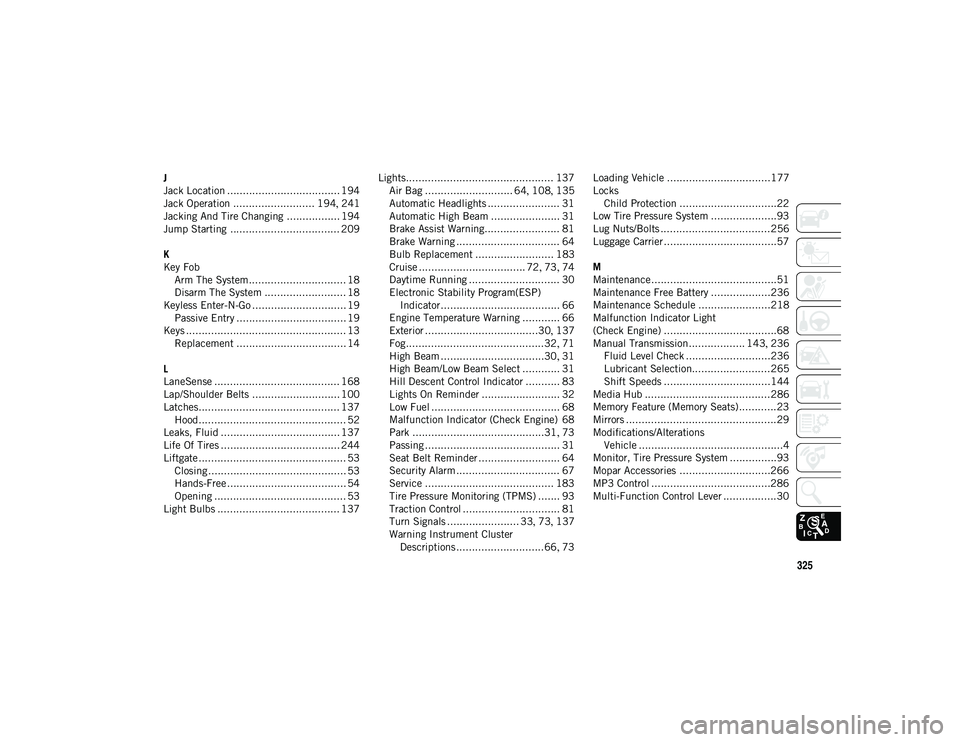

325
J
Jack Location .................................... 194
Jack Operation .......................... 194, 241
Jacking And Tire Changing ................. 194
Jump Starting ................................... 209
K
Key Fob Arm The System ............................... 18
Disarm The System .......................... 18
Keyless Enter-N-Go .............................. 19 Passive Entry ................................... 19
Keys ................................................... 13 Replacement ................................... 14
L
LaneSense ........................................ 168
Lap/Shoulder Belts ............................ 100
Latches............................................. 137 Hood ............................................... 52
Leaks, Fluid ...................................... 137
Life Of Tires ...................................... 244
Liftgate ............................................... 53 Closing ............................................ 53
Hands-Free ...................................... 54
Opening .......................................... 53
Light Bulbs ....................................... 137 Lights............................................... 137
Air Bag ............................ 64 , 108 , 135
Automatic Headlights ....................... 31
Automatic High Beam ...................... 31
Brake Assist Warning........................ 81
Brake Warning ................................. 64
Bulb Replacement ......................... 183
Cruise .................................. 72 , 73 , 74
Daytime Running ............................. 30
Electronic Stability Program(ESP) Indicator...................................... 66
Engine Temperature Warning ............ 66
Exterior ....................................30 , 137
Fog............................................32 , 71
High Beam .................................30 , 31
High Beam/Low Beam Select ............ 31
Hill Descent Control Indicator ........... 83
Lights On Reminder ......................... 32
Low Fuel ......................................... 68
Malfunction Indicator (Check Engine) 68
Park ..........................................31 , 73
Passing ........................................... 31
Seat Belt Reminder .......................... 64
Security Alarm ................................. 67
Service ......................................... 183
Tire Pressure Monitoring (TPMS) ....... 93
Traction Control ............................... 81
Turn Signals ....................... 33 , 73 , 137
Warning Instrument Cluster Descriptions ............................66 , 73 Loading Vehicle .................................177
Locks
Child Protection ...............................22
Low Tire Pressure System .....................93
Lug Nuts/Bolts ...................................256
Luggage Carrier ....................................57
M
Maintenance........................................51
Maintenance Free Battery ...................236
Maintenance Schedule .......................218
Malfunction Indicator Light
(Check Engine) ....................................68
Manual Transmission.................. 143 , 236
Fluid Level Check ...........................236
Lubricant Selection.........................265
Shift Speeds ..................................144
Media Hub ........................................286
Memory Feature (Memory Seats)............23
Mirrors ................................................29
Modifications/Alterations Vehicle ..............................................4
Monitor, Tire Pressure System ...............93
Mopar Accessories .............................266
MP3 Control ......................................286
Multi-Function Control Lever .................30
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 325

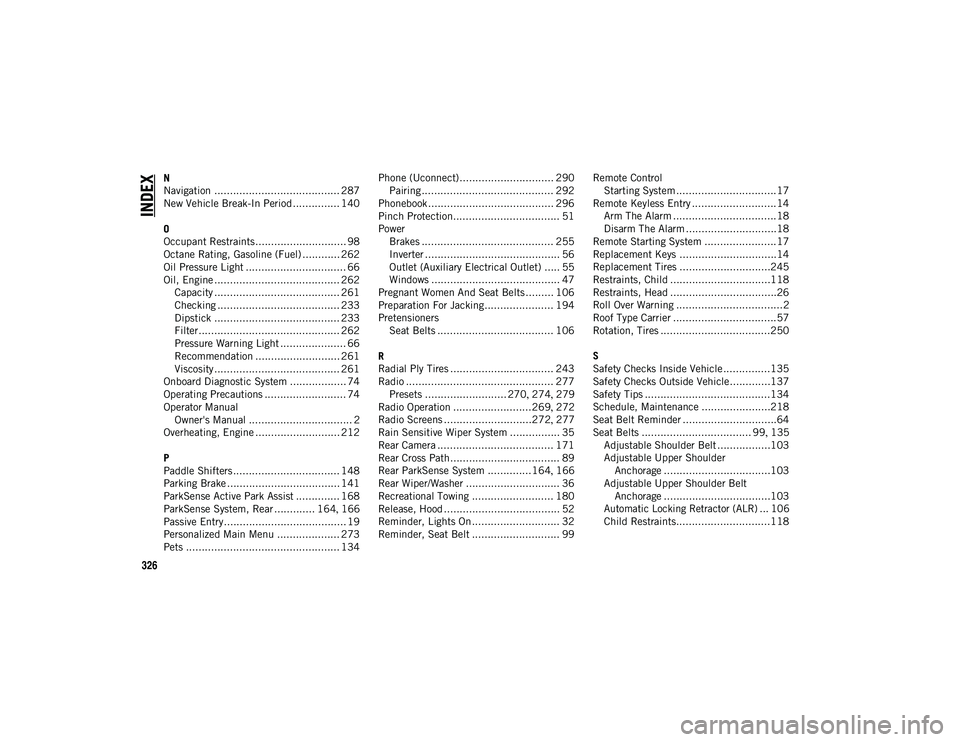

326
INDEX
N
Navigation ........................................ 287
New Vehicle Break-In Period ............... 140
O
Occupant Restraints............................. 98
Octane Rating, Gasoline (Fuel) ............ 262
Oil Pressure Light ................................ 66
Oil, Engine ........................................ 262 Capacity ........................................ 261
Checking ....................................... 233
Dipstick ........................................ 233
Filter............................................. 262
Pressure Warning Light ..................... 66
Recommendation ........................... 261Viscosity ........................................ 261
Onboard Diagnostic System .................. 74
Operating Precautions .......................... 74
Operator Manual Owner's Manual ................................. 2
Overheating, Engine ........................... 212
P
Paddle Shifters .................................. 148
Parking Brake .................................... 141
ParkSense Active Park Assist .............. 168
ParkSense System, Rear ............. 164 , 166
Passive Entry....................................... 19
Personalized Main Menu .................... 273
Pets ................................................. 134 Phone (Uconnect).............................. 290
Pairing .......................................... 292
Phonebook ........................................ 296
Pinch Protection.................................. 51
Power Brakes .......................................... 255
Inverter ........................................... 56
Outlet (Auxiliary Electrical Outlet) ..... 55
Windows ......................................... 47
Pregnant Women And Seat Belts......... 106
Preparation For Jacking...................... 194
Pretensioners Seat Belts ..................................... 106
R
Radial Ply Tires ................................. 243
Radio ............................................... 277 Presets .......................... 270 , 274 , 279
Radio Operation .........................269 , 272
Radio Screens ............................272 , 277
Rain Sensitive Wiper System ................ 35
Rear Camera ..................................... 171
Rear Cross Path................................... 89
Rear ParkSense System ..............164 , 166
Rear Wiper/Washer .............................. 36
Recreational Towing .......................... 180
Release, Hood ..................................... 52
Reminder, Lights On ............................ 32
Reminder, Seat Belt ............................ 99 Remote Control
Starting System ................................17
Remote Keyless Entry ...........................14 Arm The Alarm .................................18
Disarm The Alarm .............................18
Remote Starting System .......................17
Replacement Keys ...............................14
Replacement Tires .............................245
Restraints, Child ................................118
Restraints, Head ..................................26
Roll Over Warning ..................................2
Roof Type Carrier .................................57
Rotation, Tires ...................................250
S
Safety Checks Inside Vehicle ...............135
Safety Checks Outside Vehicle.............137
Safety Tips ........................................134
Schedule, Maintenance ......................218
Seat Belt Reminder ..............................64
Seat Belts ................................... 99 , 135
Adjustable Shoulder Belt .................103
Adjustable Upper Shoulder Anchorage ..................................103
Adjustable Upper Shoulder Belt Anchorage ..................................103

Automatic Locking Retractor (ALR) ... 106

Child Restraints..............................118
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 326

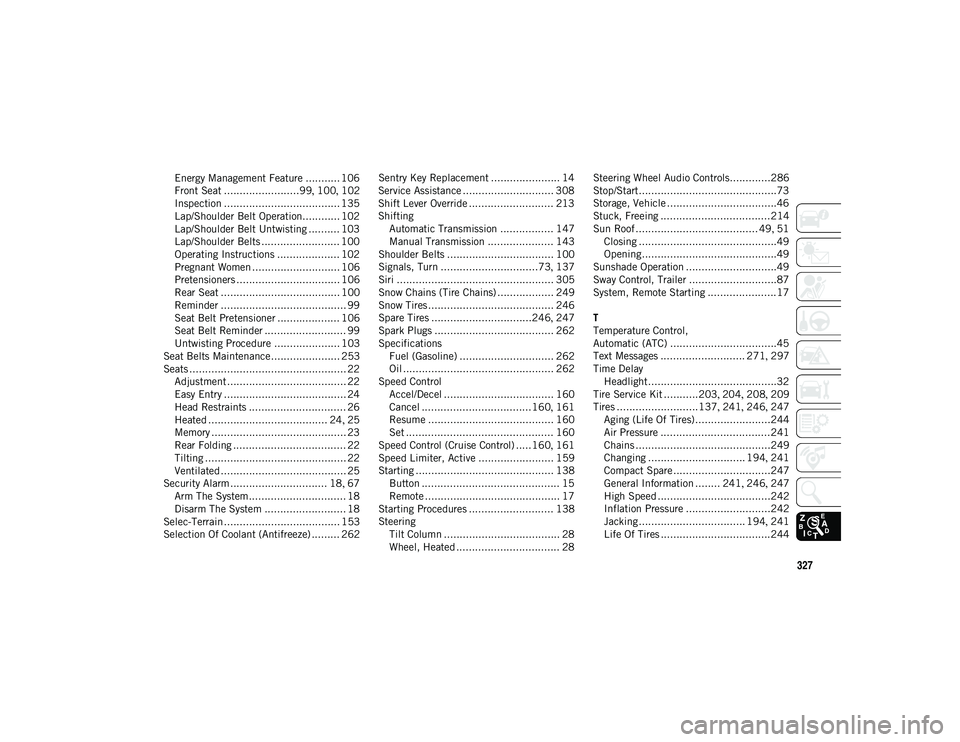

327
Energy Management Feature ........... 106
Front Seat ........................99, 100 , 102
Inspection ..................................... 135
Lap/Shoulder Belt Operation............ 102
Lap/Shoulder Belt Untwisting .......... 103
Lap/Shoulder Belts ......................... 100
Operating Instructions .................... 102
Pregnant Women ............................ 106 Pretensioners ................................. 106
Rear Seat ...................................... 100
Reminder ........................................ 99
Seat Belt Pretensioner .................... 106
Seat Belt Reminder .......................... 99
Untwisting Procedure ..................... 103
Seat Belts Maintenance...................... 253
Seats .................................................. 22 Adjustment ...................................... 22
Easy Entry ....................................... 24
Head Restraints ............................... 26
Heated ...................................... 24 , 25
Memory ........................................... 23
Rear Folding .................................... 22
Tilting ............................................. 22
Ventilated ........................................ 25
Security Alarm............................... 18 , 67
Arm The System ............................... 18
Disarm The System .......................... 18
Selec-Terrain..................................... 153
Selection Of Coolant (Antifreeze) ......... 262 Sentry Key Replacement ...................... 14
Service Assistance ............................. 308
Shift Lever Override ........................... 213
Shifting Automatic Transmission ................. 147Manual Transmission ..................... 143
Shoulder Belts .................................. 100
Signals, Turn ...............................73 , 137
Siri .................................................. 305
Snow Chains (Tire Chains) .................. 249
Snow Tires ........................................ 246
Spare Tires ................................246 , 247
Spark Plugs ...................................... 262
Specifications Fuel (Gasoline) .............................. 262
Oil ................................................ 262
Speed Control Accel/Decel ................................... 160
Cancel ...................................160 , 161
Resume ........................................ 160
Set ............................................... 160
Speed Control (Cruise Control) .....160 , 161
Speed Limiter, Active ........................ 159
Starting ............................................ 138 Button ............................................ 15
Remote ........................................... 17
Starting Procedures ........................... 138
Steering Tilt Column ..................................... 28
Wheel, Heated ................................. 28 Steering Wheel Audio Controls.............286
Stop/Start............................................73
Storage, Vehicle ...................................46
Stuck, Freeing ...................................214
Sun Roof ....................................... 49
, 51
Closing ............................................49 Opening...........................................49
Sunshade Operation .............................49
Sway Control, Trailer ............................87
System, Remote Starting ......................17
T
Temperature Control,
Automatic (ATC) ..................................45
Text Messages ........................... 271 , 297
Time Delay Headlight.........................................32
Tire Service Kit ...........203 , 204 , 208 , 209
Tires ..........................137 , 241 , 246 , 247
Aging (Life Of Tires)........................244
Air Pressure ...................................241
Chains ...........................................249 Changing ............................... 194 , 241
Compact Spare...............................247
General Information ........ 241 , 246 , 247
High Speed ....................................242
Inflation Pressure ...........................242
Jacking .................................. 194 , 241
Life Of Tires ...................................244
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 327

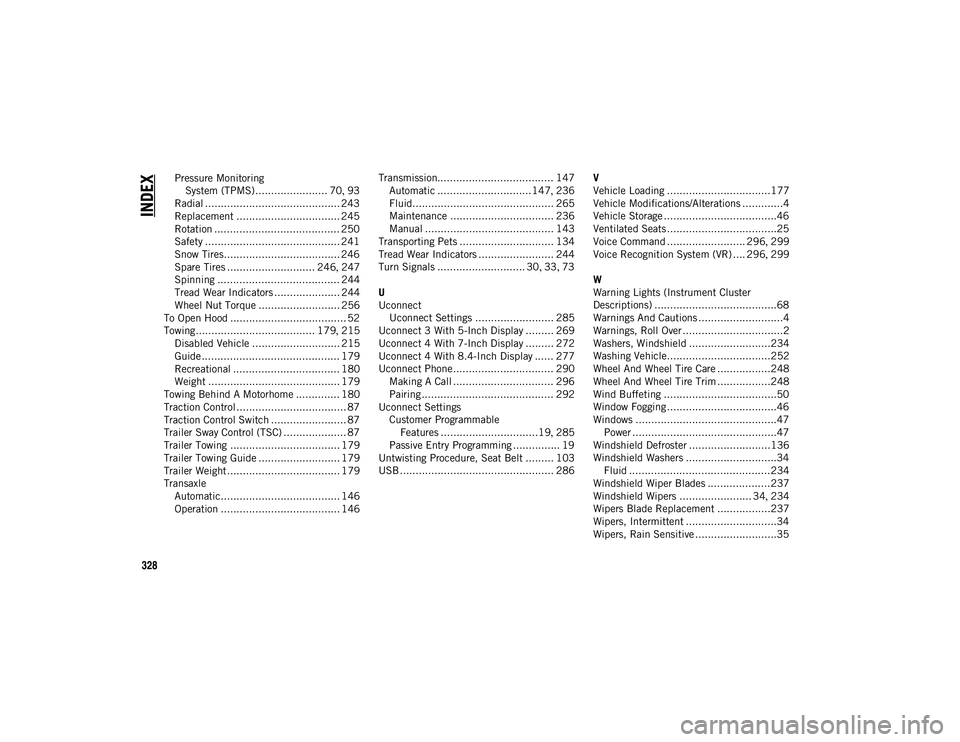

328
INDEX
Pressure Monitoring System (TPMS)....................... 70 , 93
Radial ........................................... 243
Replacement ................................. 245
Rotation ........................................ 250
Safety ........................................... 241
Snow Tires..................................... 246
Spare Tires ............................ 246 , 247
Spinning ....................................... 244
Tread Wear Indicators ..................... 244
Wheel Nut Torque .......................... 256
To Open Hood ..................................... 52
Towing...................................... 179 , 215
Disabled Vehicle ............................ 215 Guide ............................................ 179
Recreational .................................. 180
Weight .......................................... 179
Towing Behind A Motorhome .............. 180
Traction Control ................................... 87
Traction Control Switch ........................ 87
Trailer Sway Control (TSC) .................... 87
Trailer Towing ................................... 179
Trailer Towing Guide .......................... 179
Trailer Weight .................................... 179
Transaxle Automatic...................................... 146
Operation ...................................... 146 Transmission..................................... 147
Automatic ..............................147 , 236
Fluid............................................. 265
Maintenance ................................. 236
Manual ......................................... 143
Transporting Pets .............................. 134
Tread Wear Indicators ........................ 244
Turn Signals ............................ 30 , 33 , 73
U
Uconnect Uconnect Settings ......................... 285
Uconnect 3 With 5-Inch Display ......... 269
Uconnect 4 With 7-Inch Display ......... 272
Uconnect 4 With 8.4-Inch Display ...... 277
Uconnect Phone ................................ 290 Making A Call ................................ 296
Pairing .......................................... 292
Uconnect Settings Customer Programmable Features ...............................19 , 285
Passive Entry Programming ............... 19
Untwisting Procedure, Seat Belt ......... 103
USB ................................................. 286 V
Vehicle Loading .................................177
Vehicle Modifications/Alterations .............4
Vehicle Storage ....................................46
Ventilated Seats ...................................25
Voice Command ......................... 296
, 299
Voice Recognition System (VR) .... 296 , 299
W
Warning Lights (Instrument Cluster
Descriptions) .......................................68
Warnings And Cautions ...........................4
Warnings, Roll Over ................................2
Washers, Windshield ..........................234
Washing Vehicle.................................252
Wheel And Wheel Tire Care .................248
Wheel And Wheel Tire Trim .................248
Wind Buffeting ....................................50
Window Fogging ...................................46
Windows .............................................47 Power ..............................................47
Windshield Defroster ..........................136
Windshield Washers .............................34 Fluid .............................................234
Windshield Wiper Blades ....................237
Windshield Wipers ....................... 34 , 234
Wipers Blade Replacement .................237
Wipers, Intermittent .............................34
Wipers, Rain Sensitive ..........................35
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 328
