JEEP CHEROKEE LATITUDE 2015 Service Manual
Manufacturer: JEEP, Model Year: 2015, Model line: CHEROKEE LATITUDE, Model: JEEP CHEROKEE LATITUDE 2015Pages: 764, PDF Size: 5 MB
Page 41 of 764
Page 42 of 764

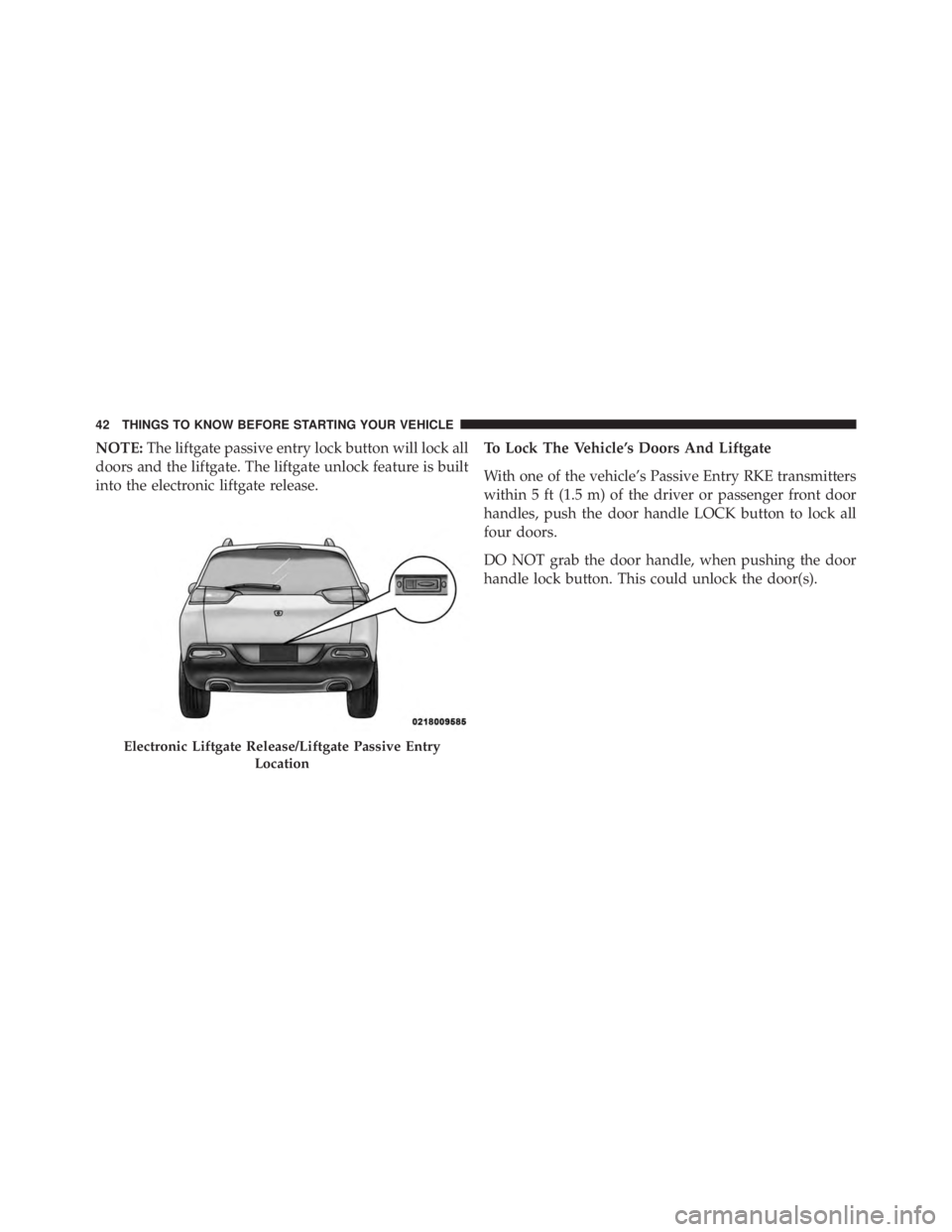

Page 43 of 764
Page 44 of 764
Page 45 of 764
Page 46 of 764
•If Passive Entry is disabled using Uconnect® System,
the key protection described in Preventing Inadver-
tent Locking of Passive Entry RKE Transmitter in
Vehicle remains active/functional.
• The Passive Entry system will not operate if the RKE
transmitter battery is dead.
The vehicle doors can also be locked by using the lock
button located on the vehicle’s interior door panel.
WINDOWS
Power Windows
The window controls on the driver’s door control all the
door windows.
There are single window controls on each passenger door
trim panel, which operate the passenger door windows.
The window controls will operate only when the ignition
is in the ACC or ON/RUN position. NOTE:
For vehicles equipped with the Uconnect®, the
power window switches will remain active for up to 10
minutes after the ignition is cycled to the OFF position.
Opening either front door will cancel this feature. The time
is programmable. Refer to “Uconnect® Settings” in “Under-
standing Your Instrument Panel” for further information.

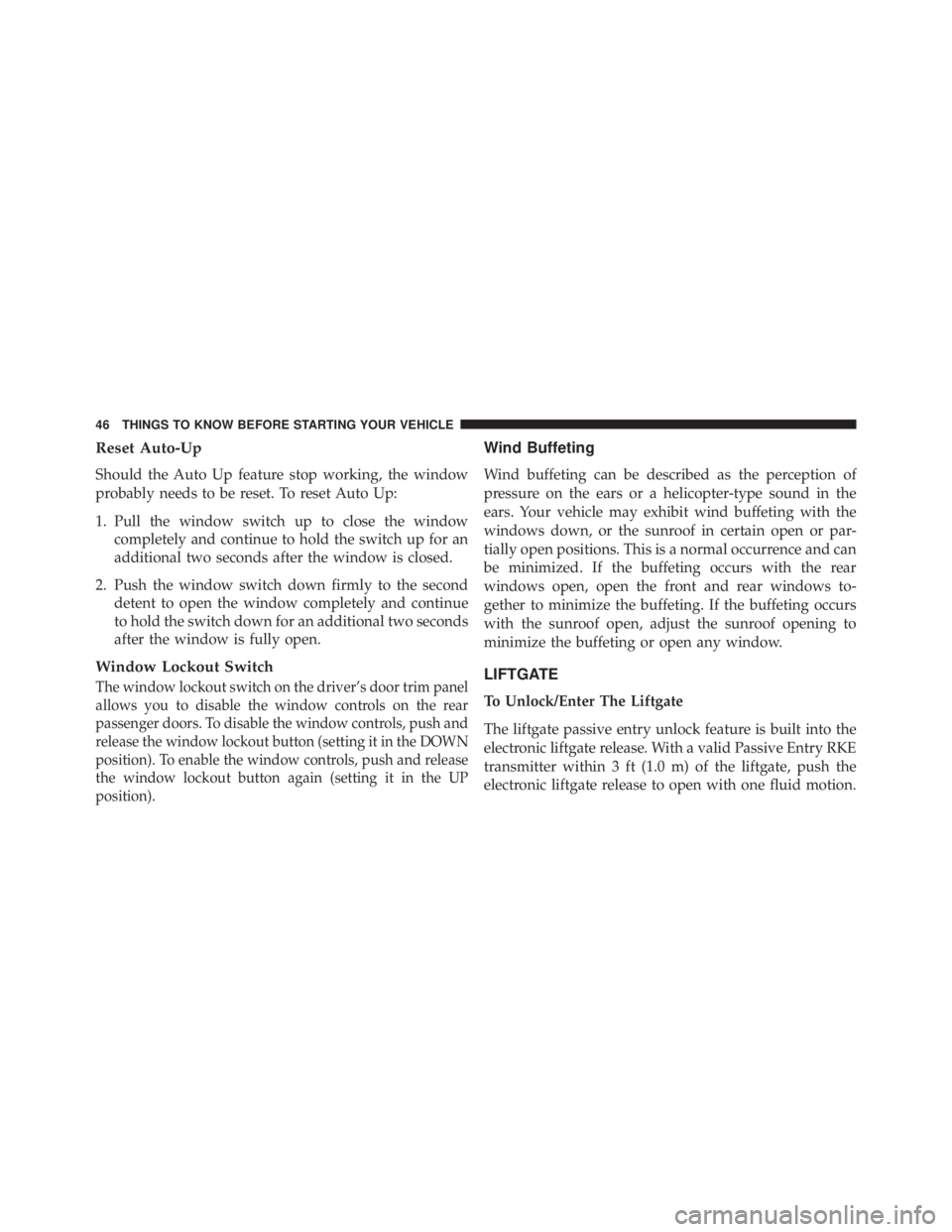

Page 47 of 764
AUTO-Down Feature
The driver door power window switch and some model
passenger door power window switches have an AUTO-
down feature. Push the window switch to the second
detent, release, and the window will go down automati-
cally.
To open the window part way, push the window switch
to the first detent and release it when you want the
window to stop.
To stop the window from going all the way down during
the AUTO-down operation, pull up on the switch briefly.
AUTO-Up Feature With Anti-Pinch Protection
Lift the window switch to the second detent, release, and
the window will go up automatically.
To stop the window from going all the way up during the
AUTO operation, push down on the switch briefly.To close the window part way, lift the window switch to
the first detent and release it when you want the window
to stop.
NOTE:
•
If the window runs into any obstacle during auto-
closure, it will reverse direction and then go back
down. Remove the obstacle and use the window
switch again to close the window.
• Any impact due to rough road conditions may trigger
the auto-reverse function unexpectedly during auto-
closure. If this happens, pull the switch lightly to the
first detent and hold to close the window manually.
Page 48 of 764
Page 49 of 764
Page 50 of 764
WARNING!
Driving with the liftgate open can allow poisonous
exhaust gases into your vehicle. You and your pas-
sengers could be injured by these fumes. Keep the
liftgate closed when you are operating the vehicle.
Power Liftgate — If Equipped
The power liftgate may be opened by pushing
the electronic liftgate release (refer to “Keyless
Enter-N-Go™” located in “Things To Know
Before Starting”) or by pushing the LIFTGATE
button on the Remote Keyless Entry (RKE) transmitter.
Push the LIFTGATE button on the RKE transmitter twice
within five seconds to open the power liftgate. Once the
liftgate is open, pushing the button twice within five
seconds a second time will close the liftgate. The power liftgate may also be opened or closed by
pushing the LIFTGATE button located on the left side of
the steering wheel on the instrument panel, or closed by
pushing the LIFTGATE button located on left rear trim
panel, near the liftgate opening. Push the LIFTGATE
button located on left rear trim panel once will close the
liftgate only. This button cannot be used to open the
liftgate.
When the LIFTGATE button on the RKE transmitter is
pushed two times, the turn signals will flash twice to
signal that the liftgate is opening or closing (if Flash
Lamps with Lock is enabled in the Uconnect® settings),
and the liftgate chime will be audible. For further infor-
mation, refer to
Uconnect®inUnderstanding Your
Instrument Panel.”
