•The cluster icon and switch lamp will flash when HDC
deactivates due to overheated brakes. The flashing will
stop and HDC will activate again once the brakes have
cooled sufficiently.
The Hill Descent Switch is located within the Selec-
Terrain knob in the upper right position.

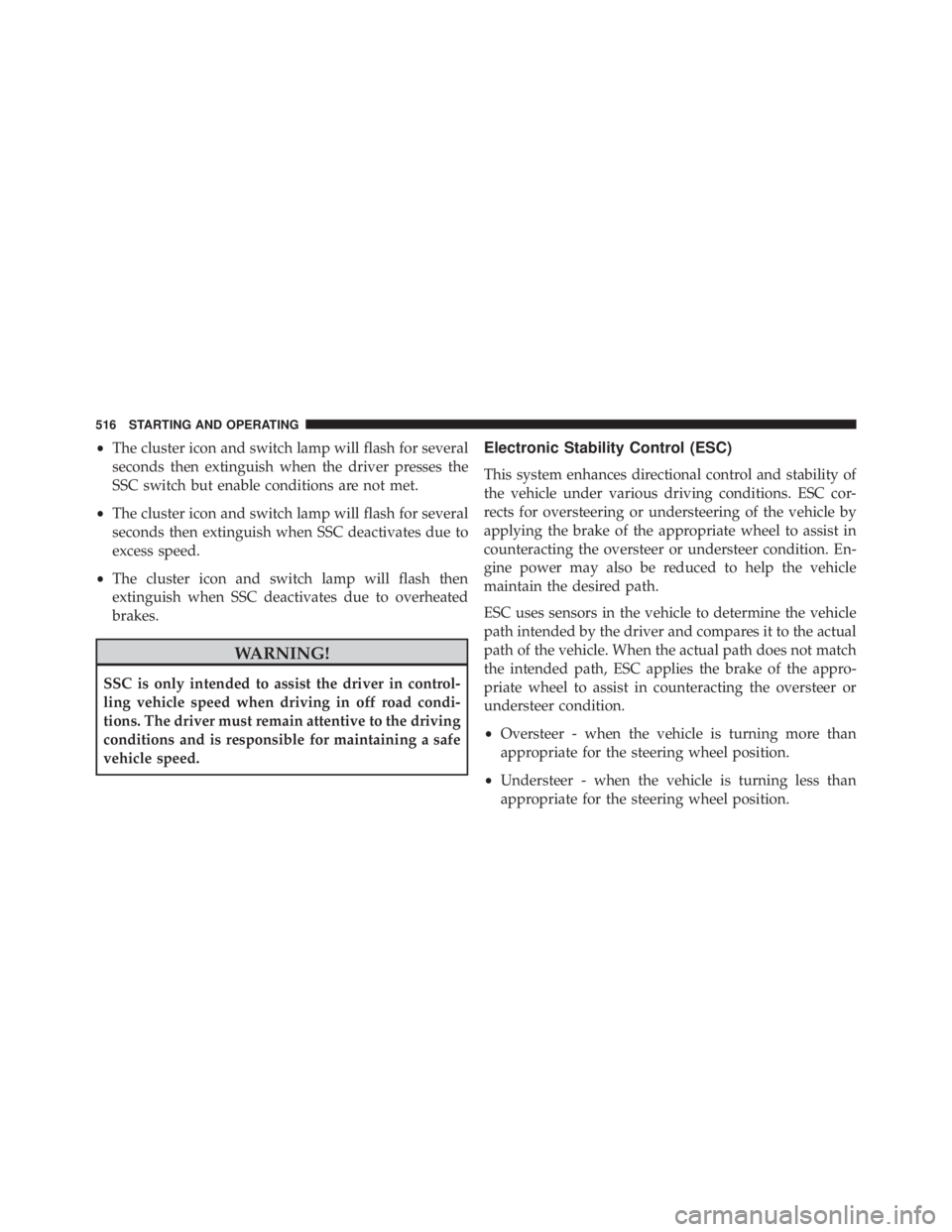

•The cluster icon and switch lamp will flash for several
seconds then extinguish when the driver presses the
SSC switch but enable conditions are not met.
• The cluster icon and switch lamp will flash for several
seconds then extinguish when SSC deactivates due to
excess speed.
• The cluster icon and switch lamp will flash then
extinguish when SSC deactivates due to overheated
brakes.

The “ESC Activation/Malfunction Indicator Light” lo-
cated in the instrument cluster will start to flash as soon
as the tires lose traction and the ESC system becomes
active. The “ESC Activation/Malfunction Indicator
Light” also flashes when the TCS is active. If the “ESC
Activation/Malfunction Indicator Light” begins to flash
during acceleration, ease up on the accelerator and apply
as little throttle as possible. Be sure to adapt your speed
and driving to the prevailing road conditions.

ESC On — Two-Wheel Drive Vehicles And Four-Wheel
Drive Vehicles In 2WD And 4WD High Range
This is the normal operating mode for ESC when oper-
ating a two-wheel drive vehicle. It is also the normal
mode for operating a four-wheel drive vehicle in 2WD or
4WD HIGH range. The ESC system will be in “ESC On”
mode whenever the vehicle is started or the power
transfer unit (if equipped) is shifted out of 4WD LOW
range. This mode should be used for most driving
situations. ESC should only be turned to “Partial Off” or
“Full Off” for specific reasons as noted. Refer to “Partial
Off” and to “Full Off” for additional information.
Partial Off — Two-Wheel Drive Vehicles And Four-
Wheel Drive Vehicles In 2WD And 4WD High Range
The “Partial Off” mode is intended for driving in deep
snow, sand, or gravel. This mode raises the threshold for
TCS and ESC activation, which allows for more wheel
spin than what ESC normally allows.The “ESC Off” button is located in the lower switch bank
above the climate control. To enter the “Partial Off”
mode, momentarily press the “ESC Off” button and the
ESC Off
indicator light will illuminate. To turn the ESC
on again, momentarily press the ESC OFFbutton and
the ESC Off indicator light will turn off. This will restore
the normal “ESC On” mode of operation.
