charging JEEP CHEROKEE LATITUDE 2015 Owners Manual

WARNING!
To avoid serious injury or death:
•Do not insert any objects into the receptacles.
• Do not touch with wet hands.
• Close the lid when not in use.
• If this outlet is mishandled, it may cause an electric
shock and failure.

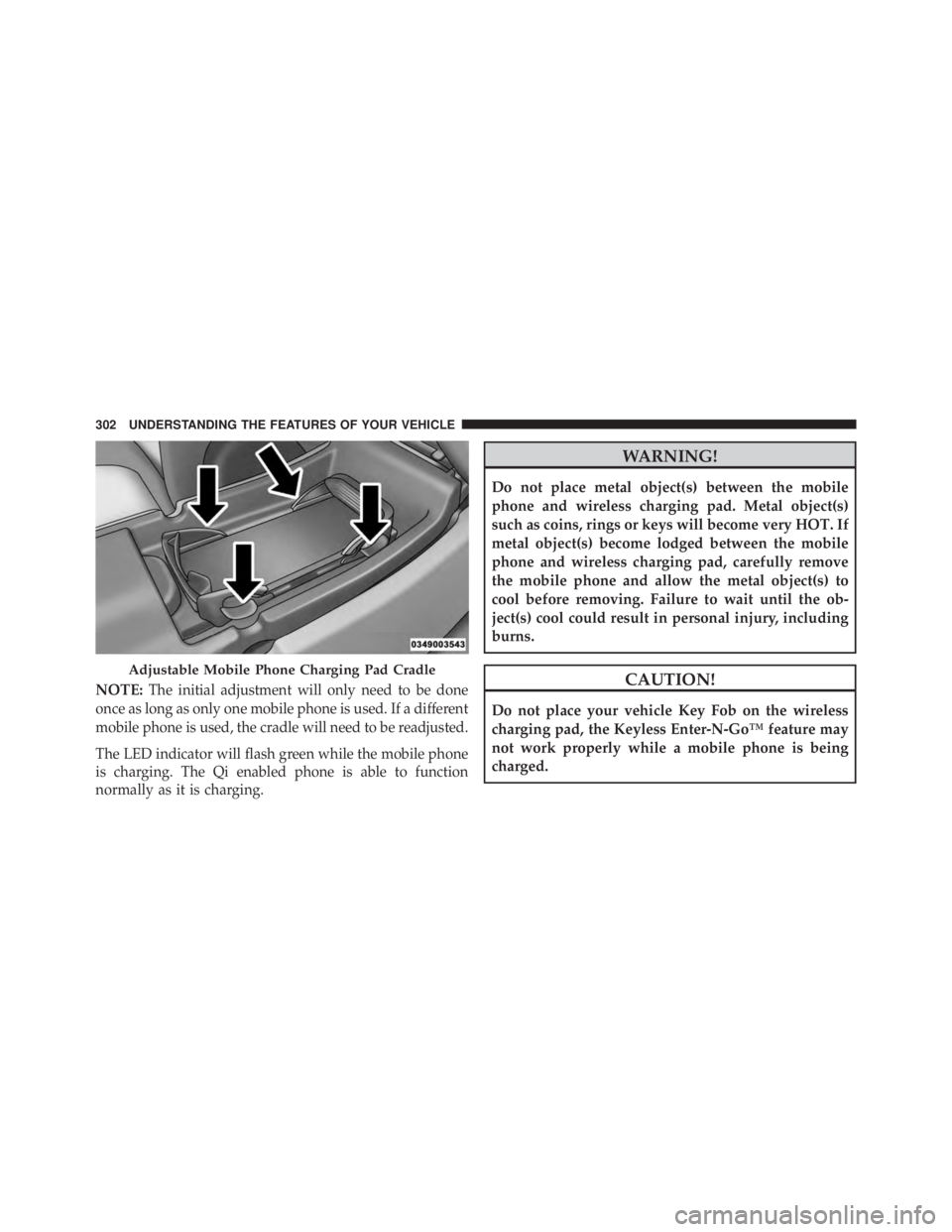

WIRELESS CHARGING PAD — IF EQUIPPED

NOTE:The initial adjustment will only need to be done
once as long as only one mobile phone is used. If a different
mobile phone is used, the cradle will need to be readjusted.
The LED indicator will flash green while the mobile phone
is charging. The Qi enabled phone is able to function
normally as it is charging.

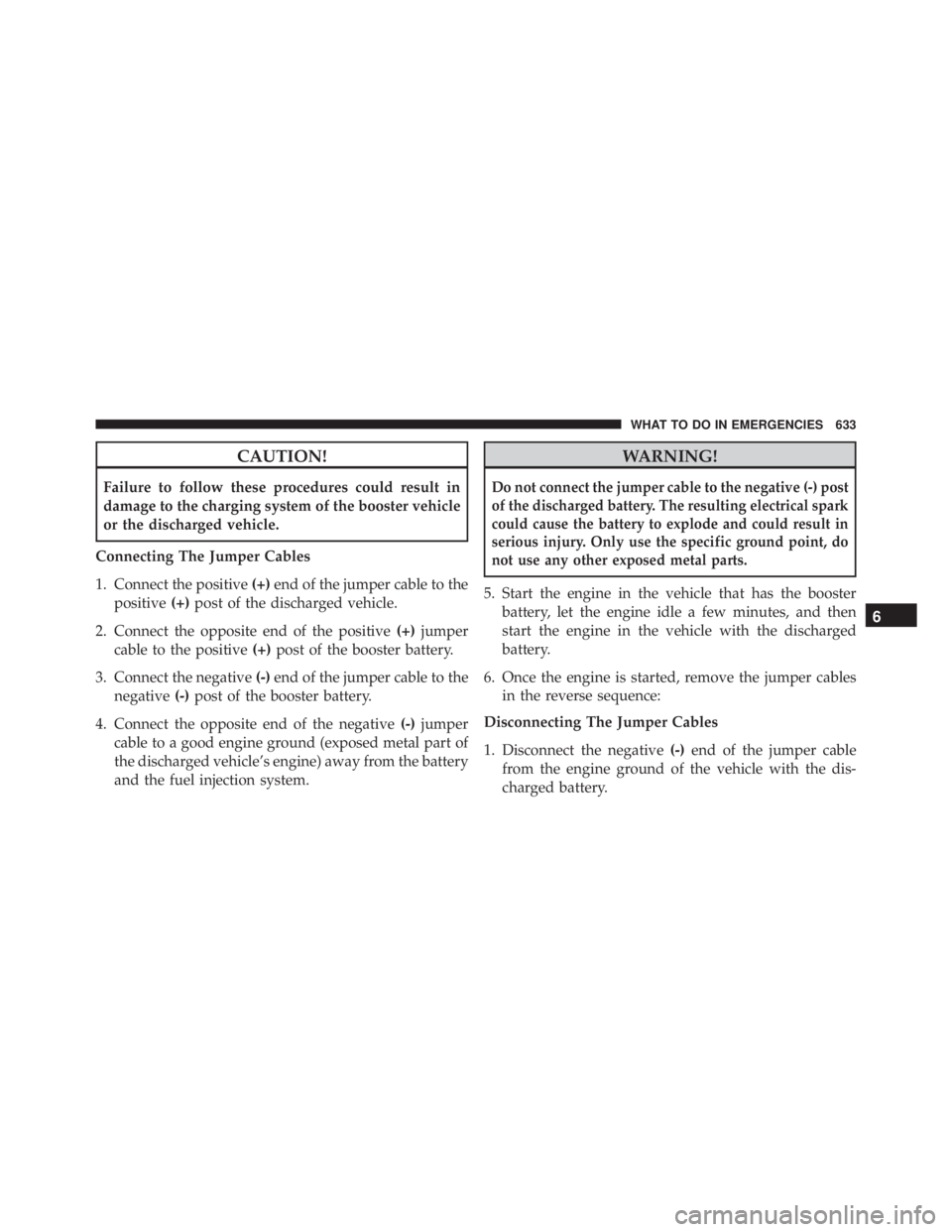

CAUTION!
Failure to follow these procedures could result in
damage to the charging system of the booster vehicle
or the discharged vehicle.
Connecting The Jumper Cables
1. Connect the positive (+)end of the jumper cable to the
positive (+)post of the discharged vehicle.
2. Connect the opposite end of the positive (+)jumper
cable to the positive (+)post of the booster battery.
3. Connect the negative (-)end of the jumper cable to the
negative (-)post of the booster battery.
4. Connect the opposite end of the negative (-)jumper
cable to a good engine ground (exposed metal part of
the discharged vehicle’s engine) away from the battery
and the fuel injection system.
