technical specifications JEEP CHEROKEE LATITUDE 2019 Owners Manual

2GRAPHICAL TABLE OF CONTENTS
......................................................7
3GETTING TO KNOW YOUR VEHICLE
...................................................13
4GETTING TO KNOW YOUR INSTRUMENT PANEL
.........................................131
5SAFETY
........................................................................159
6STARTINGANDOPERATING.........................................................253
7INCASEOFEMERGENCY ...........................................................391
8SERVICING AND MAINTENANCE
.....................................................449
9TECHNICAL SPECIFICATIONS
........................................................515
10MULTIMEDIA ....................................................................527
11CUSTOMER ASSISTANCE
............................................................613
12INDEX..........................................................................619
1
2
3
4
5
6
7
8
9
10 11
12

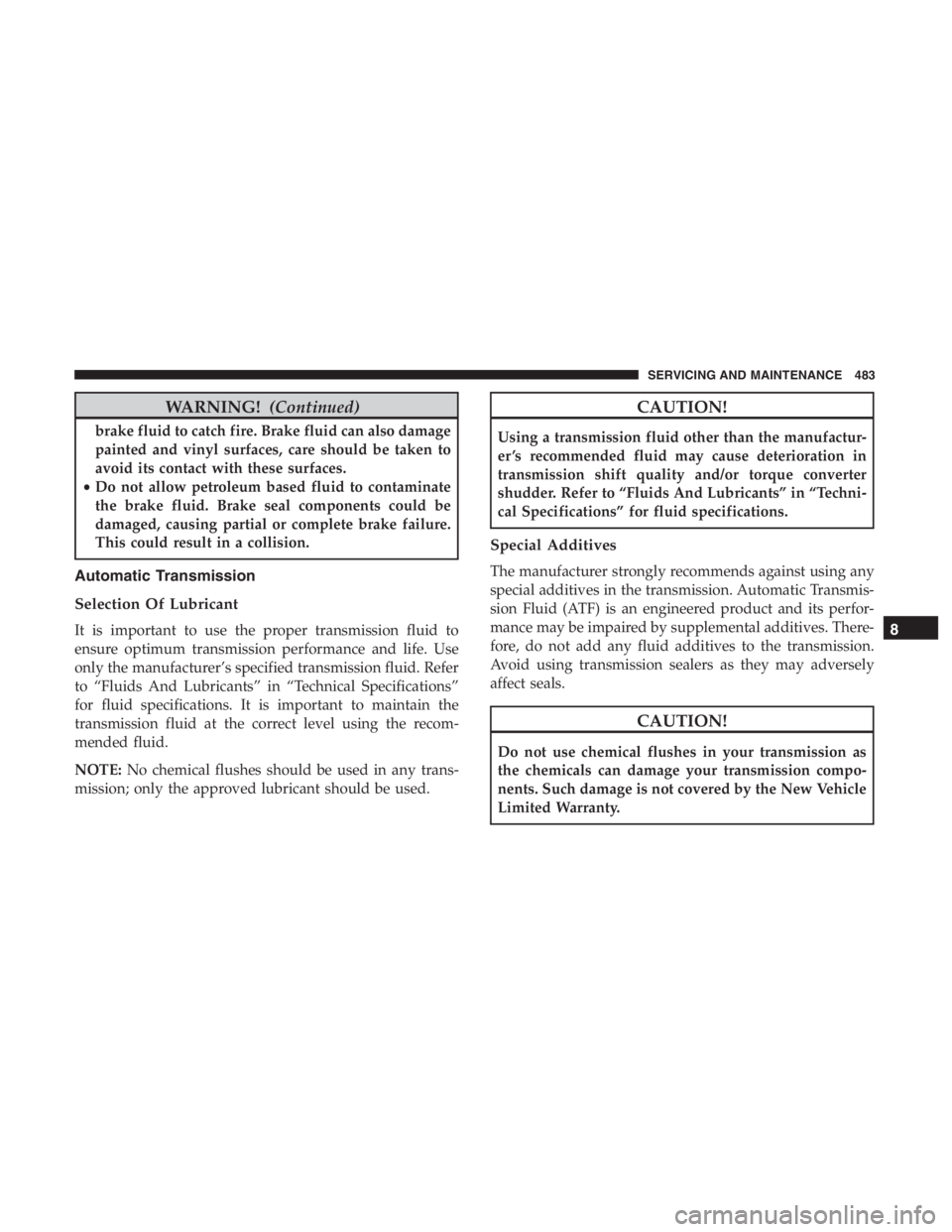

WARNING!(Continued)
brake fluid to catch fire. Brake fluid can also damage
painted and vinyl surfaces, care should be taken to
avoid its contact with these surfaces.
• Do not allow petroleum based fluid to contaminate
the brake fluid. Brake seal components could be
damaged, causing partial or complete brake failure.
This could result in a collision.
Automatic Transmission
Selection Of Lubricant
It is important to use the proper transmission fluid to
ensure optimum transmission performance and life. Use
only the manufacturer’s specified transmission fluid. Refer
to “Fluids And Lubricants” in “Technical Specifications”
for fluid specifications. It is important to maintain the
transmission fluid at the correct level using the recom-
mended fluid.
NOTE: No chemical flushes should be used in any trans-
mission; only the approved lubricant should be used.

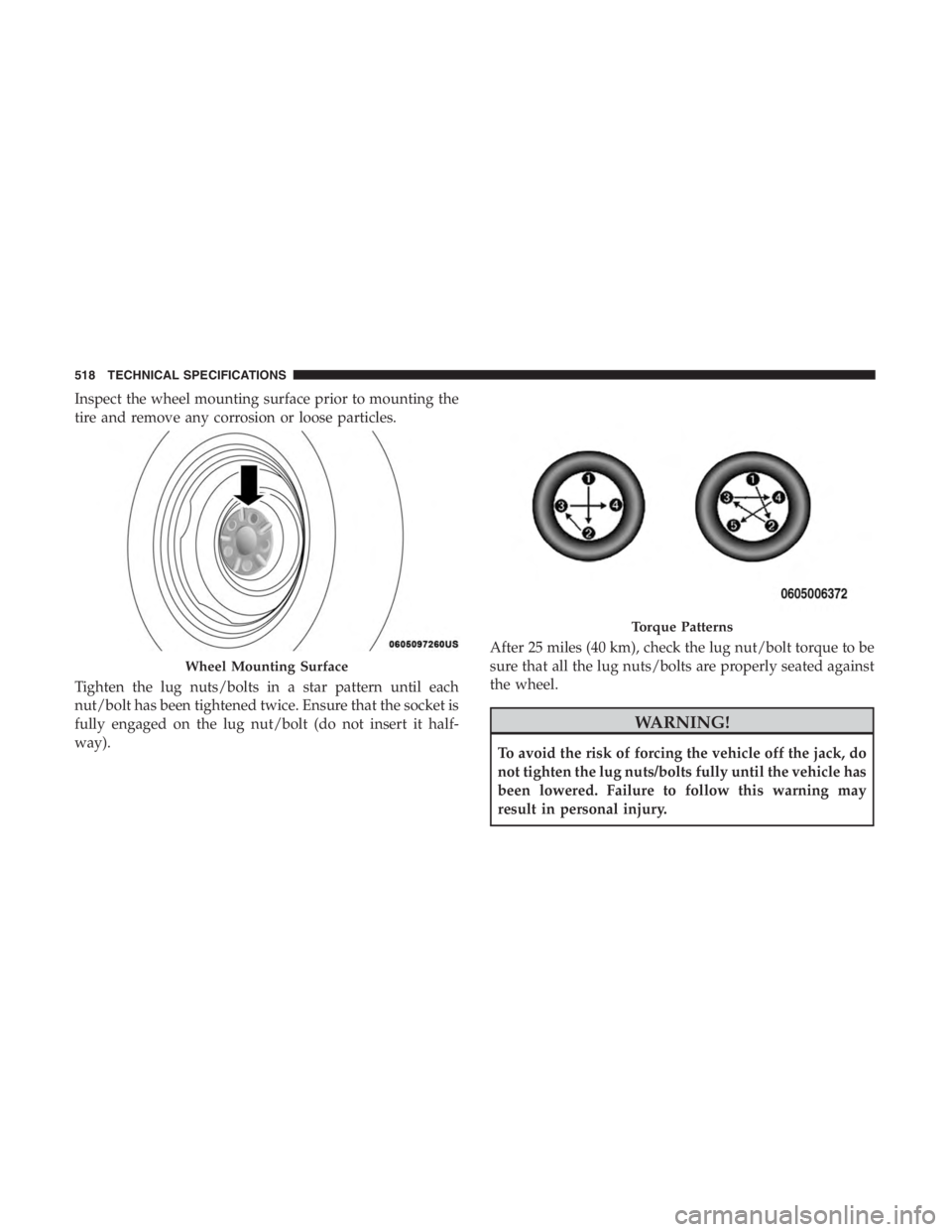

Inspect the wheel mounting surface prior to mounting the
tire and remove any corrosion or loose particles.
Tighten the lug nuts/bolts in a star pattern until each
nut/bolt has been tightened twice. Ensure that the socket is
fully engaged on the lug nut/bolt (do not insert it half-
way).After 25 miles (40 km), check the lug nut/bolt torque to be
sure that all the lug nuts/bolts are properly seated against
the wheel.
Wheel Mounting Surface
Torque Patterns
518 TECHNICAL SPECIFICATIONS

9
TECHNICAL SPECIFICATIONS 519

9
TECHNICAL SPECIFICATIONS 521
