JEEP CHEROKEE LIMITED 2016 Owners Manual

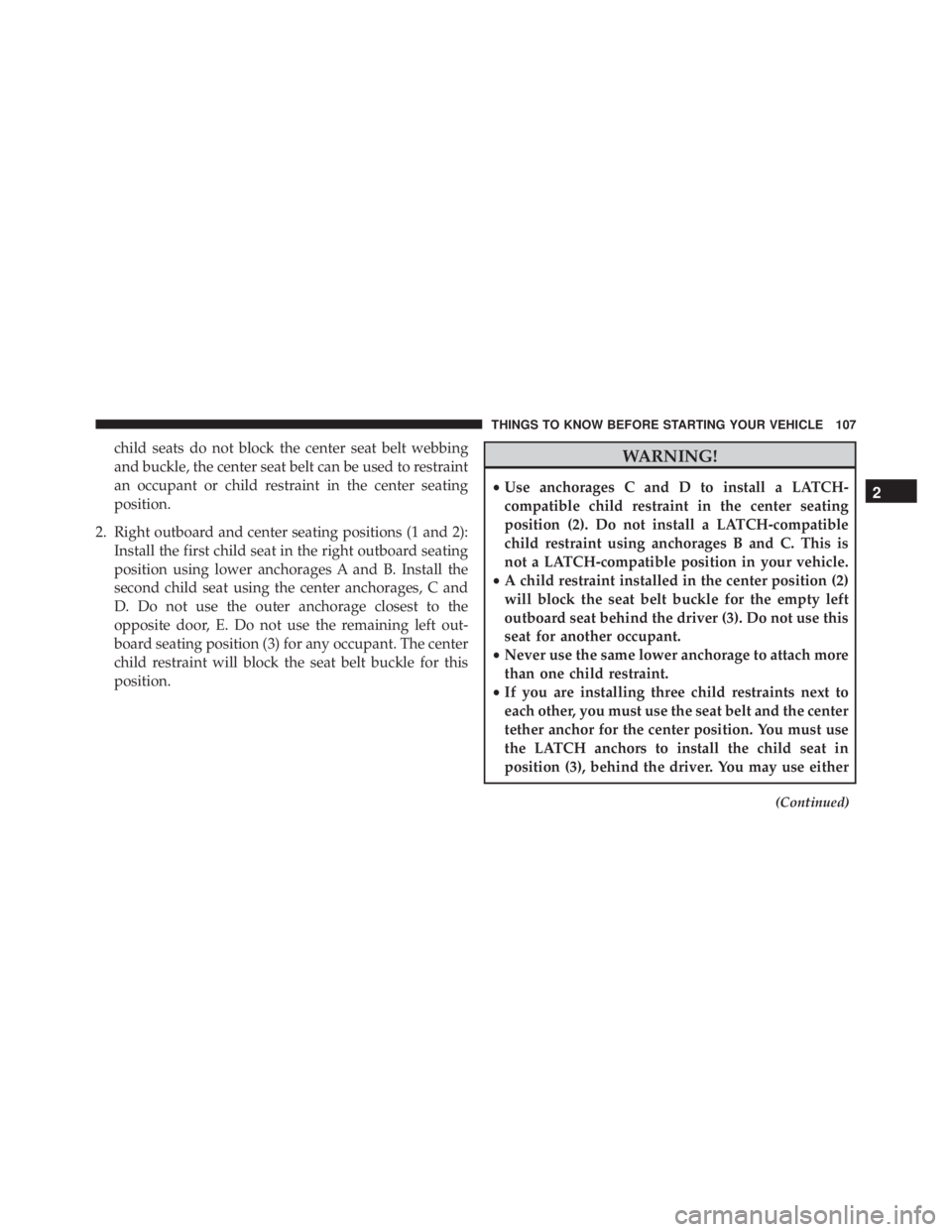

child seats do not block the center seat belt webbing
and buckle, the center seat belt can be used to restraint
an occupant or child restraint in the center seating
position.

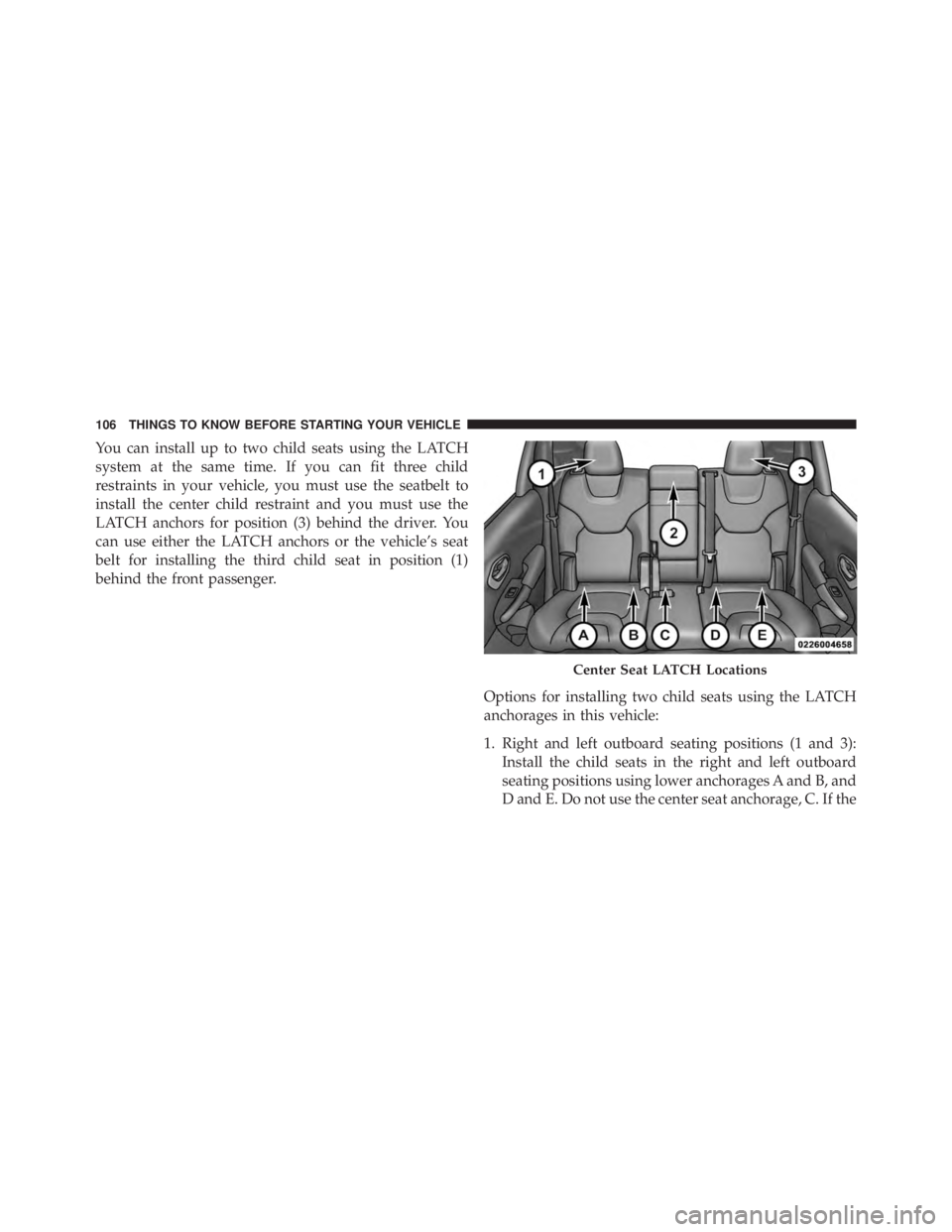

2. Right outboard and center seating positions (1 and 2): Install the first child seat in the right outboard seating
position using lower anchorages A and B. Install the
second child seat using the center anchorages, C and
D. Do not use the outer anchorage closest to the
opposite door, E. Do not use the remaining left out-
board seating position (3) for any occupant. The center
child restraint will block the seat belt buckle for this
position.

WARNING!(Continued)
the LATCH anchors or the vehicle’s seat belt for
installing the child seat in position (1), behind the
front passenger. Please refer to “Installing the
LATCH-Compatible Child Restraint System” for
typical installation instructions.
Always follow the directions of the child restraint
manufacturer when installing your child restraint. Not
all child restraint systems will be installed as described
here.
To Install A LATCH-Compatible Child Restraint
If the selected seating position has a Switchable Auto-
matic Locking Retractor (ALR) seat belt, stow the seat
belt, following the instructions below. See the section
“Installing Child Restraints Using the Vehicle Seat Belt”
to check what type of seat belt each seating position has. 1. Loosen the adjusters on the lower straps and on the
tether strap of the child seat so that you can more
easily attach the hooks or connectors to the vehicle
anchorages.
2. Place the child seat between the lower anchorages for that seating position. For some second row seats, you
may need to recline the seat and / or raise the head
restraint to get a better fit. If the rear seat can be moved
forward and rearward in the vehicle, you may wish to
move it to its rear-most position to make room for the
child seat. You may also move the front seat forward
to allow more room for the child seat.
3. Attach the lower hooks or connectors of the child restraint to the lower anchorages in the selected seat-
ing position.
108 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
