JEEP CHEROKEE OVERLAND 2014 Service Manual
Manufacturer: JEEP, Model Year: 2014, Model line: CHEROKEE OVERLAND, Model: JEEP CHEROKEE OVERLAND 2014Pages: 664, PDF Size: 4.38 MB
Page 41 of 664
Page 42 of 664
Page 43 of 664

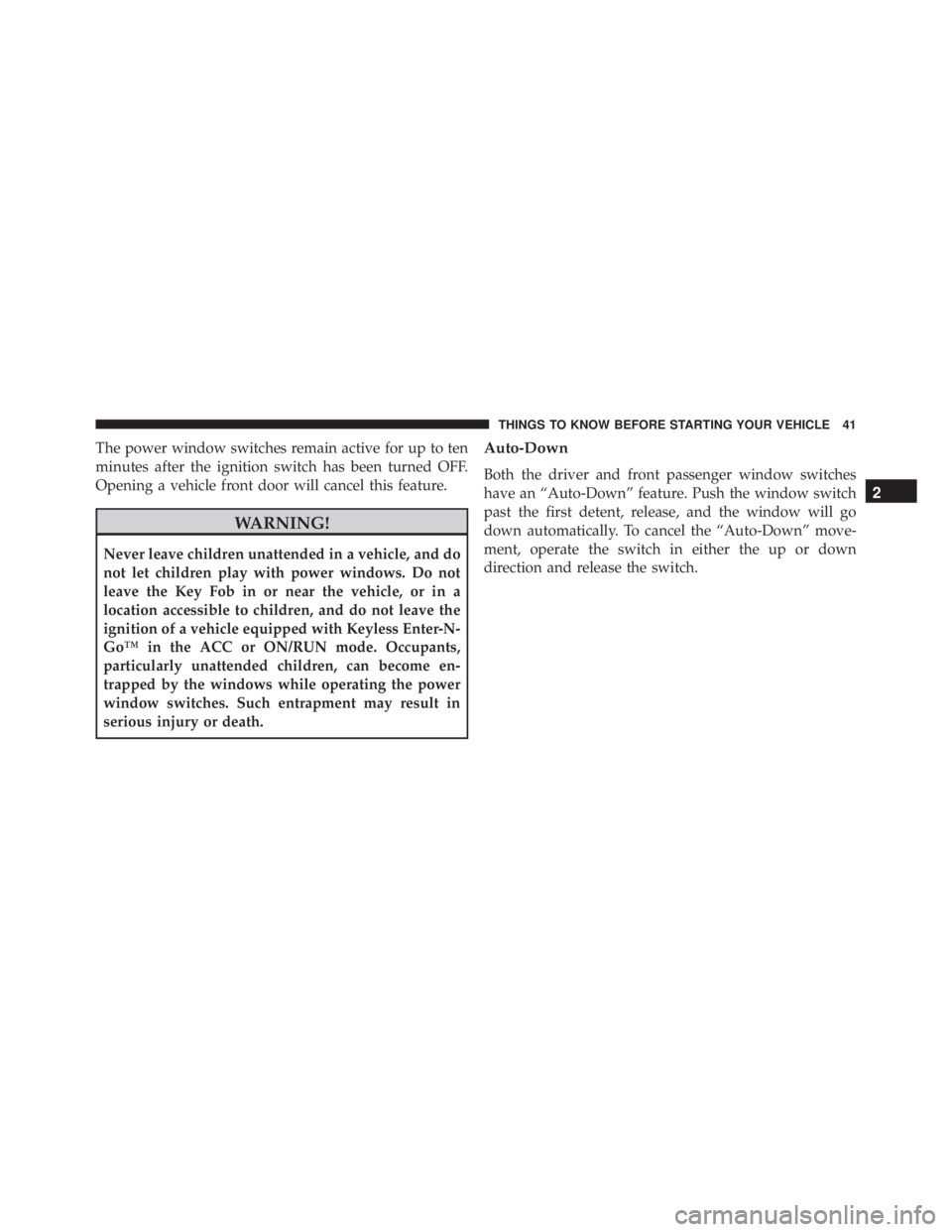

The power window switches remain active for up to ten
minutes after the ignition switch has been turned OFF.
Opening a vehicle front door will cancel this feature.
Page 44 of 664
Page 45 of 664

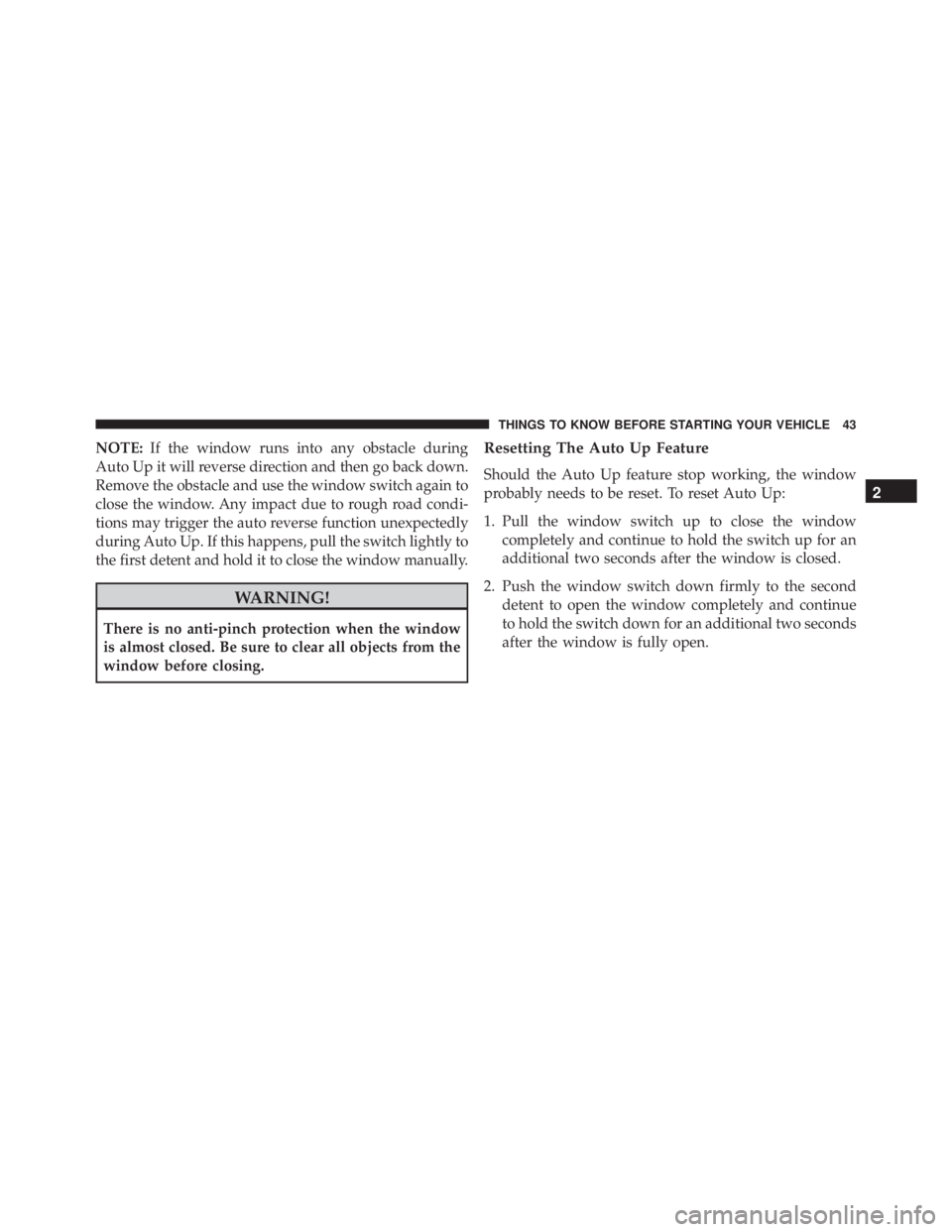

NOTE:If the window runs into any obstacle during
Auto Up it will reverse direction and then go back down.
Remove the obstacle and use the window switch again to
close the window. Any impact due to rough road condi-
tions may trigger the auto reverse function unexpectedly
during Auto Up. If this happens, pull the switch lightly to
the first detent and hold it to close the window manually.
Page 46 of 664
Page 47 of 664
Page 48 of 664
WARNING!
Driving with the liftgate open can allow poisonous
exhaust gases into your vehicle. You and your pas-
sengers could be injured by these fumes. Keep the
liftgate closed when you are operating the vehicle.
Power Liftgate — If Equipped
The power liftgate may be opened by pressing
the electronic liftgate release (refer to “Keyless
Enter-N-Go™” located in “Things To Know
Before Starting Your Vehicle”) or by pressing
the LIFTGATE button on the Remote Keyless Entry
(RKE) transmitter. Press the LIFTGATE button on the
RKE transmitter twice within five seconds, to open the
power liftgate. Once the liftgate is open, pressing the
button twice within five seconds a second time will close
the liftgate. The power liftgate may also be opened or closed by
pressing the LIFTGATE button located on the front
overhead console, or closed by pressing the LIFTGATE
button located on left rear trim panel, near the liftgate
opening. Pressing the LIFTGATE button located on left
rear trim panel once will close the liftgate only, this
button cannot be used to open the liftgate.
When the LIFTGATE button on the RKE transmitter is
pressed two times, the turn signals will flash twice to
signal that the liftgate is opening or closing (if Flash
Lamps with Lock is enabled in the Uconnect® settings)
and the liftgate chime will be audible. For further infor-
mation, refer to
Uconnect® Settings inUnderstanding
Your Instrument Panel.
Page 49 of 664

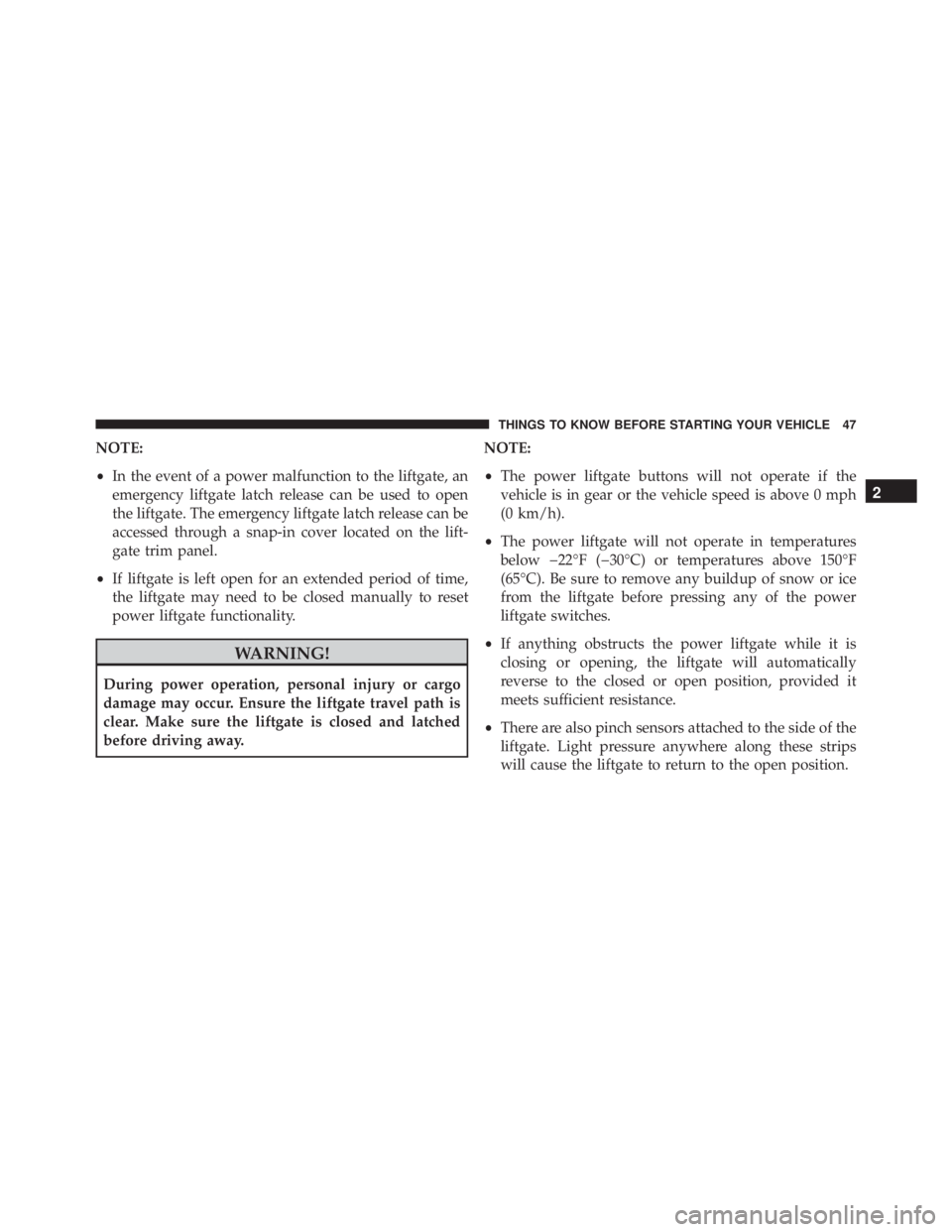

NOTE:
•In the event of a power malfunction to the liftgate, an
emergency liftgate latch release can be used to open
the liftgate. The emergency liftgate latch release can be
accessed through a snap-in cover located on the lift-
gate trim panel.
• If liftgate is left open for an extended period of time,
the liftgate may need to be closed manually to reset
power liftgate functionality.
Page 50 of 664
•The power liftgate must be in the full open position for
rear liftgate close button on the left rear trim, near the
liftgate opening, to operate. If the liftgate is not fully
open, press the Liftgate button on the Key Fob twice to
fully open the liftgate, and then press it twice to close.
• If the electronic liftgate release is pushed while the
power liftgate is closing, the liftgate will reverse to the
full open position.
• If the electronic liftgate release is pushed while the
power liftgate is opening, the liftgate motor will dis-
engage to allow manual operation.
• If the power liftgate encounters multiple obstructions
within the same cycle, the system will automatically
stop and the liftgate must be opened or closed manu-
ally. •
If your liftgate is power closing and you put the
vehicle in gear, the liftgate will continue to power
close. However, vehicle movement may result in a
detection of an obstruction.
