WARNING!(Continued)
•Trailer Sway Control (TSC) is disabled when the
ESC system is in the Partial Offmode.
NOTE: To improve the vehicle’s traction when driving
with snow chains, or when starting off in deep snow,
sand, or gravel, it may be desirable to switch to the
“Partial Off” mode by momentarily pressing the “ESC
Off” button. Once the situation requiring “Partial Off”
mode is overcome, turn ESC back on by momentarily
pressing the “ESC Off” button. This may be done while
the vehicle is in motion.
Full Off — Four-Wheel Drive Vehicles In 4WD High
And 4WD Low Range
The “Full Off” mode is intended for off-highway and
off-road use when ESC stability features could inhibit
vehicle maneuverability due to trail conditions. The “ESC Off” button is located in the lower switch bank
above the climate control panel. To enter “Full Off”
mode, press and hold the “ESC Off” button for five
seconds while the vehicle is stopped with the engine
running. After five seconds, the
ESC Offindicator light
will illuminate and an “ESC Off” message will appear in
the odometer.
In this mode, ESC and TCS are turned off (except for the
“limited slip” feature described in the TCS section) until
the vehicle reaches a speed of 40 mph (64 km/h). At
speeds over 40 mph (64 km/h), the system automatically
switches to “Partial Off” mode, described above. When
the vehicle speed returns to less than 35 mph (56 km/h),
the ESC system will return to “Full Off” mode. The ESC
OFF indicator light is always illuminated when ESC is
off. To turn ESC on again, momentarily press the “ESC
Off” button. This will restore the normal “ESC On” mode
of operation.
5
STARTING AND OPERATING 519
WARNING!
With the ESC switched off, the engine torque reduc-
tion and stability features are disabled. Therefore,
enhanced vehicle stability offered by ESC is unavail-
able. In an emergency evasive maneuver, the ESC
system will not engage to assist in maintaining
stability. “Full Off” mode is only intended for off-
highway or off-road use.
NOTE:
• “Full Off” is the only operating mode for ESC in 4WD
LOW range. The ESC system will be in this mode
whenever the vehicle is started in 4WD LOW range or
the power transfer unit is shifted into 4WD LOW
range.
• The “ESC OFF” message will display and a chime will
sound when the shift lever is moved from any position to the PARK position and then moved out of the PARK
position. This will occur even if the message was
cleared previously.
ESC Activation/Malfunction Indicator Light And
ESC OFF Indicator Light
The “ESC Activation/Malfunction Indicator
Light” in the instrument cluster will come on
when the ignition switch is turned to the ON
position. It should go out with the engine
running. If the “ESC Activation/Malfunction Indicator
Light” comes on continuously with the engine running, a
malfunction has been detected in the ESC system. If this
light remains on after several ignition cycles, and the
vehicle has been driven several miles/kilometers at
speeds greater than 30 mph (48 km/h), see your autho-
rized dealer as soon as possible to have the problem
diagnosed and corrected.

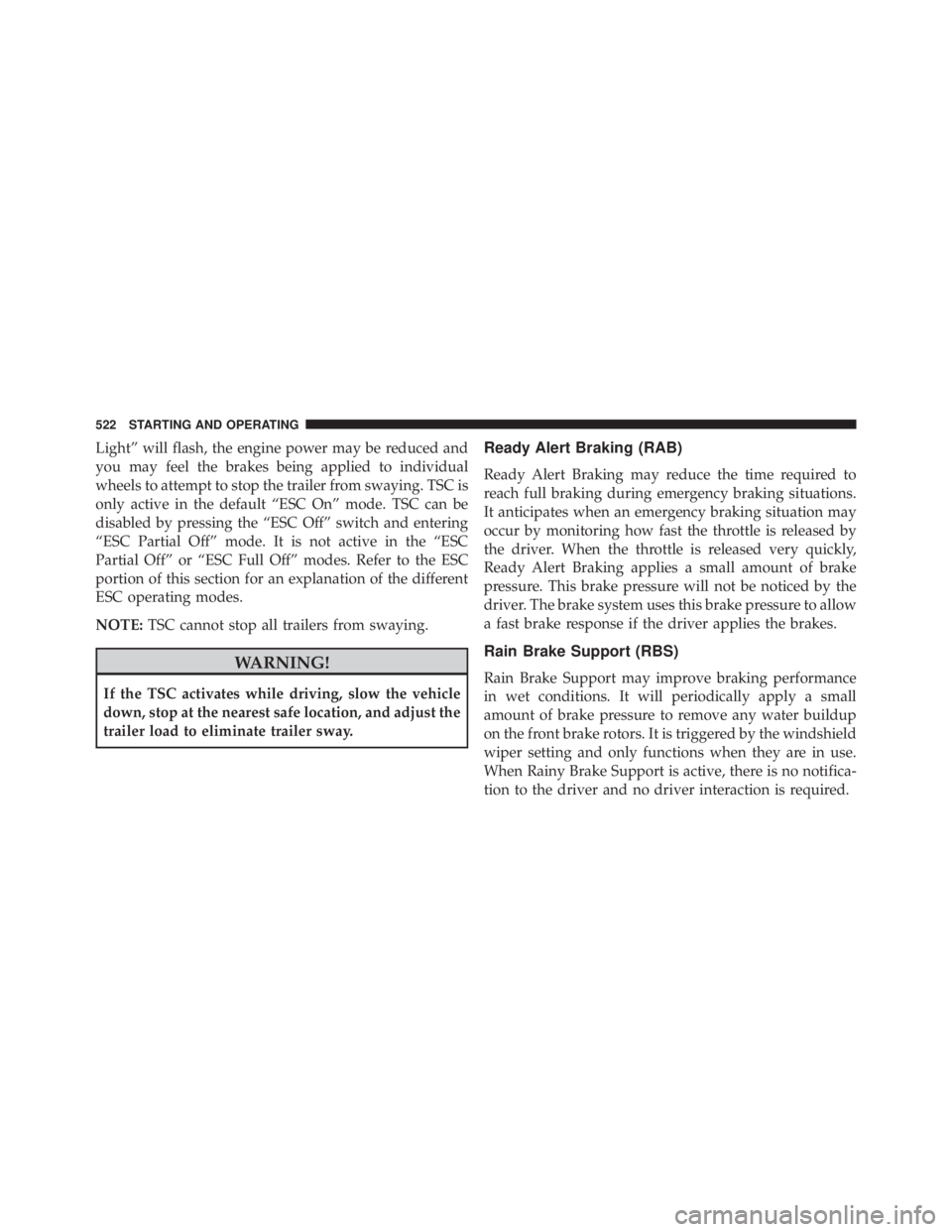

Light” will flash, the engine power may be reduced and
you may feel the brakes being applied to individual
wheels to attempt to stop the trailer from swaying. TSC is
only active in the default “ESC On” mode. TSC can be
disabled by pressing the “ESC Off” switch and entering
“ESC Partial Off” mode. It is not active in the “ESC
Partial Off” or “ESC Full Off” modes. Refer to the ESC
portion of this section for an explanation of the different
ESC operating modes.
NOTE:TSC cannot stop all trailers from swaying.
