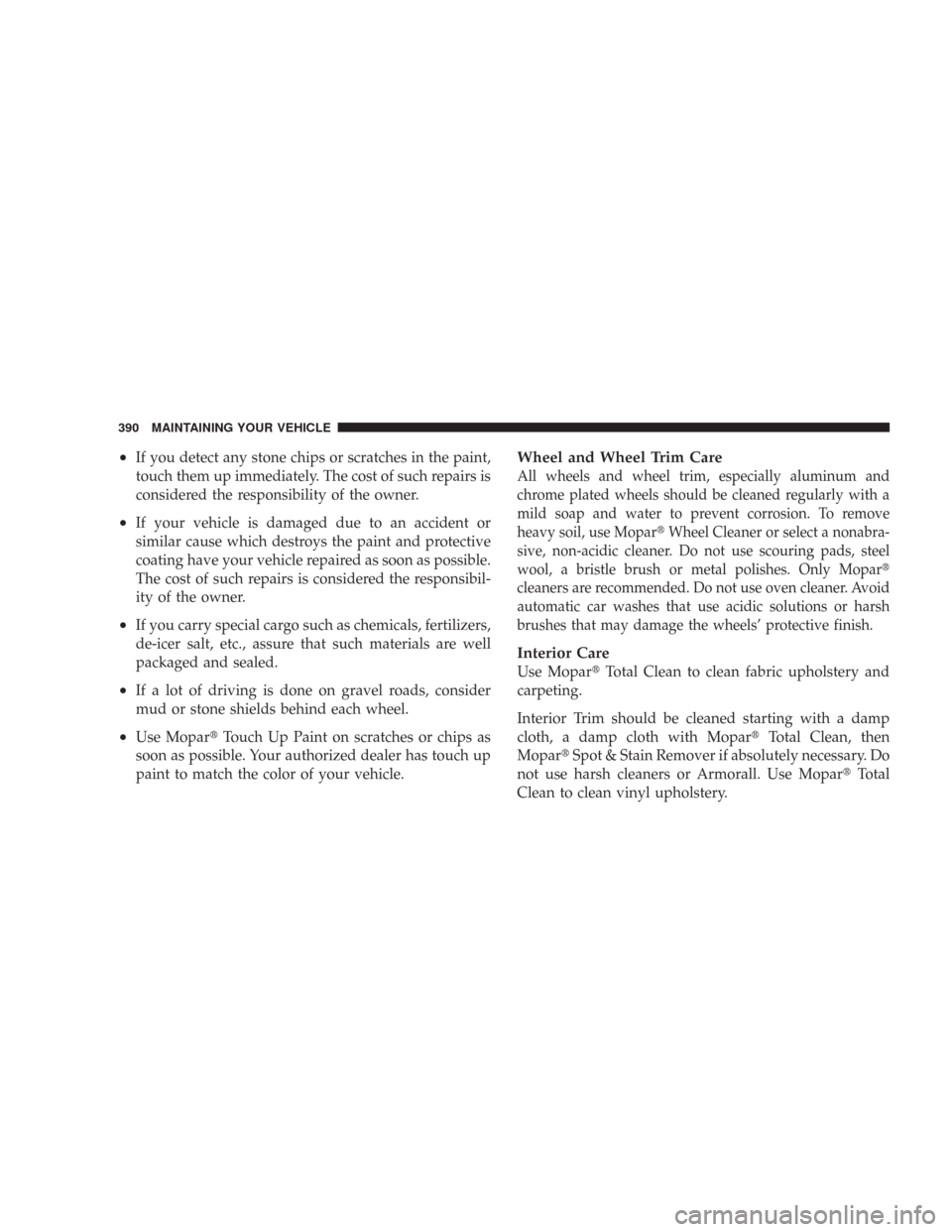

Page 390 of 456
•If you detect any stone chips or scratches in the paint,
touch them up immediately. The cost of such repairs is
considered the responsibility of the owner.
•If your vehicle is damaged due to an accident or
similar cause which destroys the paint and protective
coating have your vehicle repaired as soon as possible.
The cost of such repairs is considered the responsibil-
ity of the owner.
•If you carry special cargo such as chemicals, fertilizers,
de-icer salt, etc., assure that such materials are well
packaged and sealed.
•If a lot of driving is done on gravel roads, consider
mud or stone shields behind each wheel.
•Use MoparTouch Up Paint on scratches or chips as
soon as possible. Your authorized dealer has touch up
paint to match the color of your vehicle.
Wheel and Wheel Trim Care
All wheels and wheel trim, especially aluminum and
chrome plated wheels should be cleaned regularly with a
mild soap and water to prevent corrosion. To remove
heavy soil, use MoparWheel Cleaner or select a nonabra-
sive, non-acidic cleaner. Do not use scouring pads, steel
wool, a bristle brush or metal polishes. Only Mopar
cleaners are recommended. Do not use oven cleaner. Avoid
automatic car washes that use acidic solutions or harsh
brushes that may damage the wheels’ protective finish.
Interior Care
Use MoparTotal Clean to clean fabric upholstery and
carpeting.
Interior Trim should be cleaned starting with a damp
cloth, a damp cloth with MoparTotal Clean, then
MoparSpot & Stain Remover if absolutely necessary. Do
not use harsh cleaners or Armorall. Use MoparTotal
Clean to clean vinyl upholstery.
390 MAINTAINING YOUR VEHICLE

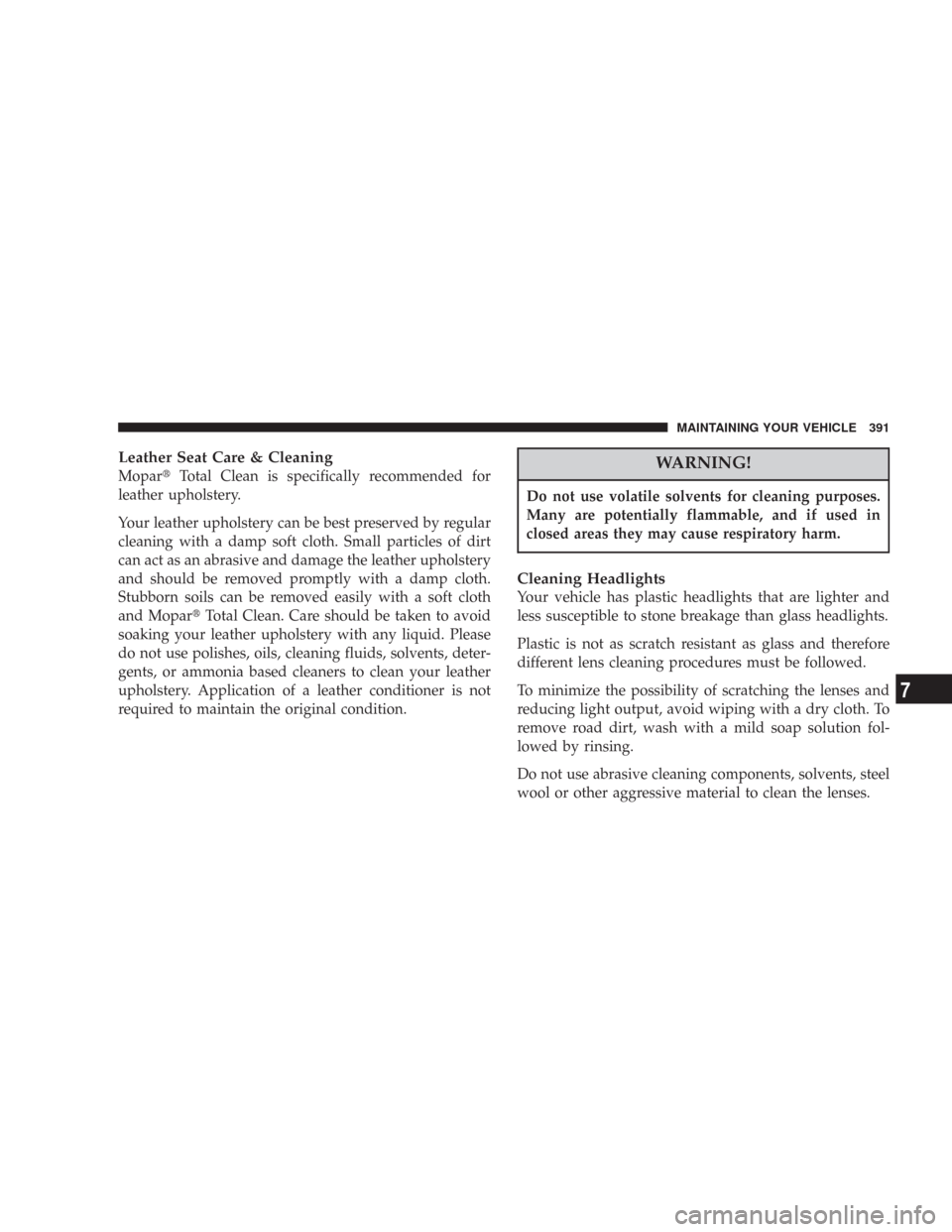

Page 391 of 456
Leather Seat Care & Cleaning
MoparTotal Clean is specifically recommended for
leather upholstery.
Your leather upholstery can be best preserved by regular
cleaning with a damp soft cloth. Small particles of dirt
can act as an abrasive and damage the leather upholstery
and should be removed promptly with a damp cloth.
Stubborn soils can be removed easily with a soft cloth
and MoparTotal Clean. Care should be taken to avoid
soaking your leather upholstery with any liquid. Please
do not use polishes, oils, cleaning fluids, solvents, deter-
gents, or ammonia based cleaners to clean your leather
upholstery. Application of a leather conditioner is not
required to maintain the original condition.WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas they may cause respiratory harm.
Cleaning Headlights
Your vehicle has plastic headlights that are lighter and
less susceptible to stone breakage than glass headlights.
Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.
To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
MAINTAINING YOUR VEHICLE 391
7
Page 395 of 456
CavityCartridge
FuseMini
FuseDescription
19 Spare
(R/S)
20 10 Amp
RedSentry Key Remote
Entry Module
(SKREEM), Cluster
(R/S)
21 Spare
(Acc De-
lay)
22 15 Amp
BlueRear Wiper (B+)CavityCartridge
FuseMini
FuseDescription
24 10 Amp
RedPower Distribution
Center (PDC) Relays,
Final Drive Control
Module (FDCM),
Front Control Module
(FCM) (R/S), A580
(R/S)
25 10 Amp
RedShifter Assy (BTSI),
Trans. Case Switch,
ESP/ABS, Brake
Supp Rly Coil (R/S)
MAINTAINING YOUR VEHICLE 395
7

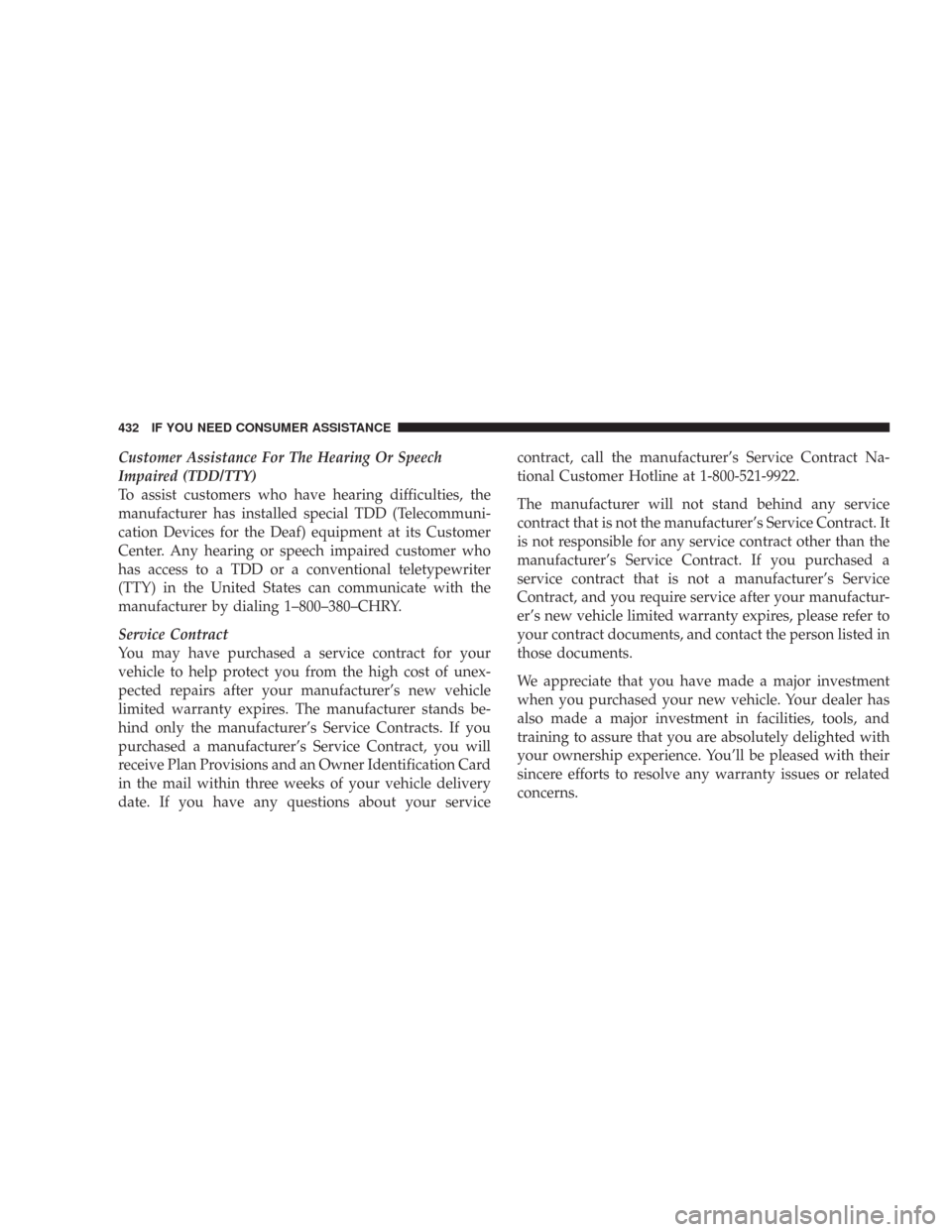

Page 432 of 456
Customer Assistance For The Hearing Or Speech
Impaired (TDD/TTY)
To assist customers who have hearing difficulties, the
manufacturer has installed special TDD (Telecommuni-
cation Devices for the Deaf) equipment at its Customer
Center. Any hearing or speech impaired customer who
has access to a TDD or a conventional teletypewriter
(TTY) in the United States can communicate with the
manufacturer by dialing 1–800–380–CHRY.
Service Contract
You may have purchased a service contract for your
vehicle to help protect you from the high cost of unex-
pected repairs after your manufacturer’s new vehicle
limited warranty expires. The manufacturer stands be-
hind only the manufacturer’s Service Contracts. If you
purchased a manufacturer’s Service Contract, you will
receive Plan Provisions and an Owner Identification Card
in the mail within three weeks of your vehicle delivery
date. If you have any questions about your servicecontract, call the manufacturer’s Service Contract Na-
tional Customer Hotline at 1-800-521-9922.
The manufacturer will not stand behind any service
contract that is not the manufacturer’s Service Contract. It
is not responsible for any service contract other than the
manufacturer’s Service Contract. If you purchased a
service contract that is not a manufacturer’s Service
Contract, and you require service after your manufactur-
er’s new vehicle limited warranty expires, please refer to
your contract documents, and contact the person listed in
those documents.
We appreciate that you have made a major investment
when you purchased your new vehicle. Your dealer has
also made a major investment in facilities, tools, and
training to assure that you are absolutely delighted with
your ownership experience. You’ll be pleased with their
sincere efforts to resolve any warranty issues or related
concerns.
432 IF YOU NEED CONSUMER ASSISTANCE

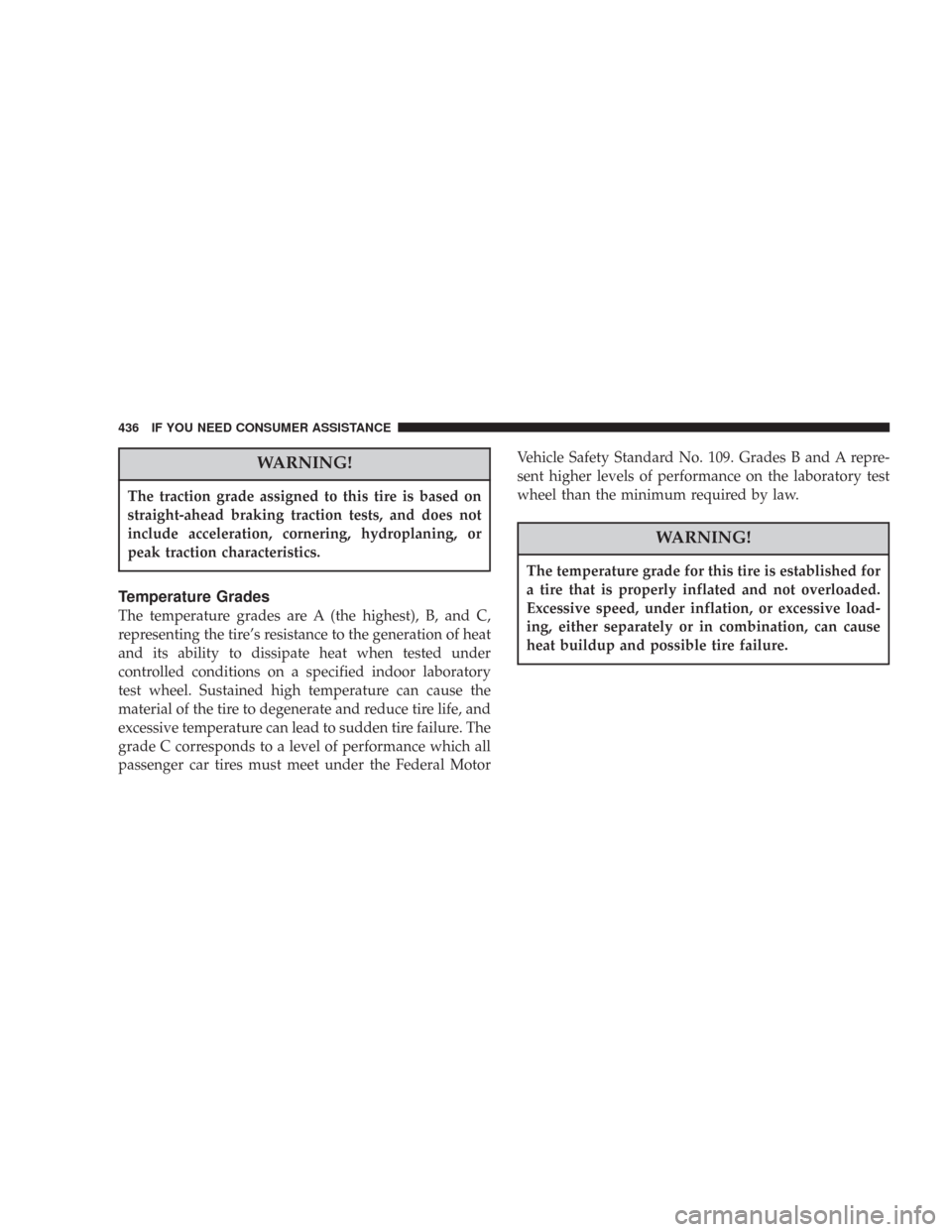

Page 436 of 456
WARNING!
The traction grade assigned to this tire is based on
straight-ahead braking traction tests, and does not
include acceleration, cornering, hydroplaning, or
peak traction characteristics.
Temperature Grades
The temperature grades are A (the highest), B, and C,
representing the tire’s resistance to the generation of heat
and its ability to dissipate heat when tested under
controlled conditions on a specified indoor laboratory
test wheel. Sustained high temperature can cause the
material of the tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden tire failure. The
grade C corresponds to a level of performance which all
passenger car tires must meet under the Federal MotorVehicle Safety Standard No. 109. Grades B and A repre-
sent higher levels of performance on the laboratory test
wheel than the minimum required by law.
WARNING!
The temperature grade for this tire is established for
a tire that is properly inflated and not overloaded.
Excessive speed, under inflation, or excessive load-
ing, either separately or in combination, can cause
heat buildup and possible tire failure.
436 IF YOU NEED CONSUMER ASSISTANCE
Page 441 of 456
Data Recorder, Event...................... 55
Daytime Running Lights................... 123
Dealer Service.......................... 361
Defroster, Rear Window................... 167
Defroster, Windshield................69,234,240
Diagnostic System, Onboard................ 358
Dimmer Switch, Headlight................. 124
Dipsticks
Automatic Transmission................. 385
Oil (Engine).......................... 362
Power Steering........................ 372
Disabled Vehicle Towing................... 352
Disposal
Antifreeze (Engine Coolant)............... 379
Engine Oil........................... 365
Used Engine Fluids..................... 365
Door Locks............................. 26
Door Locks, Automatic.................... 27
Door Opener, Garage..................... 151Drive Belts............................ 365
Driving............................... 269
Off-Pavement......................... 270
Off-Road............................ 270
DVD Player (Video Entertainment System)...... 225
E-85 Fuel.............................. 311
Electric Remote Mirrors.................... 78
Electrical Outlet, Auxiliary (Power Outlet)...... 162
Electronic Brake Control System............. 135
Electronic Speed Control (Cruise Control)...... 132
Electronic Stability Program (ESP)............ 138
Electronic Throttle Control Warning Light...... 182
Electronic Vehicle Information Center
(EVIC).............................181,184
Emergency, In Case of
Freeing Vehicle When Stuck............... 263
Hazard Warning Flasher................. 340
Jacking............................. 342
INDEX 441
10
Page 442 of 456
Jump Starting......................... 348
Tow Hooks.......................... 351
Emission Control System Maintenance......359,406
Engine
Air Cleaner.......................... 366
Block Heater......................... 255
Break-In Recommendations................ 67
Compartment...................355,356,357
Compartment Identification.........355,356,357
Cooling............................. 375
Exhaust Gas Caution................36,68,310
Fails to Start.......................... 252
Flooded, Starting...................... 252
Fuel Requirements..................307,402
Oil ..............................362,402
Oil Change Interval.................... 363
Oil Disposal.......................... 365
Oil Filter............................ 365
Oil Filter Disposal...................... 365Oil Selection.......................... 402
Oil Synthetic......................... 364
Overheating.......................... 341
Starting............................. 251
Temperature Gauge..................... 180
Engine Oil Viscosity...................... 364
Engine Oil Viscosity Chart................. 364
Enhanced Accident Response Feature.......... 54
Entry System, Illuminated.................. 19
Event Data Recorder...................... 55
Exhaust Gas Caution.................36,68,310
Exhaust System......................... 375
Extender, Seat Belt........................ 45
Exterior Finish Care...................... 389
Filters
Air Cleaner.......................... 366
Engine Oil........................... 365
Engine Oil Disposal.................... 365
442 INDEX
Page 446 of 456
LATCH
(Lower Anchors and Tether for CHildren).....61,63
Lead Free Gasoline...................... 307
Leaks, Fluid............................ 70
Life of Tires............................ 293
Liftgate................................ 32
Liftgate Flipper Glass...................... 33
Liftgate Window Wiper/Washer............. 166
Lights..............................70,119
Airbag............................55,177
Alarm............................... 69
Anti-Lock........................... 177
Automatic Headlights................... 120
Battery Saver......................... 120
Brake Assist Warning.................143,181
Brake Warning........................ 176
Courtesy/Reading..................... 125
Cruise.............................. 182
Daytime Running...................... 123Dimmer Switch, Headlight............. 119,124
Electronic Stability Program (ESP)
Indicator........................143,178,181
Electronic Throttle Control Warning......... 182
Fog .............................123,183
Four-Wheel Drive Indicator............... 181
Fuses............................... 393
Hazard Warning Flasher................. 340
Headlight Switch...................... 120
Headlights On With Wipers............... 121
High Beam Indicator.................... 176
Illuminated Entry....................... 19
Instrument Cluster..................120,122
Interior..........................122,125
Lights On Reminder.................... 123
Low Fuel............................ 183
LowTire ............................ 179
Malfunction Indicator (Check Engine)........ 176
Oil Pressure.......................... 178
446 INDEX
