buttons JEEP COMMANDER 2007 1.G Owners Manual

NOTE:If the key is in the ignition switch, then all
buttons on that transmitter will be disabled. The buttons
on the remaining transmitters will work. If the vehicle is
shifted out of P (Park), all the transmitter buttons are
disabled for all keys.
Four Button Transmitter
Five Button Transmitter
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

To Unlock the Doors
Press and release the “Unlock” button on the transmitter
once to unlock the driver’s door, or twice to unlock all
doors. The turn signal lights will flash twice to acknowl-
edge the unlock signal. The illuminated entry system also
turns on.NOTE:If desired, the system can be programmed to
unlock all doors on the first press of the “Unlock” button.
Refer to “Remote Unlock Driver’s Door 1st” in the
Personal Settings section of the “Electronic Vehicle Infor-
mation Center (EVIC)”, or simply follow these steps:
1. Press and hold the “Lock” button for 4 to 10 seconds.
2. While the “Lock” button is pressed, (after 4 seconds)
press the “Unlock” button. Release both buttons.
The “Remote Unlock Driver’s Door 1st” feature can be
reactivated by repeating this procedure.
To Lock the Doors
Press and release the “Lock” button on the transmitter to
lock all doors. The turn signal lights will flash once to
acknowledge the lock signal. The horn will chirp once to
acknowledge the signal. If desired, the “Sound Horn On
Lock” feature can be turned on and off by referring to the
Six Button Transmitter
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21
2

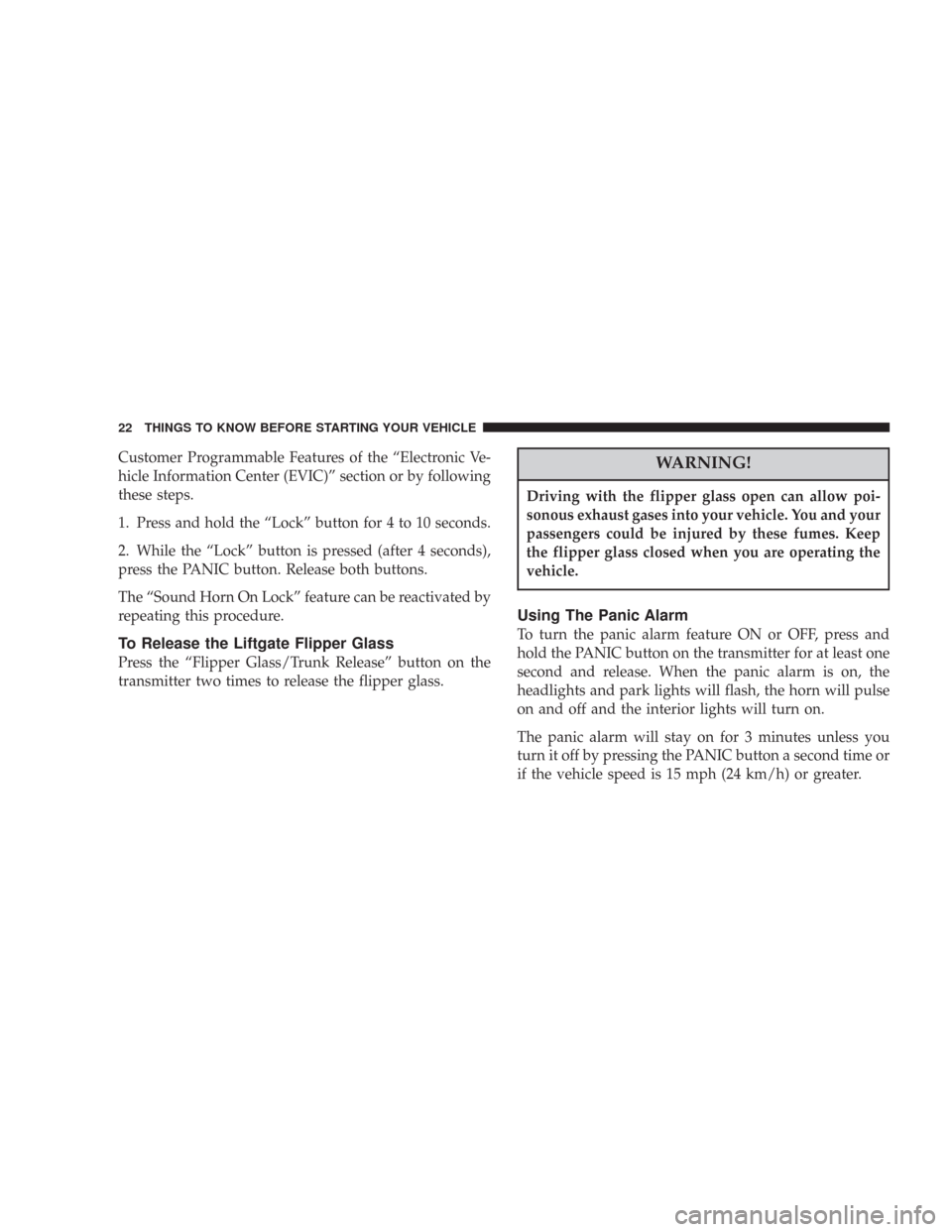

Customer Programmable Features of the “Electronic Ve-
hicle Information Center (EVIC)” section or by following
these steps.
1. Press and hold the “Lock” button for 4 to 10 seconds.
2. While the “Lock” button is pressed (after 4 seconds),
press the PANIC button. Release both buttons.
The “Sound Horn On Lock” feature can be reactivated by
repeating this procedure.
To Release the Liftgate Flipper Glass
Press the “Flipper Glass/Trunk Release” button on the
transmitter two times to release the flipper glass.
WARNING!
Driving with the flipper glass open can allow poi-
sonous exhaust gases into your vehicle. You and your
passengers could be injured by these fumes. Keep
the flipper glass closed when you are operating the
vehicle.
Using The Panic Alarm
To turn the panic alarm feature ON or OFF, press and
hold the PANIC button on the transmitter for at least one
second and release. When the panic alarm is on, the
headlights and park lights will flash, the horn will pulse
on and off and the interior lights will turn on.
The panic alarm will stay on for 3 minutes unless you
turn it off by pressing the PANIC button a second time or
if the vehicle speed is 15 mph (24 km/h) or greater.
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:The interior lights will turn off when the ignition
is switched to the ACC or ON position after the panic
alarm is activated. However, the exterior lights and horn
will remain on.
NOTE:When you turn off the panic alarm by pressing
the PANIC button a second time, you may have to be
closer to the vehicle due to the radio frequency noises of
the system.
To Turn Off “Flash Lights On Lock/Unlock”
NOTE:If desired, the “Flash Lights On Lock/Unlock”
feature can be turned on and off by referring to the
Customer Programmable Features of the “Electronic Ve-
hicle Information Center (EVIC)” section or by following
these steps.
1.
Press and hold the “Unlock” button for 4 to 10 seconds.
2. While the “Unlock” button is pressed, (after 4 seconds)
press the “Lock” button. Release both buttons.The “Flash Lights On Lock/Unlock” feature can be
reactivated by repeating this procedure.
General Information
This device complies with part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
•This device may not cause harmful interference.
•This device must accept any interference received,
including interference that may cause undesired op-
eration.
If your Remote Keyless Entry transmitter fails to operate
from a normal distance, check for these two conditions.
1. A weak battery in the transmitter. The expected life of
the battery is a minimum of three years.
2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, and some mobile or CB radios.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23
2

Transmitter Battery Service
The recommended replacement battery is one CR2032
battery.
NOTE:Do not touch the battery terminals that are on
the back housing or the printed circuit board.
1. With the transmitter buttons facing down, remove the
small screw, and separate the two halves of the transmit-
ter. Make sure not to damage the rubber gasket during
removal.
2. Remove and replace the battery. Avoid touching the
new battery with your fingers. Skin oils may cause
battery deterioration. If you touch a battery, clean it with
rubbing alcohol.
Separating Transmitter Halves
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:
•In the event of a power malfunction to the liftgate, an
emergency liftgate latch release can be used to open
the liftgate. The emergency liftgate latch release can be
accessed through a snap-in cover located on the lift-
gate trim panel.
WARNING!
During power operation, personal injury or cargo
damage may occur. Ensure the liftgate travel path is
clear. Make sure the liftgate is closed and latched
before driving away.
A beeping signal will sound two seconds before the
liftgate starts to open or close.
NOTE:
•If anything obstructs the power liftgate while it isclosing or opening, the liftgate will automatically
reverse to the closed or open position, provided it
meets sufficient resistance.
•There are also pinch sensors attached to the side of the
liftgate. Light pressure anywhere along these strips
will cause the liftgate to return to the open position.
•The power liftgate must be in the full open position for
any of the buttons to operate. If the liftgate is not fully
open, press the remote keyless entry transmitter to
fully open the liftgate and then press again to close.
•If the liftgate handle is pulled while the power liftgate
is closing, the liftgate will reverse to the full open
position.
•If the liftgate handle is pulled while the power liftgate
is opening, the liftgate motor will disengage to allow
manual operation.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35
2

•The power liftgate buttons will not operate if the
vehicle is in gear or the vehicle speed is above 0 mph
(0 km/h).
•The power liftgate will not operate in temperatures
below22°F(30° C) or temperatures above 150° F
(65° C). Be sure to remove any buildup of snow or ice
from the liftgate before pressing any of the power
liftgate switches.
•If the power liftgate encounters multiple obstructions
within the same cycle, the system will automatically
stop and must be opened or closed manually.
•If your liftgate is power closing and you put the
vehicle in gear, the liftgate will continue to power
close. However, vehicle movement may result in a
detection of an obstruction.
WARNING!
•Driving with the liftgate open can allow poison-
ous exhaust gases into your vehicle. You and your
passengers could be injured by these fumes. Keep
the liftgate closed when you are operating the
vehicle.
•If you are required to drive with the liftgate open,
make sure that all windows are closed, and the
climate control blower switch is set at high speed.
DO NOT use the recirculation mode.
Gas props support the liftgate in the open position.
However, because the gas pressure drops with tempera-
ture, it may be necessary to assist the props when
opening the liftgate in cold weather.
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫BAS (Brake Assist System)...............136
▫ERM (Electronic Roll Mitigation)..........137
▫ESP (Electronic Stability Program).........138
▫ESP/BAS Warning Lamp And ESP/TCS
Indicator Light.......................143
Rear Park Assist System— If Equipped.......144
▫Rear Park Assist Sensors................144
▫Rear Park Assist Warning Display.........145
▫Enable/Disable The Rear Park Assist System . . 146
▫Service The Rear Park Assist System........147
▫Cleaning The Rear Park Assist System......147
Rear Camera — If Equipped...............149
▫Turning The Rear Camera On............150▫Turning The Rear Camera Off............150
Overhead Console — If Equipped...........151
Garage Door Opener — If Equipped.........151
▫Programming HomeLink................153
▫Canadian Programming/Gate Programming . . 156
▫Using HomeLink.....................156
▫Erasing HomeLink Buttons..............157
▫Reprogramming a Single HomeLink Button . . . 157
▫Security............................157
Power Sunroof — If Equipped.............158
▫Opening Sunroof - Express..............159
▫Closing Sunroof - Express...............159
▫Pinch Protect Feature...................159
74 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

The UConnect™ phonebook enables you to store up to 32
names and four numbers per name. Each language has a
separate 32-name phonebook accessible only in that
language. This system is driven through your Blue-
tooth™ Hands-Free profile cellular phone. UConnect™
features Bluetooth™ technology - the global standard
that enables different electronic devices to connect to
each other without wires or a docking station, so UCon-
nect works no matter where you stow your cellular
phone (be it your purse, pocket, or briefcase), as long as
your phone is turned on and has been paired to the
vehicle’s UConnect™ system. The UConnect™ system
allows up to seven cellular phones to be linked to system.
Only one linked (or paired) cellular phone can be used
with the system at a time. The system is available in
English, Spanish, or French languages (as equipped).
The rearview mirror contains the microphone for the
system and the control buttons that will enable you to
access the system.The UConnect™ system can be used with any Hands-
Free Profile certified Bluetooth™ cellular phone. See
www.chrysler.com/uconnect for supported phones. If
your cellular phone supports a different profile (e.g.,
UConnect™ Switches
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 81
3

4. Close the tailgate.
WARNING!
The cargo area in the rear of the vehicle (with the
rear seatbacks in the locked-up or folded down
position) should not be used as a play area by
children when the vehicle is in motion. They could
be seriously injured in an accident. Children should
be seated and using the proper restraint system.
DRIVER MEMORY SEAT — IF EQUIPPED
Once programmed, the memory buttons 1 and 2 on the
driver’s door panel can be used to recall the driver’s seat,
driver’s outside mirror, adjustable brake and accelerator
pedals, and radio station preset settings. Your Remote
Keyless Entry transmitters can also be programmed to
recall the same positions when the “Unlock” button is
pressed.Your vehicle may have been delivered with two Remote
Keyless Entry transmitters. One or both transmitters can
be linked to either memory position. The memory system
can accommodate up to four transmitters, each one
linked to either of the two memory positions.
Driver Memory Switches
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 113
3
