354 MAINTAINING YOUR VEHICLE

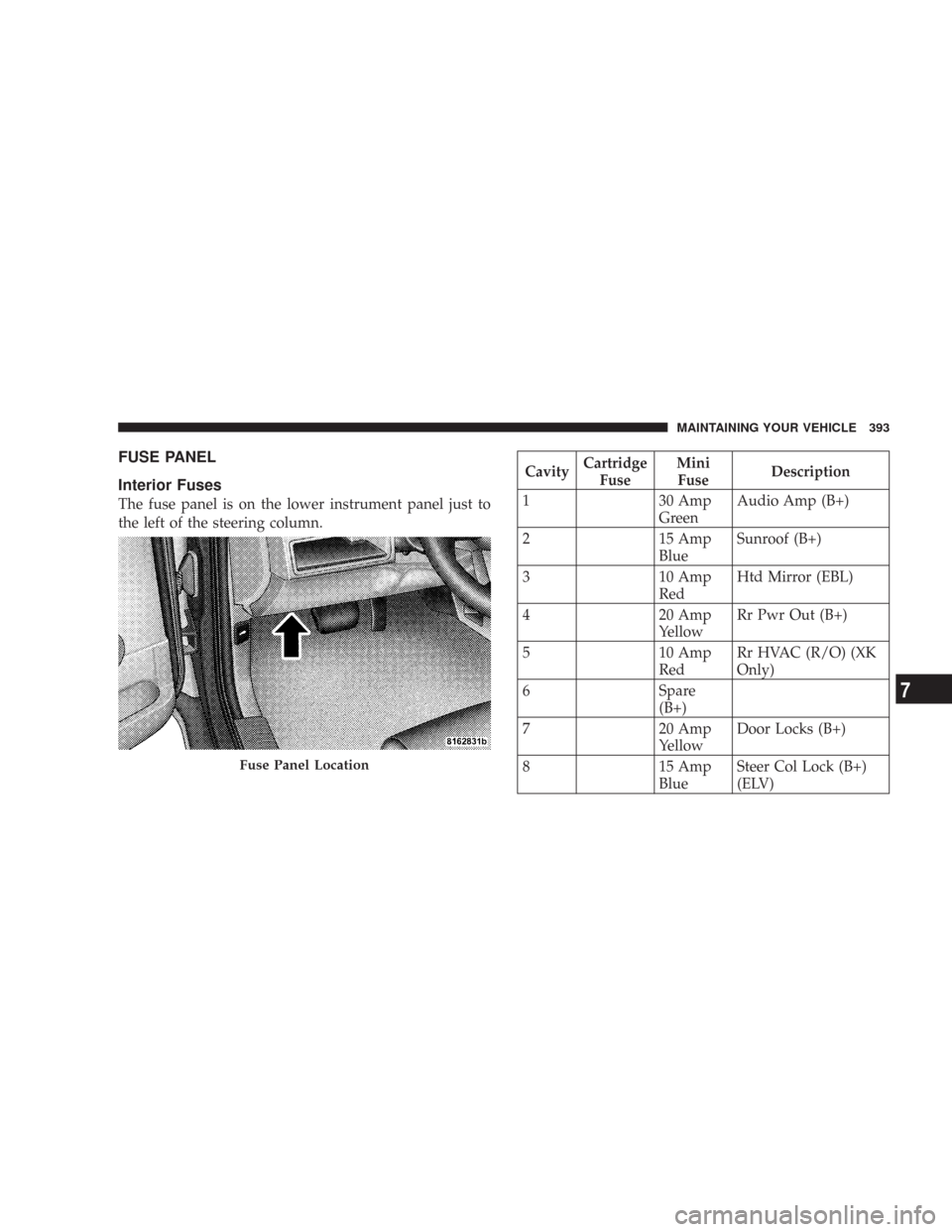

FUSE PANEL
Interior Fuses
The fuse panel is on the lower instrument panel just to
the left of the steering column.
CavityCartridge
FuseMini
FuseDescription
1 30 Amp
GreenAudio Amp (B+)
2 15 Amp
BlueSunroof (B+)
3 10 Amp
RedHtd Mirror (EBL)
4 20 Amp
YellowRr Pwr Out (B+)
5 10 Amp
RedRr HVAC (R/O) (XK
Only)
6 Spare
(B+)
7 20 Amp
YellowDoor Locks (B+)
8 15 Amp
BlueSteer Col Lock (B+)
(ELV)
Fuse Panel Location
MAINTAINING YOUR VEHICLE 393
7

CavityCartridge
FuseMini
FuseDescription
9 20 Amp
YellowPwr Outlet (B+)
10 10 Amp
RedFinal Drive Control
Module (FDCM),
Heater Ventilation,
Air Conditioning
(HVAC), Switch
Bank, Transfer Case
Switch, O/H, Heater
Ventilation, Air Con-
ditioning (HVAC)
Relay, Rear Park As-
sist
11 Spare
(B+)CavityCartridge
FuseMini
FuseDescription
12 10 Amp
RedDoor Mods, Mem.
Sw, O/H Lamps, IP
Courtesy Lamps,
Glove Box Lamp (B+)
13 10 Amp
RedAutowipe (R/A)
14 20 Amp
YellowCigar Ltr (R/A)
15 10 Amp
RedTire Pressure Trans-
ducers (R/O)
16 10 Amp
RedSteering Control
Module (SCM), Diag.
Connector, Cluster
(B+)
17 15 Amp
BlueFlipper Glass (B+)
394 MAINTAINING YOUR VEHICLE

CavityCartridge
FuseMini
FuseDescription
19 Spare
(R/S)
20 10 Amp
RedSentry Key Remote
Entry Module
(SKREEM), Cluster
(R/S)
21 Spare
(Acc De-
lay)
22 15 Amp
BlueRear Wiper (B+)CavityCartridge
FuseMini
FuseDescription
24 10 Amp
RedPower Distribution
Center (PDC) Relays,
Final Drive Control
Module (FDCM),
Front Control Module
(FCM) (R/S), A580
(R/S)
25 10 Amp
RedShifter Assy (BTSI),
Trans. Case Switch,
ESP/ABS, Brake
Supp Rly Coil (R/S)
MAINTAINING YOUR VEHICLE 395
7

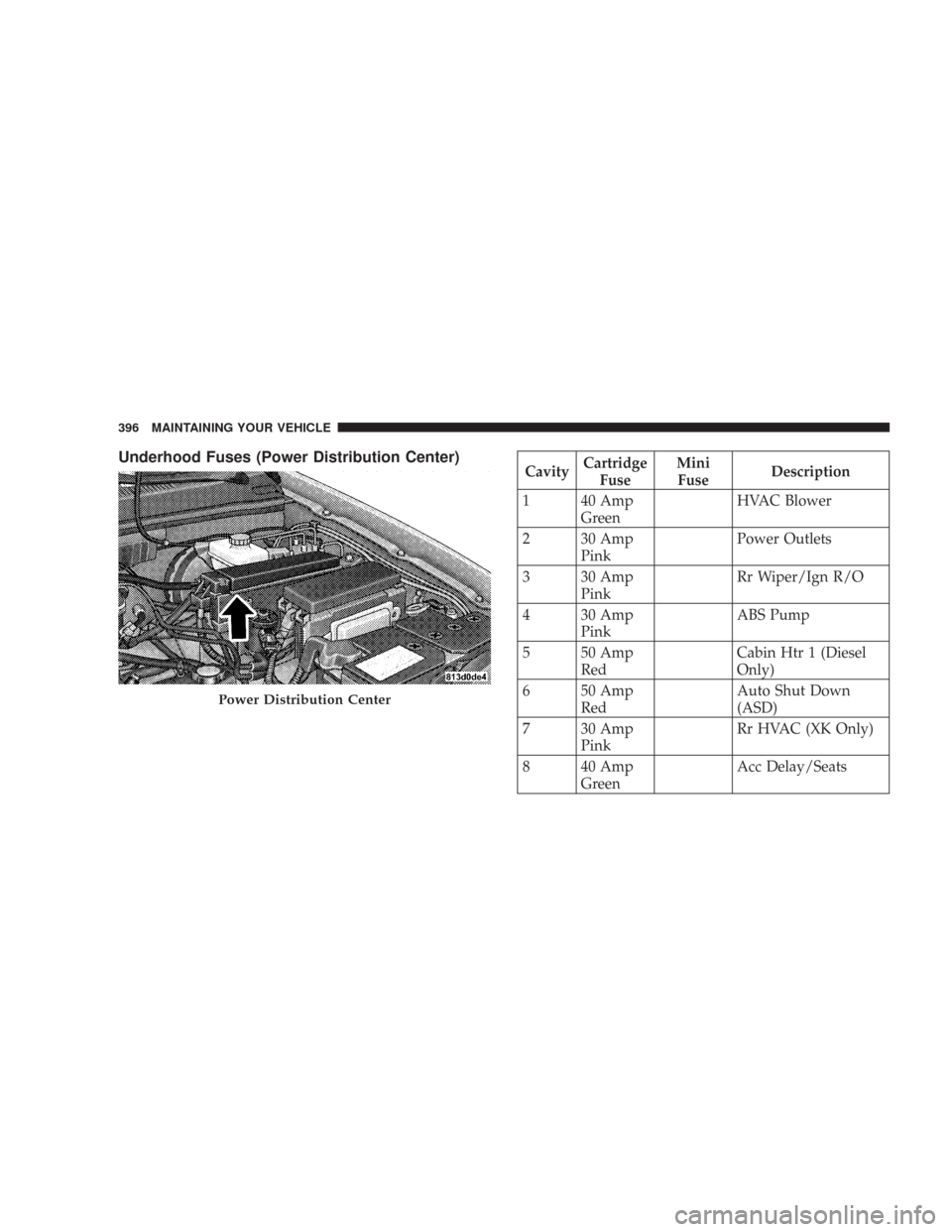

Underhood Fuses (Power Distribution Center)CavityCartridge
FuseMini
FuseDescription
1 40 Amp
GreenHVAC Blower
2 30 Amp
PinkPower Outlets
3 30 Amp
PinkRr Wiper/Ign R/O
4 30 Amp
PinkABS Pump
5 50 Amp
RedCabin Htr 1 (Diesel
Only)
6 50 Amp
RedAuto Shut Down
(ASD)
7 30 Amp
PinkRr HVAC (XK Only)
8 40 Amp
GreenAcc Delay/Seats
Power Distribution Center
396 MAINTAINING YOUR VEHICLE

CavityCartridge
FuseMini
FuseDescription
9 40 Amp
GreenPwr Liftgate (XK
Only)
10 40 Amp
GreenStarter/Junction
Block (JB) Power
11 30 Amp
PinkCig Ltr/T-Tow
12 40 Amp
GreenRear Window Defog-
ger (EBL)/Htd Mirror
13 40 Amp
GreenJunction Block (JB)
Power
14 50 Amp
RedCabin Htr 2 (Diesel
Only)
15 50 Amp
RedCabin Htr 3 (Diesel
Only)
16 25 Amp
NaturalIntegrated Power
Module (IPM)/CoilsCavityCartridge
FuseMini
FuseDescription
17 Spare
18 20 Amp
YellowEATX/AC Clutch
19 20 Amp
YellowIgn Sw
20 20 Amp
YellowPCM Batt (Gasoline
Only)
21 30 Amp
GreenABS Valves
22 20 Amp
YellowT-Tow (BUX)
23 20 Amp
YellowFinal Drive Control
Module (FDCM)
24 20 Amp
YellowFuel Pump
MAINTAINING YOUR VEHICLE 397
7

CavityCartridge
FuseMini
FuseDescription
25 20 Amp
YellowFinal Drive Control
Module (FDCM)
26 15 Amp
BluePowertrain Control
Module (PCM) Auto
Shut Down (ASD)
(Diesel Only)
27 15 Amp
BlueBrake/Stop Lamps
28 25 Amp
NaturalNext Generation Con-
troller (NGC)/

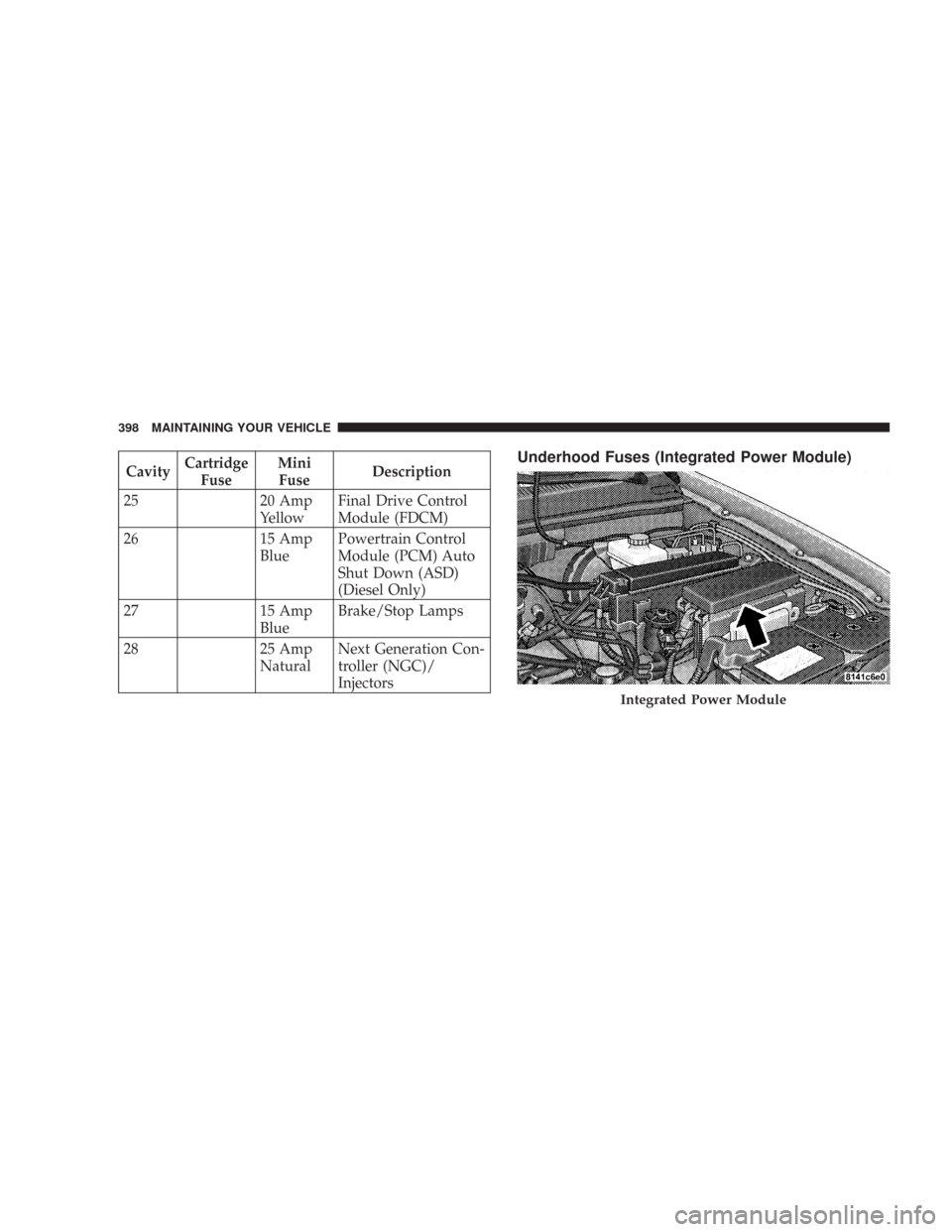

InjectorsUnderhood Fuses (Integrated Power Module)
Integrated Power Module
398 MAINTAINING YOUR VEHICLE

CavityCartridge
FuseMini
FuseDescription
8 10 Amp
RedLt Park Lamps
9 10 Amp
RedTrailer-Tow Park
Lamps
10 10 Amp
RedRt Park Lamps
12 20 Amp
YellowFront Control Module
(FCM) Batt #4
13 20 Amp
YellowFront Control Module
(FCM) Batt #2
14 20 Amp
YellowAdjustable Pedal
15 20 Amp
YellowFt Fog Lamps
16 20 Amp
YellowHornCavityCartridge
FuseMini
FuseDescription
17 20 Amp
YellowRear Wiper
18 20 Amp
YellowFront Control Module
(FCM) Batt #1
19 20 Amp
YellowLt Trailer-Tow Stop/
Turn
20 20 Amp
YellowFront Control Module
(FCM) Batt #3
21 20 Amp
YellowRt Trailer-Tow Stop/
Turn
22 30 Amp
PinkFinal Drive Control
Module (FDCM)
MOD
23 50 Amp
RedRadiator Fan
27 15 Amp
BlueIgnition Off Draw
(IOD) #1
MAINTAINING YOUR VEHICLE 399
7

CavityCartridge
FuseMini
FuseDescription
28 20 Amp
YellowIgnition Off Draw
(IOD) #2
29 10 Amp
RedOccupant Restraint
Controller (ORC) R/S
30 10 Amp
RedOccupant Restraint
Controller (ORC)
R/OVEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days you may want to take steps to protect your battery.
You may:
•Remove fuse #27 in the Intelligent Power Module
labeled Ignition-Off Draw (IOD#1).
•Or, disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e. vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
insure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
400 MAINTAINING YOUR VEHICLE
