navigation system JEEP COMMANDER 2007 1.G Owners Manual

NOTE:Clean all four Rear Park Assist Sensors regularly,
taking care not to scratch or damage them. The sensors
must not be covered with ice, snow, slush, mud, dirt or
debris. Failure to do so can result in the system not
working properly. The system might not detect an ob-
stacle behind the fascia or it could provide a false
indication that an obstacle is behind the fascia.
Assure objects are not within 11.8 inches (30 cm) from the
rear fascia while driving the vehicle. Failure to do so can
result in the system misinterpreting a close object as a
sensor problem, causing theSERVICE PARK ASSIST
SYSTEMmessage to be displayed in the instrument
cluster.
Ultrasonic noise from airbrakes of nearby trucks, air
powered jackhammers and air powered shop tools, to
name a few, will cause the Rear Park Assist System to be
disabled until the ultrasonic noise is no longer present.REAR CAMERA — IF EQUIPPED
Vehicles with a Navigation radio may be equipped with
a rear view camera (located on the rear liftgate) that
allows you to see an on-screen image (on the navigation
radio screen) of the rear of your vehicle whenever the
vehicle is put into R (Reverse).
WARNING!
Drivers must be careful when backing up even when
using the rear camera system. Always check care-
fully behind your vehicle, and be sure to check for
pedestrians, animals, other vehicles, obstructions, or
blind spots before backing up. Failure to do so can
result in serious injury or death.
If snow, ice, mud, or anything else builds up on the
camera lens. Clean the lens, rinse with water, and dry
with a soft cloth.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 149
3

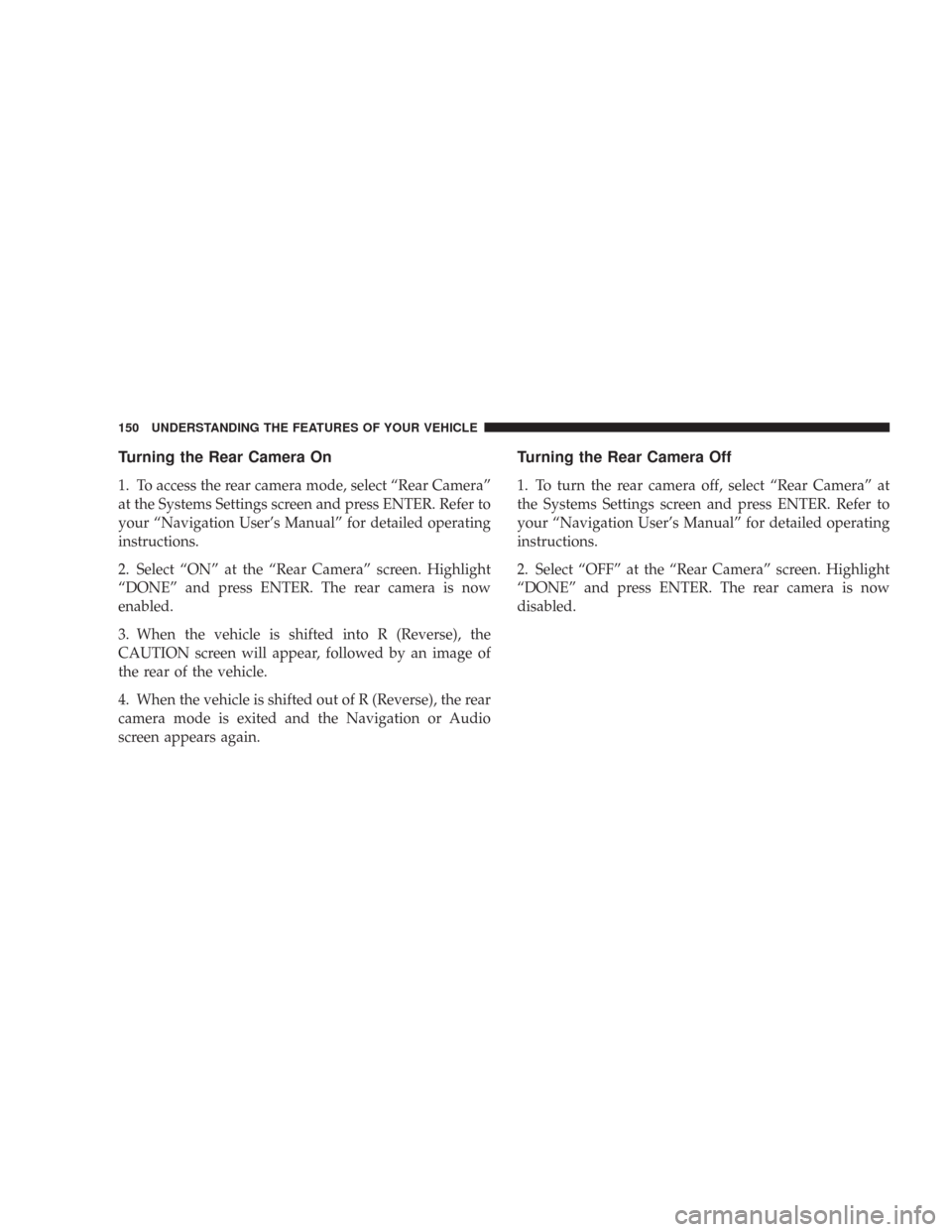

Turning the Rear Camera On
1. To access the rear camera mode, select “Rear Camera”
at the Systems Settings screen and press ENTER. Refer to
your “Navigation User’s Manual” for detailed operating
instructions.
2. Select “ON” at the “Rear Camera” screen. Highlight
“DONE” and press ENTER. The rear camera is now
enabled.
3. When the vehicle is shifted into R (Reverse), the
CAUTION screen will appear, followed by an image of
the rear of the vehicle.
4. When the vehicle is shifted out of R (Reverse), the rear
camera mode is exited and the Navigation or Audio
screen appears again.
Turning the Rear Camera Off
1. To turn the rear camera off, select “Rear Camera” at
the Systems Settings screen and press ENTER. Refer to
your “Navigation User’s Manual” for detailed operating
instructions.
2. Select “OFF” at the “Rear Camera” screen. Highlight
“DONE” and press ENTER. The rear camera is now
disabled.
150 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫Operation Instructions -
(CD Mode For CD Audio Play)...........204
▫Load/Eject Button
(CD Mode For CD Audio Play)...........206
▫Notes On Playing MP3 Files.............208
▫Operation Instructions -
(CD Mode For MP3 Audio Play)..........210
▫Load/Eject Button (CD Mode For MP3 Play) . . 210
Sales Code REF — AM/FM/CD (Single Disc)
Radio With Optional Satellite Radio And Hands
Free Phone Capability...................213
▫Operating Instructions - Radio Mode.......213
▫Operation Instructions - CD Mode.........217
▫Operation Instructions - Auxiliary Mode.....219▫Operating Instructions - Hands Free Phone —
If Equipped.........................220
▫Operating Instructions - Satellite Radio —
If Equipped.........................220
Sales Code REC — AM/FM/CD (6–Disc) Radio
With Navigation System..................220
▫Operating Instructions — Satellite Radio
(If Equipped)........................221
▫REC Setting The Clock.................221
▫Audio Clock Display...................224
Video Entertainment System (Sales Code XRV) —
If Equipped...........................225
Satellite Radio — If Equipped..............226
▫System Activation.....................227
172 UNDERSTANDING YOUR INSTRUMENT PANEL

TIME Button (Auxiliary Mode)
Press this button to change the display from elapsed
playing time to time of day. The time of day will display
for 5 seconds.
RW/FF (Auxiliary Mode)
No function.
RND/SET Button (Auxiliary Mode)
No function.
Mode Button (Auxiliary Mode)
Press the mode button repeatedly to select between the
CD player and Satellite Radio (if equipped).
Operating Instructions - Hands Free Phone — If
Equipped
Refer to the “HANDS FREE PHONE (UConnect™)”
section of the Owner’s Manual.
Operating Instructions - Satellite Radio — If
Equipped
Refer to the “Satellite Radio” section of the Owner’s
Manual.
SALES CODE REC — AM/FM/CD (6–DISC) RADIO
WITH NAVIGATION SYSTEM
REC Radio
220 UNDERSTANDING YOUR INSTRUMENT PANEL

Satellite Navigation Radio with CD Player with MP3
Capability (REC) - combines a Global-Positioning
System-based navigation system with an integrated color
screen to provide maps, turn identification, selection
menus and instructions for selecting a variety of destina-
tions and routes, AM/FM stereo radio and six-disc CD
changer with MP3 capability.
Mapping information for navigation is supplied on a
DVD that is loaded into the unit. One map DVD covers
all of North America. Refer to your “Navigation User’s
Manual” for detailed operating instructions.
Operating Instructions — Satellite Radio (If
Equipped)
Refer to your “Navigation User’s Manual” for detailed
operating instructions.
REC Setting the Clock
GPS Clock
The GPS receiver used in this system is synchronized to
the time data being transmitted by the GPS satellites. The
satellites’ clock is Greenwich Mean Time (GMT). This is
the worldwide standard for time. This makes the sys-
tem’s clock very accurate once the appropriate time zone
and daylight savings information is set.
UNDERSTANDING YOUR INSTRUMENT PANEL 221
4

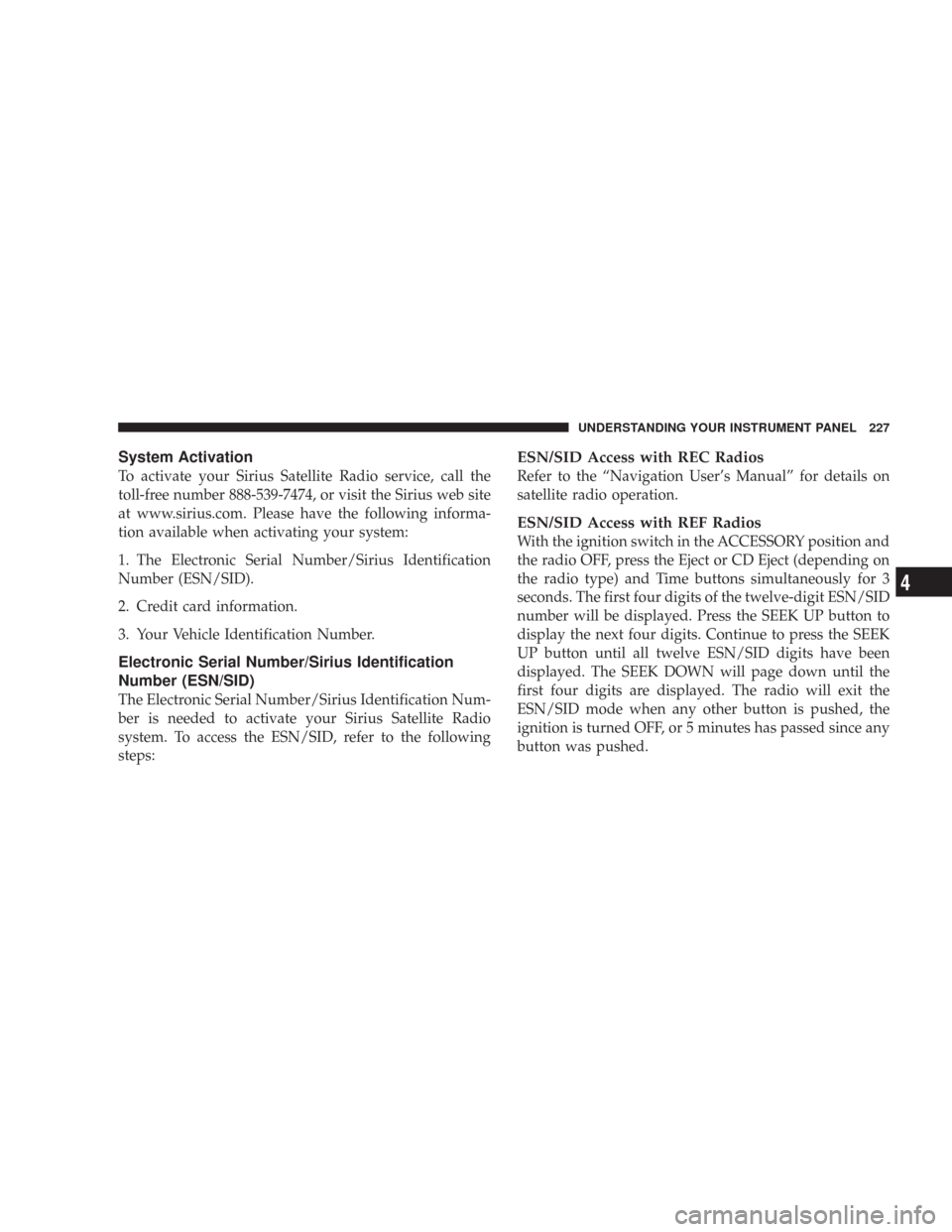

System Activation
To activate your Sirius Satellite Radio service, call the
toll-free number 888-539-7474, or visit the Sirius web site
at www.sirius.com. Please have the following informa-
tion available when activating your system:
1. The Electronic Serial Number/Sirius Identification
Number (ESN/SID).
2. Credit card information.
3. Your Vehicle Identification Number.
Electronic Serial Number/Sirius Identification
Number (ESN/SID)
The Electronic Serial Number/Sirius Identification Num-
ber is needed to activate your Sirius Satellite Radio
system. To access the ESN/SID, refer to the following
steps:
ESN/SID Access with REC Radios
Refer to the “Navigation User’s Manual” for details on
satellite radio operation.
ESN/SID Access with REF Radios
With the ignition switch in the ACCESSORY position and
the radio OFF, press the Eject or CD Eject (depending on
the radio type) and Time buttons simultaneously for 3
seconds. The first four digits of the twelve-digit ESN/SID
number will be displayed. Press the SEEK UP button to
display the next four digits. Continue to press the SEEK
UP button until all twelve ESN/SID digits have been
displayed. The SEEK DOWN will page down until the
first four digits are displayed. The radio will exit the
ESN/SID mode when any other button is pushed, the
ignition is turned OFF, or 5 minutes has passed since any
button was pushed.
UNDERSTANDING YOUR INSTRUMENT PANEL 227
4

Mini-Trip Computer...................... 193
Mirrors................................ 76
Automatic Dimming..................... 77
Electric Powered....................... 78
Electric Remote........................ 78
Exterior Folding........................ 78
Heated.............................. 79
Outside.............................. 77
Rearview............................. 76
Vanity............................... 79
Modifications/Alterations, Vehicle............. 9
Monitor, Tire Pressure System............... 297
Mopar Parts.........................361,433
Multi-Displacement Engine System........... 279
Multi-Function Control Lever............... 119
Navigation Radio........................ 220
Navigation System....................... 220
New Vehicle Break-In Period................ 67Occupant Restraints....................... 37
Octane Rating, Gasoline (Fuel).............. 307
Odometer..........................181,182
Trip ................................ 181
Off-Pavement Driving (Off-Road)..........270,387
Off-Road Driving (Off-Pavement)..........270,387
Oil, Engine............................ 362
Capacity............................ 402
Change Interval....................... 363
Dipstick............................. 362
Disposal............................ 365
Filter............................... 365
Filter Disposal........................ 365
Identification Logo..................... 364
Materials Added to..................... 365
Pressure Warning Light.................. 178
Recommendation...................363,402
Synthetic............................ 364
Viscosity..........................364,402
448 INDEX

Programming Transmitters
(Remote Keyless Entry).................153,157
Quadra-Trac........................... 264
Radial Ply Tires......................... 291
Radio Broadcast Signals................... 197
Radio, Navigation....................... 220
Radio Operation...................199,213,232
Radio, Satellite.......................221,226
Radio (Sound Systems).................199,213
Rain Sensitive Wiper System................ 128
Rear Air Conditioning.................... 242
Rear Axle (Differential).................... 384
Rear Camera........................... 149
Rear Cup Holder........................ 163
Rear Heater............................ 242
Rear Park Assist System................... 144
Rear Seat, Fold and Tumble................ 108Rear Seat, Folding.....................108,111
Rear Window Defroster................... 167
Rear Window Features.................... 166
Rear Wiper/Washer...................... 166
Rearview Mirrors........................ 76
Reclining Front Seats..................... 104
Recorder, Event Data...................... 55
Recreational Towing...................... 333
Shifting into Transfer Case Neutral (N)....... 334
Shifting out of Transfer Case Neutral (N)..... 336
Reformulated Gasoline.................... 308
Refrigerant............................ 372
Reminder, Lights On..................... 123
Remote Keyless Entry (RKE)................. 19
Remote Sound System (Radio) Controls........ 230
Remote Starting System.................... 25
Replacement Bulbs....................... 401
Replacement Tires....................... 293
Reporting Safety Defects................... 433
450 INDEX

Steering Wheel Mounted Sound System
Controls.............................. 230
Storage............................... 400
Storage, Vehicle......................245,400
Storing Your Vehicle...................... 400
Sun Roof.............................. 158
Sun Visor Extension....................... 80
Supplemental Restraint System - Airbag........ 46
Synthetic Engine Oil...................... 364
System, Navigation...................... 220
System, Remote Starting.................... 25
Tachometer............................ 178
Temperature Control, Automatic (ATC)........ 236
Temperature Gauge, Engine Coolant.......... 180
Tether Anchor, Child Restraint............... 61
Tilt Steering Column..................... 130
Time Delay, Headlight.................... 124
Tire and Loading Information Placard......... 284Tire Identification Number (TIN)............. 283
Tire Markings.......................... 280
Tire Safety Information.................... 280
Tires ............................70,288,435
Air Pressure.......................... 289
Alignment and Balance.................. 294
Chains.............................. 295
Changing............................ 342
General Information.................... 288
High Speed.......................... 291
Inflation Pressures..................... 289
Jacking............................. 342
Life of Tires.......................... 293
Load Capacity.....................284,285
Pressure Monitor System (TPMS)........... 297
Pressure Warning Light.................. 179
Quality Grading....................... 435
Radial.............................. 291
Replacement......................... 293
INDEX 453
10
