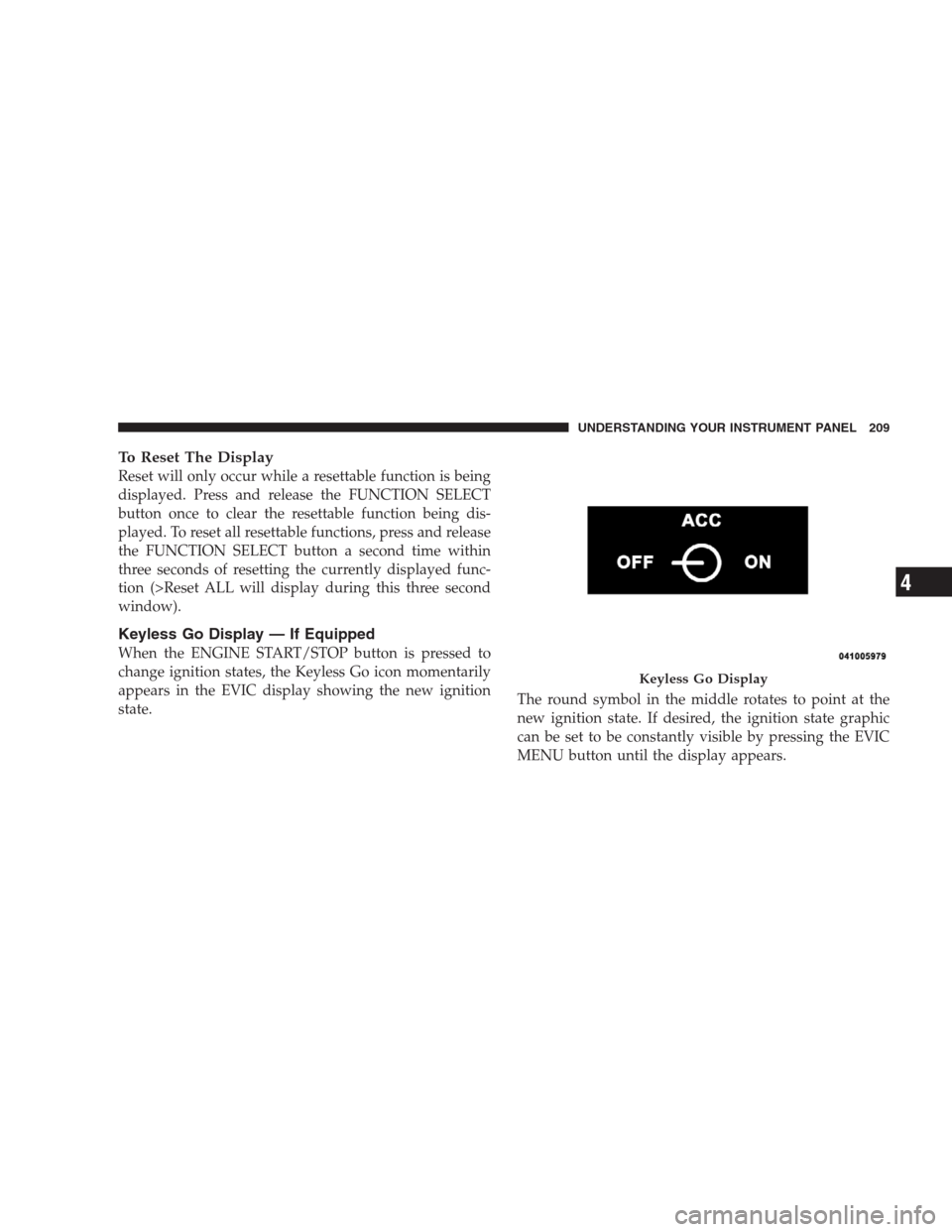

To Reset The Display
Reset will only occur while a resettable function is being
displayed. Press and release the FUNCTION SELECT
button once to clear the resettable function being dis-
played. To reset all resettable functions, press and release
the FUNCTION SELECT button a second time within
three seconds of resetting the currently displayed func-
tion (>Reset ALL will display during this three second
window).
Keyless Go Display — If Equipped
When the ENGINE START/STOP button is pressed to
change ignition states, the Keyless Go icon momentarily
appears in the EVIC display showing the new ignition
state.The round symbol in the middle rotates to point at the
new ignition state. If desired, the ignition state graphic
can be set to be constantly visible by pressing the EVIC
MENU button until the display appears.
Keyless Go Display
UNDERSTANDING YOUR INSTRUMENT PANEL 209
4

NOTE:Under certain conditions, the display may be
superseded by another display of higher priority. But
when the ignition state is changed, the display always
re-appears.
Compass Display
The compass readings indicate the direction
the vehicle is facing. Press and release the
COMPASS/TEMPERATURE button to display
one of eight compass readings and the outside
temperature.
Automatic Compass Calibration
This compass is self-calibrating, which eliminates the
need to manually reset the compass. When the vehicle is
new, the compass may appear erratic and the EVIC will
display “CAL” until the compass is calibrated. You may
also calibrate the compass by completing one or more
360–degree turns (in an area free from large metal ormetallic objects) until the “CAL” indicator displayed in
the EVIC turns off. The compass will now function
normally.
Manual Compass Calibration
If the compass appears erratic and the “CAL” indicator
does not appear in the EVIC display, you must put the
compass into the Calibration Mode manually as follows:
1. Turn on the ignition switch.
2. Press the MENU button until Personal Settings (Cus-
tomer Programmable Features) menu is reached.
3. Press the SCROLL button until “Calibrate Compass” is
displayed in the EVIC.
4. Press and release the FUNCTION SELECT button to
start the calibration. The “CAL” indicator will flash in the
EVIC.
210 UNDERSTANDING YOUR INSTRUMENT PANEL

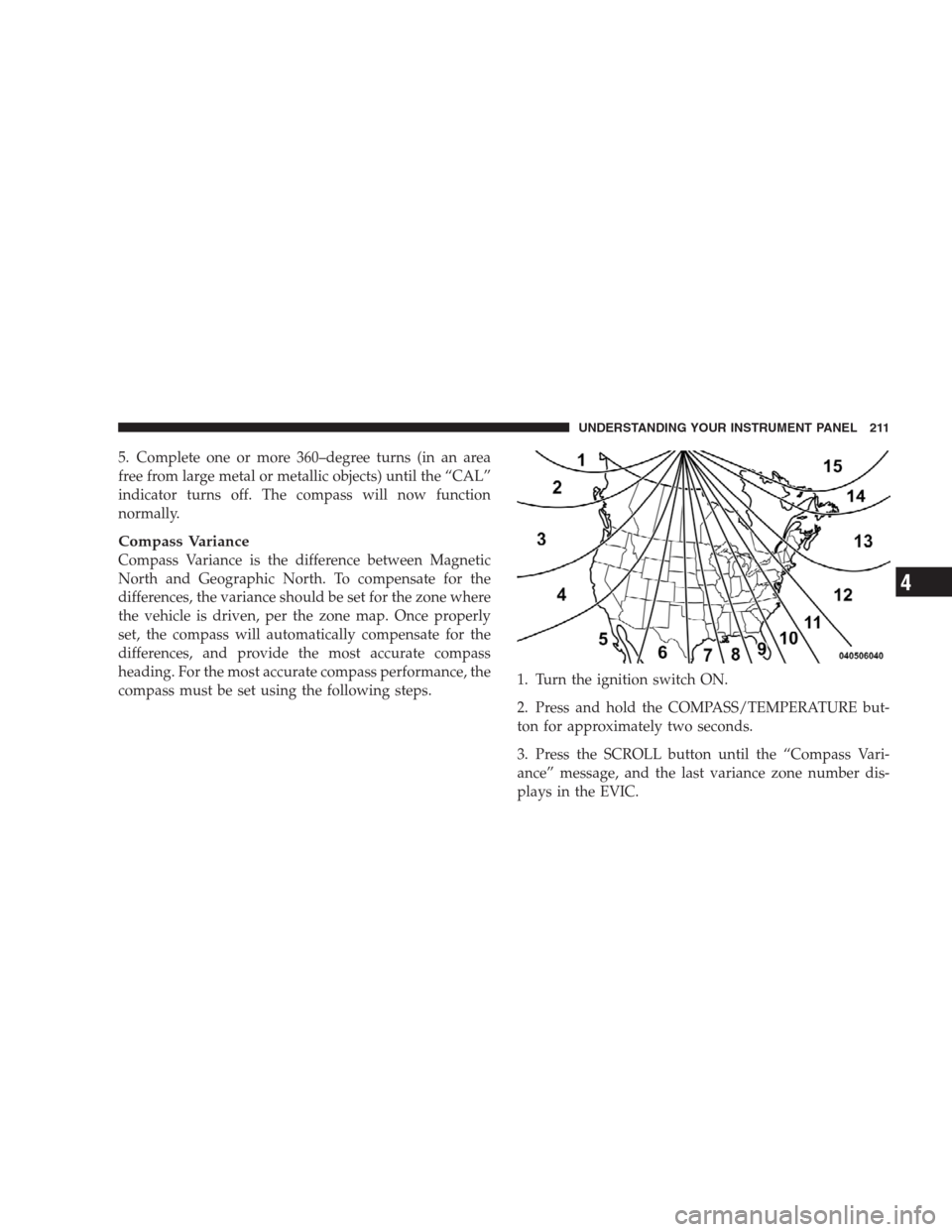

5. Complete one or more 360–degree turns (in an area
free from large metal or metallic objects) until the “CAL”
indicator turns off. The compass will now function
normally.
Compass Variance
Compass Variance is the difference between Magnetic
North and Geographic North. To compensate for the
differences, the variance should be set for the zone where
the vehicle is driven, per the zone map. Once properly
set, the compass will automatically compensate for the
differences, and provide the most accurate compass
heading. For the most accurate compass performance, the
compass must be set using the following steps.1. Turn the ignition switch ON.
2. Press and hold the COMPASS/TEMPERATURE but-
ton for approximately two seconds.
3. Press the SCROLL button until the “Compass Vari-
ance” message, and the last variance zone number dis-
plays in the EVIC.
UNDERSTANDING YOUR INSTRUMENT PANEL 211
4

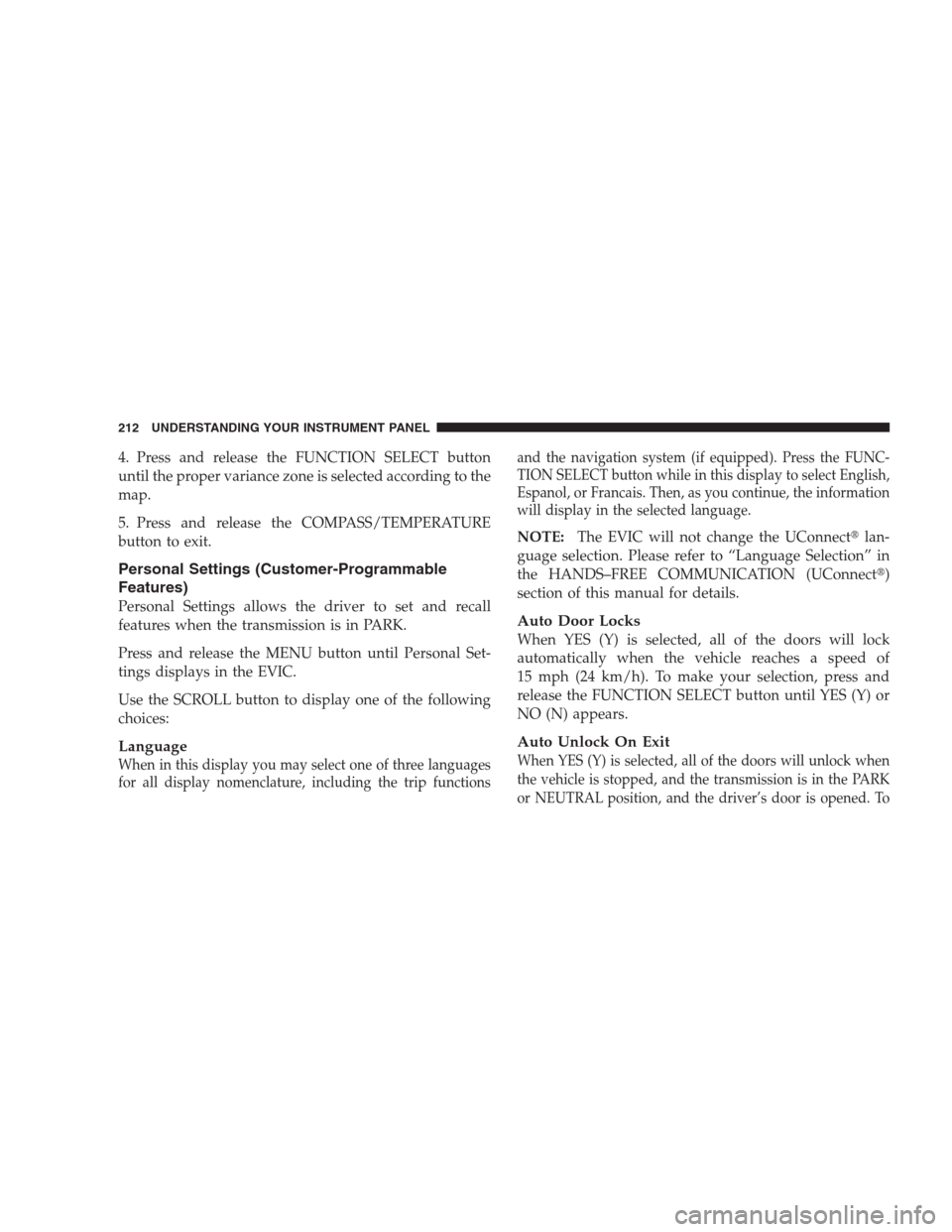

4. Press and release the FUNCTION SELECT button
until the proper variance zone is selected according to the
map.
5. Press and release the COMPASS/TEMPERATURE
button to exit.
Personal Settings (Customer-Programmable
Features)
Personal Settings allows the driver to set and recall
features when the transmission is in PARK.
Press and release the MENU button until Personal Set-
tings displays in the EVIC.
Use the SCROLL button to display one of the following
choices:
Language
When in this display you may select one of three languages
for all display nomenclature, including the trip functionsand the navigation system (if equipped). Press the FUNC-
TION SELECT button while in this display to select English,
Espanol, or Francais. Then, as you continue, the information
will display in the selected language.
NOTE:The EVIC will not change the UConnectlan-
guage selection. Please refer to “Language Selection” in
the HANDS–FREE COMMUNICATION (UConnect)
section of this manual for details.
Auto Door Locks
When YES (Y) is selected, all of the doors will lock
automatically when the vehicle reaches a speed of
15 mph (24 km/h). To make your selection, press and
release the FUNCTION SELECT button until YES (Y) or
NO (N) appears.
Auto Unlock On Exit
When YES (Y) is selected, all of the doors will unlock when
the vehicle is stopped, and the transmission is in the PARK
or NEUTRAL position, and the driver’s door is opened. To
212 UNDERSTANDING YOUR INSTRUMENT PANEL

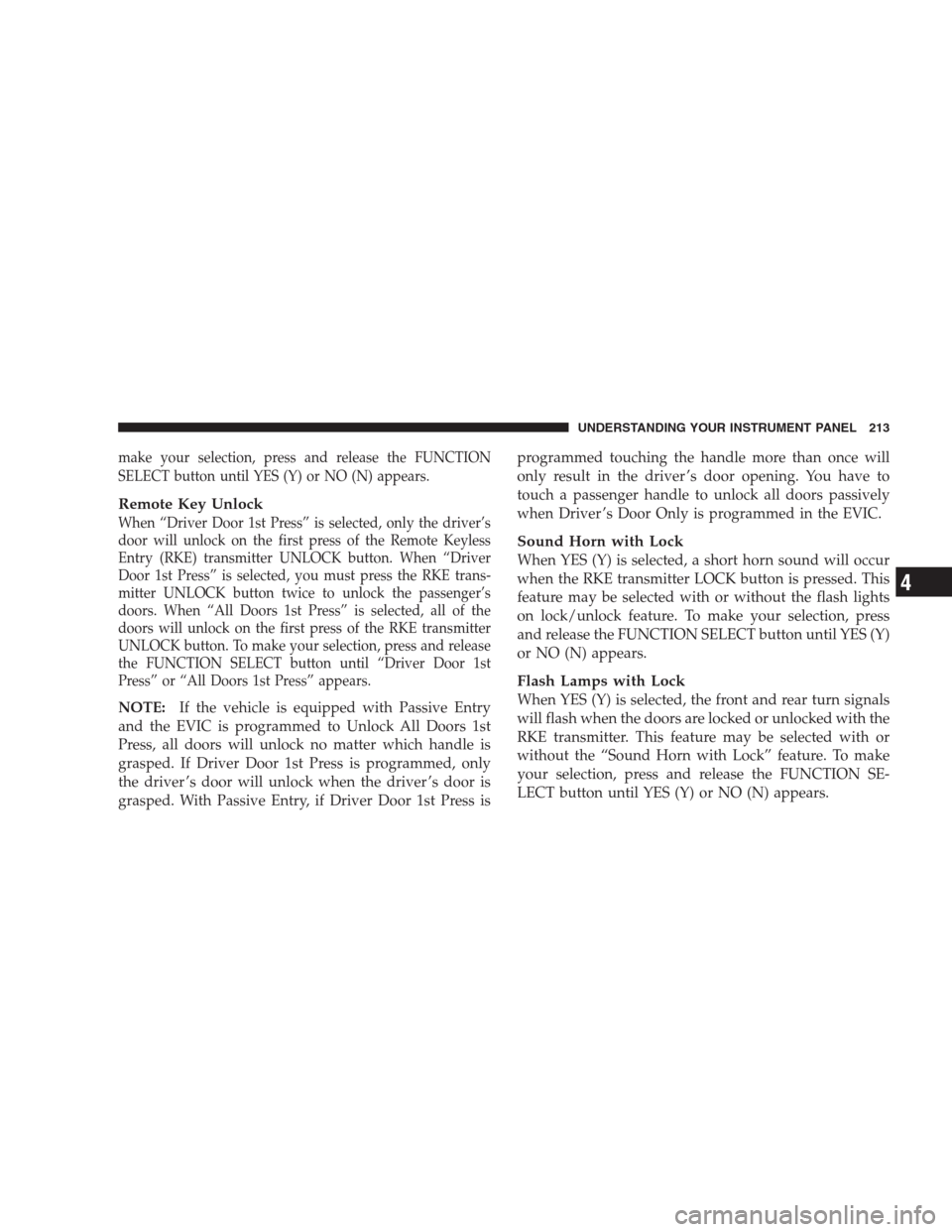

make your selection, press and release the FUNCTION
SELECT button until YES (Y) or NO (N) appears.
Remote Key Unlock
When “Driver Door 1st Press” is selected, only the driver’s
door will unlock on the first press of the Remote Keyless
Entry (RKE) transmitter UNLOCK button. When “Driver
Door 1st Press” is selected, you must press the RKE trans-
mitter UNLOCK button twice to unlock the passenger’s
doors. When “All Doors 1st Press” is selected, all of the
doors will unlock on the first press of the RKE transmitter
UNLOCK button. To make your selection, press and release
the FUNCTION SELECT button until “Driver Door 1st
Press” or “All Doors 1st Press” appears.
NOTE:If the vehicle is equipped with Passive Entry
and the EVIC is programmed to Unlock All Doors 1st
Press, all doors will unlock no matter which handle is
grasped. If Driver Door 1st Press is programmed, only
the driver ’s door will unlock when the driver ’s door is
grasped. With Passive Entry, if Driver Door 1st Press isprogrammed touching the handle more than once will
only result in the driver ’s door opening. You have to
touch a passenger handle to unlock all doors passively
when Driver ’s Door Only is programmed in the EVIC.
Sound Horn with Lock
When YES (Y) is selected, a short horn sound will occur
when the RKE transmitter LOCK button is pressed. This
feature may be selected with or without the flash lights
on lock/unlock feature. To make your selection, press
and release the FUNCTION SELECT button until YES (Y)
or NO (N) appears.
Flash Lamps with Lock
When YES (Y) is selected, the front and rear turn signals
will flash when the doors are locked or unlocked with the
RKE transmitter. This feature may be selected with or
without the “Sound Horn with Lock” feature. To make
your selection, press and release the FUNCTION SE-
LECT button until YES (Y) or NO (N) appears.
UNDERSTANDING YOUR INSTRUMENT PANEL 213
4

Headlamp Off Delay
When this feature is selected, the driver can choose to
have the headlights remain on for 0, 30, 60, or 90 seconds
when exiting the vehicle. To make your selection, press
and release the FUNCTION SELECT button until “0,”
“30,” “60,” or “90” appears.
Automatic High Beams (Available with SmartBeam
Only)
When this feature is selected, the high beam headlights
will deactivate automatically under certain conditions. To
make your selection, press and release the FUNCTION
SELECT button until YES (Y) or NO (N) appears. Refer to
“Lights/SmartBeams — If Equipped” in Section 3 of this
manual for more information.
Headlights On with Wipers (Available with Auto
Headlights Only)
When YES (Y) is selected, and the headlight switch is in
the AUTO position, the headlights will turn on approxi-
mately 10 seconds after the wipers are turned on. Theheadlights will also turn off when the wipers are turned
off if they were turned on by this feature. To make your
selection, press and release the FUNCTION SELECT
button until YES (Y) or NO (N) appears.
NOTE:Turning the headlights on during the daytime
causes the instrument panel lights to dim. To increase the
brightness, refer to “Lights” in Section 3 of this manual.
Rain Sensing Intermittent Wipers — If Equipped
When YES (Y) is selected, the system will automatically
activate the windshield wipers if it senses moisture on
the windshield. To make your selection, press and release
the FUNCTION SELECT button until YES (Y) or NO (N)
appears. When NO (N) is selected, the system reverts to
the standard intermittent wiper operation.
214 UNDERSTANDING YOUR INSTRUMENT PANEL

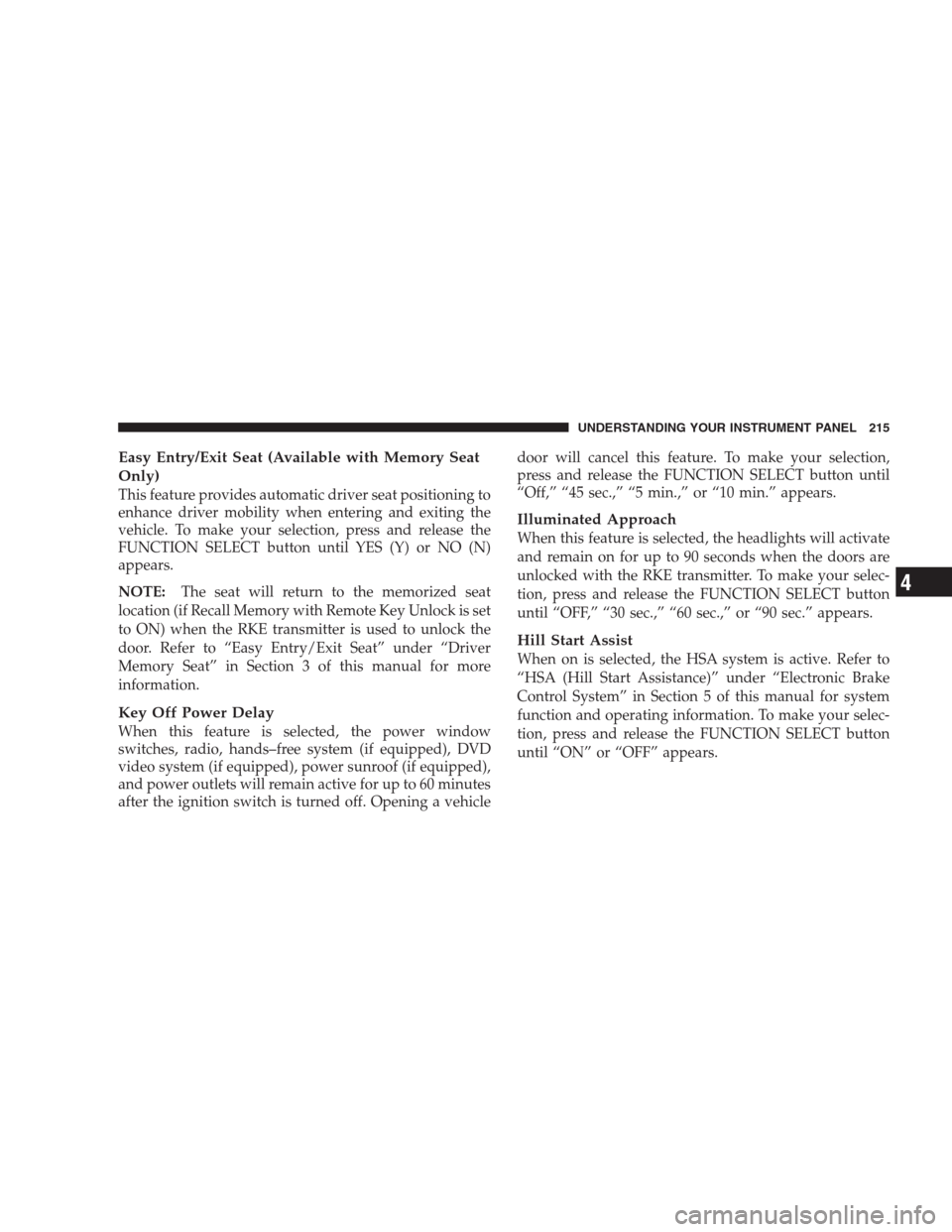

Easy Entry/Exit Seat (Available with Memory Seat
Only)
This feature provides automatic driver seat positioning to
enhance driver mobility when entering and exiting the
vehicle. To make your selection, press and release the
FUNCTION SELECT button until YES (Y) or NO (N)
appears.
NOTE:The seat will return to the memorized seat
location (if Recall Memory with Remote Key Unlock is set
to ON) when the RKE transmitter is used to unlock the
door. Refer to “Easy Entry/Exit Seat” under “Driver
Memory Seat” in Section 3 of this manual for more
information.
Key Off Power Delay
When this feature is selected, the power window
switches, radio, hands–free system (if equipped), DVD
video system (if equipped), power sunroof (if equipped),
and power outlets will remain active for up to 60 minutes
after the ignition switch is turned off. Opening a vehicledoor will cancel this feature. To make your selection,
press and release the FUNCTION SELECT button until
“Off,” “45 sec.,” “5 min.,” or “10 min.” appears.
Illuminated Approach
When this feature is selected, the headlights will activate
and remain on for up to 90 seconds when the doors are
unlocked with the RKE transmitter. To make your selec-
tion, press and release the FUNCTION SELECT button
until “OFF,” “30 sec.,” “60 sec.,” or “90 sec.” appears.
Hill Start Assist
When on is selected, the HSA system is active. Refer to
“HSA (Hill Start Assistance)” under “Electronic Brake
Control System” in Section 5 of this manual for system
function and operating information. To make your selec-
tion, press and release the FUNCTION SELECT button
until “ON” or “OFF” appears.
UNDERSTANDING YOUR INSTRUMENT PANEL 215
4

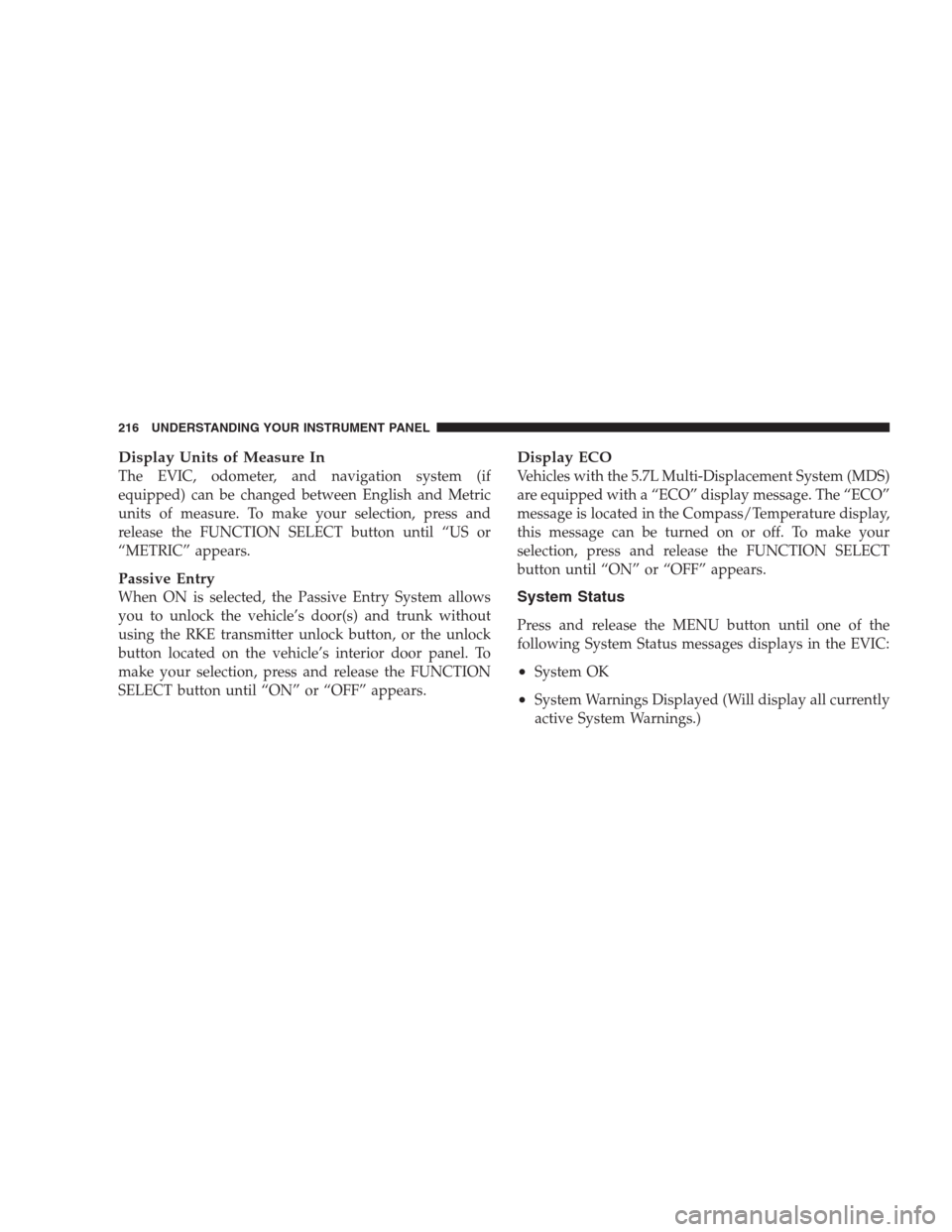

Display Units of Measure In
The EVIC, odometer, and navigation system (if
equipped) can be changed between English and Metric
units of measure. To make your selection, press and
release the FUNCTION SELECT button until “US or
“METRIC” appears.
Passive Entry
When ON is selected, the Passive Entry System allows
you to unlock the vehicle’s door(s) and trunk without
using the RKE transmitter unlock button, or the unlock
button located on the vehicle’s interior door panel. To
make your selection, press and release the FUNCTION
SELECT button until “ON” or “OFF” appears.
Display ECO
Vehicles with the 5.7L Multi-Displacement System (MDS)
are equipped with a “ECO” display message. The “ECO”
message is located in the Compass/Temperature display,
this message can be turned on or off. To make your
selection, press and release the FUNCTION SELECT
button until “ON” or “OFF” appears.
System Status
Press and release the MENU button until one of the
following System Status messages displays in the EVIC:
•System OK
•System Warnings Displayed (Will display all currently
active System Warnings.)
216 UNDERSTANDING YOUR INSTRUMENT PANEL

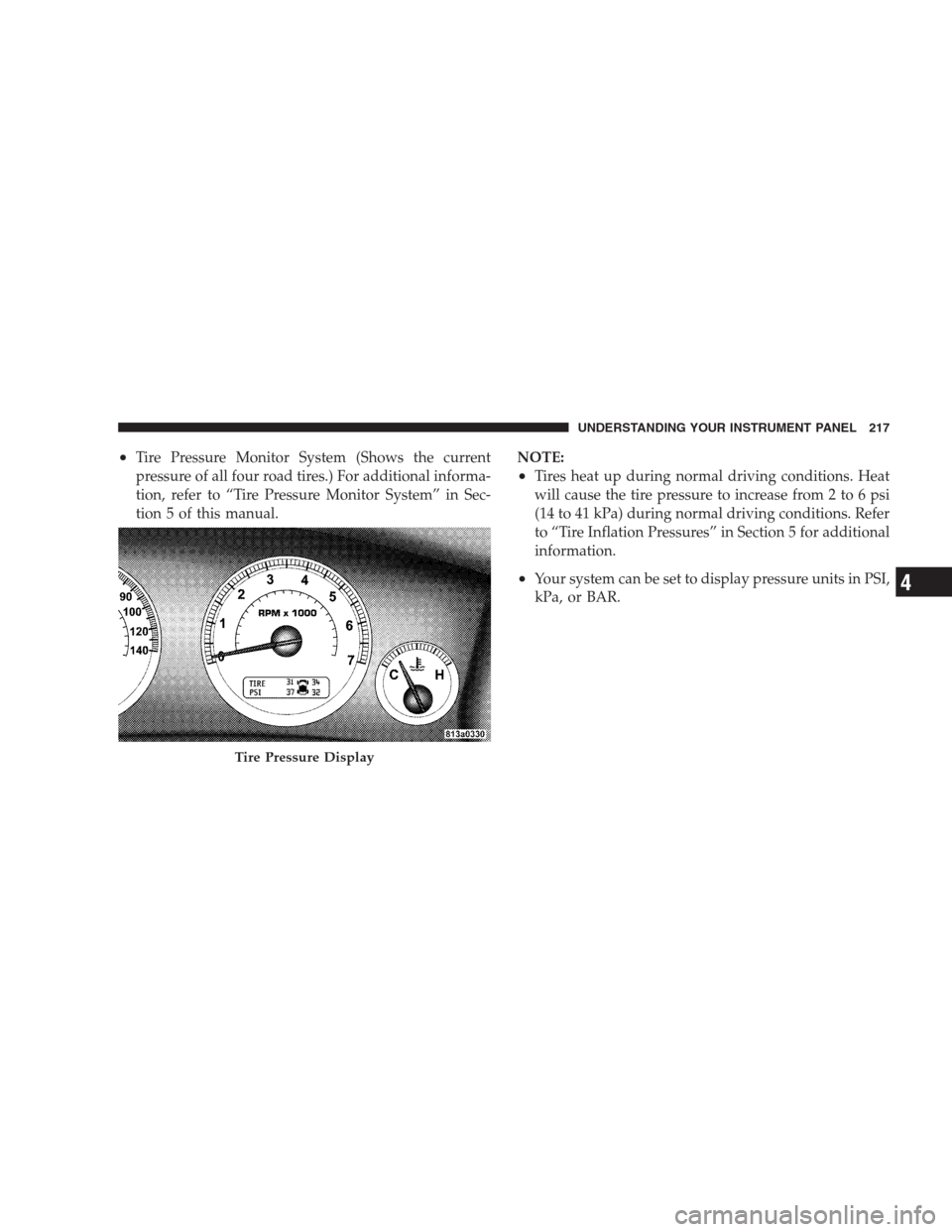

•Tire Pressure Monitor System (Shows the current
pressure of all four road tires.) For additional informa-
tion, refer to “Tire Pressure Monitor System” in Sec-
tion 5 of this manual.NOTE:
•Tires heat up during normal driving conditions. Heat
will cause the tire pressure to increase from 2 to 6 psi
(14 to 41 kPa) during normal driving conditions. Refer
to “Tire Inflation Pressures” in Section 5 for additional
information.
•Your system can be set to display pressure units in PSI,
kPa, or BAR.
Tire Pressure Display
UNDERSTANDING YOUR INSTRUMENT PANEL 217
4

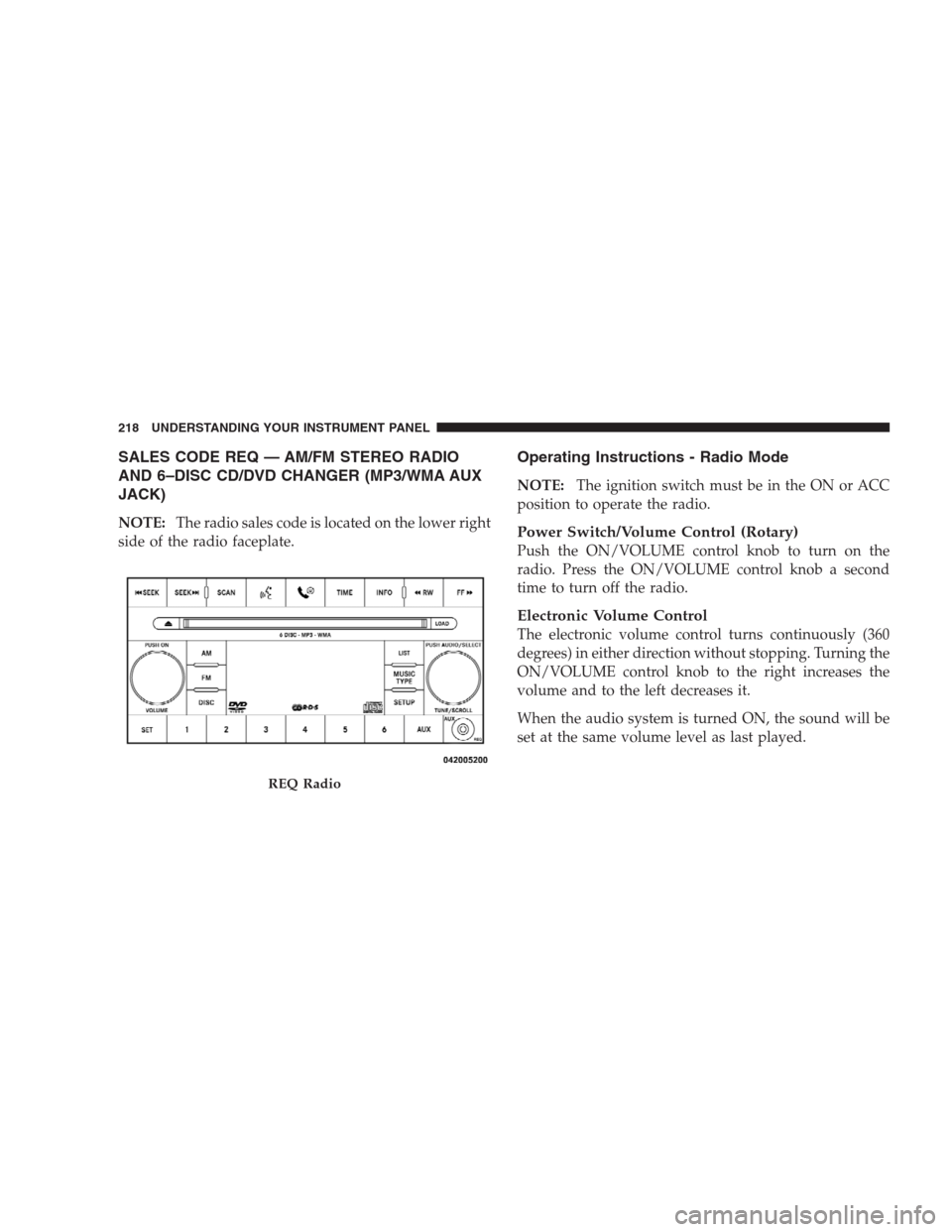

SALES CODE REQ — AM/FM STEREO RADIO
AND 6–DISC CD/DVD CHANGER (MP3/WMA AUX
JACK)
NOTE:The radio sales code is located on the lower right
side of the radio faceplate.
Operating Instructions - Radio Mode
NOTE:The ignition switch must be in the ON or ACC
position to operate the radio.
Power Switch/Volume Control (Rotary)
Push the ON/VOLUME control knob to turn on the
radio. Press the ON/VOLUME control knob a second
time to turn off the radio.
Electronic Volume Control
The electronic volume control turns continuously (360
degrees) in either direction without stopping. Turning the
ON/VOLUME control knob to the right increases the
volume and to the left decreases it.
When the audio system is turned ON, the sound will be
set at the same volume level as last played.
REQ Radio
218 UNDERSTANDING YOUR INSTRUMENT PANEL
