JEEP COMMANDER 2009 1.G Owners Manual

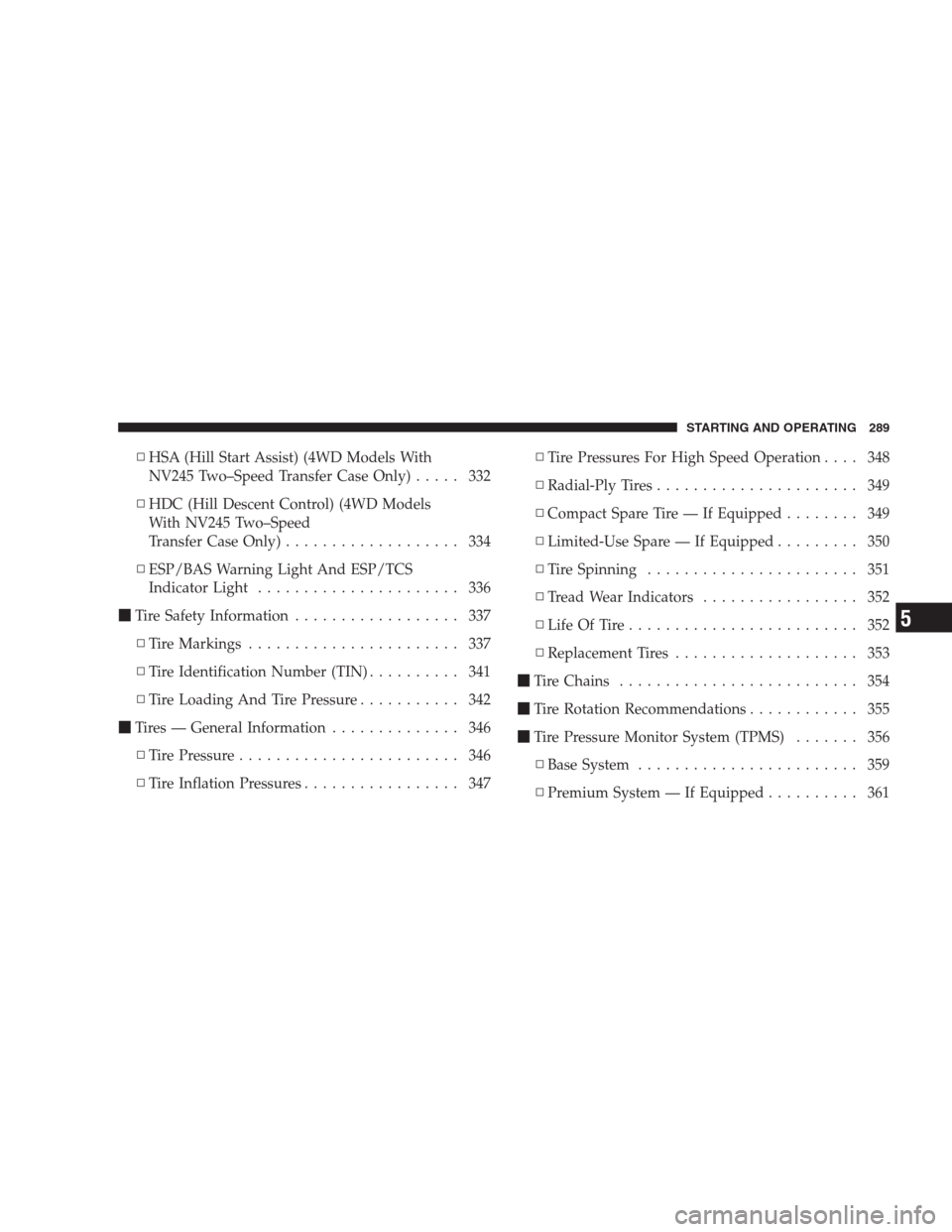

▫HSA (Hill Start Assist) (4WD Models With
NV245 Two–Speed Transfer Case Only)..... 332
▫HDC (Hill Descent Control) (4WD Models
With NV245 Two–Speed
Transfer Case Only)................... 334
▫ESP/BAS Warning Light And ESP/TCS
Indicator Light...................... 336
Tire Safety Information.................. 337
▫Tire Markings....................... 337
▫Tire Identification Number (TIN).......... 341
▫Tire Loading And Tire Pressure........... 342
Tires — General Information.............. 346
▫Tire Pressure........................ 346
▫Tire Inflation Pressures................. 347▫Tire Pressures For High Speed Operation.... 348
▫Radial-Ply Tires...................... 349
▫Compact Spare Tire — If Equipped........ 349
▫Limited-Use Spare — If Equipped......... 350
▫Tire Spinning....................... 351
▫Tread Wear Indicators................. 352
▫Life Of Tire......................... 352
▫Replacement Tires.................... 353
Tire Chains.......................... 354
Tire Rotation Recommendations............ 355
Tire Pressure Monitor System (TPMS)....... 356
▫Base System........................ 359
▫Premium System — If Equipped.......... 361

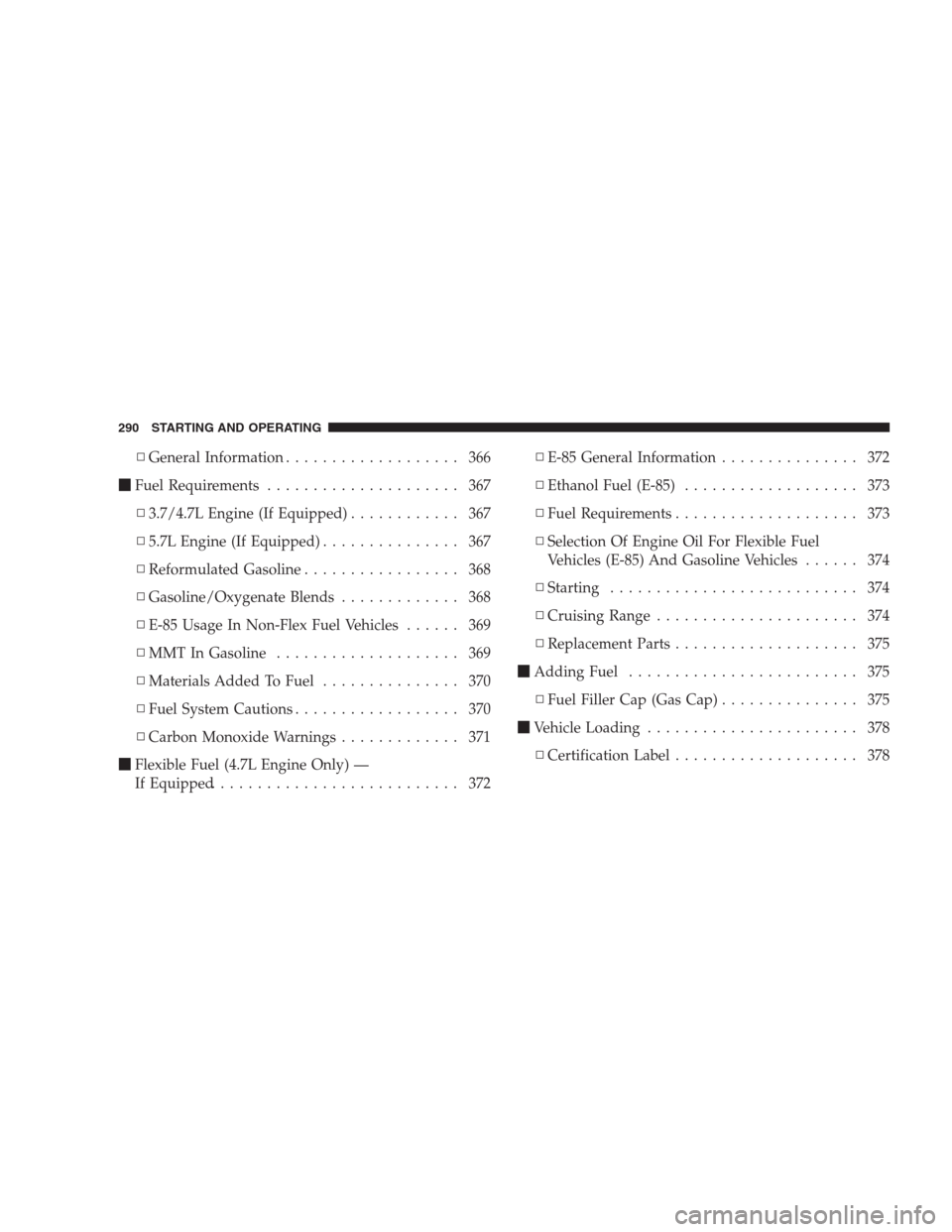

STARTING AND OPERATING 289
5

▫General Information................... 366
Fuel Requirements..................... 367
▫3.7/4.7L Engine (If Equipped)............ 367
▫5.7L Engine (If Equipped)............... 367
▫Reformulated Gasoline................. 368
▫Gasoline/Oxygenate Blends............. 368
▫E-85 Usage In Non-Flex Fuel Vehicles...... 369
▫MMT In Gasoline.................... 369
▫Materials Added To Fuel............... 370
▫Fuel System Cautions.................. 370
▫Carbon Monoxide Warnings............. 371
Flexible Fuel (4.7L Engine Only) —
If Equipped........................... 372▫E-85 General Information............... 372
▫Ethanol Fuel (E-85)................... 373
▫Fuel Requirements.................... 373
▫Selection Of Engine Oil For Flexible Fuel
Vehicles (E-85) And Gasoline Vehicles...... 374
▫Starting........................... 374
▫Cruising Range...................... 374
▫Replacement Parts.................... 375
Adding Fuel......................... 375
▫Fuel Filler Cap (Gas Cap)............... 375
Vehicle Loading....................... 378
▫Certification Label.................... 378
290 STARTING AND OPERATING

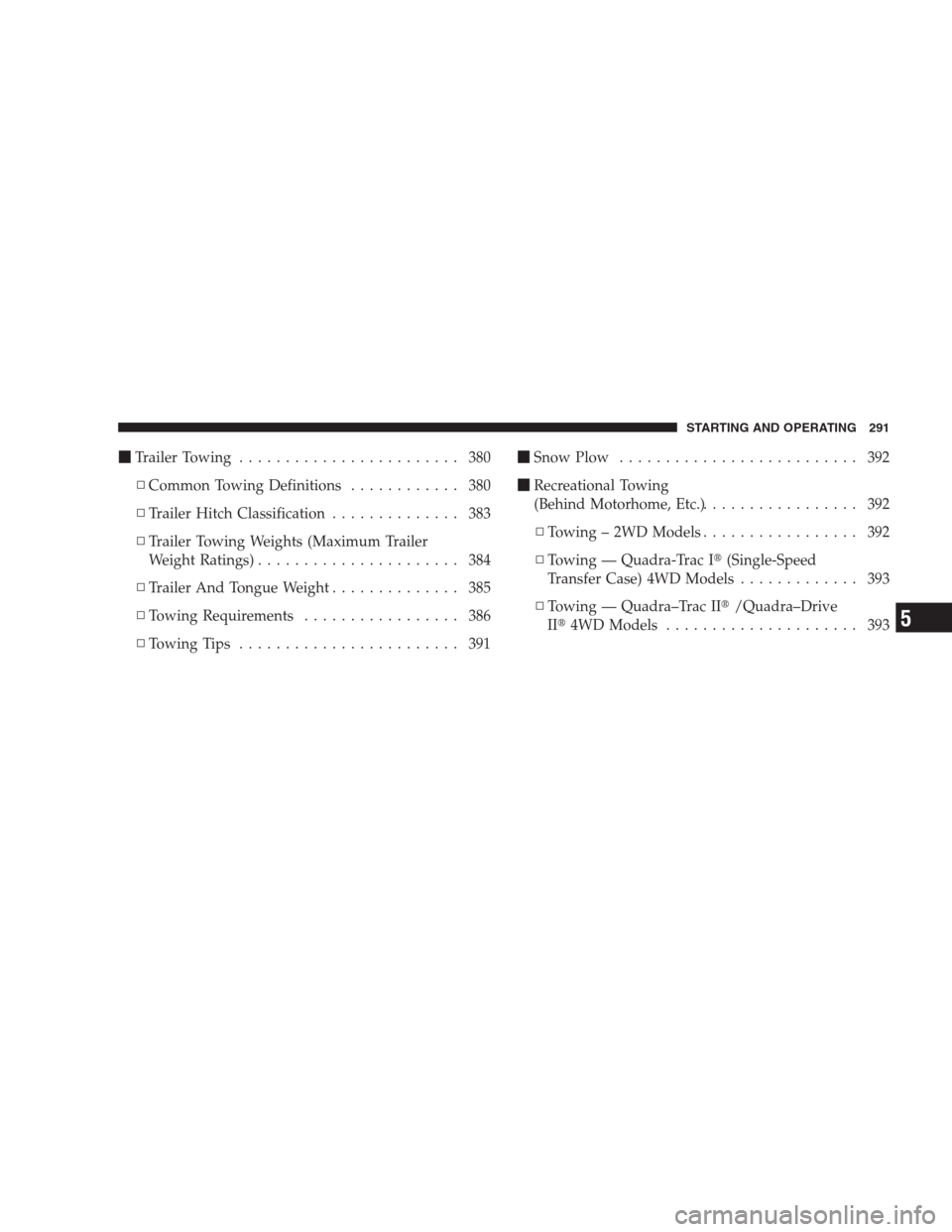

Trailer Towing........................ 380
▫Common Towing Definitions............ 380
▫Trailer Hitch Classification.............. 383
▫Trailer Towing Weights (Maximum Trailer
Weight Ratings)...................... 384
▫Trailer And Tongue Weight.............. 385
▫Towing Requirements................. 386
▫Towing Tips........................ 391Snow Plow.......................... 392
Recreational Towing
(Behind Motorhome, Etc.)................. 392
▫Towing – 2WD Models................. 392
▫Towing — Quadra-Trac I(Single-Speed
Transfer Case) 4WD Models............. 393
▫Towing — Quadra–Trac II/Quadra–Drive
II4WD Models..................... 393
STARTING AND OPERATING 291
5

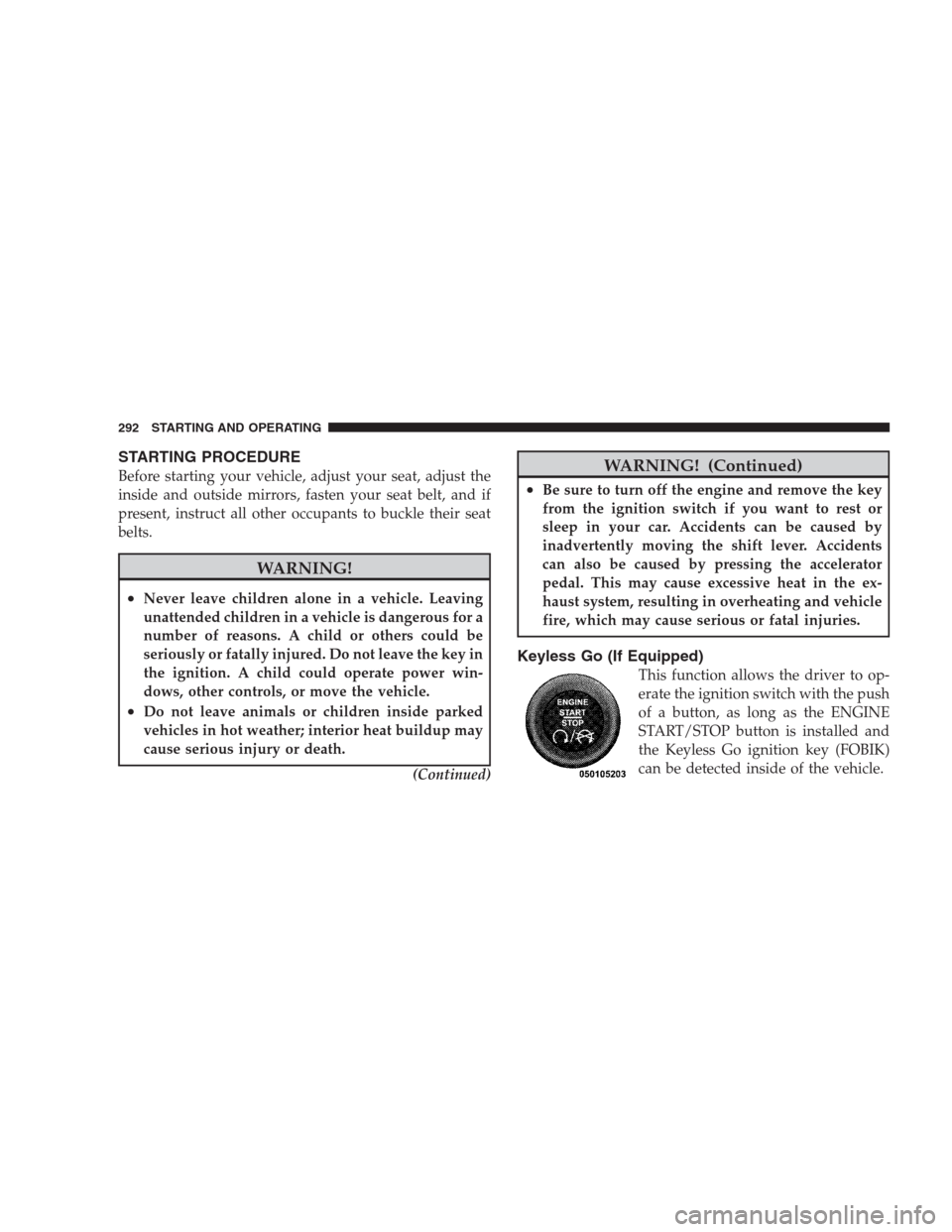

STARTING PROCEDURE
Before starting your vehicle, adjust your seat, adjust the
inside and outside mirrors, fasten your seat belt, and if
present, instruct all other occupants to buckle their seat
belts.
WARNING!
•Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Do not leave the key in
the ignition. A child could operate power win-
dows, other controls, or move the vehicle.
•Do not leave animals or children inside parked
vehicles in hot weather; interior heat buildup may
cause serious injury or death.
(Continued)
WARNING! (Continued)
•Be sure to turn off the engine and remove the key
from the ignition switch if you want to rest or
sleep in your car. Accidents can be caused by
inadvertently moving the shift lever. Accidents
can also be caused by pressing the accelerator
pedal. This may cause excessive heat in the ex-
haust system, resulting in overheating and vehicle
fire, which may cause serious or fatal injuries.
Keyless Go (If Equipped)
This function allows the driver to op-
erate the ignition switch with the push
of a button, as long as the ENGINE
START/STOP button is installed and
the Keyless Go ignition key (FOBIK)
can be detected inside of the vehicle.
292 STARTING AND OPERATING

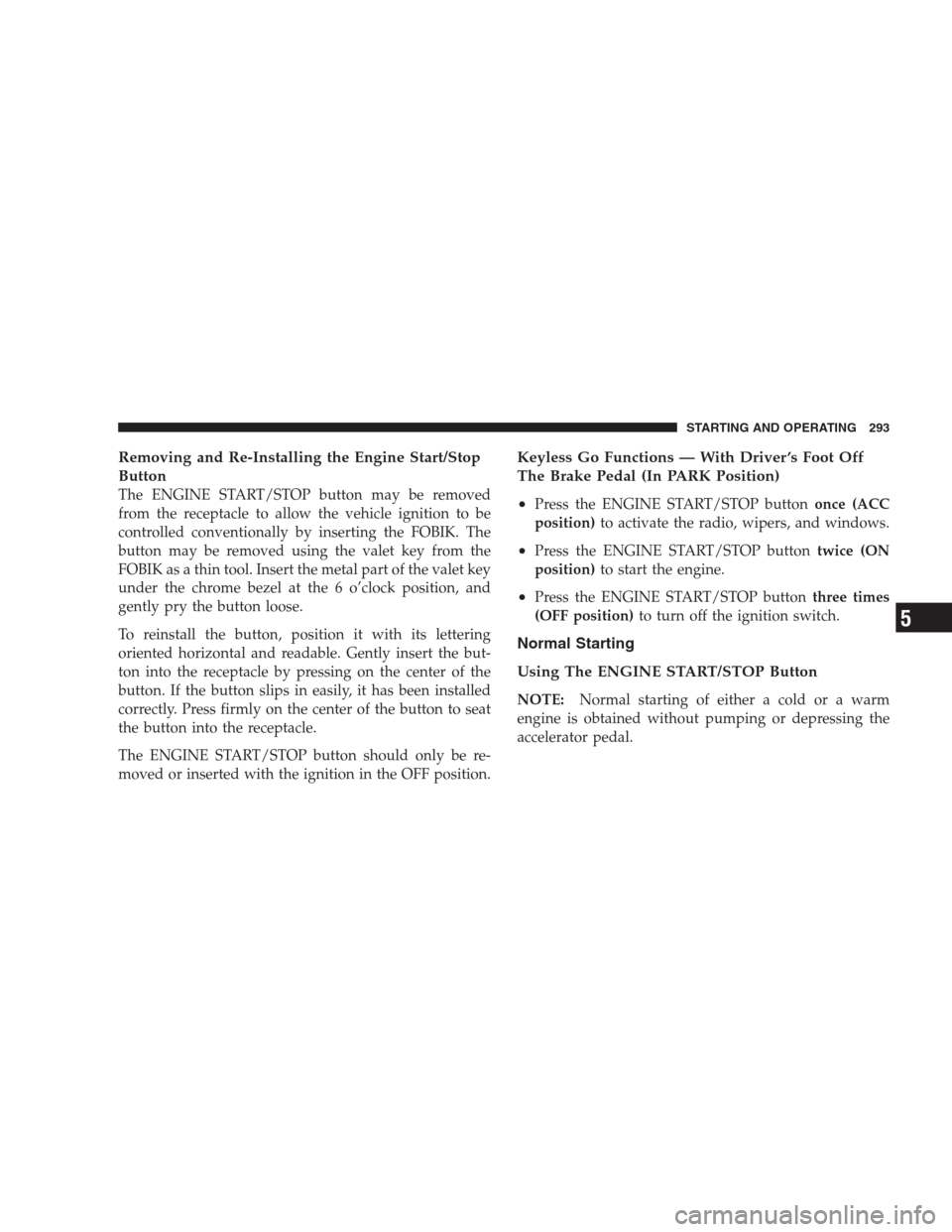

Removing and Re-Installing the Engine Start/Stop
Button
The ENGINE START/STOP button may be removed
from the receptacle to allow the vehicle ignition to be
controlled conventionally by inserting the FOBIK. The
button may be removed using the valet key from the
FOBIK as a thin tool. Insert the metal part of the valet key
under the chrome bezel at the 6 o’clock position, and
gently pry the button loose.
To reinstall the button, position it with its lettering
oriented horizontal and readable. Gently insert the but-
ton into the receptacle by pressing on the center of the
button. If the button slips in easily, it has been installed
correctly. Press firmly on the center of the button to seat
the button into the receptacle.
The ENGINE START/STOP button should only be re-
moved or inserted with the ignition in the OFF position.
Keyless Go Functions — With Driver ’s Foot Off
The Brake Pedal (In PARK Position)
•
Press the ENGINE START/STOP buttononce (ACC
position)to activate the radio, wipers, and windows.
•Press the ENGINE START/STOP buttontwice (ON
position)to start the engine.
•Press the ENGINE START/STOP buttonthree times
(OFF position)to turn off the ignition switch.
Normal Starting
Using The ENGINE START/STOP Button
NOTE:Normal starting of either a cold or a warm
engine is obtained without pumping or depressing the
accelerator pedal.
STARTING AND OPERATING 293
5

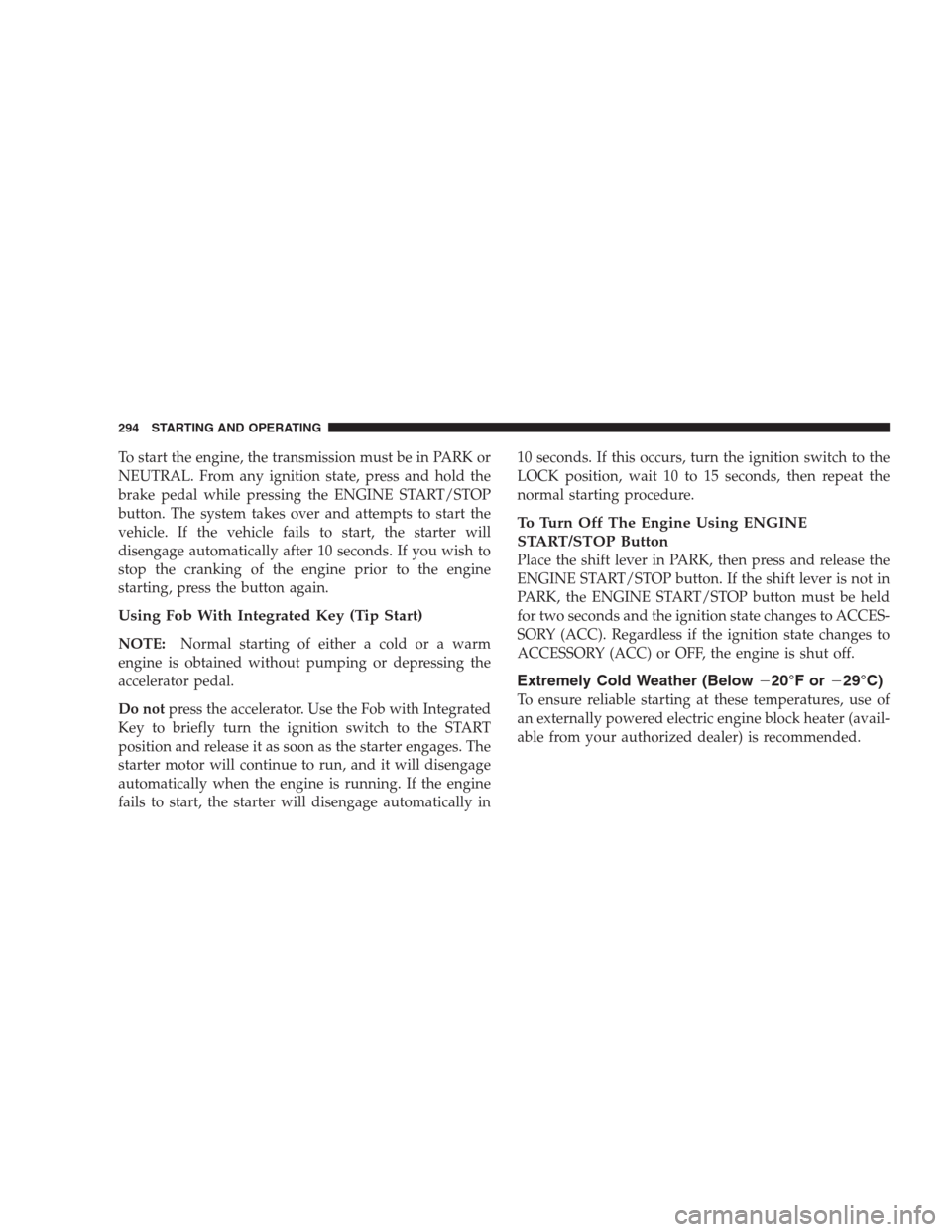

To start the engine, the transmission must be in PARK or
NEUTRAL. From any ignition state, press and hold the
brake pedal while pressing the ENGINE START/STOP
button. The system takes over and attempts to start the
vehicle. If the vehicle fails to start, the starter will
disengage automatically after 10 seconds. If you wish to
stop the cranking of the engine prior to the engine
starting, press the button again.
Using Fob With Integrated Key (Tip Start)
NOTE:Normal starting of either a cold or a warm
engine is obtained without pumping or depressing the
accelerator pedal.
Do notpress the accelerator. Use the Fob with Integrated
Key to briefly turn the ignition switch to the START
position and release it as soon as the starter engages. The
starter motor will continue to run, and it will disengage
automatically when the engine is running. If the engine
fails to start, the starter will disengage automatically in10 seconds. If this occurs, turn the ignition switch to the
LOCK position, wait 10 to 15 seconds, then repeat the
normal starting procedure.
To Turn Off The Engine Using ENGINE
START/STOP Button
Place the shift lever in PARK, then press and release the
ENGINE START/STOP button. If the shift lever is not in
PARK, the ENGINE START/STOP button must be held
for two seconds and the ignition state changes to ACCES-
SORY (ACC). Regardless if the ignition state changes to
ACCESSORY (ACC) or OFF, the engine is shut off.
Extremely Cold Weather (Below20°F or29°C)
To ensure reliable starting at these temperatures, use of
an externally powered electric engine block heater (avail-
able from your authorized dealer) is recommended.
294 STARTING AND OPERATING

If Engine Fails To Start
WARNING!
•Never pour fuel or other flammable liquids into the
throttle body air inlet opening in an attempt to start
the vehicle. This could result in a flash fire causing
serious personal injury.
•Do not attempt to push or tow your vehicle to get it
started. Vehicles equipped with an automatic trans-
mission cannot be started this way. Unburned fuel
could enter the catalytic converter and once the
engine has started, ignite and damage the converter
and vehicle. If the vehicle has a discharged battery,
booster cables may be used to obtain a start from a
booster battery or the battery in another vehicle.
This type of start can be dangerous if done improp-
erly. Refer to Section 6 for proper jump-starting
procedures and follow them carefully.
Clearing A Flooded Engine - Using ENGINE
START/STOP Button
If the engine fails to start after you have followed the
“Normal Starting” or “Extreme Cold Weatherprocedures, it
may be flooded. To clear any excess fuel, press and hold the
accelerator pedal all the way to the floor with your right
foot, and then press and release the ENGINE START/STOP
button once. The starter motor will engage automatically,
run for 10 seconds, and then disengage. Once this occurs,
release the accelerator pedal and the brake pedal, wait 10 to
15 seconds, then repeat the normal starting procedure.
Clearing A Flooded Engine - Using Fob With Integrated
Key
If the engine fails to start after you have followed the
“Normal Starting” or “Extreme Cold Weather” procedures,
it may be flooded. To clear any excess fuel, push the
accelerator pedal all the way to the floor and hold it. Then,
turn the ignition switch to the START position and release it
as soon as the starter engages. The starter motor will
disengage automatically in 10 seconds. Once this occurs,
STARTING AND OPERATING 295
5

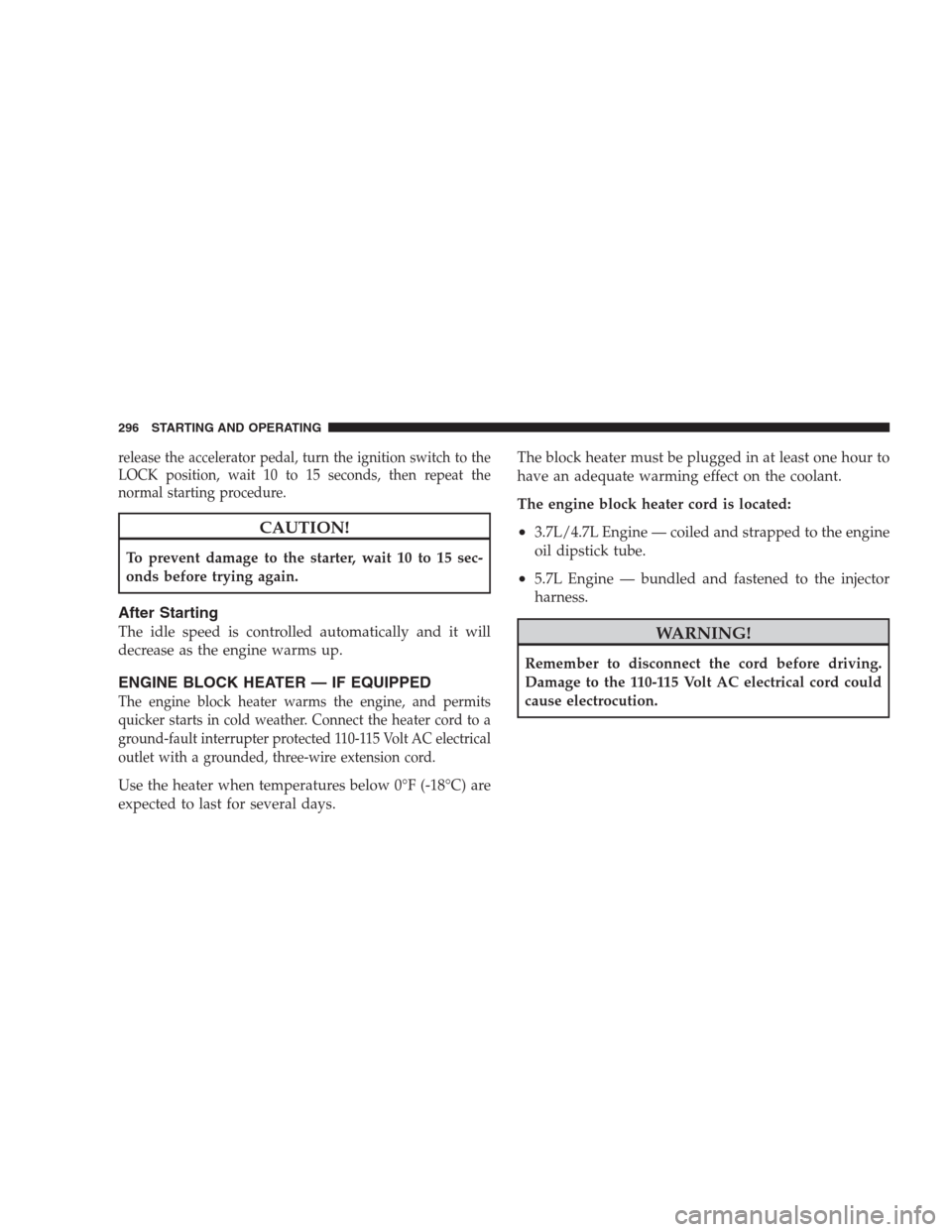

release the accelerator pedal, turn the ignition switch to the
LOCK position, wait 10 to 15 seconds, then repeat the
normal starting procedure.
CAUTION!
To prevent damage to the starter, wait 10 to 15 sec-
onds before trying again.
After Starting
The idle speed is controlled automatically and it will
decrease as the engine warms up.
ENGINE BLOCK HEATER — IF EQUIPPED
The engine block heater warms the engine, and permits
quicker starts in cold weather. Connect the heater cord to a
ground-fault interrupter protected 110-115 Volt AC electrical
outlet with a grounded, three-wire extension cord.
Use the heater when temperatures below 0°F (-18°C) are
expected to last for several days.The block heater must be plugged in at least one hour to
have an adequate warming effect on the coolant.
The engine block heater cord is located:
•3.7L/4.7L Engine — coiled and strapped to the engine
oil dipstick tube.
•5.7L Engine — bundled and fastened to the injector
harness.
WARNING!
Remember to disconnect the cord before driving.
Damage to the 110-115 Volt AC electrical cord could
cause electrocution.
296 STARTING AND OPERATING

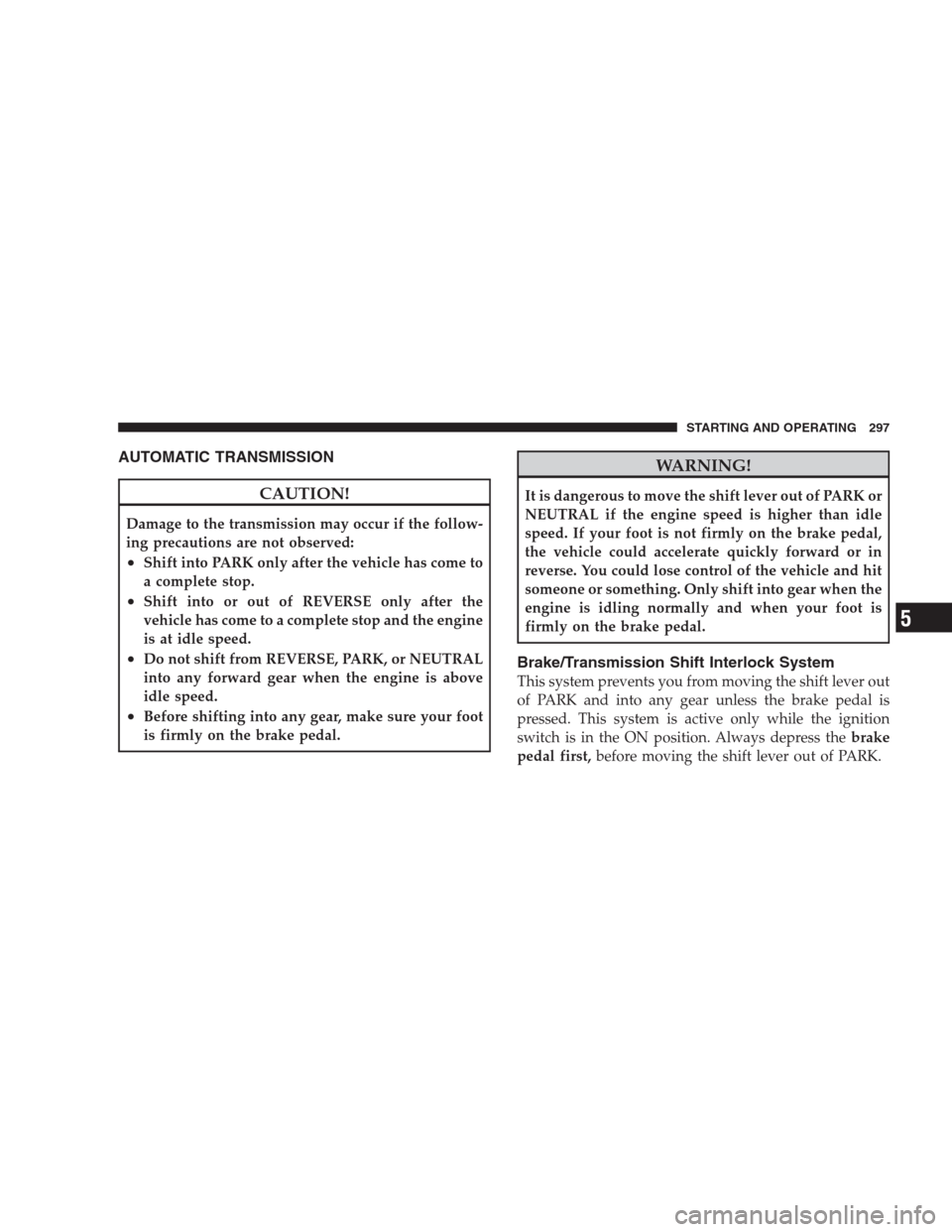

AUTOMATIC TRANSMISSION
CAUTION!
Damage to the transmission may occur if the follow-
ing precautions are not observed:
•Shift into PARK only after the vehicle has come to
a complete stop.
•Shift into or out of REVERSE only after the
vehicle has come to a complete stop and the engine
is at idle speed.
•Do not shift from REVERSE, PARK, or NEUTRAL
into any forward gear when the engine is above
idle speed.
•Before shifting into any gear, make sure your foot
is firmly on the brake pedal.
WARNING!
It is dangerous to move the shift lever out of PARK or
NEUTRAL if the engine speed is higher than idle
speed. If your foot is not firmly on the brake pedal,
the vehicle could accelerate quickly forward or in
reverse. You could lose control of the vehicle and hit
someone or something. Only shift into gear when the
engine is idling normally and when your foot is
firmly on the brake pedal.
Brake/Transmission Shift Interlock System
This system prevents you from moving the shift lever out
of PARK and into any gear unless the brake pedal is
pressed. This system is active only while the ignition
switch is in the ON position. Always depress thebrake
pedal first,before moving the shift lever out of PARK.
STARTING AND OPERATING 297
5

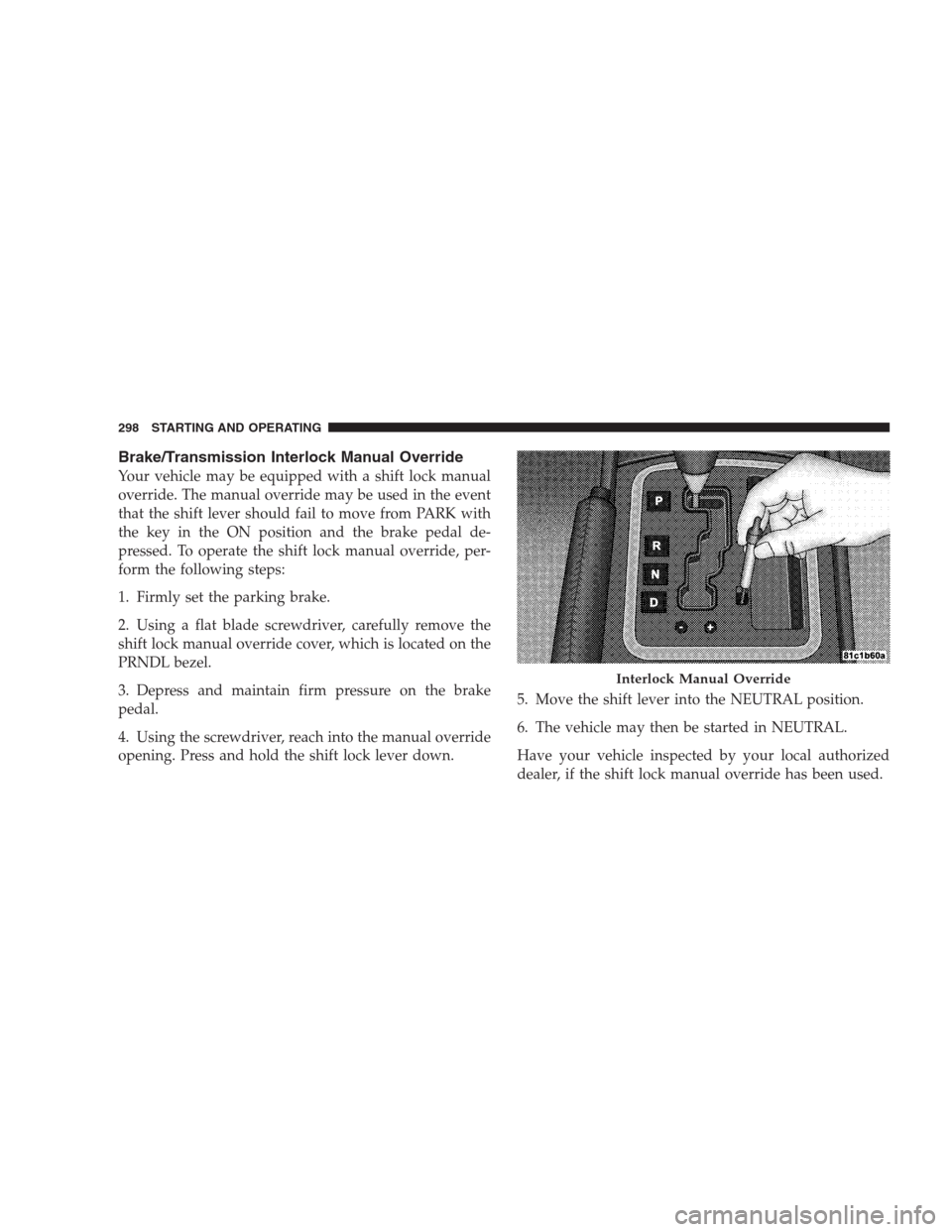

Brake/Transmission Interlock Manual Override
Your vehicle may be equipped with a shift lock manual
override. The manual override may be used in the event
that the shift lever should fail to move from PARK with
the key in the ON position and the brake pedal de-
pressed. To operate the shift lock manual override, per-
form the following steps:
1. Firmly set the parking brake.
2. Using a flat blade screwdriver, carefully remove the
shift lock manual override cover, which is located on the
PRNDL bezel.
3. Depress and maintain firm pressure on the brake
pedal.
4. Using the screwdriver, reach into the manual override
opening. Press and hold the shift lock lever down.5. Move the shift lever into the NEUTRAL position.
6. The vehicle may then be started in NEUTRAL.
Have your vehicle inspected by your local authorized
dealer, if the shift lock manual override has been used.
Interlock Manual Override
298 STARTING AND OPERATING
