General Information
The Sentry Keysystem complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
VEHICLE SECURITY ALARM SYSTEM
This Vehicle Security Alarm system monitors the vehicle
doors, liftgate, liftgate flipper glass, and ignition for
unauthorized operation. When the alarm is activated, the
system provides both audible and visible signals. The
horn, headlights, and tail lights will sound/flash repeat-
edly for three minutes. If disturbance is still present
(driver’s door, passenger door, other doors, ignition) after
three minutes, the headlights and tail lights will flash for
an additional 15 minutes.NOTE:The Panic and Security alarms are quite differ-
ent. Please take a moment to activate the Panic and the
Security modes to hear the differences in the horn. In case
one should go off in the future, you will need to know
which mode has been activated in order to deactivate it.
Rearming The System:
If something triggers the alarm, and no action is taken to
disarm it, the system will turn off the horn after three
minutes, turn off all of the visual signals after 15 minutes,
and then the system will rearm itself.
To Set the Alarm
The alarm will set when you use the Remote Keyless
Entry (RKE) transmitter to lock the doors and liftgate, or
when you use the power door lock switch while the door
is open. After all the doors are locked and closed, the
Vehicle Security Light (located in the instrument cluster)
will flash rapidly for about 16 seconds to signal that the
system is arming. During this 16 second arming period,
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Flash Lights with Remote Key Lock
This feature will cause the turn signal lights to flash when
the doors are locked or unlocked with the RKE transmit-
ter. This feature can be turned on or off. To change the
current setting, proceed as follows:
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Flash Lamps with
Lock” under “Personal Settings (Customer-
Programmable Features)” underElectronic Vehicle
Information Center (EVIC)” in Section 4 of this
manual.
Turn Headlights On with Remote Key Unlock
This feature activates the headlights for up to 90 seconds
when the doors are unlocked with the RKE transmitter.
The time for this feature is programmable on vehicles
equipped with the Electronic Vehicle Information Center
(EVIC). For details, refer to “Headlamp Off Delay” under“Personal Settings (Customer-Programmable Features)”
under “Electronic Vehicle Information Center (EVIC)” in
Section 4 of this manual.
To Lock the Doors
Press and release the LOCK button on the RKE transmit-
ter to lock all doors. The turn signal lights will flash and
the horn will chirp to acknowledge the signal.
Sound Horn with Remote Key Lock
This feature will cause the horn to chirp when the doors
are locked with the RKE transmitter. This feature can be
turned on or off. To change the current setting, proceed as
follows:
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Sound Horn with
Lock,” under “Personal Settings (Customer-
Programmable Features)” under “Electronic Vehicle
Information Center (EVIC)” in Section 4 of this
manual.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23
2

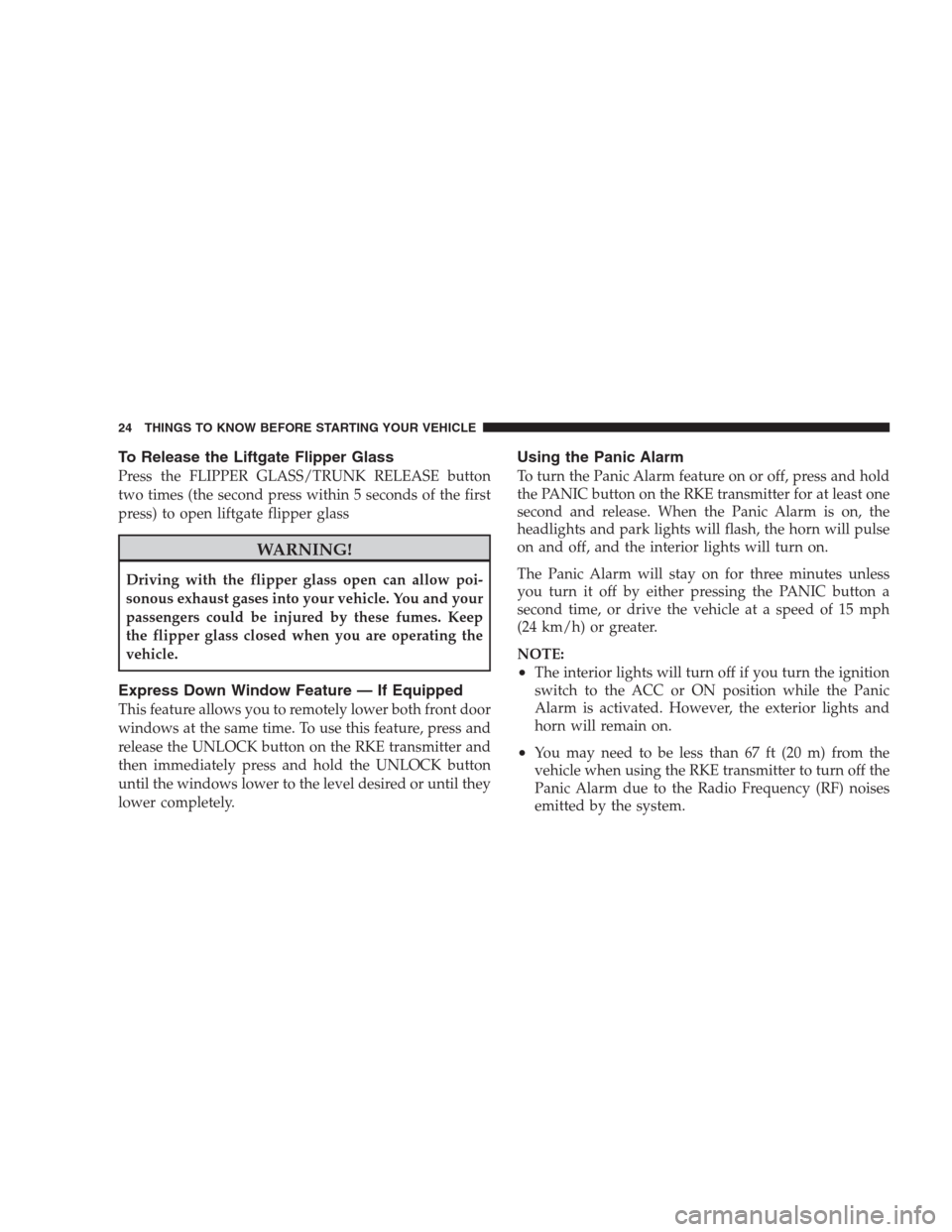

To Release the Liftgate Flipper Glass
Press the FLIPPER GLASS/TRUNK RELEASE button
two times (the second press within 5 seconds of the first
press) to open liftgate flipper glass
WARNING!
Driving with the flipper glass open can allow poi-
sonous exhaust gases into your vehicle. You and your
passengers could be injured by these fumes. Keep
the flipper glass closed when you are operating the
vehicle.
Express Down Window Feature — If Equipped
This feature allows you to remotely lower both front door
windows at the same time. To use this feature, press and
release the UNLOCK button on the RKE transmitter and
then immediately press and hold the UNLOCK button
until the windows lower to the level desired or until they
lower completely.
Using the Panic Alarm
To turn the Panic Alarm feature on or off, press and hold
the PANIC button on the RKE transmitter for at least one
second and release. When the Panic Alarm is on, the
headlights and park lights will flash, the horn will pulse
on and off, and the interior lights will turn on.
The Panic Alarm will stay on for three minutes unless
you turn it off by either pressing the PANIC button a
second time, or drive the vehicle at a speed of 15 mph
(24 km/h) or greater.
NOTE:
•The interior lights will turn off if you turn the ignition
switch to the ACC or ON position while the Panic
Alarm is activated. However, the exterior lights and
horn will remain on.
•You may need to be less than 67 ft (20 m) from the
vehicle when using the RKE transmitter to turn off the
Panic Alarm due to the Radio Frequency (RF) noises
emitted by the system.
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Lights.............................. 140
▫Multifunction Lever................... 140
▫Headlights And Parking Lights........... 140
▫Automatic Headlight System —
If Equipped......................... 141
▫Headlights On Automatically With
Wipers............................ 141
▫SmartBeams — If Equipped............. 141
▫Automatic Headlight Leveling — HID
Headlights Only..................... 142
▫Daytime Running Lights — If Equipped.... 143
▫Fog Lights — If Equipped.............. 143
▫Instrument Panel And Interior Lights...... 144▫Battery Saver Feature — Exterior/Interior
Lights............................. 145
▫Lights-On Reminder.................. 145
▫Turn Signals........................ 145
▫High Beam Switch.................... 146
▫Flash-To-Pass....................... 146
▫Headlight Time Delay................. 146
▫Interior Lights....................... 147
▫Courtesy/Reading Lights............... 147
Windshield Wipers And Washers........... 148
▫Mist.............................. 149
▫Speed Sensitive Intermittent
Wiper System....................... 149
▫Rain Sensing Wipers — If Equipped....... 150
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 79
3

WARNING!
If the hood is not fully latched, it could fly up when
the vehicle is moving and block your forward vision.
Be sure all hood latches are fully latched before
driving.
LIGHTS
Multifunction Lever
The multifunction lever controls the operation of the
headlights, turn signals, headlight beam selection, instru-
ment panel light dimming, passing light, interior
courtesy/dome lights and optional fog lights. The mul-
tifunction lever is located on the left side of the steering
column.
Headlights and Parking Lights
Turn the end of the multifunction lever to the first detent
for parking light operation. Turn to the second detent for
headlight operation. Turn to the third detent for AUTO
headlight operation (if equipped).
Headlight Switch
140 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Automatic Headlight System — If Equipped
Turn the end of the multifunction lever to the third
detent, or AUTO position, to activate the automatic
headlight system.
This system performs two functions. With the engine
running and the multifunction lever in the AUTO posi-
tion, the headlights will turn on and off based on the
surrounding light levels.
Headlights On Automatically With Wipers
If your vehicle is equipped with Automatic Headlights it
also has this customer-programmable feature. When
your headlights are in the AUTO position, and the engine
is running, they will automatically turn on when the
wiper system is on.
If your vehicle is equipped with a “Rain Sensitive Wiper
System,” and it is activated, the headlights will automati-
cally turn on after the wipers complete five wipe cycles
within approximately one minute, and they will turn offapproximately four minutes after the wipers completely
stop. Refer to “Windshield Wipers and Washers” in this
section for more information.
NOTE:When your headlights come on during the
daytime, the instrument panel lights will automatically
dim to the lower nighttime intensity. Refer to “Instru-
ment Panel and Interior Lights” below for setting the
instrument panel lights to full daytime intensity.
SmartBeams — If Equipped
The SmartBeam system provides increased forward light-
ing at night by automating high beam control through
the use of a digital camera mounted on the inside
rearview mirror. This camera detects vehicle specific light
and automatically switches from high beams to low
beams until the approaching vehicle is out of view.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 141
3

NOTE:If the windshield or SmartBeam mirror is re-
placed, the SmartBeam mirror must be re-aimed to
ensure proper performance. See your local authorized
dealer.
To Activate
1. Select “Auto Headlamp Low/High Beams? — Low/
High Beam.” Refer to “Electronic Vehicle Information
Center (EVIC) — Customer Programmable Features” in
Section 4 of this manual.
2. Turn the end of the multifunction lever to the AUTO
headlight position.
3. Push the multifunction lever away from you (toward
front of vehicle) to engage the high beam mode.
NOTE:This system will not activate until the vehicle is
at or above 20 mph (32 km/h).
To Deactivate
1. Pull back on the multifunction lever to manually
deactivate the system (normal operation of high beams).
2. Pull back on the multifunction lever once again to
reactivate the system.
NOTE:Broken, muddy, or obstructed headlights and
taillights of vehicles in the field of view will cause
headlights to remain on longer (closer to the vehicle).
Also, dirt, film, and other obstructions (sticker, toll box,
etc.) on the windshield or camera lens will cause the
system to function improperly.
Automatic Headlight Leveling — HID Headlights
Only
This feature prevents the headlights from interfering
with the vision of oncoming drivers. Headlight leveling
automatically adjusts the height of the headlight beam in
reaction to changes in vehicle pitch.
142 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Daytime Running Lights — If Equipped
The high beam headlights come on at a low intensity
level whenever the engine is running, and the transmis-
sion is not in the PARK position. The lights remain on
until the ignition switch is turned OFF or the parking
brake is engaged. The headlight switch must be used for
normal night time driving.
Fog Lights — If Equipped
The fog light switch is located in the multifunction
lever. To activate the fog lights, turn on the park/
turn lights, low beam headlights, or “Auto” head-
lights and pull out the end of the multifunction lever. A
light in the instrument cluster shows when the fog lights
are on.NOTE:
•Turning on the high beam headlights turns off the fog
lights.
Front Fog Light Control
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 143
3

Battery Saver Feature — Exterior/Interior Lights
If the multifunction lever is left in the interior light
position, parking light position, or the headlight position
when the ignition switch is moved to the OFF position,
the battery saver feature will automatically turn off the
exterior and interior lights after eight minutes. Normal
operation will resume when the ignition is turned ON or
when the headlight switch is turned to another position.
Lights-On Reminder
If the headlights or parking lights are on after the ignition
is turned OFF, a chime will sound when the driver’s door
is opened.
Turn Signals
Move the multifunction lever up or down and the arrows
on each side of the instrument cluster will flash to show
proper operation of the front and rear turn signal lights.
You can signal a lane change by moving the lever
partially up or down.
Turn Signal Auto-Mode
Tap the multifunction lever once and the turn signal (left
or right) will flash three times, and automatically turn off.
Turn Signal Control
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 145
3

High Beam Switch
Push the multifunction lever away from you to switch
the headlights to high beam. Pull the lever towards you
to switch the headlights back to low beam.
Flash-To-Pass
You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward the steer-
ing wheel. This will cause the headlights to turn on at
high beam and remain on until the lever is released.
Headlight Time Delay
There is also a feature that delays turning off the vehicle
lights for 30, 60, or 90 seconds after the ignition switch is
turned OFF. To activate the headlight delay, the multi-
function lever must be rotated to the “Off” position after
the ignition switch is turned OFF. Only the headlights
will illuminate during this time. Refer to “EVIC- Cus-
tomer Programmable Features” in Section 4 to turn this
feature “On/Off” or set the time interval.
High Beam/Low Beam Select
146 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
