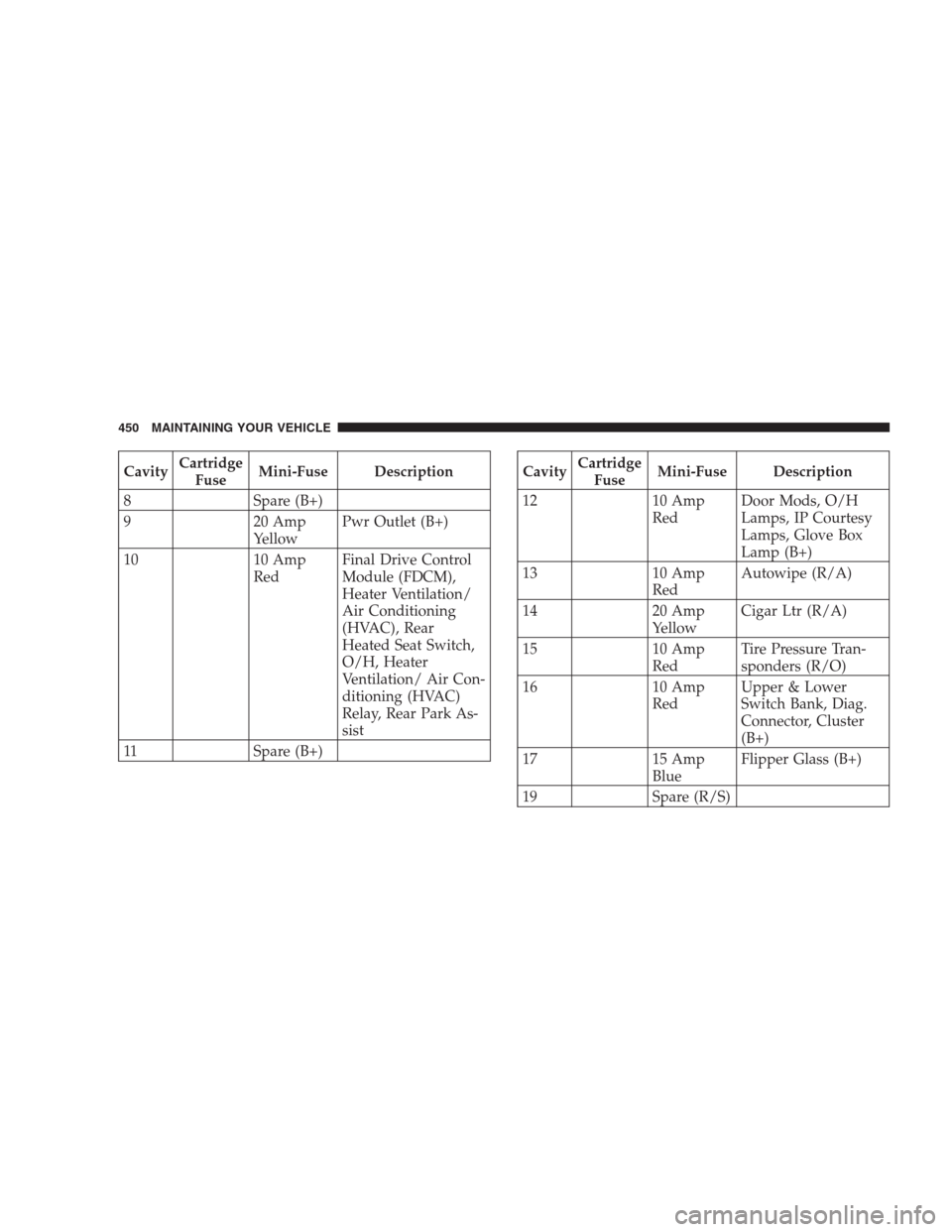

CavityCartridge
FuseMini-Fuse Description
8 Spare (B+)
9 20 Amp
YellowPwr Outlet (B+)
10 10 Amp
RedFinal Drive Control
Module (FDCM),
Heater Ventilation/
Air Conditioning
(HVAC), Rear
Heated Seat Switch,
O/H, Heater
Ventilation/ Air Con-
ditioning (HVAC)
Relay, Rear Park As-
sist
11 Spare (B+)CavityCartridge
FuseMini-Fuse Description
12 10 Amp
RedDoor Mods, O/H
Lamps, IP Courtesy
Lamps, Glove Box
Lamp (B+)
13 10 Amp
RedAutowipe (R/A)
14 20 Amp
YellowCigar Ltr (R/A)
15 10 Amp
RedTire Pressure Tran-
sponders (R/O)
16 10 Amp
RedUpper & Lower
Switch Bank, Diag.
Connector, Cluster
(B+)
17 15 Amp
BlueFlipper Glass (B+)
19 Spare (R/S)
450 MAINTAINING YOUR VEHICLE

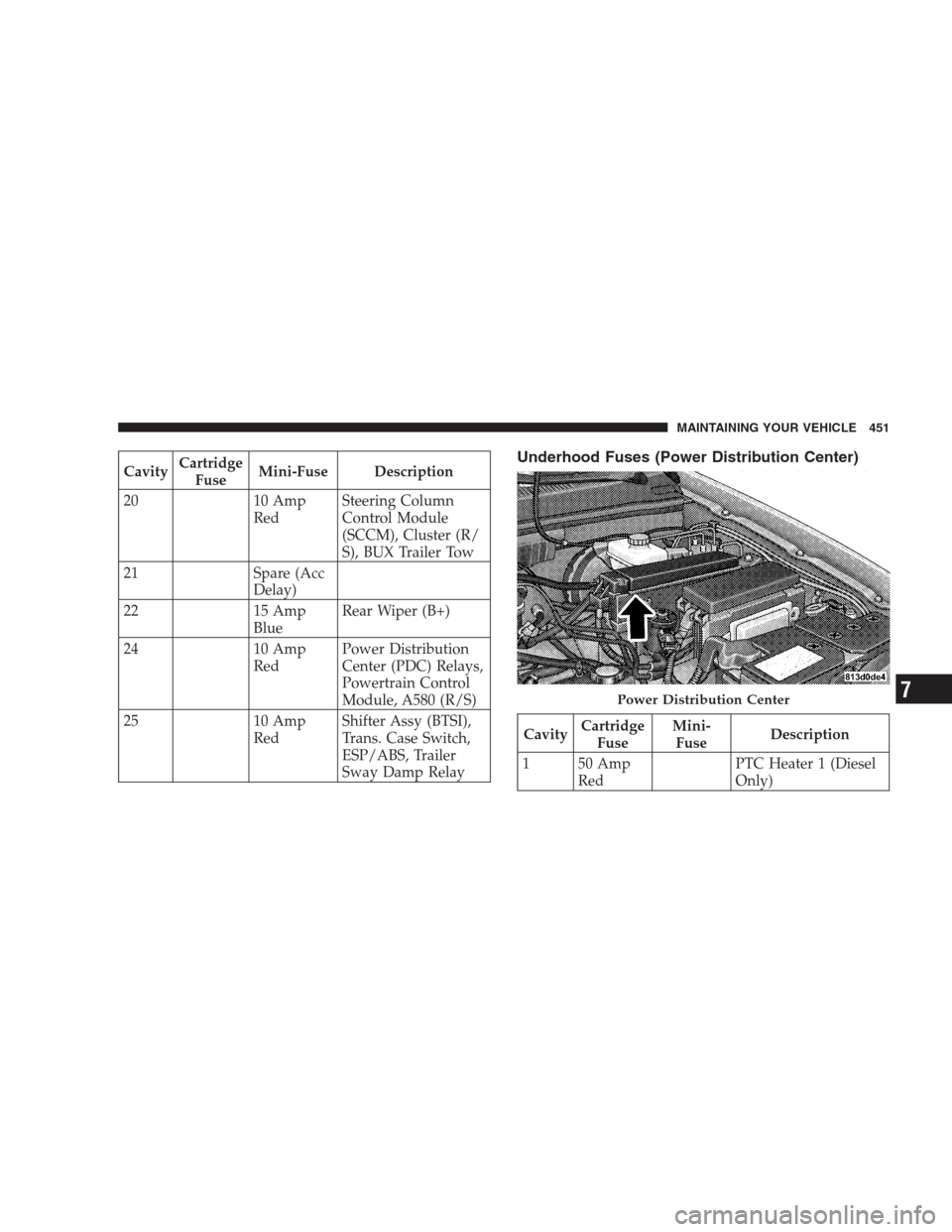

CavityCartridge
FuseMini-Fuse Description
20 10 Amp
RedSteering Column
Control Module
(SCCM), Cluster (R/
S), BUX Trailer Tow
21 Spare (Acc
Delay)
22 15 Amp
BlueRear Wiper (B+)
24 10 Amp
RedPower Distribution
Center (PDC) Relays,
Powertrain Control
Module, A580 (R/S)
25 10 Amp
RedShifter Assy (BTSI),
Trans. Case Switch,
ESP/ABS, Trailer
Sway Damp RelayUnderhood Fuses (Power Distribution Center)
CavityCartridge
FuseMini-
FuseDescription
1 50 Amp
RedPTC Heater 1 (Diesel
Only)
Power Distribution Center
MAINTAINING YOUR VEHICLE 451
