•The engine can be started two consecutive times (two
15 minute cycles) with the RKE transmitter. However,
the ignition must be cycled by pushing the START/
STOP button twice (or the ignition switch must be
cycled to the ON position) before you can repeat the
start sequence for a third cycle.
To Exit Remote Start Mode Without Driving the
Vehicle
Allow the engine to run for the entire 15 minute cycle.
To Exit Remote Start Mode and Drive the Vehicle
Before the end of 15 minute cycle, press and release the
UNLOCK button on the RKE transmitter to unlock the
doors and disarm the Vehicle Security Alarm (if
equipped). Then, prior to the end of the 15 minute cycle,
simply press and release the START/STOP button. If the
START/STOP button is not present, insert the key into
the ignition switch and turn the switch to the ON
position.NOTE:
•For the vehicle not equipped with Keyless Go feature,
the ignition switch must be in the ON position in order
to drive the vehicle.
•For the vehicle not equipped with Keyless Go feature,
the message “Insert Key/Turn To On” will display in
the EVIC until you insert the key. Once inserted, the
message “Turn To On” will display in the EVIC until
you turn the key to On. Refer to “Electronic Vehicle
Information Center (EVIC)” in Section 4 of this
manual.
•For the vehicle equipped with Keyless Go feature, the
message “Push Button/Insert Key” will display in the
EVIC until you push the START Button.
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Automatic Unlock on Exit Feature — Only
Available if Auto Lock is Enabled
This feature will unlock all the doors when the driver’s
door is opened if the vehicle is stopped and in PARK or
NEUTRAL. Refer to “Auto Unlock on Exit” under
“Customer-Programmable Features” in the “Electronic
Vehicle Information Center (EVIC),” in Section 4 of this
manual or see your authorized dealer.
Passive Entry System — If Equipped
The Passive Entry system allows you to unlock the
vehicle’s door(s) without using the Remote Keyless Entry
(RKE) transmitter unlock button, or the unlock button
located on the vehicle’s interior door panel. To use this
feature you must have a valid RKE transmitter within 5 ft
(1.5 m) of the door handle you desire to use, and it must
be located outside of the vehicle.
To Unlock the Vehicle’s Doors
To unlock the vehicle’s door(s), grasp the door handle
and the door(s) will unlock.
NOTE:
•If the vehicle has not been used for 72 hours or it has
been raining for 24 hours, you may have to pull a door
handle to reactivate this feature.
•If the vehicle’s door locks are programmed to “Unlock
Driver’s Door 1st Press,” only the driver’s door will
unlock when the driver’s door handle is grasped. If the
vehicle’s door locks are programmed to “Unlock All
Doors 1st Press”, all doors will unlock if any door
handle is grasped. Refer to “Remote Key Unlock”
under “Personal Settings (Customer-Programmable
Features)” in the “Electronic Vehicle Information Cen-
ter (EVIC)” in Section 4 of this manual.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31
2

WARNING!
There is no anti-pinch protection when the window
is almost closed. Be sure to clear all objects from the
window before closing.
Resetting the Auto Up Feature
Should the Auto Up feature stop working, the window
probably needs to be reset. To reset Auto Up, pull the
window switch up and close the window completely,
then pull and hold the switch for one second.
Window Lockout Switch
The Window Lockout switch on the driver’s door allows
you to disable the window control on the other doors. To
disable the window controls on the other doors, press the
Window Lockout button. To enable the window controls,
press the Window Lockout button again.Window Lockout Switch
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:
•If anything obstructs the power liftgate while it is
closing or opening, the liftgate will automatically
reverse to the closed or open position, provided it
meets sufficient resistance.
•There are also pinch sensors attached to the side of the
liftgate. Light pressure anywhere along these strips
will cause the liftgate to return to the open position.
•The power liftgate must be in the full open position for
any of the buttons to operate. If the liftgate is not fully
open, press the Liftgate button on the Fob with Inte-
grated Key (FOBIK) to fully open the liftgate, and then
press it again to close.
•If the liftgate handle is pulled while the power liftgate is
closing, the liftgate will reverse to the full open position.
•If the liftgate handle is pulled while the power liftgate
is opening, the liftgate motor will disengage to allow
manual operation.
•The power liftgate buttons will not operate if the
vehicle is in gear or the vehicle speed is above 0 mph
(0 km/h).
•The power liftgate will not operate in temperatures
below22°F (30°C) or temperatures above 150°F
(65°C). Be sure to remove any buildup of snow or ice
from the liftgate before pressing any of the power
liftgate switches.
•If the power liftgate encounters multiple obstructions
within the same cycle, the system will automatically
stop and must be opened or closed manually.
•If your liftgate is power closing and you put the
vehicle in gear, the liftgate will continue to power
close. However, vehicle movement may result in a
detection of an obstruction.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 41
2

the short buckle-end belt several times to shorten it.
Insert the latch plate into the buckle with the release
button facing out.
•If the belt still cannot be tightened, or if pulling and
pushing on the restraint loosens the belt, disconnect
the latch plate from the buckle, turn the buckle
around, and insert the latch plate into the buckle
again. If you still cannot make the child restraint
secure, try a different seating position.
•Buckle the child into the restraint exactly as the
manufacturer’s instructions tell you.
•When your child restraint is not in use, secure it in the
vehicle with the seat belt or remove it from the vehicle.
Do not leave it loose in the vehicle. In a sudden stop or
collision, it could strike the occupants or seatbacks and
cause serious personal injury.
NOTE:For additional information refer to
www.seatcheck.org or call 1-866-SEATCHECK.
Older Children and Child Restraints
Children who weigh more than 20 lbs (9 kg) and who are
older than one year can ride forward-facing in the
vehicle. Forward-facing child seats and convertible child
seats used in the forward-facing direction, are for chil-
dren who weigh 20 to 40 lbs (9 to 18 kg), and who are
older than one year. These child seats are also held in the
vehicle by the lap/shoulder belt or the LATCH child
restraint anchorage system (Refer to LATCH — Child
Seat Anchorage System in this section.)
The belt-positioning booster seat is for children weighing
more than 40 lbs (18 kg), but who are still too small to fit
the vehicle’s seat belts properly. If the child cannot sit
with knees bent over the vehicle’s seat cushion while the
child’s back is against the seatback, they should use a
belt-positioning booster seat. The child and belt-
positioning booster seat are held in the vehicle by the
lap/shoulder belt.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 67
2

To Reset The Display
Reset will only occur while a resettable function is being
displayed. Press and release the FUNCTION SELECT
button once to clear the resettable function being dis-
played. To reset all resettable functions, press and release
the FUNCTION SELECT button a second time within
three seconds of resetting the currently displayed func-
tion (>Reset ALL will display during this three second
window).
Keyless Go Display — If Equipped
When the ENGINE START/STOP button is pressed to
change ignition states, the Keyless Go icon momentarily
appears in the EVIC display showing the new ignition
state.The round symbol in the middle rotates to point at the
new ignition state. If desired, the ignition state graphic
can be set to be constantly visible by pressing the EVIC
MENU button until the display appears.
Keyless Go Display
UNDERSTANDING YOUR INSTRUMENT PANEL 209
4

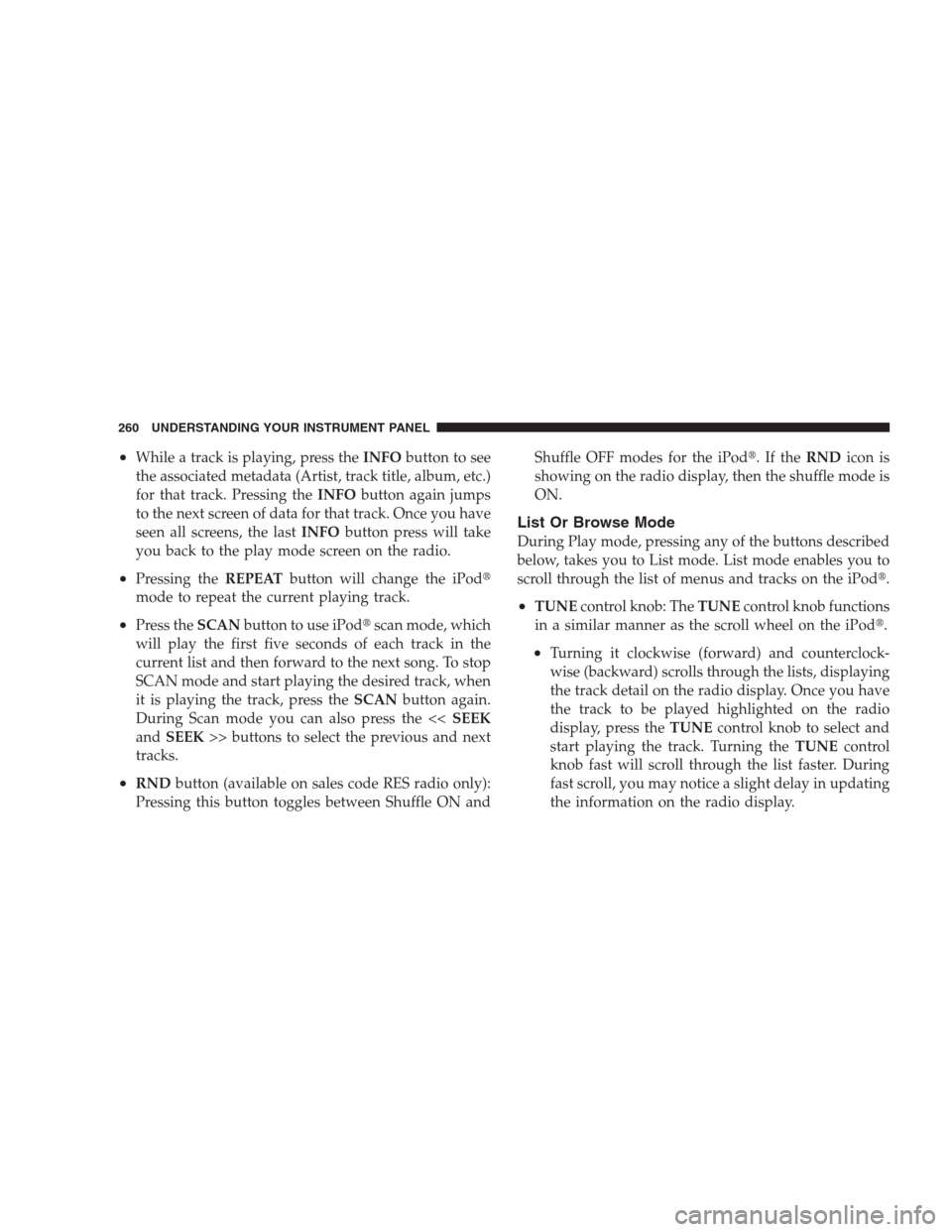

•While a track is playing, press theINFObutton to see
the associated metadata (Artist, track title, album, etc.)
for that track. Pressing theINFObutton again jumps
to the next screen of data for that track. Once you have
seen all screens, the lastINFObutton press will take
you back to the play mode screen on the radio.
•Pressing theREPEATbutton will change the iPod
mode to repeat the current playing track.
•Press theSCANbutton to use iPodscan mode, which
will play the first five seconds of each track in the
current list and then forward to the next song. To stop
SCAN mode and start playing the desired track, when
it is playing the track, press theSCANbutton again.
During Scan mode you can also press the < andSEEK>> buttons to select the previous and next
tracks.
•RNDbutton (available on sales code RES radio only):
Pressing this button toggles between Shuffle ON andShuffle OFF modes for the iPod.IftheRNDicon is
showing on the radio display, then the shuffle mode is
ON.
List Or Browse Mode
During Play mode, pressing any of the buttons described
below, takes you to List mode. List mode enables you to
scroll through the list of menus and tracks on the iPod.
•TUNEcontrol knob: TheTUNEcontrol knob functions
in a similar manner as the scroll wheel on the iPod.
•Turning it clockwise (forward) and counterclock-
wise (backward) scrolls through the lists, displaying
the track detail on the radio display. Once you have
the track to be played highlighted on the radio
display, press theTUNEcontrol knob to select and
start playing the track. Turning theTUNEcontrol
knob fast will scroll through the list faster. During
fast scroll, you may notice a slight delay in updating
the information on the radio display.
260 UNDERSTANDING YOUR INSTRUMENT PANEL

STARTING PROCEDURE
Before starting your vehicle, adjust your seat, adjust the
inside and outside mirrors, fasten your seat belt, and if
present, instruct all other occupants to buckle their seat
belts.
WARNING!
•Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Do not leave the key in
the ignition. A child could operate power win-
dows, other controls, or move the vehicle.
•Do not leave animals or children inside parked
vehicles in hot weather; interior heat buildup may
cause serious injury or death.
(Continued)
WARNING! (Continued)
•Be sure to turn off the engine and remove the key
from the ignition switch if you want to rest or
sleep in your car. Accidents can be caused by
inadvertently moving the shift lever. Accidents
can also be caused by pressing the accelerator
pedal. This may cause excessive heat in the ex-
haust system, resulting in overheating and vehicle
fire, which may cause serious or fatal injuries.
Keyless Go (If Equipped)
This function allows the driver to op-
erate the ignition switch with the push
of a button, as long as the ENGINE
START/STOP button is installed and
the Keyless Go ignition key (FOBIK)
can be detected inside of the vehicle.
292 STARTING AND OPERATING

Removing and Re-Installing the Engine Start/Stop
Button
The ENGINE START/STOP button may be removed
from the receptacle to allow the vehicle ignition to be
controlled conventionally by inserting the FOBIK. The
button may be removed using the valet key from the
FOBIK as a thin tool. Insert the metal part of the valet key
under the chrome bezel at the 6 o’clock position, and
gently pry the button loose.
To reinstall the button, position it with its lettering
oriented horizontal and readable. Gently insert the but-
ton into the receptacle by pressing on the center of the
button. If the button slips in easily, it has been installed
correctly. Press firmly on the center of the button to seat
the button into the receptacle.
The ENGINE START/STOP button should only be re-
moved or inserted with the ignition in the OFF position.
Keyless Go Functions — With Driver ’s Foot Off
The Brake Pedal (In PARK Position)
•
Press the ENGINE START/STOP buttononce (ACC
position)to activate the radio, wipers, and windows.
•Press the ENGINE START/STOP buttontwice (ON
position)to start the engine.
•Press the ENGINE START/STOP buttonthree times
(OFF position)to turn off the ignition switch.
Normal Starting
Using The ENGINE START/STOP Button
NOTE:Normal starting of either a cold or a warm
engine is obtained without pumping or depressing the
accelerator pedal.
STARTING AND OPERATING 293
5

To start the engine, the transmission must be in PARK or
NEUTRAL. From any ignition state, press and hold the
brake pedal while pressing the ENGINE START/STOP
button. The system takes over and attempts to start the
vehicle. If the vehicle fails to start, the starter will
disengage automatically after 10 seconds. If you wish to
stop the cranking of the engine prior to the engine
starting, press the button again.
Using Fob With Integrated Key (Tip Start)
NOTE:Normal starting of either a cold or a warm
engine is obtained without pumping or depressing the
accelerator pedal.
Do notpress the accelerator. Use the Fob with Integrated
Key to briefly turn the ignition switch to the START
position and release it as soon as the starter engages. The
starter motor will continue to run, and it will disengage
automatically when the engine is running. If the engine
fails to start, the starter will disengage automatically in10 seconds. If this occurs, turn the ignition switch to the
LOCK position, wait 10 to 15 seconds, then repeat the
normal starting procedure.
To Turn Off The Engine Using ENGINE
START/STOP Button
Place the shift lever in PARK, then press and release the
ENGINE START/STOP button. If the shift lever is not in
PARK, the ENGINE START/STOP button must be held
for two seconds and the ignition state changes to ACCES-
SORY (ACC). Regardless if the ignition state changes to
ACCESSORY (ACC) or OFF, the engine is shut off.
Extremely Cold Weather (Below20°F or29°C)
To ensure reliable starting at these temperatures, use of
an externally powered electric engine block heater (avail-
able from your authorized dealer) is recommended.
294 STARTING AND OPERATING
