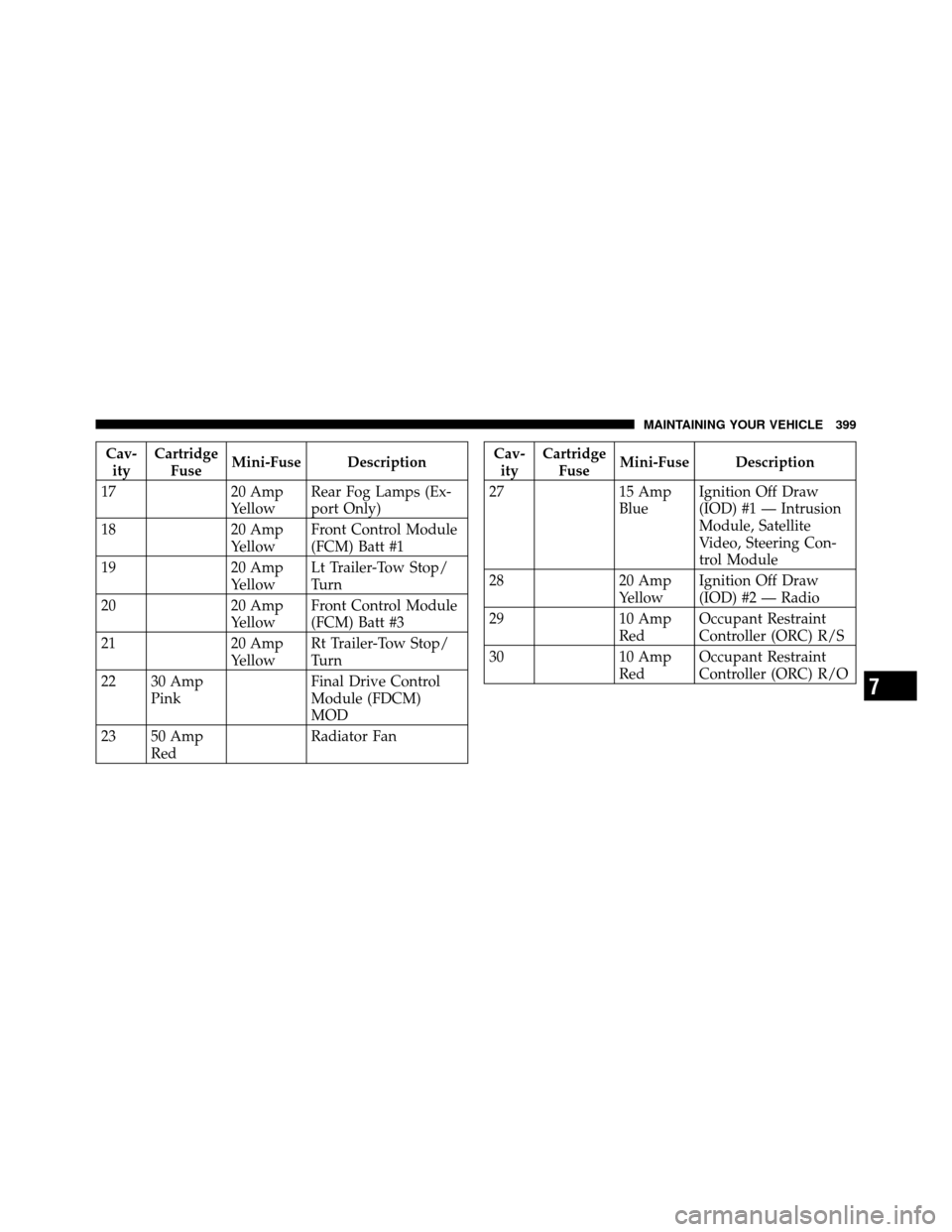

Cav-ity Cartridge
Fuse Mini-Fuse Description
17 20 Amp
YellowRear Fog Lamps (Ex-
port Only)
18 20 Amp
YellowFront Control Module
(FCM) Batt #1
19 20 Amp
YellowLt Trailer-Tow Stop/
Turn
20 20 Amp
YellowFront Control Module
(FCM) Batt #3
21 20 Amp
YellowRt Trailer-Tow Stop/
Turn
22 30 Amp Pink Final Drive Control
Module (FDCM)
MOD
23 50 Amp Red Radiator FanCav-
ity Cartridge
Fuse Mini-Fuse Description
27 15 Amp
BlueIgnition Off Draw
(IOD) #1 — Intrusion
Module, Satellite
Video, Steering Con-
trol Module
28 20 Amp
YellowIgnition Off Draw
(IOD) #2 — Radio
29 10 Amp
RedOccupant Restraint
Controller (ORC) R/S
30 10 Amp
RedOccupant Restraint
Controller (ORC) R/O
7
MAINTAINING YOUR VEHICLE 399

VEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days you may want to take steps to protect your
battery. You may:
•Remove fuse #27 in the Intelligent Power Module
labeled Ignition-Off Draw (IOD#1).
•Or, disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e. vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
Interior LightsBulb Type
Glove Box Lamp ......................... 194
Grab Handle Lamp ................ L002825W5W
Overhead Console Reading Lamps .........VT4976
Rear Cargo Lamp ....................... 214–2
Visor Vanity Lamp ..................... V26377
Underpanel Courtesy Lamps ................ 906
Instrument Cluster (General Illumination) ....... 103
Telltale/Hazard Lamp ...................... 74
* Available only from authorized dealers.
Exterior Lights Bulb Type
Backup Lamps ......................... 3057K
Front Fog Lamps ........................ 9145
Front Park/Turn Lamp ................... 3157A
Front Side Marker ...................... W5W
Headlamps (Low Beam) ................... 9006
Headlamps (High Beam) ..................9005
Rear Turn/Stop/Tail Lamps ...............3057K
400 MAINTAINING YOUR VEHICLE
