Lane Change Assist
Tap the lever up or down once, without moving beyond
the detent, and the turn signal (right or left) will flash
three times then automatically turn off.
High/Low Beam Switch
Push the multifunction lever away from you to switch
the headlights to high beam. Pull the lever toward you to
switch the headlights back to low beam.
Flash-To-Pass
You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward the steer-
ing wheel. This will turn on the high beam headlights
until the lever is released.
Headlight Off Delay
There is also a feature that delays turning off the vehicle
lights for 0, 30, 60 or 90 seconds after the ignition switch
is turned OFF. To activate the headlight delay, the multi-
function lever must be rotated to the “Off” position afterthe ignition switch is turned OFF. Only the headlights
will illuminate during this time. Refer to “EVIC —
Customer-Programmable Features” in Section 4 to turn
this feature “On/Off” or set the time interval.
Interior Lights
The interior lighting consists of courtesy lights mounted
below the instrument panel, reading lights located above
the front and rear doors, and a rear cargo light. Opening
a door or turning the center of the multifunction lever to
the extreme up position will activate all interior courtesy
lights.
Courtesy/Reading Lights
Each light can be turned on by pressing the recessed area
of the lens. To turn these lights off, press the recessed area
of the lens a second time. There are also reading lights
located above the rear doors. Each light can be turned on
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 111

WARNING!
Driving a vehicle with the red brake light on is
dangerous. Part of the brake system may have failed.
It will take longer to stop the vehicle. You could have
an accident. Have the vehicle checked immediately.
Vehicles equipped with the Anti-Lock Brake System
(ABS), are also equipped with Electronic Brake Force
Distribution (EBD). In the event of an EBD failure, the
Brake Warning Light will turn on along with the ABS
Light. Immediate repair to the ABS system is required.
Operation of the Brake Warning Light can be checked by
turning the ignition switch from the OFF position to the
ON position. The light should illuminate for approxi-
mately two seconds. The light should then turn off unless
the parking brake is applied or a brake fault is detected.
If the light does not illuminate, have the light inspected
by an authorized dealer. The light also will turn on when the parking brake is
applied with the ignition switch in the ON position.
NOTE:
This light shows only that the parking brake is
applied. It does not show the degree of brake application.
3. Turn Signal Indicator The arrow will flash with the exterior turn signal
when the turn signal lever is operated.
If the vehicle electronics sense that the vehicle has
traveled about 1 mile (1.6 km) with the turn signals on, a
chime will sound to alert you to turn the signals off. If
either indicator flashes at a rapid rate, check for a
defective outside light bulb.
4. High Beam Indicator Indicates that headlights are on high beam.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 161

opened. To make your selection, press and release the
FUNCTION SELECT button until YES (Y) or NO (N)
appears.
Remote Key Unlock
When “Driver Door 1st Press” is selected, only the
driver’s door will unlock on the first press of the Remote
Keyless Entry (RKE) transmitter UNLOCK button. When
“Driver Door 1st Press” is selected, you must press the
RKE transmitter UNLOCK button twice to unlock the
passenger’s doors. When “All Doors 1st Press” is se-
lected, all of the doors will unlock on the first press of the
RKE transmitter UNLOCK button. To make your selec-
tion, press and release the FUNCTION SELECT button
until “Driver Door 1st Press” or “All Doors 1st Press”
appears.
Sound Horn with Lock
When YES (Y) is selected, a short horn sound will occur
when the RKE transmitter LOCK button is pressed. Thisfeature may be selected with or without the flash lights
on lock/unlock feature. To make your selection, press
and release the FUNCTION SELECT button until YES (Y)
or NO (N) appears.
Flash Lamps with Lock
When YES (Y) is selected, the front and rear turn signals
will flash when the doors are locked or unlocked with the
RKE transmitter. This feature may be selected with or
without the “Sound Horn with Lock” feature. To make
your selection, press and release the FUNCTION SE-
LECT button until YES (Y) or NO (N) appears.
Headlamp Off Delay
When this feature is selected, the driver can choose to
have the headlights remain on for 0, 30, 60, or 90 seconds
when exiting the vehicle. To make your selection, press
and release the FUNCTION SELECT button until “0,”
“30,” “60,” or “90” appears.
182 UNDERSTANDING YOUR INSTRUMENT PANEL

Auto High Beams (Available with SmartBeam™
Only)
When this feature is selected, the high beam headlights
will deactivate automatically under certain conditions. To
make your selection, press and release the FUNCTION
SELECT button until YES (Y) or NO (N) appears. Refer to
“Lights/SmartBeam™ — If Equipped” in Section 3 of
this manual for more information.
Headlamps with Wipers (Available with Automatic
Headlamps Only)
When YES (Y) is selected, and the headlight switch is in
the AUTO position, the headlights will turn on approxi-
mately 10 seconds after the wipers are turned on. The
headlights will also turn off when the wipers are turned
off if they were turned on by this feature. To make your
selection, press and release the FUNCTION SELECT
button until YES (Y) or NO (N) appears.NOTE:
Turning the headlights on during the daytime
causes the instrument panel lights to dim. To increase the
brightness, refer to “Lights” in Section 3 of this manual.
Rain Sensing Wipers — If Equipped
When YES (Y) is selected, the system will automatically
activate the windshield wipers if it senses moisture on
the windshield. To make your selection, press and release
the FUNCTION SELECT button until YES (Y) or NO (N)
appears. When NO (N) is selected, the system reverts to
the standard intermittent wiper operation.
Easy Entry/Exit Seat (Available with Memory Seat
Only)
This feature provides automatic driver seat positioning to
enhance driver mobility when entering and exiting the
vehicle. To make your selection, press and release the
FUNCTION SELECT button until YES (Y) or NO (N)
appears.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 183

NOTE:The seat will return to the memorized seat
location (if Recall Memory with Remote Key Unlock is set
to ON) when the RKE transmitter is used to unlock the
door. Refer to “Easy Entry/Exit Seat” under “Driver
Memory Seat” in Section 3 of this manual for more
information.
Key Off Power Delay
When this feature is selected, the power window
switches, radio, uconnect™ phone (if equipped), DVD
video system (if equipped), power sunroof (if equipped),
and power outlets will remain active for up to 10 minutes
after the ignition switch is turned off. Opening a vehicle
door will cancel this feature. To make your selection,
press and release the FUNCTION SELECT button until
“Off,” “45 sec.,” “5 min.,” or “10 min.” appears.
Illuminated Approach
When this feature is selected, the headlights will activate
and remain on for up to 90 seconds when the doors are unlocked with the RKE transmitter. To make your selec-
tion, press and release the FUNCTION SELECT button
until “OFF,” “30 sec.,” “60 sec.,” or “90 sec.” appears.
Hill Start Assist
When on is selected, the HSA system is active. Refer to
“HSA (Hill Start Assistance)” under “Electronic Brake
Control System” in Section 5 of this manual for system
function and operating information. To make your selec-
tion, press and release the FUNCTION SELECT button
until “ON” or “OFF” appears.
Display Units of Measure In
The EVIC, odometer, and uconnect™ gps (if equipped)
can be changed between English and Metric units of
measure. To make your selection, press and release the
FUNCTION SELECT button until “ENGLISH” or “MET-
RIC” appears.
184 UNDERSTANDING YOUR INSTRUMENT PANEL

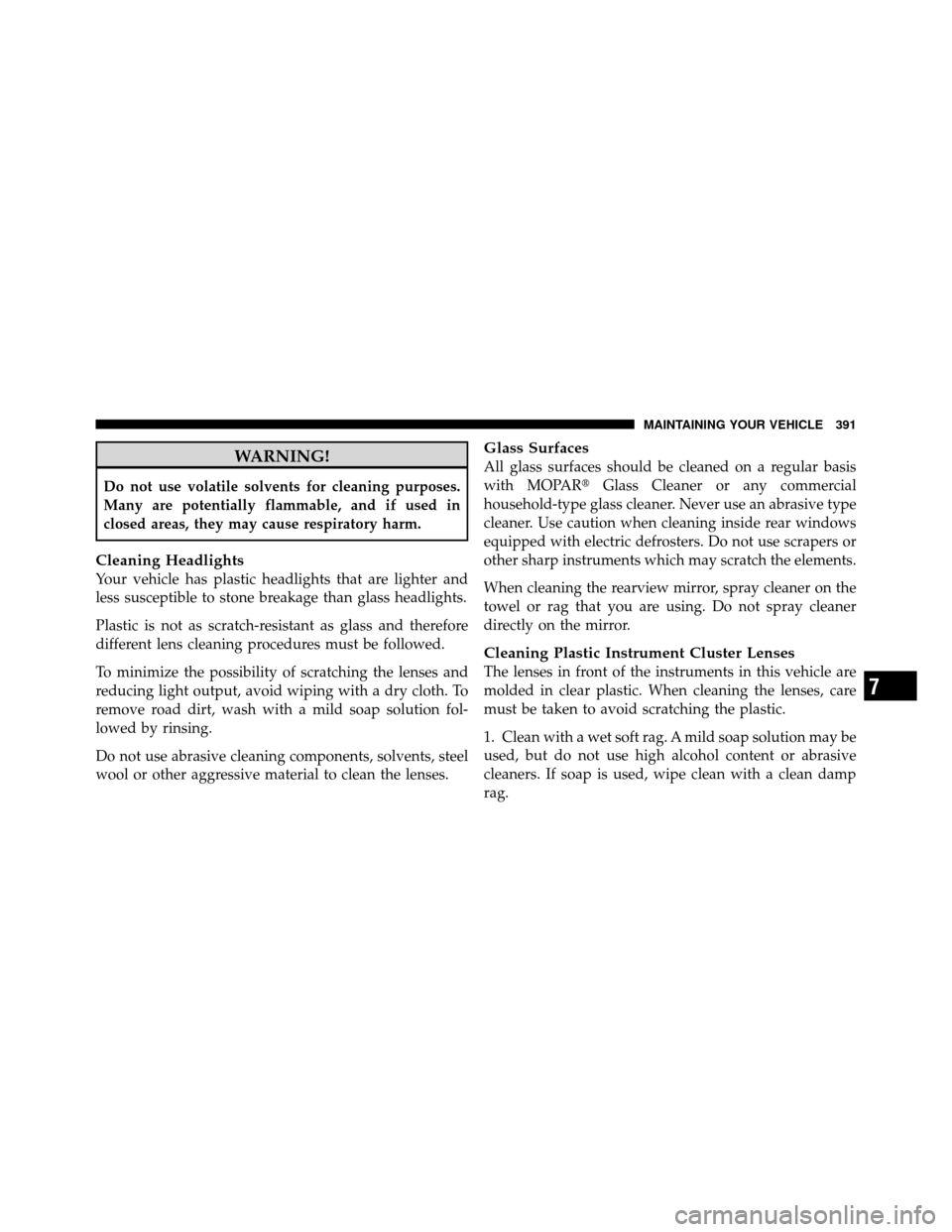

WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas, they may cause respiratory harm.
Cleaning Headlights
Your vehicle has plastic headlights that are lighter and
less susceptible to stone breakage than glass headlights.
Plastic is not as scratch-resistant as glass and therefore
different lens cleaning procedures must be followed.
To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPARGlass Cleaner or any commercial
household-type glass cleaner. Never use an abrasive type
cleaner. Use caution when cleaning inside rear windows
equipped with electric defrosters. Do not use scrapers or
other sharp instruments which may scratch the elements.
When cleaning the rearview mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
7
MAINTAINING YOUR VEHICLE 391

ABS (Anti-Lock Brake System).............. 269
Adding Fuel ........................... 318
Adjustable Pedals ........................ 117
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 366
Air Conditioner Maintenance ............... 368
Air Conditioning ........................ 226
Air Conditioning, Operating Tips ............ 235
Air Conditioning, Rear Zone ................ 233
Air Conditioning Refrigerant ............... 369
Air Conditioning System .................. 226
Air Filter .............................. 366
Air Pressure, Tires ....................... 295
Airbag .............................. 49,57
Airbag Deployment ....................... 58
Airbag Light ................... 50,56,61,75,163
Airbag Maintenance ....................... 60
Airbag, Side .......................... 55,57
Airbag, Window (Side Curtain) ...........51,55,57
Alarm, Panic ............................ 24 Alarm (Security Alarm)
.................19,163
Alterations/Modifications, Vehicle ............. 9
Antenna, Satellite Radio ................... 216
Antifreeze (Engine Coolant) ................ 407
Anti-Lock Brake System (ABS) ............269,272
Anti-Lock Warning Light .................. 163
Anti-Theft System ....................... 163
Appearance Care ........................ 387
Arming Theft System (Security Alarm) ......... 19
Assist, Hill Start ........................ 280
Auto Down Power Windows ................ 31
Automatic Dimming Mirror ................. 82
Automatic Door Locks ..................... 29
Automatic Headlights .................... 105
Automatic Temperature Control (ATC) ......... 226
Automatic Transmission ................248,383
Adding Fluid ......................... 385
Fluid and Filter Changes ................. 383
Fluid Level Check ................... 384,385
442 INDEX

Gasoline............................ 314
Gauge .............................. 169
Materials Added ....................... 316
Octane Rating ........................ 314
Requirements ......................... 407
Saver Mode .......................... 176
Tank Capacity ........................ 407
Fuel Optimizer ......................... 176
Fuel Saver ............................. 176
Fuel System Caution ................ 317,319,320
Fuses ................................ 392
Garage Door Opener (HomeLink) ........... 130
Gas Cap (Fuel Filler Cap) ............318,320,359
Gasoline (Fuel) ......................... 314
Conserving .......................... 176
Gasoline, Reformulated ................... 315
Gasoline/Oxygenate Blends ................ 315
Gauges Coolant Temperature ................... 166 Fuel
............................... 169
Speedometer ......................... 160
Tachometer .......................... 163
Gear Ranges ........................... 248
General Information .................. 19,25,313
Glass Cleaning .......................... 391
Gross Axle Weight Rating ...............321,324
Gross Vehicle Weight Rating .............321,323
GVWR ............................... 321
Hands-Free Phone (uconnect) ............... 85
Hazard Warning Flasher ................... 342
Head Restraints .......................... 89
Head Rests ............................. 89
Headlights ............................ 105
Bulb Replacement ...................... 401
Cleaning ............................ 391
On With Wipers ....................... 106
Replacing ........................... 401
Heated Mirrors .......................... 84
448 INDEX

Key, Sentry (Immobilizer)................... 17
Key-In Reminder ......................... 17
Keyless Entry System ...................... 21
Keys ................................. 14
Knee Bolster ............................ 50
Lane Change Assist ...................... 111
Lap/Shoulder Belts ....................... 40
LATCH (Lower Anchors and Tether for
CHildren) ............................ 68,69
Latches ................................ 76
Lead Free Gasoline ...................... 314
Leaks, Fluid ............................ 76
Life of Tires ............................ 300
Liftgate ................................ 33
Liftgate Flipper Glass ...................... 34
Liftgate Window Wiper/Washer ............. 148
Light Bulbs ............................. 76
Lights .............................. 76,104
Airbag ...................... 50,56,61,75,163Anti-Lock
........................... 163
Automatic Headlights ................... 105
Back-Up ............................ 404
Battery Saver ......................... 110
Brake Assist Warning ................... 285
Brake Warning ........................ 160
Bulb Replacement ...................... 401
Center Mounted Stop ................... 406
Courtesy/Reading ..................... 111
Cruise .............................. 168
Daytime Running ...................... 108
Dimmer Switch, Headlight .............104,111
Electronic Stability Program (ESP) Indicator . . . 285
Electronic Throttle Control Warning ......... 169
Exterior .............................. 76
Fog .......................... 108,169,403
Four-Wheel Drive Indicator ............... 168
Fuses ............................... 392
Hazard Warning Flasher ................. 342
450 INDEX

Headlight Switch...................... 105
Headlights ........................... 401
Headlights On With Wipers ............... 106
High Beam Indicator .................... 161
Illuminated Entry ....................... 20
Instrument Cluster .................. 105,109
Interior ........................... 109,111
Lights On Reminder .................... 110
Low Fuel ............................ 170
Malfunction Indicator (Check Engine) ........ 162
Oil Pressure .......................... 164
Passing ............................. 111
Reading ............................. 111
Rear Servicing ........................ 404
Rear Tail ............................ 404
Seat Belt Reminder ..................... 168
Security Alarm (Theft Alarm) .............. 163
Service ............................. 401
Service Engine Soon (Malfunction Indicator) . . . 162 Side Marker
.......................... 404
SmartBeams .......................... 106
Tire Pressure Monitoring (TPMS) ........... 164
Tow/Haul Indicator .................... 167
Traction Control ....................... 285
Turn Signal ................ 76,104,110,402,404
Vanity Mirror .......................... 85
Voltage ............................. 169
Load Floor, Cargo ....................... 147
Loading Vehicle ......................... 320
Tires ............................... 290
Locks ................................. 28
Automatic Door ........................ 29
Child Protection ........................ 30
Door ................................ 28
Power Door ........................... 29
Lower Anchors and Tether for CHildren
(LATCH) ............................ 68,69
Lubrication, Body ....................... 369
10
INDEX 451
