Using the Panic Alarm
To turn the Panic Alarm feature on or off, press and hold
the PANIC button on the RKE transmitter for at least one
second and release. When the Panic Alarm is on, the
headlights and park lamps will flash, the horn will pulse
on and off, and the interior lights will turn on.
The Panic Alarm will stay on for three minutes unless
you turn it off by either pressing the PANIC button a
second time, or drive the vehicle at a speed of 15 mph
(24 km/h) or greater.
NOTE:
•The interior lights will turn off if you turn the ignition
switch to the ACC or ON position while the Panic
Alarm is activated. However, the exterior lamps and
horn will remain on.
Programming Additional Transmitters
If you do not have a programmed RKE transmitter,
contact your authorized dealer for details.
Transmitter Battery Service
The recommended replacement battery is one CR2032
battery.
NOTE:
•Perchlorate Material — special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate
•Do not touch the battery terminals that are on the back
housing or the printed circuit board.
1. Battery access is through a door located on the rear of
the fob. Insert a small, flat blade screwdriver into the slot
and gently pry open the access door.
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

2. Remove and replace the battery. Avoid touching the
new battery with your fingers. Skin oils may cause
battery deterioration. If you touch a battery, clean it with
rubbing alcohol.3. Reposition the access door panel over the battery
opening and snap into place.
General Information
This device complies with part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
•This device may not cause harmful interference.
•This device must accept any interference received,
including interference that may cause undesired
operation.
NOTE: Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user’s authority to operate the equipment.

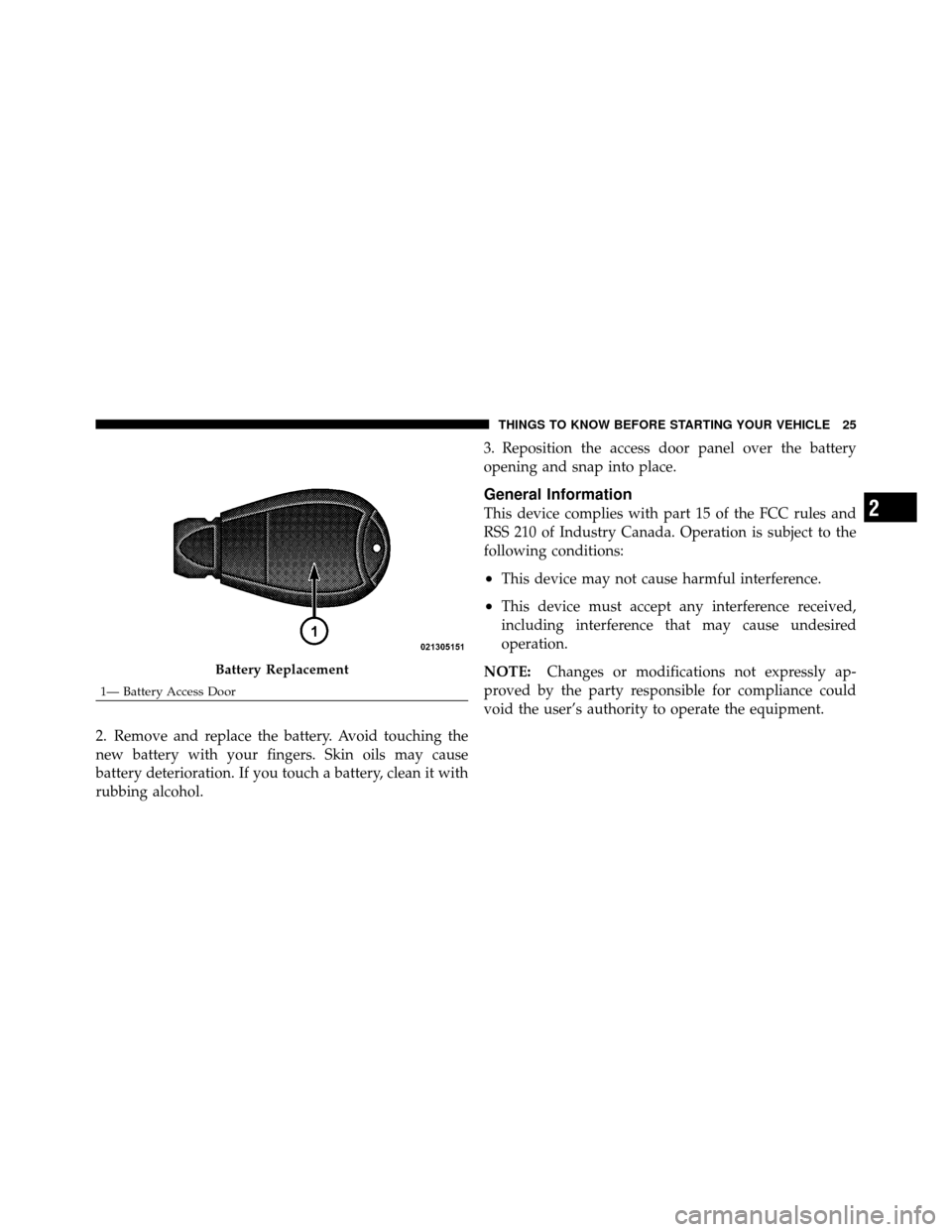

Battery Replacement
1— Battery Access Door
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25

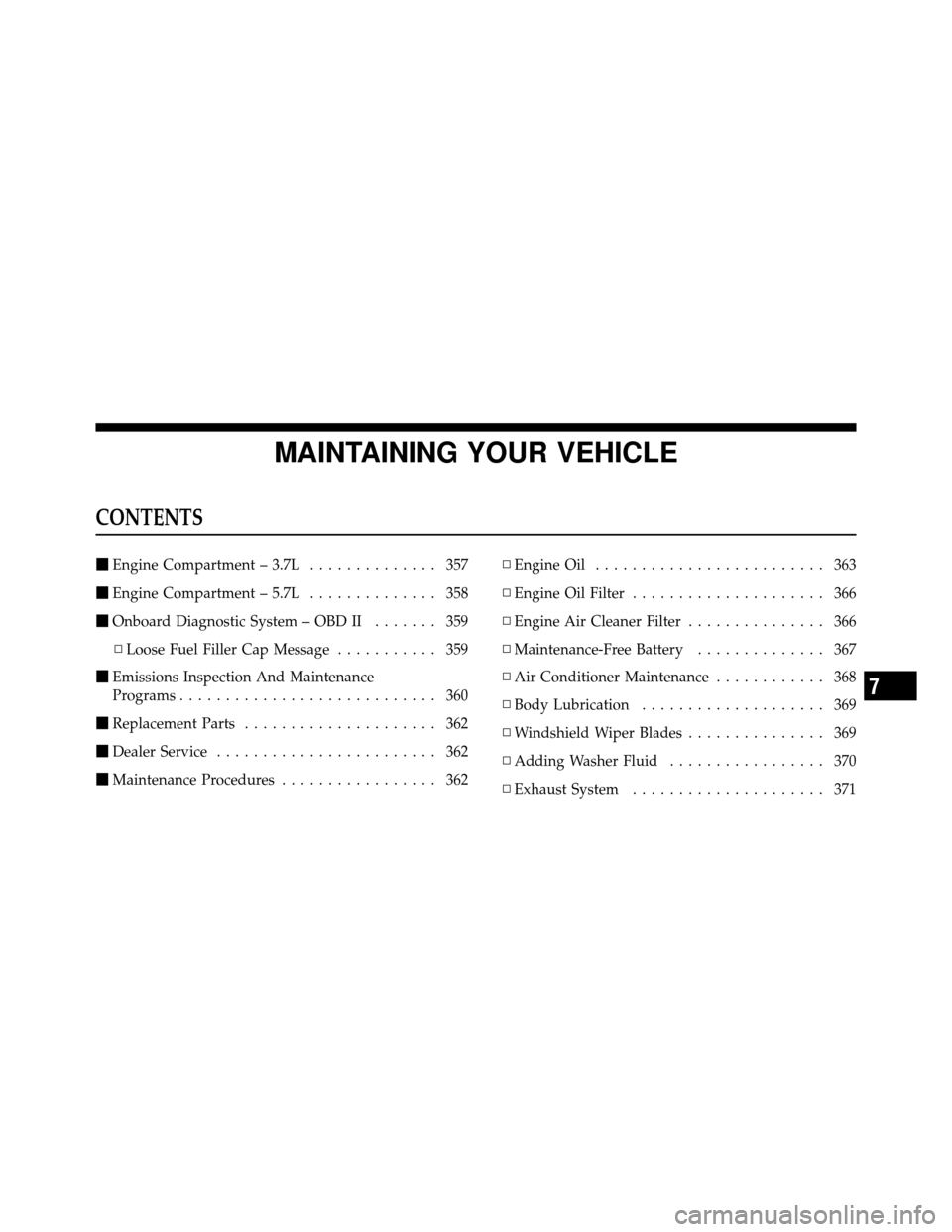

MAINTAINING YOUR VEHICLE
CONTENTS
Engine Compartment – 3.7L .............. 357
 Engine Compartment – 5.7L .............. 358
 Onboard Diagnostic System – OBD II ....... 359
▫ Loose Fuel Filler Cap Message ........... 359
 Emissions Inspection And Maintenance
Programs ............................ 360
 Replacement Parts ..................... 362
 Dealer Service ........................ 362
 Maintenance Procedures ................. 362 ▫
Engine Oil ......................... 363
▫ Engine Oil Filter ..................... 366
▫ Engine Air Cleaner Filter ............... 366
▫ Maintenance-Free Battery .............. 367
▫ Air Conditioner Maintenance ............ 368
▫ Body Lubrication .................... 369
▫ Windshield Wiper Blades ............... 369
▫ Adding Washer Fluid ................. 370
▫ Exhaust System ..................... 371
7

2. Turn the ignition to the ON position, but do not crank
or start the engine.
3. If you crank or start the engine, you will have to start
this test over.
4. As soon as you turn your key to the ON position, you
will see the MIL symbol come on as part of a normal bulb
check.
5. Approximately 15 seconds later, one of two things will
happen:a. The MIL will flash for about 10 seconds and then
return to being fully illuminated until you turn OFF
the ignition or start the engine. This means that your
vehicle’s OBD II system is not readyand you should
not proceed to the I/M station. b. The MIL will not flash at all and will remain fully
illuminated until you turn OFF the ignition or start the
engine. This means that your vehicle’s OBD II system
is
ready and you can proceed to the I/M station.
If your OBD II system is not ready,you should see your
authorized dealer or repair facility. If your vehicle was
recently serviced or had a battery failure or replacement,
you may need to do nothing more than drive your
vehicle as you normally would in order for your OBD II
system to update. A recheck with the above test routine
may then indicate that the system is now ready.
Regardless of whether your vehicle’s OBD II system is
ready or not, if the MIL is illuminated during normal
vehicle operation you should have your vehicle serviced
before going to the I/M station. The I/M station can fail
your vehicle because the MIL is on with the engine
running.
7
MAINTAINING YOUR VEHICLE 361

VEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days you may want to take steps to protect your
battery. You may:
•Remove fuse #27 in the Intelligent Power Module
labeled Ignition-Off Draw (IOD#1).
•Or, disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e. vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
Interior LightsBulb Type
Glove Box Lamp ......................... 194
Grab Handle Lamp ................ L002825W5W
Overhead Console Reading Lamps .........VT4976
Rear Cargo Lamp ....................... 214–2
Visor Vanity Lamp ..................... V26377
Underpanel Courtesy Lamps ................ 906
Instrument Cluster (General Illumination) ....... 103
Telltale/Hazard Lamp ...................... 74
* Available only from authorized dealers.
Exterior Lights Bulb Type
Backup Lamps ......................... 3057K
Front Fog Lamps ........................ 9145
Front Park/Turn Lamp ................... 3157A
Front Side Marker ...................... W5W
Headlamps (Low Beam) ................... 9006
Headlamps (High Beam) ..................9005
Rear Turn/Stop/Tail Lamps ...............3057K
400 MAINTAINING YOUR VEHICLE

Fluid Type........................... 383
Special Additives ...................... 383
Torque Converter ...................... 254
Autostick ............................. 250
Auxiliary Electrical Outlet (Power Outlet) ...... 140
Auxiliary Power Outlet ................... 140
Battery ............................... 367
Emergency Starting ..................... 351
Keyless Transmitter Replacement (RKE) ....... 24
Saving Feature (Protection) ............... 110
Belts, Seat ............................ 40,75
Body Mechanism Lubrication ............... 369
B-Pillar Location ........................ 290
Brake Assist System ...................... 273
Brake Control System, Electronic ............. 272
Brake Fluid ............................ 380
Brake System ........................... 379
Anti-Lock (ABS) .................... 269,272
Fluid Check .......................... 380 Master Cylinder
....................... 380
Parking ............................. 267
Warning Light ........................ 160
Brake/Transmission Interlock ............... 247
Break-In Recommendations, New Vehicle ........ 73
Bulb Replacement ..................... 400,401
Bulbs, Light ............................ 76
Calibration, Compass ..................... 179
Camera, Rear ........................... 128
Capacities, Fluid ........................ 407
Caps, Filler Fuel ............................... 318
Power Steering ........................ 266
Radiator (Coolant Pressure) ............... 377
Car Washes ............................ 387
Carbon Monoxide Warning ...............74,317
Cargo Area Features ...................... 147
Cargo Compartment ...................... 147
Luggage Carrier ....................... 150
10
INDEX 443

Key, Sentry (Immobilizer)................... 17
Key-In Reminder ......................... 17
Keyless Entry System ...................... 21
Keys ................................. 14
Knee Bolster ............................ 50
Lane Change Assist ...................... 111
Lap/Shoulder Belts ....................... 40
LATCH (Lower Anchors and Tether for
CHildren) ............................ 68,69
Latches ................................ 76
Lead Free Gasoline ...................... 314
Leaks, Fluid ............................ 76
Life of Tires ............................ 300
Liftgate ................................ 33
Liftgate Flipper Glass ...................... 34
Liftgate Window Wiper/Washer ............. 148
Light Bulbs ............................. 76
Lights .............................. 76,104
Airbag ...................... 50,56,61,75,163Anti-Lock
........................... 163
Automatic Headlights ................... 105
Back-Up ............................ 404
Battery Saver ......................... 110
Brake Assist Warning ................... 285
Brake Warning ........................ 160
Bulb Replacement ...................... 401
Center Mounted Stop ................... 406
Courtesy/Reading ..................... 111
Cruise .............................. 168
Daytime Running ...................... 108
Dimmer Switch, Headlight .............104,111
Electronic Stability Program (ESP) Indicator . . . 285
Electronic Throttle Control Warning ......... 169
Exterior .............................. 76
Fog .......................... 108,169,403
Four-Wheel Drive Indicator ............... 168
Fuses ............................... 392
Hazard Warning Flasher ................. 342
