Page 91 of 460
WARNING!
•Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, ex-
haustion or other physical condition must exercise
care when using the seat heater. It may cause burns
even at low temperatures, especially if used for
long periods of time.
•Do not place anything on the seat that insulates
against heat, such as a blanket or cushion. This
may cause the seat heater to overheat. To avoid
heated seat surfaces coming in contact and poten-
tial seat overheating, always ensure that the seat
heater is in the off position before placing any of
the seats into a folded flat position (if equipped).
Rear Heated Seats — If Equipped
On vehicles equipped with rear heated seats, the seats
closest to the doors are heated. The controls for these
seats are located on the rear of the center console.
Rear Heated Seat Switches
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91
Page 109 of 460
•A front fog light is a lighting device providing illumi-
nation forward of the vehicle under conditions of fog,
rain, snow or dust. The front fog lights supplement the
low beams of a standard headlight system.
•Proper aim and adjustments of the front fog lights
should be made to prevent excessive glare for other
drivers.
Instrument Panel and Interior Lights
When the multifunction lever is in the parking light,
headlight or AUTO position (if equipped), rotating the
center portion of the lever up and down will increase and
decrease the brightness (dimmer control) of the instru-
ment panel lights. Full daytime brightness on all elec-
tronic displays (odometer, overhead console, radio, and
Automatic Temperature Control (if equipped) is obtained
by rotating the center portion of the control to the first
detent above the dimmer range. Rotating the control to
the second detent above the dimmer range turns theinterior lights on. Rotating the control to the “Off”
(extreme bottom) position disables all the interior lights,
even when the doors and liftgate are open. While in the
“Off” position the instrument panel lighting is at the
lowest light level and may not be suitable for night
driving.
Dimmer Control
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 109
Page 143 of 460
POWER INVERTER — IF EQUIPPED
There is a 115 Volt, 150 Watt inverter outlet located on the
back of the center console to convert DC current to AC
current. This outlet can power cellular phones, electron-
ics and other low power devices requiring power up to
150 Watts. Certain high-end video games, such as Play-
station3 and XBox360 will exceed this power limit, as will
most power tools.The power inverter is designed with built-in overload
protection. If the power rating of 150 Watts is exceeded,
the power inverter will automatically shut down. Once
the electrical device has been removed from the outlet the
inverter should automatically reset. If the power rating
exceeds approximately 170 Watts, the power inverter
Power Inverter
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 143
Page 145 of 460

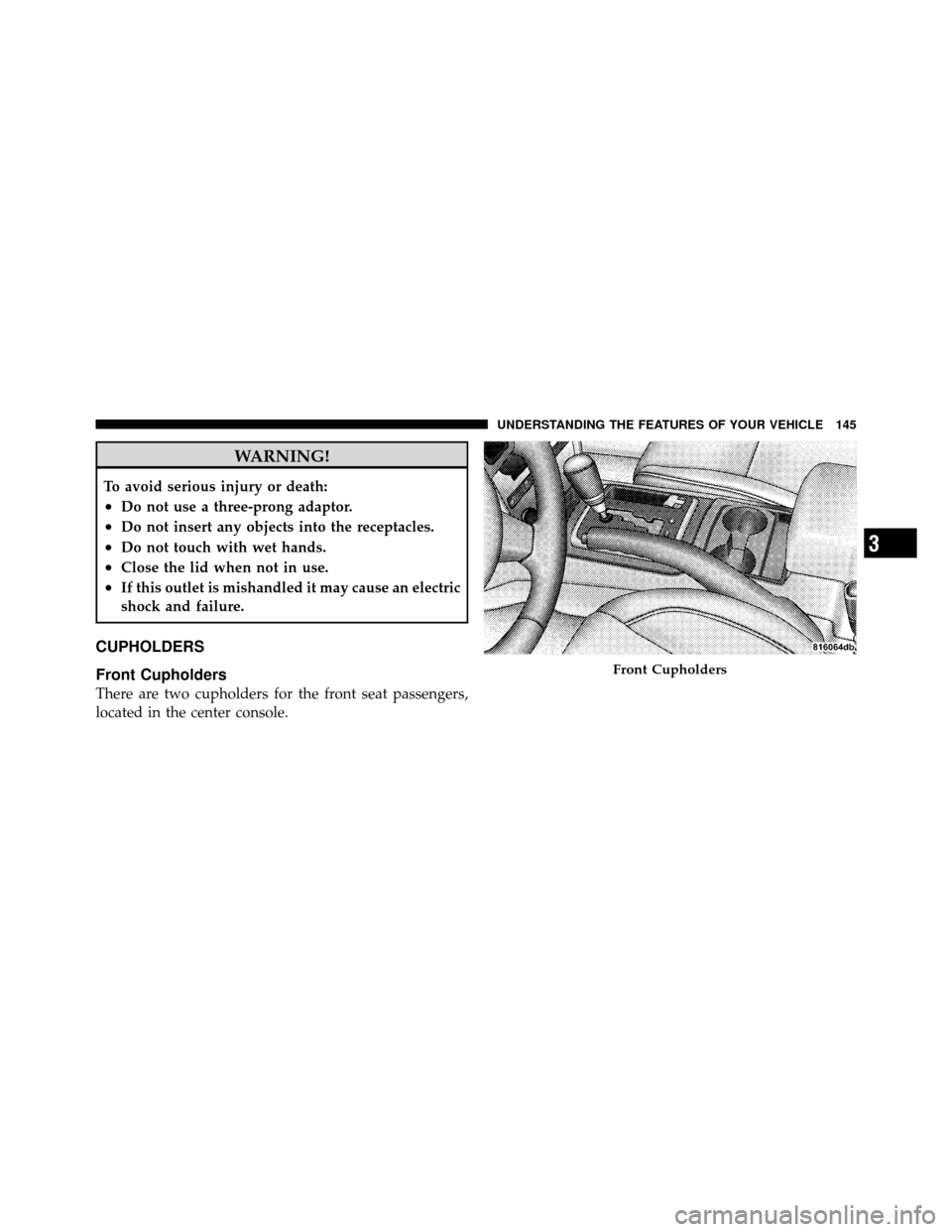

WARNING!
To avoid serious injury or death:
•Do not use a three-prong adaptor.
•Do not insert any objects into the receptacles.
•Do not touch with wet hands.
•Close the lid when not in use.
•If this outlet is mishandled it may cause an electric
shock and failure.
CUPHOLDERS
Front Cupholders
There are two cupholders for the front seat passengers,
located in the center console.
Front Cupholders
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 145
Page 180 of 460
5. Complete one or more 360–degree turns (in an area
free from large metal or metallic objects) until the “CAL”
indicator turns off. The compass will now function
normally.
Compass Variance
Compass Variance is the difference between Magnetic
North and Geographic North. To compensate for the
differences, the variance should be set for the zone where
the vehicle is driven, per the zone map. Once properly
set, the compass will automatically compensate for the
differences, and provide the most accurate compass
heading. For the most accurate compass performance, the
compass must be set using the following steps.
NOTE:Magnetic materials should be kept away from
the overhead console or center of the headliner. This is
where the compass sensor is located. 1. Turn the ignition switch ON.
2. Press the MENU button until Personal Settings
(Customer-Programmable Features) menu is reached.
3. Press the SCROLL button until “Compass Variance” is
displayed in the EVIC.
Compass Variance Map
180 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 225 of 460
directed to the front door windows through the side
window demister grilles. Some airflow is delivered to the
floor while in defrost so that comfort can be maintained.
Defrost/FloorAir flows through the front and rear floor outlets
and the outlets at the base of the windshield. Air is
also directed to the front door windows through the
side window demister grilles. Some airflow is delivered
to the floor while in defrost so that comfort can be
maintained.
Floor Air flows through the floor outlets located under
the instrument panel and into the rear seating area
through vents under the front seats. Some airflow is
delivered to defrost while in the floor mode so that
comfort can be maintained. Bi-Level
Air flows both through the outlets located in the
instrument panel and those located on the floor. Air
flows through the registers in the back of the center
console, and under the front seats to the rear seat
passengers. These registers can be closed to partially
block airflow. The center console outlets deliver condi-
tioned air while the floor outlets deliver heated air.
Panel Air flows through the outlets located in the instru-
ment panel. Air flows through the registers in the
back of the center console to the rear seat passengers.
These registers can be closed to block airflow.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 225
Page 232 of 460
Bi-LevelAir flows both through the outlets located in the
instrument panel and those located on the floor. Air
flows through the registers in the back of the center
console, and under the front seats to the rear seat
passengers. These registers can be closed to block airflow.
The center console outlets deliver conditioned air while
the floor outlets deliver heated air.
Panel Air flows through the outlets located in the instru-
ment panel. Air flows through the registers in the
back of the center console to the rear seat passengers.
These registers can be closed to block airflow.
Air Conditioning Press this button to turn on and off the air condi-
tioning during manual operation only. Condi-
tioned outside air is then directed through the outlets selected on the mode control dial. The button
includes an LED that illuminates when manual operation
is selected.
NOTE:
To manually control the air conditioning, the
mode selector must be moved out of the AUTO position.
Recirculation This button can be used to block out smoke,
odors, dust, high humidity, or if rapid cooling
is desired. The Recirculation mode should only
be used temporarily. The button includes an
LED that illuminates, which indicates that the Recircula-
tion mode is active. You may use this feature separately.
NOTE: Extended use of recirculation may cause the
windows to fog. If the interior of the windows begins to
fog, press the Recirculation button to return to outside
air. Some temperature/humidity conditions will cause
captured interior air to condense on windows and ham-
per visibility. For this reason, the system will not allow
232 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 444 of 460
Cargo Load Floor........................ 147
Cargo (Vehicle Loading) ................... 320
Cellular Phone ........................ 85,223
Center High Mounted Stop Light ............ 406
Certification Label ....................... 320
Chains, Tire ............................ 301
Changing A Flat Tire ..................... 343
Chart, Tire Sizing ........................ 287
Check Engine Light (Malfunction Indicator Light) . 360
Checking Your Vehicle For Safety ............. 73
Checks, Safety ........................... 73
Child Restraint .................... 63,64,69,71
Child Restraint Tether Anchors .............68,69
Child Safety Locks ........................ 30
Climate Control ......................... 223
Clock ........................... 186,190,199
Cold Weather Operation ................... 244
Command View Skylights .................. 139
Compact Disc (CD) Maintenance ............. 222Compact Spare Tire
...................... 297
Compass .............................. 179
Compass Calibration ..................... 179
Compass Variance ....................... 180
Computer, Trip/Travel .................... 176
Connector UCI ................................ 209
Universal Consumer Interface (UCI) ......... 209
Conserving Fuel ........................ 176
Console, Overhead ....................... 130
Contract, Service ........................ 435
Cooling System ......................... 374
Adding Coolant (Antifreeze) .............. 376
Coolant Capacity ...................... 407
Coolant Level ......................... 378
Disposal of Used Coolant ................ 377
Drain, Flush, and Refill .................. 375
Inspection ........................... 374
Points to Remember .................... 378
444 INDEX
Page 453 of 460
Oil, Engine............................ 363
Capacity ............................ 407
Change Interval ....................... 364
Dipstick ............................. 363
Disposal ............................ 365
Filter ............................... 366
Filter Disposal ........................ 365
Identification Logo ..................... 364
Materials Added to ..................... 365
Recommendation ................... 364,407
Synthetic ............................ 365
Viscosity ......................... 365,407
Onboard Diagnostic System ..............359,360
Opener, Garage Door (HomeLink) ........... 130
Operator Manual (Owner’s Manual) ............ 6
Outside Rearview Mirrors .................. 83
Overdrive ............................. 251
Overdrive OFF Switch .................... 251
Overhead Console ....................... 130 Overheating, Engine
................... 166,342
Owner’s Manual (Operator Manual) .........6,437
Paint Care ............................. 387
Paint Damage .......................... 387
Panic Alarm ............................ 24
Park Sense System, Rear ................... 122
Parking Brake .......................... 267
Passing Light ........................... 111
Pedals, Adjustable ....................... 117
Personal Settings ........................ 181
Pets .................................. 72
Pets, Transporting ........................ 72
Phone, Cellular .......................... 85
Phone, Hands-Free (uconnect) ............... 85
Placard, Tire and Loading Information ......... 290
Polishing and Waxing ..................... 388
Power Distribution Center (Fuses) ............... 395
Door Locks ........................... 29
10
INDEX 453
