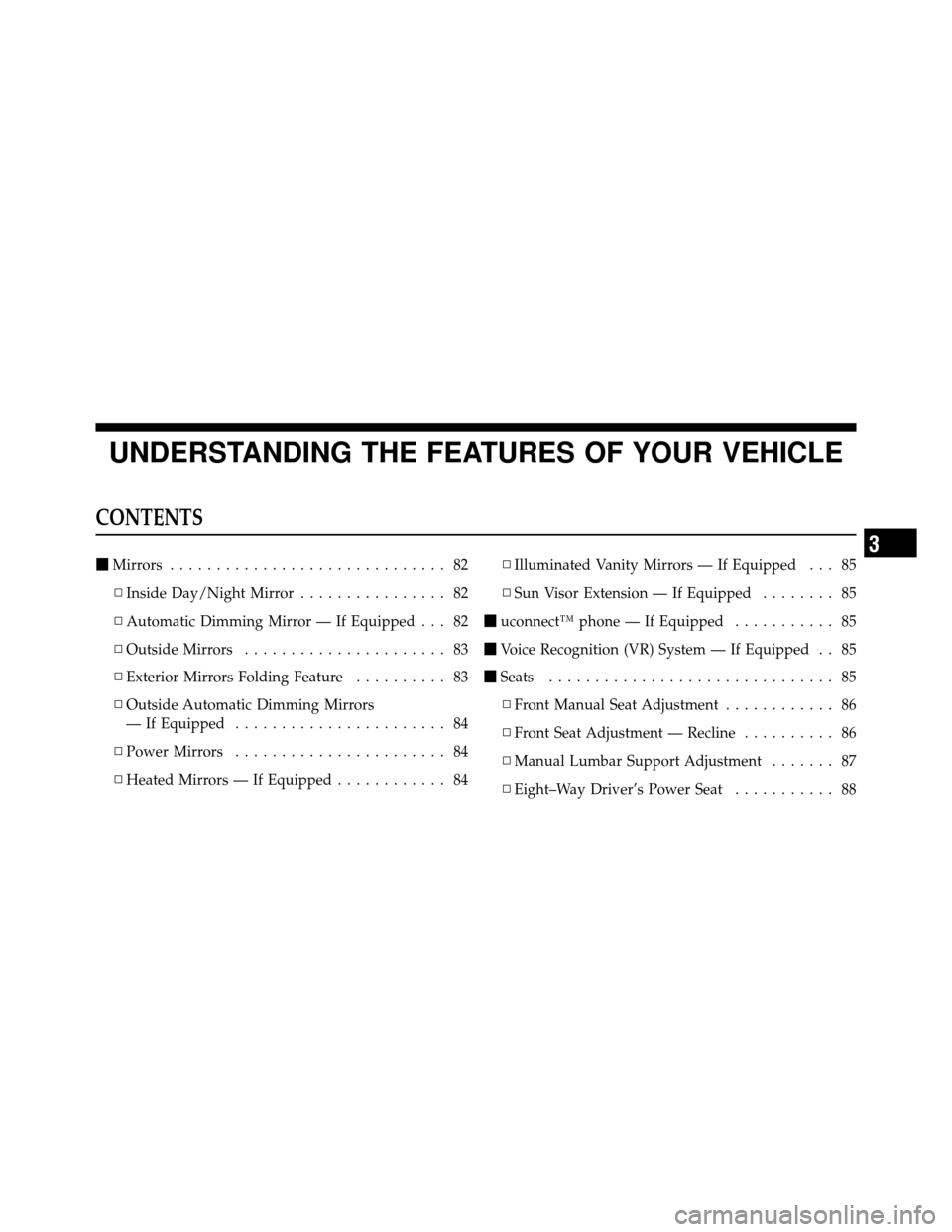

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
Mirrors .............................. 82
▫ Inside Day/Night Mirror ................ 82
▫ Automatic Dimming Mirror — If Equipped . . . 82
▫ Outside Mirrors ...................... 83
▫ Exterior Mirrors Folding Feature .......... 83
▫ Outside Automatic Dimming Mirrors
— If Equipped ....................... 84
▫ Power Mirrors ....................... 84
▫ Heated Mirrors — If Equipped ............ 84▫
Illuminated Vanity Mirrors — If Equipped . . . 85
▫ Sun Visor Extension — If Equipped ........ 85
 uconnect™ phone — If Equipped ........... 85
 Voice Recognition (VR) System — If Equipped . . 85
 Seats ............................... 85
▫ Front Manual Seat Adjustment ............ 86
▫ Front Seat Adjustment — Recline .......... 86
▫ Manual Lumbar Support Adjustment ....... 87
▫ Eight–Way Driver’s Power Seat ........... 88
3

MIRRORS
Inside Day/Night Mirror
A two-point pivot system allows for horizontal and
vertical adjustment of the mirror. The mirror should be
adjusted to center on the view through the rear window.
Headlight glare from vehicles behind you can be reduced
by moving the small control under the mirror to the night
position (toward the rear of the vehicle). The mirror
should be adjusted while set in the day position (toward
the windshield).
Automatic Dimming Mirror — If Equipped
This mirror automatically adjusts for headlight glare
from vehicles behind you. You can turn the feature on or
off by pressing the button at the base of the mirror. A light
next to the button will indicate when the dimming
feature is activated.
Adjusting Rear View Mirror
82 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Outside Mirrors
To receive maximum benefit, adjust the outside mirrors
to center on the adjacent lane of traffic with a slight
overlap of the view obtained on the inside mirror.
WARNING!
Vehicles and other objects seen in the passenger-side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger-side mirror could cause you to collide with
another vehicle or other object. Use your inside
mirror when judging the size or distance of a vehicle
seen in the passenger-side mirror.
Exterior Mirrors Folding Feature
All exterior mirrors are hinged and may be moved either
forward or rearward to resist damage. The hinges have
three detent positions; full forward, full rearward and
normal.
Automatic Dimming Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 83

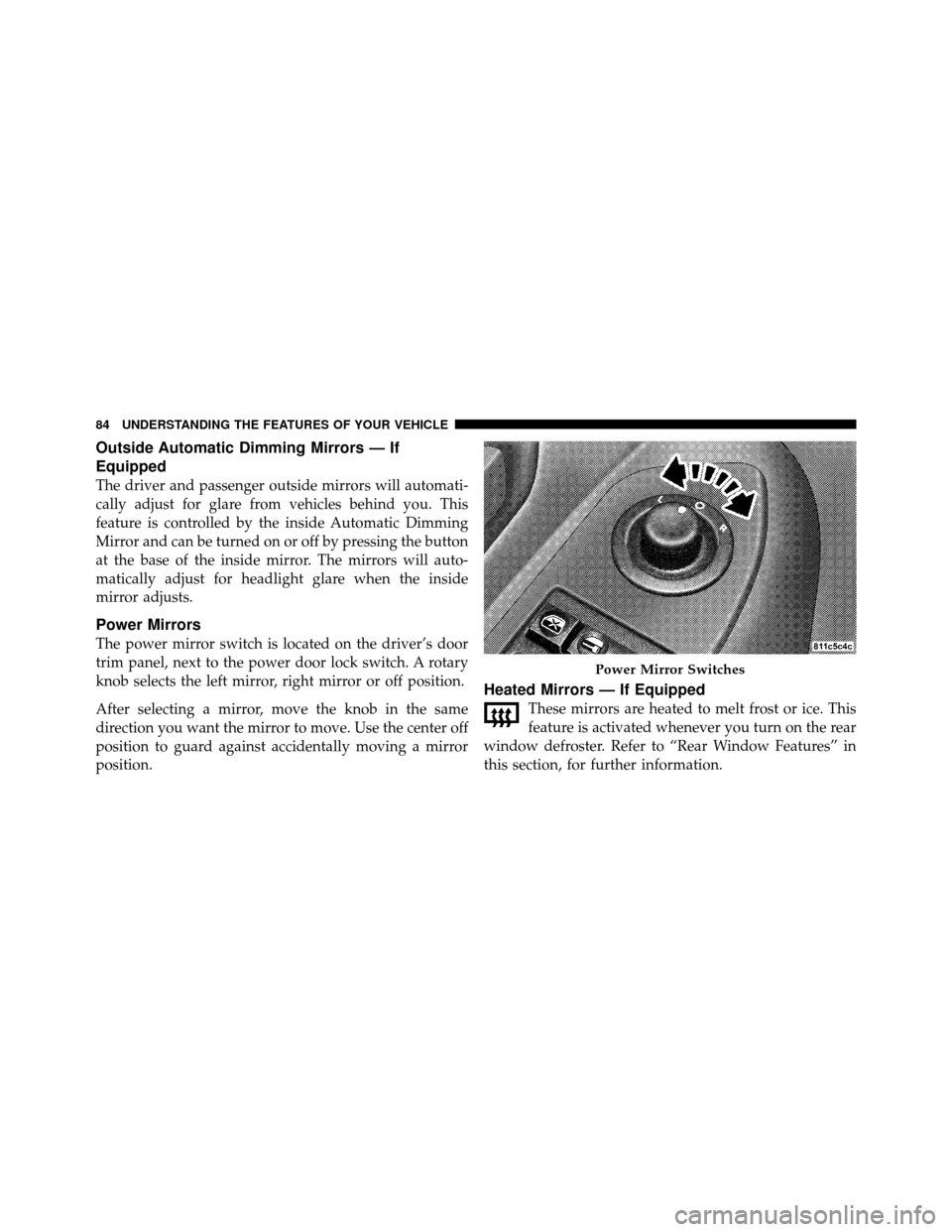

Outside Automatic Dimming Mirrors — If
Equipped
The driver and passenger outside mirrors will automati-
cally adjust for glare from vehicles behind you. This
feature is controlled by the inside Automatic Dimming
Mirror and can be turned on or off by pressing the button
at the base of the inside mirror. The mirrors will auto-
matically adjust for headlight glare when the inside
mirror adjusts.
Power Mirrors
The power mirror switch is located on the driver’s door
trim panel, next to the power door lock switch. A rotary
knob selects the left mirror, right mirror or off position.
After selecting a mirror, move the knob in the same
direction you want the mirror to move. Use the center off
position to guard against accidentally moving a mirror
position.
Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This
feature is activated whenever you turn on the rear
window defroster. Refer to “Rear Window Features” in
this section, for further information.
Power Mirror Switches
84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

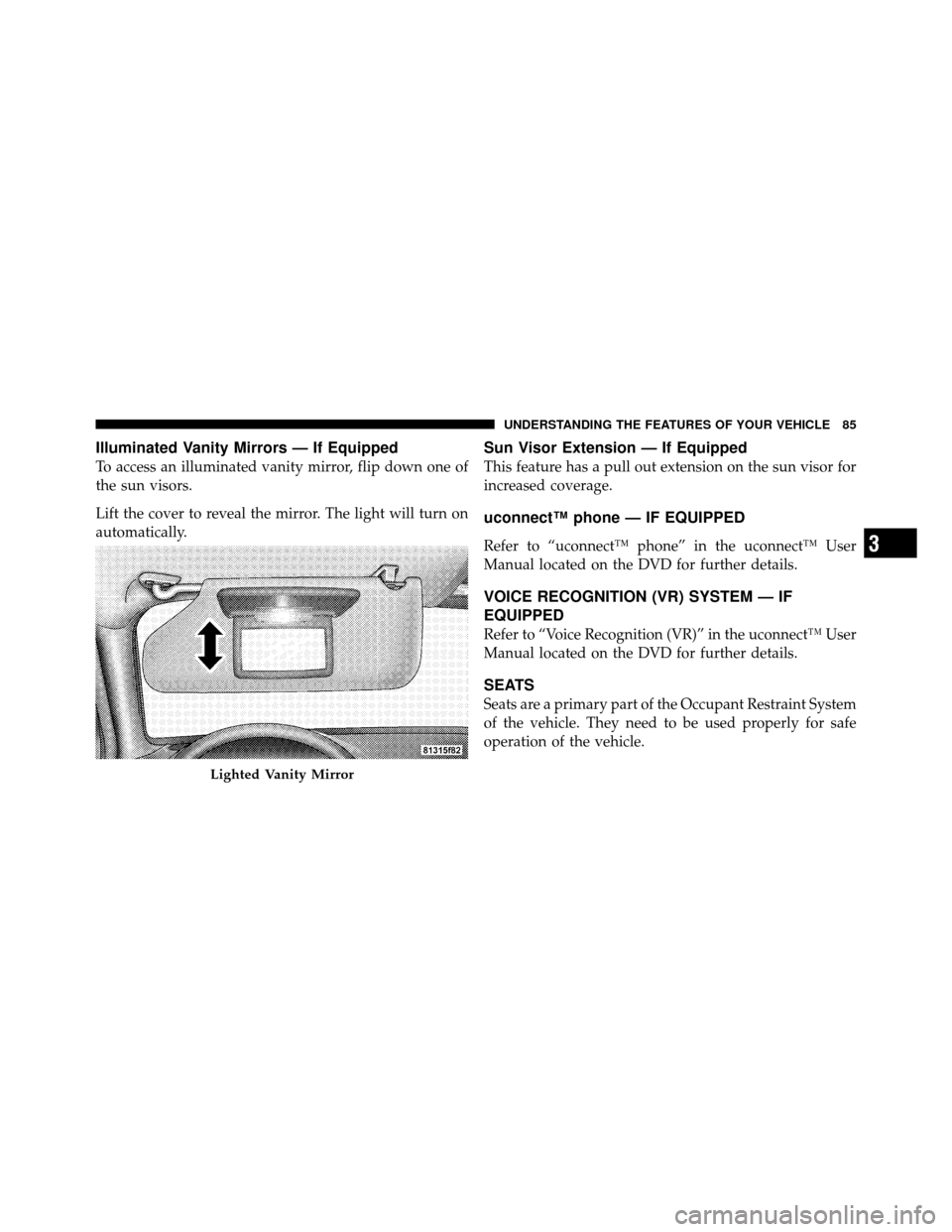

Illuminated Vanity Mirrors — If Equipped
To access an illuminated vanity mirror, flip down one of
the sun visors.
Lift the cover to reveal the mirror. The light will turn on
automatically.
Sun Visor Extension — If Equipped
This feature has a pull out extension on the sun visor for
increased coverage.
uconnect™ phone — IF EQUIPPED
Refer to “uconnect™ phone” in the uconnect™ User
Manual located on the DVD for further details.
VOICE RECOGNITION (VR) SYSTEM — IF
EQUIPPED
Refer to “Voice Recognition (VR)” in the uconnect™ User
Manual located on the DVD for further details.
SEATS
Seats are a primary part of the Occupant Restraint System
of the vehicle. They need to be used properly for safe
operation of the vehicle.
Lighted Vanity Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85

To Raise Rear Seat
1. Open the tailgate.
2. Detach pull strap from back of seat and pull seatback
upward until it locks into place. Reattach strap.
3. Close the tailgate.
WARNING!
The cargo area in the rear of the vehicle (with the rear
seatbacks in the locked-up or folded down position)
should not be used as a play area by children when
the vehicle is in motion. They could be seriously
injured in an accident. Children should be seated
and using the proper restraint system.
DRIVER MEMORY SEAT — IF EQUIPPED
Once programmed, the memory buttons 1 and 2 on the
driver’s door panel can be used to recall the driver’s seat,
driver’s outside mirror, adjustable brake and accelerator
pedals and radio station preset settings. Your Remote
Keyless Entry (RKE) transmitters can also be pro-
grammed to recall the same positions when the UN-
LOCK button is pressed.
Pull Strap
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Your vehicle is equipped with two RKE transmitters. One
or both RKE transmitters can be linked to either memory
position. The memory system can accommodate up to
four RKE transmitters, each one linked to either of the
two memory positions.
Setting Memory Positions and Linking Remote
Keyless Entry Transmitter to Memory
NOTE:Each time the S (SET) button and a numbered
button 1 or 2 are pressed, you erase the memory settings
for that button and store a new one.
1. Insert the ignition key, and turn the ignition switch to
the ON position.
2. Press the driver door MEMORY button number 1 if
you are setting the memory for driver 1, or button
number 2 if you are setting the memory for driver 2. The
system will recall any stored settings. Wait for the system
to complete the memory recall before continuing to
Step 3.
3. Adjust the driver’s seat, recliner, and driver’s sideview
mirror to the desired positions.
4. Adjust the brake and accelerator pedals to the desired
positions.
Driver Memory Switches
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99

To recall the memory setting for driver two, press
MEMORY button number 2 on the driver’s door, or the
UNLOCK button on the RKE transmitter linked to
memory position 2.
A recall can be cancelled by pressing any of the
MEMORY buttons on the drivers door during a recall (S,
1, or 2). When a recall is cancelled, the driver’s seat,
driver’s mirror and the pedals stop moving. A delay of
one second will occur before another recall can be
selected.
To Disable a RKE Transmitter Linked to Memory
1. Turn the ignition switch to the LOCK position, and
remove the key.
2. Press and release MEMORY button number 1. The
system will recall any memory settings stored in position
1. Wait for the system to complete the memory recall
before continuing to Step 3.3. Press and release the memory S (SET) button located
on the driver’s door.
4. Within five seconds, press and release MEMORY
button 1 on the driver’s door.
5. Within five seconds, press and release the UNLOCK
button on the RKE transmitter.
To disable another RKE transmitter linked to either
memory position, repeat steps 1 through 5 for each RKE
transmitter.
NOTE:
Once programmed, all RKE transmitters linked
to memory can be easily enabled or disabled at one time.
Refer to Remote Linked to Memory under Electronic
Vehicle Information Center (EVIC) — Customer-
Programmable Features in Section 4 for more
information.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101

This system performs two functions. With the engine
running and the multifunction lever in the AUTO posi-
tion, the headlights will turn on and off based on the
surrounding light levels.
Headlights On Automatically With Wipers
If your vehicle is equipped with Automatic Headlights it
also has this customer-programmable feature. When
your headlights are in the AUTO position, and the engine
is running, they will automatically turn on when the
wiper system is on. Refer to “Headlamps On with
Wipers” under “Electronic Vehicle Information (EVIC) —
Customer-Programmable Features” in Section 4.
If your vehicle is equipped with a “Rain Sensitive Wiper
System,” and it is activated, the headlights will automati-
cally turn on after the wipers complete five wipe cycles
within approximately one minute, and they will turn offapproximately four minutes after the wipers completely
stop. Refer to “Windshield Wipers and Washers” in this
section for more information.
NOTE:
When your headlights come on during the
daytime, the instrument panel lights will automatically
dim to the lower nighttime intensity. Refer to “Instru-
ment Panel and Interior Lights” below for setting the
instrument panel lights to full daytime intensity.
SmartBeam™ — If Equipped
The SmartBeam™ system provides increased forward
lighting at night by automating high beam control
through the use of a digital camera mounted on the
inside rearview mirror. This camera detects vehicle spe-
cific light and automatically switches from high beams to
low beams until the approaching vehicle is out of view.
106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:If the windshield or SmartBeam™ mirror is
replaced, the SmartBeam™ mirror must be re-aimed to
ensure proper performance. See your local authorized
dealer.
To Activate
1. Select “Auto High Beams” Refer to “Electronic Vehicle
Information Center (EVIC) — Customer-Programmable
Features” in Section 4 of this manual.
2. Turn the end of the multifunction lever to the AUTO
headlight position.
3. Push the multifunction lever away from you (toward
front of vehicle) to engage the high beam mode.
NOTE: This system will not activate until the vehicle is
at or above 20 mph (32 km/h).
To Deactivate
1. Pull back on the multifunction lever to manually
deactivate the system (normal operation of high beams).
2. Pull back on the multifunction lever once again to
reactivate the system.
NOTE: Broken, muddy, or obstructed headlights and
taillights of vehicles in the field of view will cause
headlights to remain on longer (closer to the vehicle).
Also, dirt, film, and other obstructions (sticker, toll box,
etc.) on the windshield or camera lens will cause the
system to function improperly.
Automatic Headlight Leveling — HID Headlights
Only
This feature prevents the headlights from interfering
with the vision of oncoming drivers. Headlight leveling
automatically adjusts the height of the headlight beam in
reaction to changes in vehicle pitch.
3
